Oracle11.2.0.4 RAC迁移升级Oracle19.3 RAC

news 2025/7/18 6:35:15

问题描述

填写问题的基础信息。

系统名称

Oracle11.2.0.4迁移升级Oracle19.3

IP地址

操作系统

Centos7.5

数据库

Oracle11.2.0.4迁移升级Oracle19.3

症状表现

问题的症状表现如下

需要将单机的Oracle11.2.0.4环境升级到Oracle19.3.0RAC环境，采用迁移升级的方式：

数据库版本

IP地址

源端

Oracle11.2.0.4 单机

192.168.123.10

目标

Oracle19.3.0 RAC

192.168.123.3/4

处理过程

处理过程推荐按照时间以列表形式，将处理过程时间点，处理内容。

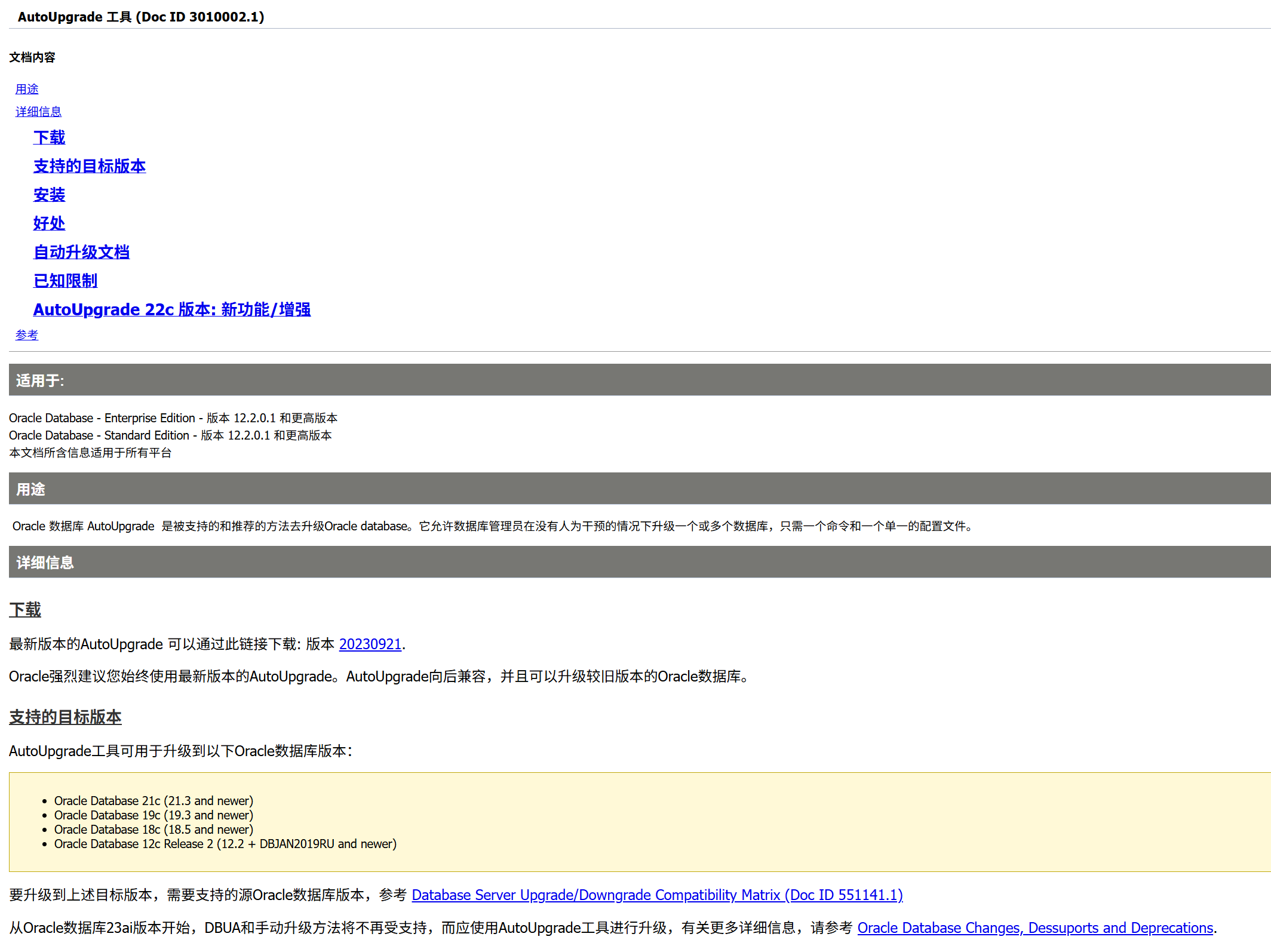

1、下载最近的Autoupgrade工具，AutoUpgrade 工具 (Doc ID 3010002.1)：

📎autoupgrade.jar

2、目标库&源端-配置JAVA环境变量，直接使用19c安装时候JDK:

#目标端
[oracle@ora19c1 bin]$ ./java -version
java version "1.8.0_201"
Java(TM) SE Runtime Environment (build 1.8.0_201-b09)
Java HotSpot(TM) 64-Bit Server VM (build 25.201-b09, mixed mode)
[oracle@ora19c1 bin]$ pwd
/u01/app/oracle/product/19.3.0/db_1/jdk/bin#配置/etc/profile
export JAVA_HOME=/u01/app/oracle/product/19.3.0/db_1/jdk
export JRE_HOME=/u01/app/oracle/product/19.3.0/db_1/jdk/jre
export PATH=$PATH:$JAVA_HOME/bin#验证
[root@ora19c1 ~]# source /etc/profile
[root@ora19c1 ~]# java -version
java version "1.8.0_201"
Java(TM) SE Runtime Environment (build 1.8.0_201-b09)
Java HotSpot(TM) 64-Bit Server VM (build 25.201-b09, mixed mode)
[root@ora19c1 ~]# su - oracle
Last login: Tue Jun 24 18:36:49 CST 2025 on pts/0
[oracle@ora19c1 ~]$ java -version
java version "1.8.0_201"
Java(TM) SE Runtime Environment (build 1.8.0_201-b09)
Java HotSpot(TM) 64-Bit Server VM (build 25.201-b09, mixed mode)
[oracle@ora19c1 ~]$ java -jar autoupgrade.jar -version
build.version 25.3.250509
build.date 2025/05/09 02:53:51 +0000
build.hash 3110a3d32
build.hash_date 2025/05/05 19:43:04 +0000
build.supported_target_versions 12.2,18,19,21,23
build.type production
build.label (HEAD, tag: v25.3, origin/stable_devel, stable_devel)
build.MOS_NOTE 2485457.1
build.MOS_LINK https://support.oracle.com/epmos/faces/DocumentDisplay?id=2485457.1[oracle@ora19c1 upgrade]$ scp -r $ORACLE_HOME/jdk 192.168.123.10:/home/oracle#源端：
[root@ora11g ~]# vi /etc/profileexport JAVA_HOME=/home/oracle/jdk
export JRE_HOME=/home/oracle/jdk/jre
export PATH=$PATH:$JAVA_HOME/bin

3、源端-创建升级配置文件并检查升级要求

[oracle@ora11g upgrade]$ java -jar autoupgrade.jar -create_sample_file config
Created sample configuration file /home/oracle/upgrade/sample_config.cfg#Global configurations
#Autoupgrade's global directory, ...
#temp files created and other ...
#send here
global.autoupg_log_dir=/home/oracle/upgrade#
# Database number 1
#
upg1.dbname=orcl
upg1.start_time=NOW
upg1.source_home=/u01/app/oracle/product/11.2.0/db_1
upg1.target_home=/u01/app/oracle/product/19.3.0/db_1
upg1.sid=orcl
upg1.log_dir=/home/oracle/upgrade
upg1.upgrade_node=ora11g
upg1.target_version=19
upg1.restoration=no#进行检查
[oracle@ora11g upgrade]$ java -jar autoupgrade.jar -config ./sample_config.cfg -mode analyze
AutoUpgrade 25.3.250509 launched with default internal options
Processing config file ...
+--------------------------------+
| Starting AutoUpgrade execution |
+--------------------------------+
1 Non-CDB(s) will be analyzed
Type 'help' to list console commands
upg> Job 100 completed
------------------- Final Summary --------------------
Number of databases            [ 1 ]Jobs finished                  [1]
Jobs failed                    [0]Please check the summary report at:
/home/oracle/upgrade/cfgtoollogs/upgrade/auto/status/status.html
/home/oracle/upgrade/cfgtoollogs/upgrade/auto/status/status.log#显示检查结果正常
[oracle@ora11g upgrade]$ more /home/oracle/upgrade/cfgtoollogs/upgrade/auto/status/status.log
==========================================Autoupgrade Summary Report
==========================================
[Date]           Tue Jun 24 16:05:29 CST 2025
[Number of Jobs] 1
==========================================
[Job ID] 100
==========================================
[DB Name]                orcl
[Version Before Upgrade] 11.2.0.4.0
[Version After Upgrade]  19
------------------------------------------
[Stage Name]    PRECHECKS
[Status]        SUCCESS
[Start Time]    2025-06-24 16:05:16
[Duration]      0:00:12
[Log Directory] /home/oracle/upgrade/orcl/100/prechecks
[Detail]        /home/oracle/upgrade/orcl/100/prechecks/orcl_preupgrade.logCheck passed and no manual intervention needed
------------------------------------------#查看进一步的orcl_preupgrade.log发现有一些waring和建议：
BEFORE UPGRADE
==============REQUIRED ACTIONS================NoneRECOMMENDED ACTIONS===================1.  (AUTOFIXUP) Remove OLAP Catalog by running the 11.2.0.4.0 SQL script$ORACLE_HOME/olap/admin/catnoamd.sql script.Starting with Oracle Database 12c, the OLAP Catalog (OLAP AMD) isdesupported and will be automatically marked as OPTION OFF during thedatabase upgrade if present. Oracle recommends removing OLAP Catalog(OLAP AMD) before database upgrade. This step can be manually performedbefore the upgrade to reduce downtime.The OLAP Catalog component, AMD, exists in the database.2.  (AUTOFIXUP) Connect to the database as SYS to drop all Data Pump AdvancedQueuing (AQ) tables prior to upgrading. Check MOS note 2789059.1 fordetails.The database needs to be free of Data Pump Advanced Queuing (AQ) tablesin order for Data Pump AQ message types to be re-created during thedatabase upgrade.There exists at least one Data Pump Advanced Queuing (AQ) table in theSYS schema which might prevent Data Pump AQ message types from gettingre-created.3.  (AUTOFIXUP) Remove the EM repository.- Copy the $ORACLE_HOME/rdbms/admin/emremove.sql script from the target19 ORACLE_HOME into the source 11.2.0.4.0 ORACLE_HOME.Step 1: If database control is configured, stop EM Database Control,using the following command$> emctl stop dbconsoleStep 2: Connect to the database using the SYS account AS SYSDBASET ECHO ON;SET SERVEROUTPUT ON;@emremove.sqlWithout the set echo and serveroutput commands, you will not be able tofollow the progress of the script.Starting with Oracle Database 12c, the local Enterprise Manager DatabaseControl does not exist anymore. The repository will be removed from yourdatabase during the upgrade. This step can be manually performed beforethe upgrade to reduce downtime.The database has an Enterprise Manager Database Control repository.4.  Make sure that all the MVs are refreshed and sys.sumdelta$ becomes emptybefore doing upgrade, unless you have strong business reasons not to doso. You can use dbms_mview.refresh() to refresh the MVs except thosestale ones  to be kept due to business need. If there are any stale MVsdepending on changes in sys.sumdelta$, do not truncate it, because doingso will cause wrong results after refresh. Refer to the Materialized Viewsection in MOS Note 2380601.1 for more details.Oracle recommends that all materialized views (MV's) are refreshed beforeupgrading the database because this will clear the MV logs and thesumdelta$ table and may reduce the upgrade time. If you choose to notrefresh some MVs, the change data for those MV's will be carried throughthe UPGRADE process. After UPGRADE, you can refresh the MV's and  MVincremental refresh should work in normal cases.There are one or more materialized views in either stale or invalidstate, or which are currently being refreshed.5.  (AUTOFIXUP) Update NUMERIC INITIALIZATION PARAMETERS to meet estimatedminimums. This action may be done now or when starting the database inupgrade mode using the 19 ORACLE HOME.The database upgrade process requires certain initialization parametersto meet minimum values. The Oracle upgrade process itself has minimumvalues which may be higher and are marked with an asterisk. Afterupgrading, those asterisked parameter values may be reset if needed.Parameter                                 Currently  19 minimum---------                                 ---------  ------------------*sga_target                                624951296          10024386566.  Upgrade Oracle Application Express (APEX) manually before or after thedatabase upgrade.Starting with Oracle Database Release 18, APEX is not upgradedautomatically as part of the database upgrade. Refer to My Oracle SupportNote 1088970.1 for information about APEX installation and upgrades.Refer to MOS Note 1344948.1 for the minimum APEX version supported foryour target database release. Unsupported versions of APEX will be in anINVALID state when its database dependencies are not in sync with theupgraded database.The database contains APEX. APEX must be upgraded either before or afterthe database is upgraded7.  Review below list of parameters set in memory only and for the ones thatare intended to be permanent:1. Save these settings in respective SPFILE.2. Run AutoUpgrade in ANALYZE mode so that parameters can get reflectedin interim pfiles created by the tool.The parameters with values that are in memory only are:Instance     Parameter      Memory Value        Parameter File Value----------   ------------   -----------------   --------------------orcl         sga_target     624951296           622854144           orcl         sessions       1222                885                 For database initialization parameter values that are not in thedatabase's initialization parameter file (pfile/spfile), note that thevalues in memory only will be lost on database shutdown in the currentOracle home prior to upgrading. Hence, these values will not be used inthe database upgrade unless they are recorded in the parameter file.Found at least one parameter with a value in memory that is not in thedatabase's initialization parameter file.8.  (AUTOFIXUP) Gather stale data dictionary statistics prior to databaseupgrade in off-peak time using:EXECUTE DBMS_STATS.GATHER_DICTIONARY_STATS;Dictionary statistics help the Oracle optimizer find efficient SQLexecution plans and are essential for proper upgrade timing. Oraclerecommends gathering dictionary statistics in the last 24 hours beforedatabase upgrade.For information on managing optimizer statistics, refer to the 11.2.0.4Oracle Database Performance Tuning Guide.Dictionary statistics do not exist or are stale (not up-to-date).9.  (AUTOFIXUP) Directly grant ADMINISTER DATABASE TRIGGER privilege to theowner of the trigger or drop and re-create the trigger with a user thatwas granted directly with such. You can list those triggers using: SELECTOWNER, TRIGGER_NAME FROM DBA_TRIGGERS WHERETRIM(BASE_OBJECT_TYPE)='DATABASE' AND OWNER NOT IN (SELECT GRANTEE FROMDBA_SYS_PRIVS WHERE PRIVILEGE='ADMINISTER DATABASE TRIGGER').The creation of database triggers must be done by users granted withADMINISTER DATABASE TRIGGER privilege. Privilege must have been granteddirectly.There is one or more database triggers whose owner does not have theright privilege on the database.10. (AUTOFIXUP) Gather statistics on fixed objects prior to the upgrade usingthe command:EXECUTE DBMS_STATS.GATHER_FIXED_OBJECTS_STATS;Gathering statistics on fixed objects, if none have been gathered yet, isrecommended prior to upgrading.For information on managing optimizer statistics, refer to the 11.2.0.4Oracle Database Performance Tuning Guide.None of the fixed object tables have had stats collected.#执行自动fixup
[oracle@ora11g upgrade]$ java -jar autoupgrade.jar -config ./sample_config.cfg -mode fixups
AutoUpgrade 25.3.250509 launched with default internal options
Processing config file ...
+--------------------------------+
| Starting AutoUpgrade execution |
+--------------------------------+
1 Non-CDB(s) will be processed
Type 'help' to list console commands
upg> WARNING: Target home entry is not available. This could be because is not specified in the configuration file or the specified path does not exist, this may lead AutoUpgrade to not be able to run the fixups for certain checks which need the target Oracle home presence.upg>
upg> lsj
+----+-------+---------+---------+-------+----------+-------+----------------+
|Job#|DB_NAME|    STAGE|OPERATION| STATUS|START_TIME|UPDATED|         MESSAGE|
+----+-------+---------+---------+-------+----------+-------+----------------+
| 101|   orcl|PREFIXUPS|EXECUTING|RUNNING|  16:09:39| 7s ago|Executing fixups|
+----+-------+---------+---------+-------+----------+-------+----------------+
Total jobs 1upg> status -job 101
DetailsJob No           101Oracle SID       orclStart Time       25/06/24 16:09:39Elapsed (min):   0End time:        N/ALogfilesLogs Base:    /home/oracle/upgrade/orclJob logs:     /home/oracle/upgrade/orcl/101Stage logs:   /home/oracle/upgrade/orcl/101/prefixupsTimeZone:     /home/oracle/upgrade/orcl/tempRemote Dirs:  StagesSETUP            <1 minDISPATCH         <1 minPRECHECKS        <1 minPREFIXUPS        ~0 min (RUNNING)Stage-Progress Per Container+--------+---------+|Database|PREFIXUPS|+--------+---------+|    orcl|    8  % |+--------+---------+upg> status -job 101
DetailsJob No           101Oracle SID       orclStart Time       25/06/24 16:09:39Elapsed (min):   2End time:        N/ALogfilesLogs Base:    /home/oracle/upgrade/orclJob logs:     /home/oracle/upgrade/orcl/101Stage logs:   /home/oracle/upgrade/orcl/101/prefixupsTimeZone:     /home/oracle/upgrade/orcl/tempRemote Dirs:  StagesSETUP            <1 minDISPATCH         <1 minPRECHECKS        <1 minPREFIXUPS        ~1 min (RUNNING)Stage-Progress Per Container+--------+---------+|Database|PREFIXUPS|+--------+---------+|    orcl|    8  % |+--------+---------+upg> lsj
+----+-------+---------+---------+-------+----------+--------+----------------+
|Job#|DB_NAME|    STAGE|OPERATION| STATUS|START_TIME| UPDATED|         MESSAGE|
+----+-------+---------+---------+-------+----------+--------+----------------+
| 101|   orcl|PREFIXUPS|EXECUTING|RUNNING|  16:09:39|117s ago|Executing fixups|
+----+-------+---------+---------+-------+----------+--------+----------------+
Total jobs 1upg> exit
There is 1 job in progress. if you exit it will stop
Are you sure you wish to leave? [y|N] Job 101 completed
------------------- Final Summary --------------------
Number of databases            [ 1 ]Jobs finished                  [1]
Jobs failed                    [0]Please check the summary report at:
/home/oracle/upgrade/cfgtoollogs/upgrade/auto/status/status.html
/home/oracle/upgrade/cfgtoollogs/upgrade/auto/status/status.log#验证自动fixup成功
[oracle@ora11g upgrade]$ more /home/oracle/upgrade/cfgtoollogs/upgrade/auto/status/status.log
==========================================Autoupgrade Summary Report
==========================================
[Date]           Tue Jun 24 16:14:30 CST 2025
[Number of Jobs] 1
==========================================
[Job ID] 101
==========================================
[DB Name]                orcl
[Version Before Upgrade] 11.2.0.4.0
[Version After Upgrade]  19
------------------------------------------
[Stage Name]    PRECHECKS
[Status]        SUCCESS
[Start Time]    2025-06-24 16:09:39
[Duration]      0:00:09
[Log Directory] /home/oracle/upgrade/orcl/101/prechecks
[Detail]        /home/oracle/upgrade/orcl/101/prechecks/orcl_preupgrade.logCheck passed and no manual intervention needed
------------------------------------------
[Stage Name]    PREFIXUPS
[Status]        SUCCESS
[Start Time]    2025-06-24 16:09:49
[Duration]      0:03:49
[Log Directory] /home/oracle/upgrade/orcl/101/prefixups
[Detail]        /home/oracle/upgrade/orcl/101/prefixups/prefixups.html
------------------------------------------

4、源库-使用rman备份原有生产数据库：

[oracle@ora11g bak]$ mkdir /home/oracle/rman
[oracle@ora11g bak]$ rman target /RMAN>
run{
allocate channel c1 device type disk;
allocate channel c2 device type disk;
allocate channel c3 device type disk;
allocate channel c4 device type disk;
backup as compressed backupset database format '/home/oracle/rman/db_full_%d_%T_%p_%u.bak';
sql 'alter system archive log current';
backup as compressed backupset archivelog all not backed up 1 times format '/home/oracle/rman/arc_%d_%U.bak';
copy current controlfile to '/home/oracle/rman/cf_%d_id-%I_%u.ctl';
release channel c1;
release channel c2;
release channel c3;
release channel c4;
}[oracle@ora11g rman]$ cd /home/oracle/rman
[oracle@ora11g rman]$ ls -l
total 332992
-rw-r----- 1 oracle oinstall   7602176 Jun 24 14:35 ARCH043sqni0_1_1.bkp
-rw-r----- 1 oracle oinstall   9830400 Jun 24 14:35 c-1732109901-20250624-00
-rw-r----- 1 oracle oinstall   9830400 Jun 24 14:35 c-1732109901-20250624-01
-rw-r----- 1 oracle oinstall   9797632 Jun 24 14:35 control_ctl
-rw-r----- 1 oracle oinstall 303923200 Jun 24 14:35 DB013sqnh3_1_1.bkp

5、目标-恢复rman备份

#先启动一个dummy实例
[oracle@ora19c1 ~]$ export ORACLE_SID=orcl1
[oracle@ora19c1 ~]$ rman target /Recovery Manager: Release 19.0.0.0.0 - Production on Tue Jun 24 14:37:46 2025
Version 19.3.0.0.0Copyright (c) 1982, 2019, Oracle and/or its affiliates.  All rights reserved.connected to target database (not started)RMAN> startup nomount;startup failed: ORA-01078: failure in processing system parameters
LRM-00109: could not open parameter file '/u01/app/oracle/product/19.3.0/db_1/dbs/initorcl1.ora'starting Oracle instance without parameter file for retrieval of spfile
Oracle instance startedTotal System Global Area    1073737800 bytesFixed Size                     8904776 bytes
Variable Size                276824064 bytes
Database Buffers             780140544 bytes
Redo Buffers                   7868416 bytes#恢复spfile文件
RMAN> restore spfile from '/home/oracle/rman/c-1732109901-20250624-01';Starting restore at 24-JUN-25
using target database control file instead of recovery catalog
allocated channel: ORA_DISK_1
channel ORA_DISK_1: SID=296 device type=DISKchannel ORA_DISK_1: restoring spfile from AUTOBACKUP /home/oracle/rman/c-1732109901-20250624-01
channel ORA_DISK_1: SPFILE restore from AUTOBACKUP complete
Finished restore at 24-JUN-25#检查spfile文件
[oracle@ora19c1 ~]$ cd $ORACLE_HOME/dbs
[oracle@ora19c1 dbs]$ ls
hc_orcl1.dat  init.ora  spfileorcl1.ora
[oracle@ora19c1 dbs]$ ls -l
total 12
-rw-rw---- 1 oracle asmadmin 1544 Jun 24 14:38 hc_orcl1.dat
-rw-r--r-- 1 oracle oinstall 3079 May 14  2015 init.ora
-rw-r----- 1 oracle asmadmin 2560 Jun 24 14:39 spfileorcl1.ora#创建pfile文件并修改相关配置*.audit_file_dest='/u01/app/oracle/admin/orcl/adump'
*.audit_trail='none'
*.compatible='19.0.0'
*.control_files='+data/orcl/control01.ctl'
*.diagnostic_dest='/u01/app/oracle'
*.dispatchers='(PROTOCOL=TCP) (SERVICE=orclXDB)'
*.log_archive_dest_1='LOCATION=+data'
*.pga_aggregate_target=207618048
*.processes=800
*.remote_login_passwordfile='EXCLUSIVE'
*.sessions=885
*.sga_target=622854144
*.db_name='orcl'
*.cluster_database=false
*.db_create_online_log_dest_1='+data'#启动
SQL> startup force nomount pfile='/home/oracle/pfile19.ora';
ORACLE instance started.Total System Global Area  624950312 bytes
Fixed Size		    8899624 bytes
Variable Size		  364904448 bytes
Database Buffers	  243269632 bytes
Redo Buffers		    7876608 bytes#使用spfile文件启动到nomount
SQL> create spfile from pfile='/home/oracle/pfile19.ora';File created.SQL> startup force nomount;
ORACLE instance started.Total System Global Area 7516189792 bytes
Fixed Size		    8914016 bytes
Variable Size		 1241513984 bytes
Database Buffers	 6257901568 bytes
Redo Buffers		    7860224 bytes#恢复控制文件RMAN> restore controlfile from '/home/oracle/rman/c-1732109901-20250624-01';#mount数据库并恢复数据文件sql 'alter database mount';
run{
allocate channel c1 device type disk;
allocate channel c2 device type disk;
allocate channel c3 device type disk;
allocate channel c4 device type disk;
SET NEWNAME FOR DATABASE TO '+DATA';
restore database;
switch datafile all;
switch tempfile all;
recover database;
release channel c1;
release channel c2;
release channel c3;
release channel c4;
};#修改redo 路径并clear，根据提前clear 可以减少割接时open resetlogs 时间。alter database rename file '/u01/app/oracle/oradata/ORCL/onlinelog/o1_mf_3_n5c0yj5m_.log' to '+DATA/orcl/onlinelog/ora_redo01.log';
alter database rename file '/u01/app/oracle/oradata/ORCL/onlinelog/o1_mf_2_n5c0yj38_.log' to '+DATA/orcl/onlinelog/ora_redo02.log';
alter database rename file '/u01/app/oracle/oradata/ORCL/onlinelog/o1_mf_1_n5c0yj0f_.log' to '+DATA/orcl/onlinelog/ora_redo03.log';alter database clear logfile group 1;
alter database clear logfile group 2;
alter database clear logfile group 3;

在割接开始之前可以多次执行备份归档，新库recover 操作，以减少割接时归档传输及应用时间

archbak.sh
#!/bin/bashrman target / <<EOF
run{
allocate channel c1 device type disk;
allocate channel c2 device type disk;
allocate channel c3 device type disk;
allocate channel c4 device type disk;
sql 'alter system archive log current';
backup as compressed backupset archivelog all not backed up 1 times format '/home/oracle/rman/arc_%d_%U.bak';
release channel c1;
release channel c2;
release channel c3;
release channel c4;
}
exit;
EOFNEW: catalog 备份集，recover database
rman target /
catalog start with '/home/oracle/rman/';
recover database;

6、目标-以upgrade的方式打开数据库

alter database open resetlogs upgrade;

7、目标-执行autoupgrade创建配置文件

[oracle@ora19c1 upgrade]$ java -jar autoupgrade.jar -create_sample_file config
Created sample configuration file /home/oracle/upgrade/sample_config.cfg#Global configurations
#Autoupgrade's global directory, ...
#temp files created and other ...
#send here
global.autoupg_log_dir=/home/oracle/upgrade#
# Database number 1
#
upg1.dbname=orcl
upg1.start_time=NOW
upg1.source_home=/tmp  --随意写一个/tmp
upg1.target_home=/u01/app/oracle/product/19.3.0/db_1
upg1.sid=orcl1
upg1.log_dir=/home/oracle/upgrade
upg1.upgrade_node=ora19c1
upg1.target_version=19
upg1.restoration=no

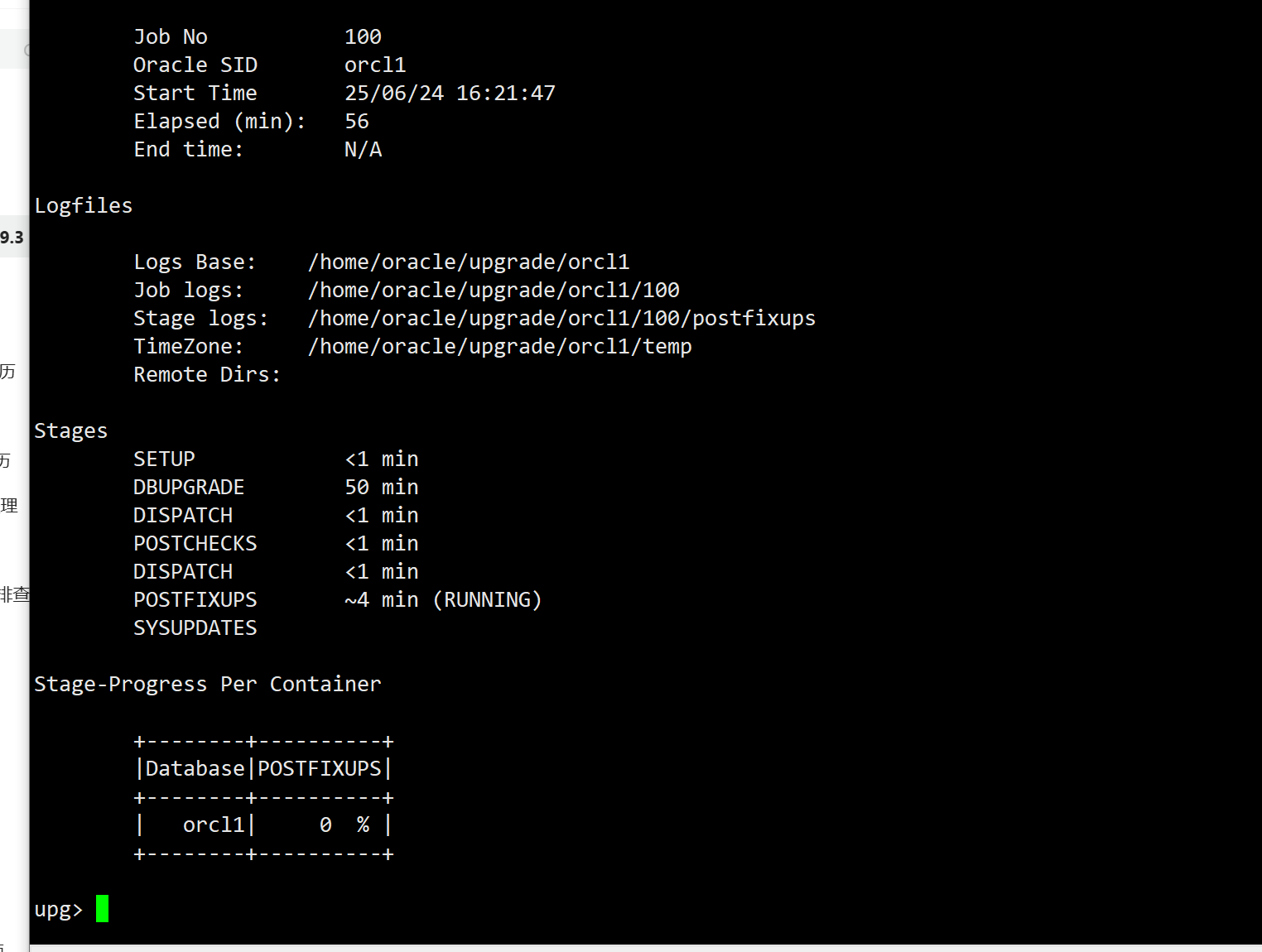

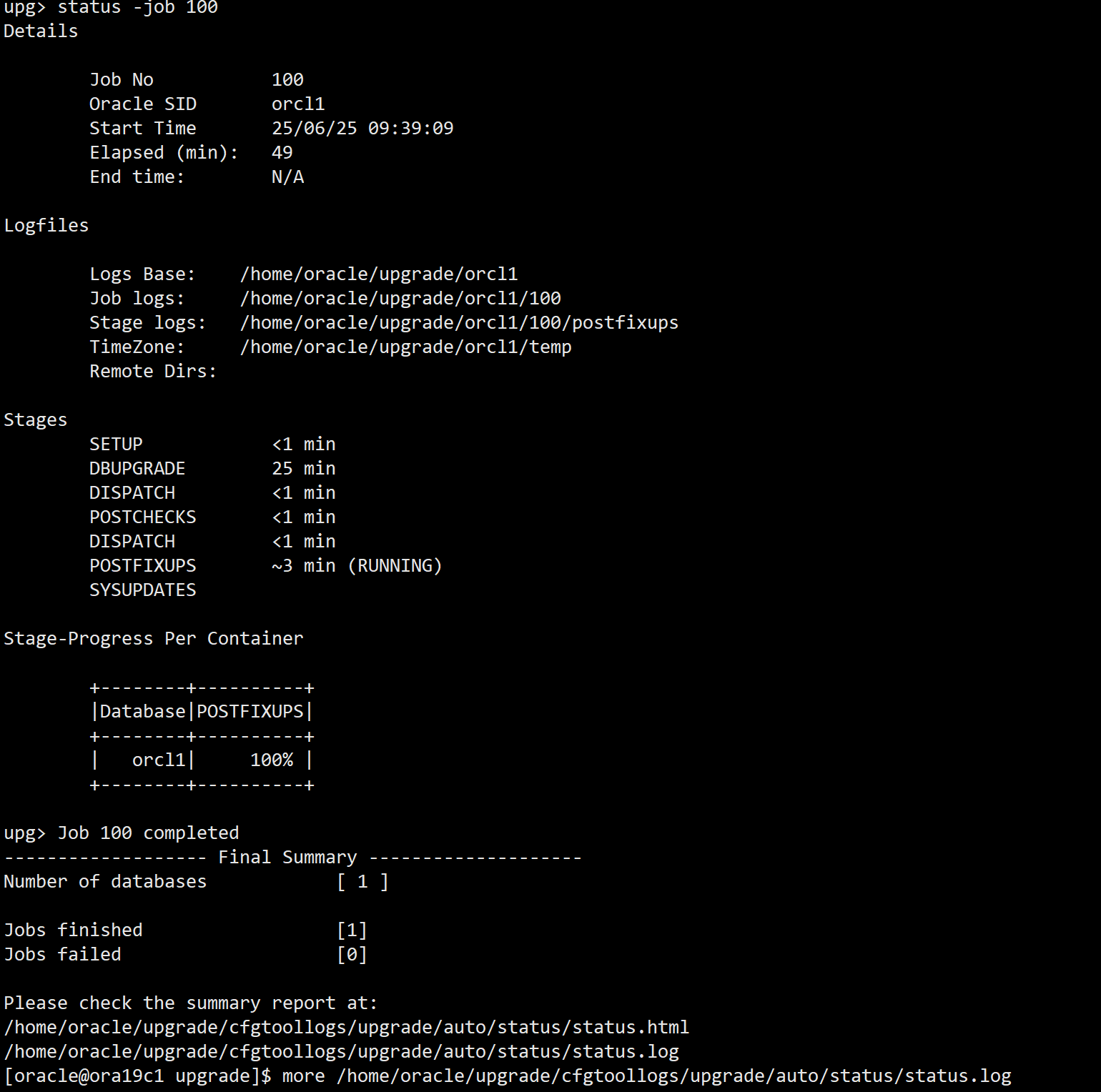

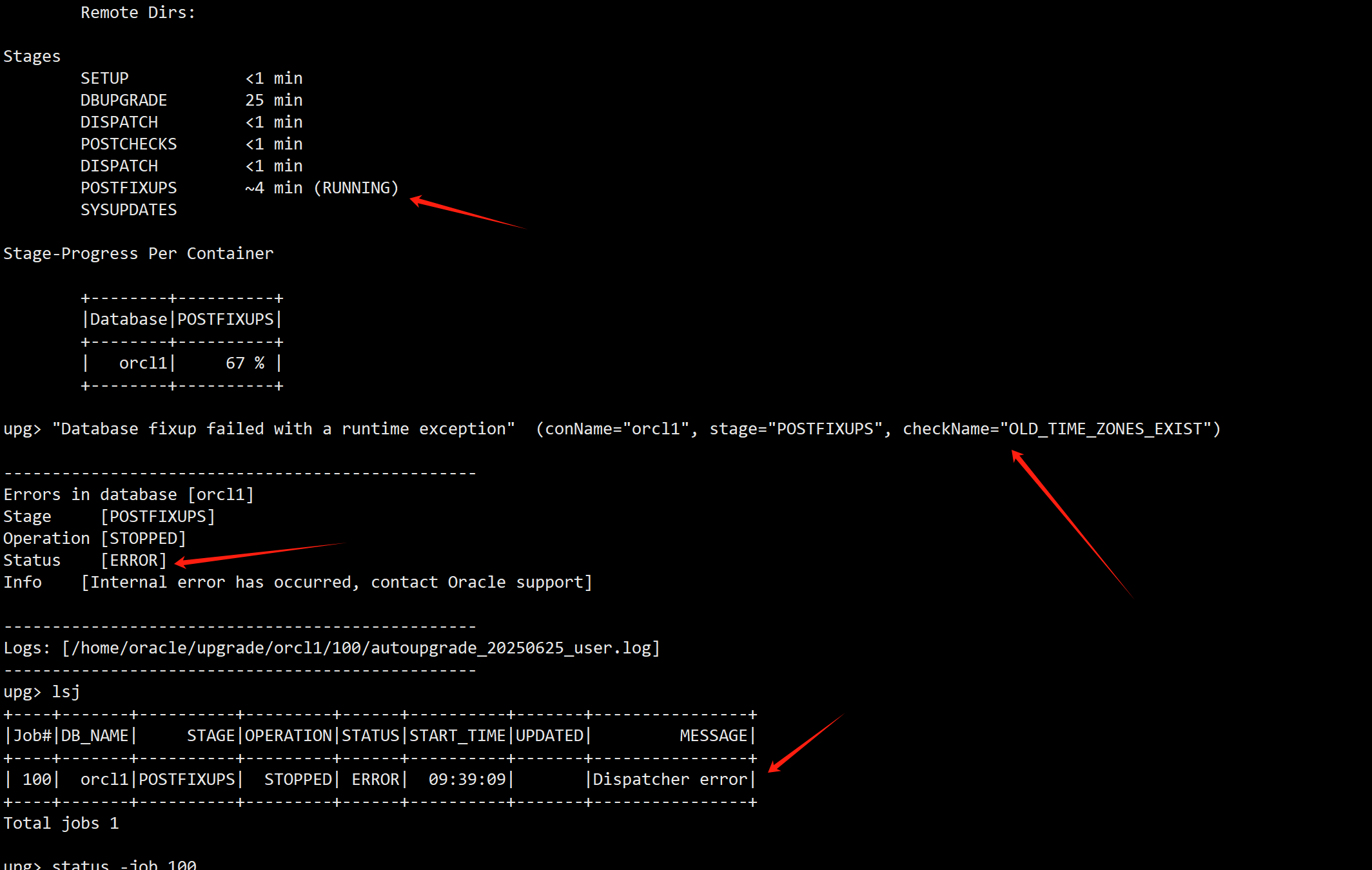

8、目标-执行升级操作

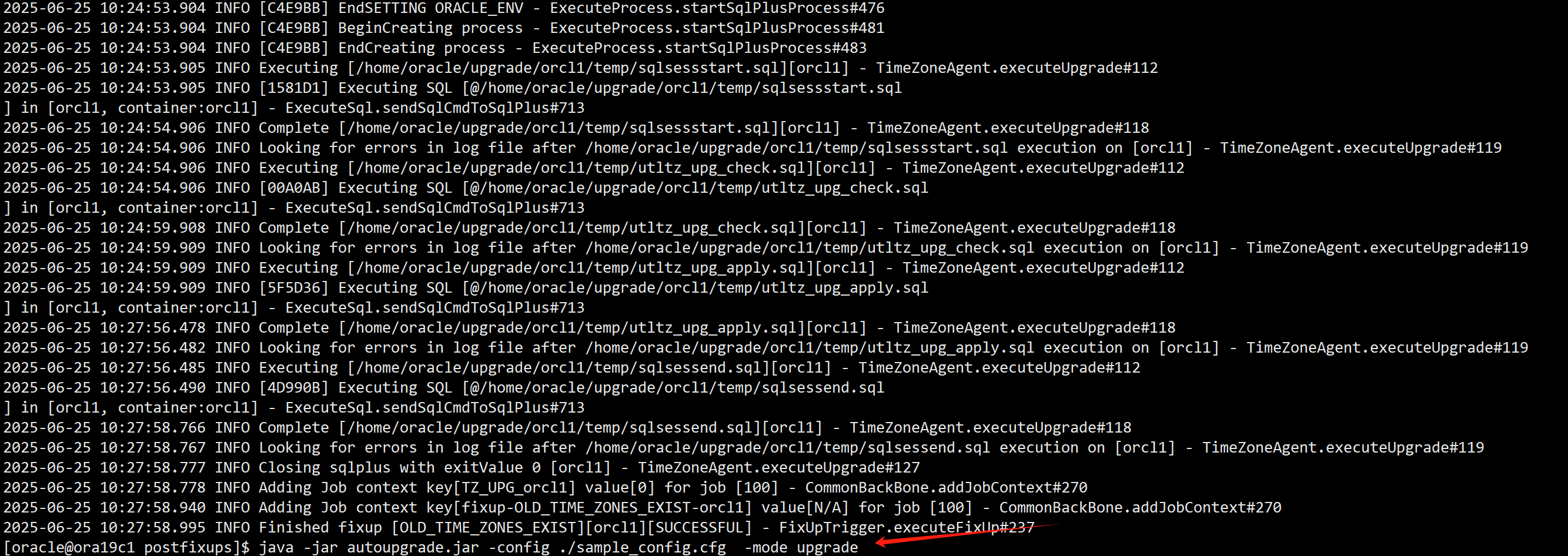

#执行升级java -jar autoupgrade.jar -config ./sample_config.cfg  -mode upgrade[oracle@ora19c1 upgrade]$ java -jar autoupgrade.jar -config ./sample_config.cfg  -mode upgrade
AutoUpgrade 25.3.250509 launched with default internal options
Processing config file ...
+--------------------------------+
| Starting AutoUpgrade execution |
+--------------------------------+
1 Non-CDB(s) will be processed
Type 'help' to list console commands
upg> lsj
+----+-------+---------+---------+-------+----------+-------+-----------+
|Job#|DB_NAME|    STAGE|OPERATION| STATUS|START_TIME|UPDATED|    MESSAGE|
+----+-------+---------+---------+-------+----------+-------+-----------+
| 100|  orcl1|DBUPGRADE|EXECUTING|RUNNING|  16:21:47|10s ago|0%Upgraded |
+----+-------+---------+---------+-------+----------+-------+-----------+
Total jobs 1upg> status -job 100
DetailsJob No           100Oracle SID       orcl1Start Time       25/06/24 16:21:47Elapsed (min):   0End time:        N/ALogfilesLogs Base:    /home/oracle/upgrade/orcl1Job logs:     /home/oracle/upgrade/orcl1/100Stage logs:   /home/oracle/upgrade/orcl1/100/dbupgradeTimeZone:     /home/oracle/upgrade/orcl1/tempRemote Dirs:  StagesSETUP            <1 minDBUPGRADE        ~0 min (RUNNING)POSTCHECKS      POSTFIXUPS      SYSUPDATES      Stage-Progress Per Container+--------+---------+|Database|DBUPGRADE|+--------+---------+|   orcl1|    0  % |+--------+---------+

9、目标-在sqlnet文件中添加兼容参数

SQLNET.ALLOWED_LOGON_VERSION_CLIENT=8
SQLNET.ALLOWED_LOGON_VERSION_SERVER=8

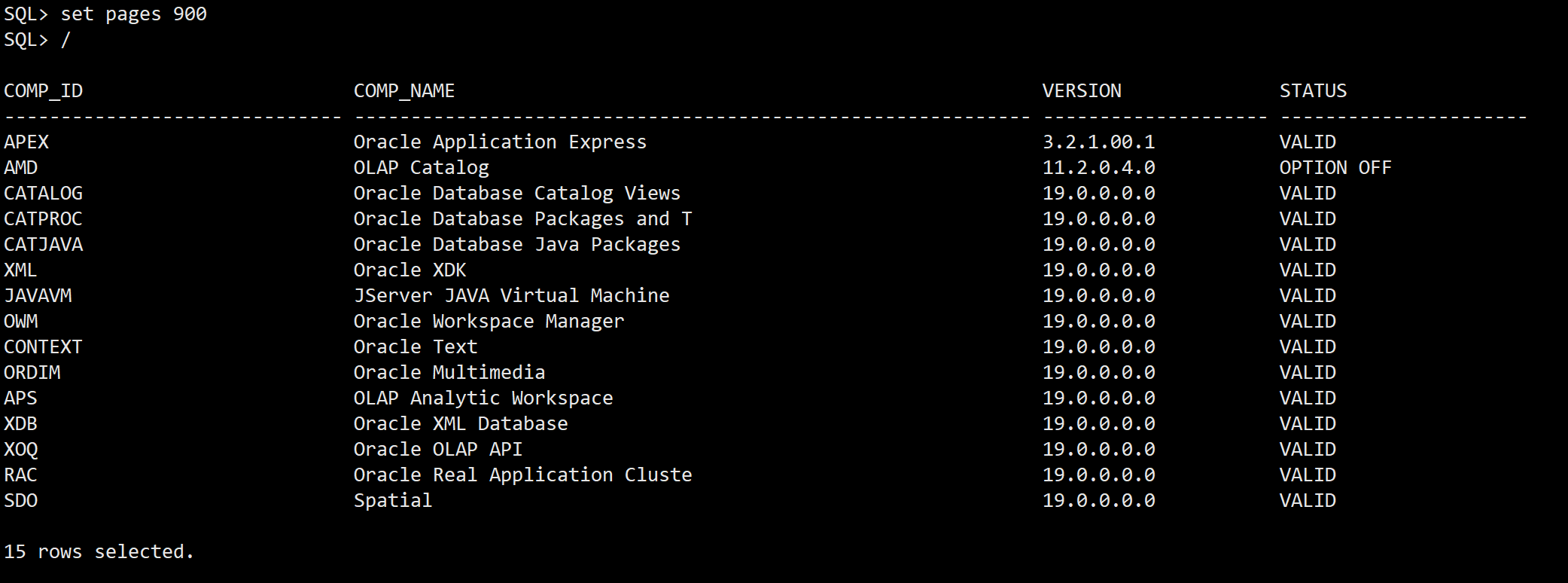

10、目标-检查所有组件

select substr(comp_id,1,15) comp_id,substr(comp_name,1,30) comp_name,substr(version,1,10) version,status
from dba_registry
order by modified;

11、目标-转换为集群数据库并添加集群资源

#pfile文件修改如下：
*.audit_file_dest='/u01/app/oracle/admin/orcl/adump'
*.audit_trail='none'
*.cluster_database=true
*.compatible='19.0.0'
*.control_files='+DATA/orcl/control01.ctl'
*.db_create_online_log_dest_1='+data'
*.db_name='orcl'
*.diagnostic_dest='/u01/app/oracle'
*.dispatchers='(PROTOCOL=TCP) (SERVICE=orclXDB)'
*.log_archive_dest_1='LOCATION=+data'
*.pga_aggregate_target=734003200
*.processes=800
*.remote_login_passwordfile='EXCLUSIVE'
*.sessions=885
*.sga_target=1073741824
orcl1.undo_tablespace='UNDOTBS1'
orcl2.undo_tablespace='UNDOTBS2'
orcl1.instance_number=1
orcl2.instance_number=2
orcl1.instance_name=orcl1
orcl2.instance_name=orcl2
orcl1.thread=1
orcl2.thread=2#使用pfile启动startup pfile='/home/oracle/pfile19.ora';#添加thread2的日志组alter database add logfile thread 2 group 10 '+data' size 50m ;
alter database add logfile thread 2 group 11 '+data' size 50m ;
alter database add logfile thread 2 group 12 '+data' size 50m ;SQL> select * from v$log;GROUP#    THREAD#  SEQUENCE#      BYTES  BLOCKSIZE	  MEMBERS ARC STATUS	       FIRST_CHANGE# FIRST_TIM NEXT_CHANGE# NEXT_TIME	  CON_ID
---------- ---------- ---------- ---------- ---------- ---------- --- ---------------- ------------- --------- ------------ --------- ----------1	    1	     136   52428800	   512		1 NO  CURRENT		     2820730 25-JUN-25	 1.8447E+19		       02	    1	     134   52428800	   512		1 YES INACTIVE		     2618323 25-JUN-25	    2719492 25-JUN-25	       03	    1	     135   52428800	   512		1 YES INACTIVE		     2719492 25-JUN-25	    2820730 25-JUN-25	       010	    2	       0   52428800	   512		1 YES UNUSED			   0			  0		       011	    2	       0   52428800	   512		1 YES UNUSED			   0			  0		       012	    2	       0   52428800	   512		1 YES UNUSED			   0			  0		       06 rows selected.#添加undotbs2表空间SQL> CREATE UNDO TABLESPACE UNDOTBS2 DATAFILE '+DATA' size 50m;      Tablespace created.#启用线程2SQL> alter database enable public thread 2;Database altered.#创建spfile文件到data磁盘组
SQL> create spfile='+data' from pfile='/home/oracle/pfile19.ora';       File created.#创建节点上的init参数文件[oracle@ora19c1 dbs]$ pwd
/u01/app/oracle/product/19.3.0/db_1/dbs
[oracle@ora19c1 dbs]$ cat initorcl1.ora
spfile='+data/orcl/PARAMETERFILE/spfile.717.1204731345'#使用一节点启动spfile并执行脚本
SQL> startup force
ORACLE instance started.Total System Global Area 1073737800 bytes
Fixed Size		    8904776 bytes
Variable Size		  390070272 bytes
Database Buffers	  666894336 bytes
Redo Buffers		    7868416 bytes
Database mounted.
Database opened.
SQL> show parameter pfileNAME				     TYPE	 VALUE
------------------------------------ ----------- ------------------------------
spfile				     string	 +DATA/orcl/PARAMETERFILE/spfile.717.1204731345
SQL> @?/rdbms/admin/catclust.sql   #添加集群资源srvctl add database -d orcl -o $ORACLE_HOME
srvctl add instance -d orcl -n ora19c1 -i orcl1
srvctl add instance -d orcl -n ora19c2 -i orcl2
srvctl config database -d orclDatabase unique name: orcl
Database name:
Oracle home: /u01/app/oracle/product/19.3.0/db_1
Oracle user: oracle
Spfile:
Password file:
Domain:
Start options: open
Stop options: immediate
Database role: PRIMARY
Management policy: AUTOMATIC
Server pools:
Disk Groups:
Mount point paths:
Services:
Type: RAC
Start concurrency:
Stop concurrency:
OSDBA group: dba
OSOPER group: oper
Database instances: orcl1,orcl2
Configured nodes: ora19c1,ora19c2
CSS critical: no
CPU count: 0
Memory target: 0
Maximum memory: 0
Default network number for database services:
Database is administrator managedsrvctl modify database -d orcl -a DATA
srvctl modify database -d orcl -p '+data/orcl/PARAMETERFILE/spfile.717.1204731345'Database unique name: orcl
Database name:
Oracle home: /u01/app/oracle/product/19.3.0/db_1
Oracle user: oracle
Spfile: +data/orcl/PARAMETERFILE/spfile.717.1204731345
Password file:
Domain:
Start options: open
Stop options: immediate
Database role: PRIMARY
Management policy: AUTOMATIC
Server pools:
Disk Groups: DATA
Mount point paths:
Services:
Type: RAC
Start concurrency:
Stop concurrency:
OSDBA group: dba
OSOPER group: oper
Database instances: orcl1,orcl2
Configured nodes: ora19c1,ora19c2
CSS critical: no
CPU count: 0
Memory target: 0
Maximum memory: 0
Default network number for database services:
Database is administrator managed#使用grid统一启动[grid@ora19c1 ~]$ srvctl start database -d orcl#创建密码文件（或者复制过来）

问题列表

问题原因如下

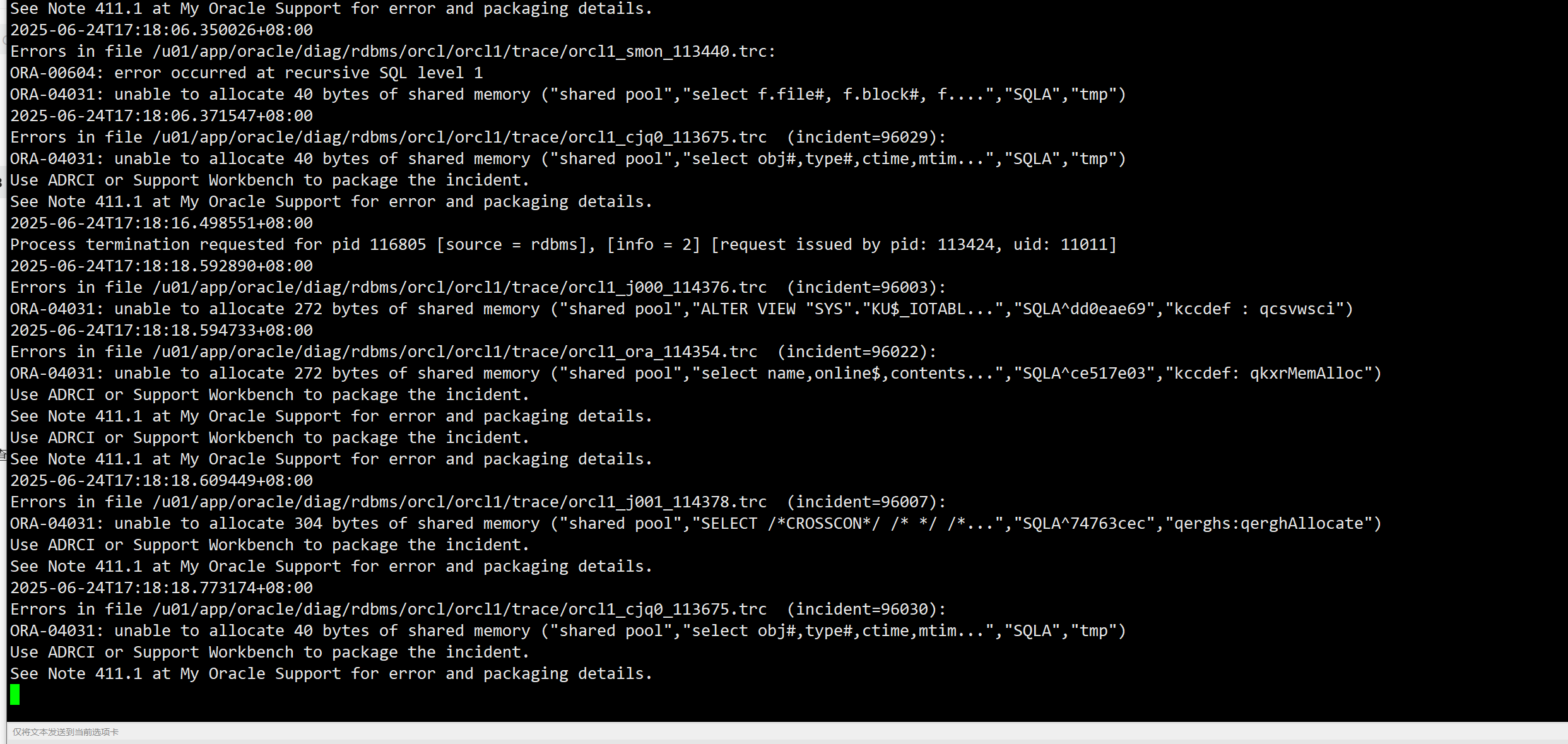

1、第一次升级的时候由于虚拟机内存不足报错如下：

2、第二次添加内存和cpu为8c8G，并调整sga=7G，pga=1G，再次升级报错如下：

#pfile19c.ora*.audit_file_dest='/u01/app/oracle/admin/orcl/adump'
*.audit_trail='none'
*.compatible='19.0.0'
*.control_files='+data/orcl/control01.ctl'
*.diagnostic_dest='/u01/app/oracle'
*.dispatchers='(PROTOCOL=TCP) (SERVICE=orclXDB)'
*.log_archive_dest_1='LOCATION=+data'
*.pga_aggregate_target=1G
*.processes=800
*.remote_login_passwordfile='EXCLUSIVE'
*.sessions=885
*.sga_target=7G
*.db_name='orcl'
*.cluster_database=false
*.db_create_online_log_dest_1='+data'

查看mos找到一个类似的bug：

📎Oracle 19c autoupgrade fails with java.sql.SQLException.pdf

然后我也没有改参数，尝试使用resum job -100再次运行job竟然成功了。

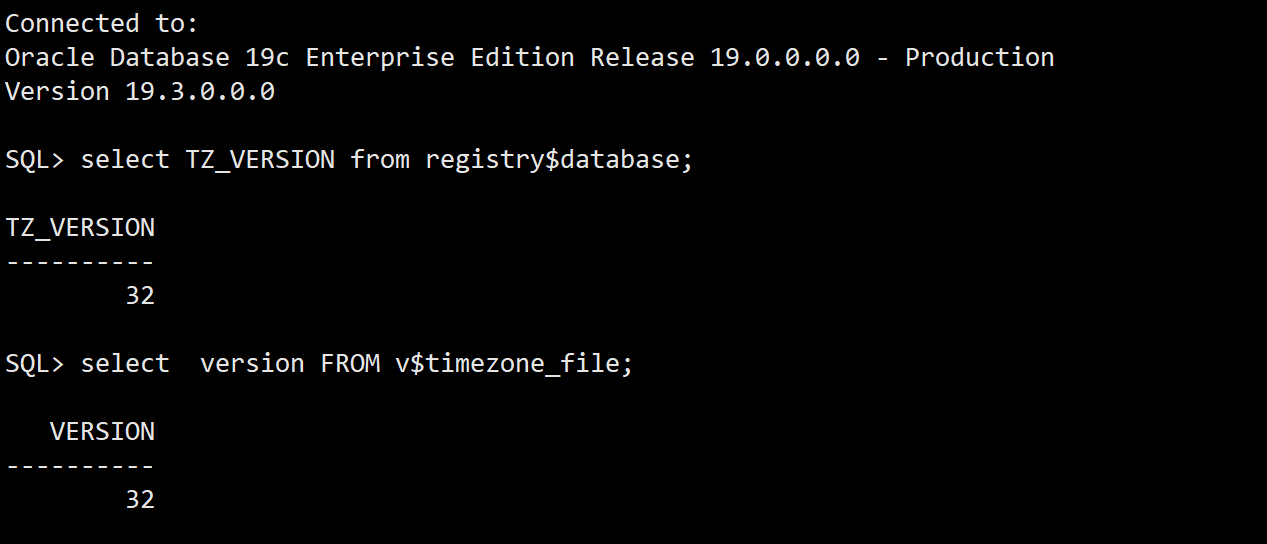

时区文件也正常：

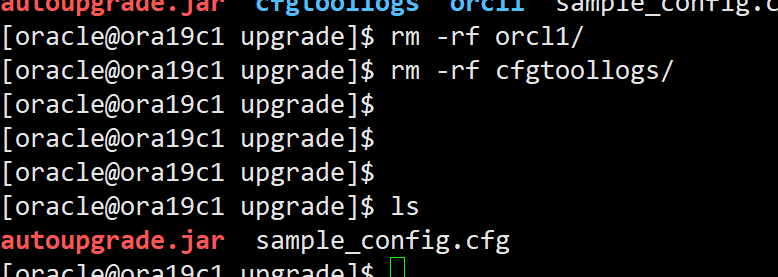

决定再升级一次试试，先删除upgrade下的文件夹，然后重新恢复数据库至upgrade状态：

再次rman恢复后升级发现没有任何报错了，顺利升级成功：

[oracle@ora19c1 upgrade]$ more /home/oracle/upgrade/orcl1/100/dbupgrade/upg_summary.logOracle Database Release 19 Post-Upgrade Status Tool    06-25-2025 11:39:5
Database Name: ORCLComponent                               Current         Full     Elapsed Time
Name                                    Status          Version  HH:MM:SSOracle Server                          UPGRADED      19.3.0.0.0  00:09:51
JServer JAVA Virtual Machine           UPGRADED      19.3.0.0.0  00:02:11
Oracle XDK                             UPGRADED      19.3.0.0.0  00:00:17
Oracle Database Java Packages          UPGRADED      19.3.0.0.0  00:00:05
OLAP Analytic Workspace                UPGRADED      19.3.0.0.0  00:00:05
OLAP Catalog                         OPTION OFF      11.2.0.4.0  00:00:00
Oracle Text                            UPGRADED      19.3.0.0.0  00:00:19
Oracle Workspace Manager               UPGRADED      19.3.0.0.0  00:00:24
Oracle Real Application Clusters          VALID      19.3.0.0.0  00:00:00
Oracle XML Database                    UPGRADED      19.3.0.0.0  00:01:34
Oracle Multimedia                      UPGRADED      19.3.0.0.0  00:00:34
Spatial                                UPGRADED      19.3.0.0.0  00:02:44
Oracle OLAP API                        UPGRADED      19.3.0.0.0  00:00:09
Datapatch                                                        00:02:07
Final Actions                                                    00:02:42
Post Upgrade                                                     00:00:45Total Upgrade Time: 00:23:20Database time zone version is 14. It is older than current release time
zone version 32. Time zone upgrade is needed using the DBMS_DST package.Grand Total Upgrade Time:    [0d:0h:27m:34s]

升级过程中的日志：

📎orcl1.7z

参考

问题解决如下

📎AutoUpgrade ⼯具.pdf

📎数据库 升级 降级 兼容性矩阵.pdf

http://www.dtcms.com/a/284101.html

相关文章：

  • R语言基础| 基本图形绘制（条形图、堆积图、分组图、填充条形图、均值条形图）
  • 规则引擎rule-engine(三)可视化api设计和实现解释
  • 解读一个大学专业——信号与图像处理
  • 2025年Java后端秋招面试的高频八股文+场景题
  • NFS、iSCSI 和lnmp部署操作
  • 深度学习之神经网络（二）
  • 神经网络常见激活函数 15-B-SiLU 函数
  • OCR 赋能档案数字化：让沉睡的档案 “活” 起来
  • 无线充电技术详解：原理、芯片选型与应用场景
  • Android开发中Retrofit使用方法与底层原理详解
  • 学习设计模式《十八》——备忘录模式
  • 第5天 | openGauss中一个用户可以访问多个数据库
  • 数据分析：从数据到决策的核心逻辑与实践指南
  • 微信小程序地理定位功能
  • SLG 游戏如何进行防破解和防盗版保护？
  • 从 SEO 到 GEO：解锁 AI 时代的搜索优化新机遇
  • 数据结构：集合操作（Set Operations）： 并集（Union）、交集（Intersection）、 差集（Difference）
  • HTTP相关知识
  • os.path 常用的使用方法
  • 高光谱相机有多少种类型？分别有什么特点？
  • Odoo最佳业务实践：从库存管理重构到全链路协同
  • 【数据结构】链表（linked list）
  • slot=“trigger“ 覆盖了组件内部的 ref=“trigger“【详细来龙去脉版 5min】
  • 网络服务（设置邮箱发送告警功能，每1分钟发送一封邮件）
  • CMake综合学习1: Cmake的模块化设计
  • vue3实现web端和小程序端个人签名
  • 《迭代器 VS 生成器：Python 惰性计算的两种实现方案详解》
  • Zabbix 分布式监控系统架构设计与优化
  • 硅谷顶级风投发布《2025年AI实战手册》｜附下载
  • 芯谷科技--双四通道模拟/数字多路复用器74HC4052
