GNU Radio连接X310运行报错

news 2025/7/16 6:29:21

一、实验现象

UHD: USRP Source的Device Address为" "时，报错：

Generating: '/home/heu/zzc/untitled.py'
Executing: /usr/bin/python3 -u /home/heu/zzc/untitled.py
[INFO] [UHD] linux; GNU C++ version 9.4.0; Boost_107100; UHD_4.7.0.HEAD-0-ga5ed1872
[INFO] [X300] X300 initialization sequence...
[ERROR] [X300] 192.168.15.2: x300 fw communication failure #1
EnvironmentError: IOError: x300 fw peek32 - reply timed out
[ERROR] [X300] 192.168.15.2: x300 fw communication failure #2
EnvironmentError: IOError: x300 fw peek32 - reply timed out
[ERROR] [X300] 192.168.15.2: x300 fw communication failure #3
EnvironmentError: IOError: x300 fw peek32 - reply timed out
[ERROR] [X300] 192.168.15.2: x300 fw communication failure #1
EnvironmentError: IOError: x300 fw peek32 - reply timed out
[ERROR] [X300] 192.168.15.2: x300 fw communication failure #2
EnvironmentError: IOError: x300 fw peek32 - reply timed out
[ERROR] [X300] 192.168.15.2: x300 fw communication failure #3
EnvironmentError: IOError: x300 fw peek32 - reply timed out
Traceback (most recent call last):
File "/home/heu/zzc/untitled.py", line 169, in <module>
main()
File "/home/heu/zzc/untitled.py", line 145, in main
tb = top_block_cls()
File "/home/heu/zzc/untitled.py", line 81, in __init__
self.uhd_usrp_source_0 = uhd.usrp_source(
File "/usr/local/lib/python3/dist-packages/gnuradio/uhd/__init__.py", line 125, in constructor_interceptor
return old_constructor(*args)
File "/usr/local/lib/python3/dist-packages/gnuradio/uhd/uhd_swig.py", line 2814, in make
return _uhd_swig.usrp_source_make(device_addr, stream_args, issue_stream_cmd_on_start)
RuntimeError: EnvironmentError: IOError: 192.168.15.2: x300 fw communication failure #3
EnvironmentError: IOError: x300 fw peek32 - reply timed out
>>> Done (return code 1)

UHD: USRP Source的Device Address为uhd_find_devices显示的addr"时，报错：

>>> Done (return code 1)
Generating: '/home/heu/zzc/untitled.py'
Executing: /usr/bin/python3 -u /home/heu/zzc/untitled.py
[INFO] [UHD] linux; GNU C++ version 9.4.0; Boost_107100; UHD_4.7.0.HEAD-0-ga5ed1872
[ERROR] [UHD] Device discovery error: unknown key format: 192.168.15.2
[ERROR] [UHD] Device discovery error: unknown key format: 192.168.15.2
[ERROR] [UHD] Device discovery error: unknown key format: 192.168.15.2
[ERROR] [UHD] Device discovery error: unknown key format: 192.168.15.2
Traceback (most recent call last):
File "/home/heu/zzc/untitled.py", line 169, in <module>
main()
File "/home/heu/zzc/untitled.py", line 145, in main
tb = top_block_cls()
File "/home/heu/zzc/untitled.py", line 81, in __init__
self.uhd_usrp_source_0 = uhd.usrp_source(
File "/usr/local/lib/python3/dist-packages/gnuradio/uhd/__init__.py", line 125, in constructor_interceptor
return old_constructor(*args)
File "/usr/local/lib/python3/dist-packages/gnuradio/uhd/uhd_swig.py", line 2814, in make
return _uhd_swig.usrp_source_make(device_addr, stream_args, issue_stream_cmd_on_start)
RuntimeError: LookupError: KeyError: No devices found for ----->

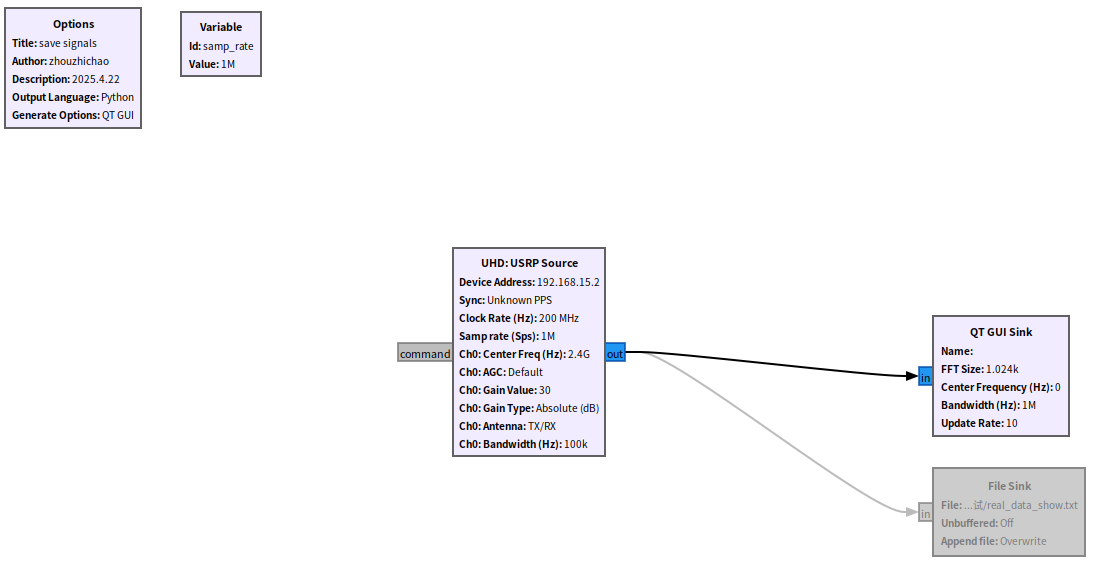

Device Address:
192.168.15.2:
master_clock_rate: 200e6

>>> Done (return code 1)

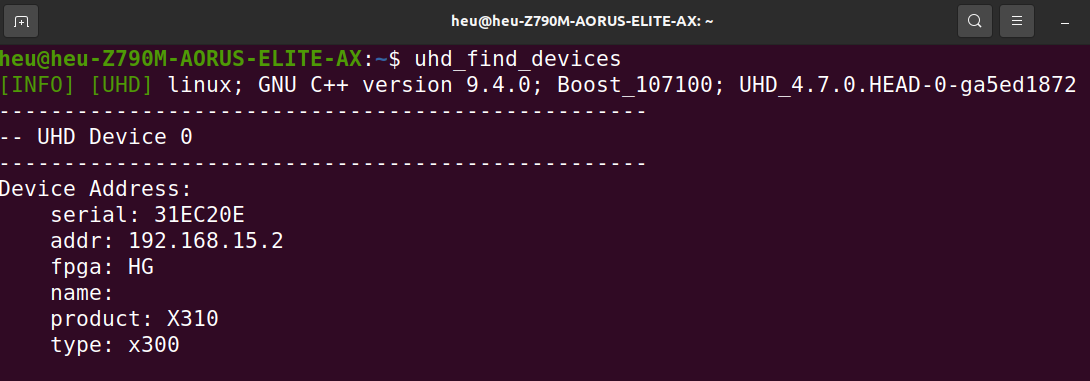

uhd_find_devices:

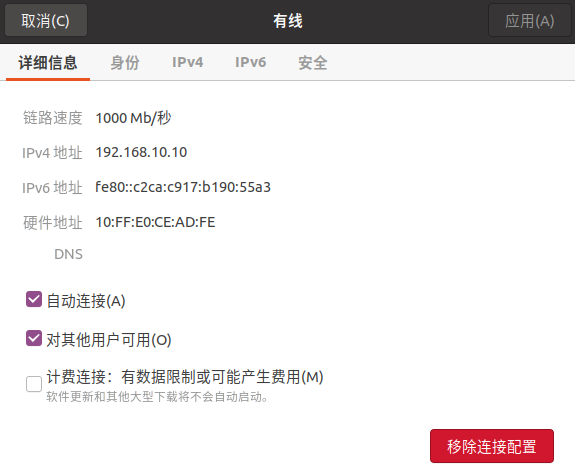

有线连接：

IPv4地址填192.168.15.2的话，就找不到设备 find no devices

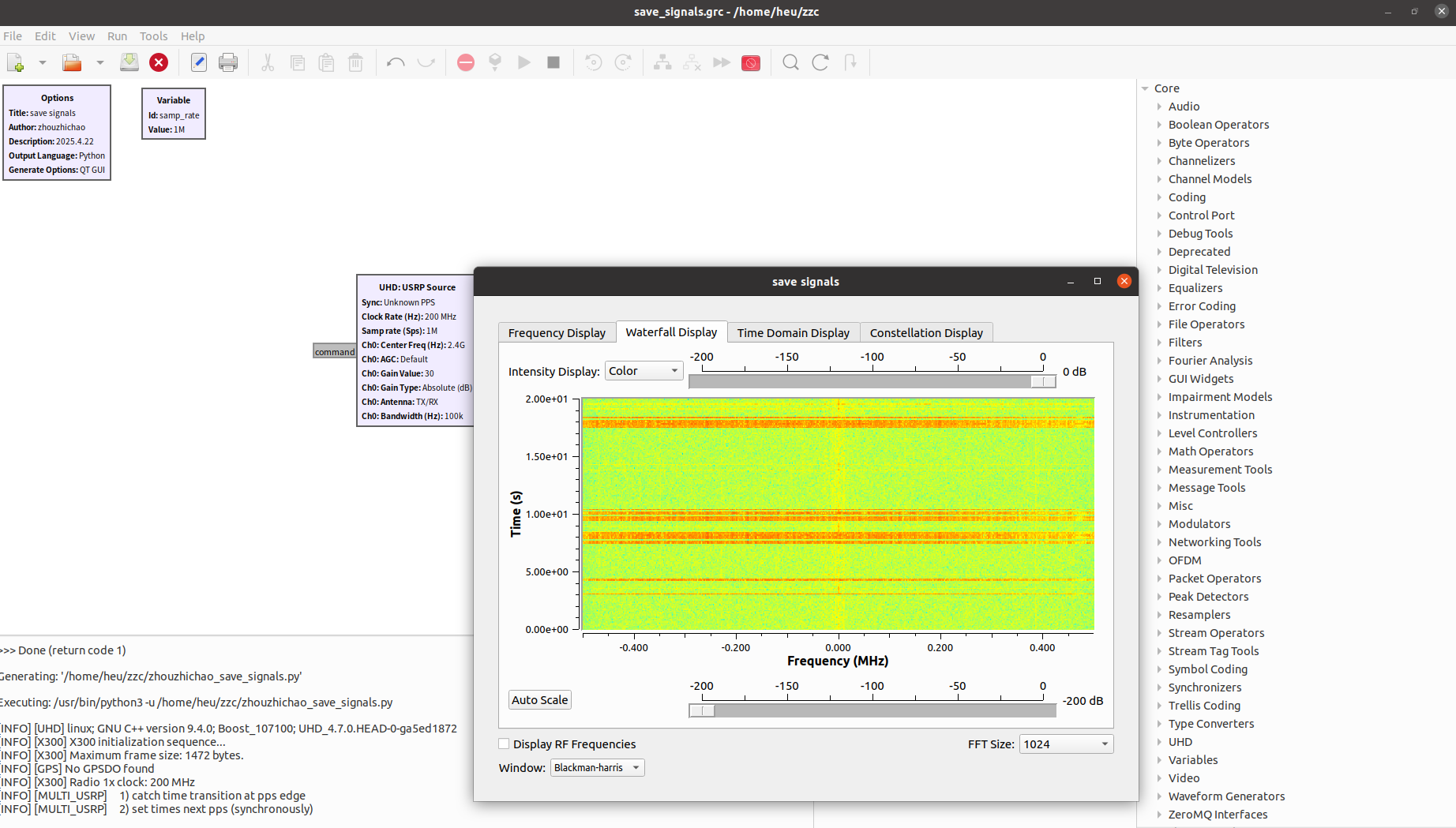

运行流图：

二、问题解决

IPv4设置和uhd_find_devices显示的addr一样时，有线连接还是显示的已连接 - 1000Mb/s

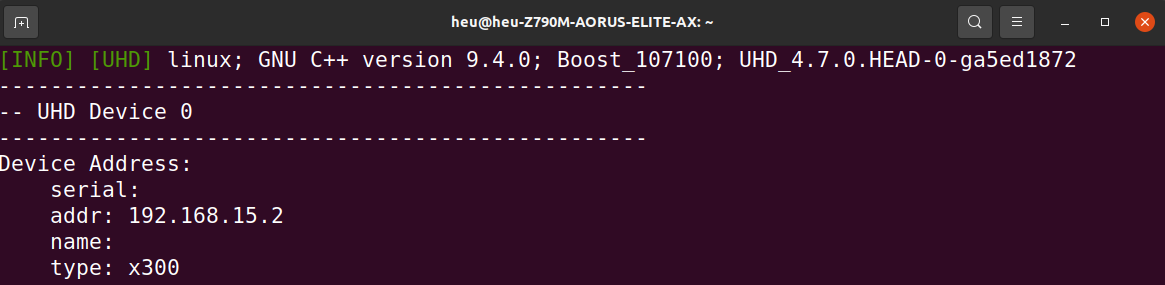

但是这时再uhd_find_devices就啥也找不到

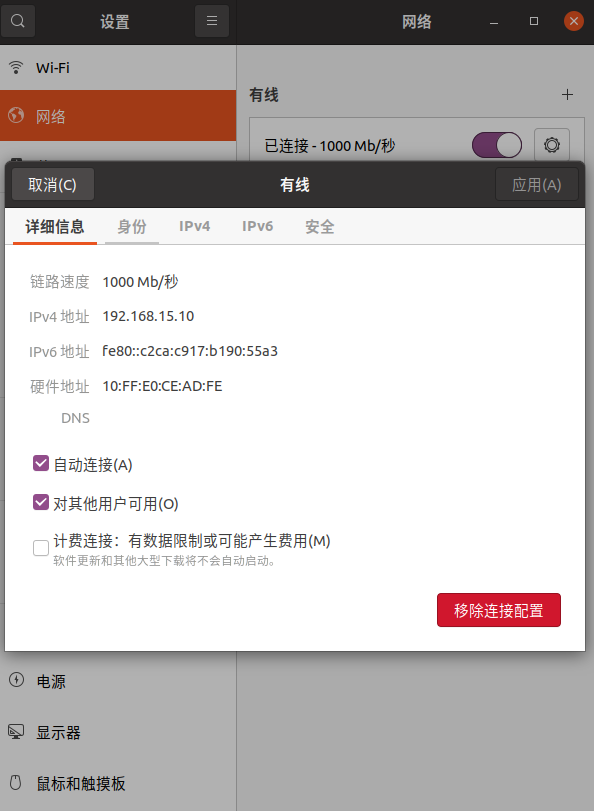

IPv4掩码部分和addr一致，最后一位不能相同，设置为192.168.15.10:

这个时候und_find_devices是不受影响的

这个时候连接错误已经没有了，但是又报了另外一个错......

>>> Done (return code 1)
Generating: '/home/heu/zzc/zhouzhichao_save_signals.py'
Executing: /usr/bin/python3 -u /home/heu/zzc/zhouzhichao_save_signals.py
[INFO] [UHD] linux; GNU C++ version 9.4.0; Boost_107100; UHD_4.7.0.HEAD-0-ga5ed1872
[INFO] [X300] X300 initialization sequence...
Traceback (most recent call last):
File "/home/heu/zzc/zhouzhichao_save_signals.py", line 169, in <module>
main()
File "/home/heu/zzc/zhouzhichao_save_signals.py", line 145, in main
tb = top_block_cls()
File "/home/heu/zzc/zhouzhichao_save_signals.py", line 81, in __init__
self.uhd_usrp_source_0 = uhd.usrp_source(
File "/usr/local/lib/python3/dist-packages/gnuradio/uhd/__init__.py", line 125, in constructor_interceptor
return old_constructor(*args)
File "/usr/local/lib/python3/dist-packages/gnuradio/uhd/uhd_swig.py", line 2814, in make
return _uhd_swig.usrp_source_make(device_addr, stream_args, issue_stream_cmd_on_start)
RuntimeError: RuntimeError: Expected FPGA compatibility number 39.0, but got 36.0:
The FPGA image on your device is not compatible with this host code build.
Download the appropriate FPGA images for this version of UHD.
Please run:
"/usr/local/lib/uhd/utils/uhd_images_downloader.py"
Then burn a new image to the on-board flash storage of your
USRP X3xx device using the image loader utility. Use this command:
"/usr/local/bin/uhd_image_loader" --args="type=x300,addr=192.168.15.2"
For more information, refer to the UHD manual:
http://files.ettus.com/manual/page_usrp_x3x0.html#x3x0_flash
