Cilium动手实验室: 精通之旅---26.Cilium Host Firewall

1. 环境说明

LAB环境地址

https://isovalent.com/labs/cilium-host-firewall/

我们正在运行一个 Kind Kubernetes 集群，并在该 Cilium 之上。

当 Kind 集群即将完成启动时，让我们看看它的配置：

root@server:~# yq /etc/kind/${KIND_CONFIG}.yaml
---
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:- role: control-planeextraPortMappings:# localhost.run proxy- containerPort: 32042hostPort: 32042# Hubble relay- containerPort: 31234hostPort: 31234# Hubble UI- containerPort: 31235hostPort: 31235- role: worker- role: worker
networking:disableDefaultCNI: truekubeProxyMode: none

在 nodes 部分中，您可以看到集群由 3 个节点组成,1个kind-control-plane,2个kind-worker

在配置文件的 networking 部分中，默认的 CNI 已被禁用，因此集群在启动时将没有任何 Pod 网络。相反，Cilium 被部署到集群中以提供此功能。

root@server:~# k get nodes
NAME                 STATUS     ROLES           AGE   VERSION
kind-control-plane   NotReady   control-plane   80m   v1.31.0
kind-worker          NotReady   <none>          80m   v1.31.0
kind-worker2         NotReady   <none>          80m   v1.31.0

您应该会看到三个节点出现，它们都标记为 NotReady。这是正常的，因为 CNI 被禁用了，我们将在下一步安装 Cilium。如果您没有看到所有节点，则 worker 节点可能仍在加入集群。重新启动该命令，直到您可以看到列出的所有三个节点。

2. Cilium CLI

为了使用 Cilium Host Firewall，我们需要显式启用它。我们还需要使用 Kube 代理替换 （KPR） 模式，因为这是主机防火墙功能的要求：

cilium install \--version 1.17.1 \--set hostFirewall.enabled=true \--set kubeProxyReplacement=true \--set bpf.monitorAggregation=none

激活 Hubble，以便我们可以获得流的可观测性：

cilium hubble enable

几分钟后，Cilium 应该已安装并启用 Hubble，您可以检查一切是否运行良好：

root@server:~# cilium status --wait/¯¯\/¯¯\__/¯¯\    Cilium:             OK\__/¯¯\__/    Operator:           OK/¯¯\__/¯¯\    Envoy DaemonSet:    OK\__/¯¯\__/    Hubble Relay:       OK\__/       ClusterMesh:        disabledDaemonSet              cilium                   Desired: 3, Ready: 3/3, Available: 3/3
DaemonSet              cilium-envoy             Desired: 3, Ready: 3/3, Available: 3/3
Deployment             cilium-operator          Desired: 1, Ready: 1/1, Available: 1/1
Deployment             hubble-relay             Desired: 1, Ready: 1/1, Available: 1/1
Containers:            cilium                   Running: 3cilium-envoy             Running: 3cilium-operator          Running: 1clustermesh-apiserver    hubble-relay             Running: 1
Cluster Pods:          4/4 managed by Cilium
Helm chart version:    1.17.1
Image versions         cilium             quay.io/cilium/cilium:v1.17.1@sha256:8969bfd9c87cbea91e40665f8ebe327268c99d844ca26d7d12165de07f702866: 3cilium-envoy       quay.io/cilium/cilium-envoy:v1.31.5-1739264036-958bef243c6c66fcfd73ca319f2eb49fff1eb2ae@sha256:fc708bd36973d306412b2e50c924cd8333de67e0167802c9b48506f9d772f521: 3cilium-operator    quay.io/cilium/operator-generic:v1.17.1@sha256:628becaeb3e4742a1c36c4897721092375891b58bae2bfcae48bbf4420aaee97: 1hubble-relay       quay.io/cilium/hubble-relay:v1.17.1@sha256:397e8fbb188157f744390a7b272a1dec31234e605bcbe22d8919a166d202a3dc: 1

验证 Host Firewall 功能是否已激活：

root@server:~# cilium config view | grep host-firewall
enable-host-firewall                              true

3. 对节点的 SSH 访问

3.1 通过 Hubble 观察流量

由于我们在 Cilium 安装中激活了 Hubble，因此我们可以观察 Cilium 正在路由的网络流

在端口 22 上进行筛选：

hubble observe --to-identity 1 --port 22 -f

3.2 节点上的 SSH

Kind 将节点作为 Docker 容器运行，而不是虚拟机。

让我们验证一下是否可以访问每个节点上的端口 22。并键入：

for node in $(docker ps --format '{{.Names}}'); doecho "==== Testing connection to node $node ===="IP=$(docker inspect $node -f '{{range.NetworkSettings.Networks}}{{.IPAddress}}{{end}}')nc -vz -w2 $IP 22
done

每个连接都应该成功，这表明我们能够使用从主机到集群中的任何节点的 SSH。

3.3 在 Hubble 中查看流量

您应该会看到所有被转发的节点的 TCP/22 请求：

Jun  6 06:08:25.737: 172.18.0.1:36354 (world) <> 172.18.0.4:22 (host) from-network FORWARDED (TCP Flags: SYN)
Jun  6 06:08:25.737: 172.18.0.1:36354 (world) <> 172.18.0.4:22 (host) from-network FORWARDED (TCP Flags: ACK)
Jun  6 06:08:25.737: 172.18.0.1:36354 (world) <> 172.18.0.4:22 (host) from-network FORWARDED (TCP Flags: ACK, FIN)
Jun  6 06:08:25.746: 172.18.0.1:36354 (world) <> 172.18.0.4:22 (host) from-network FORWARDED (TCP Flags: RST)
Jun  6 06:08:25.752: 172.18.0.1:38110 (world) <> 172.18.0.2:22 (host) from-network FORWARDED (TCP Flags: SYN)
Jun  6 06:08:25.752: 172.18.0.1:38110 (world) <> 172.18.0.2:22 (host) from-network FORWARDED (TCP Flags: ACK)
Jun  6 06:08:25.752: 172.18.0.1:38110 (world) <> 172.18.0.2:22 (host) from-network FORWARDED (TCP Flags: ACK, FIN)
Jun  6 06:08:25.761: 172.18.0.1:38110 (world) <> 172.18.0.2:22 (host) from-network FORWARDED (TCP Flags: RST)
Jun  6 06:08:25.767: 172.18.0.1:40904 (world) <> 172.18.0.3:22 (host) from-network FORWARDED (TCP Flags: SYN)
Jun  6 06:08:25.767: 172.18.0.1:40904 (world) <> 172.18.0.3:22 (host) from-network FORWARDED (TCP Flags: ACK)
Jun  6 06:08:25.767: 172.18.0.1:40904 (world) <> 172.18.0.3:22 (host) from-network FORWARDED (TCP Flags: ACK, FIN)
Jun  6 06:08:25.775: 172.18.0.1:40904 (world) <> 172.18.0.3:22 (host) from-network FORWARDED (TCP Flags: RST)

4. 主机网络请求

4.1 Host 身份

我们来检查一下节点的策略实施的当前状态。

为了实现这一点，我们需要识别在给定节点上运行的 Cilium pod。

例如，对于控制平面节点：

root@server:~# kubectl get pods -n kube-system -l k8s-app=cilium
NAME           READY   STATUS    RESTARTS   AGE
cilium-8xk9n   1/1     Running   0          11m
cilium-ghrbc   1/1     Running   0          11m
cilium-np55d   1/1     Running   0          11m

这应该列出三个 Cilium 节点。

让我们选择其中的第一个，然后执行它以列出该节点上已知的终端节点：

root@server:~# kubectl exec -it -n kube-system cilium-8xk9n -- cilium endpoint list
Defaulted container "cilium-agent" out of: cilium-agent, config (init), mount-cgroup (init), apply-sysctl-overwrites (init), mount-bpf-fs (init), clean-cilium-state (init), install-cni-binaries (init)
ENDPOINT   POLICY (ingress)   POLICY (egress)   IDENTITY   LABELS (source:key[=value])                                                  IPv6   IPv4           STATUS   ENFORCEMENT        ENFORCEMENT
32         Disabled           Disabled          4          reserved:health                                                                     10.244.1.45    ready
161        Disabled           Disabled          9437       k8s:app.kubernetes.io/name=hubble-relay                                             10.244.1.173   ready   k8s:app.kubernetes.io/part-of=cilium                                                                       k8s:io.cilium.k8s.namespace.labels.kubernetes.io/metadata.name=kube-system                                 k8s:io.cilium.k8s.policy.cluster=kind-kind                                                                 k8s:io.cilium.k8s.policy.serviceaccount=hubble-relay                                                       k8s:io.kubernetes.pod.namespace=kube-system                                                                k8s:k8s-app=hubble-relay
280        Disabled           Disabled          1          reserved:host                                                                                      ready

请注意标签为 reserved：host 且标识为 1 的行。这是本地主机的特殊保留身份：

ENDPOINT   POLICY (ingress)   POLICY (egress)   IDENTITY   LABELS (source:key[=value])                                                  IPv6   IPv4           STATUS

例如，此信息可用于使用 --identity 1 参数过滤 Hubble 输出。

4.2 制定网络策略

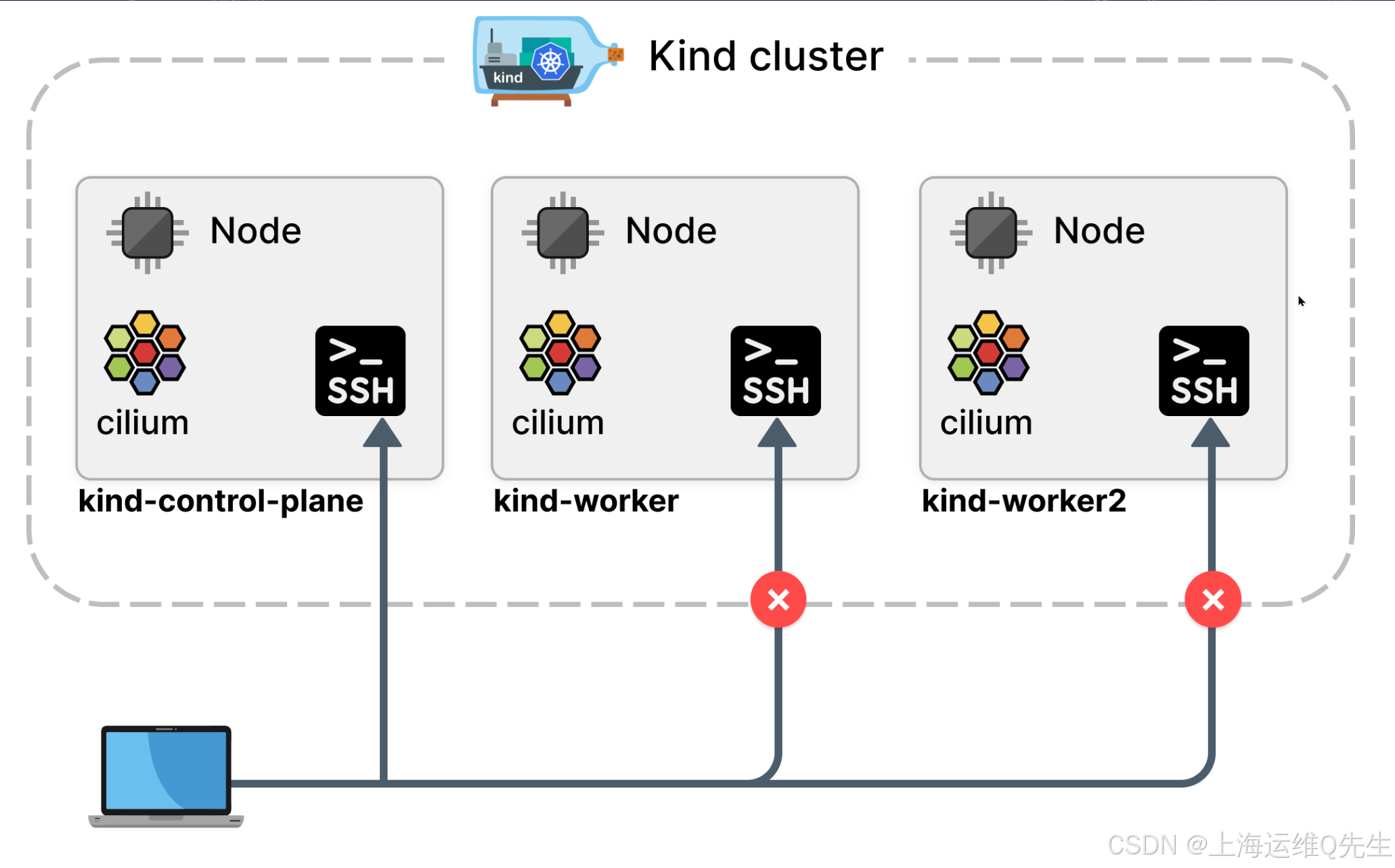

为了保护对我们节点的访问，我们希望限制对它们的 SSH 访问。

我们将使用以下规则来保护节点：

• 对于 SSH （tcp/22），我们将使用 Control Plane 节点作为访问其他节点的堡垒
• 我们仍然需要访问控制平面上的 Kubernetes API 服务器 （tcp/6443）
• 节点需要能够在 VXLAN 上相互通信 （udp/8472）

默认情况下，其他所有内容都应该被拒绝。

为了实现这些规则，我们将使用 CiliumClusterwideNetworkPolicy （或 ccnp）资源。这种类型的网络策略全局应用于整个集群，而不是像标准标准网络策略资源那样局限于单个命名空间。

4.3 API 服务器访问

让我们从 API 服务器访问开始。

让我们创建一个 CiliumClusterwideNetworkPolicy 针对 Control Plane 节点的目标，并允许协议 TCP 的端口 6443 进入。

使用以下命令检查 Control Plane 节点的标签：

root@server:~# kubectl get no kind-control-plane -o yaml | yq .metadata.labels
beta.kubernetes.io/arch: amd64
beta.kubernetes.io/os: linux
kubernetes.io/arch: amd64
kubernetes.io/hostname: kind-control-plane
kubernetes.io/os: linux
node-role.kubernetes.io/control-plane: ""
node.kubernetes.io/exclude-from-external-load-balancers: ""

该节点具有一个具有空值的不同标签 node-role.kubernetes.io/control-plane 。我们将使用它来定位策略中的节点：

---
apiVersion: "cilium.io/v2"
kind: CiliumClusterwideNetworkPolicy
metadata:name: "control-plane-apiserver"
spec:description: "Allow Kubernetes API Server to Control Plane"nodeSelector:matchLabels:node-role.kubernetes.io/control-plane: ""ingress:- toPorts:- ports:- port: "6443"protocol: TCP

应用它：

kubectl apply -f ccnp-control-plane-apiserver.yaml

4.4 默认拒绝规则

现在我们可以制作一个 default-deny 规则，因为我们知道我们不会阻止我们对 API 服务器的访问。使用 编辑器选项卡将以下内容保存到 ccnp-default-deny.yaml：

---
apiVersion: "cilium.io/v2"
kind: CiliumClusterwideNetworkPolicy
metadata:name: "default-deny"
spec:description: "Block all unknown traffic to nodes"nodeSelector: {}ingress:- fromEntities:- cluster

使用 fromEntities： ['cluster'] 过滤器仅允许来自集群内部的全局流量。因此，此规则会有效地阻止所有流向节点的流量，除非它来自集群内部。

应用它：

kubectl apply -f ccnp-default-deny.yaml

通过列出 CiliumClusterwideNetworkPolicy 资源来验证您仍然可以访问 API 服务器：

root@server:~# kubectl get ccnp
NAME                      VALID
control-plane-apiserver   True
default-deny              True

4.5 Hubble访问

观察 Hubble 日志：

hubble observe --identity 1 --port 22 -f

让我们看看我们现在是否尝试通过 SSH 访问节点。

尝试与所有节点建立 SSH 连接：

root@server:~# for node in $(docker ps --format '{{.Names}}'); doecho "==== Testing connection to node $node ===="IP=$(docker inspect $node -f '{{range.NetworkSettings.Networks}}{{.IPAddress}}{{end}}')nc -vz -w2 $IP 22
done
==== Testing connection to node kind-control-plane ====
nc: connect to 172.18.0.4 port 22 (tcp) timed out: Operation now in progress
==== Testing connection to node kind-worker2 ====
nc: connect to 172.18.0.2 port 22 (tcp) timed out: Operation now in progress
==== Testing connection to node kind-worker ====
nc: connect to 172.18.0.3 port 22 (tcp) timed out: Operation now in progress

这时我们就能看到丢弃的数据包：

Jun  6 06:17:52.688: 172.18.0.1:39746 (world) <> 172.18.0.4:22 (host) from-network FORWARDED (TCP Flags: SYN)
Jun  6 06:17:52.688: 172.18.0.1:39746 (world) <> 172.18.0.4:22 (host) policy-verdict:none INGRESS DENIED (TCP Flags: SYN)
Jun  6 06:17:52.688: 172.18.0.1:39746 (world) <> 172.18.0.4:22 (host) Policy denied DROPPED (TCP Flags: SYN)
Jun  6 06:17:53.724: 172.18.0.1:39746 (world) <> 172.18.0.4:22 (host) from-network FORWARDED (TCP Flags: SYN)
Jun  6 06:17:53.724: 172.18.0.1:39746 (world) <> 172.18.0.4:22 (host) policy-verdict:none INGRESS DENIED (TCP Flags: SYN)
Jun  6 06:17:53.724: 172.18.0.1:39746 (world) <> 172.18.0.4:22 (host) Policy denied DROPPED (TCP Flags: SYN)
Jun  6 06:17:54.706: 172.18.0.1:50676 (world) <> 172.18.0.2:22 (host) from-network FORWARDED (TCP Flags: SYN)
Jun  6 06:17:54.706: 172.18.0.1:50676 (world) <> 172.18.0.2:22 (host) policy-verdict:none INGRESS DENIED (TCP Flags: SYN)
Jun  6 06:17:54.706: 172.18.0.1:50676 (world) <> 172.18.0.2:22 (host) Policy denied DROPPED (TCP Flags: SYN)
Jun  6 06:17:55.709: 172.18.0.1:50676 (world) <> 172.18.0.2:22 (host) from-network FORWARDED (TCP Flags: SYN)
Jun  6 06:17:55.709: 172.18.0.1:50676 (world) <> 172.18.0.2:22 (host) policy-verdict:none INGRESS DENIED (TCP Flags: SYN)
Jun  6 06:17:55.709: 172.18.0.1:50676 (world) <> 172.18.0.2:22 (host) Policy denied DROPPED (TCP Flags: SYN)
Jun  6 06:17:56.722: 172.18.0.1:35928 (world) <> 172.18.0.3:22 (host) from-network FORWARDED (TCP Flags: SYN)
Jun  6 06:17:56.722: 172.18.0.1:35928 (world) <> 172.18.0.3:22 (host) policy-verdict:none INGRESS DENIED (TCP Flags: SYN)
Jun  6 06:17:56.722: 172.18.0.1:35928 (world) <> 172.18.0.3:22 (host) Policy denied DROPPED (TCP Flags: SYN)
Jun  6 06:17:57.756: 172.18.0.1:35928 (world) <> 172.18.0.3:22 (host) from-network FORWARDED (TCP Flags: SYN)
Jun  6 06:17:57.756: 172.18.0.1:35928 (world) <> 172.18.0.3:22 (host) policy-verdict:none INGRESS DENIED (TCP Flags: SYN)
Jun  6 06:17:57.756: 172.18.0.1:35928 (world) <> 172.18.0.3:22 (host) Policy denied DROPPED (TCP Flags: SYN)

我们看到所有 3 个节点上的数据包都被丢弃到 TCP/22。

现在让我们实现网络策略，将 Control Plane 节点用作堡垒主机：

创建一个新 CiliumClusterwideNetworkPolicy 的以允许 SSH 连接到 Control Plane 节点。将其保存为 ccnp-control-plane-ssh.yaml：

---
apiVersion: "cilium.io/v2"
kind: CiliumClusterwideNetworkPolicy
metadata:name: "ssh"
spec:description: "SSH access on Control Plane"nodeSelector:matchLabels:node-role.kubernetes.io/control-plane: ""ingress:- toPorts:- ports:- port: "22"protocol: TCP

应用它

kubectl apply -f ccnp-control-plane-ssh.yaml

现在再次测试 SSH 连接：

root@server:~# for node in $(docker ps --format '{{.Names}}'); doecho "==== Testing connection to node $node ===="IP=$(docker inspect $node -f '{{range.NetworkSettings.Networks}}{{.IPAddress}}{{end}}')nc -vz -w2 $IP 22
done
==== Testing connection to node kind-control-plane ====
Connection to 172.18.0.4 22 port [tcp/ssh] succeeded!
==== Testing connection to node kind-worker2 ====
nc: connect to 172.18.0.2 port 22 (tcp) timed out: Operation now in progress
==== Testing connection to node kind-worker ====
nc: connect to 172.18.0.3 port 22 (tcp) timed out: Operation now in progress

它应该只在一个节点上工作：控制平面。

再次检查日志，以验证数据包是否已转发到控制平面，但被阻止到其他节点。

4.6 从堡垒访问

要检查的最后一部分是，您仍然可以通过堡垒主机通过 SSH 访问节点。

在控制平面主机上启动一个 shell：

root@server:~# docker exec -ti kind-control-plane bash
root@kind-control-plane:/# for node in $(kubectl get node -o name); doecho "==== Testing connection to node $node ===="IP=$(kubectl get $node -o jsonpath='{.status.addresses[0].address}');nc -vz -w2 $IP 22;
done
==== Testing connection to node node/kind-control-plane ====
Connection to 172.18.0.4 22 port [tcp/ssh] succeeded!
==== Testing connection to node node/kind-worker ====
Connection to 172.18.0.3 22 port [tcp/ssh] succeeded!
==== Testing connection to node node/kind-worker2 ====
Connection to 172.18.0.2 22 port [tcp/ssh] succeeded!
root@kind-control-plane:/#

所有连接都应该成功，因为集群内允许所有流量。

4.7 小实验

×	is enabled by default
√	requires to use CiliumClusterwideNetworkPolicy resources
√	requires to run Cilium in Kube Proxy replacement mode
×	is incompatible with Hubble

5. 最终实验

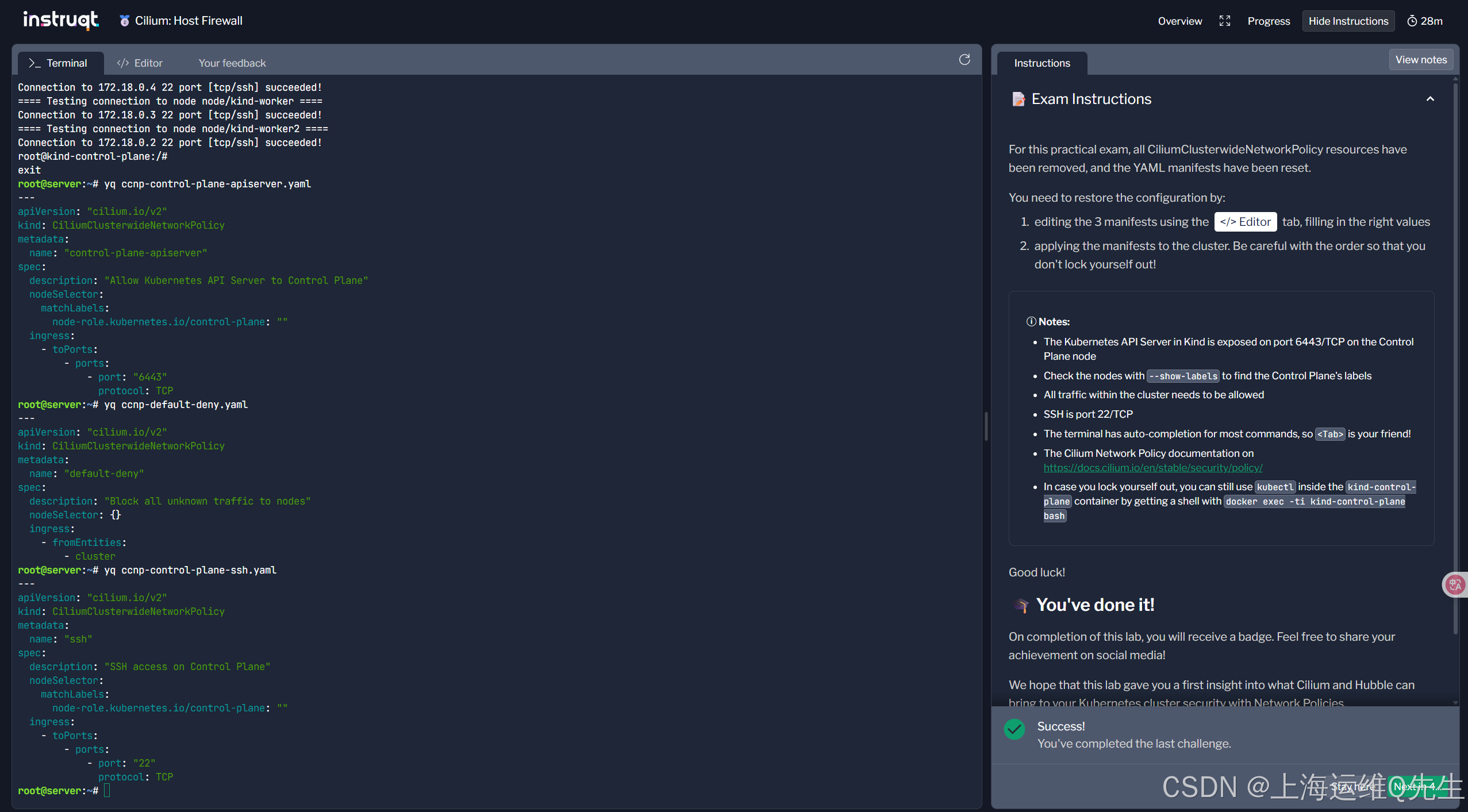

5.1 题目

对于此实践考试，所有 CiliumClusterwideNetworkPolicy 资源都已被删除，并且 YAML 清单已被重置。

您需要通过以下方式恢复配置：

1. 编辑 3 个清单，填写正确的值
2. 将清单应用于集群。小心订单，以免将自己锁在外面！

5.2 解题

5.2.1 apiserver访问策略

获取control-plane的标签

root@server:~# kubectl get no kind-control-plane -o yaml | yq .metadata.labels
beta.kubernetes.io/arch: amd64
beta.kubernetes.io/os: linux
kubernetes.io/arch: amd64
kubernetes.io/hostname: kind-control-plane
kubernetes.io/os: linux
node-role.kubernetes.io/control-plane: ""
node.kubernetes.io/exclude-from-external-load-balancers: ""

配置apiserver的CiliumClusterwideNetworkPolicy配置文件并应用配置

root@server:~# yq ccnp-control-plane-apiserver.yaml
---
apiVersion: "cilium.io/v2"
kind: CiliumClusterwideNetworkPolicy
metadata:name: "control-plane-apiserver"
spec:description: "Allow Kubernetes API Server to Control Plane"nodeSelector:matchLabels:node-role.kubernetes.io/control-plane: ""ingress:- toPorts:- ports:- port: "6443"protocol: TCP
root@server:~# k apply -f ccnp-control-plane-apiserver.yaml
ciliumclusterwidenetworkpolicy.cilium.io/control-plane-apiserver created

测试

root@server:~# for node in $(docker ps --format '{{.Names}}'); doecho "==== Testing connection to node $node ===="IP=$(docker inspect $node -f '{{range.NetworkSettings.Networks}}{{.IPAddress}}{{end}}')nc -vz -w2 $IP 22
done
==== Testing connection to node kind-control-plane ====
nc: connect to 172.18.0.4 port 22 (tcp) timed out: Operation now in progress
==== Testing connection to node kind-worker2 ====
Connection to 172.18.0.2 22 port [tcp/ssh] succeeded!
==== Testing connection to node kind-worker ====
Connection to 172.18.0.3 22 port [tcp/ssh] succeeded!

5.2.2 默认拒绝规则

配置并应用策略

root@server:~# yq ccnp-default-deny.yaml
---
apiVersion: "cilium.io/v2"
kind: CiliumClusterwideNetworkPolicy
metadata:name: "default-deny"
spec:description: "Block all unknown traffic to nodes"nodeSelector: {}ingress:- fromEntities:- cluster
root@server:~# k apply -f ccnp-default-deny.yaml
ciliumclusterwidenetworkpolicy.cilium.io/default-deny created

测试

root@server:~# for node in $(docker ps --format '{{.Names}}'); doecho "==== Testing connection to node $node ===="IP=$(docker inspect $node -f '{{range.NetworkSettings.Networks}}{{.IPAddress}}{{end}}')nc -vz -w2 $IP 22
done
==== Testing connection to node kind-control-plane ====
nc: connect to 172.18.0.4 port 22 (tcp) timed out: Operation now in progress
==== Testing connection to node kind-worker2 ====
nc: connect to 172.18.0.2 port 22 (tcp) timed out: Operation now in progress
==== Testing connection to node kind-worker ====
nc: connect to 172.18.0.3 port 22 (tcp) timed out: Operation now in progress

5.2.3 SSH访问策略

配置并应用策略

root@server:~# yq ccnp-control-plane-ssh.yaml
---
apiVersion: "cilium.io/v2"
kind: CiliumClusterwideNetworkPolicy
metadata:name: "ssh"
spec:description: "SSH access on Control Plane"nodeSelector:matchLabels:node-role.kubernetes.io/control-plane: ""ingress:- toPorts:- ports:- port: "22"protocol: TCP
root@server:~# k apply -f ccnp-control-plane-ssh.yaml
ciliumclusterwidenetworkpolicy.cilium.io/ssh created

测试

root@server:~# for node in $(docker ps --format '{{.Names}}'); doecho "==== Testing connection to node $node ===="IP=$(docker inspect $node -f '{{range.NetworkSettings.Networks}}{{.IPAddress}}{{end}}')nc -vz -w2 $IP 22
done
==== Testing connection to node kind-control-plane ====
Connection to 172.18.0.4 22 port [tcp/ssh] succeeded!
==== Testing connection to node kind-worker2 ====
nc: connect to 172.18.0.2 port 22 (tcp) timed out: Operation now in progress
==== Testing connection to node kind-worker ====
nc: connect to 172.18.0.3 port 22 (tcp) timed out: Operation now in progress

测试从堡垒机访问

root@server:~# docker exec -ti kind-control-plane bash
root@kind-control-plane:/# for node in $(kubectl get node -o name); doecho "==== Testing connection to node $node ===="IP=$(kubectl get $node -o jsonpath='{.status.addresses[0].address}');nc -vz -w2 $IP 22;
done
==== Testing connection to node node/kind-control-plane ====
Connection to 172.18.0.4 22 port [tcp/ssh] succeeded!
==== Testing connection to node node/kind-worker ====
Connection to 172.18.0.3 22 port [tcp/ssh] succeeded!
==== Testing connection to node node/kind-worker2 ====
Connection to 172.18.0.2 22 port [tcp/ssh] succeeded!
root@kind-control-plane:/#

看上去非常不错,符合我们的预期.

交卷吧!

新徽章GET!
