AI——DeepSeek+LangChain+streamlit 实现智能汽车维修服务

news 来源：原创 2025/6/10 12:06:15

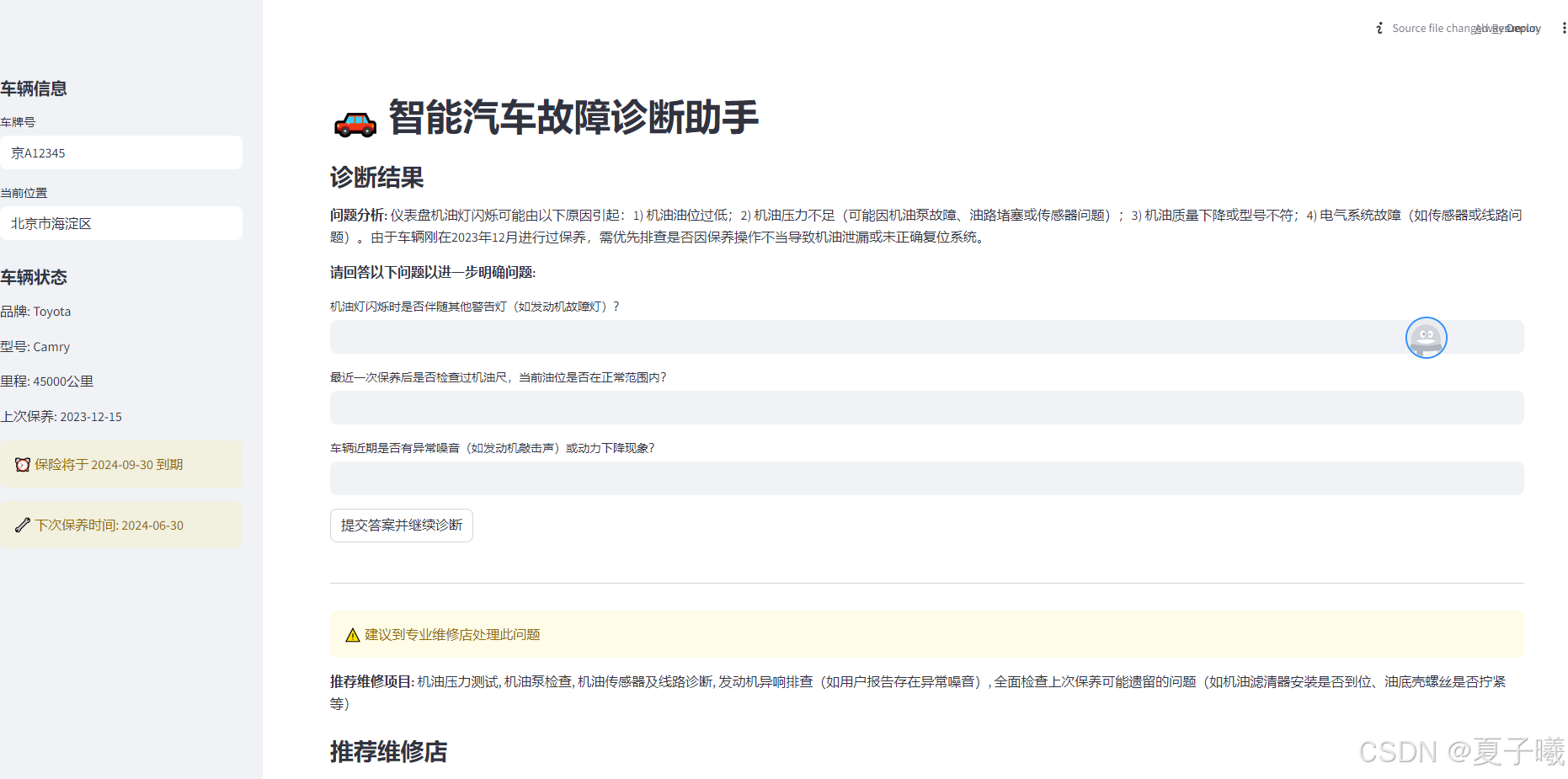

效果图

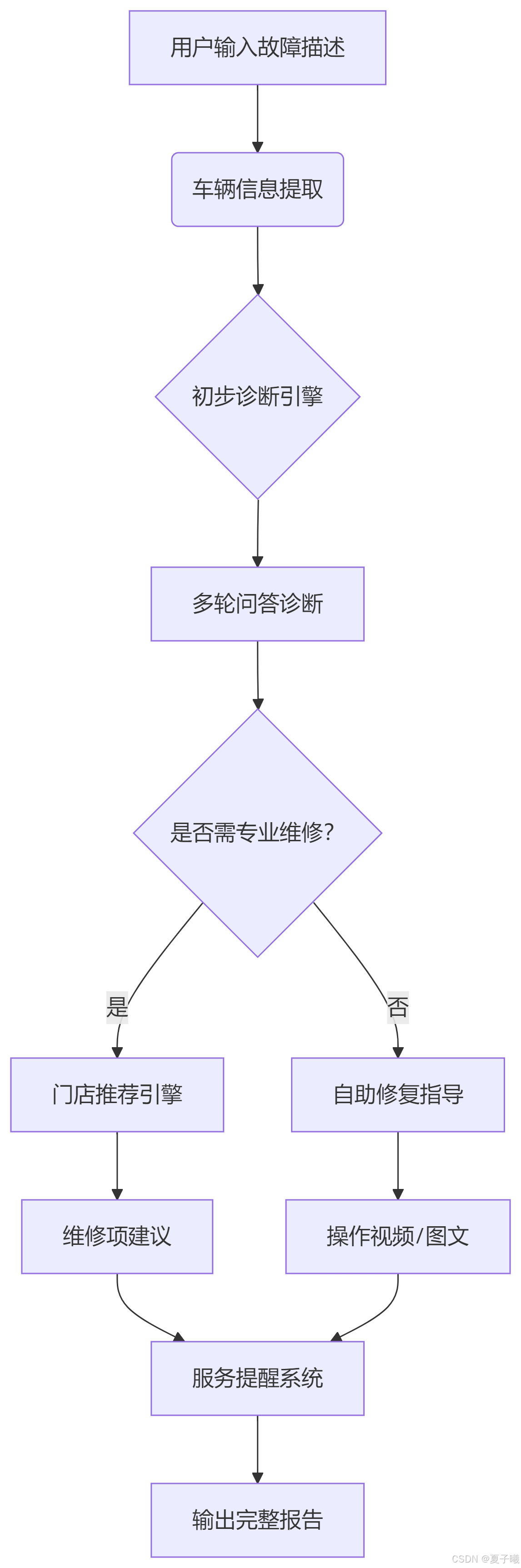

分析流程

代码实现

废话少说，直接上代码

from langchain_core.language_models.llms import BaseLLM
from langchain_core.outputs import Generation, LLMResult
from pydantic.v1 import Field, validator
from typing import Any, Dict, List, Optional, AsyncIterator
import requests
import osclass DeepSeekLLM(BaseLLM):api_key: str = Field(alias="api_key")model: str = "deepseek-chat"temperature: float = 0.7max_tokens: int = 1000# 必须实现的抽象方法def _generate(self,prompts: List[str],stop: Optional[List[str]] = None,**kwargs: Any,) -> LLMResult:print("_generate:")generations = []for prompt in prompts:response = self._call_api(prompt)generations.append([Generation(text=response)])return LLMResult(generations=generations)async def _agenerate(self,prompts: List[str],stop: Optional[List[str]] = None,**kwargs: Any,) -> LLMResult:# 异步实现（可选）return self._generate(prompts, stop, **kwargs)def _call_api(self, prompt: str) -> str:try:headers = {"Authorization": f"Bearer {self.api_key}","Content-Type": "application/json"}payload = {"messages": [{"role": "user", "content": prompt}],"model": self.model,"temperature": self.temperature,"max_tokens": self.max_tokens}#将输入 输出都保存到文件中 import json# 添加一个分隔符 没有  json.txt 就创建with open("json.txt", "a", encoding="utf-8") as f:json.dump(payload, f, ensure_ascii=False, indent=4)response = requests.post("https://api.deepseek.com/v1/chat/completions",headers=headers,json=payload,timeout=30)with open("json.txt", "a", encoding="utf-8") as f:json.dump(response.json(), f, ensure_ascii=False, indent=4)# 增加响应内容验证if not response.text.strip():raise ValueError("API返回空响应")try:data = response.json()except json.JSONDecodeError:# 尝试提取可能的JSON片段import rejson_match = re.search(r'```json\n({.*?})\n```', response.text, re.DOTALL)if json_match:data = json.loads(json_match.group(1))else:raise ValueError(f"无法解析API响应: {response.text[:200]}...")# 验证关键字段if not data.get("choices") or not isinstance(data["choices"], list):raise ValueError("API返回格式异常，缺少choices字段")content = data["choices"][0]["message"]["content"]# 清理响应内容（去除可能的Markdown标记）if content.startswith("```json"):content = content[7:-3].strip()return contentexcept requests.exceptions.RequestException as e:raise ValueError(f"API请求失败: {str(e)}")except Exception as e:raise ValueError(f"处理API响应时出错: {str(e)}")@propertydef _llm_type(self) -> str:return "deepseek"

car_diagnosis_app.py 代码

import streamlit as st
from langchain.chains import SequentialChain, TransformChain
from langchain.memory import ConversationBufferMemory
from langchain.prompts import PromptTemplate
from langchain.chains.llm import LLMChain
from deepseek_llm import DeepSeekLLM
import json
import datetime
import random
import os# 初始化DeepSeek LLM
api_key = os.getenv("DEEPSEEK_API_KEY", st.secrets.get("DEEPSEEK_API_KEY", "your-api-key"))
llm = DeepSeekLLM(api_key=api_key, temperature=0.3, max_tokens=1500)# 模拟车辆数据库
VEHICLE_DB = {"京A12345": {"brand": "Toyota","model": "Camry","year": 2020,"mileage": 45000,"last_service": "2023-12-15","insurance_expiry": "2024-09-30","next_maintenance": "2024-06-30"},"沪B67890": {"brand": "Honda","model": "CR-V","year": 2019,"mileage": 60000,"last_service": "2023-11-20","insurance_expiry": "2024-08-15","next_maintenance": "2024-05-20"}
}# 模拟维修店数据库
REPAIR_SHOPS = [{"id": 1, "name": "诚信汽修", "distance": "1.2km", "rating": 4.8, "services": ["机油更换", "刹车维修", "发动机诊断"], "price_level": "$$"},{"id": 2, "name": "途虎养车工场店", "distance": "2.3km", "rating": 4.7, "services": ["轮胎更换", "保养套餐", "电子诊断"], "price_level": "$$$"},{"id": 3, "name": "小李快修", "distance": "0.8km", "rating": 4.5, "services": ["快速保养", "玻璃水加注", "简单维修"], "price_level": "$"}
]# 模拟知识库音频
SOUND_LIBRARY = {"哒哒声": "https://example.com/sounds/ticking.mp3","嗡嗡声": "https://example.com/sounds/humming.mp3","吱吱声": "https://example.com/sounds/squeaking.mp3","咔嗒声": "https://example.com/sounds/clicking.mp3"
}# 1. 信息提取链
def extract_vehicle_info(inputs: dict) -> dict:license_plate = inputs["license_plate"]vehicle_info = VEHICLE_DB.get(license_plate, {})if not vehicle_info:st.error(f"未找到车牌号 {license_plate} 的车辆信息")return {"vehicle_info": "未知车辆"}# 检查服务提醒today = datetime.date.today()reminders = []insurance_expiry = datetime.datetime.strptime(vehicle_info["insurance_expiry"], "%Y-%m-%d").date()if (insurance_expiry - today).days < 30:reminders.append({"type": "insurance", "message": "您的车辆保险即将到期"})next_maintenance = datetime.datetime.strptime(vehicle_info["next_maintenance"], "%Y-%m-%d").date()if (next_maintenance - today).days < 30:reminders.append({"type": "maintenance", "message": "您的车辆即将需要保养"})return {"vehicle_info": json.dumps(vehicle_info),"reminders": json.dumps(reminders)}info_extraction_chain = TransformChain(input_variables=["license_plate"],output_variables=["vehicle_info", "reminders"],transform=extract_vehicle_info
)# 2. 诊断链
def setup_diagnosis_chain():diagnosis_template = """您是一名专业的汽车维修技师，正在帮助车主诊断车辆问题。请根据以下信息进行诊断：车辆信息：{vehicle_info}用户描述的症状：{symptoms}请根据您的专业知识：1. 分析可能的故障原因2. 生成最多3个关键问题来进一步明确问题3. 对于异响类问题，请建议用户试听哪种声音样本输出格式：{{"analysis": "对问题的初步分析","questions": ["问题1", "问题2", "问题3"],"sound_suggestion": "建议试听的声音类型"}}"""prompt = PromptTemplate(template=diagnosis_template,input_variables=["vehicle_info", "symptoms"])return LLMChain(llm=llm, prompt=prompt, output_key="diagnosis_result")# 3. 维修决策链
def setup_repair_decision_chain():decision_template = """基于以下诊断信息：{diagnosis_result}请判断：1. 车主是否能够自行修复问题？（是/否）2. 如果可自行修复，提供详细的步骤指导3. 如果需要专业维修，推荐维修项目输出格式：{{"self_repairable": true/false,"repair_steps": ["步骤1", "步骤2", ...],"recommended_services": ["服务1", "服务2", ...]}}"""prompt = PromptTemplate(template=decision_template,input_variables=["diagnosis_result"])return LLMChain(llm=llm, prompt=prompt, output_key="repair_decision")# 4. 门店推荐链
def recommend_shops(inputs: dict) -> dict:decision = json.loads(inputs["repair_decision"])if decision.get("self_repairable", False):return {"shop_recommendations": json.dumps([])}# 根据位置和推荐服务筛选门店location = inputs["location"]recommended_services = decision.get("recommended_services", [])filtered_shops = []for shop in REPAIR_SHOPS:# 简单匹配服务（实际应用中应有更复杂的匹配逻辑）if any(service in shop["services"] for service in recommended_services):shop["match_score"] = random.uniform(0.7, 1.0)  # 模拟匹配度计算filtered_shops.append(shop)# 按距离和评分排序filtered_shops.sort(key=lambda x: (x["distance"], -x["rating"]))return {"shop_recommendations": json.dumps(filtered_shops[:3])}shop_recommendation_chain = TransformChain(input_variables=["repair_decision", "location"],output_variables=["shop_recommendations"],transform=recommend_shops
)# 完整工作流
def create_full_workflow():diagnosis_chain = setup_diagnosis_chain()repair_decision_chain = setup_repair_decision_chain()return SequentialChain(chains=[info_extraction_chain,diagnosis_chain,repair_decision_chain,shop_recommendation_chain],input_variables=["license_plate", "symptoms", "location"],output_variables=["vehicle_info", "reminders", "diagnosis_result", "repair_decision", "shop_recommendations"],verbose=True)# Streamlit UI
def main():st.set_page_config(page_title="智能汽车故障诊断", layout="wide")st.title("🚗 智能汽车故障诊断助手")# 初始化session状态if "diagnosis_stage" not in st.session_state:st.session_state.diagnosis_stage = "initial"st.session_state.memory = ConversationBufferMemory()st.session_state.workflow = create_full_workflow()st.session_state.answers = {}st.session_state.current_questions = []# 侧边栏 - 车辆信息输入with st.sidebar:st.header("车辆信息")license_plate = st.text_input("车牌号", "京A12345")location = st.text_input("当前位置", "北京市海淀区")st.header("车辆状态")if license_plate in VEHICLE_DB:vehicle = VEHICLE_DB[license_plate]st.write(f"品牌: {vehicle['brand']}")st.write(f"型号: {vehicle['model']}")st.write(f"里程: {vehicle['mileage']}公里")st.write(f"上次保养: {vehicle['last_service']}")# 服务提醒today = datetime.date.today()insurance_expiry = datetime.datetime.strptime(vehicle["insurance_expiry"], "%Y-%m-%d").date()if (insurance_expiry - today).days < 30:st.warning(f"⏰ 保险将于 {vehicle['insurance_expiry']} 到期")next_maintenance = datetime.datetime.strptime(vehicle["next_maintenance"], "%Y-%m-%d").date()if (next_maintenance - today).days < 30:st.warning(f"🔧 下次保养时间: {vehicle['next_maintenance']}")# 主界面 - 诊断流程if st.session_state.diagnosis_stage == "initial":st.subheader("请描述您的车辆问题")symptoms = st.text_area("例如：冷启动时有哒哒异响，仪表盘机油灯闪烁", height=150)if st.button("开始诊断"):if not symptoms.strip():st.error("请输入车辆问题描述")returnst.session_state.symptoms = symptomsst.session_state.license_plate = license_platest.session_state.location = locationst.session_state.diagnosis_stage = "processing"st.rerun()# 诊断处理中elif st.session_state.diagnosis_stage == "processing":with st.spinner("正在分析您的车辆问题..."):try:# 执行工作流result = st.session_state.workflow({"license_plate": st.session_state.license_plate,"symptoms": st.session_state.symptoms,"location": st.session_state.location})# 解析结果diagnosis_result = json.loads(result["diagnosis_result"])repair_decision = json.loads(result["repair_decision"])shop_recommendations = json.loads(result["shop_recommendations"])# 存储结果st.session_state.diagnosis_result = diagnosis_resultst.session_state.repair_decision = repair_decisionst.session_state.shop_recommendations = shop_recommendationsst.session_state.current_questions = diagnosis_result.get("questions", [])# 如果有声音建议，准备音频sound_type = diagnosis_result.get("sound_suggestion")if sound_type and sound_type in SOUND_LIBRARY:st.session_state.sound_url = SOUND_LIBRARY[sound_type]else:st.session_state.sound_url = Nonest.session_state.diagnosis_stage = "show_results"st.rerun()except Exception as e:st.error(f"诊断过程中发生错误: {str(e)}")st.session_state.diagnosis_stage = "initial"# 显示诊断结果elif st.session_state.diagnosis_stage == "show_results":st.subheader("诊断结果")# 显示初步分析st.markdown(f"**问题分析:** {st.session_state.diagnosis_result.get('analysis', '')}")# 播放声音建议if st.session_state.sound_url:st.markdown("**声音对比:** 请听以下声音是否与您的车辆声音相似")st.audio(st.session_state.sound_url, format='audio/mp3')# 显示进一步问题if st.session_state.current_questions:st.markdown("**请回答以下问题以进一步明确问题:**")for i, question in enumerate(st.session_state.current_questions):st.session_state.answers[i] = st.text_input(question, key=f"q_{i}")if st.button("提交答案并继续诊断"):# 将答案添加到症状描述中new_symptoms = "\n".join([f"Q: {st.session_state.current_questions[i]}\nA: {st.session_state.answers[i]}" for i in range(len(st.session_state.current_questions))])st.session_state.symptoms += "\n" + new_symptomsst.session_state.diagnosis_stage = "processing"st.rerun()# 显示维修决策st.divider()decision = st.session_state.repair_decisionif decision.get("self_repairable", False):st.success("✅ 您可以尝试自行修复此问题")st.markdown("**修复步骤:**")for i, step in enumerate(decision.get("repair_steps", [])):st.markdown(f"{i+1}. {step}")# 添加AR指导按钮if st.button("查看AR修复指导"):st.session_state.show_ar = Trueif st.session_state.get("show_ar", False):st.video("https://example.com/ar_repair_guide.mp4")else:st.warning("⚠️ 建议到专业维修店处理此问题")st.markdown(f"**推荐维修项目:** {', '.join(decision.get('recommended_services', []))}")# 显示推荐门店st.subheader("推荐维修店")if st.session_state.shop_recommendations:cols = st.columns(len(st.session_state.shop_recommendations))for i, shop in enumerate(st.session_state.shop_recommendations):with cols[i]:st.markdown(f"**{shop['name']}**")st.caption(f"距离: {shop['distance']} | 评分: {shop['rating']}")st.caption(f"服务: {', '.join(shop['services'][:3])}")st.caption(f"价格: {shop['price_level']}")if st.button("选择此门店", key=f"shop_{i}"):st.session_state.selected_shop = shopst.session_state.diagnosis_stage = "shop_selected"st.rerun()else:st.info("未找到匹配的维修店，请尝试扩大搜索范围")# 返回按钮if st.button("重新诊断"):st.session_state.diagnosis_stage = "initial"st.rerun()# 门店选择后elif st.session_state.diagnosis_stage == "shop_selected":shop = st.session_state.selected_shopst.success(f"您已选择: {shop['name']}")# 显示预约信息st.subheader("预约信息")date = st.date_input("预约日期", min_value=datetime.date.today())time = st.time_input("预约时间", datetime.time(10, 00))contact = st.text_input("联系电话")# 维修项目确认st.subheader("维修项目确认")services = st.session_state.repair_decision.get("recommended_services", [])selected_services = st.multiselect("请确认维修项目", services, default=services)if st.button("确认预约"):st.session_state.appointment = {"shop": shop["name"],"date": date.strftime("%Y-%m-%d"),"time": time.strftime("%H:%M"),"services": selected_services,"contact": contact}st.session_state.diagnosis_stage = "appointment_confirmed"st.rerun()# 预约确认elif st.session_state.diagnosis_stage == "appointment_confirmed":appt = st.session_state.appointmentst.balloons()st.success("🎉 预约成功！")st.markdown(f"""**维修店:** {appt['shop']}  **时间:** {appt['date']} {appt['time']}  **维修项目:** {', '.join(appt['services'])}  **联系电话:** {appt['contact']}""")st.info("维修店将很快联系您确认预约详情")if st.button("返回主页"):st.session_state.diagnosis_stage = "initial"st.rerun()if __name__ == "__main__":main()

执行脚本

#环境比变量
export DEEPSEEK_API_KEY=your_api_key
#安装依赖
pip install streamlit langchain requests
#运行应用
streamlit run car_diagnosis_app.py
#访问应用
http://localhost:8501
