秒杀系统—5.第二版升级优化的技术文档三

大纲

8.秒杀系统的秒杀库存服务实现

9.秒杀系统的秒杀抢购服务实现

10.秒杀系统的秒杀下单服务实现

11.秒杀系统的页面渲染服务实现

12.秒杀系统的页面发布服务实现

8.秒杀系统的秒杀库存服务实现

(1)秒杀商品的库存在Redis中的结构

(2)库存分片并同步到Redis的实现

(3)查询秒杀商品的实时库存的实现

(4)消费支付成功的消息时增减库存

(5)消费订单取消的消息时增减库存

(1)秒杀商品的库存在Redis中的结构

//每个秒杀商品的库存结构都是⼀个Hash
"seckillStock:activityId:skuId": {"salableStock":100,//可销售库存 "lockedStock":10,//锁定库存"soldStock":20//已销售库存
}"seckillStock:1001:100001": {"salableStock":500,//可销售库存"lockedStock":50,//锁定库存"soldStock":100//已销售库存
}

(2)库存分片并同步到Redis的实现

首先构建库存在各Redis节点上的库存数据Map对象，然后遍历Redis的节点，接着通过hset命令保存到Redis中(不用设置过期时间)。

//库存分片和同步库存
@Component
public class TriggerStockTask {@Autowiredprivate ActivityService activityService;@Autowiredprivate ActivitySkuRefService activitySkuRefService;@Autowiredprivate LockService lockService;@Autowiredprivate InventoryApi inventoryApi;@Scheduled(fixedDelay = 10_000)public void run() {String lockToken = lockService.tryLock(CacheKey.TRIGGER_STOCK_LOCK, 1, TimeUnit.SECONDS);if (lockToken == null) {return;}log.info("触发库存分片和同步库存，获取分布式锁成功, lockToken={}", lockToken);try {//查询已经渲染好页面的所有秒杀活动List<Activity> activities = activityService.queryListForTriggerStockTask();if (CollectionUtils.isEmpty(activities)) {return;}for (Activity activity : activities) {List<ActivitySkuRef> activitySkuRefs = activitySkuRefService.queryByActivityId(activity.getId());if (CollectionUtils.isEmpty(activitySkuRefs)) {continue;}//要进行缓存初始化的商品，封装库存初始化请求List<SyncProductStockRequest> request = new ArrayList<>();for (ActivitySkuRef activitySkuRef : activitySkuRefs) {SyncProductStockRequest syncProductStockRequest = SyncProductStockRequest.builder().activityId(activitySkuRef.getActivityId()).skuId(activitySkuRef.getSkuId()).seckillStock(activitySkuRef.getSeckillStock()).build();request.add(syncProductStockRequest);}//把封装的库存初始化请求，发送到秒杀库存服务里//每个商品的库存数据都会分散到各个Redis节点上去，实现对商品库存分片存放if (inventoryApi.syncStock(request)) {log.info("触发库存分片和同步库存，调用库存接口将商品库存同步到Redis");activityService.updateStatus(activity.getId(), ActivityStatusVal.PAGE_RENDERED.getCode(), ActivityStatusVal.INVENTORY_SYNCED.getCode());log.info("触发库存分片和同步库存，将秒杀活动的状态修改为库存已同步");//完成库存分片后，用户就可以对商品发起秒杀抢购了} else {log.error("触发库存分片和同步库存，库存同步失败");}}} finally {lockService.release(CacheKey.TRIGGER_STOCK_LOCK, lockToken);log.info("触发库存分片和同步库存，释放分布式锁");}}
}@Service
public class ActivityServiceImpl implements ActivityService {@Autowiredprivate ActivityMapper activityMapper;...//获取状态是已渲染好页面的秒杀活动@Overridepublic List<Activity> queryListForTriggerStockTask() {QueryWrapper<Activity> queryWrapper = new QueryWrapper<>();queryWrapper.eq("status", ActivityStatusVal.PAGE_RENDERED.getCode());return activityMapper.selectList(queryWrapper);}...
}@FeignClient("demo-seckill-inventory-service")
@RequestMapping("/inventory")
public interface InventoryApi {@PostMapping("/syncStock")Boolean syncStock(@RequestBody List<SyncProductStockRequest> request);...
}@RestController
@RequestMapping("/inventory")
public class InventoryController {@Autowiredprivate InventoryService inventoryService;@PostMapping("/syncStock")Boolean syncStock(@RequestBody List<SyncProductStockRequest> request) {for (SyncProductStockRequest syncProductStockRequest : request) {inventoryService.syncStock(syncProductStockRequest.getActivityId(), syncProductStockRequest.getSkuId(), syncProductStockRequest.getSeckillStock());log.info("同步商品库存, syncProductStockRequest={}", JSON.toJSONString(syncProductStockRequest));}return Boolean.TRUE;}...
}@Service
public class InventoryServiceImpl implements InventoryService {@Autowiredprivate CacheSupport cacheSupport;...@Overridepublic Boolean syncStock(Long activityId, Long skuId, Integer stock) {//下面这种分片方式会有一个问题//比如，现在库存是10，Redis的节点个数是6//那么按照如下方式，最后的结果是：1、1、1、1、1、5//但是我们希望尽可能均分成：2、2、2、2、1、1//int redisCount = cacheSupport.getRedisCount();//int stockPerRedis = stock / redisCount;//int stockLastRedis = stock - (stockPerRedis * (redisCount - 1));//所以改成如下这种分片方式//首先获取Redis实例数量，将库存拆分为与Redis实例个数一样的redisCount个库存分片int redisCount = cacheSupport.getRedisCount();//然后将具体的库存分片结果存放到一个Map中//其中key是某Redis节点的索引，value是该Redis节点应该分的库存Map<Integer, Integer> map = new HashMap<>();for (int i = 0; i < stock; i++) {//均匀把stock的数据分散放到我们的各个节点上去int index = i % redisCount;//对每个节点的库存数量不停进行累加操作map.putIfAbsent(index, 0);map.put(index, map.get(index) + 1);}List<Map<String, String>> stockList = new ArrayList<>();for (int i = 0; i < redisCount; i++) {Map<String, String> stockMap = new HashMap<>();stockMap.put(CacheKey.SALABLE_STOCK, map.get(i) + "");stockMap.put(CacheKey.LOCKED_STOCK, "0");stockMap.put(CacheKey.SOLD_STOCK, "0");stockList.add(stockMap);log.info("库存分片 stockMap={}", JSON.toJSONString(stockMap));}cacheSupport.hsetOnAllRedis(CacheKey.buildStockKey(activityId, skuId), stockList);return Boolean.TRUE;}...
}public class RedisCacheSupport implements CacheSupport {private final JedisManager jedisManager;public RedisCacheSupport(JedisManager jedisManager) {this.jedisManager = jedisManager;}@Overridepublic int getRedisCount() {return jedisManager.getRedisCount();}...@Overridepublic void hsetOnAllRedis(String key, List<Map<String, String>> hashList) {for (int i = 0; i < jedisManager.getRedisCount(); i++) {//通过hset命令，向每个Redis节点写入库存分片数据try (Jedis jedis = jedisManager.getJedisByIndex(i)) {jedis.hset(key, hashList.get(i));}}}...
}public class JedisManager implements DisposableBean {private static final Logger LOGGER = LoggerFactory.getLogger(JedisManager.class);private final List<JedisPool> jedisPools = new ArrayList<>();public JedisManager(JedisConfig jedisConfig) {JedisPoolConfig jedisPoolConfig = new JedisPoolConfig();jedisPoolConfig.setMaxTotal(jedisConfig.getMaxTotal());//Jedis连接池，最大有多少个连接实例jedisPoolConfig.setMaxIdle(jedisConfig.getMaxIdle());jedisPoolConfig.setMinIdle(jedisConfig.getMinIdle());//加载和解析Redis集群地址for (String addr : jedisConfig.getRedisAddrs()) {String[] ipAndPort = addr.split(":");String redisIp = ipAndPort[0];int redisPort = Integer.parseInt(ipAndPort[1]);//针对每个Redis实例，都会去建立一个Jedis Pool，每个Redis实例都需要一个连接池JedisPool jedisPool = new JedisPool(jedisPoolConfig, redisIp, redisPort);LOGGER.info("创建JedisPool, jedisPool={}", jedisPool);//针对各个Redis实例，都有一个连接池jedisPools.add(jedisPool);}}public int getRedisCount() {return jedisPools.size();}public Jedis getJedisByIndex(int index) {return jedisPools.get(index).getResource();}public Jedis getJedisByHashKey(long hashKey) {hashKey = Math.abs(hashKey);int index = (int) (hashKey % getRedisCount());return getJedisByIndex(index);}public Jedis getJedisByHashKey(int hashKey) {hashKey = Math.abs(hashKey);int index = hashKey % getRedisCount();return getJedisByIndex(index);}@Overridepublic void destroy() throws Exception {for (JedisPool jedisPool : jedisPools) {LOGGER.info("关闭jedisPool, jedisPool={}", jedisPool);jedisPool.close();}}
}

(3)查询秒杀商品的实时库存的实现

@RestController
@RequestMapping("/inventory")
public class InventoryController {@Autowiredprivate InventoryService inventoryService;...@PostMapping("/queryCurrentStock")List<ProductStockVo> queryCurrentStock(@RequestBody QueryCurrentStockRequest request) {List<ProductStockVo> resultList = new ArrayList<>();Long activityId = request.getActivityId();for (Long skuId : request.getSkuIds()) {ProductStockVo productStockVo = inventoryService.queryCurrentStock(activityId, skuId);resultList.add(productStockVo);}return resultList;}...
}@Service
public class InventoryServiceImpl implements InventoryService {@Autowiredprivate CacheSupport cacheSupport;//从Redis中获取当前库存数据@Overridepublic ProductStockVo queryCurrentStock(Long activityId, Long skuId) {List<Map<String, String>> stockList = cacheSupport.hgetAllOnAllRedis(CacheKey.buildStockKey(activityId, skuId));int salableStock = 0;int lockedStock = 0;int soldStock = 0;for (Map<String, String> stockMap : stockList) {salableStock += Integer.parseInt(stockMap.get(CacheKey.SALABLE_STOCK));lockedStock += Integer.parseInt(stockMap.get(CacheKey.LOCKED_STOCK));soldStock += Integer.parseInt(stockMap.get(CacheKey.SOLD_STOCK));}return ProductStockVo.builder().activityId(activityId).skuId(skuId).salableStock(salableStock).lockedStock(lockedStock).soldStock(soldStock).build();}...
}public class RedisCacheSupport implements CacheSupport {private final JedisManager jedisManager;public RedisCacheSupport(JedisManager jedisManager) {this.jedisManager = jedisManager;}@Overridepublic int getRedisCount() {return jedisManager.getRedisCount();}...//由于一个商品的库存数据可能会分散在各个Redis节点上//所以需要从各个Redis节点查询商品库存数据，然后合并起来才算是一份总的数据@Overridepublic List<Map<String, String>> hgetAllOnAllRedis(String key) {List<Map<String, String>> list = new ArrayList<>();for (int i = 0; i < jedisManager.getRedisCount(); i++) {try (Jedis jedis = jedisManager.getJedisByIndex(i)) {list.add(jedis.hgetAll(key));}}return list;}...
}

(4)消费支付成功的消息时增减库存

由于有多个Redis实例，那么应该去哪台Redis上增减库存呢？在⽀付成功时需要做的操作是减少锁定库存 + 增加已销售库存。

但是不能随便找⼀台Redis就去执行这个操作，必须是抢购扣减库存时从哪个实例上减的，就到哪个实例上去执行操作。否则库存就会乱，比如会出现有些机器上库存是负的。

所以在秒杀抢购服务中扣减库存时：对于每个抢购请求，都⽣成⼀个long类型的⾃增序列。这个自增序列不需要全局唯⼀，甚⾄也不需要实例内唯⼀。通过这个自增序列来记录从哪台Redis实例上扣减库存，然后把这个⾃增序列透传到订单上去，⽐如透传到订单的扩展信息。

这样消费订单⽀付成功的消息时，就能找到当时扣减库存的那台Redis，然后就可以进行⽀付成功后的库存扣减操作了。

@Component
@RocketMQMessageListener(topic = QueueKey.QUEUE_PAY_ORDER, consumerGroup = "pageOrderGroup")
public class PayOrderListener implements RocketMQListener<String> {@Autowiredprivate InventoryService inventoryService;@Overridepublic void onMessage(String messageString) {log.info("收到订单支付成功的消息，mesasge={}", messageString);OrderPayMessage message = JSON.parseObject(messageString, OrderPayMessage.class);inventoryService.confirmStock(message.getSequence(), message.getActivityId(), message.getSkuId());log.info("确认订单支付对应的商品库存");}
}@Service
public class InventoryServiceImpl implements InventoryService {@Autowiredprivate CacheSupport cacheSupport;...@Overridepublic Boolean confirmStock(Long sequence, Long activityId, Long skuId) {String stockKey = CacheKey.buildStockKey(activityId, skuId);String script = LuaScript.buildConfirmStockScript(stockKey);cacheSupport.eval(sequence, script);return Boolean.TRUE;}...
}public interface LuaScript {//消费⽀付成功的消息时增减库存String CONFIRM_STOCK = "local stockKey = '%s';"+ "local lockedStock = redis.call('hget', stockKey, 'lockedStock') + 0;"+ "local soldStock = redis.call('hget', stockKey, 'soldStock') + 0;"+ "redis.call('hset', stockKey, 'lockedStock', lockedStock - 1);"+ "redis.call('hset', stockKey, 'soldStock', soldStock + 1);";static String buildConfirmStockScript(String key) {return String.format(CONFIRM_STOCK, key);}...
}public class RedisCacheSupport implements CacheSupport {private final JedisManager jedisManager;public RedisCacheSupport(JedisManager jedisManager) {this.jedisManager = jedisManager;}...@Overridepublic Object eval(Long hashKey, String script) {try (Jedis jedis = jedisManager.getJedisByHashKey(hashKey)) {return jedis.eval(script);}}...
}

(5)消费订单取消的消息时增减库存

@Component
@RocketMQMessageListener(topic = QueueKey.QUEUE_CANCEL_ORDER, consumerGroup = "cancelOrderGroup")
public class CancelOrderListener implements RocketMQListener<String> {@Autowiredprivate InventoryService inventoryService;@Overridepublic void onMessage(String messageString) {log.info("收到订单取消的消息，mesasge={}", messageString);OrderCancelMessage message = JSON.parseObject(messageString, OrderCancelMessage.class);inventoryService.releaseStock(message.getSequence(), message.getActivityId(), message.getSkuId());log.info("释放掉取消订单对应的商品库存");}
}@Service
public class InventoryServiceImpl implements InventoryService {@Autowiredprivate CacheSupport cacheSupport;...@Overridepublic Boolean releaseStock(Long sequence, Long activityId, Long skuId) {String stockKey = CacheKey.buildStockKey(activityId, skuId);String script = LuaScript.buildReleaseStockScript(stockKey);cacheSupport.eval(sequence, script);return Boolean.TRUE;}...
}public interface LuaScript {...//消费订单超时未⽀付的消息时增减库存 + 消费订单取消的消息时增减库存String RELEASE_STOCK = "local stockKey = '%s';"+ "local salableStock = redis.call('hget', stockKey, 'salableStock') + 0;"+ "local lockedStock = redis.call('hget', stockKey, 'lockedStock') + 0;"+ "redis.call('hset', stockKey, 'salableStock', salableStock + 1);"+ "redis.call('hset', stockKey, 'lockedStock', lockedStock - 1);";static String buildReleaseStockScript(String key) {return String.format(RELEASE_STOCK, key);}
}

9.秒杀系统的秒杀抢购服务实现

(1)秒杀抢购的时序图

(2)秒杀抢购的请求处理入口

(3)校验是否已抢购过某商品的实现

(4)校验在某活动下抢购不同商品数的实现

(5)扣减库存的实现

(6)发送异步下单消息的实现

(7)响应用户抢购成功的实现

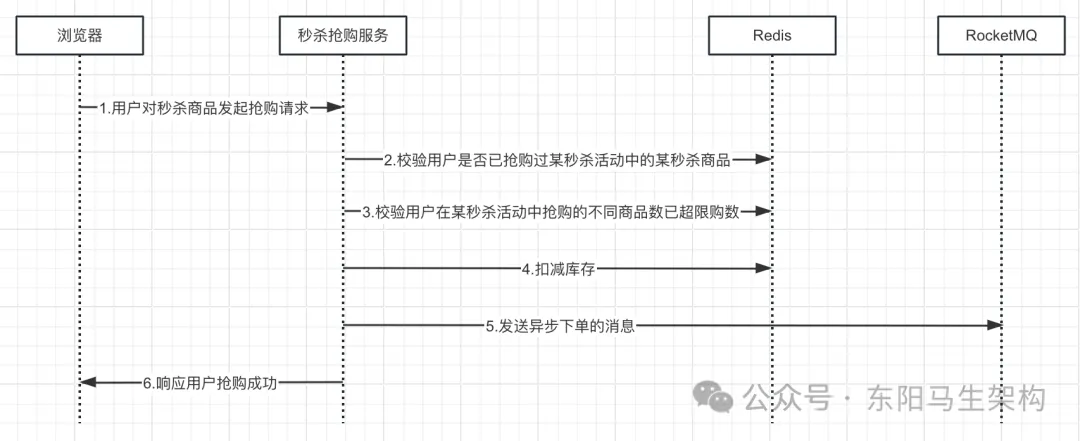

(1)秒杀抢购的时序图

(2)秒杀抢购的请求处理入口

这里使用Servlet 3.0的异步化功能来提升性能，具体就是：首先及时释放掉Tomcat的线程，保证Response对象不会被关闭，然后把请求交给自定义的业务线程池去处理。由于秒杀抢购涉及的操作步骤比较多，所以使用了责任链模式来进行编码。

@RestController
@RequestMapping("/purchase")
public class PurchaseController {@Autowiredprivate BossEventBus bossEventBus;@PostMappingpublic void seckillPurchase(@RequestBody PurchaseRequest request, HttpServletRequest servletRequest, HttpServletResponse servletResponse) {String validateResult = request.validateParams();if (Objects.nonNull(validateResult)) {servletResponse.setCharacterEncoding("UTF-8");servletResponse.setContentType("application/json;charset=UTF-8");try (ServletOutputStream out = servletResponse.getOutputStream()) {String s = "{\"success\":false, \"info\":\"" + validateResult + "\"}";out.write(s.getBytes(StandardCharsets.UTF_8));out.flush();} catch (IOException e) {e.printStackTrace();}} else {//对并发HTTP请求的两种处理方式：//方式一：同步处理请求，即直接返回响应给前端//基于Boss + Worker双总线架构，首先将抢购的请求直接放入队列中，然后直接返回响应给前端；//接着再基于队列中转 + 线程池异步并发的去处理抢购请求；//从而最大幅度提升抢购服务的并发能力和吞吐量；//也就是说：//抢购请求发送到这里以后，会直接进入内存队列，然后进行返回，这样可将抢购接口的性能提到最高；//此时前端界面会提示正在抢购中，请耐心等待抢购结果；//接着前端会每隔几秒发送一个请求到后台来查询本次抢购的结果；//方式二：采用Servlet 3.0的异步化架构，异步处理请求，即等待监听后再返回响应给前端//基于Boss + Worker双总线架构，请求过来后也是立刻将请求提交到内存队列，但并没有直接返回响应给前端；//1.首先请求提交到内存队列后会进行异步化处理：//所以此时可以马上释放Tomcat里的业务线程，让处理当前请求的Tomcat线程可以去处理其他请求；//通过这种方式，可以避免线程同步阻塞等待结果返回，从而大幅度提升抢购服务的并发能力和吞吐量；//2.其次没有直接返回响应给前端：//这是因为请求的响应会通过Servlet 3.0提供的AsyncListener收到通知后才进行返回；//当异步化处理完请求后，就会通知AsyncListener，此时Tomcat才会把请求的响应返回前端；//开启请求的异步化处理，避免Tomcat的线程阻塞AsyncContext asyncContext = servletRequest.startAsync();asyncContext.setTimeout(5000);//添加ServletAsyncListener，当HTTP请求被异步处理完时，就会通知Tomcat可以将响应返回给前端asyncContext.addListener(new ServletAsyncListener());PurchaseContext purchaseContext = new PurchaseContext();purchaseContext.setAsyncContext(asyncContext);purchaseContext.setActivityId(request.getActivityId());purchaseContext.setSkuId(request.getSkuId());purchaseContext.setUserId(request.getUserId());//秒杀抢购时涉及的步骤比较多，这里采用了责任链模式bossEventBus.publish("step1", new Step1CheckProduct(), purchaseContext);}}
}public class BossEventBus {private final Disruptor<BossEvent> bossRingBuffer;public BossEventBus(BossConfig bossConfig, WorkerConfig workerConfig) {//双总线架构设计：//BossEventBus -> 事件会分发到不同的WorkEventBus -> 不同的线程池来进行并发处理//Boss事件总线：即主事件总线，只有一个//比如用来处理每一个秒杀请求//Work事件总线：即工作任务事件总线，有多个，不同类型//比如用来处理一个秒杀请求的每一个具体步骤//每个步骤处理完之后又发送到Work事件总线处理下一个步骤//所以先进来的请求可能不会先被处理完//双总线架构的设计思想：//通过将一个请求拆分为多个步骤，当需要处理并发的多个请求时，就可以用多个线程池分别处理每个步骤，从而提升处理并发请求的速度//因为一段代码的执行可能需要一定的时间，一个CPU时间片并不能执行完，需要很多个CPU时间片来执行，从而产生CPU时间片的等待//如果将一段代码的执行拆分为几个步骤，那么一个步骤的执行可能一个CPU时间片就执行完了，不会产生比较多的CPU时间片等待//首先所有的Event先进入BossEventBus里的Disruptor//然后BossEventBus.Disruptor里的线程会把Event交给BossEventHandler处理//接着BossEventHandler再将这些Event分发到各自对应的WorkEventBus.Disruptor//而WorkEventBus.Disruptor里的线程又会把Event拿出来交给WorkEventHandler处理//最后WorkEventHandler则将Event交给监听的EventListener，由EventListener中的线程池来并发处理//1.先准备好WorkEventBus//比如用来处理一个秒杀请求的每个具体步骤StepWorkEventBusManager workEventBusManager = WorkEventBusManager.getSingleton();for (WorkerConfig.Config config : workerConfig.getWorkers()) {workEventBusManager.register(config);}//2.再准备好BossEventBus//比如用来处理每一个秒杀请求bossRingBuffer = new Disruptor<>(BossEvent::new, bossConfig.getRingbufferSize(), NamedDaemonThreadFactory.getInstance("BossEventBus"));BossEventHandler[] eventHandlers = new BossEventHandler[bossConfig.getEventHandlerNum()];for (int i = 0; i < eventHandlers.length; i++) {eventHandlers[i] = new BossEventHandler();}bossRingBuffer.handleEventsWithWorkerPool(eventHandlers);bossRingBuffer.start();}public boolean publish(String channel, BaseEvent event, AsyncContext context) {//EventTranslator就是把传入的参数，转换为Disruptor里面的Event对象EventTranslator<BossEvent> translator = (e, s) -> {e.channel = channel;e.event = event;e.context = context;};//把封装的BossEvent发布到Disruptor内存队列里//发布成功后，Disruptor内部线程会消费和处理内存队列里的BossEvent//也就是会把BossEvent交给BossEventHandler来进行处理boolean success = bossRingBuffer.getRingBuffer().tryPublishEvent(translator);if (!success) {//如果异步发布event到内存队列里失败了}return success;}
}public class BossEventHandler implements WorkHandler<BossEvent> {@Overridepublic void onEvent(BossEvent event) throws Exception {try {dispatchBossEvent(event);} finally {event.clear();}}//事件分发@SuppressWarnings("unchecked")private void dispatchBossEvent(BossEvent event) {//1.根据channel获取到对应的WorkEventBusWorkEventBus workEventBus = WorkEventBusManager.getSingleton().getWorkEventBus(event.channel);//2.根据事件类型获取到对应的Listener，把之前注册的Listener拿出来List<EventListener> eventListeners = workEventBus.getEventListeners(event.event);//3.封装WorkEventEventTranslator<WorkEvent> translator = (e, s) -> {e.event = event.event;//事件类型e.context = event.context;//数据上下文e.listeners = eventListeners;//注册到WorkEventBus里的Listener};//4.把Event分发到channel指定的WorkEventBus里去//WorkEvent会进入到内存队列里，内部会有一个线程，拿到WorkEvent，交给WorkEventHandler处理boolean publish = workEventBus.publish(translator);if (!publish) {//如果发布到WorkEventBus时，遇到队列满的问题，那么publish就会为false}}
}public abstract class BasePurchaseListener<E extends BaseEvent> implements EventListener<BaseEvent> {@Autowiredprotected BossEventBus bossEventBus;@Autowiredprotected ExecutorService executorService;@Autowiredprotected CacheSupport cacheSupport;@Overridepublic void onEvent(BaseEvent event, AsyncContext eventContext) {PurchaseContext purchaseContext = (PurchaseContext) eventContext;doThisStep(((E) event), purchaseContext);}protected abstract void doThisStep(E event, PurchaseContext purchaseContext);protected void response(javax.servlet.AsyncContext asyncContext, boolean success, String info) {ServletResponse response = asyncContext.getResponse();response.setCharacterEncoding("UTF-8");response.setContentType("application/json;charset=UTF-8");try (ServletOutputStream out = response.getOutputStream()) {String s = "{\"success\":" + success + ", \"info\":\"" + info + "\"}";out.write(s.getBytes(StandardCharsets.UTF_8));out.flush();} catch (IOException e) {e.printStackTrace();} finally {asyncContext.complete();}}
}

(3)校验是否已抢购过某商品的实现

//校验用户是否已经抢购过某个秒杀商品
@Component
@Channel("step1")
public class Step1Listener extends BasePurchaseListener<Step1CheckProduct> {@Overridepublic boolean accept(BaseEvent event) {return event instanceof Step1CheckProduct;}@Overrideprotected void doThisStep(Step1CheckProduct event, PurchaseContext purchaseContext) {executorService.execute("step1", () -> {Long activity = purchaseContext.getActivityId();Long userId = purchaseContext.getUserId();Long skuId = purchaseContext.getSkuId();//以秒杀活动ID + 用户ID + skuID来构建keyString key = CacheKey.buildCheckProductKey(activity, userId, skuId);//进行防重处理：//如果用户对这个秒杀活动下的这个秒杀商品还没抢购过，则可以发起抢购//如果已经抢购过了，则不能重复抢购if (!cacheSupport.exists(key)) {log.info("校验用户是否已经抢购过某秒杀商品，用户还未抢购过");//用户还没成功抢购过这个商品，则进入第二步校验用户在该秒杀活动中抢购过的不同商品数bossEventBus.publish("step2", new Step2CheckUser(), purchaseContext);return;}response(purchaseContext.getAsyncContext(), false, "你已经抢购过该商品了");});}
}

(4)校验在某活动下抢购不同商品数的实现

//校验用户在某秒杀活动下抢购过的不同商品数
//最多允许用户抢购某个秒杀活动中的3个不同商品，这在一定程度上防止用户是黄牛或恶意抢购所有商品
@Component
@Channel("step2")
public class Step2Listener extends BasePurchaseListener<Step2CheckUser> {@Overridepublic boolean accept(BaseEvent event) {return event instanceof Step2CheckUser;}@Overrideprotected void doThisStep(Step2CheckUser event, PurchaseContext purchaseContext) {executorService.execute("step2", () -> {Long activity = purchaseContext.getActivityId();Long userId = purchaseContext.getUserId();//以秒杀活动Id + 用户ID来构建keyString key = CacheKey.buildCheckUserKey(activity, userId);Long incr = cacheSupport.incr(key);//返回自增后的值if (incr <= 3) {//10分钟内，一个用户在一个秒杀活动里最多抢购3个不同的商品cacheSupport.expire(key, 600);log.info("校验用户在某秒杀活动下抢购过的不同商品数，在3次以内");bossEventBus.publish("step3", new Step3LockStock(), purchaseContext);return;}response(purchaseContext.getAsyncContext(), false, "已抢购过的不同商品数超出限制");});}
}

(5)扣减库存的实现

⾸先将标记请求的⾃增序列加1，然后⽤这个⾃增序列确定⼀台Redis实例来执⾏扣减库存的脚本。

如果扣减成功，则直接返回抢购成功。如果扣减失败，那么不再获取新的⾃增序列，⽽是在原来的基础之上在加1，然后继续到下⼀台机器扣减库存。如果⼀直加了所有的Redis节点数还没有扣减库存成功，那么可以认为此时秒杀商品整体售罄了，返回⽤户该秒杀商品已售罄。

通过在扣减库存时，在Redis标记请求，也可以进行超时补偿处理。比如可能秒杀服务在Redis扣减完库存后，出现宕机等异常无法继续处理。当然如果在页面渲染时也出现中断的情况，也可以基于Redis实现补偿。

//扣减库存
@Component
@Channel("step3")
public class Step3Listener extends BasePurchaseListener<Step3LockStock> {private static final AtomicLong sequencer = new AtomicLong();private static final String SCRIPT = "local stockKey = '%s';"+ "local salableStock = redis.call('hget', stockKey, 'salableStock') + 0;"+ "local lockedStock = redis.call('hget', stockKey, 'lockedStock') + 0;"+ "if(salableStock > 0) "+ "then "+ "redis.call('hset', stockKey, 'salableStock', salableStock - 1);"+ "redis.call('hset', stockKey, 'lockedStock', lockedStock + 1);"+ "return 'success';"+ "else "+ "return 'failure';"+ "end;";@Overridepublic boolean accept(BaseEvent event) {return event instanceof Step3LockStock;}@Overrideprotected void doThisStep(Step3LockStock event, PurchaseContext purchaseContext) {executorService.execute("step3", () -> {//首先获取一个自增序列//在第1次扣减库存时，用它来决定后续订单链路的库存扣减都应该到哪台Redis中去处理//该序列会不停自增，多个线程过执行到这里时，会在多个Redis节点里进行RoundRobin轮询long sequence = sequencer.incrementAndGet();Long activity = purchaseContext.getActivityId();Long userId = purchaseContext.getUserId();Long skuId = purchaseContext.getSkuId();String stockKey = CacheKey.buildStockKey(activity, skuId);String script = String.format(SCRIPT, stockKey);//获取Redis实例数量int redisCount = cacheSupport.getRedisCount();//从sequence到maxSequence的间隔就是Redis实例数量long maxSequence = sequence + redisCount - 1;String result;//遍历循环与Redis实例数量一样多的次数//首先通过sequence定位到一台用来扣减库存的起始Redis实例//如果在这台起始Redis实例上没能扣减库存成功，说明在该起始Redis实例上没有库存了//但此时其他的Redis实例上可能还有库存，所以需要尝试在下一台Redis实例上扣减库存for (long i = sequence; i <= maxSequence; i++) {log.info("扣减库存，sequence={}", i);//针对指定的sequence序号，通过取模找到对应的Redis实例，来执行抢购脚本result = (String) cacheSupport.eval(i, script); if (StringUtils.equals(result, "success")) {//扣减库存成功后，则把用户已经抢购成功的消息记录到Redis中String key = CacheKey.buildCheckProductKey(activity, userId, skuId);cacheSupport.set(key, "1");cacheSupport.expire(key, 7200);//需要记录是在哪台Redis实例上扣减库存，这样后面确认库存时，就可以到这台Redis实例上进行确认purchaseContext.setSequence(i);log.info("扣减库存，扣减库存成功，sequence={}", i);//抢购成功后，进入下一步发送创建订单的消息到RocketMQbossEventBus.publish("step4", new Step4CreateOrder(), purchaseContext);return;}}response(purchaseContext.getAsyncContext(), false, "该商品已经售罄了");});}
}

(6)发送异步下单消息的实现

//发送异步创建秒杀订单的消息
@Component
@Channel("step4")
public class Step4Listener extends BasePurchaseListener<Step4CreateOrder> {@Autowiredprivate RocketMQTemplate rocketMQTemplate;@Overridepublic boolean accept(BaseEvent event) {return event instanceof Step4CreateOrder;}@Overrideprotected void doThisStep(Step4CreateOrder event, PurchaseContext purchaseContext) {executorService.execute("step4", () -> {//发送异步下单的请求，会把自己扣减库存的redis实例对应的seqwuence序号String message = OrderCreateMessage.builder().sequence(purchaseContext.getSequence()).activityId(purchaseContext.getActivityId()).userId(purchaseContext.getUserId()).skuId(purchaseContext.getSkuId()).count(1).build().toJsonString();rocketMQTemplate.convertAndSend(QueueKey.QUEUE_CREATE_ORDER, message);log.info("发送异步创建秒杀订单的消息");bossEventBus.publish("step5", new Step5Response(), purchaseContext);});}
}

(7)响应用户抢购成功的实现

//响应用户抢购成功
@Component
@Channel("step5")
public class Step5Listener extends BasePurchaseListener<Step5Response> {@Overridepublic boolean accept(BaseEvent event) {return event instanceof Step5Response;}@Overrideprotected void doThisStep(Step5Response event, PurchaseContext purchaseContext) {executorService.execute("step5", () -> {log.info("给用户返回抢购成功的响应");//通过Servlet 3.0的异步化上下文，发送一个响应结果即可response(purchaseContext.getAsyncContext(), true, "恭喜您抢购成功");});}
}

10.秒杀系统的秒杀下单服务实现

这里会消费异步下单的消息，然后调⽤订单服务接⼝来创建秒杀订单。业务逻辑⽐较简单，但是需要考虑以下的问题：

一.正常情况

需要使⽤Redis进行消息去重，保证消息消费幂等。需要进行消费流控，比如调整MQ消费者的线程数、使⽤信号量或Guava限流。需要进行多线程下单。

二.异常情况

如果创建订单的接⼝调⽤失败，需要基于MQ的重试功能进⾏重试。如果重试还是失败，让消息进⼊MQ的死信队列。

//这里会基于Semaphore信号量来进行下单限流
//下单服务最大的技术难点就是控制下单频率，而秒杀时的瞬时单量会特别大
//所以创建秒杀订单时，如果不加控制地调用订单系统的接口进行下单，那么订单系统负载会很高//Semaphore数量的设置
//可以根据订单系统可以抗下的最大并发数进行估算，比如按照最大并发数 * 80%、70%、60%、50%
//然后将估算出的数字设置到Semaphore里去，表示最多可允许同时创建多少个订单
//从而避免对订单系统造成过大的压力，实现削峰填谷，将瞬时高峰削了，通过低谷来慢慢下单//用户在前端页面抢购成功后，会进入等待界面(比如显示圆圈不停地旋转)
//此时前端会定时发送请求给后端，比如每隔5s发送请求来检查下单是否成功//如果秒杀活动开始瞬时产生了1w个订单
//而订单系统的一台机器每秒支持创建500个订单，那么需要20秒才能完成订单的创建，此时用户体验必然不好
//假如订单系统部署了4台4核8G的机器，那么每秒可以支持创建2000订单，那么瞬时1w个订单只需要5s就可以完成创建@Component
@RocketMQMessageListener(topic = QueueKey.QUEUE_CREATE_ORDER, consumerGroup = "createOrderGroup")
public class CreateOrderListener implements RocketMQListener<String> {//并发能力为500private static final Semaphore SEMAPHORE = new Semaphore(500);@Autowiredprivate CacheSupport cacheSupport;@Autowiredprivate OrderApi orderApi;@Overridepublic void onMessage(String messageString) {SEMAPHORE.acquireUninterruptibly();try {handleMessage(messageString);} finally {SEMAPHORE.release();}}private void handleMessage(String messageString) {log.info("收到创建秒杀订单的消息，message={}", messageString);OrderCreateMessage message = JSON.parseObject(messageString, OrderCreateMessage.class);Long sequence = message.getSequence();Long activityId = message.getActivityId();Long userId = message.getUserId();Long skuId = message.getSkuId();Integer count = message.getCount();//通过Redis来进行幂等控制，避免重复消费String key = CacheKey.buildConsumeCreateOrderKey(sequence, activityId, userId, skuId);if (cacheSupport.exists(key)) {return;} else {//设置key的过期时间cacheSupport.expire(key, 7200);}CreateOrderReuqest request = CreateOrderReuqest.builder().sequence(sequence).activityId(activityId).userId(userId).skuId(skuId).count(count).build();//调用一个订单的接口进行下单if (orderApi.createOrder(request)) {log.info("调用依赖的订单系统创建秒杀订单");} else {throw new RuntimeException("创建订单失败");}}
}@FeignClient("demo-order-service")
@RequestMapping("/order")
public interface OrderApi {@PostMappingBoolean createOrder(@RequestBody CreateOrderReuqest request);
}@RestController
@RequestMapping("/order")
public class OrderController {@Autowiredprivate OrderService orderService;@Autowiredprivate ProductApi productApi;@Autowiredprivate RocketMQTemplate rocketMQTemplate;...@PostMappingpublic Boolean createOrder(@RequestBody CreateOrderReuqest request) {log.info("收到创建订单的请求");SkuVo skuVo = productApi.queryBySkuId(request.getSkuId());log.info("调用商品系统接口查询商品, skuVo={}", skuVo);Map<String, Object> attributes = new HashMap<>();attributes.put("activityId", request.getActivityId());attributes.put("sequence", request.getSequence());Order order = Order.builder().userId(request.getUserId()).skuId(request.getSkuId()).count(request.getCount()).amount(request.getCount() * skuVo.getSeckillPrice()).type(Order.TYPE_SECKILL).status(Order.STATUS_CREATED).attributes(JSON.toJSONString(attributes)).build();orderService.save(order);log.info("保存订单，orderId={}，order={}", order.getId(), JSON.toJSONString(order));//发送一个延时消息：14 -> 延时10m，4 -> 延时30s//messageDelayLevel：1s 5s 10s 30s 1m 2m 3m 4m 5m 6m 7m 8m 9m 10m 20m 30m 1h 2hrocketMQTemplate.syncSend(QueueKey.QUEUE_CHECK_ORDER, MessageBuilder.withPayload(order.getId()).build(), 2000, 14);log.info("发送订单延时检查消息");return Boolean.TRUE;}...
}

11.秒杀系统的页面渲染服务实现

(1)数据库表的设计

(2)页面渲染的时序图

(3)消费页面渲染的消息和超时补偿机制

(4)页面渲染第一步—加载页面配置

(5)页面渲染第二步—下载页面模版

(6)页面渲染第三步—聚合数据

(7)页面渲染第四步—渲染页面

(8)页面渲染第五步—上传静态化页面

(9)页面渲染第六步—保存页面渲染日志

(10)页面渲染第七步—发送渲染成功的消息到MQ

(1)数据库表的设计

一.模版文件表

@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
@TableName("seckill_page_template")
public class PageTemplate implements Serializable {//主键private Long id;//模板名称private String templateName;//模板文件的urlprivate String templateUrl;private Date createTime;private Date updateTime;
}

二.页面配置表

@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
@TableName("seckill_page_config")
public class PageConfig implements Serializable {//主键private Long id;//模板文件idprivate Long templateId;//模板文件的urlprivate String templateUrl;//页面名称private String pageName;//页面编码private String pageCode;//渲染页面的数据来源private String aggrDataUrl;private Date createTime;private Date updateTime;
}

三.页面渲染流水表

@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
@TableName("seckill_page_log")
public class PageLog implements Serializable {private Long id;//渲染开始的时间戳private Long startTime;private String bizData;//渲染页面还是删除页面, 渲染是render, 删除是deleteprivate String opType;//文件名private String fileName;//页面要发布到这些静态资源服务器上，格式ip1,ip2private String serverIps;//记录页面已经发布到哪些静态资源服务器上了private String finishedServerIps;//渲染结束的的时间戳private Long completionTime;//渲染时使用的模板idprivate Long templateId;//生成的静态页面的idprivate String staticPageId;//静态资源的访问地址private String staticPageUrl;//触发这个渲染任务的消息内容private String msg;//这次操作是否成功private Boolean success;//当操作失败时的错误信息private String info;private Date createTime;private Date updateTime;
}

(2)页面渲染的时序图

说明：由于模版内容读多写少，而且数据量不大，所以可存放到Redis甚至内存。

(3)消费页面渲染的消息和超时补偿机制

注意：由于整个渲染流程比较多步骤，而且是基于Disruptor内存队列进行的。所以很可能出现机器重启时，导致页面渲染过慢或者中断等异常。此时可以通过超时补偿机制来解决。也就是在如下定时任务中，如果发现超过10分钟还没完成渲染，则重复推送渲染消息，毕竟即便页面渲染多次也会不影响最终渲染结果。

@Component
public class TriggerPageTask {@Autowiredprivate ActivityService activityService;@Autowiredprivate ActivitySkuRefService activitySkuRefService;@Autowiredprivate LockService lockService;@Autowiredprivate RocketMQTemplate rocketMQTemplate;@Scheduled(fixedDelay = 10_000)public void run() {//通过加锁，可以确保，同时只有一个定时调度任务在处理页面渲染触发String lockToken = lockService.tryLock(CacheKey.TRIGGER_PAGE_LOCK, 1, TimeUnit.SECONDS);if (lockToken == null) {return;}log.info("触发渲染页面，获取分布式锁成功, lockToken={}", lockToken);try {//在秒杀活动展示之前1小时开始渲染页面//发起渲染条件是：showTime - now < 1小时，同时秒杀活动已通过审核List<Activity> activities = activityService.queryListForTriggerPageTask();if (CollectionUtils.isEmpty(activities)) {return;}for (Activity activity : activities) {Long id = activity.getId();List<ActivitySkuRef> activitySkuRefs = activitySkuRefService.queryByActivityId(id);if (CollectionUtils.isEmpty(activitySkuRefs)) {continue;}//发送渲染秒杀活动商品列表页的消息List<Long> skuIds = activitySkuRefs.stream().map(ActivitySkuRef::getSkuId).collect(Collectors.toList());String renderActivityPageMessage = PageRenderMessage.builder().pageCode("seckill_activity").bizData(ImmutableMap.of("type", "activity", "activityId", id)).params(ImmutableMap.of("activityId", id, "activityName", activity.getActivityName(), "startTime", activity.getStartTime(), "endTime", activity.getEndTime(), "skuIds", skuIds)).fileName(FileNameUtils.generateSeckillActivityFilename(id)).build().toJsonString();rocketMQTemplate.syncSend(QueueKey.QUEUE_RENDER_PAGE, renderActivityPageMessage);log.info("触发渲染页面，发送渲染商品列表页的消息, message={}", renderActivityPageMessage);for (ActivitySkuRef activitySkuRef : activitySkuRefs) {//发送渲染秒杀商品详情页的消息Long skuId = activitySkuRef.getSkuId();String renderProductPageMessage = PageRenderMessage.builder().pageCode("seckill_product").bizData(ImmutableMap.of("type", "product", "activityId", id, "skuId", skuId)).params(ImmutableMap.of("skuId", skuId)).fileName(FileNameUtils.generateSeckillProductFilename(skuId)).build().toJsonString();rocketMQTemplate.syncSend(QueueKey.QUEUE_RENDER_PAGE, renderProductPageMessage);log.info("触发渲染页面，发送渲染商品详情页的消息, message={}", renderProductPageMessage);}//把秒杀活动的状态修改为页面渲染中activityService.updateStatus(id, ActivityStatusVal.AUDIT_PASS.getCode(), ActivityStatusVal.PAGE_RENDERING.getCode());log.info("触发渲染页面，把秒杀活动状态改成页面渲染中");}} finally {lockService.release(CacheKey.TRIGGER_PAGE_LOCK, lockToken);log.info("触发渲染页面，释放分布式锁");}}
}@Component
@RocketMQMessageListener(topic = QueueKey.QUEUE_RENDER_PAGE, consumerGroup = "rendPageConsumer")
public class RenderPageListener implements RocketMQListener<String> {//异步框架BossEventBus@Autowiredprivate BossEventBus bossEventBus;@Overridepublic void onMessage(String messageString) {log.info("收到渲染页面的消息, message={}", messageString);try {JSONObject message = JSONObject.parseObject(messageString);PageRenderContext context = new PageRenderContext();context.setPageCode(message.getString("pageCode"));context.setBizData(message.getJSONObject("bizData"));context.setParams(message.getJSONObject("params"));context.setFileName(message.getString("fileName"));context.setPageLog(new PageLog());context.getPageLog().setStartTime(System.currentTimeMillis());context.getPageLog().setBizData(JSON.toJSONString(context.getBizData()));context.getPageLog().setOpType("render");context.getPageLog().setFileName(context.getFileName());context.getPageLog().setServerIps(BussinessConfig.getNginxServerIps());context.getPageLog().setMsg(messageString);//页面渲染的步骤：//加载页面配置 -> 下载页面模板 -> 聚合数据 -> 渲染页面 -> 上传静态化页面 -> 保存页面渲染日志 -> 发布页面渲染成功的消息bossEventBus.publish(ChannelKey.CHANNEL_01_LOAD_PAGE_CONFIG, PageRenderEventHolder.EVENT_01, context);} catch (Exception ignore) {}}
}

(4)页面渲染第一步—加载页面配置

@Component
@Channel(CHANNEL_01_LOAD_PAGE_CONFIG)
public class Event01Listener extends BaseRenderPageListener<Event01LoadPageConfig> {@Autowiredprivate PageConfigService pageConfigService;@Overridepublic boolean accept(BaseEvent event) {return event instanceof Event01LoadPageConfig;}//页面渲染第一步：加载页面配置//加载到页面配置后，才可以进行页面渲染@Overrideprotected void doThisStep(Event01LoadPageConfig event, PageRenderContext context) {//pageCode的取值是：seckill_product或seckill_activityString pageCode = context.getPageCode();//封装一个Runnable异步任务Runnable task = () -> {//根据pageCode来获取PageConfig页面配置PageConfig pageConfig = pageConfigService.queryByPageCode(pageCode);if (pageConfig == null) {context.getPageLog().setSuccess(false);context.getPageLog().setInfo("page不存在");context.setShouldSkip(true);return;}//将页面配置设置到上下文中context.setPageConfig(pageConfig);context.getPageLog().setTemplateId(pageConfig.getTemplateId());//发送Event到第二个channel的WorkEventBus里，通过bossEventBus进行中转bossEventBus.publish(CHANNEL_02_DOWNLOAD_TEMPLATE_FILE, EVENT_02, context);log.info("第1步：加载页面配置, pageConfig={}", JSON.toJSONString(pageConfig, true));};//将封装好的任务，提交到线程池进行执行executorService.execute(CHANNEL_01_LOAD_PAGE_CONFIG, task);}
}public class ExecutorService {private static final ConcurrentHashMap<String, SafeThreadPool> BUFFER = new ConcurrentHashMap<>();public ExecutorService(ExecutorConfig executorConfig) {for (ExecutorConfig.Config config : executorConfig.getExecutors()) {BUFFER.put(config.getThreadPool(), new SafeThreadPool(config.getThreadPool(), config.getThreadCount()));}}public void execute(String channel, Runnable task) {//Optional.ofNullable()方法的作用是将一个可能为null的值包装到Optional容器中//如果该值为null，则返回一个空的Optional对象，否则返回一个包含该值的Optional对象//使用Optional.ofNullable()可以有效地避免空指针异常，因为它可以让我们在获取一个可能为null的对象时，先判断该对象是否为空，从而避免出现空指针异常Optional.ofNullable(BUFFER.get(channel)).ifPresent(safeThreadPool -> safeThreadPool.execute(task));}
}public class SafeThreadPool {private final Semaphore semaphore;private final ThreadPoolExecutor threadPoolExecutor;public SafeThreadPool(String name, int permits) {//设置Semaphore信号量为线程数量semaphore = new Semaphore(permits);//根据线程数量封装一个线程池，其中最大线程数量maximum的大小就是线程数量permits * 2//可以往这个线程池里提交最多maximumPoolSize个任务threadPoolExecutor = new ThreadPoolExecutor(0,permits * 2,60,TimeUnit.SECONDS,new SynchronousQueue<>(),NamedDaemonThreadFactory.getInstance(name));}public void execute(Runnable task) {//每次往这个线程池提交任务时，都需要先获取一个信号量//所以同一时刻，最多只能提交数量与信号量(线程数量)相同的任务到线程池里//当有超过线程数量的任务提交时，便会在执行下面的代码"获取信号量"时，被阻塞住semaphore.acquireUninterruptibly();//虽然使用了semaphore去限制提交到线程池的线程任务数//但是极端情况下，还是可能会有(信号量 * 2)个线程任务被提交到线程池//这种极端情况就是：//线程任务执行完任务并释放掉信号量时，还没释放自己被线程池回收，其他线程就获取到信号量提交到线程池了threadPoolExecutor.submit(() -> {try {//执行任务task.run();} finally {//释放信号量semaphore.release();}//某线程执行到这里时，还没完全把自己释放出来，但信号量已释放，可能新的任务已经加入线程池});}
}

(5)页面渲染第二步—下载页面模版

其实就是从Redis中获取页面模版文件。

@Component
@Channel(CHANNEL_02_DOWNLOAD_TEMPLATE_FILE)
public class Event02Listener extends BaseRenderPageListener<Event02DownloadTemplateFile> {@Autowiredprivate FileService fileService;@Overridepublic boolean accept(BaseEvent event) {return event instanceof Event02DownloadTemplateFile;}//页面渲染第二步：下载页面模板文件@Overrideprotected void doThisStep(Event02DownloadTemplateFile event, PageRenderContext context) {Runnable task = () -> {//从Redis中获取页面模版文件String templateContent = fileService.download(context.getPageConfig().getTemplateUrl());if (Objects.isNull(templateContent)) {context.getPageLog().setSuccess(false);context.getPageLog().setInfo("模板文件不存在");context.setShouldSkip(true);return;}//将页面模板设置到上下文中context.setTemplateContent(templateContent);bossEventBus.publish(CHANNEL_03_AGGR_DATA, EVENT_03, context);log.info("第2步：下载页面模板文件");};//提交任务task给线程池执行executorService.execute(CHANNEL_02_DOWNLOAD_TEMPLATE_FILE, task);}
}@Service
public class FileServiceImpl implements FileService {//缓存的是：模版文件内容、渲染好的HTML静态页面的内容private final Cache<String, String> cache = CacheBuilder.newBuilder().maximumSize(100).expireAfterWrite(30, TimeUnit.MINUTES).build();//这里会把页面模板文件、渲染好的HTML静态页面保存到Redis上@Autowiredprivate CacheSupport cacheSupport;public String download(String url) {try {//为了简便，下载页面模版文件或下载渲染好的HTML静态页面，其实就是从Redis从获取数据//页面模板文件、渲染好的HTML静态页面，可以放在某个服务器的文件里，也可以放在阿里云的OSS文件存储中return cache.get(url, () -> cacheSupport.get(url));} catch (ExecutionException e) {e.printStackTrace();return null;}}public String upload(String content) {String url = UUID.randomUUID().toString();//上传页面，就是把页面内容存放到Redis里cacheSupport.set(url, content);return url;}
}

(6)页面渲染第三步—聚合数据

@Component
@Channel(CHANNEL_03_AGGR_DATA)
public class Event03Listener extends BaseRenderPageListener<Event03GetAggrData> {@Autowiredprivate RestTemplate restTemplate;@Overridepublic boolean accept(BaseEvent event) {return event instanceof Event03GetAggrData;}//页面渲染第二步：调用dataUrl获取聚合数据@Overrideprotected void doThisStep(Event03GetAggrData event, PageRenderContext context) {Runnable task = () -> {//此时上下文中已经有了页面模板的html字符串，需要继续获取这个页面模板需要的数据//首先从页面配置中取出可以获取聚合数据的url地址//然后再基于restTemplate发起HTTP请求，请求页面聚合服务的地址，拉取需要的数据String aggrDataUrl = context.getPageConfig().getAggrDataUrl();Map params = context.getParams();Map map = restTemplate.postForObject(aggrDataUrl, params, Map.class);if (MapUtils.isEmpty(map)) {context.getPageLog().setSuccess(false);context.getPageLog().setInfo("聚合数据有问题");context.setShouldSkip(true);return;}//将聚合数据设置到上下文中context.setAggrData(map);bossEventBus.publish(CHANNEL_04_RENDER_PAGE, EVENT_04, context);log.info("第3步：调用dataUrl获取聚合数据，aggrData={}", JSON.toJSONString(map, true));};executorService.execute(CHANNEL_03_AGGR_DATA, task);}
}@RestController
public class SeckillProductAggrController {@Autowiredprivate ProductApi productApi;//获取聚合数据@PostMapping("/seckill/product")public Map aggr(@RequestBody Map params) {Long skuId = Long.parseLong(String.valueOf(params.get("skuId")));//根据商品系统提供的接口，查询sku数据及其对应的商品spu数据SkuVo skuVo = productApi.queryBySkuId(skuId);SpuVo spuVo = productApi.queryBySpuId(skuVo.getSpuId());Map aggrData = new LinkedHashMap();aggrData.put("brandId", spuVo.getBrandId());aggrData.put("brandName", spuVo.getBrandName());aggrData.put("brandLogo", spuVo.getBrandLogo());aggrData.put("categoryId", spuVo.getCategoryId());aggrData.put("categoryName", spuVo.getCategoryName());aggrData.put("skuId", skuVo.getId());aggrData.put("skuName", skuVo.getName());aggrData.put("price", skuVo.getPrice());aggrData.put("seckillPrice", skuVo.getSeckillPrice());aggrData.put("image", skuVo.getImage());//缩略图String[] images = skuVo.getImages().split(",");//images，图文详情里可以有很多图片for (int i = 0; i < images.length; i++) {String image = images[i];aggrData.put("image" + i, image);}return aggrData;}
}

(7)页面渲染第四步—渲染页面

@Component
@Channel(CHANNEL_04_RENDER_PAGE)
public class Event04Listener extends BaseRenderPageListener<Event04RenderPage> {public boolean accept(BaseEvent event) {return event instanceof Event04RenderPage;}//页面渲染第四步：根据"页面模板 + 聚合数据"渲染页面//其中的页面模版是基于FreeMarker语法写的HTML静态文件，模版文件中会加入很多FreeMarker语法的占位符(${dd})//渲染页面时就是基于FreeMarker模板引擎的API，把这些${dd}占位符替换成对应的聚合数据@Overrideprotected void doThisStep(Event04RenderPage event, PageRenderContext context) {Runnable task = () -> {Map<String, Object> mapData = new HashMap<>(1);mapData.put("data", context.getAggrData());String staticPageFile;try {String key = "template";//创建一个FreeMarker的Configuration配置对象Configuration configuration = new Configuration(Configuration.DEFAULT_INCOMPATIBLE_IMPROVEMENTS);//创建一个字符串模板类型的Loader对象StringTemplateLoader stringTemplateLoader = new StringTemplateLoader();//将上下文中的页面模板数据放到Loader对象中stringTemplateLoader.putTemplate(key, context.getTemplateContent());//将Loader对象放入到Configuration配置对象中configuration.setTemplateLoader(stringTemplateLoader);//获取一个Template模板对象Template template = configuration.getTemplate(key);//FreeMarkerTemplateUtils工具类，会用提供的聚合数据，将页面模板里的占位符进行替换，最后成为一个HTML静态页面的字符串staticPageFile = FreeMarkerTemplateUtils.processTemplateIntoString(template, mapData);} catch (Exception e) {context.getPageLog().setSuccess(false);context.getPageLog().setInfo("根据页面模板+聚合数据渲染页面时出现问题");context.setShouldSkip(true);return;}//将HTML静态页面字符串设置到上下文中context.setStaticPageContent(staticPageFile);bossEventBus.publish(CHANNEL_05_UPLOAD_STATIC_PAGE, EVENT_05, context);log.info("第4步：渲染页面");};executorService.execute(CHANNEL_04_RENDER_PAGE, task);}
}

(8)页面渲染第五步—上传静态化页面

其实就是将静态页面HTML字符串存放到Redis中。

@Component
@Channel(CHANNEL_05_UPLOAD_STATIC_PAGE)
public class Event05Listener extends BaseRenderPageListener<Event05UploadStaticPage> {@Autowiredprivate FileService fileService;@Overridepublic boolean accept(BaseEvent event) {return event instanceof Event05UploadStaticPage;}//页面渲染第五步：上传渲染好的HTML静态页面@Overrideprotected void doThisStep(Event05UploadStaticPage event, PageRenderContext context) {Runnable task = () -> {//将静态页面HTML字符串存放到Redis中String setStaticPageId = fileService.upload(context.getStaticPageContent());if (setStaticPageId == null) {context.getPageLog().setSuccess(false);context.getPageLog().setInfo("上传html文件出现问题");context.setShouldSkip(true);return;}context.setStaticPageId(setStaticPageId);context.getPageLog().setStaticPageId(setStaticPageId);context.getPageLog().setCompletionTime(System.currentTimeMillis());log.info("第5步：上传渲染好的HTML静态页面，url={}", setStaticPageId);bossEventBus.publish(CHANNEL_06_SAVE_PAGE_LOG_MESSAGE, EVENT_06, context);};executorService.execute(CHANNEL_05_UPLOAD_STATIC_PAGE, task);}
}@Service
public class FileServiceImpl implements FileService {//缓存的是：模版文件内容、渲染好的HTML静态页面的内容private final Cache<String, String> cache = CacheBuilder.newBuilder().maximumSize(100).expireAfterWrite(30, TimeUnit.MINUTES).build();//这里会把页面模板文件、渲染好的HTML静态页面保存到Redis上@Autowiredprivate CacheSupport cacheSupport;public String download(String url) {try {//为了简便，下载页面模版文件或下载渲染好的HTML静态页面，其实就是从Redis从获取数据//页面模板文件、渲染好的HTML静态页面，可以放在某个服务器的文件里，也可以放在阿里云的OSS文件存储中return cache.get(url, () -> cacheSupport.get(url));} catch (ExecutionException e) {e.printStackTrace();return null;}}public String upload(String content) {String url = UUID.randomUUID().toString();//上传页面，就是把页面内容存放到Redis里cacheSupport.set(url, content);return url;}
}

(9)页面渲染第六步—保存页面渲染日志

@Component
@Channel(CHANNEL_06_SAVE_PAGE_LOG_MESSAGE)
public class Event06Listener extends BaseRenderPageListener<Event06SavePageLog> {@Autowiredprivate PageLogService pageLogService;@Overridepublic boolean accept(BaseEvent event) {return event instanceof Event06SavePageLog;}//页面渲染第六步：保存页面渲染日志@Overrideprotected void doThisStep(Event06SavePageLog event, PageRenderContext context) {Runnable task = () -> {String staticPagePath = FilePathUtils.generateFilePath(context.getFileName());//设置存放静态页面的路径地址context.setStaticPagePath(staticPagePath);PageLog pageLog = context.getPageLog();pageLog.setStaticPageUrl(staticPagePath);pageLog.setCreateTime(new Date());pageLog.setUpdateTime(pageLog.getCreateTime());pageLog.setSuccess(true);//把本次静态化页面的log写入到数据库pageLogService.save(pageLog);log.info("第6步：保存页面渲染日志，pageLog={}", JSON.toJSONString(pageLog, true));bossEventBus.publish(CHANNEL_07_SEND_PUBLISH_MESSAGE, EVENT_07, context);};executorService.execute(CHANNEL_06_SAVE_PAGE_LOG_MESSAGE, task);}
}

(10)页面渲染第七步—发送渲染成功的消息到MQ

@Component
@Channel(CHANNEL_07_SEND_PUBLISH_MESSAGE)
public class Event07Listener extends BaseRenderPageListener<Event07SendPublishPageMessage> {@Autowiredprivate RocketMQTemplate rocketMQTemplate;@Overridepublic boolean accept(BaseEvent event) {return event instanceof Event07SendPublishPageMessage;}//页面渲染第七步：发送页面渲染成功的消息到MQ@Overrideprotected void doThisStep(Event07SendPublishPageMessage event, PageRenderContext context) {Runnable task = () -> {String publishPageMessage = PagePublishMessage.builder().pageLogId(context.getPageLog().getId()).staticPageId(context.getStaticPageId()).staticPagePath(context.getStaticPagePath()).build().toJsonString();rocketMQTemplate.syncSend(QueueKey.QUEUE_PUBLISH_PAGE, publishPageMessage);log.info("第7步：发送页面渲染成功的消息到MQ, message={}", publishPageMessage);};executorService.execute(CHANNEL_07_SEND_PUBLISH_MESSAGE, task);}
}

12.秒杀系统的页面发布服务实现

(1)消费页面渲染成功的消息

(2)发布页面第一步—从Redis加载静态页面

(3)发布页面第二步—将静态页面写到磁盘上

(4)发布页面第三步—发送页面发布完成的消息

(5)发布页面第四步—清除Redis的静态页面

(1)消费页面渲染成功的消息

@Component
@RocketMQMessageListener(topic = QueueKey.QUEUE_PUBLISH_PAGE, consumerGroup = "publishPageGroup", messageModel = MessageModel.BROADCASTING)
public class PublishPageListener implements RocketMQListener<String> {@Autowiredprivate BossEventBus bossEventBus;//消息格式示例//.pageLogId(context.getPageLog().getId())//.staticPageUrl(context.getStaticPageUrl())//.staticPagePath(staticPagePath)@Overridepublic void onMessage(String messageString) {log.info("收到页面渲染成功的消息, message={}", messageString);JSONObject message = JSONObject.parseObject(messageString);DownloadEvent event = new DownloadEvent();event.setPageLogId(message.getLong("pageLogId"));event.setStaticPageId(message.getString("staticPageId"));event.setStaticPagePath(message.getString("staticPagePath"));//发布页面的步骤：//从Redis加载渲染好的静态页面 -> 将静态页面写到磁盘上 -> 发送页面发布完成的消息 -> 清除Redis的静态页面bossEventBus.publish(ChannelKey.CHANNEL_DOWNLOAD, event, null);}
}

(2)发布页面第一步—从Redis加载静态页面

@Component
@Channel(ChannelKey.CHANNEL_DOWNLOAD)
public class DownloadEventListener implements EventListener<DownloadEvent> {@Autowiredprivate BossEventBus bossEventBus;@Autowiredprivate ExecutorService executorService;@Autowiredprivate CacheSupport cacheSupport;@Overridepublic boolean accept(BaseEvent event) {return event instanceof DownloadEvent;}//第一步：从Redis上下载已经渲染好的静态页面@Overridepublic void onEvent(DownloadEvent event, AsyncContext eventContext) {executorService.execute(ChannelKey.CHANNEL_DOWNLOAD, () -> {String staticPageContent = cacheSupport.get(event.getStaticPageId());log.info("第1步：下载页面, event={}", JSON.toJSONString(event));WriteToDiskEvent e = new WriteToDiskEvent();e.setPageLogId(event.getPageLogId());e.setStaticPageId(event.getStaticPageId());e.setStaticPagePath(event.getStaticPagePath());e.setStaticPageContent(staticPageContent);bossEventBus.publish(ChannelKey.CHANNEL_WRITE_TO_DISK, e, null);});}
}

(3)发布页面第二步—将静态页面写到磁盘上

@Component
@Channel(ChannelKey.CHANNEL_WRITE_TO_DISK)
public class WriteToDiskEventListener implements EventListener<WriteToDiskEvent> {@Autowiredprivate BossEventBus bossEventBus;@Autowiredprivate ExecutorService executorService;@Overridepublic boolean accept(BaseEvent event) {return event instanceof WriteToDiskEvent;}//第二步：将下载的已渲染的静态页面写到磁盘上@Overridepublic void onEvent(WriteToDiskEvent event, AsyncContext eventContext) {executorService.execute(ChannelKey.CHANNEL_WRITE_TO_DISK, () -> {String staticPagePath = event.getStaticPagePath();String staticPageContent = event.getStaticPageContent();boolean success = true;//确保目录存在String parentDir = FilePathUtils.getParentDir(staticPagePath);File parent = new File(parentDir);if (!parent.exists()) {success = parent.mkdirs();}if (success) {//把页面的内容写到文件中File file = new File(staticPagePath);try (RandomAccessFile raf = new RandomAccessFile(file, "rw")) {raf.write(staticPageContent.getBytes());} catch (IOException e) {e.printStackTrace();success = false;}}log.info("第2步：把静态页面写到磁盘上, event={}", JSON.toJSONString(event));PulishResultEvent e = new PulishResultEvent();e.setPageLogId(event.getPageLogId());e.setStaticPageId(event.getStaticPageId());e.setSuccess(success);//这里只是演示把文件写入本地的磁盘里//当然也可以通过执行scp命令，把写入磁盘的静态页面html文件上传到Nginx服务器指定的目录中//然后调用的CDN厂商的API，把页面数据预热和加载到CDNbossEventBus.publish(ChannelKey.CHANNEL_PUBLISH_RESULT, e, null);});}
}

(4)发布页面第三步—发送页面发布完成的消息

@Component
@Channel(ChannelKey.CHANNEL_PUBLISH_RESULT)
public class PublishResultEventListener implements EventListener<PulishResultEvent> {@Autowiredprivate BossEventBus bossEventBus;@Autowiredprivate ExecutorService executorService;@Autowiredprivate RocketMQTemplate rocketMQTemplate;@Overridepublic boolean accept(BaseEvent event) {return event instanceof PulishResultEvent;}//第三步：发送页面发布完成的消息到MQ@Overridepublic void onEvent(PulishResultEvent event, AsyncContext eventContext) {executorService.execute(ChannelKey.CHANNEL_PUBLISH_RESULT, () -> {String message = PagePublishResultMessage.builder().pageLogId(event.getPageLogId()).success(event.isSuccess()).serverIp(BusinessConfig.getMyIp()).build().toJsonString();rocketMQTemplate.syncSend(QueueKey.QUEUE_PUBLISH_PAGE_RESULT, message);log.info("第3步：发送页面发布完成的消息到MQ, message={}", message);RemoveStaticPageEvent e = new RemoveStaticPageEvent();e.setStaticPageId(event.getStaticPageId());bossEventBus.publish(ChannelKey.CHANNEL_REMOVE_STATIC_PAGE, e, null);});}
}@Component
@RocketMQMessageListener(topic = QueueKey.QUEUE_PUBLISH_PAGE_RESULT, consumerGroup = "publishPageResultGroup")
public class PublishPageResultListener implements RocketMQListener<String> {@Autowiredprivate PageLogService pageLogService;@Autowiredprivate RocketMQTemplate rocketMQTemplate;//消息格式示例//.pageLogId(event.getPageLogId())//.success(event.isSuccess())//.serverIp(BussinessConfig.getMyIp())@Overridepublic void onMessage(String messageString) {log.info("收到页面发布完成的消息, message={}", messageString);JSONObject message = JSONObject.parseObject(messageString);Long pageLogId = message.getLong("pageLogId");Boolean success = message.getBoolean("success");String serverIp = message.getString("serverIp");PageLog pageLog = pageLogService.queryById(pageLogId);if (!success) {log.error("{}发布{}页面失败", serverIp, pageLog.getFileName());return;}String lastestFinshedServerIps;String finishedServerIps = pageLog.getFinishedServerIps();if (finishedServerIps == null) {lastestFinshedServerIps = serverIp;} else {lastestFinshedServerIps = finishedServerIps + "," + serverIp;}List<String> list = Arrays.asList(lastestFinshedServerIps.split(","));list.sort(Comparator.comparing(e -> e));lastestFinshedServerIps = String.join(",", list);pageLogService.updateFinishedServerIps(pageLogId, lastestFinshedServerIps);log.info("收到页面发布的结果, 修改流水的FinishedServerIps字段");if (StringUtils.equals(pageLog.getServerIps(), lastestFinshedServerIps)) {String msg = PageRenderResultMessage.builder().bizData(JSON.parseObject(pageLog.getBizData())).success(true).build().toJsonString();rocketMQTemplate.convertAndSend(QueueKey.QUEUE_RENDER_PAGE_RESULT, msg);log.info("收到页面发布完成的消息, 检查发现页面已发布到所有的静态资源服务器上，发送页面渲染结果的消息，可以开始同步库存, message={}", msg);}}
}//消费渲染页面结果的消息(每渲染和发布完一个页面就会发送一条页面渲染结果的消息)
@Component
@RocketMQMessageListener(topic = QueueKey.QUEUE_RENDER_PAGE_RESULT, consumerGroup = "pageResultGroup")
public class PageResultListener implements RocketMQListener<String> {@Autowiredprivate ActivityService activityService;@Autowiredprivate ActivitySkuRefService activitySkuRefService;@Overridepublic void onMessage(String messageString) {log.info("收到渲染页面的结果, message={}", messageString);JSONObject message = JSONObject.parseObject(messageString);if (!message.getBoolean("success")) {log.error("页面渲染失败，需要及时查看问题");return;}//获取指定的bizData//渲染秒杀活动列表页时指定的bizData如下：//.bizData(ImmutableMap.of("type", "activity", "activityId", activity.getId()))//渲染秒杀商品详情页时指定的bizData如下：//.bizData(ImmutableMap.of("type", "product", "activityId", activity.getId(), "skuId", activitySkuRef.getSkuId()))JSONObject bizData = message.getJSONObject("bizData");String type = bizData.getString("type");Long activityId = bizData.getLong("activityId");//判断本次渲染成功的页面，是活动列表页还是商品详情页if (StringUtils.equals(type, "activity")) {activityService.updatePageReady(activityId, true);log.info("收到渲染页面的结果, 是活动页面的结果, 把活动的pageReady字段修改为true");} else if (StringUtils.equals(type, "product")) {activitySkuRefService.updatePageReady(activityId, bizData.getLong("skuId"), true);log.info("收到渲染页面的结果, 是商品页面的结果, 把商品的pageReady字段修改为true");}//判断当前活动是否所有的静态页面都渲染好了Activity activity = activityService.queryById(activityId);//count一下该秒杀活动下还没渲染完成的商品数量Integer count = activitySkuRefService.countByActivityIdAndPageReady(activityId, false);//当秒杀活动的页面已渲染成功 + 秒杀活动的所有商品详情页也渲染成功，则更新秒杀活动的状态为'页面已完成渲染'if (activity.getPageReady() && count == 0) {//更新该秒杀活动的状态，从"页面渲染中"到"页面已完成渲染"activityService.updateStatus(activityId, ActivityStatusVal.PAGE_RENDERING.getCode(), ActivityStatusVal.PAGE_RENDERED.getCode());log.info("收到渲染页面的结果, 检查后发现当前活动的活动页面和商品页面都渲染好了，把活动状态改为'页面已渲染'");//下一步就是同步库存到Redis，进行库存数据的初始化了//触发执行库存数据初始化的定时任务的两个条件：//1.秒杀活动的所有页面已渲染完毕 + 2.now距离showTime在1小时以内}}
}//库存分片和同步库存
@Component
public class TriggerStockTask {@Autowiredprivate ActivityService activityService;@Autowiredprivate ActivitySkuRefService activitySkuRefService;@Autowiredprivate LockService lockService;@Autowiredprivate InventoryApi inventoryApi;@Scheduled(fixedDelay = 10_000)public void run() {String lockToken = lockService.tryLock(CacheKey.TRIGGER_STOCK_LOCK, 1, TimeUnit.SECONDS);if (lockToken == null) {return;}log.info("触发库存分片和同步库存，获取分布式锁成功, lockToken={}", lockToken);try {//查询已经渲染好页面的所有秒杀活动List<Activity> activities = activityService.queryListForTriggerStockTask();if (CollectionUtils.isEmpty(activities)) {return;}for (Activity activity : activities) {List<ActivitySkuRef> activitySkuRefs = activitySkuRefService.queryByActivityId(activity.getId());if (CollectionUtils.isEmpty(activitySkuRefs)) {continue;}//要进行缓存初始化的商品，封装库存初始化请求List<SyncProductStockRequest> request = new ArrayList<>();for (ActivitySkuRef activitySkuRef : activitySkuRefs) {SyncProductStockRequest syncProductStockRequest = SyncProductStockRequest.builder().activityId(activitySkuRef.getActivityId()).skuId(activitySkuRef.getSkuId()).seckillStock(activitySkuRef.getSeckillStock()).build();request.add(syncProductStockRequest);}//把封装的库存初始化请求，发送到秒杀库存服务里//每个商品的库存数据都会分散到各个Redis节点上去，实现对商品库存分片存放if (inventoryApi.syncStock(request)) {log.info("触发库存分片和同步库存，调用库存接口将商品库存同步到Redis");activityService.updateStatus(activity.getId(), ActivityStatusVal.PAGE_RENDERED.getCode(), ActivityStatusVal.INVENTORY_SYNCED.getCode());log.info("触发库存分片和同步库存，将秒杀活动的状态修改为库存已同步");//完成库存分片后，用户就可以对商品发起秒杀抢购了} else {log.error("触发库存分片和同步库存，库存同步失败");}}} finally {lockService.release(CacheKey.TRIGGER_STOCK_LOCK, lockToken);log.info("触发库存分片和同步库存，释放分布式锁");}}
}

(5)发布页面第四步—清除Redis的静态页面

@Component
@Channel(ChannelKey.CHANNEL_REMOVE_STATIC_PAGE)
public class RemoveStaticPageEventListener implements EventListener<RemoveStaticPageEvent> {@Autowiredprivate ExecutorService executorService;@Autowiredprivate CacheSupport cacheSupport;@Overridepublic boolean accept(BaseEvent event) {return event instanceof RemoveStaticPageEvent;}//第四步：删除Redis上的静态页面@Overridepublic void onEvent(RemoveStaticPageEvent event, AsyncContext eventContext) {executorService.execute(ChannelKey.CHANNEL_REMOVE_STATIC_PAGE, () -> {cacheSupport.del(event.getStaticPageId());log.info("第4步，删除Redis上的静态页面");});}
}
