03 基于 java udp 做一个dns服务器和一个dns代理服务器

news 来源：原创 2025/5/24 5:22:27

前言

这个也是来自于一个朋友的需求

最终的目的是实现一个 dns 代理服务器, 当然这本质也是一个 dns 服务器

并且 dns 代理服务器是依赖于一个 dns 服务器的, 因此顺便给一个 dns 服务器的 demo

这里主要是基于 udp 的一个 dns 请求, 响应数据的交互

dns 服务器

一个基础的 dns 服务器 demo 如下

为了方便测试, 可以将端口改为 53, 然后使用 System.out.println 之类的进行调试

package com.hx.test15;import org.xbill.DNS.*;import java.io.ByteArrayOutputStream;
import java.net.DatagramPacket;
import java.net.DatagramSocket;
import java.net.InetAddress;
import java.nio.ByteBuffer;/*** @author Jerry.X.He <970655147@qq.com>* @version 1.0* @date 2024-07-02 22:33*/
public class Test25SimpleDnsServer {public static void main(String[] args) throws Exception {DatagramSocket socket = new DatagramSocket(8053);System.out.println("DNS Server listening on port 8053...");while (true) {byte[] receiveData = new byte[512];DatagramPacket requestPacket = new DatagramPacket(receiveData, receiveData.length);socket.receive(requestPacket);byte[] data = requestPacket.getData();int offset = requestPacket.getOffset();int length = requestPacket.getLength();Message request = new Message(ByteBuffer.wrap(data, offset, length));Message response = handleRequest(request);ByteArrayOutputStream baos = new ByteArrayOutputStream();DNSOutput out = new DNSOutput();baos.write(out.toByteArray());baos.write(response.toWire());byte[] responseData = baos.toByteArray();DatagramPacket responsePacket = new DatagramPacket(responseData, responseData.length,requestPacket.getAddress(), requestPacket.getPort());socket.send(responsePacket);}}private static Message handleRequest(Message request) throws Exception {Message response = new Message(request.getHeader().getID());response.getHeader().setFlag(Flags.QR);response.getHeader().setOpcode(Opcode.QUERY);Record question = request.getQuestion();if (question.getName().toString().startsWith("www.abc.com") && question.getType() == Type.A) {ARecord answer = new ARecord(question.getName(), DClass.IN, 300, InetAddress.getByName("172.0.0.2"));response.addRecord(answer, Section.ANSWER);} else {// apply default}return response;}}

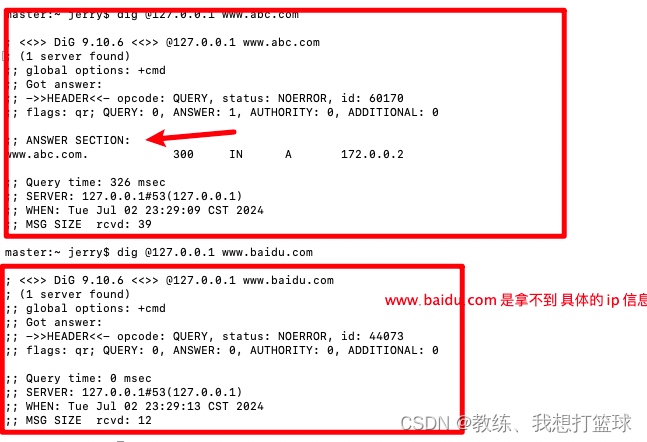

最终实现效果如下, dns 服务器中仅仅配置了 "www.abc.com" -> "172.0.0.2"

因此 www.abc.com 能够拿到查询结果, www.baidu.com 拿不到查询结果

dns 代理服务器

主需求是实现一个 dns 的代理服务器

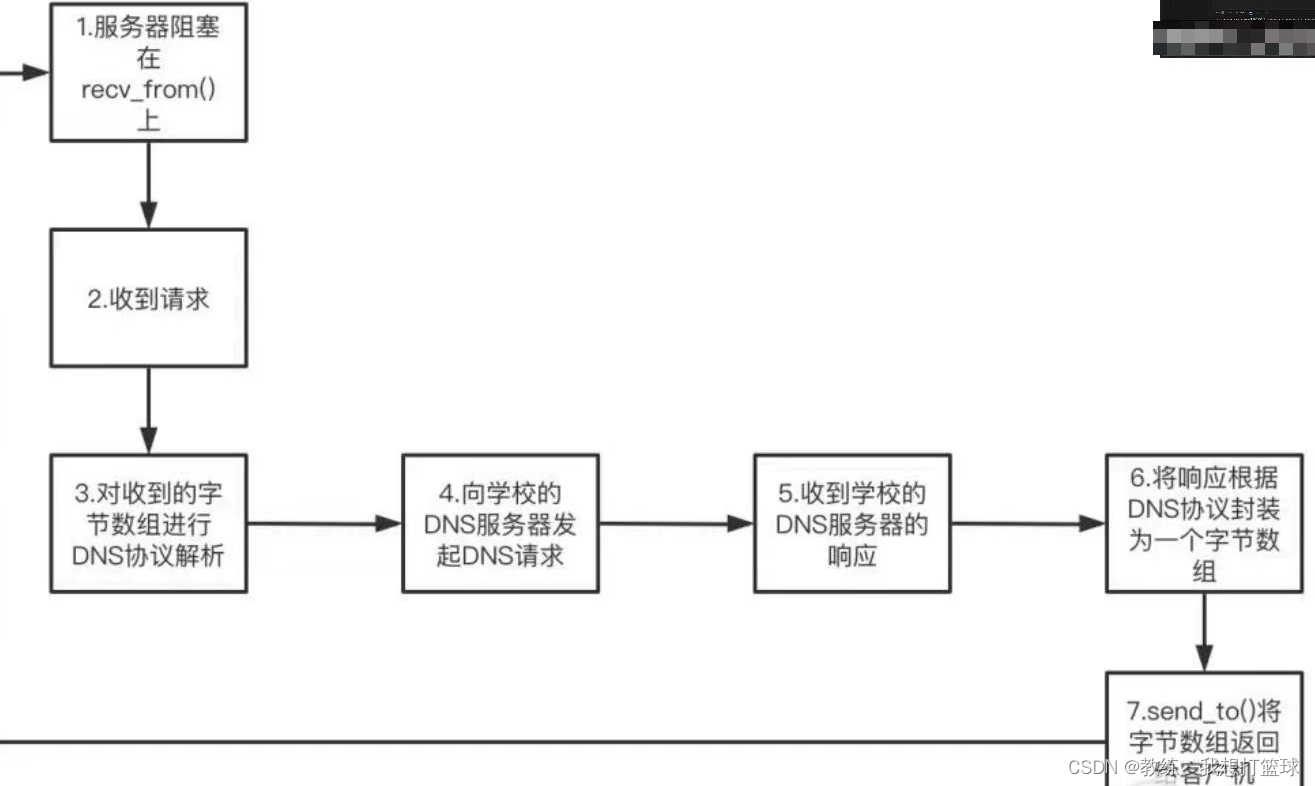

实现如下, 无非就是代理发送一次 dns 的请求到目标 dns 服务器, 拿到响应之后响应给客户端

package com.hx.test15;import org.xbill.DNS.Message;import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.net.DatagramPacket;
import java.net.DatagramSocket;
import java.net.InetAddress;
import java.nio.ByteBuffer;/*** Test25JavaDnsForwardServer** @author Jerry.X.He <970655147@qq.com>* @version 1.0* @date 2024-07-02 22:10*/
public class Test25JavaDnsForwardServer {public static void main(String[] args) throws IOException {DatagramSocket serverSocket = new DatagramSocket(53);System.out.println("DNS Proxy Server listening on port 53...");while (true) {byte[] receiveData = new byte[512];DatagramPacket requestPacket = new DatagramPacket(receiveData, receiveData.length);serverSocket.receive(requestPacket);Message request = readMessage(requestPacket);Message response = proxyRequest(request);ByteArrayOutputStream baos = new ByteArrayOutputStream();baos.write(response.toWire());byte[] responseData = baos.toByteArray();DatagramPacket responsePacket = new DatagramPacket(responseData, responseData.length,requestPacket.getAddress(), requestPacket.getPort());serverSocket.send(responsePacket);}}private static Message readMessage(DatagramPacket packet) throws IOException {byte[] data = packet.getData();int offset = packet.getOffset();int length = packet.getLength();return new Message(ByteBuffer.wrap(data, offset, length));}private static Message proxyRequest(Message request) throws IOException {DatagramSocket upstreamSocket = new DatagramSocket();InetAddress upstreamAddress = InetAddress.getByName("127.0.0.1");int upstreamPort = 8053;ByteArrayOutputStream baos = new ByteArrayOutputStream();baos.write(request.toWire());byte[] requestData = baos.toByteArray();DatagramPacket upstreamRequest = new DatagramPacket(requestData, requestData.length, upstreamAddress, upstreamPort);upstreamSocket.send(upstreamRequest);byte[] upstreamResponseData = new byte[512];DatagramPacket upstreamResponse = new DatagramPacket(upstreamResponseData, upstreamResponseData.length);upstreamSocket.receive(upstreamResponse);Message response = new Message(ByteBuffer.wrap(upstreamResponseData, upstreamResponse.getOffset(), upstreamResponse.getLength()));upstreamSocket.close();return response;}}

最终实现效果如下, dns 服务器中仅仅配置了 "www.abc.com" -> "172.0.0.2"

因此 www.abc.com 能够拿到查询结果, www.baidu.com 拿不到查询结果

如果关闭目标dns服务, 代理服务器会阻塞住
