springboot使用jdk17快速搭建教程

一、springboot原理

Spring Boot的工作原理

Spring Boot 是基于 Spring Framework 构建的一个开源框架，其核心目标是简化新项目的初始构建以及开发过程中的复杂配置。它通过提供一系列默认设置和自动化的功能来减少手动配置的时间成本2。

自动化配置机制

Spring Boot 的自动化配置模块利用了 条件化配置 和 约定优于配置 原则。这些原则使得开发者无需显式定义大量的 XML 或 Java 配置文件即可完成大部分常见场景下的应用部署工作。具体来说：

• 它会扫描项目依赖项并根据所引入的库自动生成相应的 Bean 实例。
• 如果检测到某些特定类存在，则激活预设好的 Configuration 类来进行初始化操作3。

例如，在一个典型的 Web 应用程序中，当 classpath 下包含了 Tomcat 及相关 Servlet API 时，Spring Boot 就能识别出来，并相应地创建嵌入式的 HTTP Server 组件实例

二、使用jdk17快速搭建springboot项目

作者在项目中一直使用的jdk8，最近在学习一些项目知识。发现jdk8在2025年已经属于落后的技术栈了。所以我就使用jdk17搭建个项目。顺便分享给同学们。

1、点击访问官网地址spring boot官网

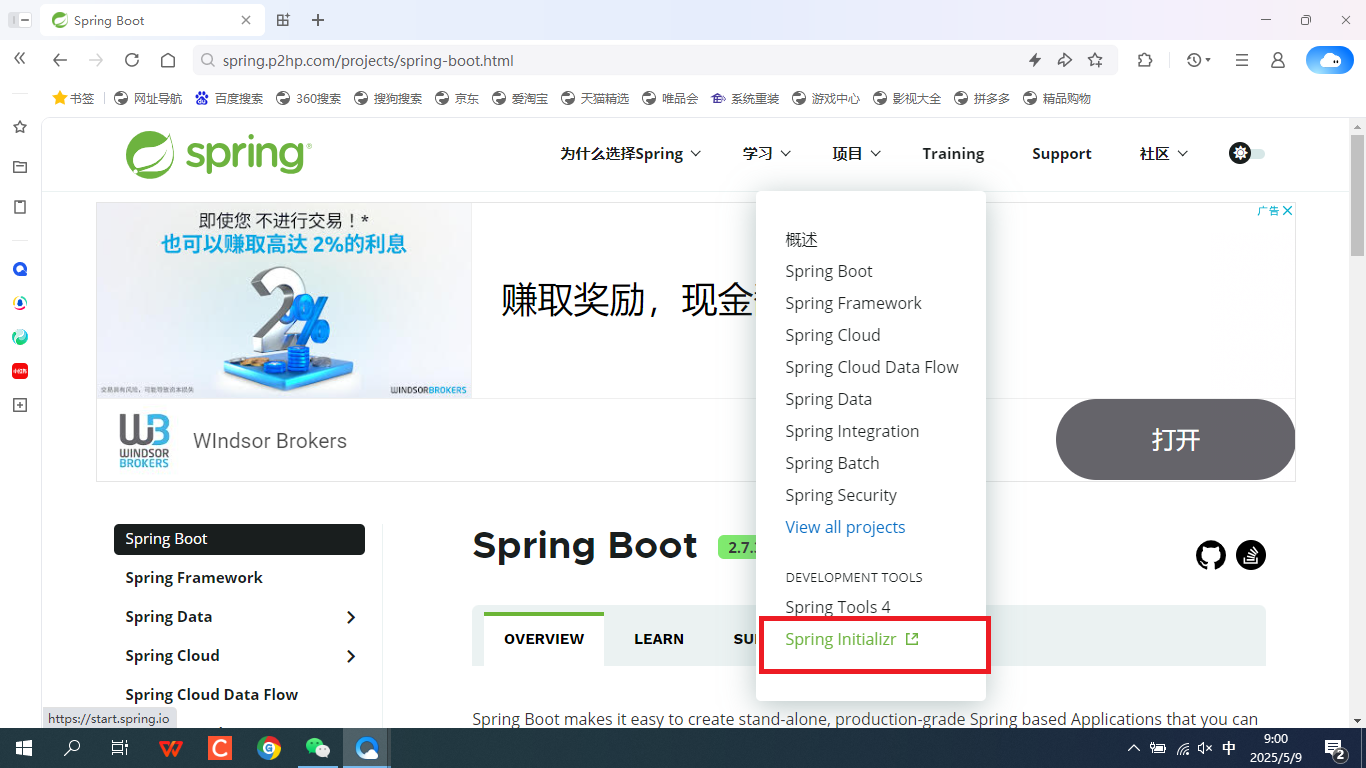

2、如图1所示学习下红色标注的地方单机springinitializr

图1

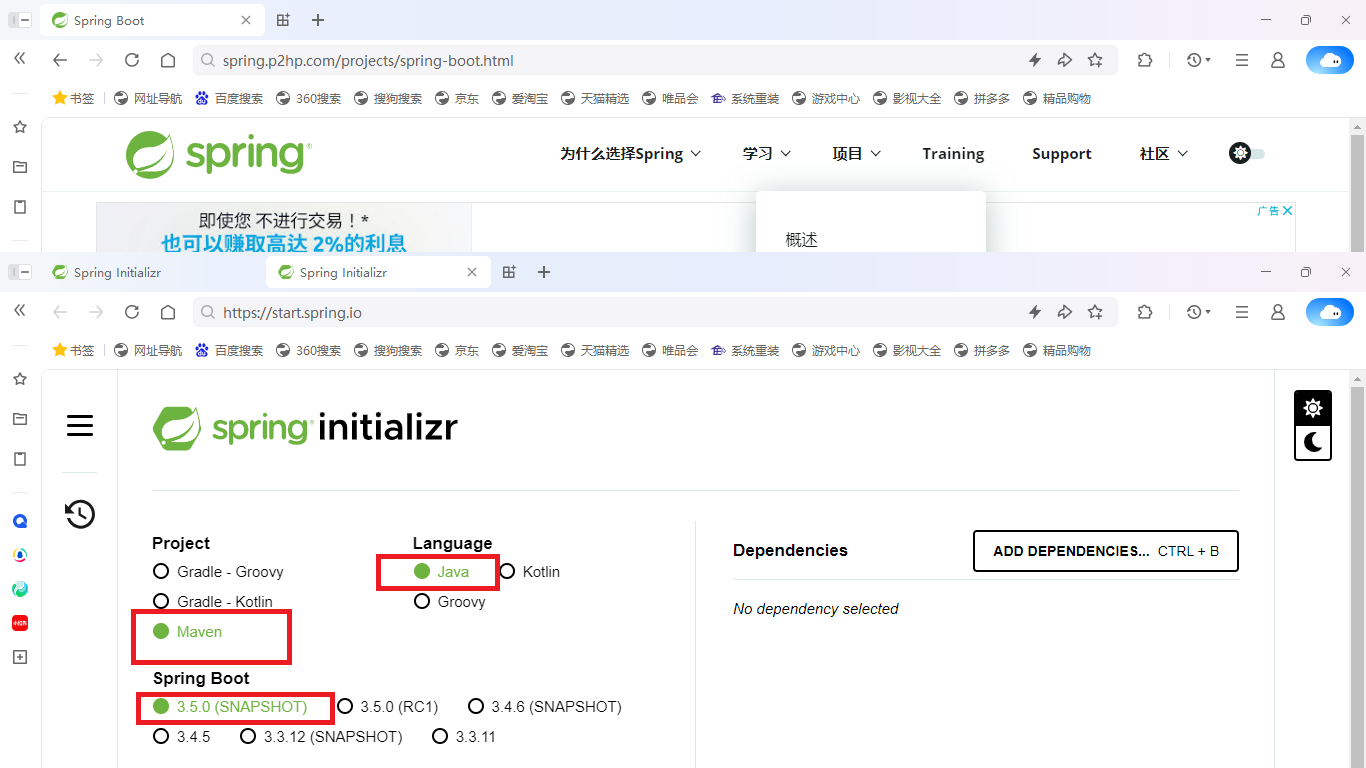

3、如图2所示选中红色方框标注的地方



     图2

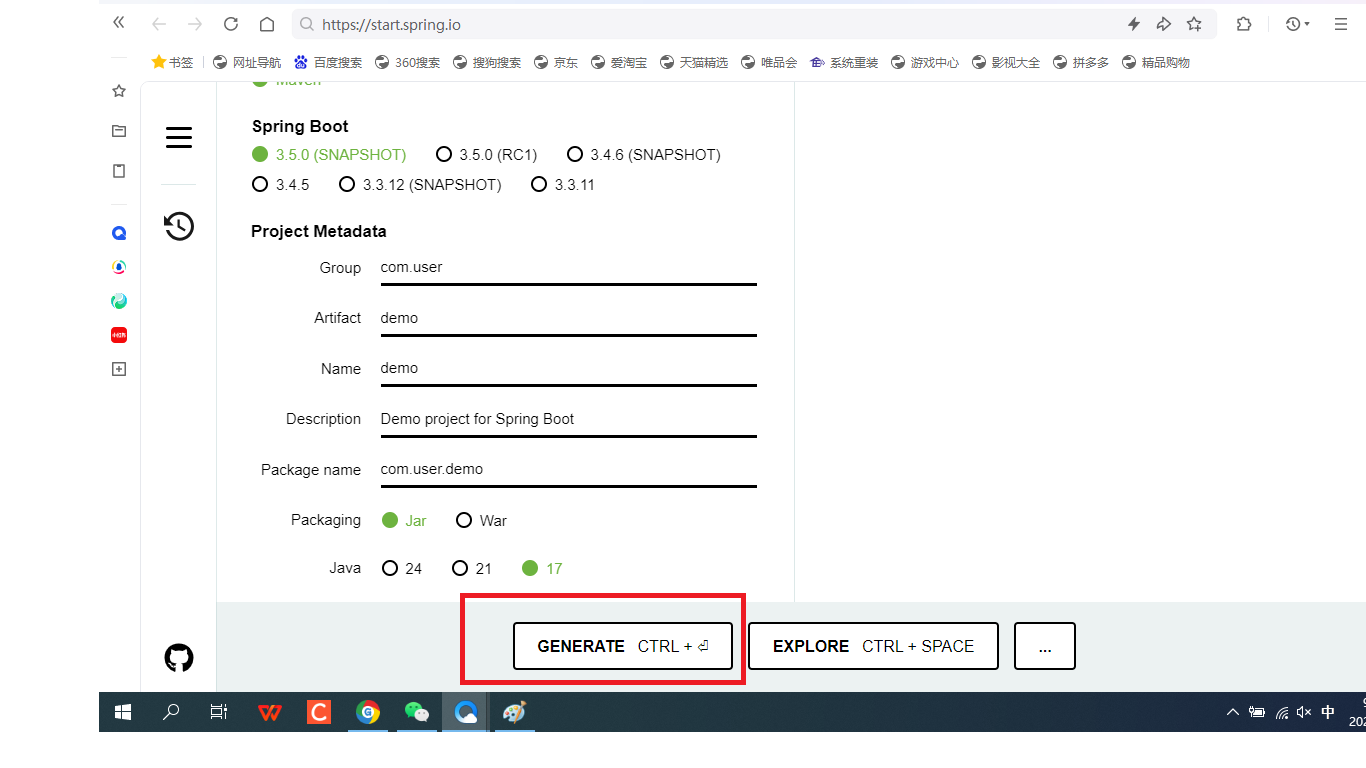

4、点击GENERATE 即可下生成一个简易的spring boot项目

          图3

     5、如图

图4

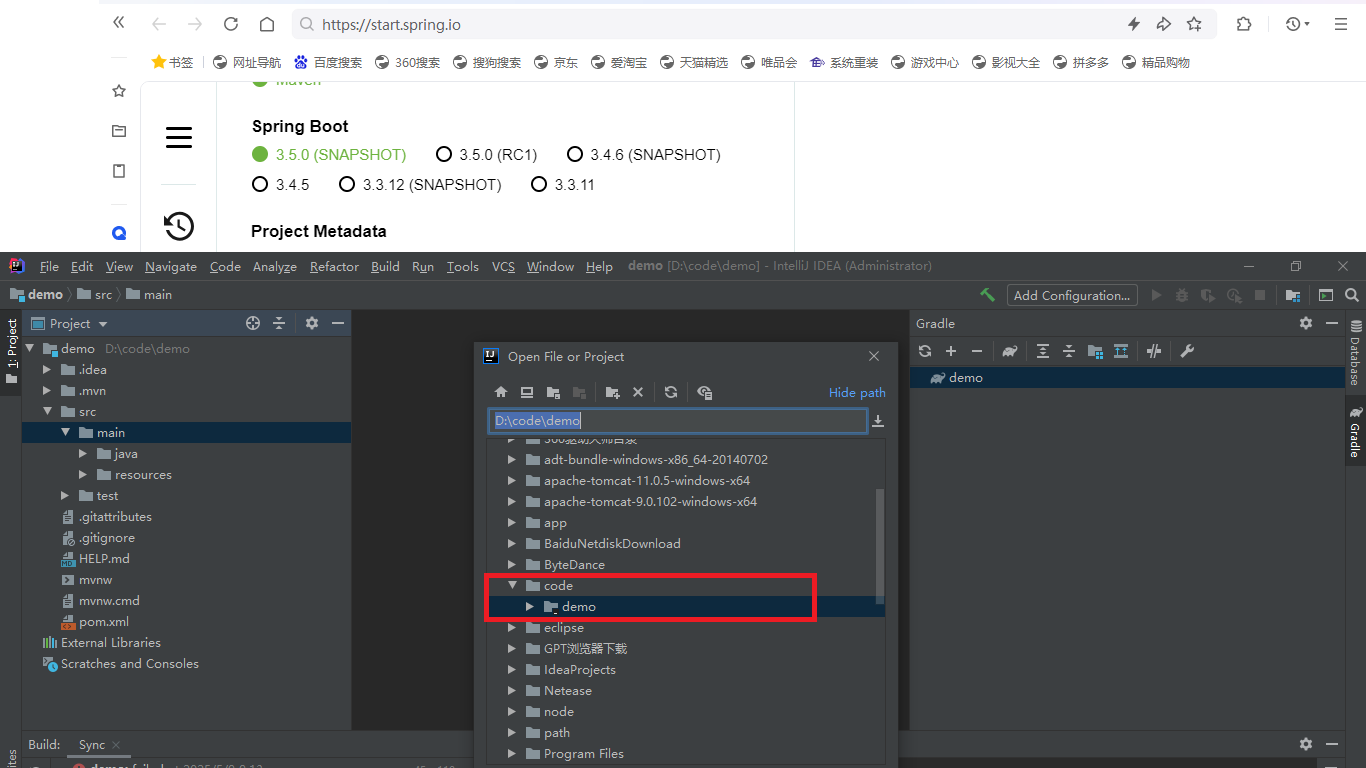

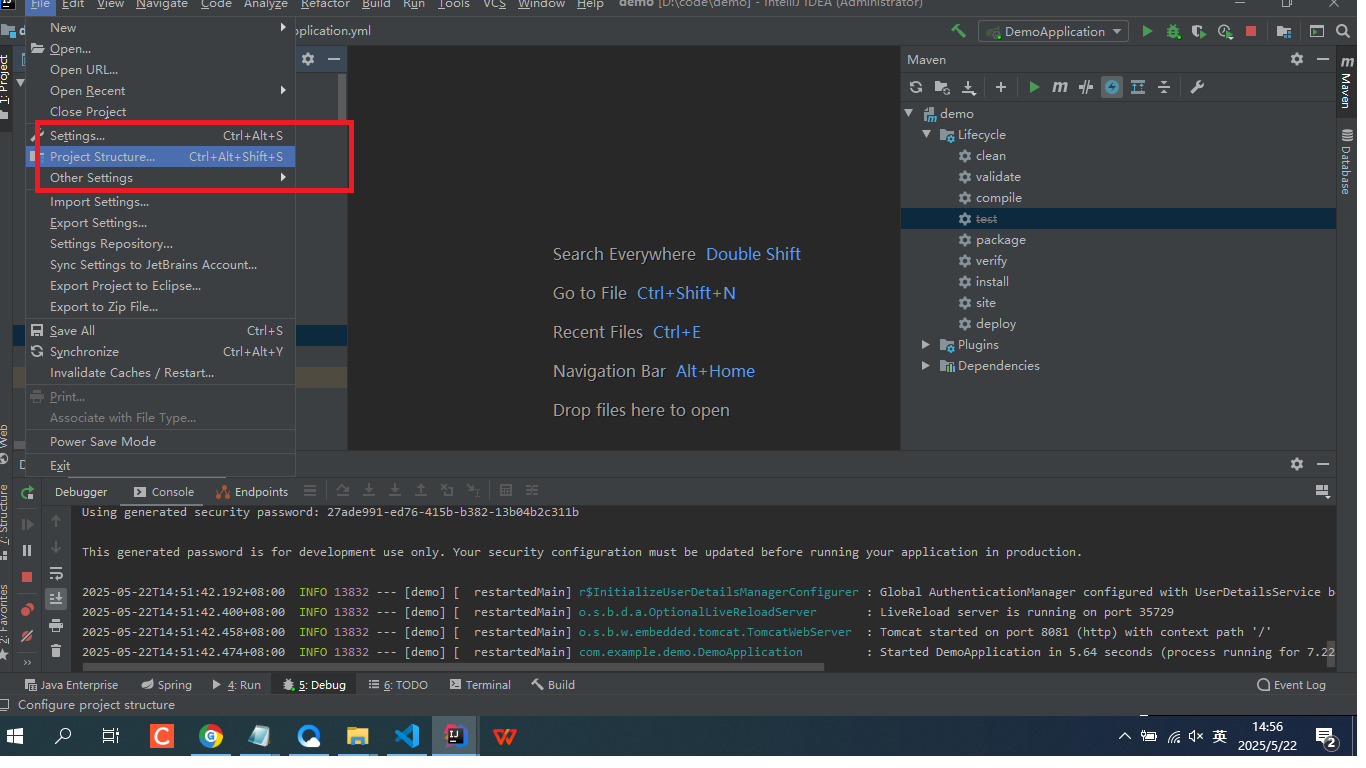

6、导入解压后的项目按图5所示加入jdk

图5

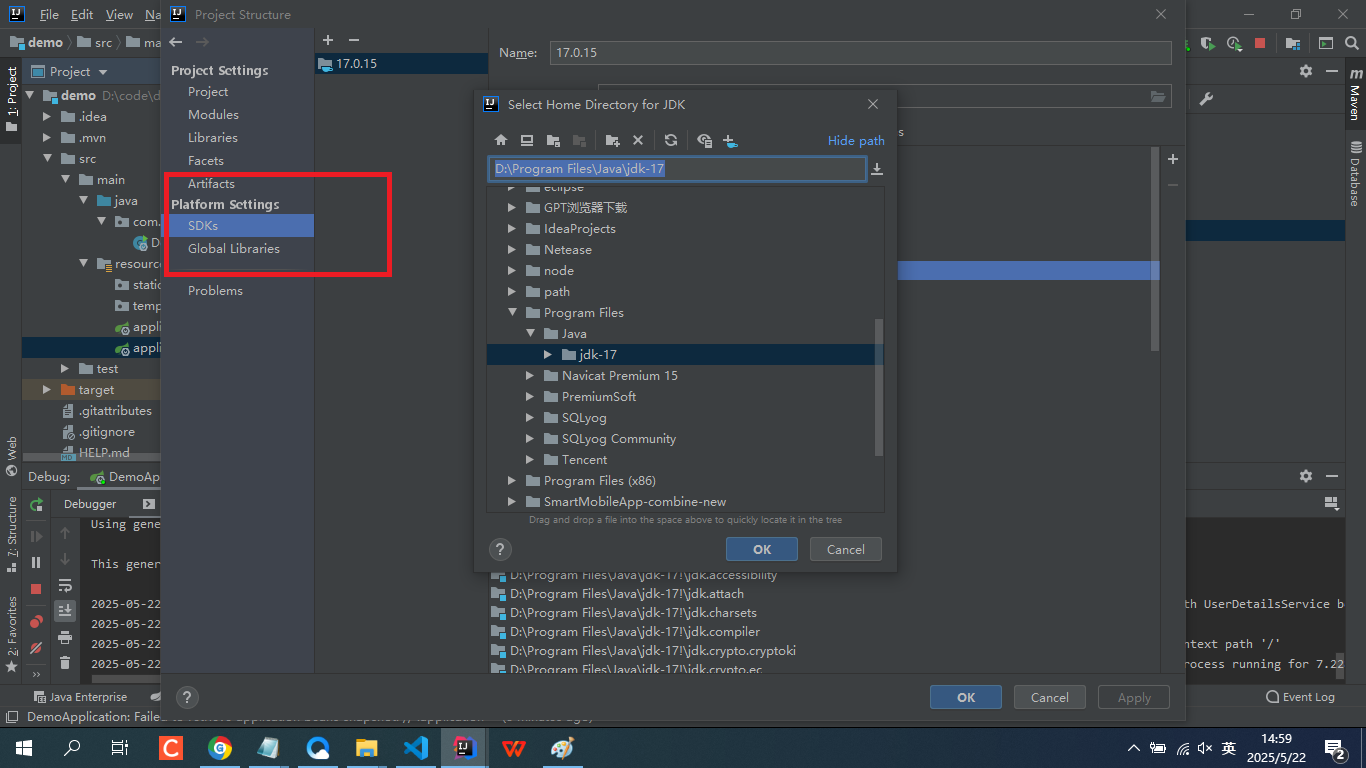

7、jdk导入方式如图6所示

     图6

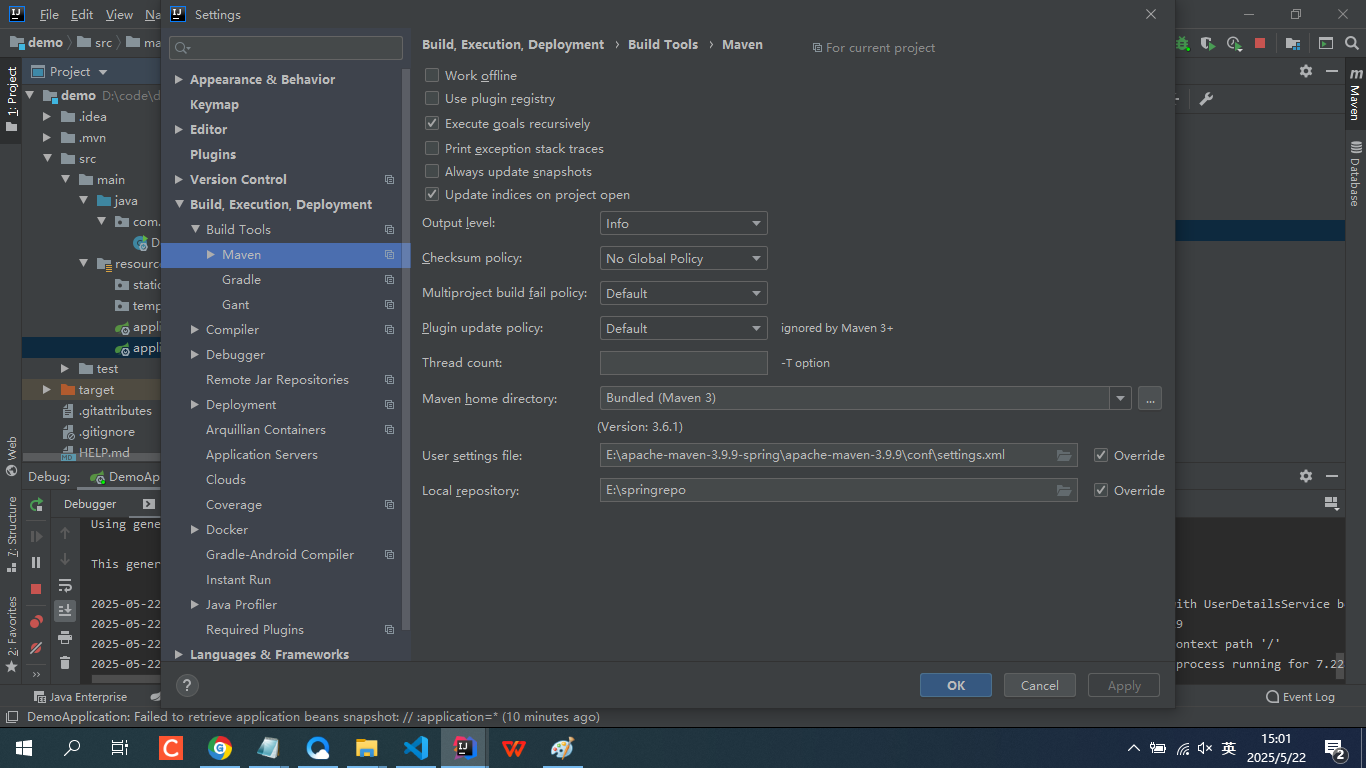

8、如图7所示导入jdk后需要配置maven 选项联网下载项目所需要的jar包，user settings file 配置你所下的apache maven settings.xml文件路径，local repository 配置你的maven本地库，下载下来的jar包都在该文件夹下。

图7

9、 apache maven settings.xml文件配置，只需要配置 <localRepository>标签，不需要配置私服链接mirror，按照以下配置即可从默认的私服下载。

<?xml version="1.0" encoding="UTF-8"?><!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements.  See the NOTICE file
distributed with this work for additional information
regarding copyright ownership.  The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License.  You may obtain a copy of the License athttp://www.apache.org/licenses/LICENSE-2.0Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied.  See the License for the
specific language governing permissions and limitations
under the License.
--><!--| This is the configuration file for Maven. It can be specified at two levels:||  1. User Level. This settings.xml file provides configuration for a single user,|                 and is normally provided in ${user.home}/.m2/settings.xml.||                 NOTE: This location can be overridden with the CLI option:||                 -s /path/to/user/settings.xml||  2. Global Level. This settings.xml file provides configuration for all Maven|                 users on a machine (assuming they're all using the same Maven|                 installation). It's normally provided in|                 ${maven.conf}/settings.xml.||                 NOTE: This location can be overridden with the CLI option:||                 -gs /path/to/global/settings.xml|| The sections in this sample file are intended to give you a running start at| getting the most out of your Maven installation. Where appropriate, the default| values (values used when the setting is not specified) are provided.||-->
<settings xmlns="http://maven.apache.org/SETTINGS/1.2.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.2.0 https://maven.apache.org/xsd/settings-1.2.0.xsd"><localRepository>E:\springrepo</localRepository><!-- interactiveMode| This will determine whether maven prompts you when it needs input. If set to false,| maven will use a sensible default value, perhaps based on some other setting, for| the parameter in question.|| Default: true<interactiveMode>true</interactiveMode>--><!-- offline| Determines whether maven should attempt to connect to the network when executing a build.| This will have an effect on artifact downloads, artifact deployment, and others.|| Default: false<offline>false</offline>--><!-- pluginGroups| This is a list of additional group identifiers that will be searched when resolving plugins by their prefix, i.e.| when invoking a command line like "mvn prefix:goal". Maven will automatically add the group identifiers| "org.apache.maven.plugins" and "org.codehaus.mojo" if these are not already contained in the list.|--><pluginGroups><!-- pluginGroup| Specifies a further group identifier to use for plugin lookup.<pluginGroup>com.your.plugins</pluginGroup>--></pluginGroups><!-- TODO Since when can proxies be selected as depicted? --><!-- proxies| This is a list of proxies which can be used on this machine to connect to the network.| Unless otherwise specified (by system property or command-line switch), the first proxy| specification in this list marked as active will be used.|--><proxies><!-- proxy| Specification for one proxy, to be used in connecting to the network.|<proxy><id>optional</id><active>true</active><protocol>http</protocol><username>proxyuser</username><password>proxypass</password><host>proxy.host.net</host><port>80</port><nonProxyHosts>local.net|some.host.com</nonProxyHosts></proxy>--></proxies><!-- servers| This is a list of authentication profiles, keyed by the server-id used within the system.| Authentication profiles can be used whenever maven must make a connection to a remote server.|--><servers><!-- server| Specifies the authentication information to use when connecting to a particular server, identified by| a unique name within the system (referred to by the 'id' attribute below).|| NOTE: You should either specify username/password OR privateKey/passphrase, since these pairings are|       used together.|<server><id>deploymentRepo</id><username>repouser</username><password>repopwd</password></server>--><!-- Another sample, using keys to authenticate.<server><id>siteServer</id><privateKey>/path/to/private/key</privateKey><passphrase>optional; leave empty if not used.</passphrase></server>--></servers><!-- mirrors| This is a list of mirrors to be used in downloading artifacts from remote repositories.|| It works like this: a POM may declare a repository to use in resolving certain artifacts.| However, this repository may have problems with heavy traffic at times, so people have mirrored| it to several places.|| That repository definition will have a unique id, so we can create a mirror reference for that| repository, to be used as an alternate download site. The mirror site will be the preferred| server for that repository.|--><mirrors><!-- mirror| Specifies a repository mirror site to use instead of a given repository. The repository that| this mirror serves has an ID that matches the mirrorOf element of this mirror. IDs are used| for inheritance and direct lookup purposes, and must be unique across the set of mirrors.|<mirror><id>mirrorId</id><mirrorOf>repositoryId</mirrorOf><name>Human Readable Name for this Mirror.</name><url>http://my.repository.com/repo/path</url></mirror>--><!-- <mirror>  <id>alimaven</id>  <name>aliyun maven</name>  <url>https://maven.aliyun.com</url><mirrorOf>*</mirrorOf>
</mirror> --></mirrors><!-- profiles| This is a list of profiles which can be activated in a variety of ways, and which can modify| the build process. Profiles provided in the settings.xml are intended to provide local machine-| specific paths and repository locations which allow the build to work in the local environment.|| For example, if you have an integration testing plugin - like cactus - that needs to know where| your Tomcat instance is installed, you can provide a variable here such that the variable is| dereferenced during the build process to configure the cactus plugin.|| As noted above, profiles can be activated in a variety of ways. One way - the activeProfiles| section of this document (settings.xml) - will be discussed later. Another way essentially| relies on the detection of a property, either matching a particular value for the property,| or merely testing its existence. Profiles can also be activated by JDK version prefix, where a| value of '1.4' might activate a profile when the build is executed on a JDK version of '1.4.2_07'.| Finally, the list of active profiles can be specified directly from the command line.|| NOTE: For profiles defined in the settings.xml, you are restricted to specifying only artifact|       repositories, plugin repositories, and free-form properties to be used as configuration|       variables for plugins in the POM.||--><profiles><!-- profile| Specifies a set of introductions to the build process, to be activated using one or more of the| mechanisms described above. For inheritance purposes, and to activate profiles via <activatedProfiles/>| or the command line, profiles have to have an ID that is unique.|| An encouraged best practice for profile identification is to use a consistent naming convention| for profiles, such as 'env-dev', 'env-test', 'env-production', 'user-jdcasey', 'user-brett', etc.| This will make it more intuitive to understand what the set of introduced profiles is attempting| to accomplish, particularly when you only have a list of profile id's for debug.|| This profile example uses the JDK version to trigger activation, and provides a JDK-specific repo.<profile><id>jdk-1.4</id><activation><jdk>1.4</jdk></activation><repositories><repository><id>jdk14</id><name>Repository for JDK 1.4 builds</name><url>http://www.myhost.com/maven/jdk14</url><layout>default</layout><snapshotPolicy>always</snapshotPolicy></repository></repositories></profile>--><!--| Here is another profile, activated by the property 'target-env' with a value of 'dev', which| provides a specific path to the Tomcat instance. To use this, your plugin configuration might| hypothetically look like:|| ...| <plugin>|   <groupId>org.myco.myplugins</groupId>|   <artifactId>myplugin</artifactId>||   <configuration>|     <tomcatLocation>${tomcatPath}</tomcatLocation>|   </configuration>| </plugin>| ...|| NOTE: If you just wanted to inject this configuration whenever someone set 'target-env' to|       anything, you could just leave off the <value/> inside the activation-property.|<profile><id>env-dev</id><activation><property><name>target-env</name><value>dev</value></property></activation><properties><tomcatPath>/path/to/tomcat/instance</tomcatPath></properties></profile>--><!-- <repositories><repository><id>central</id><url>https://repo.maven.apache.org/maven2</url></repository>
</repositories> --></profiles><!-- activeProfiles| List of profiles that are active for all builds.|<activeProfiles><activeProfile>alwaysActiveProfile</activeProfile><activeProfile>anotherAlwaysActiveProfile</activeProfile></activeProfiles>-->
</settings>

配置完成后联网方可下载项目所需要的jar包。

10、如图8所示jar包下载完后需要加一些配置项application.yml，新建在resources下面

  图8

11、application.yml配置如下

# 服务器端口
server:port: 8081# 数据库连接配置
spring:datasource:url: jdbc:mysql://localhost:3306/wscobusername: rootpassword: 123456driver-class-name: com.mysql.cj.jdbc.Driver
file:upload-dir: D://path//to
servlet:multipart:max-file-size: 10MB  # 单个文件上传的最大大小，这里设置为10MBmax-request-size: 20MB  # 整个请求（包含所有文件和其他表单数据）的最大大小，这里设置为20MB
# 日志级别
logging:level:root: infocom.wsc.app.dao: DEBUGmybatis:mapper-locations: classpath*:dao/*.xml
# 应用程序自定义属性
myapp:name: My Spring Boot Appversion: 1.0
