20250520在全志H3平台的Nano Pi NEO CORE开发板上运行Ubuntu Core16.04.3时跑通4G模块EC20

news 来源：原创 2025/5/21 6:00:05

1、h3-sd-friendlycore-xenial-4.14-armhf-20210618.img.gz 在WIN10下使用7-ZIP解压缩/ubuntu20.04下使用tar
2、Win32DiskImager.exe 写如32GB的TF卡。【以管理员身份运行】
3、TF卡如果已经做过会有3个磁盘分区，可以使用SD Card Formatter/SDCardFormatterv5_WinEN.zip格式化TF卡。DiskGenius可以尝试。

制作好Ubuntu core22.04.3系统的IMG固件之后，还需要你编辑TF卡中的文件：
1、修改H:\eflasher.conf
autoStart=/mnt/sdcard/friendlycore-jammy
autoExit=true

2、root@NanoPi-NEO-Core:/opt# vi run-eflasher.sh
root@NanoPi-NEO-Core:/opt# cat run-eflasher.sh
poweroff

如果能够直接编辑IMG固件就好了。到时候写TF卡之后不需要每次都来编辑这两个文件。

20250520在全志H3平台的Nano Pi NEO CORE开发板上运行Ubuntu Core16.04.3时跑通4G模块EC20
2025/5/20 14:51

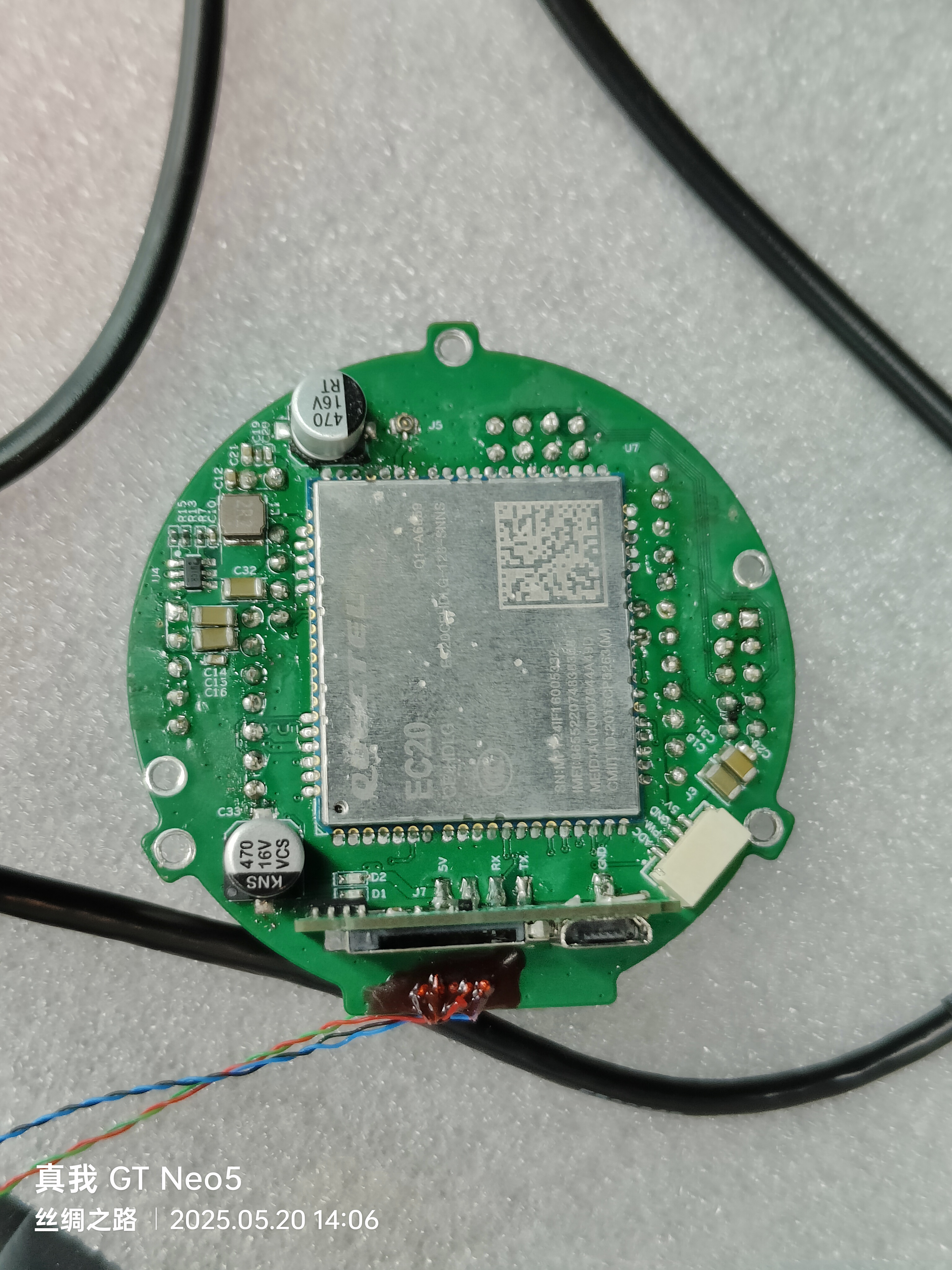

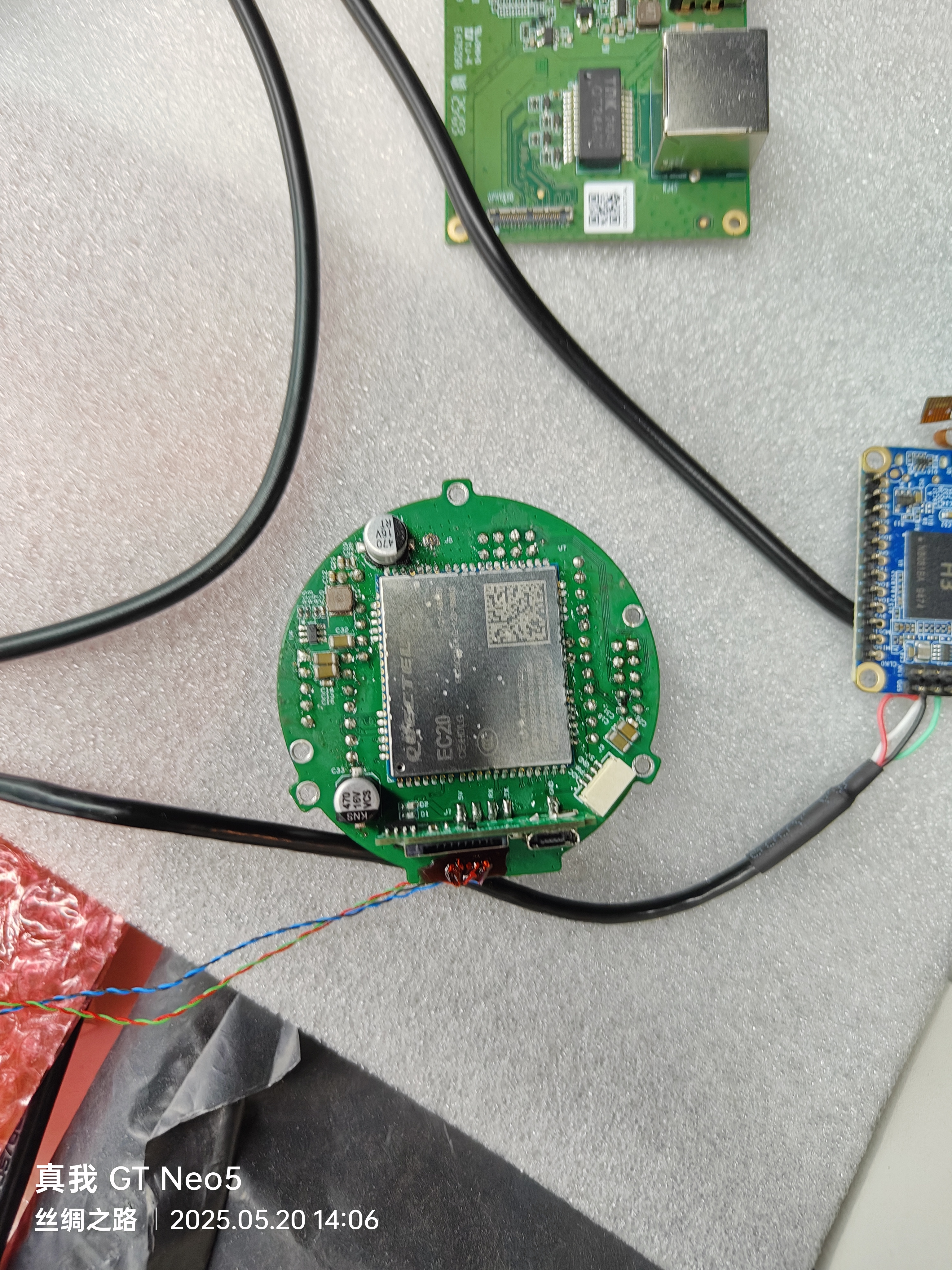

缘起：公司将来要在全志H3平台的Nano Pi NEO CORE开发板上运行Ubuntu Core16.04.3时使用移远的4G模块EC200A-CN。
但是先买的是EC20。现在也就是废物利用了。
也许/可能在有订单之前还不会确定最终用哪一款了！
友善之臂预编译的IMG固件就已经适配好EC20了：h3-sd-friendlycore-xenial-4.14-armhf-20210618.img.gz
但是还是需要你在开发板上编译quectel-CM命令行拨号程序。

简略步骤：
pi@NanoPi-NEO-Core:~$
pi@NanoPi-NEO-Core:~$ cat /etc/issue
pi@NanoPi-NEO-Core:~$ uname -a

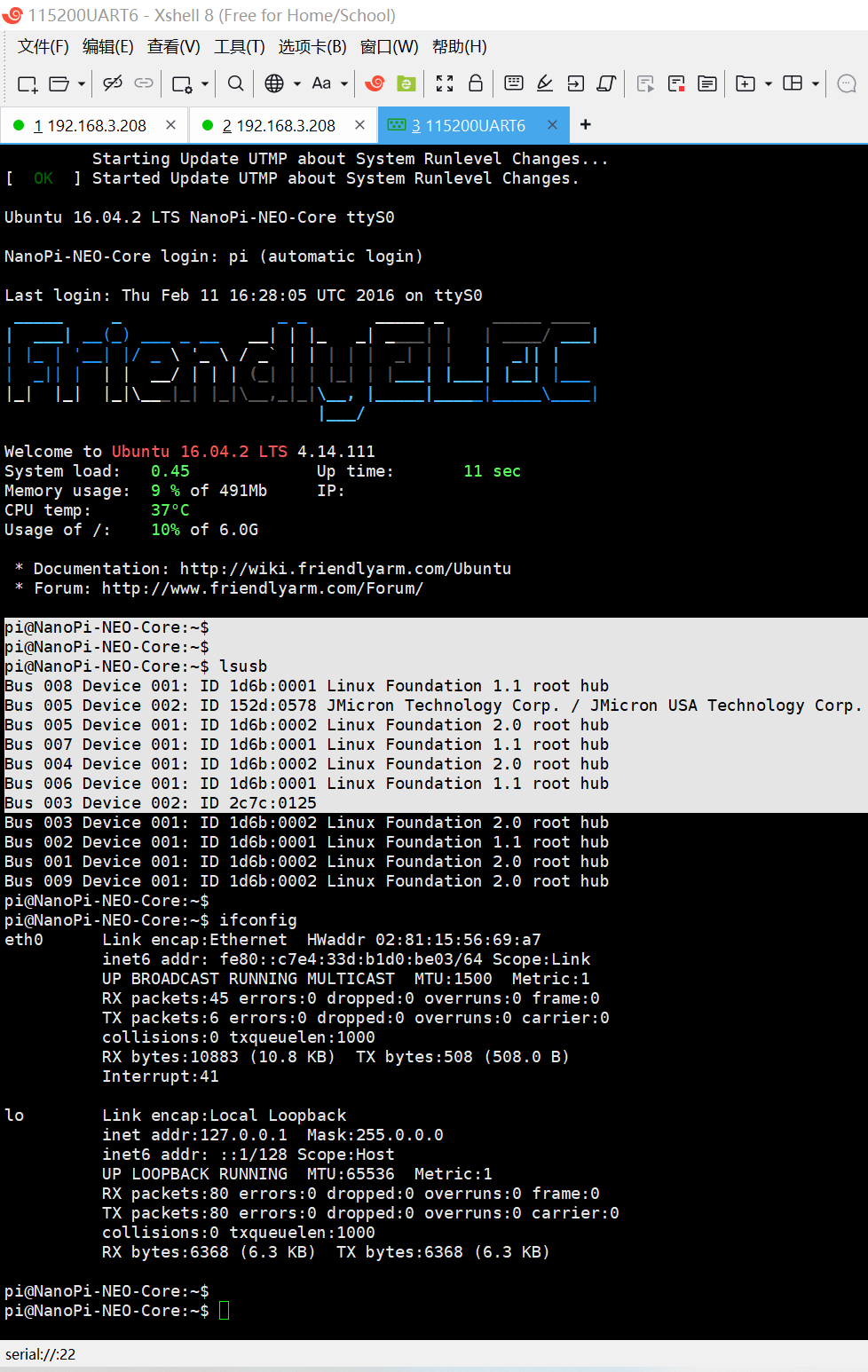

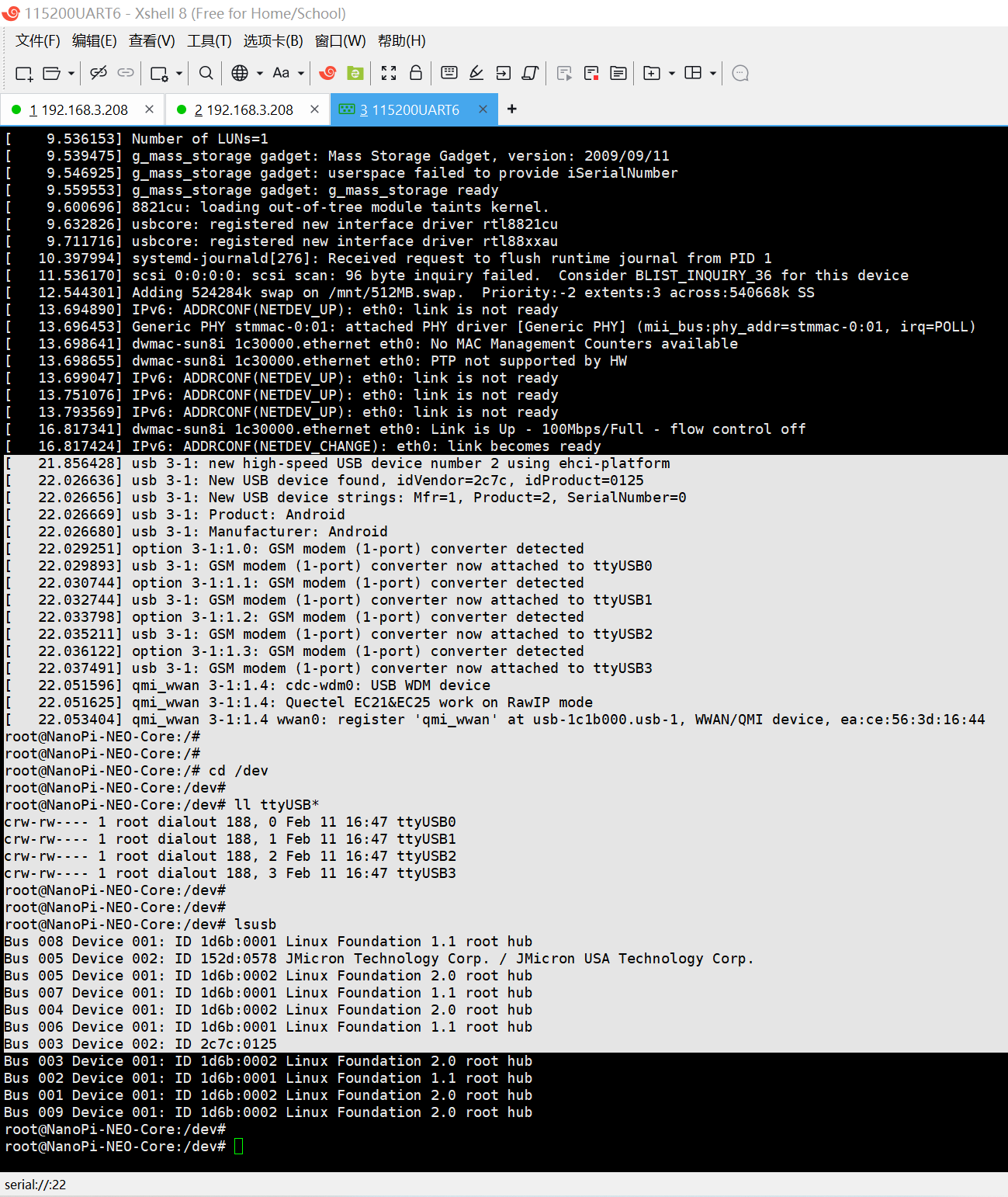

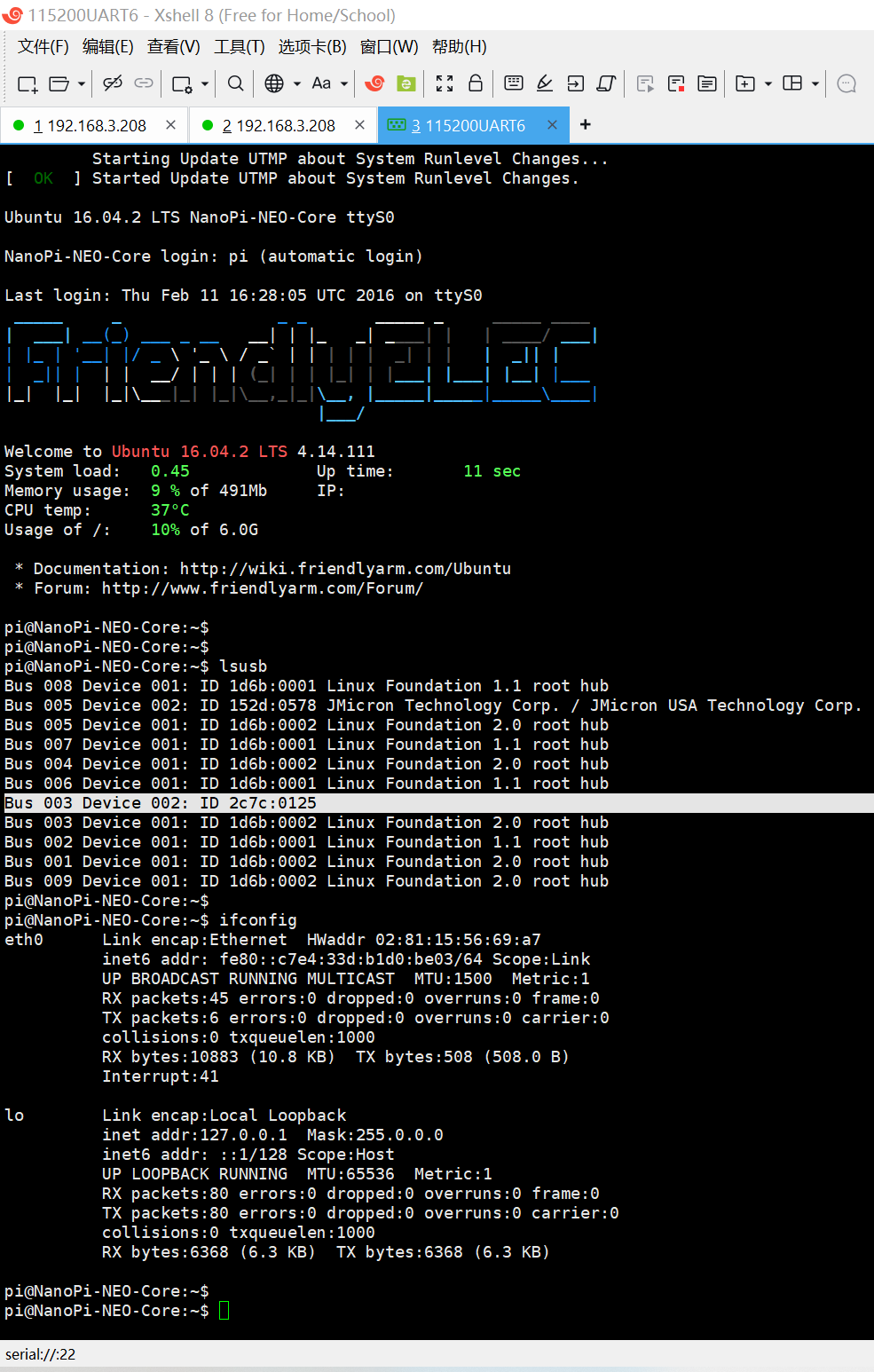

pi@NanoPi-NEO-Core:~$ lsusb
pi@NanoPi-NEO-Core:~$ ifconfig
pi@NanoPi-NEO-Core:~$ su
Password:
root@NanoPi-NEO-Core:/home/pi#
root@NanoPi-NEO-Core:/home/pi# ifconfig
root@NanoPi-NEO-Core:/home/pi# cd /
root@NanoPi-NEO-Core:/# ll
root@NanoPi-NEO-Core:/# git clone https://github.com/friendlyarm/quectel-cm.git
root@NanoPi-NEO-Core:/# ll

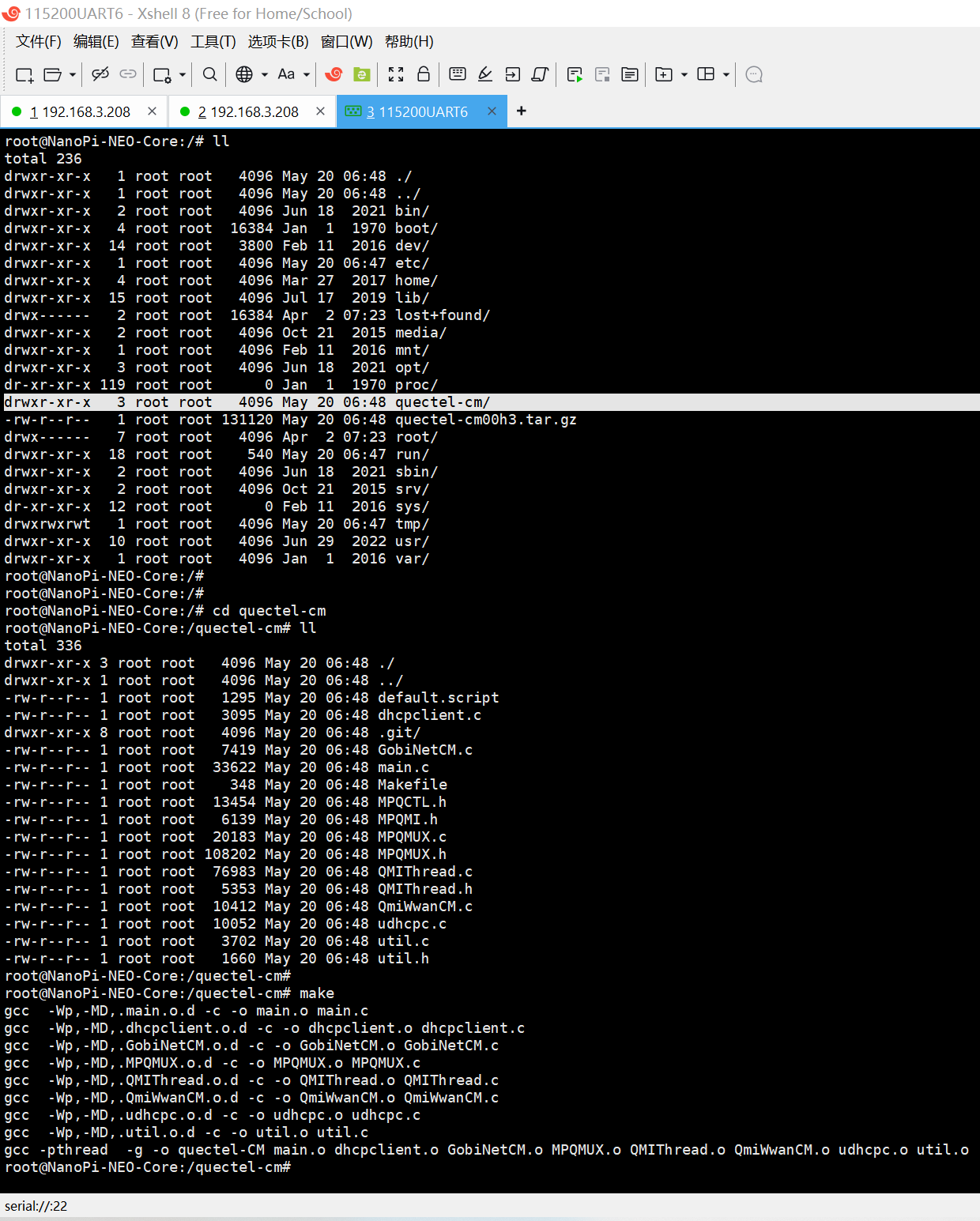

root@NanoPi-NEO-Core:/# tar zcvf quectel-cm00h3.tar.gz quectel-cm/
root@NanoPi-NEO-Core:/# ll
root@NanoPi-NEO-Core:/# cd quectel-cm
root@NanoPi-NEO-Core:/quectel-cm# ll

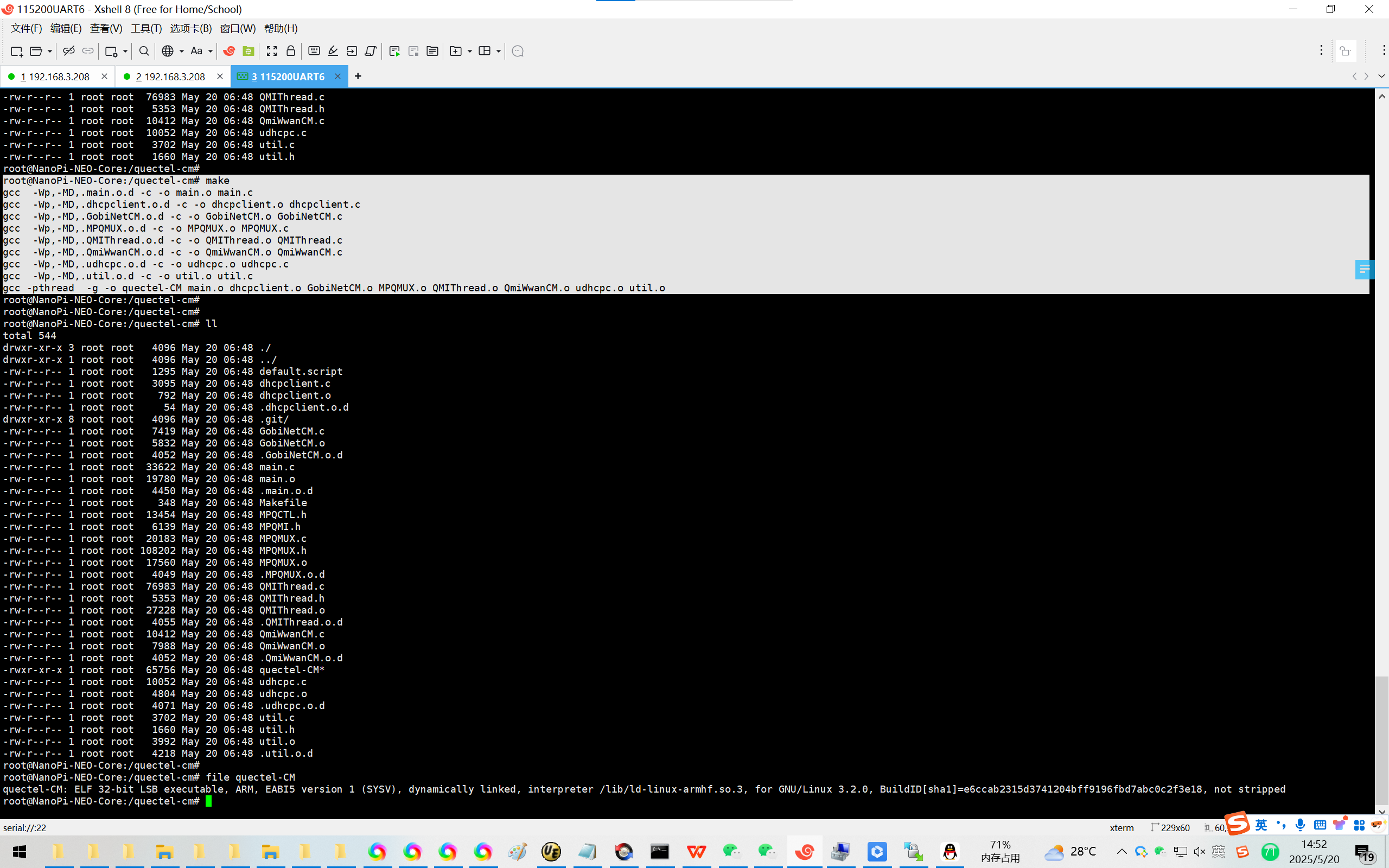

root@NanoPi-NEO-Core:/quectel-cm# make
root@NanoPi-NEO-Core:/quectel-cm# ll
root@NanoPi-NEO-Core:/quectel-cm# file quectel-CM
quectel-CM: ELF 32-bit LSB executable, ARM, EABI5 version 1 (SYSV), dynamically linked, interpreter /lib/ld-linux-armhf.so.3, for GNU/Linux 3.2.0, BuildID[sha1]=e6ccab2315d3741204bff9196fbd7abc0c2f3e18, not stripped
root@NanoPi-NEO-Core:/quectel-cm#
root@NanoPi-NEO-Core:/quectel-cm# cp quectel-CM /usr/bin/
root@NanoPi-NEO-Core:/quectel-cm# sync
root@NanoPi-NEO-Core:/quectel-cm# cd /
root@NanoPi-NEO-Core:/# quectel-CM &
root@NanoPi-NEO-Core:/# ifconfig

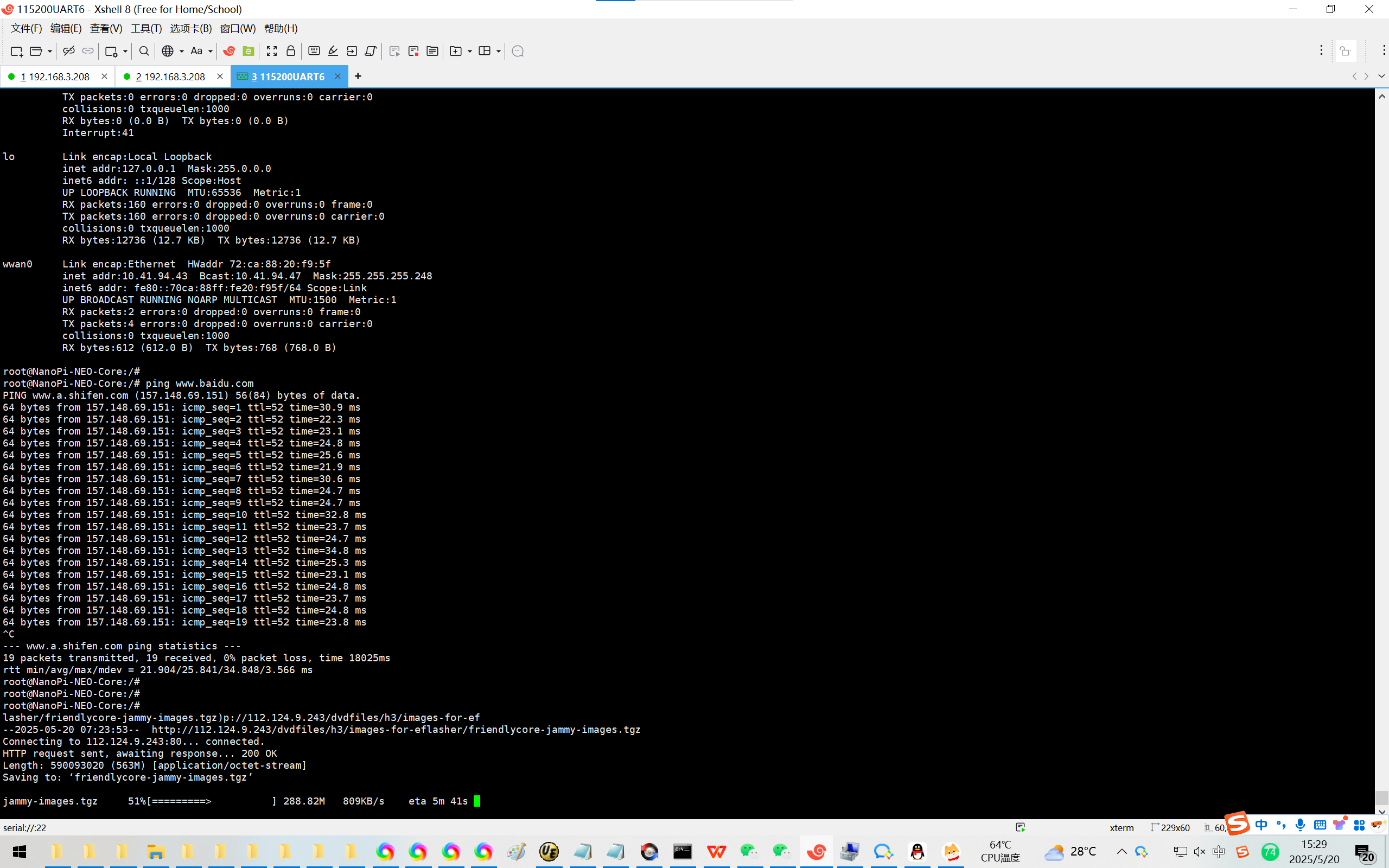

root@NanoPi-NEO-Core:/# ping www.baidu.com
root@NanoPi-NEO-Core:/# time(wget http://112.124.9.243/dvdfiles/h3/images-for-eflasher/friendlycore-jammy-images.tgz)
friendlycore-jammy- 100%[===================>] 562.76M 844KB/s in 11m 40s
2025-05-20 07:35:34 (823 KB/s) - ‘friendlycore-jammy-images.tgz’ saved [590093020/590093020]

参考资料：
http://wiki.friendlyelec.com/wiki/index.php/NanoPi_NEO_Core/zh#.E4.BD.BF.E7.94.A8.E5.BC.80Linux-4.14_BSP
NanoPi NEO Core/zh

https://github.com/friendlyarm/sd-fuse_h3/blob/master/README_cn.md#%E7%BC%96%E8%AF%91%E5%86%85%E6%A0%B8
sd-fuse_h3/README_cn.md

https://wiki.friendlyelec.com/wiki/index.php/EFlasher/zh#.E7.83.A7.E5.86.99.E6.88.96.E6.81.A2.E5.A4.8D.E7.B3.BB.E7.BB.9F.E5.AE.8C.E6.88.90.E5.90.8E.E5.81.9A.E4.BA.9B.E5.85.B6.E4.BB.96.E4.BA.8B.E6.83.85
EFlasher/zh

https://wiki.friendlyelec.com/wiki/index.php/How_to_use_4G_Module_on_NanoPC-T4/zh#FriendlyCore.E4.B8.8B.E4.BD.BF.E7.94.A84G.E6.A8.A1.E5.9D.97EC20
How to use 4G Module on NanoPC-T4/zh

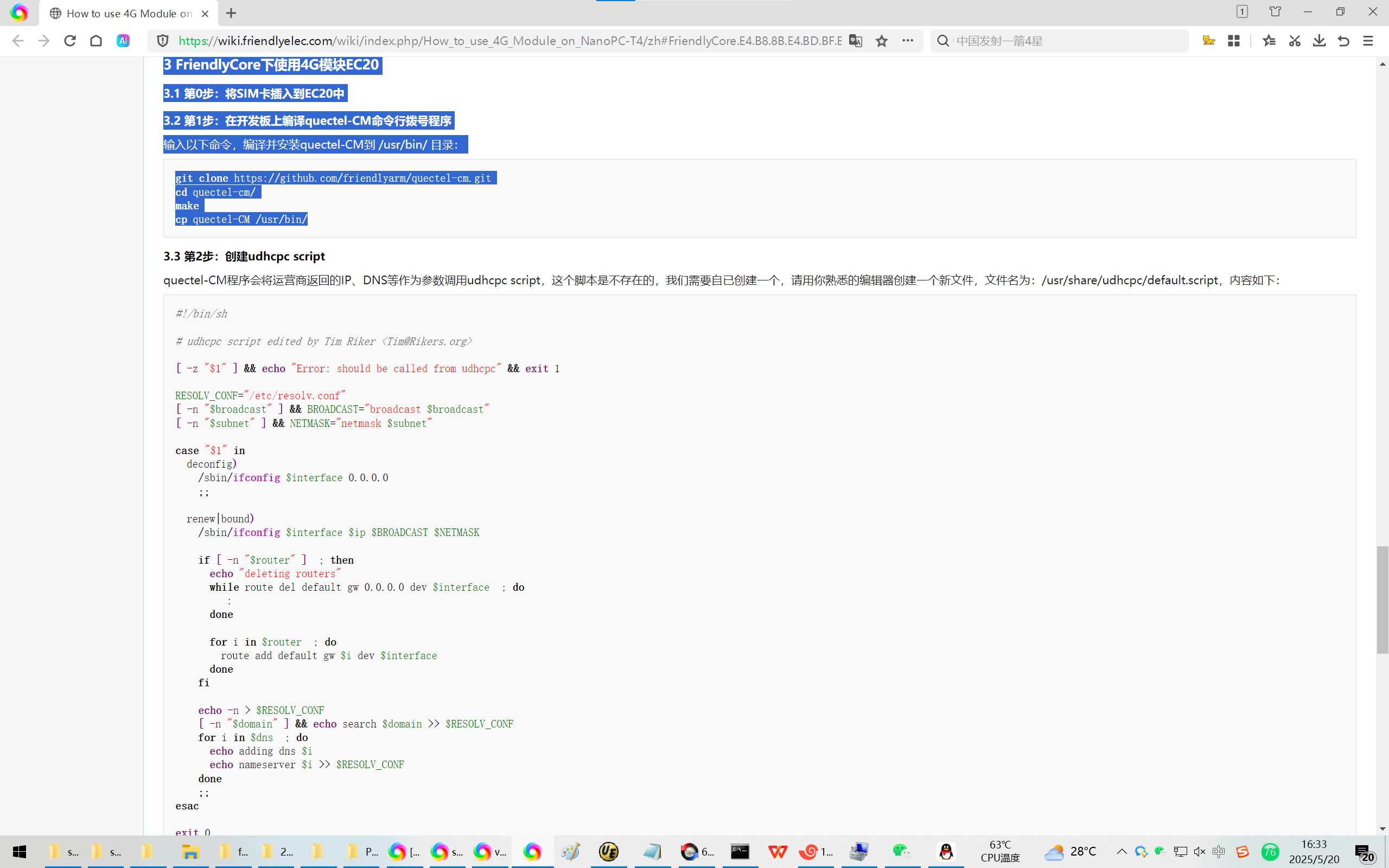

3 FriendlyCore下使用4G模块EC20
3.1 第0步：将SIM卡插入到EC20中

3.2 第1步：在开发板上编译quectel-CM命令行拨号程序
输入以下命令，编译并安装quectel-CM到 /usr/bin/ 目录：
git clone https://github.com/friendlyarm/quectel-cm.git
cd quectel-cm/
make
cp quectel-CM /usr/bin/

【不用做】3.3 第2步：创建udhcpc script

3.4 第3步：开始4G拨号
输入以下命令启动拨号：
quectel-CM &

拨号成功，屏幕会输出IP地址等信息，如下所示：

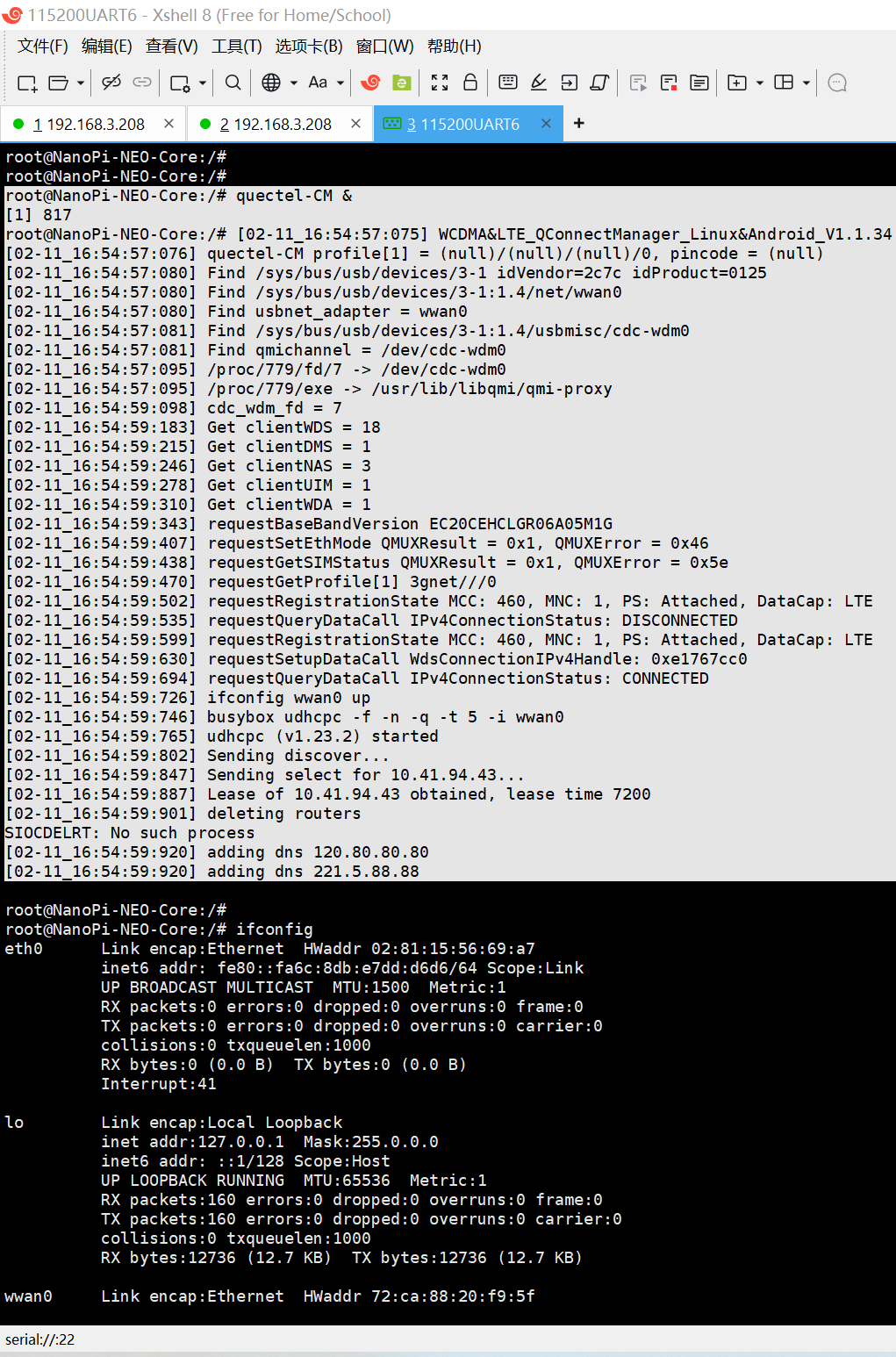

root@NanoPC-T4:~# quectel-CM &
[1] 5364
root@NanoPC-T4:~# [05-15_08:23:13:719] WCDMA&LTE_QConnectManager_Linux&Android_V1.1.34
[05-15_08:23:13:720] quectel-CM profile[1] = (null)/(null)/(null)/0, pincode = (null)
[05-15_08:23:13:721] Find /sys/bus/usb/devices/3-1 idVendor=2c7c idProduct=0125
[05-15_08:23:13:722] Find /sys/bus/usb/devices/3-1:1.4/net/wwan0
[05-15_08:23:13:722] Find usbnet_adapter = wwan0
[05-15_08:23:13:723] Find /sys/bus/usb/devices/3-1:1.4/usbmisc/cdc-wdm0
[05-15_08:23:13:723] Find qmichannel = /dev/cdc-wdm0
[05-15_08:23:13:739] cdc_wdm_fd = 7
[05-15_08:23:13:819] Get clientWDS = 18
[05-15_08:23:13:851] Get clientDMS = 2
[05-15_08:23:13:884] Get clientNAS = 2
[05-15_08:23:13:915] Get clientUIM = 1
[05-15_08:23:13:947] Get clientWDA = 1
[05-15_08:23:13:979] requestBaseBandVersion EC20CEFHLGR06A01M1G_OCPU_BETA1210
[05-15_08:23:14:043] requestSetEthMode QMUXResult = 0x1, QMUXError = 0x46
[05-15_08:23:14:075] requestGetSIMStatus SIMStatus: SIM_READY
[05-15_08:23:14:107] requestGetProfile[1] cmnet///0
[05-15_08:23:14:139] requestRegistrationState2 MCC: 460, MNC: 0, PS: Attached, DataCap: LTE
[05-15_08:23:14:171] requestQueryDataCall IPv4ConnectionStatus: DISCONNECTED
[05-15_08:23:14:235] requestRegistrationState2 MCC: 460, MNC: 0, PS: Attached, DataCap: LTE
[05-15_08:23:14:938] requestSetupDataCall WdsConnectionIPv4Handle: 0xe16e4540
[05-15_08:23:15:002] requestQueryDataCall IPv4ConnectionStatus: CONNECTED
[05-15_08:23:15:036] ifconfig wwan0 up
[05-15_08:23:15:052] busybox udhcpc -f -n -q -t 5 -i wwan0
[05-15_08:23:15:062] udhcpc (v1.23.2) started
[05-15_08:23:15:077] Sending discover...
[05-15_08:23:15:093] Sending select for 10.22.195.252...
[05-15_08:23:15:105] Lease of 10.22.195.252 obtained, lease time 7200
[05-15_08:23:15:118] deleting routers
SIOCDELRT: No such process
[05-15_08:23:15:132] adding dns 221.179.38.7
[05-15_08:23:15:132] adding dns 120.196.165.7

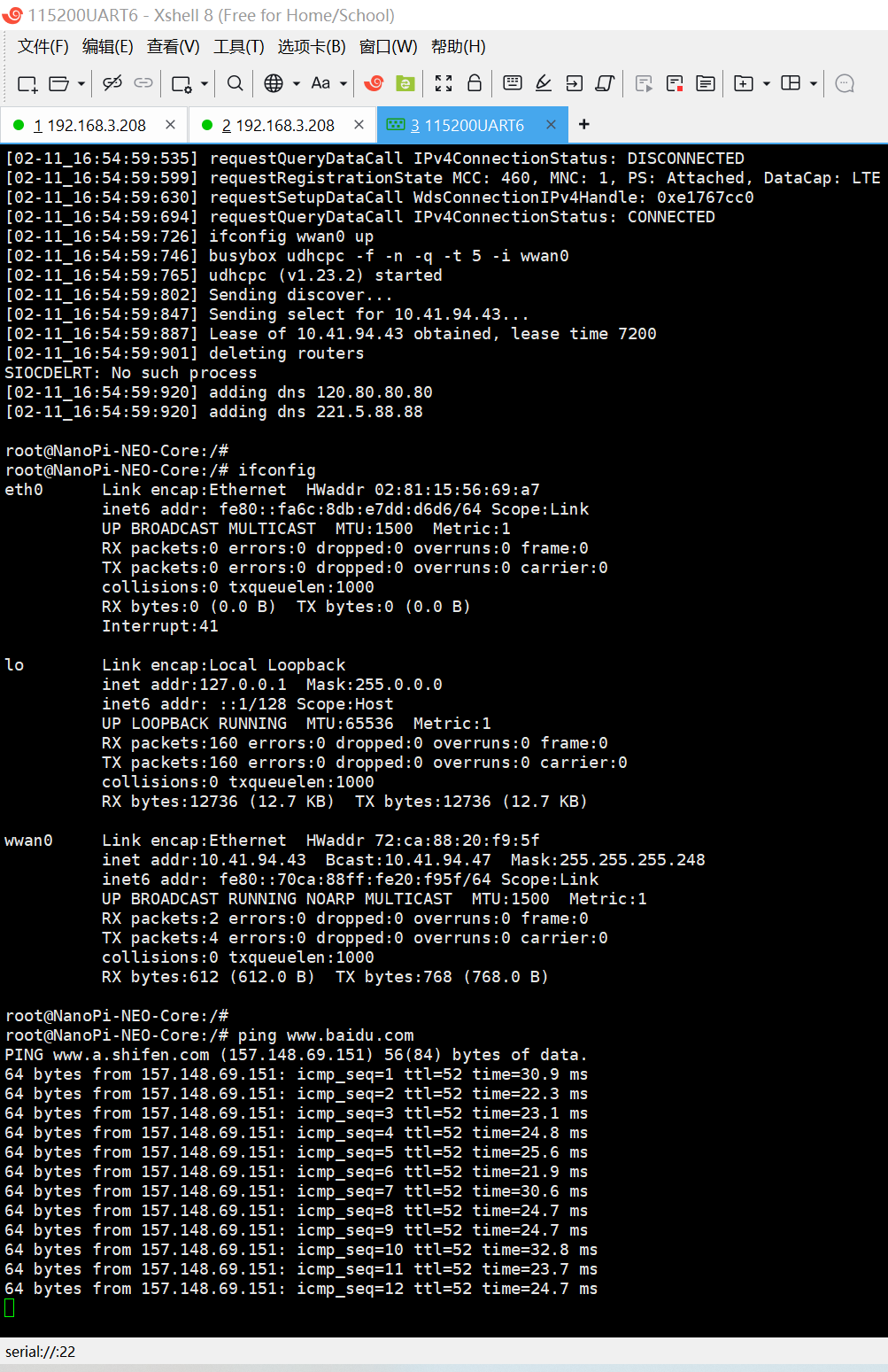

3.5 测试4G连接
ping一个域名，看看DNS解析是否已经在工作了：

root@NanoPC-T4:~# ping www.baidu.com
PING www.a.shifen.com (183.232.231.174) 56(84) bytes of data.
64 bytes from 183.232.231.174 (183.232.231.174): icmp_seq=1 ttl=56 time=74.3 ms
64 bytes from 183.232.231.174 (183.232.231.174): icmp_seq=2 ttl=56 time=25.1 ms
64 bytes from 183.232.231.174 (183.232.231.174): icmp_seq=3 ttl=56 time=30.8 ms
64 bytes from 183.232.231.174 (183.232.231.174): icmp_seq=4 ttl=56 time=29.1 ms
64 bytes from 183.232.231.174 (183.232.231.174): icmp_seq=5 ttl=56 time=29.2 ms

【异常了，可能需要你上外网】3.6 测试4G的网速
wget -O - https://raw.githubusercontent.com/sivel/speedtest-cli/master/speedtest.py | python
得到的测试结果类拟如下这样：

Retrieving speedtest.net configuration...
Testing from China Mobile Guangdong (117.136.40.167)...
Retrieving speedtest.net server list...
Selecting best server based on ping...
Hosted by ChinaTelecom-GZ (Guangzhou) [2.51 km]: 62.726 ms
Testing download speed................................................................................
Download: 32.93 Mbit/s
Testing upload speed................................................................................................
Upload: 5.58 Mbit/s

pi@NanoPi-NEO-Core:~$
pi@NanoPi-NEO-Core:~$
pi@NanoPi-NEO-Core:~$
pi@NanoPi-NEO-Core:~$
pi@NanoPi-NEO-Core:~$ cat /etc/issue
Ubuntu 16.04.2 LTS \n \l

pi@NanoPi-NEO-Core:~$
pi@NanoPi-NEO-Core:~$ uname -a
Linux NanoPi-NEO-Core 4.14.111 #1 SMP Tue May 6 19:59:36 CST 2025 armv7l armv7l armv7l GNU/Linux
pi@NanoPi-NEO-Core:~$
pi@NanoPi-NEO-Core:~$ su
Password:
root@NanoPi-NEO-Core:/home/pi#
root@NanoPi-NEO-Core:/home/pi#
root@NanoPi-NEO-Core:/home/pi# ifconfig
eth0 Link encap:Ethernet HWaddr 02:81:15:56:69:a7
inet addr:192.168.3.214 Bcast:192.168.3.255 Mask:255.255.255.0
inet6 addr: fe80::c7e4:33d:b1d0:be03/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:390 errors:0 dropped:0 overruns:0 frame:0
TX packets:14 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:85816 (85.8 KB) TX bytes:1658 (1.6 KB)
Interrupt:41

lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:9 errors:0 dropped:0 overruns:0 frame:0
TX packets:9 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:1184 (1.1 KB) TX bytes:1184 (1.1 KB)

root@NanoPi-NEO-Core:/home/pi#
root@NanoPi-NEO-Core:/home/pi#
root@NanoPi-NEO-Core:/home/pi# cd /
root@NanoPi-NEO-Core:/#
root@NanoPi-NEO-Core:/#
root@NanoPi-NEO-Core:/# ls -l
total 92
drwxr-xr-x 2 root root 4096 Jun 18 2021 bin
drwxr-xr-x 4 root root 16384 Jan 1 1970 boot
drwxr-xr-x 14 root root 3800 Feb 11 16:28 dev
drwxr-xr-x 1 root root 4096 Feb 11 16:28 etc
drwxr-xr-x 4 root root 4096 Mar 27 2017 home
drwxr-xr-x 15 root root 4096 Jul 17 2019 lib
drwx------ 2 root root 16384 Apr 2 2025 lost+found
drwxr-xr-x 2 root root 4096 Oct 21 15:45 media
drwxr-xr-x 1 root root 4096 Feb 11 16:28 mnt
drwxr-xr-x 3 root root 4096 Jun 18 2021 opt
dr-xr-xr-x 119 root root 0 Jan 1 1970 proc
drwx------ 7 root root 4096 Apr 2 2025 root
drwxr-xr-x 18 root root 540 Feb 11 16:28 run
drwxr-xr-x 2 root root 4096 Jun 18 2021 sbin
drwxr-xr-x 2 root root 4096 Oct 21 15:45 srv
dr-xr-xr-x 12 root root 0 Jan 1 1970 sys
drwxrwxrwt 1 root root 4096 Feb 11 16:28 tmp
drwxr-xr-x 10 root root 4096 Jun 29 2022 usr
drwxr-xr-x 1 root root 4096 Jan 1 09:58 var
root@NanoPi-NEO-Core:/#
root@NanoPi-NEO-Core:/#
root@NanoPi-NEO-Core:/#

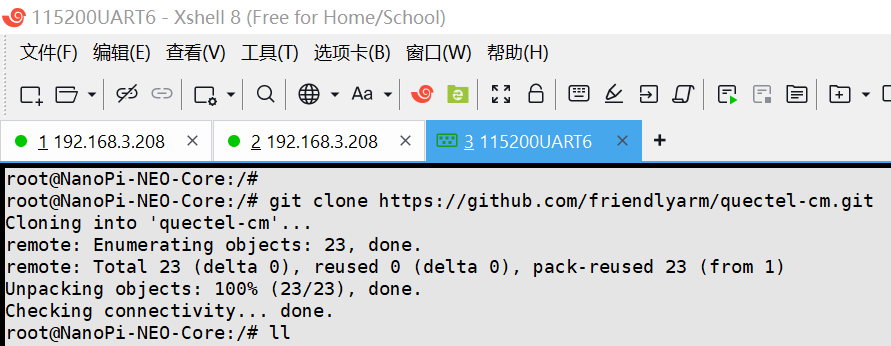

root@NanoPi-NEO-Core:/# git clone https://github.com/friendlyarm/quectel-cm.git
