遗传算法求解异构车队VRPTW问题

染色体编码设计：两种染色体编码方式

一、客户排列 + 分割点（Giant Tour + Split）

1. 示例编码与解码

假设有 5 个客户 (1, 2, 3, 4, 5)，有 2 种车型：Type A (容量 50, 1辆, 车A1)，Type B (容量 30, 2辆, 车B1, 车B2)。总车辆数 M=3；客户需求：C1(10), C2(25), C3(20), C4(15), C5(30)；时间窗等信息省略，但解码时需要检查。

编码：

• 染色体是一个包含 N 个客户ID（例如，1 到 N）和若干个分隔符（例如使用0作为分隔符）的排列。例如：使用0作为分割点编码，一个可能的染色体为：[3, 1, 0, 5, 2, 0, 4, 0]

解码：

1. 从左到右读取染色体，遇到客户ID，将其加入当前正在构建的路线。遇到分隔符 0，表示当前路线结束。
2. 据预先定义的顺序（例如，先分配 Type 1 的所有车辆，再分配 Type 2 的所有车辆，以此类推）。
   • 在分配时，需要检查该路线分配给特定类型的车辆是否可行（容量限制）。然后，计算该路线的行驶时间和到达时间，检查是否满足所有客户的时间窗要求以及车辆的总行驶时间/距离限制。如果分配给当前考虑的车辆类型不可行，则尝试下一个可用车辆。
   • 如果一条路线（两个分隔符之间的客户序列）无法分配给任何可用且合适的车辆，则该染色体代表一个不可行解（在评估适应度时给予惩罚）。
3. 所有分隔符都处理完毕后，就得到了一个完整的车辆路径规划方案。

对于染色体[3, 1, 0, 5, 2, 0, 4, 0]，解码过程为：

1. 读取 3, 1，遇到 0。路线 1: Depot -> 3 -> 1 -> Depot。总需求 = 20 + 10 = 30。
   尝试分配：车 A1 (容量 50)：可行。假设时间窗也满足。分配给 A1。

2. 读取 5, 2，遇到 0。路线 2: Depot -> 5 -> 2 -> Depot。总需求 = 30 + 25 = 55。
   尝试分配 (这里A1已用，不再考虑):

   • 车 B1 (容量 30)：不可行 (55 > 30)。
   • 车 B2 (容量 30)：不可行 (55 > 30)。

3. 该染色体解码为不可行解，需要在评估适应度时给予惩罚

2. 采用 客户排列 + 分割点 设计的特点

优点:

• 结构相对简单，是 VRP 编码的自然扩展。
• 可以直接应用经典的排列交叉算子（如 OX, CX, PMX）和变异算子（如交换、插入、倒置）。

缺点:

• 解码过程复杂，需要检查容量、时间窗等约束，并进行车辆分配。
• 容易产生不可行解（特别是容量和时间窗约束严格时），解码时按“先 Type A 再 Type B…”“顺序尝试”车辆，但一旦高容量车型被前面路段消耗，就很难满足后面高需求子路段，更容易判为不可行。建议在分配时使用先将大需求路线配大车、小需求路线配小车的策略，或根据“需求密度”动态选择车辆类型。
• 隐式地进行车辆分配，可能不是最高效的方式。分隔符的位置对解的质量影响很大。

3. 编码实现（基于Python）

首先构造数据，生成一些随机的客户点，不妨简化时间窗，设位置都是（0，0），方便求解。

# Using dictionaries for simplicity. Classes could also be used.
def create_customer(id, demand, tw_early=0, tw_late=float('inf'), service_time=0, coords=(0,0)):"""Helper to create customer data."""return {"id": id,"demand": demand,"tw_early": tw_early,"tw_late": tw_late,"service_time": service_time,"coords": coords # Needed for distance/TW calculations}# 1. Define Customers
customers_data = {1: create_customer(1, 10),2: create_customer(2, 25),3: create_customer(3, 20),4: create_customer(4, 15),5: create_customer(5, 30),6: create_customer(6, 10), # Add another customer
}
num_customers = len(customers_data)

再构造异构车队，有3种车型A、B和C，数量分别为1、2和1辆。容量分别为50、30和40，具体如下：

def create_vehicle(id, type, capacity, depot_coords=(0,0)):"""Helper to create vehicle data."""return {"id": id,"type": type,"capacity": capacity,"depot_coords": depot_coords}# 2. Define Vehicles (Multi-type)
vehicles_data = [create_vehicle(id="A1", type="Type A", capacity=50),create_vehicle(id="B1", type="Type B", capacity=30),create_vehicle(id="B2", type="Type B", capacity=30),create_vehicle(id="C1", type="Type C", capacity=40), # Add another type
]

用0表示Split，构造示例染色体：

delimiter_token = 0
example_chromosome = [3, 1, delimiter_token, 6, 4, 2, delimiter_token, 5, delimiter_token]

进行解码：

# 4. Decode the Chromosome
assigned_routes, unserved, issues = decode_chromosome_method1(example_chromosome,customers_data,vehicles_data,delimiter=delimiter_token
)

解码结果为不可行解：

Vehicle: A1 (Type A), Route: Depot -> 3 -> 1 -> Depot, Demand: 30
Vehicle: B1 (Type B), Route: Depot -> 5 -> Depot, Demand: 30
Unserved Customers: {2, 4, 6}

完整代码：

import random
import pandas as pd
from dataclasses import dataclass
from typing import Tuple, overridedef create_vehicle(id, type, capacity, depot_coords=(0, 0)):"""Helper to create vehicle data."""return {"id": id, "type": type, "capacity": capacity, "depot_coords": depot_coords}@dataclass
class Customer:"""Class representing a customer in the VRPTW problem."""id: intcoords: Tuple[float, float] = (0, 0)demand: int = 0tw_early: float = 0tw_late: float = float("inf")service_time: float = 0def __post_init__(self):"""Validate the time window constraints."""if self.tw_early > self.tw_late:raise ValueError("tw_early cannot be greater than tw_late")@overridedef __repr__(self) -> str:return str(self.id)class GeneticAlgorithm:def __init__(self,customers: list[Customer],vehicles: dict,pop_size: int,cx_pc: float,mut_pm: float,) -> None:self.customers = customersself.vehicles = vehiclesself.pop_size = pop_sizeself.cx_pc = cx_pcself.mut_pm = mut_pmself.n_vehicles = len(vehicles)self.delimiter = 0def print_decode_result(self, assigned_routes, unserved, issues):# 5. Print Resultsprint("Decoding Results:")print("-" * 20)if assigned_routes:print("Assigned Routes:")for route_info in assigned_routes:print(f"  Vehicle: {route_info['vehicle_id']}shuffled_customers ({route_info['vehicle_type']}), "f"Route: Depot -> {' -> '.join(map(str, route_info['route']))} -> Depot, "f"Demand: {route_info['demand']}")else:print("No routes could be assigned.")if unserved:print(f"\nUnserved Customers: {unserved}")if issues:print("\nFeasibility Issues Encountered During Decoding:")for issue in issues:print(f"  - {issue}")def generate_initial_population(self, delimiter=0) -> list[list[Customer]]:"""生成初始种群Args:customers: 客户数据vehicles: 车辆数据pop_size: 种群大小delimiter: 分隔符（默认为0）Returns:list: 包含多个染色体的列表"""all_customer_ids = list(self.customers)population = []for _ in range(self.pop_size):# 1. 随机打乱客户顺序# 将所有客户随机打乱顺序，生成一个新的列表shuffled_customers = random.sample(all_customer_ids, len(all_customer_ids))# 2. 随机分割客户为多个路线，有几辆车最多几条路线num_routes = random.randint(1, min(len(self.vehicles), len(all_customer_ids)))route_boundaries = sorted(random.sample(range(1, len(shuffled_customers)), num_routes - 1))# 3. 构建染色体chromosome = []prev_index = 0for boundary in route_boundaries:chromosome.extend(shuffled_customers[prev_index:boundary])chromosome.append(delimiter)prev_index = boundarychromosome.extend(shuffled_customers[prev_index:])population.append(chromosome)return populationdef decode_chromosome_method1(self, chromosome: list[Customer]):print(chromosome)print(type(chromosome[0]))"""Decodes a single chromosome with delimiters into vehicle routes for MDVRP.Args:chromosome (list): A list of customer IDs and delimiters (e.g., 0).customers (dict): A dictionary where keys are customer IDs and values arecustomer data dictionaries (including 'demand').vehicles (list): A list of vehicle data dictionaries (including 'id', 'type', 'capacity').The order matters for assignment preference.delimiter (int): The value used to separate routes in the chromosome.Returns:tuple: A tuple containing:- assigned_routes (list): A list of dictionaries, each representing anassigned route:{'vehicle_id': id, 'vehicle_type': type,'route': [cust_id1, cust_id2,...],'demand': total_demand}- unassigned_customers (set): A set of customer IDs from the chromosomethat couldn't be assigned to any route/vehicle.- feasibility_issues (list): A list of strings describing problems(e.g., capacity violations found during decode)."""assigned_routes = []unassigned_customers = set(c.id for c in chromosome if c != self.delimiter)  # Start assuming all are unassignedfeasibility_issues = []available_vehicle_indices = list(range(len(self.vehicles)))  # Indices of vehicles not yet usedassigned_vehicle_ids = set()current_route_customers = []chromosome_ptr = 0while chromosome_ptr < len(chromosome):gene = chromosome[chromosome_ptr]if gene == self.delimiter:if current_route_customers:  # End of a potential routeroute_demand = sum(c.demand for c in current_route_customers)assigned_this_route = False# Try to find a suitable *available* vehiclevehicle_idx_to_remove = -1for i, v_idx in enumerate(available_vehicle_indices):vehicle = self.vehicles[v_idx]# 1. Check Capacityif route_demand <= vehicle["capacity"]:# 2. *** Placeholder for Time Window Check ***# This requires coordinates, travel times, service times etc.# route_is_tw_feasible = check_time_windows(current_route_customers, vehicle, customers)route_is_tw_feasible = (True  # Assume feasible for this example)if route_is_tw_feasible:# Assign route to this vehicleassigned_routes.append({"vehicle_id": vehicle["id"],"vehicle_type": vehicle["type"],"route": list(current_route_customers),  # Use copy"demand": route_demand,})assigned_vehicle_ids.add(vehicle["id"])# Mark customers as assignedfor c in current_route_customers:unassigned_customers.discard(c.id)assigned_this_route = Truevehicle_idx_to_remove = (i  # Mark this vehicle index for removal)break  # Stop searching for vehicles for this routeif vehicle_idx_to_remove != -1:available_vehicle_indices.pop(vehicle_idx_to_remove)  # Remove used vehicle indexif not assigned_this_route:# Route could not be assigned to any available vehiclefeasibility_issues.append(f"Route {current_route_customers} (Demand: {route_demand}) could not be assigned."f" Available vehicles checked: {[self.vehicles[i]['id'] for i in available_vehicle_indices]}")# Customers remain in unassigned_customers set# Reset for next routecurrent_route_customers = []# Else (delimiter found but current_route empty): just move onelse:# It's a customer IDif gene in customers:print("type gene", type(gene))current_route_customers.append(gene)else:feasibility_issues.append(f"Customer ID {gene} not found in customer data.")chromosome_ptr += 1# After loop: Handle any remaining customers if chromosome didn't end with delimiterif current_route_customers:route_demand = sum(c.demand for c in current_route_customers)assigned_this_route = Falsevehicle_idx_to_remove = -1for i, v_idx in enumerate(available_vehicle_indices):vehicle = self.vehicles[v_idx]if route_demand <= vehicle["capacity"]:# Placeholder TW checkroute_is_tw_feasible = Trueif route_is_tw_feasible:assigned_routes.append({"vehicle_id": vehicle["id"],"vehicle_type": vehicle["type"],"route": list(current_route_customers),"demand": route_demand,})assigned_vehicle_ids.add(vehicle["id"])for c in current_route_customers:unassigned_customers.discard(c.id)assigned_this_route = Truevehicle_idx_to_remove = ibreakif vehicle_idx_to_remove != -1:available_vehicle_indices.pop(vehicle_idx_to_remove)if not assigned_this_route:feasibility_issues.append(f"Final Route {current_route_customers} (Demand: {route_demand}) could not be assigned."f" Available vehicles checked: {[self.vehicles[i]['id'] for i in available_vehicle_indices]}")return assigned_routes, unassigned_customers, feasibility_issuesif __name__ == "__main__":# 1. Define Customerscustomers = [# Depot (仓库)Customer(id=0, coords=(0, 0), demand=0, tw_early=0, tw_late=1440, service_time=0),# Customer 1Customer(id=1,coords=(10, 10),demand=50,tw_early=480,  # 8:00tw_late=660,  # 11:00service_time=15,),# Customer 2Customer(id=2,coords=(20, -15),demand=75,tw_early=540,  # 9:00tw_late=720,  # 12:00service_time=20,),# Customer 3Customer(id=3,coords=(-15, 25),demand=40,tw_early=600,  # 10:00tw_late=780,  # 13:00service_time=10,),# Customer 4Customer(id=4,coords=(25, 5),demand=60,tw_early=510,  # 8:30tw_late=750,  # 12:30service_time=18,),# Customer 5Customer(id=5,coords=(-10, -20),demand=30,tw_early=570,  # 9:30tw_late=810,  # 13:30service_time=12,),# Customer 6Customer(id=6,coords=(15, -5),demand=85,tw_early=450,  # 7:30tw_late=690,  # 11:30service_time=25,),# Customer 7Customer(id=7,coords=(-20, 10),demand=55,tw_early=630,  # 10:30tw_late=840,  # 14:00service_time=16,),# Customer 8Customer(id=8,coords=(0, 25),demand=70,tw_early=510,  # 8:30tw_late=720,  # 12:00service_time=22,),# Customer 9Customer(id=9,coords=(-25, -15),demand=45,tw_early=480,  # 8:00tw_late=750,  # 12:30service_time=14,),]# 2. Define Vehicles (Multi-type)vehicles_data = [create_vehicle(id="A1", type="Type A", capacity=50),create_vehicle(id="B1", type="Type B", capacity=30),create_vehicle(id="B2", type="Type B", capacity=30),create_vehicle(id="C1", type="Type C", capacity=40),  # Add another type]num_vehicles = len(vehicles_data)ga = GeneticAlgorithm(customers, vehicles_data, 10, 0.8, 0.2)pop = ga.generate_initial_population()n_infeasible_chroms = 0for chrom in pop:assigned_routes, unserved, issues = ga.decode_chromosome_method1(chrom)if unserved:n_infeasible_chroms += 1print(n_infeasible_chroms)

运行结果10条染色体均为不可行解，分析原因：

• 初始种群中对客户序列的“随机切割”完全不参考各段需求之和，因而很容易生成需求总和超过任何车辆容量的子路线。
• 启用时间窗约束，随机的客户顺序大概率打乱最优路径时序，生成严重超时的路线。
• 解码时按“先 Type A 再 Type B…”“顺序尝试”车辆，但一旦高容量车型被前面路段消耗，就很难满足后面高需求子路段，更容易判为不可行。
  • 可在分配时使用先将大需求路线配大车、小需求路线配小车的策略，或根据“需求密度”动态选择车辆类型。
• 目前对生成的染色体完全无惩罚地放入种群，只在评估时惩罚不可行解，导致一大半染色体从一开始就是垃圾解。
  • 可在生成初始种群时，加入简单的“容量剪枝”：
    • 随机分割后，若某段需求和大于所有车辆容量最大值，则直接重采样切点。
    • 或者采用半启发式：先按客户需求排序，聚簇分块，再在每块内部打乱。

二、使用整体聚类+局部路由（cluster-first+route-second）

（Cluster-First / Route-Second）策略的实现思路分为三大阶段：

1. 聚类（Cluster-First）

1.1 特征选择

• 空间特征：客户坐标 $(x_i,y_i)$。
• 需求特征：客户需求量 $q_i$。
• 时间窗紧迫度：可以定义紧迫度指数 $w_i=1-\frac{t_i^{\text{late}}-t_i^{\text{early}}}{{\max }_j(t_j^{\text{late}}-t_j^{\text{early}})}$，越大表示时间窗越紧。

将上述特征组合成向量 ${\mathbf{f}}_i=(x_i,y_i,q_i,w_i)$，并标准化。

1.2 聚类算法

• 簇数 $K$：等于可用车辆总数 $M$；或者先按车型分组，再分别对每一车型群做聚类（车型 A 聚为 $K_A$ 簇，车型 B 聚为 $K_B$ 簇…）。

• 聚类方式：

  • 容量敏感 K-Means

    • 在更新簇中心时，引入簇内总需求约束：若某簇聚得太多需求，拆分该簇（或将部分点划到最近的其他簇）。

  • 时间窗敏感聚类

    • 把紧时间窗客户优先分配到同一簇中，以保证簇内路由更易满足时窗。

算法示例（容量敏感 K-Means）

1. 初始化：在空间中心附近随机选 $K$ 个点作簇中心。
2. 分配：按最短欧氏距离把每个客户指派到最近中心；
3. 修复：对每个簇，若 ${\sum }_{i\in C_k}{q}_i>{\max }_{v\in \text{Type}(k)}\text{cap}(v)$，则把簇内最远离中心的一个客户移出，重新指派给下一个最近中心；重复直到所有簇容量可行。
4. 更新：重新计算每个簇的中心（加权重可加需求或时间窗紧迫度）。
5. 收敛或循环次数足够后停止。

结果：每个簇 $C_k$ 对应一辆或一组同类型车辆的潜在服务区。

---

2. 子问题路由优化（Route-Second）

对每个簇 $C_k$（客户集合）单独生成路由，可选择不同策略：

2.1 随机键／分段编码 GA

• 染色体：仅包含簇内客户的随机键向量，或“客户 + 分隔符”编码，但规模缩小至 $|C_k|$，容量超载概率大幅下降。

• 解码与本地修复：

  1. 按键排序或分隔符切分生成路线。
  2. 若某段超载，则将超载部分的末尾 1–2 个点标记为“待重分配”，插入到同簇剩余车辆的空闲路由中或交给全局修复。
  3. 时间窗计算精确累积：从仓库出发，依次加上行驶时间＋服务时间，并与 $[t^{\text{early}},t^{\text{late}}]$ 比较，若违反可向后平移或重排序。

2.2 局部搜索／禁忌搜索

• 在每个簇内可并行使用局部优化算法，如 2-opt、Or-opt、或基于时间窗的 TSPLTW 变种，进一步精炼每条路线。

2.3 多车次分配

• 若某簇对应多辆同类型车辆（例如簇 $C_A$ 对应 3 辆 Type A），则对该簇内插入额外的“虚拟分隔符”来分路，也可让子 GA 同时演化“分配＋排序”两部分。

方法优缺点总结

优点	缺点
- 初期大幅剪枝，减少不可行染色体比例	- 聚类结果质量强依赖初始中心与参数
- 并行化能力强：各簇可独立优化	- 簇边界客户可能在两个簇之间切换时增加复杂度
- 容量/时窗约束在聚类和本地优化双重保障	- 全局最优性难保证，需要后期修复和微调

代码实现

# %%
import pandas as pd
from sklearn.cluster import KMeans# Define sample customers
data = [{"id": 0, "x": 0, "y": 0, "demand": 0, "tw_early": 0, "tw_late": 1440},{"id": 1, "x": 10, "y": 10, "demand": 50, "tw_early": 480, "tw_late": 660},{"id": 2, "x": 20, "y": -15, "demand": 75, "tw_early": 540, "tw_late": 720},{"id": 3, "x": -15, "y": 25, "demand": 40, "tw_early": 600, "tw_late": 780},{"id": 4, "x": 25, "y": 5, "demand": 60, "tw_early": 510, "tw_late": 750},{"id": 5, "x": -10, "y": -20, "demand": 30, "tw_early": 570, "tw_late": 810},{"id": 6, "x": 15, "y": -5, "demand": 85, "tw_early": 450, "tw_late": 690},{"id": 7, "x": -20, "y": 10, "demand": 55, "tw_early": 630, "tw_late": 840},{"id": 8, "x": 0, "y": 25, "demand": 70, "tw_early": 510, "tw_late": 720},{"id": 9, "x": -25, "y": -15, "demand": 45, "tw_early": 480, "tw_late": 750},
]df = pd.DataFrame(data)# Compute time window tightness index
max_window = (df["tw_late"] - df["tw_early"]).max()
df["tw_tightness"] = 1 - (df["tw_late"] - df["tw_early"]) / max_window# Normalize demand
df["demand_norm"] = (df["demand"] - df["demand"].mean()) / df["demand"].std()# Features: x, y, normalized demand, time window tightness
features = df[["x", "y", "demand_norm", "tw_tightness"]].values# Cluster into 4 clusters (equal to number of vehicles in example)
kmeans = KMeans(n_clusters=4, random_state=42)
df["cluster"] = kmeans.fit_predict(features)
df# %%
from scipy import spatial
customer_coord = [(row['x'], row['y']) for idx, row in df.iterrows()]
distance = spatial.distance.cdist(customer_coord, customer_coord, 'euclidean')
distance# %%
def check_time_windows(seq_ids, vehicle, df, speed=40):t = 0.0last = 0for cid in seq_ids:cust = df[df.id == cid].iloc[0]dist = distance[0][cid]t += dist / speed * 60if t < cust["tw_early"]:t = cust.tw_earlyif t > cust["tw_late"]:return Falset += 0 # cust["service_time"]last = ciddist = distance[last][0]t += dist / speed * 60return True# %%
# Reuse the clustered DataFrame from previous step
data = [{"id": 0, "x": 0, "y": 0, "demand": 0, "tw_early": 0, "tw_late": 1440, "cluster": 3},{"id": 1, "x": 10, "y": 10, "demand": 50, "tw_early": 480, "tw_late": 660, "cluster": 3},{"id": 2, "x": 20, "y": -15, "demand": 75, "tw_early": 540, "tw_late": 720, "cluster": 0},{"id": 3, "x": -15, "y": 25, "demand": 40, "tw_early": 600, "tw_late": 780, "cluster": 1},{"id": 4, "x": 25, "y": 5, "demand": 60, "tw_early": 510, "tw_late": 750, "cluster": 2},{"id": 5, "x": -10, "y": -20, "demand": 30, "tw_early": 570, "tw_late": 810, "cluster": 1},{"id": 6, "x": 15, "y": -5, "demand": 85, "tw_early": 450, "tw_late": 690, "cluster": 0},{"id": 7, "x": -20, "y": 10, "demand": 55, "tw_early": 630, "tw_late": 840, "cluster": 1},{"id": 8, "x": 0, "y": 25, "demand": 70, "tw_early": 510, "tw_late": 720, "cluster": 2},{"id": 9, "x": -25, "y": -15, "demand": 45, "tw_early": 480, "tw_late": 750, "cluster": 2},
]df = pd.DataFrame(data)# Define vehicles with capacities
vehicles = [{"id": "A1", "type": "A", "capacity": 50},{"id": "B1", "type": "B", "capacity": 180},{"id": "B2", "type": "B", "capacity": 180},{"id": "C1", "type": "C", "capacity": 240},
]# Assign each cluster to a vehicle by matching total demand
cluster_groups = df.groupby("cluster")
cluster_to_vehicle = {}
used = set()
chromosome = {}
for k, group in cluster_groups:total_demand = group["demand"].sum()group = group.sort_values(by=["tw_early", "tw_late"], ascending=True)seq = group[group.id != 0].id.tolist()print(f"cluster{k}: \n", group)print("cluster all cusomters': ", seq)print("total demand: ", total_demand)print()# find smallest vehicle that can cover itfor v in sorted(vehicles, key=lambda x: x["capacity"]):if v["capacity"] >= total_demand and check_time_windows(seq, v, df) and v["id"] not in used:cluster_to_vehicle[k] = v["id"]used.add(v["id"])chromosome[v["id"]] = seqbreakelse:# overflow: assign a default large vehicle or mark for repaircluster_to_vehicle[k] = Noneprint(cluster_to_vehicle)
print("chrom: ", chromosome)
print("vehicle used: ", used)

结果为：

cluster0: id   x   y  demand  tw_early  tw_late  cluster
6   6  15  -5      85       450      690        0
2   2  20 -15      75       540      720        0
cluster all cusomters':  [6, 2]
total demand:  160cluster1: id   x   y  demand  tw_early  tw_late  cluster
5   5 -10 -20      30       570      810        1
3   3 -15  25      40       600      780        1
7   7 -20  10      55       630      840        1
cluster all cusomters':  [5, 3, 7]
total demand:  125cluster2: id   x   y  demand  tw_early  tw_late  cluster
9   9 -25 -15      45       480      750        2
8   8   0  25      70       510      720        2
4   4  25   5      60       510      750        2
cluster all cusomters':  [9, 8, 4]
total demand:  175cluster3: id   x   y  demand  tw_early  tw_late  cluster
...{0: 'B1', 1: 'B2', 2: 'C1', 3: 'A1'}
chrom:  {'B1': [6, 2], 'B2': [5, 3, 7], 'C1': [9, 8, 4], 'A1': [1]}
vehicle used:  {'A1', 'B1', 'B2', 'C1'}

三、贪心构造（Route‐based Encoding）

遍历每一辆车，遍历每个一个客户点，若当前客户点满足时间窗和容量约束，则加入当前车辆。直至遍历结束。这样得到可行解（染色体编码）形式为每辆车对应的客户访问顺序列表，如A1:[c1,c3, c2]表示车辆A1依次访问客户132；A2:[c4]…。

这种“直接编码”可行，但算子设计比传统的“全局序列＋解码”要复杂很多（需要自定义交叉和变异算子）。

代码实现：

import collections
from dataclasses import dataclass
from pyexpat import features
from typing import Tuple, List, Dict, override
import math, random
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt# 设置中文字体和解决负号显示问题
plt.rcParams["font.sans-serif"] = ["SimHei", "FangSong"]  # 指定默认字体
plt.rcParams["axes.unicode_minus"] = False  # 解决保存图像时负号 '-' 显示为方块的问题# 数据结构定义
@dataclass(frozen=True)  # 使用frozen=True使类变为不可变的,从而可哈希
class Customer:id: intcoord: Tuple[float, float]demand: inttime_window: Tuple[float, float]service_time: float@overridedef __repr__(self) -> str:return str(self.id)@overridedef __str__(self) -> str:return self.__repr__()def __hash__(self):return hash((self.id, self.coord, self.demand, self.time_window, self.service_time))@dataclass(frozen=True)  # 使用frozen=True使类变为不可变的,从而可哈希
class Vehicle:id: strcapacity: inttype: strspeed: float = 1.0@overridedef __repr__(self) -> str:return str(self.id)@overridedef __str__(self) -> str:return self.__repr__()def __hash__(self):return hash((self.id, self.capacity, self.type, self.speed))def read_solomon_data(filename):"""读取Solomon格式的VRPTW数据集"""customers_data = []vehicles_data = []with open(filename, "r") as f:lines = f.readlines()# 读取车辆信息vehicle_info = lines[4].strip().split()num_vehicles = int(vehicle_info[0])capacity = int(vehicle_info[1])# 创建标准车队for i in range(num_vehicles):vehicles_data.append(Vehicle(id=f"V{i+1}", capacity=capacity, type="Standard"))# 跳过表头start_line = 9# 读取客户信息for line in lines[start_line:]:data = line.strip().split()if len(data) >= 7:  # 确保数据行完整cust_id = int(data[0])x_coord = float(data[1])y_coord = float(data[2])demand = int(data[3])ready_time = float(data[4])due_time = float(data[5])service_time = float(data[6])if cust_id == 0:  # depotdepot = Customer(id=0,coord=(x_coord, y_coord),demand=0,time_window=(ready_time, due_time),service_time=0,)else:  # customercustomers_data.append(Customer(id=cust_id,coord=(x_coord, y_coord),demand=demand,time_window=(ready_time, due_time),service_time=service_time,))return depot, customers_data, vehicles_datadef euclidean_time(p1, p2, speed):return math.hypot(p1[0] - p2[0], p1[1] - p2[1]) / speeddef initialize_chrom(customers: list, vehicles, depot):# 可行性检查：车辆总容量 >= 客户总需求total_demand = sum(customer.demand for customer in customers)total_capacity = sum(vehicle.capacity for vehicle in vehicles)if total_capacity < total_demand:raise ValueError(f"车辆总容量{total_capacity} < 客户总需求{total_demand}，无法找到可行解")unvisited = set(customers)current_route = [depot]routes = {}available_vehicles = list(vehicles)v = available_vehicles.pop(0)while unvisited:# 找出当前路线可行的下一个客户集feasible = [c for c in unvisited if _time_feasible(current_route, c, v)]if not feasible:  # ==[]if len(current_route) > 1:routes[v] = current_route + [depot]# 尝试获取下一辆车if available_vehicles:v = available_vehicles.pop(0)current_route = [depot]else:# 没有更多车辆，结束循环print(f"警告: 车辆不足以服务所有客户。剩余未服务客户: {len(unvisited)}")breakelse:  # 如果一辆车无法服务任何客户（即 feasible 为空且 current_route 只有起点）# 尝试下一辆车if available_vehicles:v = available_vehicles.pop(0)else:# 没有更多车辆，结束循环print(f"警告: 车辆不足以服务所有客户。剩余未服务客户: {len(unvisited)}")breakcurrent_route = [depot]continuenext_customer = feasible[np.random.choice(len(feasible))]current_route.append(next_customer)unvisited.remove(next_customer)if len(current_route) > 1:routes[v] = current_route + [depot]return routesdef _time_feasible(route, new_customer, v):"""时间窗检查"""temp_route = route + [new_customer]current_time = 0current_load = 0prev_customer = temp_route[0]# 检查起始点载重current_load += prev_customer.demandif current_load > v.capacity:return Falsefor i in range(1, len(temp_route)):curr_customer = temp_route[i]# 计算旅行时间travel_time = euclidean_time(prev_customer.coord, curr_customer.coord, v.speed)arrival_time = current_time + travel_time# 检查到达时间是否超过最晚时间if arrival_time > curr_customer.time_window[1]:return False# 计算服务开始时间（考虑等待）service_start = max(arrival_time, curr_customer.time_window[0])# 更新当前时间为服务结束时间current_time = service_start + curr_customer.service_time# 更新载重current_load += curr_customer.demandif current_load > v.capacity:return Falseprev_customer = curr_customerreturn Truedef generate_initial_population(customers: list, vehicles, depot, population_size):population = []for _ in range(population_size):chrom = initialize_chrom(customers, vehicles, depot)population.append(chrom)return population# 适应度: 总距离
def fitness(sol: Dict[Vehicle, List[Customer]], depot: Customer) -> float:dist = 0.0for v, route in sol.items():prev = depotfor node in route[1:]:dist += math.hypot(prev.coord[0] - node.coord[0], prev.coord[1] - node.coord[1])prev = nodereturn dist# 锦标赛选择
def tournament_selection(pop, scores, k=3):sample = random.sample(list(zip(pop, scores)), k)return min(sample, key=lambda x: x[1])[0]# 路线为基因的交叉: 保持每车映射，交换两辆车的子路径
def crossover(p1: Dict[Vehicle, List[Customer]],p2: Dict[Vehicle, List[Customer]],depot: Customer,vehicles: List[Vehicle],
) -> Dict[Vehicle, List[Customer]]:# 初始化child为完整字典child = {v: list(p1.get(v, [depot, depot])) for v in vehicles}# 随机选两辆车v1, v2 = random.sample(vehicles, 2)# 交换子路径（去掉端点）r1 = child[v1][1:-1]r2 = child[v2][1:-1]child[v1] = [depot] + r2 + [depot]child[v2] = [depot] + r1 + [depot]# 修复: 确保所有客户唯一出现all_custs = set(sum([route[1:-1] for route in child.values()], []))missing = set(sum([route[1:-1] for route in p1.values()], [])) - all_custsfor c in missing:for v in vehicles:route = child[v]for pos in range(1, len(route)):tmp = route[:pos] + [c] + route[pos:]if _time_feasible([depot] + tmp[1:-1] + [depot], c, v):child[v] = [depot] + tmp[1:-1] + [depot]breakif c in child[v]:breakreturn child# 变异: 随机跨车交换
def mutation(sol: Dict[Vehicle, List[Customer]],depot: Customer,vehicles: List[Vehicle],mutation_rate=0.1,
) -> Dict[Vehicle, List[Customer]]:child = {v: list(route) for v, route in sol.items()}if random.random() < mutation_rate:v1, v2 = random.sample(vehicles, 2)if len(child[v1]) > 2 and len(child[v2]) > 2:i = random.randint(1, len(child[v1]) - 2)j = random.randint(1, len(child[v2]) - 2)child[v1][i], child[v2][j] = child[v2][j], child[v1][i]return child# 遗传算法主程序
def genetic_algorithm(customers, vehicles, depot, population_size=50, generations=100, mutation_rate=0.1
):pop = generate_initial_population(customers, vehicles, depot, population_size)for p in pop:print(p)best, best_score = None, float("inf")for gen in range(1, generations + 1):scores = [fitness(ind, depot) for ind in pop]for ind, sc in zip(pop, scores):if sc < best_score:best, best_score = ind, scnew_pop = []while len(new_pop) < population_size:p1 = tournament_selection(pop, scores)p2 = tournament_selection(pop, scores)child = crossover(p1, p2, depot, vehicles)child = mutation(child, depot, vehicles, mutation_rate)new_pop.append(child)pop = new_popprint(f"Generation {gen}/{generations}, Best Distance: {best_score:.2f}")return best, best_scoredef plot_solution(solution, depot, title="Vehicle Routing Solution"):"""绘制路线图"""plt.figure(figsize=(10, 10))# 绘制仓库plt.plot(depot.coord[0], depot.coord[1], "k*", markersize=15, label="Depot")# 为每个车辆分配不同的颜色colors = plt.cm.rainbow(np.linspace(0, 1, len(solution)))# 绘制每条路径for (vehicle, route), color in zip(solution.items(), colors):route_x = [p.coord[0] for p in route]route_y = [p.coord[1] for p in route]# 绘制路径线plt.plot(route_x, route_y, "-", color=color, label=f"Vehicle {vehicle}")# 绘制客户点plt.plot(route_x[1:-1], route_y[1:-1], "o", color=color)# 添加客户点编号for customer in route[1:-1]:plt.annotate(f"C{customer.id}",(customer.coord[0], customer.coord[1]),xytext=(5, 5),textcoords="offset points",)plt.title(title)plt.legend()plt.grid(True)plt.show()if __name__ == "__main__":# depot, customers, vehicles = read_solomon_data("c101.txt")# print(vehicles)# print(customers)# 运行遗传算法求解VRPTW问题# 示例：1个 depot + 9个客户depot = Customer(id=0, coord=(5, 5), demand=0, time_window=(0, 1e6), service_time=0)customers = [Customer(id=1, coord=(5, 2), demand=10, time_window=(100, 500), service_time=10),Customer(id=2, coord=(3, 8), demand=20, time_window=(200, 600), service_time=12),Customer(id=3, coord=(7, 10), demand=15, time_window=(150, 550), service_time=8),Customer(id=4, coord=(2, 4), demand=25, time_window=(300, 700), service_time=15),Customer(id=5, coord=(6, 1), demand=10, time_window=(100, 400), service_time=5),Customer(id=6, coord=(8, 3), demand=30, time_window=(250, 650), service_time=20),Customer(id=7, coord=(1, 9), demand=5, time_window=(100, 300), service_time=7),Customer(id=8, coord=(4, 4), demand=20, time_window=(200, 600), service_time=10),Customer(id=9, coord=(9, 6), demand=15, time_window=(150, 550), service_time=12),Customer(id=10, coord=(3, 9), demand=12, time_window=(120, 480), service_time=8),Customer(id=11, coord=(7, 2), demand=18, time_window=(180, 520), service_time=15),Customer(id=12, coord=(2, 7), demand=22, time_window=(220, 580), service_time=10),Customer(id=13, coord=(7, 8), demand=8, time_window=(130, 450), service_time=6),Customer(id=14, coord=(4, 1), demand=16, time_window=(160, 490), service_time=12),Customer(id=15, coord=(6, 6), demand=25, time_window=(240, 620), service_time=18),]vehicles = [Vehicle(id="A1", capacity=80, type="A", speed=30),Vehicle(id="A2", capacity=80, type="A", speed=30),Vehicle(id="B1", capacity=50, type="B", speed=30),Vehicle(id="B2", capacity=50, type="B", speed=30),Vehicle(id="B3", capacity=50, type="B", speed=30),Vehicle(id="C1", capacity=100, type="C", speed=30),]# chrom = initialize_chrom(customers, vehicles, depot)# for v, r in chrom.items():#     print(v, r)# 运行遗传算法求解best_solution, best_fitness = genetic_algorithm(customers=customers,vehicles=vehicles,depot=depot,population_size=50,generations=300,mutation_rate=0.2,)# 打印最优解结果print("\n最优解:")print(f"总成本: {best_fitness}")for vehicle, route in best_solution.items():print(f"车辆 {vehicle}: {route}")# 可视化最优路径plot_solution(best_solution, depot, title="最优配送路线")

运行结果：

Generation 294/300, Best Distance: 53.48
Generation 295/300, Best Distance: 53.48
Generation 296/300, Best Distance: 53.48
Generation 297/300, Best Distance: 53.48
Generation 298/300, Best Distance: 53.48
Generation 299/300, Best Distance: 53.48
Generation 300/300, Best Distance: 53.48最优解:
总成本: 53.483123146779576
车辆 A1: [0, 2, 10, 3, 9, 6, 11, 0]
车辆 A2: [0, 0]
车辆 B1: [0, 8, 4, 12, 7, 0]
车辆 B2: [0, 0]
车辆 B3: [0, 1, 14, 5, 0]
车辆 C1: [0, 13, 15, 0]

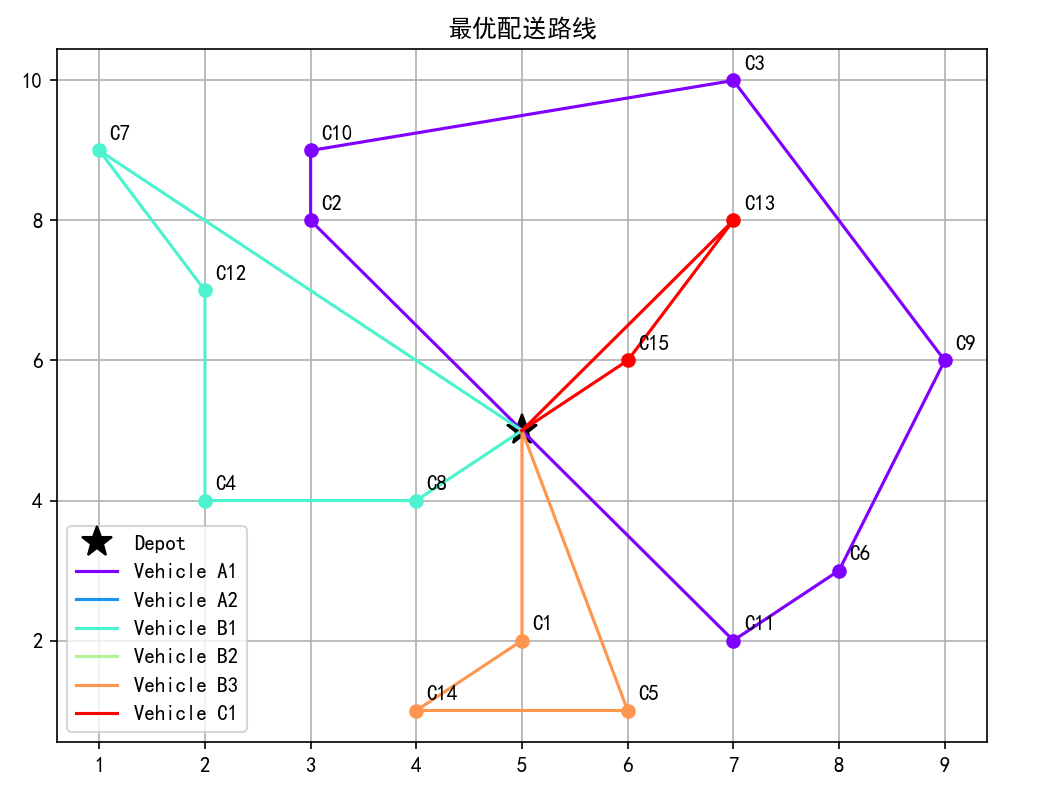

最优路径可视化：
