dma_request_slave_channel_compat 与 dma_request_channel 的区别
1.代码示例
dma_request_channel
#define dma_request_channel(mask, x, y) \__dma_request_channel(&(mask), x, y, NULL)struct dma_chan *__dma_request_channel(const dma_cap_mask_t *mask,dma_filter_fn fn, void *fn_param,struct device_node *np)
{struct dma_device *device, *_d;struct dma_chan *chan = NULL;/* Find a channel */mutex_lock(&dma_list_mutex);list_for_each_entry_safe(device, _d, &dma_device_list, global_node) {/* Finds a DMA controller with matching device node */if (np && device->dev->of_node && np != device->dev->of_node)continue;chan = find_candidate(device, mask, fn, fn_param);if (!IS_ERR(chan))break;chan = NULL;}mutex_unlock(&dma_list_mutex);pr_debug("%s: %s (%s)\n",__func__,chan ? "success" : "fail",chan ? dma_chan_name(chan) : NULL);return chan;
}dma_request_slave_channel_compat
#define dma_request_slave_channel_compat(mask, x, y, dev, name) \__dma_request_slave_channel_compat(&(mask), x, y, dev, name)static inline struct dma_chan
*__dma_request_slave_channel_compat(const dma_cap_mask_t *mask,dma_filter_fn fn, void *fn_param,struct device *dev, const char *name)
{struct dma_chan *chan;chan = dma_request_slave_channel(dev, name);if (chan)return chan;if (!fn || !fn_param)return NULL;return __dma_request_channel(mask, fn, fn_param, NULL);
}struct dma_chan *dma_request_chan(struct device *dev, const char *name)
{struct dma_device *d, *_d;struct dma_chan *chan = NULL;/* If device-tree is present get slave info from here */if (dev->of_node)chan = of_dma_request_slave_channel(dev->of_node, name);/* If device was enumerated by ACPI get slave info from here */if (has_acpi_companion(dev) && !chan)chan = acpi_dma_request_slave_chan_by_name(dev, name);if (chan) {/* Valid channel found or requester needs to be deferred */if (!IS_ERR(chan) || PTR_ERR(chan) == -EPROBE_DEFER)return chan;}/* Try to find the channel via the DMA filter map(s) */mutex_lock(&dma_list_mutex);list_for_each_entry_safe(d, _d, &dma_device_list, global_node) {dma_cap_mask_t mask;const struct dma_slave_map *map = dma_filter_match(d, name, dev);if (!map)continue;dma_cap_zero(mask);dma_cap_set(DMA_SLAVE, mask);chan = find_candidate(d, &mask, d->filter.fn, map->param);if (!IS_ERR(chan))break;}mutex_unlock(&dma_list_mutex);return chan ? chan : ERR_PTR(-EPROBE_DEFER);
}
EXPORT_SYMBOL_GPL(dma_request_chan);/*** dma_request_slave_channel - try to allocate an exclusive slave channel* @dev: pointer to client device structure* @name: slave channel name** Returns pointer to appropriate DMA channel on success or NULL.*/
struct dma_chan *dma_request_slave_channel(struct device *dev,const char *name)
{struct dma_chan *ch = dma_request_chan(dev, name);if (IS_ERR(ch))return NULL;return ch;
}
EXPORT_SYMBOL_GPL(dma_request_slave_channel);2. 参数与匹配机制
dma_request_slave_channel_compat
参数包含设备节点（struct device *）、通道名称（const char *name），通过以下步骤匹配：
根据 name 匹配设备树中的 dma-names 值；返回绑定的 dma_chan 结构。dma_request_channel
参数需指定 dma_cap_mask_t（通道能力掩码）和自定义过滤函数（dma_filter_fn），通过以下步骤筛选：
遍历所有 DMA 控制器，筛选出支持指定能力的通道（如 DMA_MEMCPY、DMA_SLAVE）；调用过滤函数进一步校验通道参数；返回满足条件的通道。3. 主从关系处理
dma_request_slave_channel_compat
隐含从设备（Slave）与 DMA 主控制器（Master）的绑定关系，需依赖设备树中 dmas 属性指向的主控制器节点。
dma_request_channel
不强制绑定主从关系，适用于内存到内存的传输（DMA_MEM_TO_MEM）或自定义主控制器场景。
4. 代码实现差异
设备树支持
dma_request_slave_channel_compat 内部调用 of_dma_request_slave_channel，直接解析设备树节点；
dma_request_channel 基于 dma_cap_mask 和过滤函数动态匹配，不依赖设备树。
兼容性处理
dma_request_slave_channel_compat 的 compat 参数可用于支持旧版设备树或不同厂商的控制器兼容；
dma_request_channel 无此机制，需通过过滤函数手动实现兼容性校验。

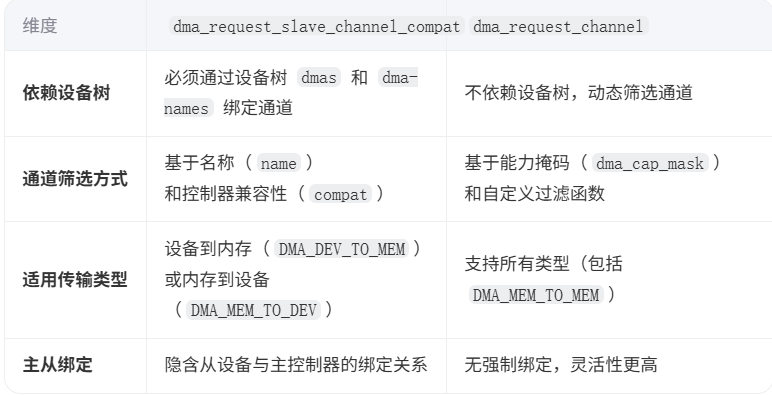

5.关键区别
6.dma_request_channel 匹配主机逻辑
示例
bool filter_by_fifo_size(struct dma_chan *chan, void *param) {struct dma_device *dma_dev = chan->device;return (dma_dev->max_fifo_size >= *(int *)param); // 校验 FIFO 容量
}
// 调用示例：筛选支持 128B FIFO 的控制器
int fifo_size = 128;
dma_request_channel(mask, filter_by_fifo_size, &fifo_size);
