2025 cs144 Lab Checkpoint 1小白超详细版

cs144官网：https://cs144.github.io/
我的github：https://github.com/Albert-tru/cs144-2025

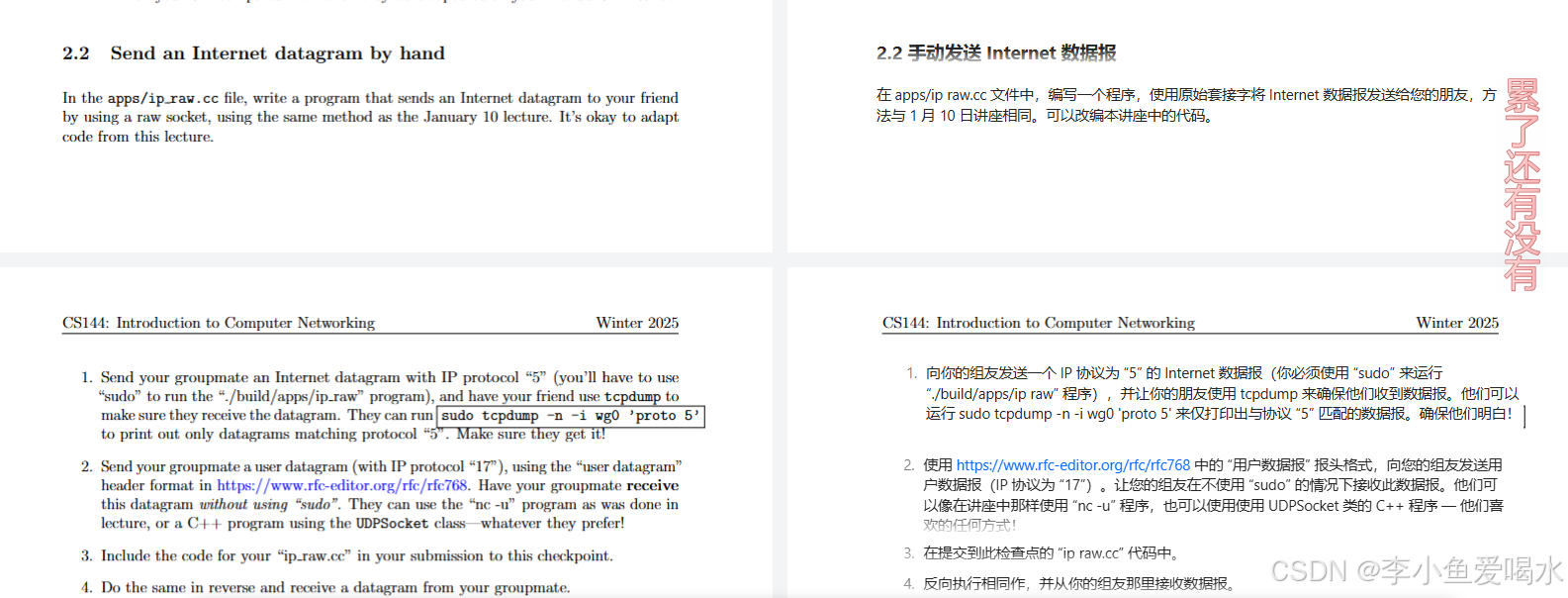

1 手动发送internet数据报

协议号5、7？

在互联网协议（IP）中，不同的协议类型被分配了不同的数字代码，这些代码用于标识数据包使用的协议类型。

1. 协议号 5：这通常指的是Internet控制消息协议（ICMP）。ICMP用于在IP主机、路由器之间传递控制消息。它被用于诊断网络问题，例如，当你尝试访问一个不可达的主机时，可能会收到一个ICMP消息（例如，ping请求和响应）。
2. 协议号 17：这指的是用户数据报协议（UDP）。UDP是一个简单的、无连接的传输层协议，它在网络中提供数据包的传输服务。UDP不保证数据包的顺序、完整性或可靠性，但它提供了快速的数据传输。它常用于那些对速度要求高而对数据完整性要求不高的应用，例如视频流、在线游戏等。

思路？

#include "socket.hh"

using namespace std;

class RawSocket : public DatagramSocket
{
public:
  RawSocket() : DatagramSocket( AF_INET, SOCK_RAW, IPPROTO_RAW ) {}
};

int main()
{
  // construct an Internet or user datagram here, and send using the RawSocket as in the Jan. 10 lecture

  return 0;
}

代码创建了RawSocket，继承自DatagramSocket
要求我们实现数据报的发送，也就是说RawSocket一定会需要包含SendRawSocket函数来发送数据报，并且需要在主函数里面创建一个完整的数据报并调用RawSocket的方法发送它。
这里以发送一个UDP数据报为例。

#include "socket.hh"

using namespace std;

class RawSocket : public DatagramSocket
{
public:
  RawSocket() : DatagramSocket( AF_INET, SOCK_RAW, IPPROTO_UDP) {}
  //发送UDP数据报，需要包含发送的套接字、IP地址、端口号、发送的消息
  void sendUDPPacket(const Address& ip, const string& message)
  {
    sendto(ip,message);
  }
};

int main()
{
  // construct an Internet or user datagram here, and send using the RawSocket as in the Jan. 10 lecture
  RawSocket socket;
  Address add ("127.0.0.1",12345);
  string message = "Hello UDP!";
  socket.sendUDPPacket(add, message);
  return 0;
}

2 实现一个Reassembler类

作用：将接收到的字符串按顺序重新组装。可以理解成有一定量的字符串进来，然后我需要把它排序，

#pragma once

#include "byte_stream.hh"

class Reassembler
{
public:
  // Construct Reassembler to write into given ByteStream.
 //Reassembler的构造函数：
 //explicit:防止隐式转换，必须明确使用构造函数
 //move：移动而不是拷贝，减少资源占用
  explicit Reassembler( ByteStream&& output ) : output_( std::move( output ) ) {}

//要实现的函数
//first_index:表示这段数据在完整数据流中的起始位置
//data:实际要插入的数据
//is_last_substring:是否是最后一个数据片段
  void insert( uint64_t first_index, std::string data, bool is_last_substring );

  // How many bytes are stored in the Reassembler itself?
  // This function is for testing only; don't add extra state to support it.
  uint64_t count_bytes_pending() const;

  // Access output stream reader
  Reader& reader() { return output_.reader(); }
  const Reader& reader() const { return output_.reader(); }

  // Access output stream writer, but const-only (can't write from outside)
  const Writer& writer() const { return output_.writer(); }

private:
  ByteStream output_;
};

2.1 几个帮助理解代码的Q&A

Q1：insert的参数data是完整的数据流还是一个数据片段？

数据片段。data其实就是一个substring，insert函数的作用是把乱序到达的数据片段插入到完整的数据流中，完整重新组装。因此first_index也不是这个数据流中第一个数据片段的索引位置，而是当前要插入的数据片段的索引。

Q2：insert函数里都需要处理哪些 情况？

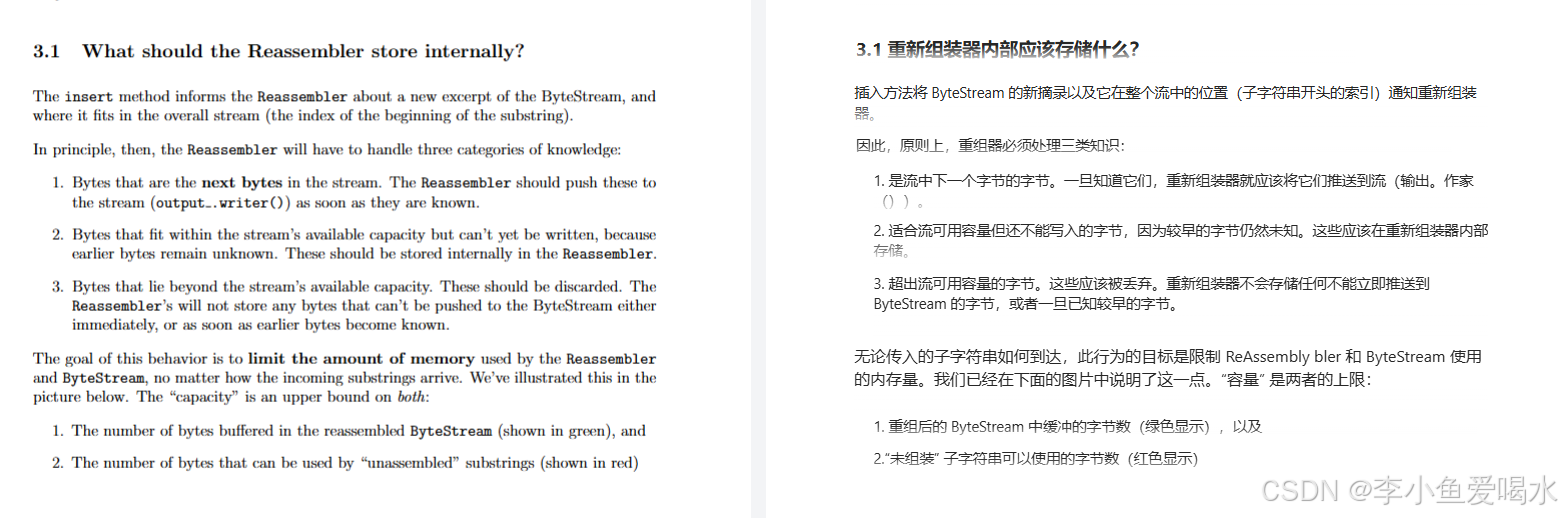

其实文档里都写好了：

Q3：既然insert只插入一个数据片段，那我是不是还需要一些成员变量？

• 记录当前索引位置的变量：now_index，初值为0，每pop出新的字节，需要更新
• 缓冲区：buffer，如果data的索引没紧挨着当前的索引，就把它放到buffer里
  • 思考一下buffer用啥数据结构？
  • 最好是可以根据索引自动排序的。——map

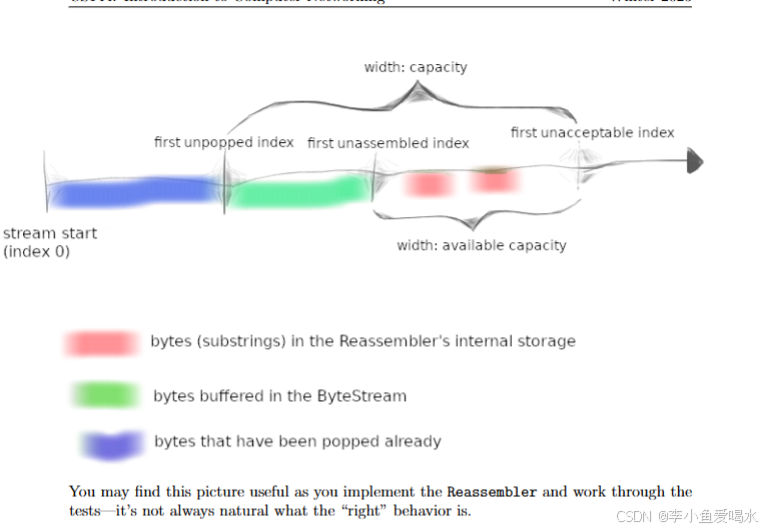

• 缓冲区容量（这个数值从哪里来？）
  • 重组器缓冲区的容量和字节流的容量相关。因为重组器最终要写入字节流。
• 剩余可用容量：用于判断是否丢弃字节

Q4：如何表示data的写入、抛弃？

首先，观察给出的构造函数，包含ByteStream&& output，也就是说Reassembler的输入是ByteStream类型的，所以输出也是ByteStream类型的，所以来看一下ByteStream.hh，（check1里面写的）：

#pragma once

#include <cstdint>
#include <string>
#include <string_view>

class Reader;
class Writer;

class ByteStream
{
public:
  explicit ByteStream( uint64_t capacity );

  // Helper functions (provided) to access the ByteStream's Reader and Writer interfaces
  Reader& reader();
  const Reader& reader() const;
  Writer& writer();
  const Writer& writer() const;

  void set_error() { error_ = true; };       // Signal that the stream suffered an error.
  bool has_error() const { return error_; }; // Has the stream had an error?

protected:
  // Please add any additional state to the ByteStream here, and not to the Writer and Reader interfaces.
  uint64_t capacity_;
  bool error_ {};

  //初始化时加上{}是值初始化
  std::string buffer_ {};
  uint64_t bytes_pushed_ {};
  uint64_t bytes_popped_ {};
  bool is_closed_ {};
};

class Writer : public ByteStream
{
public:
  void push( std::string data ); // Push data to stream, but only as much as available capacity allows.
  void close();                  // Signal that the stream has reached its ending. Nothing more will be written.

  bool is_closed() const;              // Has the stream been closed?
  uint64_t available_capacity() const; // How many bytes can be pushed to the stream right now?
  uint64_t bytes_pushed() const;       // Total number of bytes cumulatively pushed to the stream
};

class Reader : public ByteStream
{
public:
  std::string_view peek() const; // Peek at the next bytes in the buffer
  void pop( uint64_t len );      // Remove `len` bytes from the buffer

  bool is_finished() const;        // Is the stream finished (closed and fully popped)?
  uint64_t bytes_buffered() const; // Number of bytes currently buffered (pushed and not popped)
  uint64_t bytes_popped() const;   // Total number of bytes cumulatively popped from stream
};

/*
 * read: A (provided) helper function thats peeks and pops up to `max_len` bytes
 * from a ByteStream Reader into a string;
 */
void read( Reader& reader, uint64_t max_len, std::string& out );

写入：output_.writer.push
抛弃：直接return嘛还是说可以不管超过边界的字节，【我试了试都可以pass】

其他（调试技巧）

一定要ctrl+s再cmake啊！

添加标准输出语句来调试的话运行cmake --build --target终端不输出

那么如何调试呢？
遇到了这个报错

使用ctest的详细输出模式：

cd build
ctest -V -R reassembler_cap

最终代码

借鉴了这位佬的https://www.zhihu.com/column/c_1877820428258516992
把他的改成了map键值对来存储，中间遇到报错

10: The test "insert last beyond capacity" failed after these steps:
10:
10:   0.        Initialized Reassembler with capacity=2
10:   1.        Reassembler action: insert "bc" @ index 1 [last substring]
10:   2.        Writer expectation: bytes_pushed = 0
10:   3.        Reassembler expectation: count_bytes_pending = 1
10:   4.        Reassembler action: insert "a" @ index 0
10:   5.        Writer expectation: bytes_pushed = 2
10:   6.        Reassembler expectation: count_bytes_pending = 0
10:   7.        Reader action: read "ab" and expect empty buffer after
10:   8.        Reader expectation: is_finished = false
10:   9.        Reassembler action: insert "bc" @ index 1 [last substring]
10:   10.       Writer expectation: bytes_pushed = 3
10:   11.       Reassembler expectation: count_bytes_pending = 0
10:   12.       Reader action: read "c" and expect empty buffer after
10:   ***** Unsuccessful Reader expectation: is_finished = true *****
10:
10: Unmet Expectation: The Reader should have had is_finished = true, but instead it was false.
10:
10: Exception: The test "insert last beyond capacity" failed because of an unmet expectation.
2/2 Test #10: reassembler_cap ..................***Failed    0.05 sec

The following tests passed:
        compile with bug-checkers

50% tests passed, 1 tests failed out of 2

Total Test time (real) =  14.36 sec

The following tests FAILED:
         10 - reassembler_cap (Failed)
Errors while running CTest
Output from these tests are in: /home/lily/cs144/minnow/build/Testing/Temporary/LastTest.log
Use "--rerun-failed --output-on-failure" to re-run the failed cases verbosely.

更新了_is_eof、_eof_index、_first_unassembled 就跑通了

#include "reassembler.hh"
#include "debug.hh"
#include <iostream>

using namespace std;

void Reassembler::insert(uint64_t first_index, string data, bool is_last_substring) {

  cerr<<"first index: "<<first_index<<"  string: "<<data<<endl;

  size_t data_size = data.size();
  size_t _first_unassembled = output_.writer().bytes_pushed();
  size_t _first_unaccept = _first_unassembled + _capacity;

  cerr<<"first_unaccembled : "<<_first_unassembled<<endl;

  //【这里注释掉也没问题】
  // // 只处理落在感兴趣区间内的数据
  // if (first_index >= _first_unaccept || first_index + data_size <= _first_unassembled) {
  //     if (is_last_substring) {
  //         _is_eof = true;
  //         _eof_index = first_index + data_size;
  //     }
  //     return;
  // }

  // 计算实际需要处理的数据区间
  size_t start = std::max(first_index, _first_unassembled);
  size_t end = std::min(first_index + data_size, _first_unaccept);

  cerr<<" "<<start<<" : "<<end<<endl;

  // 插入或更新数据
  //【值得注意的是，这里的插入方式是以单个字节来插入的！】
  for (size_t i = start; i < end; ++i) {
      size_t index = i - _first_unassembled;
      buffer[index] = data[i - first_index];
      cerr<<"buffered "<<buffer[index]<<endl;
  }

  // 检查并输出完整数据
  //【buffer.begin()->first == 0保证只取出紧挨着的字节】
  while (!buffer.empty() && buffer.begin()->first == 0) {
      std::string output;
      size_t start_index = 0;
      while (!buffer.empty() && buffer.begin()->first == start_index) {
          output += buffer.begin()->second;
          buffer.erase(buffer.begin());
          start_index++;
      }
      output_.writer().push(output);
      cerr<<"writed "<<output<<endl;
      _unassembled_bytes -= output.size();
      _first_unassembled += output.size();
  }

  // 更新未组装字节计数
  _unassembled_bytes += (end - start);

  if(is_last_substring){
    _is_eof = true;
    _eof_index = first_index + data_size;
  }
  // 检查EOF并关闭写入
  //【为啥结束条件是_first_unassembled == _eof_index？】
  if (_is_eof && _first_unassembled == _eof_index) {
      output_.writer().close();
  }

  cerr<<"eof_index: "<<_eof_index<<"  first_unassembled: "<<_first_unassembled<<endl;
}

// How many bytes are stored in the Reassembler itself?
// This function is for testing only; don't add extra state to support it.
uint64_t Reassembler::count_bytes_pending() const
{
  return _unassembled_bytes;
}

#pragma once

#include "byte_stream.hh"
#include <map>
#include <iostream>

using namespace std;

class Reassembler
{
public:
  // Construct Reassembler to write into given ByteStream.
  //调整构造函数，初始化一些成员变量
  //capacity：有什么根据吗
  explicit Reassembler( ByteStream&& output )
  : output_( std::move( output ) )
  , buffer()
  , _is_eof( false )
  , _eof_index( 0 )
  , _capacity( output_.writer().available_capacity() )
  , _unassembled_bytes( 0 ) {
    cerr<<"##########################################3#########"<<endl;
  }


  /*
   * Insert a new substring to be reassembled into a ByteStream.
   *   `first_index`: the index of the first byte of the substring
   *   `data`: the substring itself
   *   `is_last_substring`: this substring represents the end of the stream
   *   `output`: a mutable reference to the Writer
   *
   * The Reassembler's job is to reassemble the indexed substrings (possibly out-of-order
   * and possibly overlapping) back into the original ByteStream. As soon as the Reassembler
   * learns the next byte in the stream, it should write it to the output.
   *
   * If the Reassembler learns about bytes that fit within the stream's available capacity
   * but can't yet be written (because earlier bytes remain unknown), it should store them
   * internally until the gaps are filled in.
   *
   * The Reassembler should discard any bytes that lie beyond the stream's available capacity
   * (i.e., bytes that couldn't be written even if earlier gaps get filled in).
   *
   * The Reassembler should close the stream after writing the last byte.
   */
  void insert( uint64_t first_index, std::string data, bool is_last_substring );

  // How many bytes are stored in the Reassembler itself?
  // This function is for testing only; don't add extra state to support it.
  uint64_t count_bytes_pending() const;

  // Access output stream reader
  Reader& reader() { return output_.reader(); }
  const Reader& reader() const { return output_.reader(); }

  // Access output stream writer, but const-only (can't write from outside)
  const Writer& writer() const { return output_.writer(); }

private:
  ByteStream output_;
  size_t now_index = 0;
  std::map<uint64_t , std::string> buffer;
  bool _is_eof = false;
  size_t _eof_index = 0;
  size_t _capacity = 0;
  uint64_t _unassembled_bytes = 0;
};
