Sring Boot整合Minio实现图片上传功能

若依前后端分离版本整合Minio

一、docker下载Minio镜像

# 下载最新版Minio镜像 (等同于 : docker pull minio/minio:latest )
docker pull minio/minio

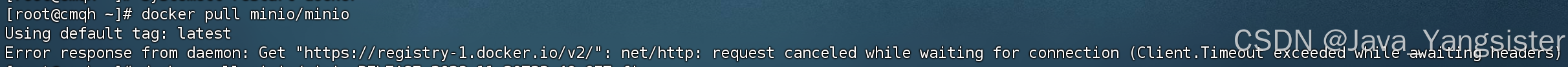

 报错解决方案：Error response from daemon: Get “https://registry-1.docker.io/v2/“: context deadline exceeded-CSDN博客

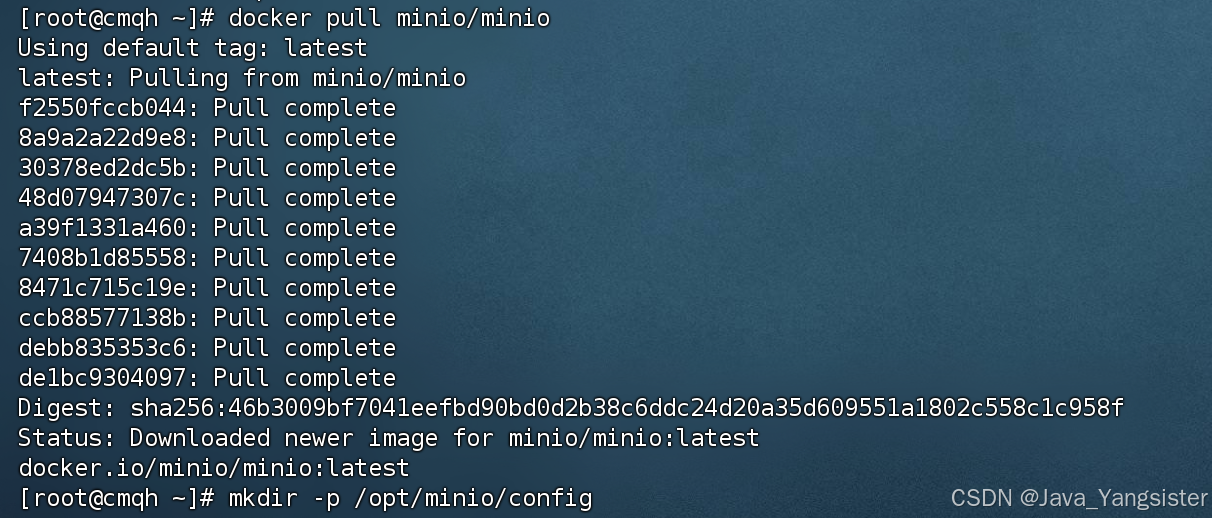

结果：

二、创建目录

一个用来存放配置，一个用来存储上传文件的目录

启动前需要先创建Minio外部挂载的配置文件（ /opt/minio/config）,和存储上传文件的目录（ /opt/minio/data）

mkdir -p /opt/minio/config

mkdir -p /opt/minio/data

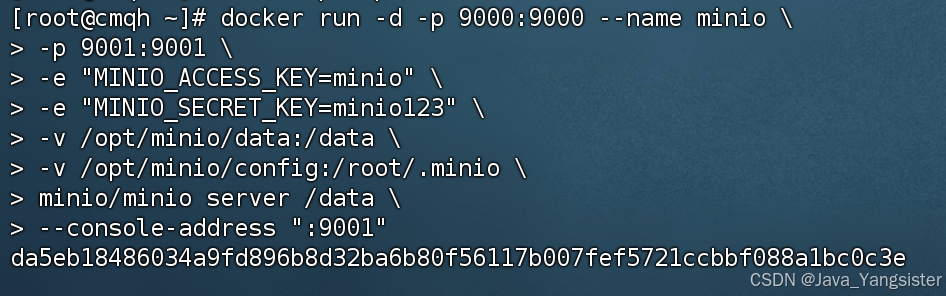

三、创建Minio容器

docker run -d -p 9000:9000 --name minio \
-p 9001:9001 \
-e "MINIO_ACCESS_KEY=minio" \
-e "MINIO_SECRET_KEY=minio123" \
-v /opt/minio/data:/data \
-v /opt/minio/config:/root/.minio \
minio/minio server /data \
--console-address ":9001"

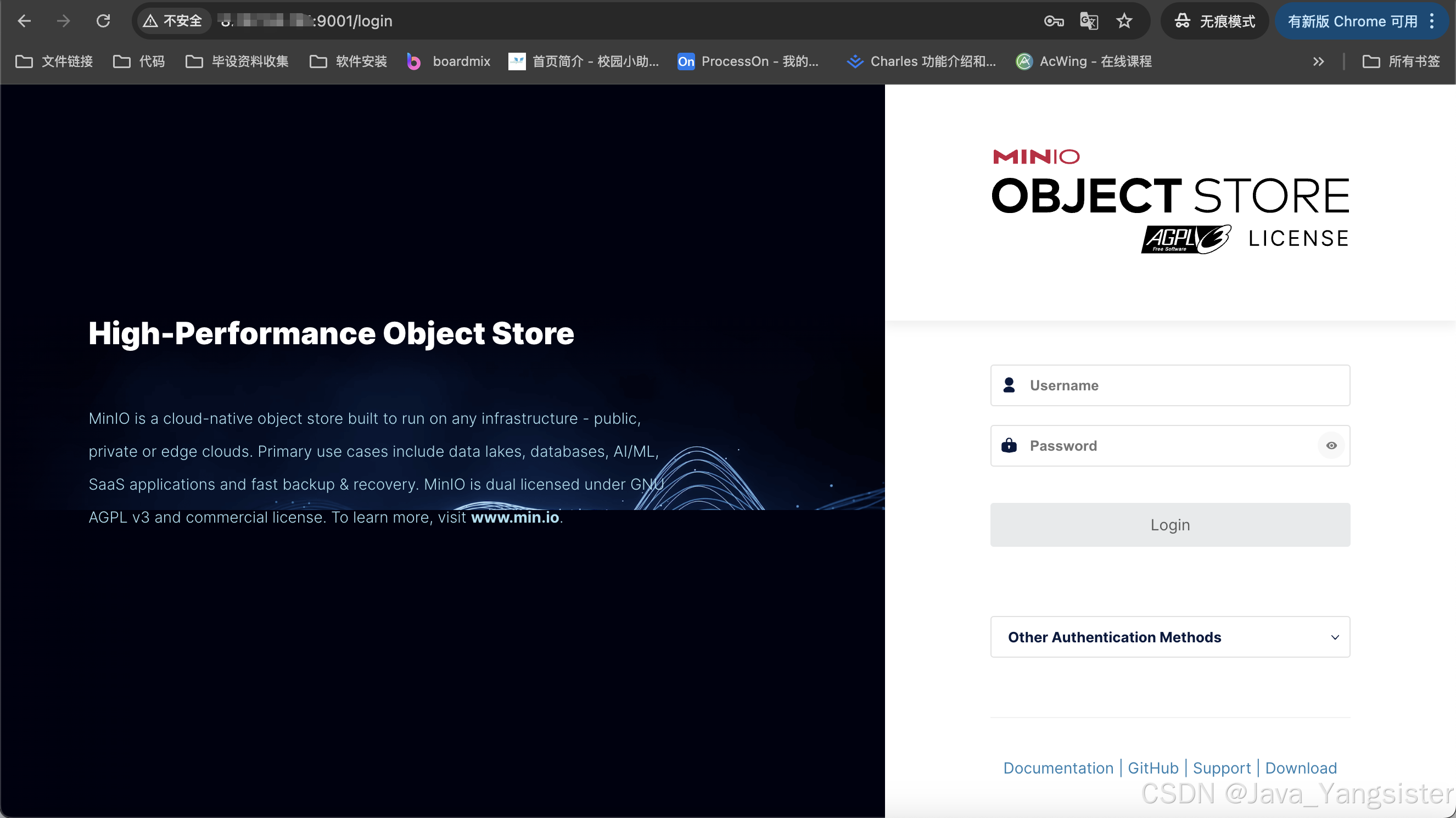

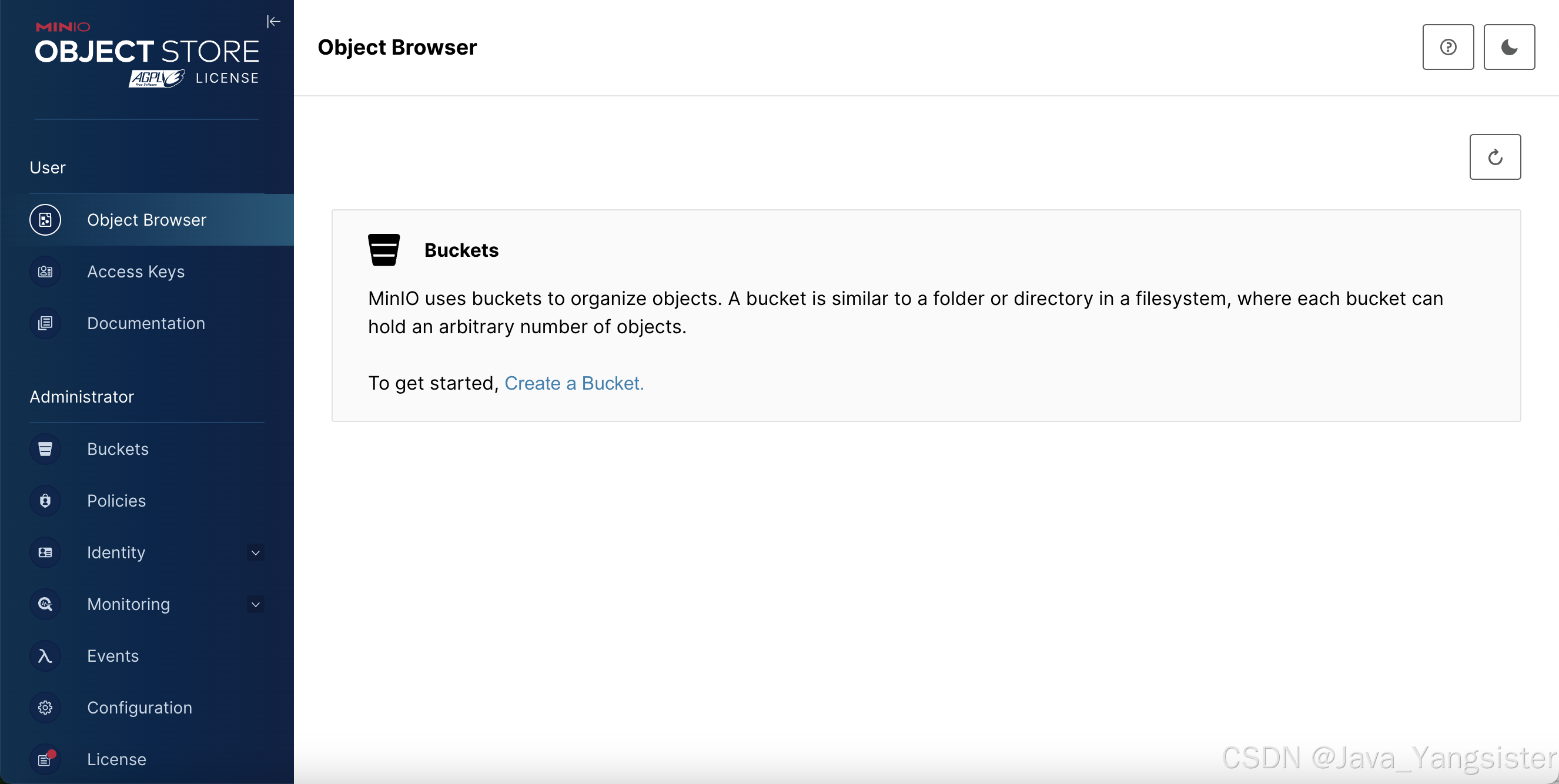

四、运行minio

访问地址：http://ip地址:9001/login
用户名：minio
密码：minio123

四、创建桶Buckets

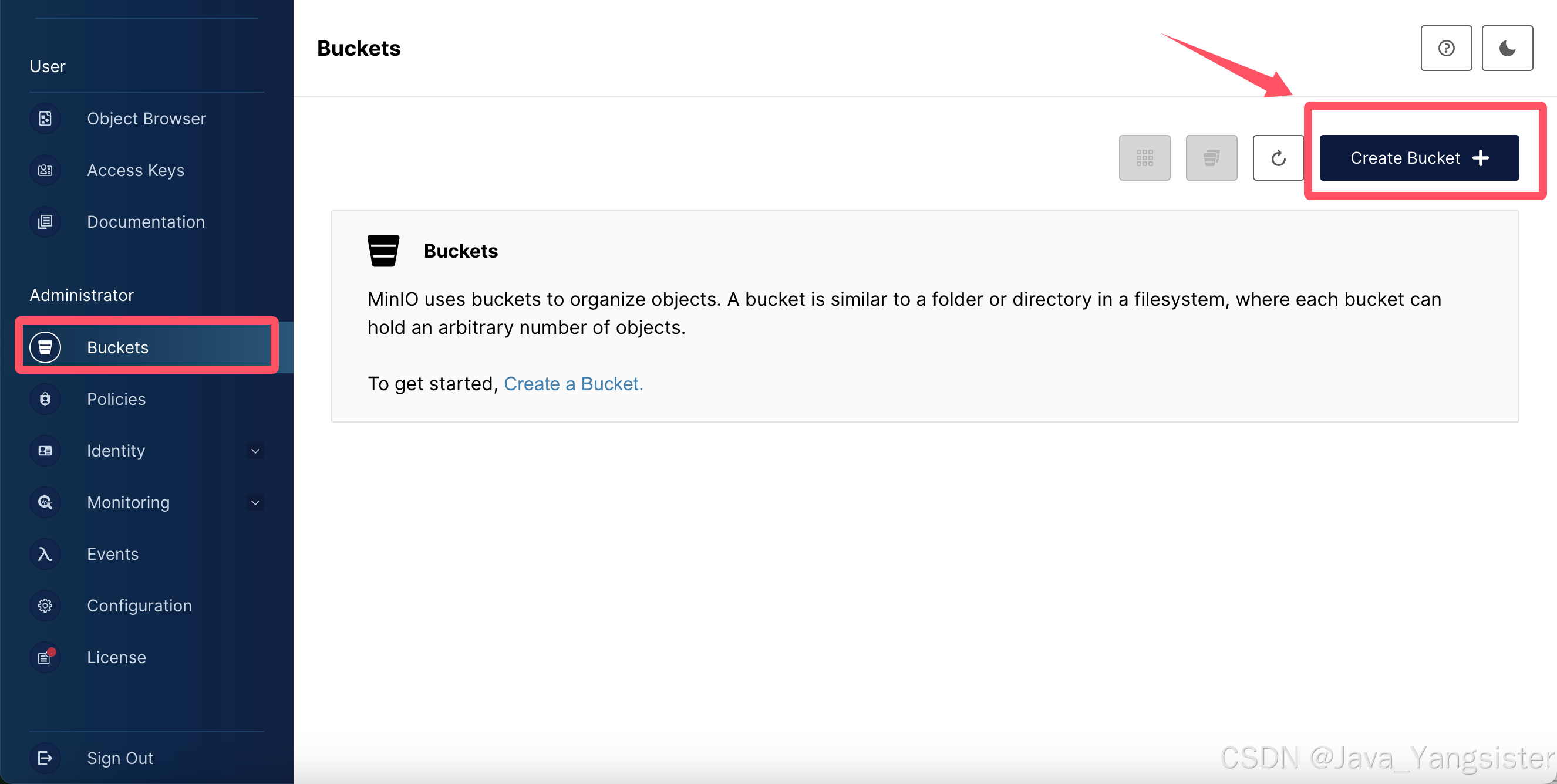

1、找到创建桶的位置

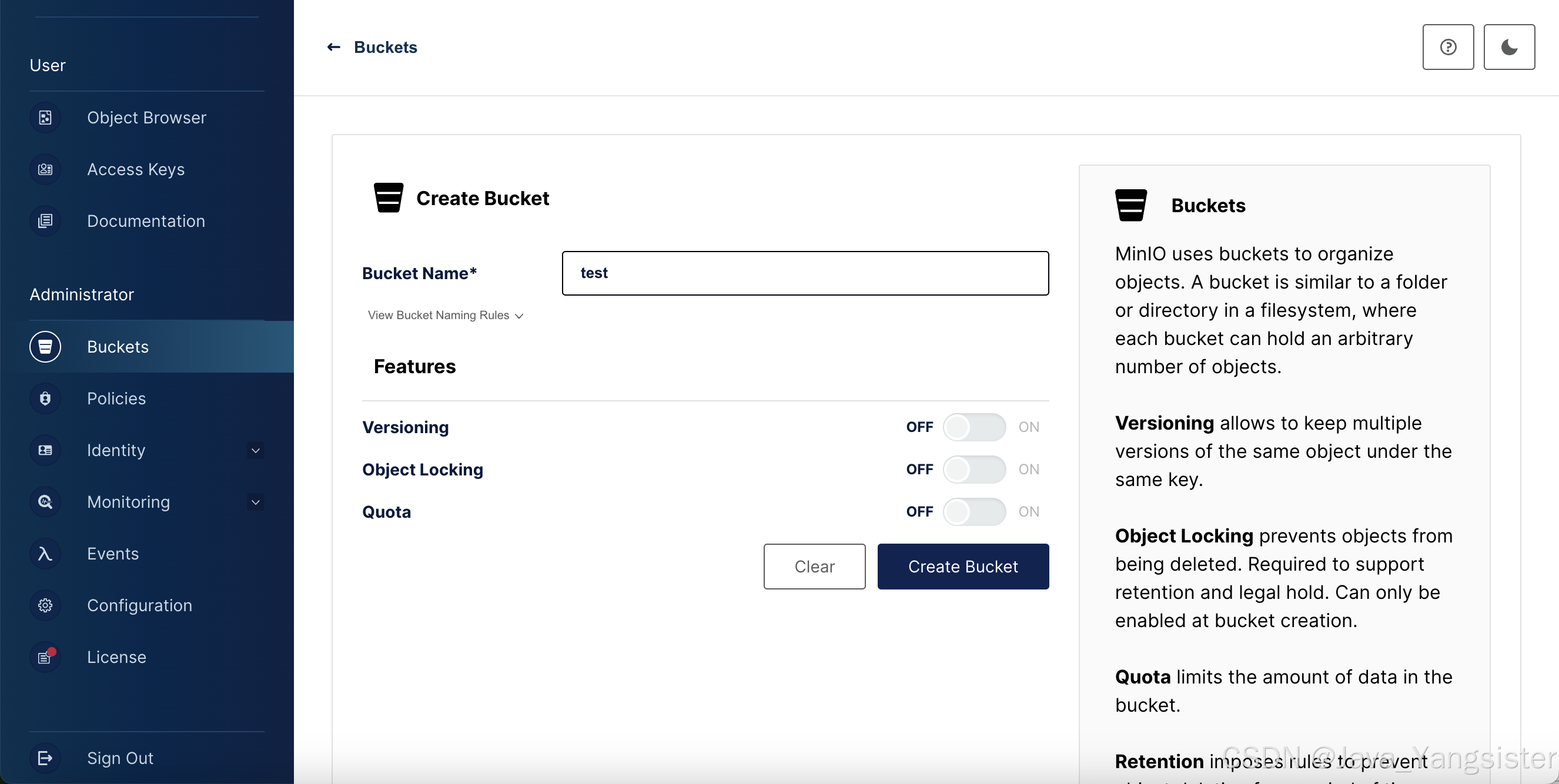

2、输入桶名称：test

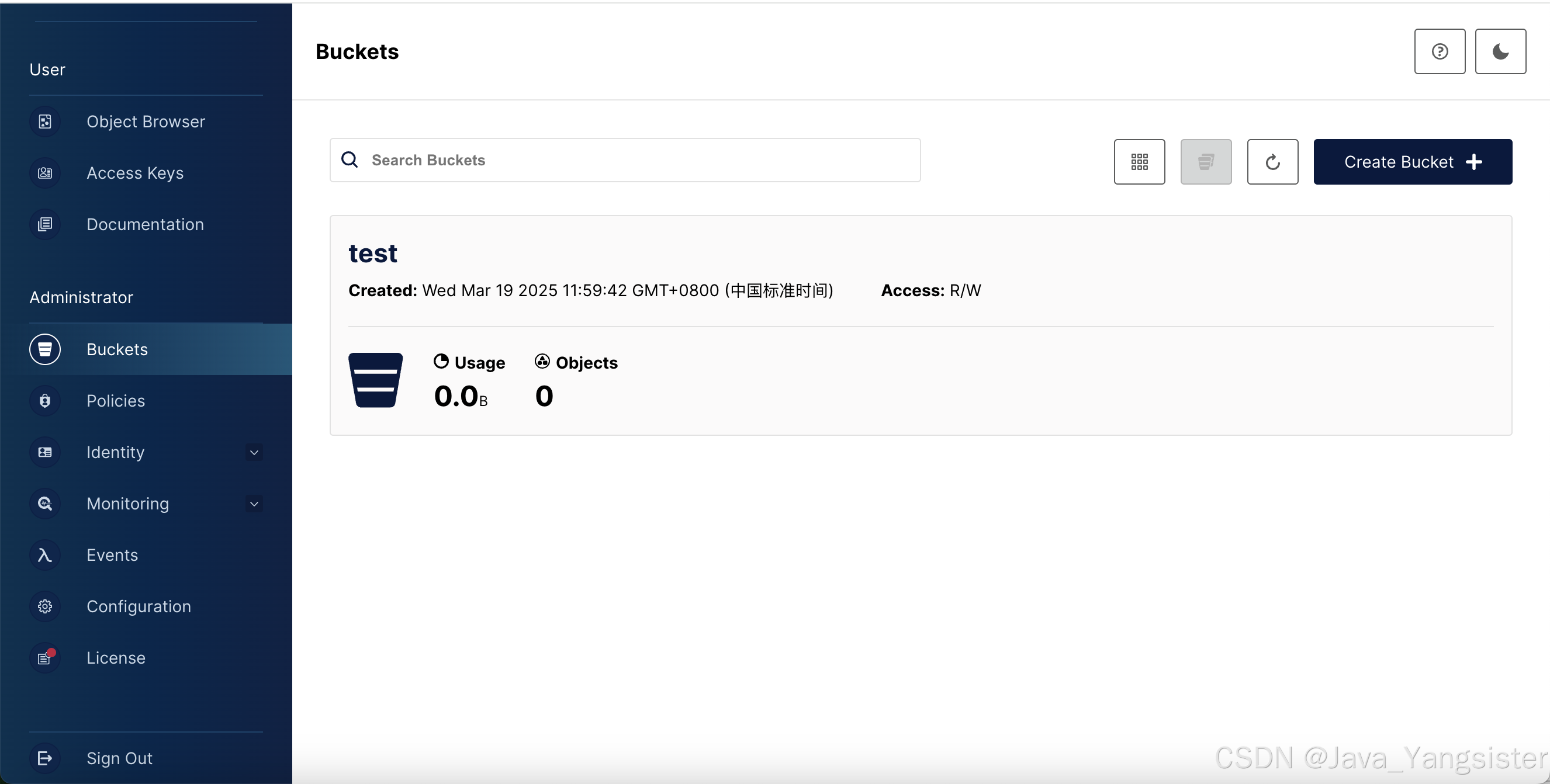

3、创建成功

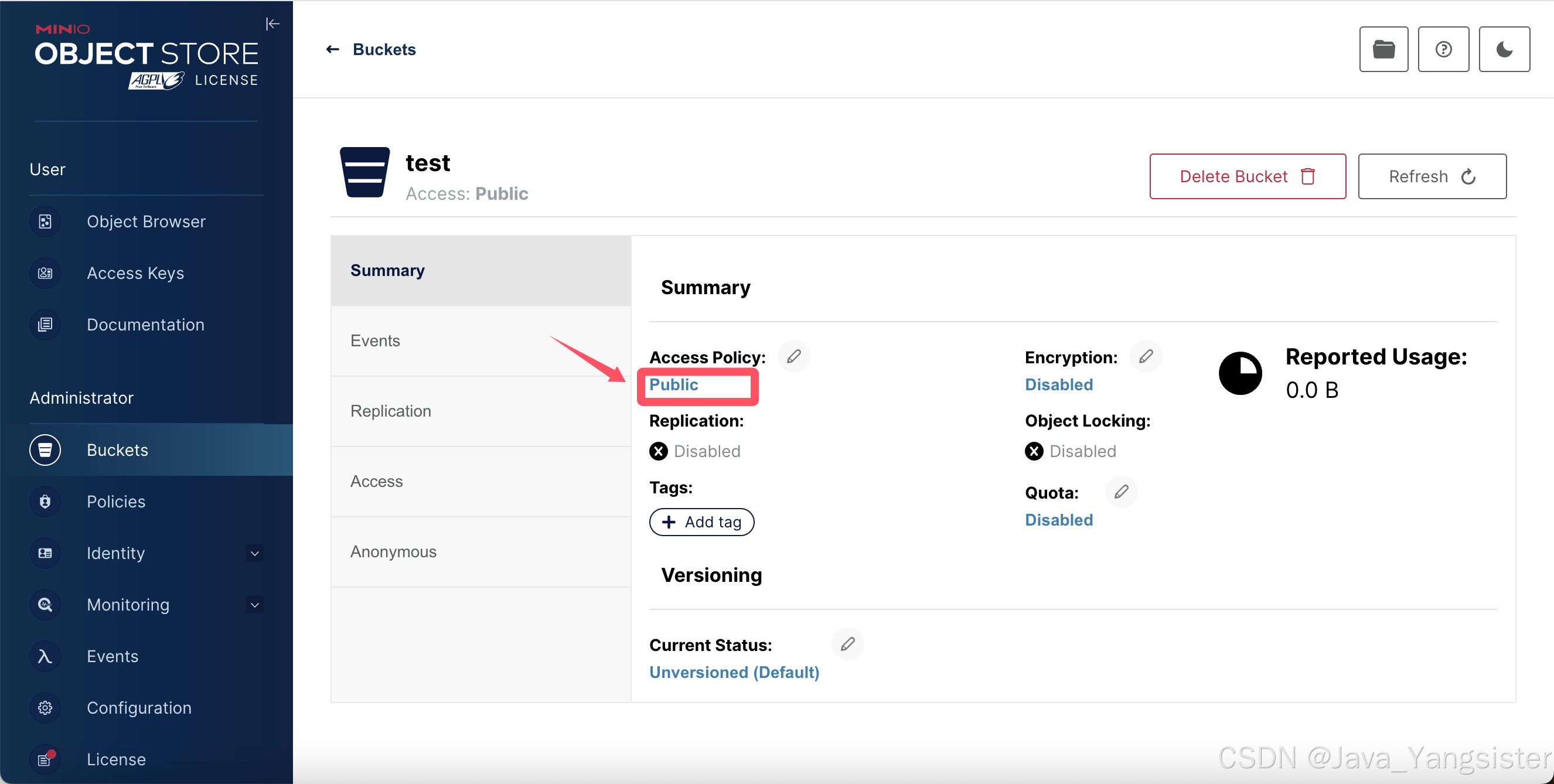

4、bucket权限设置：将Access Policy改为public

5、用户创建

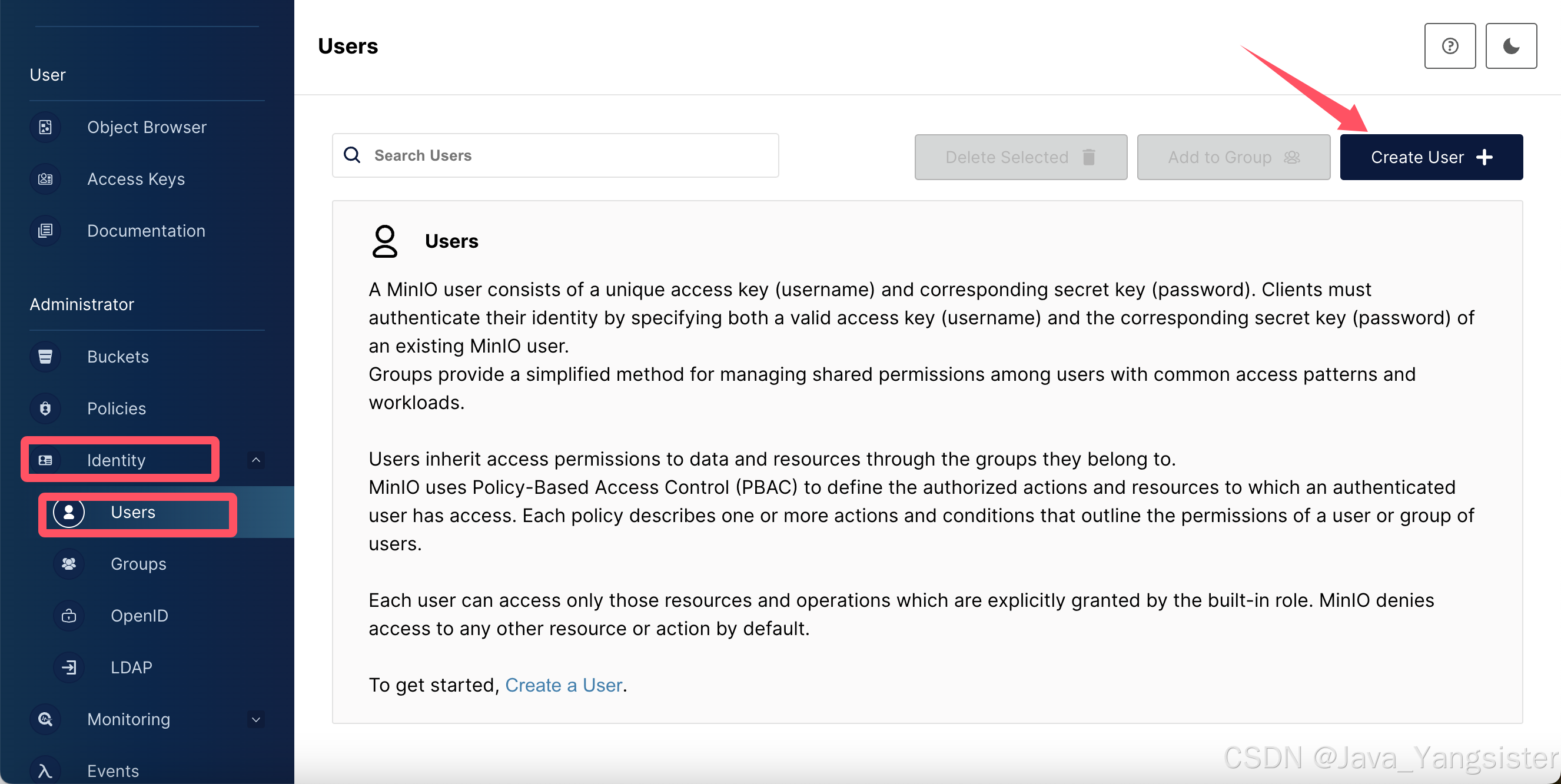

identity—>users—>Create User

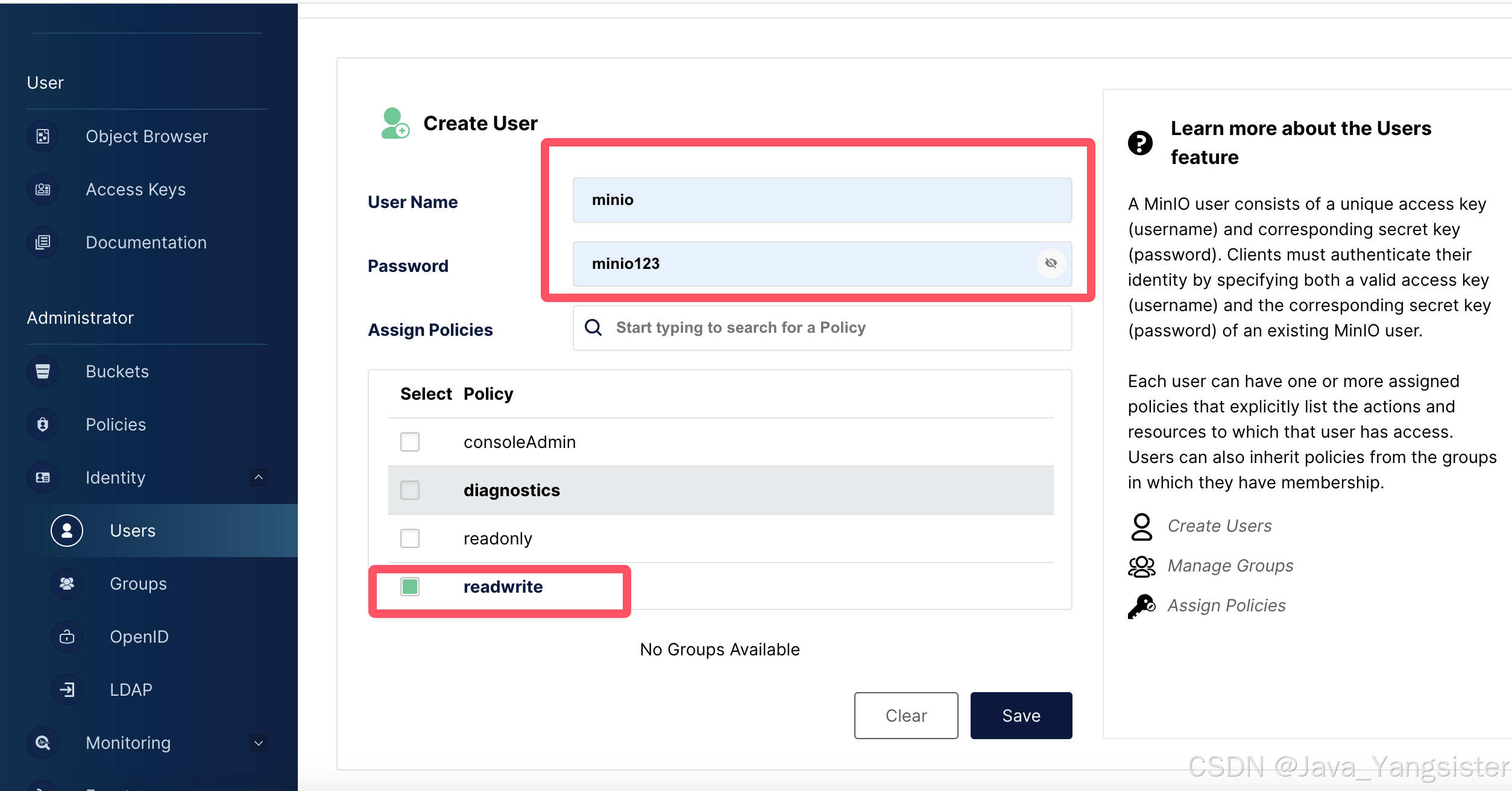

用户名为minio密码为minio123，权限配置为读写，点击保存。

java配置信息中所配置的key就是此处的用户。

五、基本依赖和配置

1、在pom.xml文件中引入minio依赖

<dependency>
    <groupId>io.minio</groupId>
    <artifactId>minio</artifactId>
    <version>7.1.0</version>
</dependency>

2、在yml文件里加上minio配置信息

#文件服务器
minio:
  url: http://{这里填服务器的ip地址}:9000  服务器ip
  access-key: minio  账号
  secret-key: minio123  密码
  bucket-name: test  桶名称，minio服务器配置

3、minio客户端配置类

package com.health.common.config;

import io.minio.MinioClient;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * Minio客户端注入
 */
@ConfigurationProperties(prefix = "minio")
@Configuration
public class MinioConfig {
    @Value("${minio.accessKey}")
    private static String accessKey;

    @Value("${minio.secretKey}")
    private static String secretKey;

    @Value("${minio.url}")
    private static String url;

    /** 获取yml配置类里的桶名称*/
    @Value("${minio.bucket-name}")
    private static String bucketName;

    public static String getUrl() {
        return url;
    }

    public void setUrl(String url) {
        MinioConfig.url = url;
    }

    public static String getAccessKey() {
        return accessKey;
    }

    public void setAccessKey(String accessKey) {
        MinioConfig.accessKey = accessKey;
    }

    public static String getSecretKey() {
        return secretKey;
    }

    public void setSecretKey(String secretKey) {
        MinioConfig.secretKey = secretKey;
    }

    public static String getBucketName() {
        return bucketName;
    }

    public void setBucketName(String bucketName) {
        MinioConfig.bucketName = bucketName;
    }

    @Bean
    public MinioClient getMinioClient() {
        return MinioClient.builder().endpoint(url).credentials(accessKey, secretKey).build();
    }
}

4、 新增MinioUtil工具类

package com.health.common.utils.file;

import com.health.common.utils.ServletUtils;
import com.health.common.utils.spring.SpringUtils;
import io.minio.GetPresignedObjectUrlArgs;
import io.minio.MinioClient;
import io.minio.PutObjectArgs;
import io.minio.http.Method;
import org.springframework.web.multipart.MultipartFile;

import java.io.IOException;
import java.io.InputStream;

public class MinioUtil {
    /**
     * 上传文件
     *
     * @param bucketName 桶名称
     * @param fileName
     *
     * @throws IOException
     */
    public static String uploadFile(String bucketName,
                                    String fileName,
                                    MultipartFile multipartFile) throws IOException {
        String url;
        MinioClient minioClient = SpringUtils.getBean(MinioClient.class);
        try (InputStream inputStream = multipartFile.getInputStream()) {
            minioClient.putObject(PutObjectArgs.builder()
                    .bucket(bucketName)
                    .object(fileName)
                    .stream(inputStream, multipartFile.getSize(), -1)
                    .contentType(multipartFile.getContentType())
                    .build());
            url = minioClient.getPresignedObjectUrl(GetPresignedObjectUrlArgs.builder()
                    .bucket(bucketName)
                    .object(fileName)
                    .method(Method.GET)
                    .build());
            url = url.substring(0, url.indexOf('?'));
            return ServletUtils.urlDecode(url);
        }
        catch (Exception e) {
            throw new IOException(e.getMessage(), e);
        }
    }
}

5、FileUploadUtils工具类新增minio的相关配置，完整代码如下

package com.health.common.utils.file;

import java.io.File;
import java.io.IOException;
import java.nio.file.Paths;
import java.util.Objects;

import com.health.common.config.MinioConfig;
import org.apache.commons.io.FilenameUtils;
import org.springframework.web.multipart.MultipartFile;
import com.health.common.config.HealthConfig;
import com.health.common.constant.Constants;
import com.health.common.exception.file.FileNameLengthLimitExceededException;
import com.health.common.exception.file.FileSizeLimitExceededException;
import com.health.common.exception.file.InvalidExtensionException;
import com.health.common.utils.DateUtils;
import com.health.common.utils.StringUtils;
import com.health.common.utils.uuid.Seq;

/**
 * 文件上传工具类
 *
 * @author ruoyi
 */
public class FileUploadUtils
{
    /**
     * 默认大小 50M
     */
    public static final long DEFAULT_MAX_SIZE = 50 * 1024 * 1024L;

    /**
     * 默认的文件名最大长度 100
     */
    public static final int DEFAULT_FILE_NAME_LENGTH = 100;

    /**
     * 默认上传的地址
     */
    private static String defaultBaseDir = HealthConfig.getProfile();

    /**
     * Minio默认上传的地址
     */
    private static final String bucketName = MinioConfig.getBucketName();

    public static String getBucketName() {
        return bucketName;
    }

    public static void setDefaultBaseDir(String defaultBaseDir)
    {
        FileUploadUtils.defaultBaseDir = defaultBaseDir;
    }

    public static String getDefaultBaseDir()
    {
        return defaultBaseDir;
    }

    /**
     * 以默认配置进行文件上传
     *
     * @param file 上传的文件
     * @return 文件名称
     * @throws Exception
     */
    public static final String upload(MultipartFile file) throws IOException
    {
        try
        {
            return upload(getDefaultBaseDir(), file, MimeTypeUtils.DEFAULT_ALLOWED_EXTENSION);
        }
        catch (Exception e)
        {
            throw new IOException(e.getMessage(), e);
        }
    }

    /**
     * 根据文件路径上传
     *
     * @param baseDir 相对应用的基目录
     * @param file 上传的文件
     * @return 文件名称
     * @throws IOException
     */
    public static final String upload(String baseDir, MultipartFile file) throws IOException
    {
        try
        {
            return upload(baseDir, file, MimeTypeUtils.DEFAULT_ALLOWED_EXTENSION);
        }
        catch (Exception e)
        {
            throw new IOException(e.getMessage(), e);
        }
    }

    /**
     * 文件上传
     *
     * @param baseDir 相对应用的基目录
     * @param file 上传的文件
     * @param allowedExtension 上传文件类型
     * @return 返回上传成功的文件名
     * @throws FileSizeLimitExceededException 如果超出最大大小
     * @throws FileNameLengthLimitExceededException 文件名太长
     * @throws IOException 比如读写文件出错时
     * @throws InvalidExtensionException 文件校验异常
     */
    public static final String upload(String baseDir, MultipartFile file, String[] allowedExtension)
            throws FileSizeLimitExceededException, IOException, FileNameLengthLimitExceededException,
            InvalidExtensionException
    {
        int fileNamelength = Objects.requireNonNull(file.getOriginalFilename()).length();
        if (fileNamelength > FileUploadUtils.DEFAULT_FILE_NAME_LENGTH)
        {
            throw new FileNameLengthLimitExceededException(FileUploadUtils.DEFAULT_FILE_NAME_LENGTH);
        }

        assertAllowed(file, allowedExtension);

        String fileName = extractFilename(file);

        String absPath = getAbsoluteFile(baseDir, fileName).getAbsolutePath();
        file.transferTo(Paths.get(absPath));
        return getPathFileName(baseDir, fileName);
    }

    /**
     * 以默认BucketName配置上传到Minio服务器
     *
     * @param file 上传的文件
     *
     * @return 文件名称
     *
     * @throws Exception
     */
    public static String uploadMinio(MultipartFile file) throws IOException {
        try {
            return uploadMinino(getBucketName(), file, MimeTypeUtils.DEFAULT_ALLOWED_EXTENSION);
        }
        catch (Exception e) {
            throw new IOException(e.getMessage(), e);
        }
    }

    /**
     * 自定义bucketName配置上传到Minio服务器
     *
     * @param file 上传的文件
     *
     * @return 文件名称
     *
     * @throws Exception
     */
    public static String uploadMinio(MultipartFile file,
                                     String bucketName) throws IOException {
        try {
            return uploadMinino(bucketName, file, MimeTypeUtils.DEFAULT_ALLOWED_EXTENSION);
        }
        catch (Exception e) {
            throw new IOException(e.getMessage(), e);
        }
    }

    private static String uploadMinino(String bucketName,
                                       MultipartFile file,
                                       String[] allowedExtension) throws FileSizeLimitExceededException, IOException, FileNameLengthLimitExceededException, InvalidExtensionException {
        int fileNameLength = file.getOriginalFilename().length();
        if (fileNameLength > FileUploadUtils.DEFAULT_FILE_NAME_LENGTH) {
            throw new FileNameLengthLimitExceededException(FileUploadUtils.DEFAULT_FILE_NAME_LENGTH);
        }
        assertAllowed(file, allowedExtension);
        try {
            String fileName = extractFilename(file);
            return MinioUtil.uploadFile(bucketName, fileName, file);
        }
        catch (Exception e) {
            throw new IOException(e.getMessage(), e);
        }
    }


    /**
     * 编码文件名
     */
    public static final String extractFilename(MultipartFile file)
    {
        return StringUtils.format("{}/{}_{}.{}", DateUtils.datePath(),
                FilenameUtils.getBaseName(file.getOriginalFilename()), Seq.getId(Seq.uploadSeqType), getExtension(file));
    }

    public static final File getAbsoluteFile(String uploadDir, String fileName) throws IOException
    {
        File desc = new File(uploadDir + File.separator + fileName);

        if (!desc.exists())
        {
            if (!desc.getParentFile().exists())
            {
                desc.getParentFile().mkdirs();
            }
        }
        return desc;
    }

    public static final String getPathFileName(String uploadDir, String fileName) throws IOException
    {
        int dirLastIndex = HealthConfig.getProfile().length() + 1;
        String currentDir = StringUtils.substring(uploadDir, dirLastIndex);
        return Constants.RESOURCE_PREFIX + "/" + currentDir + "/" + fileName;
    }

    /**
     * 文件大小校验
     *
     * @param file 上传的文件
     * @return
     * @throws FileSizeLimitExceededException 如果超出最大大小
     * @throws InvalidExtensionException
     */
    public static final void assertAllowed(MultipartFile file, String[] allowedExtension)
            throws FileSizeLimitExceededException, InvalidExtensionException
    {
        long size = file.getSize();
        if (size > DEFAULT_MAX_SIZE)
        {
            throw new FileSizeLimitExceededException(DEFAULT_MAX_SIZE / 1024 / 1024);
        }

        String fileName = file.getOriginalFilename();
        String extension = getExtension(file);
        if (allowedExtension != null && !isAllowedExtension(extension, allowedExtension))
        {
            if (allowedExtension == MimeTypeUtils.IMAGE_EXTENSION)
            {
                throw new InvalidExtensionException.InvalidImageExtensionException(allowedExtension, extension,
                        fileName);
            }
            else if (allowedExtension == MimeTypeUtils.FLASH_EXTENSION)
            {
                throw new InvalidExtensionException.InvalidFlashExtensionException(allowedExtension, extension,
                        fileName);
            }
            else if (allowedExtension == MimeTypeUtils.MEDIA_EXTENSION)
            {
                throw new InvalidExtensionException.InvalidMediaExtensionException(allowedExtension, extension,
                        fileName);
            }
            else if (allowedExtension == MimeTypeUtils.VIDEO_EXTENSION)
            {
                throw new InvalidExtensionException.InvalidVideoExtensionException(allowedExtension, extension,
                        fileName);
            }
            else
            {
                throw new InvalidExtensionException(allowedExtension, extension, fileName);
            }
        }
    }

    /**
     * 判断MIME类型是否是允许的MIME类型
     *
     * @param extension
     * @param allowedExtension
     * @return
     */
    public static final boolean isAllowedExtension(String extension, String[] allowedExtension)
    {
        for (String str : allowedExtension)
        {
            if (str.equalsIgnoreCase(extension))
            {
                return true;
            }
        }
        return false;
    }

    /**
     * 获取文件名的后缀
     *
     * @param file 表单文件
     * @return 后缀名
     */
    public static final String getExtension(MultipartFile file)
    {
        String extension = FilenameUtils.getExtension(file.getOriginalFilename());
        if (StringUtils.isEmpty(extension))
        {
            extension = MimeTypeUtils.getExtension(Objects.requireNonNull(file.getContentType()));
        }
        return extension;
    }
}

6、CommonController.java自定义Minio服务器上传请求（com.health.web.controller.common）

/**
     * 自定义 Minio 服务器上传请求
     */
    @PostMapping("/uploadMinio")
    public AjaxResult uploadFileMinio(MultipartFile file) {
        try {
            // 上传并返回新文件名称
            String fileName = FileUploadUtils.uploadMinio(file);
            AjaxResult ajax = AjaxResult.success();
            ajax.put("url", fileName);
            ajax.put("fileName", fileName);
            ajax.put("newFileName", FileUtils.getName(fileName));
            ajax.put("originalFilename", file.getOriginalFilename());
            return ajax;
        }
        catch (Exception e) {
            return AjaxResult.error(e.getMessage());
        }
    }

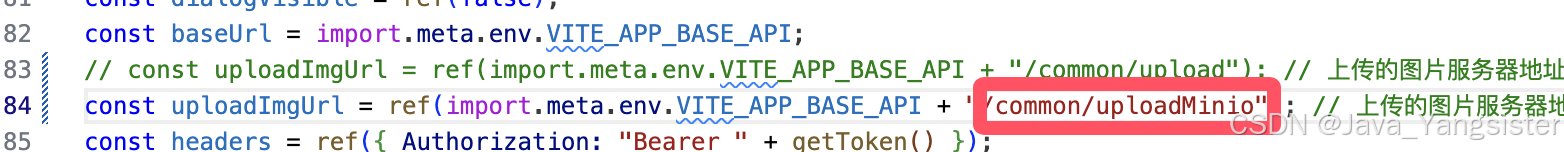

六、Vue3前端改写

分别修改：

 src/components/ImageUpload/index.vue

src/components/FileUpload/index.vue

到此就全部结束了！！！
