一、 概述
在之前我们讲到使用两个ddr4内存实现数据的流水操作的功能特性和适用情况，本章节将工程示例模块列出，并给出模块接口说明和示例代码。

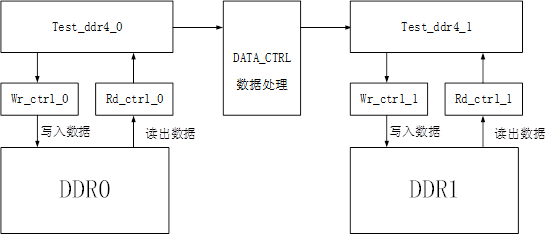

二、 示例流程框架

三、 test_ddr4_0模块说明

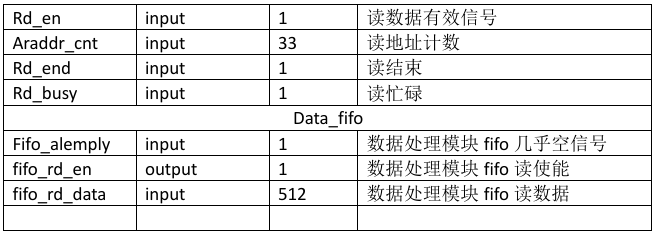

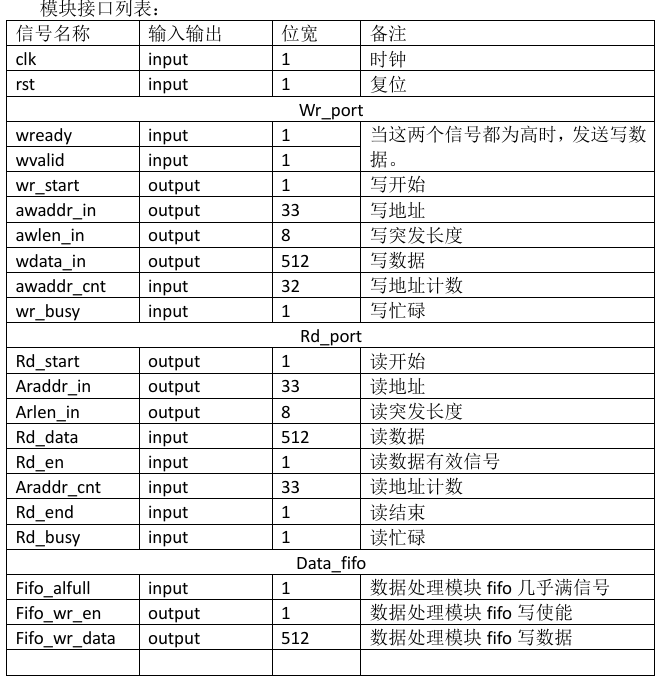

模块功能描述：
test_ddr4_0模块作用是产生读写ddr0的命令，
写命令：
写命令需要产生wr_start、awaddr_in、awlen_in、wdata_in。每当写突发完成一次，就产生一拍wr_start，并且需要计算awaddr_in的值，awlen_in保持255的值，每次突发256个数据。Wdata_in根据wready和wvalid的握手，Wdata_in生成递增数。共产生100次写突发。
读命令：
为了使读出的数据有效，使用写地址计数减去读地址计数，地址计数不小于’h4000时，可以请求读ddr4，每次固定读取’d256长度。读地址为araddr_cnt。
示例代码：

reg [31:0] clk_cnt;
reg wr_end_flag;
reg send_valid;
reg [7:0] wr_end_flag_cnt;

assign fifo_wr_en = rd_en;
assign fifo_wr_data = rd_data;

always @(posedge clk ) begin
if (rst) begin
clk_cnt <= 0;
end
else if (clk_cnt == 'h1000) begin
clk_cnt <= clk_cnt;
end
else if (clk_cnt <= ('h1000-1)) begin
clk_cnt <= clk_cnt + 1;
end
end

always @(posedge clk ) begin
if (rst) begin
wr_start <= 0;
end
else if (send_valid && wr_end_flag ) begin
wr_start <= 1;
end
else if (clk_cnt == ('h1000-1)) begin
wr_start <= 1;
end
else begin
wr_start <= 0;
end
end

always @(posedge clk ) begin
if (rst) begin
awaddr_in <= 0;
end
else if (send_valid && wr_end_flag) begin
awaddr_in <= awaddr_cnt;
end
else if (clk_cnt == ('h1000-1)) begin
awaddr_in <= 'h0;
end
end

always @(posedge clk ) begin
if (rst) begin
awlen_in <= 0;
end
else if (send_valid && wr_end_flag) begin
awlen_in <= 'd255;
end
else if (clk_cnt == ('h1000-1)) begin
awlen_in <= 'd255;
end
end

always @(posedge clk ) begin
if (rst) begin
wdata_in <= 'h0;
end
else if (wready && wvalid) begin
wdata_in <= wdata_in + 'd1;
//wdata_in <= {512{1’b1}};
end
end
reg wr_busy_r;
always @(posedge clk ) begin
wr_busy_r <= wr_busy;
end

always @(posedge clk ) begin
if (rst) begin
wr_end_flag <= 0;
end
else if (wr_busy_r == 1 && wr_busy == 0) begin
wr_end_flag <= 1;
end
else begin
wr_end_flag <= 0;
end
end

always @(posedge clk ) begin
if (rst) begin
send_valid <= 0;
end
else if (wr_end_flag_cnt == 'd99 && wr_busy_r == 1 && wr_busy == 0) begin
send_valid <= 0;
end
else if (clk_cnt == ('h1000-1)) begin
send_valid <= 1;
end
end
always @(posedge clk ) begin
if (rst) begin
wr_end_flag_cnt <= 0;
end
else if (send_valid && wr_end_flag_cnt == 'd99 && wr_end_flag) begin
wr_end_flag_cnt <= 0;
end
else if (send_valid && wr_end_flag) begin
wr_end_flag_cnt <= wr_end_flag_cnt + 1;
end
end

//rd

reg [32:0] able_rd_addrcnt;
always @(posedge clk ) begin
if (rst) begin
able_rd_addrcnt <= 0;
end
else begin
able_rd_addrcnt <= awaddr_cnt - araddr_cnt;
end
end
always @(posedge clk ) begin
if (rst) begin
rd_start <= 0;
end
else if (rd_start == 0 && rd_busy == 0 && able_rd_addrcnt>='h4000 && fifo_alfull == 0) begin
rd_start <= 1;
end
else begin
rd_start <= 0;
end
end

always @(posedge clk ) begin
if (rst) begin
araddr_in <= 0;
end
else if (rd_start == 0 && rd_busy == 0 && able_rd_addrcnt>='h4000 && fifo_alfull == 0) begin
araddr_in <= araddr_cnt;
end
end

always @(posedge clk ) begin
if (rst) begin
arlen_in <= 0;
end
else if (rd_start == 0 && rd_busy == 0 && able_rd_addrcnt>='h4000 && fifo_alfull == 0) begin
arlen_in <= 'd255;
end
end

四、 flow_ctrl模块说明
flow_ctrl模块的作用是对数据做一个缓存。使用fifo将数据缓存。并给出可以读写数据的标志。因为每次读写的长度固定为256。所以当fifo中至少有256个数据后才能将数据读出写给ddr4。当fifo至少有256个空闲深度才能将数据从ddr4读出放到fifo中。

模块代码：
module flow_ctrl(
input wire clk,
input wire rst,

output 		reg 				fifo_alfull,
output 		wire 				fifo_alempty,
input 			wire 				fifo_wr_en,
input 			wire 	[511:0] 		fifo_wr_data,input 			wire 				fifo_rd_en,
output 		wire 	[511:0] 		fifo_rd_data
);

wire [10:0] data_count;

fifo_data_512x1024 fifo_data_512x1024 (
.clk (clk), // input wire clk
.din (fifo_wr_data), // input wire [511 : 0] din
.wr_en (fifo_wr_en), // input wire wr_en
.rd_en (fifo_rd_en), // input wire rd_en
.dout (fifo_rd_data), // output wire [511 : 0] dout
.full (full), // output wire full
.almost_full (almost_full), // output wire almost_full
.empty (empty), // output wire empty
.almost_empty (almost_empty), // output wire almost_empty
.data_count (data_count) // output wire [10 : 0] data_count
);

always @(posedge clk ) begin
if (rst) begin
fifo_alfull <= 0;
end
else if (data_count >= 'd768) begin
fifo_alfull <= 1;
end
else begin
fifo_alfull <= 0;
end
end

assign fifo_alempty = (data_count < 'd256) ? 1 :0;
endmodule

五、 test_ddr4_72width_1模块说明
模块功能描述：
test_ddr4_0模块作用是产生读写ddr0的命令，
写命令：
写命令需要产生wr_start、awaddr_in、awlen_in、wdata_in。每当写突发完成一次，就产生一拍wr_start，并且需要计算awaddr_in的值，awlen_in保持255的值，每次突发256个数据。Wdata_in根据wready和wvalid的握手，Wdata_in生成递增数。共产生100次写突发。
读命令：
为了使读出的数据有效，使用写地址计数减去读地址计数，地址计数不小于’h4000时，可以请求读ddr4，每次固定读取’d256长度。读地址为araddr_cnt。
示例代码：

reg [31:0] clk_cnt;
reg wr_end_flag;
reg send_valid;
reg [7:0] wr_end_flag_cnt;

assign fifo_wr_en = rd_en;
assign fifo_wr_data = rd_data;

always @(posedge clk ) begin
if (rst) begin
clk_cnt <= 0;
end
else if (clk_cnt == 'h1000) begin
clk_cnt <= clk_cnt;
end
else if (clk_cnt <= ('h1000-1)) begin
clk_cnt <= clk_cnt + 1;
end
end

always @(posedge clk ) begin
if (rst) begin
wr_start <= 0;
end
else if (send_valid && wr_end_flag ) begin
wr_start <= 1;
end
else if (clk_cnt == ('h1000-1)) begin
wr_start <= 1;
end
else begin
wr_start <= 0;
end
end

always @(posedge clk ) begin
if (rst) begin
awaddr_in <= 0;
end
else if (send_valid && wr_end_flag) begin
awaddr_in <= awaddr_cnt;
end
else if (clk_cnt == ('h1000-1)) begin
awaddr_in <= 'h0;
end
end

always @(posedge clk ) begin
if (rst) begin
awlen_in <= 0;
end
else if (send_valid && wr_end_flag) begin
awlen_in <= 'd255;
end
else if (clk_cnt == ('h1000-1)) begin
awlen_in <= 'd255;
end
end

always @(posedge clk ) begin
if (rst) begin
wdata_in <= 'h0;
end
else if (wready && wvalid) begin
wdata_in <= wdata_in + 'd1;
//wdata_in <= {512{1’b1}};
end
end
reg wr_busy_r;
always @(posedge clk ) begin
wr_busy_r <= wr_busy;
end

always @(posedge clk ) begin
if (rst) begin
wr_end_flag <= 0;
end
else if (wr_busy_r == 1 && wr_busy == 0) begin
wr_end_flag <= 1;
end
else begin
wr_end_flag <= 0;
end
end

always @(posedge clk ) begin
if (rst) begin
send_valid <= 0;
end
else if (wr_end_flag_cnt == 'd99 && wr_busy_r == 1 && wr_busy == 0) begin
send_valid <= 0;
end
else if (clk_cnt == ('h1000-1)) begin
send_valid <= 1;
end
end
always @(posedge clk ) begin
if (rst) begin
wr_end_flag_cnt <= 0;
end
else if (send_valid && wr_end_flag_cnt == 'd99 && wr_end_flag) begin
wr_end_flag_cnt <= 0;
end
else if (send_valid && wr_end_flag) begin
wr_end_flag_cnt <= wr_end_flag_cnt + 1;
end
end

//rd

reg [32:0] able_rd_addrcnt;
always @(posedge clk ) begin
if (rst) begin
able_rd_addrcnt <= 0;
end
else begin
able_rd_addrcnt <= awaddr_cnt - araddr_cnt;
end
end
always @(posedge clk ) begin
if (rst) begin
rd_start <= 0;
end
else if (rd_start == 0 && rd_busy == 0 && able_rd_addrcnt>='h4000 && fifo_alfull == 0) begin
rd_start <= 1;
end
else begin
rd_start <= 0;
end
end

always @(posedge clk ) begin
if (rst) begin
araddr_in <= 0;
end
else if (rd_start == 0 && rd_busy == 0 && able_rd_addrcnt>='h4000 && fifo_alfull == 0) begin
araddr_in <= araddr_cnt;
end
end

always @(posedge clk ) begin
if (rst) begin
arlen_in <= 0;
end
else if (rd_start == 0 && rd_busy == 0 && able_rd_addrcnt>='h4000 && fifo_alfull == 0) begin
arlen_in <= 'd255;
end
end

四、 flow_ctrl模块说明
flow_ctrl模块的作用是对数据做一个缓存。使用fifo将数据缓存。并给出可以读写数据的标志。因为每次读写的长度固定为256。所以当fifo中至少有256个数据后才能将数据读出写给ddr4。当fifo至少有256个空闲深度才能将数据从ddr4读出放到fifo中。

模块代码：
module flow_ctrl(
input wire clk,
input wire rst,

output 		reg 				fifo_alfull,
output 		wire 				fifo_alempty,
input 			wire 				fifo_wr_en,
input 			wire 	[511:0] 		fifo_wr_data,input 			wire 				fifo_rd_en,
output 		wire 	[511:0] 		fifo_rd_data
);

wire [10:0] data_count;

fifo_data_512x1024 fifo_data_512x1024 (
.clk (clk), // input wire clk
.din (fifo_wr_data), // input wire [511 : 0] din
.wr_en (fifo_wr_en), // input wire wr_en
.rd_en (fifo_rd_en), // input wire rd_en
.dout (fifo_rd_data), // output wire [511 : 0] dout
.full (full), // output wire full
.almost_full (almost_full), // output wire almost_full
.empty (empty), // output wire empty
.almost_empty (almost_empty), // output wire almost_empty
.data_count (data_count) // output wire [10 : 0] data_count
);

always @(posedge clk ) begin
if (rst) begin
fifo_alfull <= 0;
end
else if (data_count >= 'd768) begin
fifo_alfull <= 1;
end
else begin
fifo_alfull <= 0;
end
end

assign fifo_alempty = (data_count < 'd256) ? 1 :0;
endmodule

五、 test_ddr4_72width_1模块说明

模块功能：
此模块用来对ddr1产生读写命令。
1、写命令：
当fifo不空时，产生写ddr1命令，写ddr1突发长度为256，awlen_in的值为’d255。写突发地址（awaddr_in）根据写地址计数（wr_start）给出下一次写突发的起始地址（awaddr_in）。
写ddr数据为fifo的读数据，wready与wvalid握手作为fifo读使能。
2、读命令：
使用写地址计数-读地址计数。当差值大于等于’h4000时，可以产生ddr1的读命令，突发长度为256，将ddr1的读地址计数作为ddr1的读地址。

模块代码示例：
always @(posedge clk ) begin
if (rst) begin
wr_start <= 0;
end
else if (wr_busy == 0 && wr_start ==0 && fifo_alempty == 0) begin
wr_start <= 1;
end
else begin
wr_start <= 0;
end
end

always @(posedge clk ) begin
if (rst) begin
awaddr_in <= 0;
end
else if (wr_busy == 0 && wr_start ==0 && fifo_alempty == 0) begin
awaddr_in <= awaddr_cnt;
end
end

always @(posedge clk ) begin
if (rst) begin
awlen_in <= 0;
end
else if (wr_busy == 0 && wr_start ==0 && fifo_alempty == 0) begin
awlen_in <= 'd255;
end
end
assign fifo_rd_en = wready & wvalid;
assign wdata_in = fifo_rd_data;
reg wr_busy_r;
always @(posedge clk ) begin
wr_busy_r <= wr_busy;
end

reg [32:0] able_rd_addrcnt;
always @(posedge clk ) begin
if (rst) begin
able_rd_addrcnt <= 0;
end
else begin
able_rd_addrcnt <= awaddr_cnt - araddr_cnt;
end
end
always @(posedge clk ) begin
if (rst) begin
rd_start <= 0;
end
else if (rd_start == 0 && rd_busy == 0 && able_rd_addrcnt>='h4000 ) begin
rd_start <= 1;
end
else begin
rd_start <= 0;
end
end

always @(posedge clk ) begin
if (rst) begin
araddr_in <= 0;
end
else if (rd_start == 0 && rd_busy == 0 && able_rd_addrcnt>='h4000 ) begin
araddr_in <= araddr_cnt;
end
end

always @(posedge clk ) begin
if (rst) begin
arlen_in <= 0;
end
else if (rd_start == 0 && rd_busy == 0 && able_rd_addrcnt>='h4000 ) begin
arlen_in <= 'd255;
end
end

六、 章节概括
这一章讲述了ddr流水的两个控制ddr4的命令模块。通过将数据写入ddr0，从ddr0读出数据缓存到fifo，再从fifo取出数据写进ddr1，最后再从ddr1中读出数据。从而实现双ddr的流水控制。后面章节来进行仿真说明。
