RV1126 NO.46:RV1126+OPENCV对视频流进行视频膨胀操作

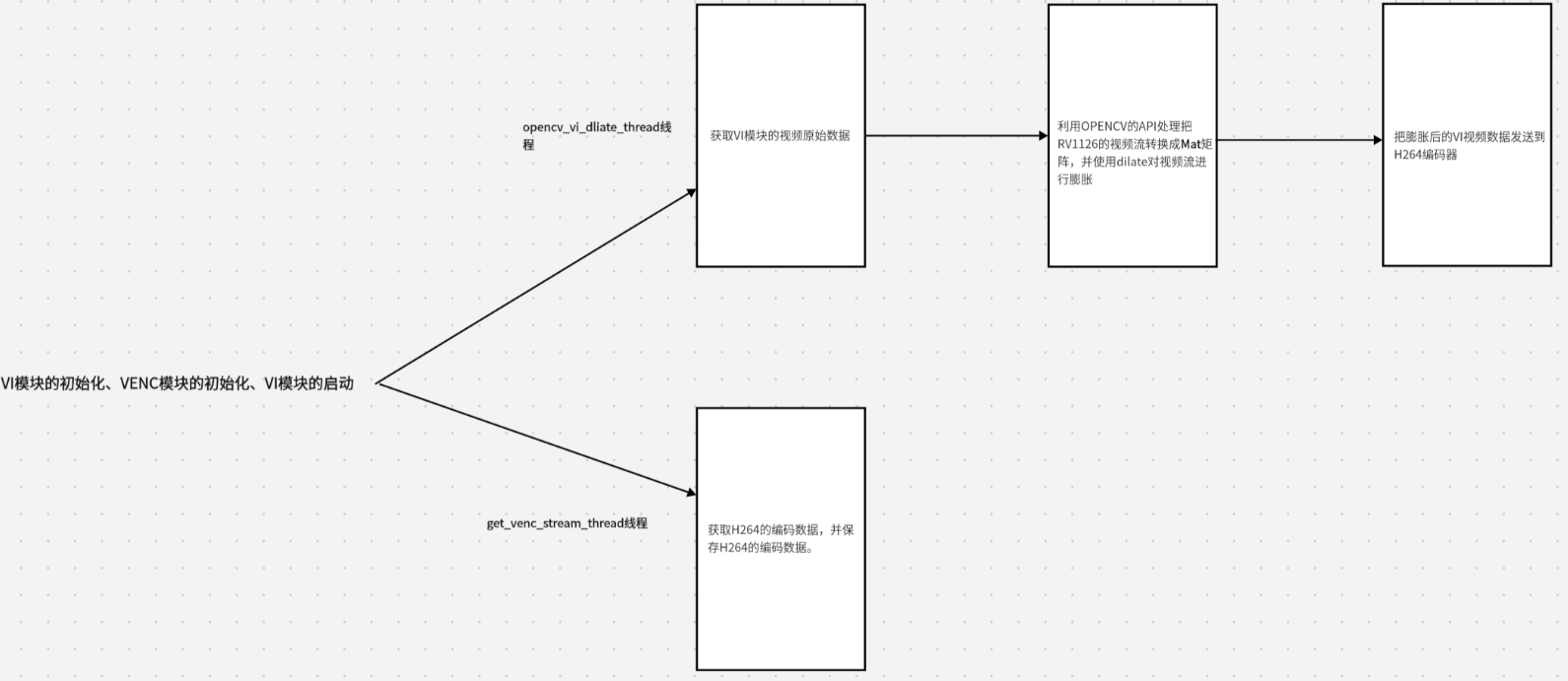

一.RV1126+OPENCV对视频流进行视频膨胀操作的大体流程图
RV1126视频流结合OpenCV API实现视频膨胀处理及编码保存功能。实现步骤如下：
-
模块初始化
- 初始化VI和VENC模块并启用相关功能
-
线程创建
-
OpenCV膨胀处理线程：
- 获取VI原始数据
- 使用OpenCV转换为Mat矩阵
- 应用dilate函数进行膨胀处理
- 将处理后的数据发送至VENC编码器
-
VENC码流获取线程：
- 获取H264格式的VENC码流数据
- 将数据保存为H264文件
-
二．具体代码实现：
2.1. RV1126模块初始化并启动VI工作
int ret;VI_CHN_ATTR_S vi_chn_attr;vi_chn_attr.pcVideoNode = CAMERA_PATH; // Pathvi_chn_attr.u32Width = 1920; // Widthvi_chn_attr.u32Height = 1080; // Heightvi_chn_attr.enPixFmt = IMAGE_TYPE_NV12; // ImageTypevi_chn_attr.enBufType = VI_CHN_BUF_TYPE_MMAP; // BufTypevi_chn_attr.u32BufCnt = 3; // Cntvi_chn_attr.enWorkMode = VI_WORK_MODE_NORMAL; // Moderet = RK_MPI_VI_SetChnAttr(CAMERA_ID, CAMERA_CHN, &vi_chn_attr);if (ret){printf("Vi Set Attr Failed.....\n");return 0;}else{printf("Vi Set Attr Success.....\n");}ret = RK_MPI_VI_EnableChn(CAMERA_ID, CAMERA_CHN);if (ret){printf("Vi Enable Attr Failed.....\n");return 0;}else{printf("Vi Enable Attr Success.....\n");}VENC_CHN_ATTR_S venc_chn_attr;memset(&venc_chn_attr, 0, sizeof(VENC_CHN_ATTR_S));venc_chn_attr.stVencAttr.u32PicWidth = 1920;venc_chn_attr.stVencAttr.u32PicHeight = 1080;venc_chn_attr.stVencAttr.u32VirWidth = 1920;venc_chn_attr.stVencAttr.u32VirHeight = 1080;venc_chn_attr.stVencAttr.imageType = IMAGE_TYPE_NV12;venc_chn_attr.stVencAttr.enType = RK_CODEC_TYPE_H264;venc_chn_attr.stVencAttr.u32Profile = 66;venc_chn_attr.stRcAttr.enRcMode = VENC_RC_MODE_H264CBR;venc_chn_attr.stRcAttr.stH264Cbr.u32Gop = 25;venc_chn_attr.stRcAttr.stH264Cbr.u32BitRate = 1920 * 1080 * 3;venc_chn_attr.stRcAttr.stH264Cbr.fr32DstFrameRateDen = 1;venc_chn_attr.stRcAttr.stH264Cbr.fr32DstFrameRateNum = 25;venc_chn_attr.stRcAttr.stH264Cbr.u32SrcFrameRateDen = 1;venc_chn_attr.stRcAttr.stH264Cbr.u32SrcFrameRateNum = 25;ret = RK_MPI_VENC_CreateChn(VENC_CHN, &venc_chn_attr);if (ret){printf("ERROR: Create venc failed!\n");exit(0);}ret = RK_MPI_VI_StartStream(CAMERA_ID, CAMERA_CHN);if (ret){printf("start vi stream failed.....\n");}else{printf("start vi stream success.....\n");}这段代码实现了RV1126模块的初始化流程：首先配置VI通道属性(RK_MPI_VI_SetChnAttr)，然后启用VI模块(RK_MPI_VI_EnableChn)，接着初始化VENC模块(RK_MPI_VENC_CreateChn)，最后启动VI数据流(RK_MPI_VI_StartStream)。由于相关参数设置已在前面章节详细介绍，此处不再赘述。
2.2. opencv_dliate_vi_thread线程的讲解
void *opencv_vi_dliate_thread(void *args)
{pthread_detach(pthread_self());MEDIA_BUFFER mb = NULL;while (1){mb = RK_MPI_SYS_GetMediaBuffer(RK_ID_VI, CAMERA_CHN, -1);//获取VI数据if (!mb){printf("Get Vi stream break...\n");break;}Mat rv1126_vi_mat = Mat(HEIGHT, WIDTH, CV_8UC1, RK_MPI_MB_GetPtr(mb)); //把VI数据转换成OPENCV的Mat矩阵Mat rv1126_vi_structure = getStructuringElement(MORPH_RECT, Size(15, 15));//获取内核，内核的形状是矩形，长度大小是15 * 15dilate(rv1126_vi_mat, rv1126_vi_mat, rv1126_vi_structure);//对Mat矩阵进行dilate膨胀RK_MPI_SYS_SendMediaBuffer(RK_ID_VENC, VENC_CHN, mb);//把膨胀后的数据传输到VENC编码器RK_MPI_MB_ReleaseBuffer(mb);//释放资源}return NULL;
}该代码实现了opencv_dliate_vi_thread线程的核心功能。首先调用RK_MPI_SYS_GetMediaBuffer获取VI视频的原始帧数据，接着将原始数据转换为OpenCV的Mat矩阵。转换方法是通过Mat构造函数直接创建：
Mat rv1126_vi_mat = Mat(HEIGHT, WIDTH, CV_8UC1, RK_MPI_MB_GetPtr(mb))
其中：
- 参数1：图像高度HEIGHT=1080
- 参数2：图像宽度WIDTH=1920
- 参数3：图像格式CV_8UC1
- 参数4：图像数据指针RK_MPI_MB_GetPtr(mb)
随后对Mat矩阵进行膨胀处理。我们采用15x15矩形结构元素进行膨胀操作，具体实现如下：
Mat rv1126_vi_structure = getStructuringElement(MORPH_RECT, Size(15, 15));
2.3. get_venc_stream_thread线程的讲解
void *get_venc_stream_thread(void * args)
{pthread_detach(pthread_self());MEDIA_BUFFER mb = NULL;FILE *opencv_dliate_file = fopen("test_opencv_dliate.h264", "w+");while (1){mb = RK_MPI_SYS_GetMediaBuffer(RK_ID_VENC, VENC_CHN, -1);if (!mb){printf("Get Venc stream break...\n");break;}printf("Get Dlite_Venc Stream Success...\n");fwrite(RK_MPI_MB_GetPtr(mb), RK_MPI_MB_GetSize(mb), 1, opencv_dliate_file);RK_MPI_MB_ReleaseBuffer(mb);}return NULL;
}上面是get_venc_stream_thread的具体实现，在这个线程里面要通过RK_MPI_SYS_GetMediaBuffer获取每一帧H264的编码数据，然后用fwrite写入。
2.4.完整代码
// Copyright 2020 Fuzhou Rockchip Electronics Co., Ltd. All rights reserved.
// Use of this source code is governed by a BSD-style license that can be
// found in the LICENSE file.#include <assert.h>
#include <fcntl.h>
#include <getopt.h>
#include <opencv2/imgproc.hpp>
#include <pthread.h>
#include <signal.h>
#include <stdbool.h>
#include <stdio.h>
#include <stdlib.h>
#include <time.h>
#include <unistd.h>// #include "common/sample_common.h"
#include "rkmedia_api.h"#include <opencv2/core.hpp>
// #include <opencv2/imgoroc.hpp>
#include <opencv2/highgui.hpp>
#include <opencv2/opencv.hpp>using namespace cv;
using namespace std;#define CAMERA_PATH "rkispp_scale0"
#define CAMERA_ID 0
#define CAMERA_CHN 0
#define VENC_CHN 0
#define WIDTH 1920
#define HEIGHT 1080void *opencv_vi_dliate_thread(void *args)
{pthread_detach(pthread_self());MEDIA_BUFFER mb = NULL;while (1){mb = RK_MPI_SYS_GetMediaBuffer(RK_ID_VI, CAMERA_CHN, -1);//获取VI数据if (!mb){printf("Get Vi stream break...\n");break;}Mat rv1126_vi_mat = Mat(HEIGHT, WIDTH, CV_8UC1, RK_MPI_MB_GetPtr(mb)); //把VI数据转换成OPENCV的Mat矩阵Mat rv1126_vi_structure = getStructuringElement(MORPH_RECT, Size(15, 15));//获取内核，内核的形状是矩形，长度大小是15 * 15dilate(rv1126_vi_mat, rv1126_vi_mat, rv1126_vi_structure);//对Mat矩阵进行dilate膨胀RK_MPI_SYS_SendMediaBuffer(RK_ID_VENC, VENC_CHN, mb);//把膨胀后的数据传输到VENC编码器RK_MPI_MB_ReleaseBuffer(mb);//释放资源}return NULL;
}void *get_venc_stream_thread(void * args)
{pthread_detach(pthread_self());MEDIA_BUFFER mb = NULL;FILE *opencv_dliate_file = fopen("test_opencv_dliate.h264", "w+");while (1){mb = RK_MPI_SYS_GetMediaBuffer(RK_ID_VENC, VENC_CHN, -1);if (!mb){printf("Get Venc stream break...\n");break;}printf("Get Dlite_Venc Stream Success...\n");fwrite(RK_MPI_MB_GetPtr(mb), RK_MPI_MB_GetSize(mb), 1, opencv_dliate_file);RK_MPI_MB_ReleaseBuffer(mb);}return NULL;
}int main()
{int ret;VI_CHN_ATTR_S vi_chn_attr;vi_chn_attr.pcVideoNode = CAMERA_PATH; // Pathvi_chn_attr.u32Width = 1920; // Widthvi_chn_attr.u32Height = 1080; // Heightvi_chn_attr.enPixFmt = IMAGE_TYPE_NV12; // ImageTypevi_chn_attr.enBufType = VI_CHN_BUF_TYPE_MMAP; // BufTypevi_chn_attr.u32BufCnt = 3; // Cntvi_chn_attr.enWorkMode = VI_WORK_MODE_NORMAL; // Moderet = RK_MPI_VI_SetChnAttr(CAMERA_ID, CAMERA_CHN, &vi_chn_attr);if (ret){printf("Vi Set Attr Failed.....\n");return 0;}else{printf("Vi Set Attr Success.....\n");}ret = RK_MPI_VI_EnableChn(CAMERA_ID, CAMERA_CHN);if (ret){printf("Vi Enable Attr Failed.....\n");return 0;}else{printf("Vi Enable Attr Success.....\n");}VENC_CHN_ATTR_S venc_chn_attr;memset(&venc_chn_attr, 0, sizeof(VENC_CHN_ATTR_S));venc_chn_attr.stVencAttr.u32PicWidth = 1920;venc_chn_attr.stVencAttr.u32PicHeight = 1080;venc_chn_attr.stVencAttr.u32VirWidth = 1920;venc_chn_attr.stVencAttr.u32VirHeight = 1080;venc_chn_attr.stVencAttr.imageType = IMAGE_TYPE_NV12;venc_chn_attr.stVencAttr.enType = RK_CODEC_TYPE_H264;venc_chn_attr.stVencAttr.u32Profile = 66;venc_chn_attr.stRcAttr.enRcMode = VENC_RC_MODE_H264CBR;venc_chn_attr.stRcAttr.stH264Cbr.u32Gop = 25;venc_chn_attr.stRcAttr.stH264Cbr.u32BitRate = 1920 * 1080 * 3;venc_chn_attr.stRcAttr.stH264Cbr.fr32DstFrameRateDen = 1;venc_chn_attr.stRcAttr.stH264Cbr.fr32DstFrameRateNum = 25;venc_chn_attr.stRcAttr.stH264Cbr.u32SrcFrameRateDen = 1;venc_chn_attr.stRcAttr.stH264Cbr.u32SrcFrameRateNum = 25;ret = RK_MPI_VENC_CreateChn(VENC_CHN, &venc_chn_attr);if (ret){printf("ERROR: Create venc failed!\n");exit(0);}ret = RK_MPI_VI_StartStream(CAMERA_ID, CAMERA_CHN);if (ret){printf("start vi stream failed.....\n");}else{printf("start vi stream success.....\n");}pthread_t pid;pthread_create(&pid, NULL, opencv_vi_dliate_thread, NULL);//膨胀处理线程pthread_create(&pid, NULL, get_venc_stream_thread, NULL);//获取VENC线程while (1){sleep(2);}RK_MPI_VENC_DestroyChn(VENC_CHN);RK_MPI_VI_DisableChn(CAMERA_ID, CAMERA_CHN);return 0;
}

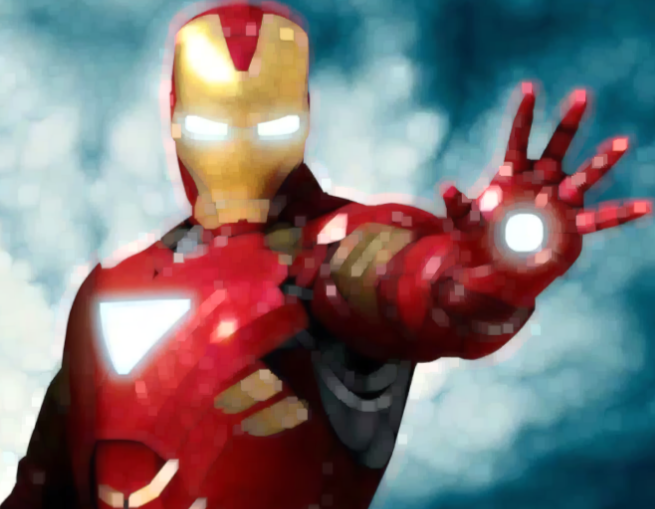

2.5.经过膨胀过后的结果
经过上面的编码后，我们来看看输出的H264文件。这个钢铁侠视频流更加的明亮，整个视频流的细节都变大了，包括手的部分、胸部发光源的部分等等。
