【stm32简单外设篇】- EC11 旋转编码器（带按键）

news 2025/11/7 9:14:43

一、适用场景
适用场景：菜单/参数旋转选择（电子设备 UI）、音量/亮度调节、机器人舵机微调、编码器计步/测速（低速）、人机交互（旋钮 + 按键）、嵌入式入门 GPIO/EXTI/TIM 实验。

二、器材清单

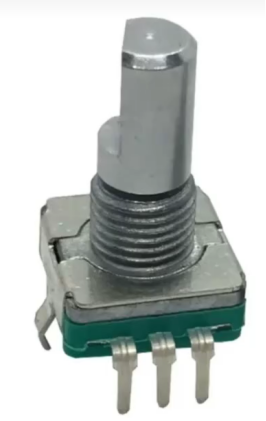

EC11 增量式旋转编码器（常见带按键）×1
stm32f103（或其它 STM32）开发板 ×1
若干杜邦线（公对母）×1组

三、工作原理（要点）

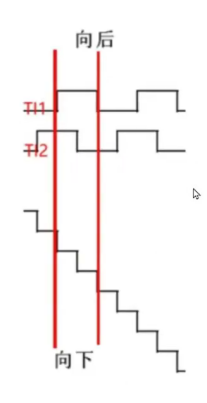

旋转输出信号：EC11 通常输出两路相位相差 90° 的方波（A、B），属于增量式正交编码器（quadrature encoder）。通过识别 A/B 的相位顺序即可判断旋转方向与步进。

按键信号：EC11 多带中间压下按键（SW），按键需要去抖与短/长按判定。

四、接线示意

VCC → +5V

GND → GND

标准库

PC3 →CLK

PA0 →DT

HAL库

PA6 →CLK

PA7 →DT

五、示例代码
标准库

#include "stm32f10x.h"
#include "stdio.h"
#include "bsp_SysTick.h"
#include "bsp_usart.h"int TEMP,NUM;
int cnt=0;
char show[20];void gpio_init()
{GPIO_InitTypeDef PA,PC;//使能时钟RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA,ENABLE);RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOC,ENABLE);PA.GPIO_Pin = GPIO_Pin_0;PA.GPIO_Mode = GPIO_Mode_IPU;PA.GPIO_Speed = GPIO_Speed_50MHz;GPIO_Init(GPIOA,&PA);PC.GPIO_Pin = GPIO_Pin_3;	 PC.GPIO_Mode = GPIO_Mode_IPU; PC.GPIO_Speed =	GPIO_Speed_50MHz;	 GPIO_Init(GPIOC, &PC);	}
int main()
{SysTick_Init();	    	 //延时函数初始化USART_Config();	gpio_init();TEMP=GPIO_ReadInputDataBit(GPIOC, GPIO_Pin_3);while(1){NUM = GPIO_ReadInputDataBit(GPIOC, GPIO_Pin_3);///旋钮事件if(NUM != TEMP){if(GPIO_ReadInputDataBit(GPIOA, GPIO_Pin_0) != NUM){ // 顺时针旋转cnt++;if(cnt>20)cnt=20;sprintf(show,"正转，num:%d\n",cnt);Usart_SendString(USART1,show);}else{ // 逆时针旋转cnt--;if(cnt<0)cnt=0;sprintf(show,"反转，num:%d\n",cnt);Usart_SendString(USART1,show);}}TEMP = NUM;}
}

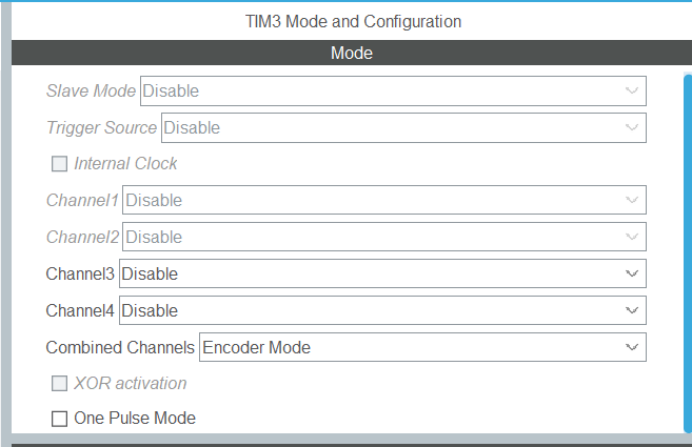

HAL库

int main(void)
{/* USER CODE BEGIN 1 */char show[20]={0};/* USER CODE END 1 *//* MCU Configuration--------------------------------------------------------*//* Reset of all peripherals, Initializes the Flash interface and the Systick. */HAL_Init();/* USER CODE BEGIN Init *//* USER CODE END Init *//* Configure the system clock */SystemClock_Config();/* USER CODE BEGIN SysInit *//* USER CODE END SysInit *//* Initialize all configured peripherals */MX_GPIO_Init();MX_TIM3_Init();MX_USART1_UART_Init();/* USER CODE BEGIN 2 */HAL_TIM_Encoder_Start(&htim3,TIM_CHANNEL_1);HAL_TIM_Encoder_Start(&htim3,TIM_CHANNEL_2);/* USER CODE END 2 *//* Infinite loop *//* USER CODE BEGIN WHILE */while (1){uint16_t cnt = __HAL_TIM_GET_COUNTER(&htim3)/2;sprintf(show,"Encoder=%u\r\n",cnt);HAL_UART_Transmit(&huart1,show,strlen(show),HAL_MAX_DELAY);HAL_Delay(200);/* USER CODE END WHILE *//* USER CODE BEGIN 3 */}/* USER CODE END 3 */
}

六、讲解视频

https://www.bilibili.com/video/BV1sPsPzYEnX/?spm_id_from=333.1387.upload.video_card.click&vd_source=f7dfe1b14f260b9cc3a146d2dbfd0719

https://www.bilibili.com/video/BV1sPsPzYERd/?spm_id_from=333.1387.upload.video_card.click&vd_source=f7dfe1b14f260b9cc3a146d2dbfd0719

https://www.bilibili.com/video/BV1bRsAzzEUa/?spm_id_from=333.1387.upload.video_card.click&vd_source=f7dfe1b14f260b9cc3a146d2dbfd0719
