Qwen3-VL微调自定义OCR任务

news 2025/11/4 8:52:14

使用自定义数据集微调Qwen/Qwen3-VL-2B-Instruct模型
1.使用autodl平台搭建系统环境
环境为
PyTorch 2.3.0
Python 3.12(ubuntu22.04)
CUDA 12.1
2.下载模型

from modelscope import snapshot_download
model_dir = snapshot_download('Qwen/Qwen3-VL-2B-Instruct')

3.将下载好的模型文件转移到自己定义的目录中
4.安装库
在安装过程中遇到一个问题，autodl已经配置的pip镜像，但是速度还是很慢，将其手动切换为清华源就快了很多，比较疑惑。不知道是不是我那台主机的问题。

pip install git+https://github.com/huggingface/transformers accelerate
pip install qwen-vl-utils[decord]==0.0.8
pip install sentencepiece==0.2.0 datasets==2.18.0 peft==0.13.2 swanlab==0.6.5 -i https://pypi.tuna.tsinghua.edu.cn/simple

5.创建Qwen文件夹，将下载的Qwen模型转移到该目录下
如果找不到下载的文件目录，可以在根目录下输入下面命令，来查看

du-h

6.在新建的Qwen目录下载github下的Qwen仓库代码

git clone https://github.com/QwenLM/Qwen3-VL.git

7.我的任务为字符识别任务，将数据处理为csv文件，如果不出来也可以只要最终生成json文件一致即可。

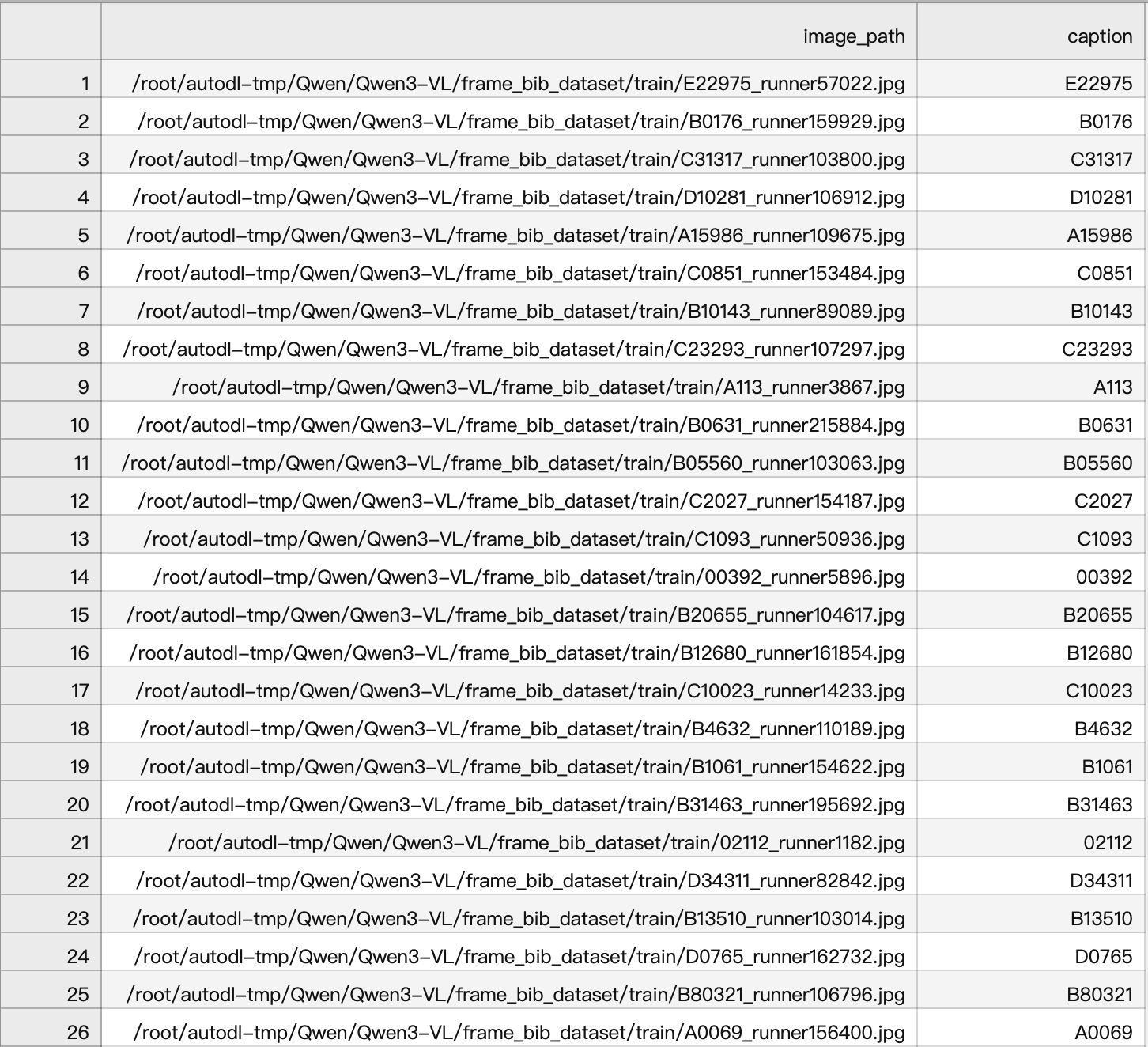

csv文件，image_path为图片路径，captain为要识别的字符结果(target)
在这里插入图片描述

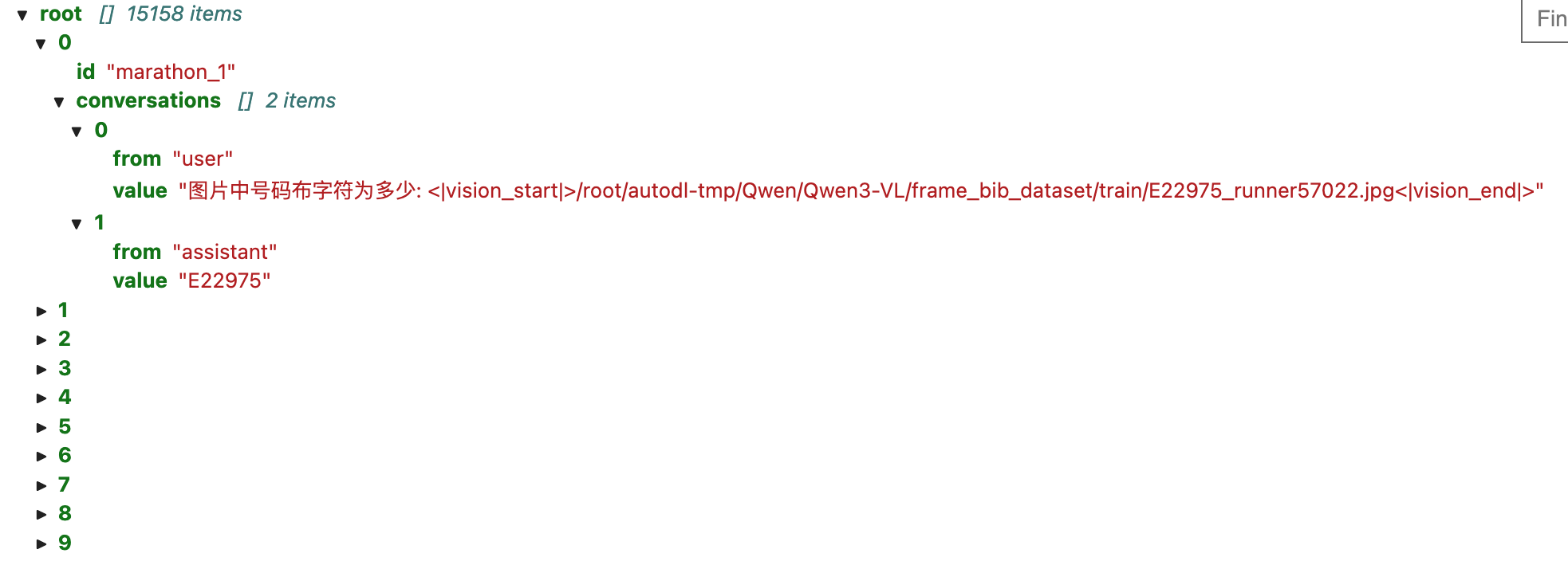

将csv文件处理为json文件

csv转json文件代码，可根据自己的数据调整代码，只要最终输出格式和json一样就行

import pandas as pd
import json
import os# 读取第一步生成的CSV文件
csv_path = 'csv文件路径'
if not os.path.exists(csv_path):raise FileNotFoundError(f"未找到CSV文件：{csv_path}，请先运行第一步代码")df = pd.read_csv(csv_path)
conversations = []# 转换为指定格式的对话数据
for i in range(len(df)):conversations.append({"id": f"marathon_{i+1}",  # 自定义ID格式"conversations": [{"from": "user",# 用视觉标记包裹图片路径（与你提供的示例格式一致）"value": f"图片中号码布字符为多少: <|vision_start|>{df.iloc[i]['image_path']}<|vision_end|>"},{"from": "assistant","value": df.iloc[i]['caption']  # 号码布字符作为回复}]})# 保存为JSON文件
json_path = '保存的json文件.json'
with open(json_path, 'w', encoding='utf-8') as f:json.dump(conversations, f, ensure_ascii=False, indent=2)print(f"JSON文件生成完成，保存路径：{os.path.abspath(json_path)}")

7.处理完后开始训练，训练代码如下

import torch
from datasets import Dataset
from modelscope import snapshot_download, AutoTokenizer
from swanlab.integration.transformers import SwanLabCallback
from qwen_vl_utils import process_vision_info
from peft import LoraConfig, TaskType, get_peft_model, PeftModel
from transformers import (TrainingArguments,Trainer,DataCollatorForSeq2Seq,Qwen3VLForConditionalGeneration,AutoProcessor,
)
import swanlab
import jsondef process_func(example):"""将数据集进行预处理"""MAX_LENGTH = 8192input_ids, attention_mask, labels = [], [], []conversation = example["conversations"]input_content = conversation[0]["value"]output_content = conversation[1]["value"]file_path = input_content.split("<|vision_start|>")[1].split("<|vision_end|>")[0]  # 获取图像路径messages = [{"role": "user","content": [{"type": "image","image": f"{file_path}","resized_height": 280,"resized_width": 280,},{"type": "text", "text": "图片字符为多少"},],}]text = processor.apply_chat_template(messages, tokenize=False, add_generation_prompt=True)  # 获取文本image_inputs, video_inputs = process_vision_info(messages)  # 获取数据数据（预处理过）inputs = processor(text=[text],images=image_inputs,videos=video_inputs,padding=True,return_tensors="pt",)inputs = {key: value.tolist() for key, value in inputs.items()} #tensor -> list,为了方便拼接instruction = inputsresponse = tokenizer(f"{output_content}", add_special_tokens=False)input_ids = (instruction["input_ids"][0] + response["input_ids"] + [tokenizer.pad_token_id])attention_mask = instruction["attention_mask"][0] + response["attention_mask"] + [1]labels = ([-100] * len(instruction["input_ids"][0])+ response["input_ids"]+ [tokenizer.pad_token_id])if len(input_ids) > MAX_LENGTH:  # 做一个截断input_ids = input_ids[:MAX_LENGTH]attention_mask = attention_mask[:MAX_LENGTH]labels = labels[:MAX_LENGTH]input_ids = torch.tensor(input_ids)attention_mask = torch.tensor(attention_mask)labels = torch.tensor(labels)inputs['pixel_values'] = torch.tensor(inputs['pixel_values'])inputs['image_grid_thw'] = torch.tensor(inputs['image_grid_thw']).squeeze(0)  #由（1,h,w)变换为（h,w）return {"input_ids": input_ids, "attention_mask": attention_mask, "labels": labels,"pixel_values": inputs['pixel_values'], "image_grid_thw": inputs['image_grid_thw']}# 在modelscope上下载Qwen2-VL模型到本地目录下
# model_dir = snapshot_download("Qwen/Qwen2-VL-2B-Instruct", cache_dir="./", revision="master")# 使用Transformers加载模型权重
tokenizer = AutoTokenizer.from_pretrained("/root/autodl-tmp/Qwen/Qwen3-VL-2B-Instruct", use_fast=False, trust_remote_code=True)
processor = AutoProcessor.from_pretrained("/root/autodl-tmp/Qwen/Qwen3-VL-2B-Instruct")model = Qwen3VLForConditionalGeneration.from_pretrained("/root/autodl-tmp/Qwen/Qwen3-VL-2B-Instruct", device_map="auto", torch_dtype=torch.bfloat16, trust_remote_code=True,)
model.enable_input_require_grads()  # 开启梯度检查点时，要执行该方法train_ds = Dataset.from_json("marathon_data_train_vl.json")
train_dataset = train_ds.map(process_func)# 配置LoRA
config = LoraConfig(task_type=TaskType.CAUSAL_LM,target_modules=["q_proj", "k_proj", "v_proj", "o_proj", "gate_proj", "up_proj", "down_proj"],inference_mode=False,  # 训练模式r=64,  # Lora 秩lora_alpha=16,  # Lora alaph，具体作用参见 Lora 原理lora_dropout=0.05,  # Dropout 比例bias="none",
)# 获取LoRA模型
peft_model = get_peft_model(model, config)# 配置训练参数
args = TrainingArguments(output_dir="./output/Qwen3-VL-2B",per_device_train_batch_size=4,gradient_accumulation_steps=4,logging_steps=10,logging_first_step=5,num_train_epochs=1,save_steps=200,learning_rate=1e-4,save_on_each_node=True,gradient_checkpointing=True,report_to="none",
)# 设置SwanLab回调
swanlab_callback = SwanLabCallback(project="Qwen3-VL-finetune",experiment_name="qwen3-vl-marathon-bib",config={"model": "https://modelscope.cn/models/Qwen/Qwen3-VL-2B-Instruct",# "dataset": "https://modelscope.cn/datasets/modelscope/coco_2014_caption/quickstart","github": "https://github.com/datawhalechina/self-llm","prompt": "图片中字符为多少: ","train_data_number": 15157,"lora_rank": 64,"lora_alpha": 16,"lora_dropout": 0.05,},
)# 配置Trainer
trainer = Trainer(model=peft_model,args=args,train_dataset=train_dataset,data_collator=DataCollatorForSeq2Seq(tokenizer=tokenizer, padding=True),callbacks=[swanlab_callback],
)# 开启模型训练
trainer.train()

在运行过程中，遇到磁盘空间满了的问题，因为autodl给的系统盘只有30G，我微调一个模型，数据集为1万多条时就将该系统盘完全占满。
因为在数据加载时，使用的datasets库，该库在系统盘下安装，导致在加载模型时缓存就保存到系统盘中，因此需要将数据加载的缓存转移到系统盘中，因为系统盘可以扩容。
只需要在train代码的最顶端加入下面代码，将其转移到autodl-tmp文件下即可，autodl-tmp即为其系统盘根目录。

import os
os.environ["HF_DATASETS_CACHE"] = "/root/autodl-tmp/huggingface/datasets"
os.environ["TRANSFORMERS_CACHE"] = "/root/autodl-tmp/huggingface/models"

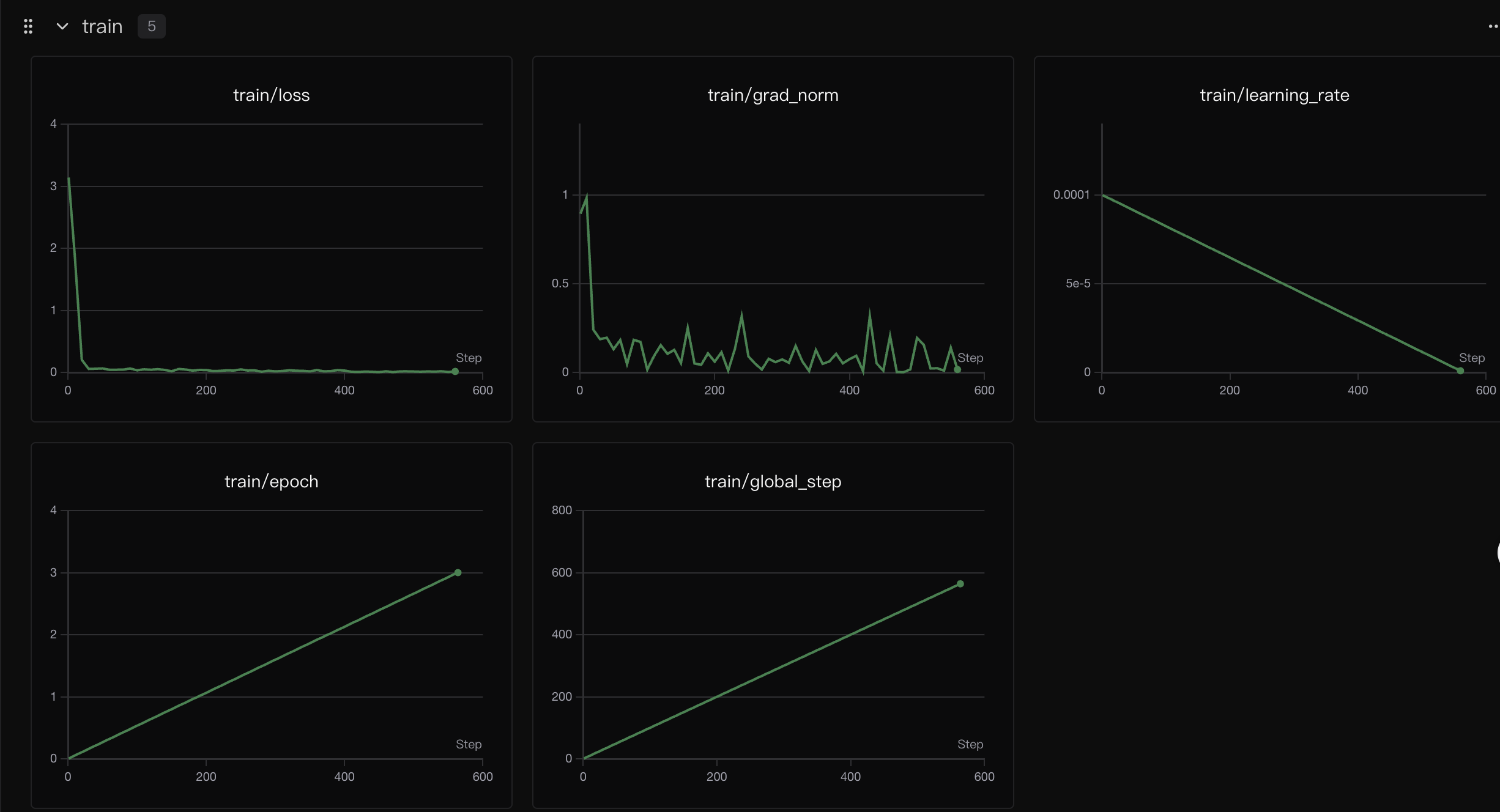

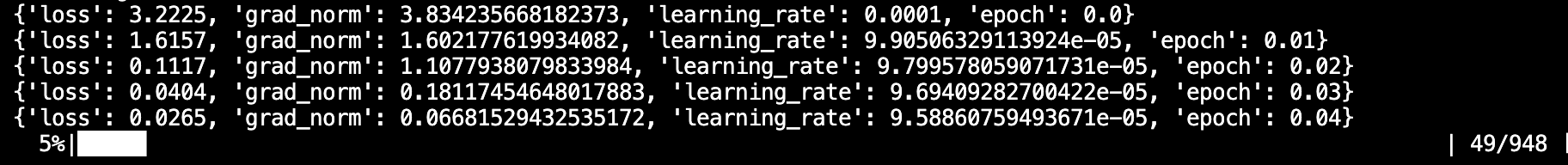

8.运行代码即可开始微调大模型
在这里插入图片描述
9.运行该代码需要创建SwanLab的个人账号，该平台用于显示当前微调模型的情况，如学习率，损失函数等。

10.对训练好后的模型进行预测，预测代码如下

import torch
from datasets import Dataset
from modelscope import snapshot_download, AutoTokenizer
from swanlab.integration.transformers import SwanLabCallback
from qwen_vl_utils import process_vision_info
from peft import LoraConfig, TaskType, get_peft_model, PeftModel
from transformers import (TrainingArguments,Trainer,DataCollatorForSeq2Seq,Qwen2_5_VLForConditionalGeneration,AutoProcessor,
)
import swanlab
import json
from PIL import Image
import osdef predict(messages, model):# 准备推理text = processor.apply_chat_template(messages, tokenize=False, add_generation_prompt=True)image_inputs, video_inputs = process_vision_info(messages)inputs = processor(text=[text],images=image_inputs,videos=video_inputs,padding=True,return_tensors="pt",)inputs = inputs.to("cuda")# 生成输出generated_ids = model.generate(**inputs, max_new_tokens=128)generated_ids_trimmed = [out_ids[len(in_ids) :] for in_ids, out_ids in zip(inputs.input_ids, generated_ids)]output_text = processor.batch_decode(generated_ids_trimmed, skip_special_tokens=True, clean_up_tokenization_spaces=False)return output_text[0]# 使用Transformers加载模型权重
tokenizer = AutoTokenizer.from_pretrained("/root/autodl-tmp/Qwen/Qwen2.5-VL-3B-Instruct", use_fast=False, trust_remote_code=True)
processor = AutoProcessor.from_pretrained("/root/autodl-tmp/Qwen/Qwen2.5-VL-3B-Instruct")model = Qwen2_5_VLForConditionalGeneration.from_pretrained("/root/autodl-tmp/Qwen/Qwen2.5-VL-3B-Instruct", device_map="auto", torch_dtype=torch.bfloat16, trust_remote_code=True,)swanlab.init(project="marathon_number_prediction",  # 自定义项目名称（可修改）experiment_name="predict_test",  # 实验名称（可修改）description=""  # 可选：添加实验描述
)# 配置测试参数
val_config = LoraConfig(task_type=TaskType.CAUSAL_LM,target_modules=["q_proj", "k_proj", "v_proj", "o_proj", "gate_proj", "up_proj", "down_proj"],inference_mode=True,  # 训练模式r=64,  # Lora 秩lora_alpha=16,  # Lora alaph，具体作用参见 Lora 原理lora_dropout=0.05,  # Dropout 比例bias="none",
)# 获取测试模型
val_peft_model = PeftModel.from_pretrained(model, model_id="./output/Qwen2.5-VL-3B/checkpoint-564", config=val_config)# 读取测试数据
with open("marathon_data_val_vl.json", "r") as f:test_dataset = json.load(f)test_image_list = []
count = 0
for item in test_dataset:input_image_prompt = item["conversations"][0]["value"]# 去掉前后的<|vision_start|>和<|vision_end|>origin_image_path = input_image_prompt.split("<|vision_start|>")[1].split("<|vision_end|>")[0]messages = [{"role": "user", "content": [{"type": "image", "image": origin_image_path},{"type": "text","text": "图中字符为多少:"}]}]response = predict(messages, val_peft_model)messages.append({"role": "assistant", "content": f"{response}"})if bib_number == messages[-1]["content"]:count += 1print(messages[-1])origin_image = Image.open(origin_image_path).convert("RGB")test_image_list.append(swanlab.Image(origin_image, caption=response))
swanlab.log({"Prediction": test_image_list})swanlab.finish()
