ELK运维之路(使用Logstatsh对日志进行处理综合案例)

news 2025/10/24 12:55:00

综合案例(使用Logstatsh对采集日志进行处理)

说个前提你的日志要可控，日志要可控，日志要可控，否则你会采集到怀疑人生，尤其在生产环境，需要和研发进行良好沟通。哇哈哈！

要求
1.对Nginx的access.log日志进行分析，使用设备，客户端IP地址，归属地，PV，UP，IP统计
2.对app.log 分析价格 svip的人数，分布情况，价格等

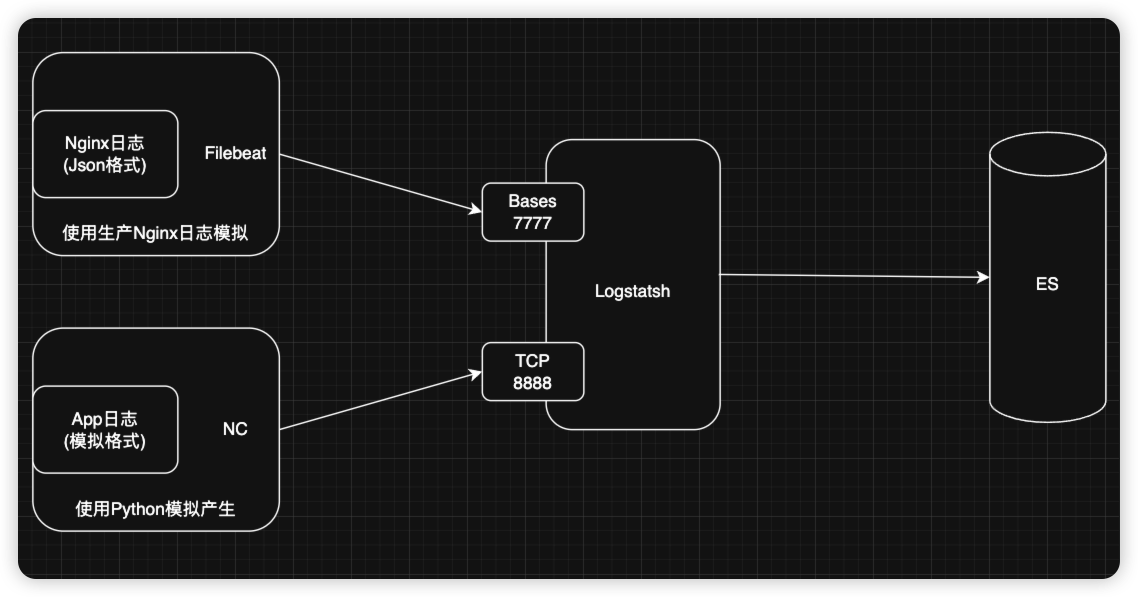

• Bases端口:7777
• TCP端口: 8888

1.Logstatsh配置

root@ubuntu2204test99:~/elkf/logstash/pipeline# cat beats-tcp-redis-logstatsh-es.conf
input {beats {type => "soure-bates"port => 7777}tcp {type => "soure-tcp"port => 8888}#redis {#  type => "soure-redis"#  data_type => "list"#  db => 5#  host => "192.168.1.43"#  port => "6379"#  password => "123456"#  key => "filebeat-log"#}
}filter {mutate {add_field => {"boos" => "Wolf"}}if [type] == "soure-bates" {mutate {remove_field => ["agent", "host", "@version", "ecs", "tags", "input", "log"]}geoip {source => "remote_ip"#fileds => ["city_name","country_name","ip"]target => "geoip_ip_target"}useragent {source => "http_user_agent"target => "useragent_target"}} else {mutate {remove_field => ["port", "host", "@version"]split => {# 对指定字段指定切割条件，进行字段切割"message" => "|"}# 添加字段，字段内容引用切割后的内容分段add_field => {"user_id" => "%{[message][1]}""action" => "%{[message][2]}""svip" => "%{[message][3]}""price" => "%{[message][4]}"}# 去掉字段2边的空格strip => ["svip"]# 将price字段拷贝到price_wolf字段当中copy => {"price" => "price_wolf"}# 修改字段名称rename => {"svip" => "supsvip"}# 替换字段内容replace => { "message" => "%{message}: My new Message"}#指定字段的字母全部大写uppercase => [ "message" ]}# 将制定字段转换为对应数据类型mutate {convert => {"user_id" => "integer""svip" => "boolean""price" => "float"}}}
}output {stdout {}if [type] == "soure-bates"{elasticsearch {hosts => ["192.168.1.99:9201","192.168.1.99:9202","192.168.1.99:9203"]user => "elastic"password => "123456"index => "soure-bates-%{+yyyy.MM.dd}"}} else if [type] == "soure-tcp" {elasticsearch {hosts => ["192.168.1.99:9201","192.168.1.99:9202","192.168.1.99:9203"]user => "elastic"password => "123456"index => "soure-tcp-%{+yyyy.MM.dd}"}} else {elasticsearch {hosts => ["192.168.1.99:9201","192.168.1.99:9202","192.168.1.99:9203"]user => "elastic"password => "123456"index => "soure-other-%{+yyyy.MM.dd}"}}
}

2.Filebeat配置

2.1 Nginx采集Json日志

# Nginx日志监控
root@ubuntu2204test99:/usr/local/filebeat-7.17.24# cat filebeat-nginxlog-json-logstatsh.yml
filebeat.inputs:
- type: logenable: truetags: ["nginxjson-log"]json.keys_under_root: true #对Json格式的日志进行解析并放在顶级字段,如果不是json格式会有大量报错paths:- /root/nginx_log/access_json_nginx.logfields:nginx: truelog_type: jsonfields_under_root: false
output.logstash:hosts: ["192.168.1.99:7777"]
# 测试启动命令
root@ubuntu2204test99:/usr/local/filebeat-7.17.24# ./filebeat -e -c filebeat-nginxlog-json-logstatsh.yml --path.data /tmp/filebeat001

2.2 采集开发日志

# 使用NC将日志传入到logstatsh中
root@ubuntu2204test99:~/log-python# cat /tmp/app.log |nc 192.168.1.99 8888

2.3 Nginx日志参考格式

root@ubuntu2204test99:~# cat nginx_log/access_json_nginx.log
{"timestamp":"2025-10-11T15:00:28.603+08:00","server_ip":"10.0.0.17","remote_ip":"221.8.152.37","xff":"-","remote_user":"-","domain":"www.testserv.com","url":"/prod-api/easy-test/goodjm/getBrandId","referer":"https://www.testserv.com/","upstreamtime":"0.002","responsetime":"0.003","request_method":"POST","status":"200","response_length":"505","request_length":"109","protocol":"HTTP/2.0","upstreamhost":"10.0.0.44:30003","http_user_agent":"Mozilla/5.0 (Windows NT 10.0) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/108.0.5359.125 Safari/537.36 JM_PC/12.13.0.0 Language/zh_CN jmpc;jdlog;windows;12.13.0.0;(Windows 10 Version 2004); JMPCHLM"}
{"timestamp":"2025-10-11T15:00:28.779+08:00","server_ip":"10.0.0.17","remote_ip":"140.255.68.184","xff":"-","remote_user":"-","domain":"www.testserv.com","url":"/prod-api/easy-test/taobaoProduct/search","referer":"https://www.testserv.com/","upstreamtime":"2.738","responsetime":"2.738","request_method":"POST","status":"200","response_length":"10496","request_length":"1285","protocol":"HTTP/2.0","upstreamhost":"10.0.0.14:30003","http_user_agent":"Mozilla/5.0 (Windows NT 10.0) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/108.0.5359.125 Safari/537.36 JM_PC/12.13.0.0 Language/zh_CN jmpc;jdlog;windows;12.13.0.0;(Windows 10 Version 22H2); JMPCHLM"}

2.4 研发日志

root@ubuntu2204test99:~# cat /tmp/app.log
INFO 2025-10-17 05:14:17 [com.bobo.log_generator] - DAU|7218|提交订单|1|2439.51
INFO 2025-10-17 05:14:22 [com.bobo.log_generator] - DAU|7207|评论产品|1|1578.42
INFO 2025-10-17 05:14:23 [com.bobo.log_generator] - DAU|9652|提交订单|1|2486.18
INFO 2025-10-17 05:14:26 [com.bobo.log_generator] - DAU|5095|空购物车|0|1920.26
INFO 2025-10-17 05:14:29 [com.bobo.log_generator] - DAU|3757|加入购物车|1|1600.62
INFO 2025-10-17 05:14:32 [com.bobo.log_generator] - DAU|2265|使用优惠券|1|2967.05
INFO 2025-10-17 05:14:36 [com.bobo.log_generator] - DAU|3640|评论产品|0|2932.49
INFO 2025-10-17 05:14:39 [com.bobo.log_generator] - DAU|1270|提交订单|1|2780.55
INFO 2025-10-17 05:14:40 [com.bobo.log_generator] - DAU|2128|加入购物车|0|2317.06
INFO 2025-10-17 05:14:44 [com.bobo.log_generator] - DAU|6283|评论产品|1|2737.0
INFO 2025-10-17 05:14:47 [com.bobo.log_generator] - DAU|156|浏览产品|0|1697.01
INFO 2025-10-17 05:14:51 [com.bobo.log_generator] - DAU|2926|使用优惠券|1|1629.04
INFO 2025-10-17 05:14:52 [com.bobo.log_generator] - DAU|8780|提交订单|1|2448.92
INFO 2025-10-17 05:14:56 [com.bobo.log_generator] - DAU|8391|领取优惠券|0|2676.02
INFO 2025-10-17 05:14:59 [com.bobo.log_generator] - DAU|6675|使用优惠券|0|2807.36
INFO 2025-10-17 05:15:02 [com.bobo.log_generator] - DAU|2248|领取优惠券|1|2715.31
INFO 2025-10-17 05:15:03 [com.bobo.log_generator] - DAU|1007|使用优惠券|1|2759.94
INFO 2025-10-17 05:15:06 [com.bobo.log_generator] - DAU|7130|加入购物车|0|2787.82
INFO 2025-10-17 05:15:07 [com.bobo.log_generator] - DAU|6850|评论产品|1|1650.43
INFO 2025-10-17 05:15:11 [com.bobo.log_generator] - DAU|920|提交订单|1|2758.11
