Qt+Qml客户端和Python服务端的网络通信原型

一、背景介绍

1、什么是网络通信原型？

这个原型演示了现代客户端-服务器架构的基本实现。

2、为什么用Qt+Qml和Python组合？

• Qt+Qml：擅长构建美观的图形界面，适合需要丰富用户交互的场景
• Python：在数据处理和后端服务方面有强大生态，开发效率高
• 优势互补：Python处理复杂业务逻辑，Qt展示精美界面，各取所长

3、适用场景

• 物联网设备监控面板
• 数据可视化控制系统
• 远程设备管理工具
• 学习网络编程和GUI开发的入门项目

二、功能

• 自动状态更新：服务端每秒发送状态信息
• 多种预设命令：获取信息、计算、回显等
• 自定义命令：支持发送任意JSON格式命令
• 实时响应显示
• 连接状态监控

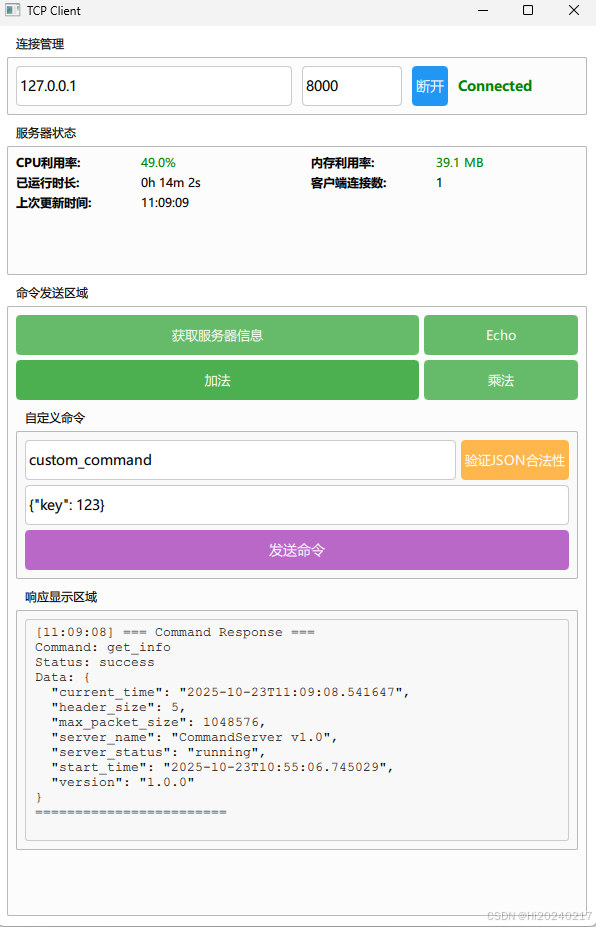

三、效果图

四、扩展自定义命令

1、编写处理函数

def control_light_handler(data):"""控制灯光命令处理函数"""light_status = data.get("status", "off")if light_status == "on":# 实际项目中这里会控制真实的硬件result = "灯光已打开"elif light_status == "off":result = "灯光已关闭"else:return {"status": "error", "message": "未知的灯光状态"}return {"status": "success", "data": {"result": result}}

2、注册到服务器

# 告诉服务器：当收到"control_light"命令时，调用control_light_handler函数
server.register_command_handler("control_light", control_light_handler)

3、在客户端发送命令

// 在QML中添加一个按钮
Button {text: "打开灯光"onClicked: {tcpClient.sendCommand("control_light", {"status": "on"})}
}

五、QML数据绑定解析

数据绑定是实现动态UI更新的核心机制，以下是：

1、数据绑定流程

TCP信号 → 属性更新 → UI自动重绘↓
onStatusUpdateReceived(status) → serverStatus = status↓
StatusItem.value/color自动更新 → 界面刷新

2、绑定优势

2.1、 声明式编程 - 说什么，而不是怎么做

// 传统方式（命令式）：需要手动更新
function updateStatus(newStatus) {statusLabel.text = newStatus.textstatusLabel.color = newStatus.colorprogressBar.value = newStatus.value// ... 很多更新代码
}// QML方式（声明式）：只需声明关系
Label {text: serverStatus.textcolor: serverStatus.color
}
ProgressBar {value: serverStatus.value
}
// 当serverStatus变化时，一切都自动更新！

2.2、 减少胶水代码 - 更少的bug，更快的开发

传统方式可能需要大量这样的代码：

// 繁琐的更新代码
socket.on('data', function(data) {updateStatusDisplay(data.status);updateButtonState(data.connected);updateErrorDisplay(data.error);// ... 更多更新函数
});

QML中只需要：

Connections {target: tcpClientfunction onStatusUpdateReceived(status) {serverStatus = status  // 一行代码搞定！}
}

2.3、 自动同步 - 数据一致性保证

由于所有UI都绑定到数据源，不会出现数据显示不一致的情况：

• 不会出现A界面显示"已连接"，B按钮却显示"连接"的bug
• 数据变化时，所有相关界面同时更新

这种数据绑定机制使得UI能够实时响应后端数据变化，是QML框架的核心特性之一。

3、主要的数据绑定功能

3.1、 属性绑定

// 直接属性绑定
text: tcpClient.connected ? "断开" : "连接"
color: tcpClient.connected ? "green" : "red"

• 按钮文本和状态标签颜色自动响应tcpClient.connected状态变化
• 无需手动更新，QML引擎自动处理依赖关系

3.2、 状态显示绑定

StatusItem {label: "CPU利用率"value: serverStatus.cpu_usage ? (serverStatus.cpu_usage * 100).toFixed(1) + "%" : "N/A"color: serverStatus.cpu_usage > 0.8 ? "red" : serverStatus.cpu_usage > 0.6 ? "orange" : "green"
}

• value和color属性绑定到serverStatus.cpu_usage
• 当服务器状态更新时，UI自动重新计算并显示新值

3.3、 可见性绑定

Label {visible: tcpClient.lastError  // 仅当有错误时显示text: "Error: " + tcpClient.lastError
}

• 错误标签的可见性绑定到tcpClient.lastError属性
• 有错误时自动显示，无错误时自动隐藏

3.4、 布局尺寸绑定

ColumnLayout {anchors.fill: parent  // 绑定到父窗口尺寸anchors.margins: 10
}

• 布局自动填充整个父窗口
• 窗口大小改变时，布局自动调整

3.5、 模型数据绑定

Repeater {model: [{"text": "获取服务器信息", "command": "get_info", ...}]Button {text: modelData.text  // 绑定到模型数据onClicked: tcpClient.sendCommand(modelData.command, modelData.data)}
}

• 按钮文本和命令数据绑定到模型数组
• 模型变化时，UI自动更新

3.6、 信号-槽绑定

Connections {target: tcpClientfunction onStatusUpdateReceived(status) {serverStatus = status  // 更新绑定源数据}
}

• 当TCP客户端发出statusUpdateReceived信号时自动调用
• 更新serverStatus，触发所有相关UI更新

六、代码实现

整体架构图

┌─────────────────┐    JSON over TCP    ┌─────────────────┐
│   QML客户端      │ ←────────────────→  │   Python服务端   │
│                 │                     │                 │
│ • 用户界面       │                     │ • 业务逻辑处理   │
│ • 数据绑定       │                     │ • 命令路由       │
│ • 网络通信       │                     │ • 状态广播       │
└─────────────────┘                     └─────────────────┘

1、 Python服务端 - 智能命令处理器

1.1、消息协议设计

# 数据包格式：类型(1字节) + 长度(4字节) + 数据(JSON)
# 1: 状态更新, 2: 客户端命令, 3: 命令响应def _pack_message(self, message_type, data):"""打包消息：确保数据完整传输"""data_bytes = json.dumps(data).encode('utf-8')data_length = len(data_bytes)# 使用struct确保二进制数据的正确格式header = struct.pack('<BI', message_type, data_length)return header + data_bytes

1.2、命令路由机制

class CommandServer:def __init__(self):# 命令处理器字典：命令名 → 处理函数self.command_handlers = {"get_info": self._handle_get_info,      # 获取信息"calculate": self._handle_calculate,    # 数学计算"echo": self._handle_echo,             # 回显测试# 可以轻松扩展新命令！}def process_command(self, command_data):"""智能命令路由"""command = command_data["command"]if command in self.command_handlers:# 找到对应的处理器并执行handler = self.command_handlers[command]return handler(command_data.get("data", {}))else:return {"status": "error", "message": f"未知命令: {command}"}

1.3、完整代码

import socket
import json
import time
import threading
from datetime import datetime
import logging
import struct
import signal
import sys# 配置日志
logging.basicConfig(level=logging.INFO, format='%(asctime)s - %(levelname)s - %(message)s')
logger = logging.getLogger(__name__)class CommandServer:def __init__(self, host='0.0.0.0', port=8000):self.host = hostself.port = portself.socket = Noneself.client_conn = Noneself.client_addr = Noneself.running = Falseself.shutting_down = Falseself.server_status = {"cpu_usage": 0.0,"memory_usage": 0.0,"connected_clients": 0,"uptime": 0,"timestamp": ""}# 命令处理回调函数字典self.command_handlers = {"get_info": self._handle_get_info,"calculate": self._handle_calculate,"set_interval": self._handle_set_interval,"shutdown": self._handle_shutdown,"echo": self._handle_echo}self.start_time = time.time()self.max_packet_size = 1024 * 1024  # 1MB最大包大小self.header_size = struct.calcsize('<BI')  # 计算头部大小# 设置信号处理self._setup_signal_handlers()def _setup_signal_handlers(self):"""设置信号处理器"""def signal_handler(sig, frame):logger.info(f"Received signal {sig}, initiating graceful shutdown...")self.graceful_shutdown()signal.signal(signal.SIGINT, signal_handler)   # Ctrl+Csignal.signal(signal.SIGTERM, signal_handler)  # 终止信号def graceful_shutdown(self):"""优雅关闭服务器"""if self.shutting_down:returnself.shutting_down = Truelogger.info("Initiating graceful shutdown...")# 设置运行标志为Falseself.running = False# 如果有客户端连接，先关闭客户端连接if self.client_conn:try:logger.info("Closing client connection...")self.client_conn.close()except Exception as e:logger.error(f"Error closing client connection: {e}")finally:self.client_conn = None# 关闭服务器socketif self.socket:try:logger.info("Closing server socket...")self.socket.close()except Exception as e:logger.error(f"Error closing server socket: {e}")finally:self.socket = Nonelogger.info("Server shutdown complete")def _pack_message(self, message_type, data):"""打包消息：类型(1字节) + 数据长度(4字节) + 数据"""try:if isinstance(data, dict):data_str = json.dumps(data, ensure_ascii=False)else:data_str = str(data)data_bytes = data_str.encode('utf-8')data_length = len(data_bytes)# 使用小端字节序打包header = struct.pack('<BI', message_type, data_length)packet = header + data_bytesreturn packetexcept Exception as e:logger.error(f"Pack message error: {e}")return Nonedef _unpack_message(self, data):"""解包消息"""try:# 检查是否有足够的数据读取头部if len(data) < self.header_size:return None, None, data  # 数据不完整，等待更多数据# 解包头部header = data[:self.header_size]message_type, data_length = struct.unpack('<BI', header)# 检查数据包总大小total_packet_size = self.header_size + data_lengthif len(data) < total_packet_size:return None, None, data  # 数据不完整# 检查数据长度是否合理if data_length > self.max_packet_size:logger.warning(f"Packet too large: {data_length} bytes")# 跳过这个过大的数据包remaining_data = data[total_packet_size:]return None, remaining_data, None# 提取数据部分data_bytes = data[self.header_size:total_packet_size]remaining_data = data[total_packet_size:]# 解析JSON数据try:data_str = data_bytes.decode('utf-8')data_obj = json.loads(data_str)return message_type, data_obj, remaining_dataexcept (json.JSONDecodeError, UnicodeDecodeError) as e:logger.error(f"Data decode error: {e}")return None, remaining_data, Noneexcept struct.error as e:logger.error(f"Unpack error: {e}, data length: {len(data)}")# 如果解包失败，清空缓冲区return None, None, b''except Exception as e:logger.error(f"Unexpected unpack error: {e}")return None, None, b''def _send_message(self, conn, message_type, data):"""发送消息"""try:packet = self._pack_message(message_type, data)if packet is None:logger.error("Failed to pack message")return Falsetotal_sent = 0while total_sent < len(packet):sent = conn.send(packet[total_sent:])if sent == 0:raise RuntimeError("Socket connection broken")total_sent += sentreturn Trueexcept Exception as e:logger.error(f"Send message error: {e}")return Falsedef _validate_command(self, command_data):"""验证命令数据的合法性"""if not isinstance(command_data, dict):return False, "Command data must be a dictionary"if 'command' not in command_data:return False, "Missing 'command' field"command = command_data['command']if not isinstance(command, str):return False, "Command must be a string"if len(command) > 100:  # 命令名长度限制return False, "Command name too long"if not command.isidentifier():  # 检查命令名是否合法return False, "Command name must be a valid identifier"# 检查数据字段if 'data' in command_data and not isinstance(command_data['data'], dict):return False, "Data field must be a dictionary"return True, "Valid"def _handle_get_info(self, data):"""处理获取信息命令"""return {"status": "success","data": {"server_name": "CommandServer v1.0","version": "1.0.0","start_time": datetime.fromtimestamp(self.start_time).isoformat(),"current_time": datetime.now().isoformat(),"max_packet_size": self.max_packet_size,"header_size": self.header_size,"server_status": "shutting_down" if self.shutting_down else "running"}}def _handle_calculate(self, data):"""处理计算命令"""try:operation = data.get("operation")a = data.get("a", 0)b = data.get("b", 0)# 输入验证if not isinstance(a, (int, float)) or not isinstance(b, (int, float)):return {"status": "error", "message": "Parameters must be numbers"}result = 0if operation == "add":result = a + belif operation == "subtract":result = a - belif operation == "multiply":result = a * belif operation == "divide":if b == 0:return {"status": "error", "message": "Division by zero"}result = a / belse:return {"status": "error", "message": f"Unknown operation: {operation}"}return {"status": "success","data": {"operation": operation,"result": result,"expression": f"{a} {operation} {b} = {result}"}}except Exception as e:return {"status": "error", "message": f"Calculation error: {str(e)}"}def _handle_set_interval(self, data):"""处理设置间隔命令"""interval = data.get("interval", 1.0)if not isinstance(interval, (int, float)):return {"status": "error", "message": "Interval must be a number"}if interval < 0.1 or interval > 60:return {"status": "error", "message": "Interval must be between 0.1 and 60 seconds"}return {"status": "success", "data": {"new_interval": interval},"message": f"Interval updated to {interval} seconds"}def _handle_shutdown(self, data):"""处理关闭命令"""if self.shutting_down:return {"status": "error","message": "Server is already shutting down"}delay = data.get("delay", 5)if not isinstance(delay, int) or delay < 0 or delay > 3600:return {"status": "error", "message": "Delay must be integer between 0 and 3600"}# 启动延迟关闭def delayed_shutdown():time.sleep(delay)self.graceful_shutdown()shutdown_thread = threading.Thread(target=delayed_shutdown)shutdown_thread.daemon = Trueshutdown_thread.start()return {"status": "success","data": {"shutdown_in": delay},"message": f"Server will shutdown in {delay} seconds"}def _handle_echo(self, data):"""处理回显命令"""message = data.get("message", "")if not isinstance(message, str):return {"status": "error", "message": "Message must be a string"}if len(message) > 1000:return {"status": "error", "message": "Message too long"}return {"status": "success","data": {"echo": message},"message": f"Echo: {message}"}def process_command(self, command_data):"""处理客户端命令"""try:# 验证命令数据is_valid, validation_msg = self._validate_command(command_data)if not is_valid:return {"status": "error","message": f"Invalid command format: {validation_msg}"}command = command_data["command"]data = command_data.get("data", {})if command in self.command_handlers:logger.info(f"Processing command: {command}")response = self.command_handlers[command](data)response["command"] = commandreturn responseelse:return {"status": "error","message": f"Unknown command: {command}","command": command}except Exception as e:logger.error(f"Error processing command: {e}")return {"status": "error","message": f"Command processing error: {str(e)}","command": command_data.get("command", "unknown")}def update_server_status(self):"""更新服务器状态信息"""self.server_status["uptime"] = round(time.time() - self.start_time, 2)self.server_status["timestamp"] = datetime.now().isoformat()# 模拟CPU和内存使用率self.server_status["cpu_usage"] = round((time.time() % 100) / 100, 2)self.server_status["memory_usage"] = round(30 + (time.time() % 70), 2)self.server_status["connected_clients"] = 1 if self.client_conn else 0self.server_status["server_status"] = "shutting_down" if self.shutting_down else "running"def status_broadcast_worker(self):"""状态广播工作线程"""while self.running and not self.shutting_down:if self.client_conn:try:self.update_server_status()self._send_message(self.client_conn, 1, {  # 类型1: 状态更新"type": "status_update","data": self.server_status})except Exception as e:logger.error(f"Error sending status update: {e}")breaktime.sleep(1)  # 每秒发送一次def handle_client(self):"""处理客户端连接"""logger.info(f"Client connected: {self.client_addr}")# 为每个客户端连接维护接收缓冲区receive_buffer = b''# 启动状态广播线程status_thread = threading.Thread(target=self.status_broadcast_worker)status_thread.daemon = Truestatus_thread.start()try:while self.running and not self.shutting_down:# 设置socket超时，以便定期检查关闭状态self.client_conn.settimeout(1.0)try:# 接收数据data = self.client_conn.recv(4096)if not data:logger.info("Client disconnected (no data)")breakreceive_buffer += datalogger.debug(f"Received {len(data)} bytes, buffer size: {len(receive_buffer)}")# 处理缓冲区中的所有完整数据包processed_count = 0while True:message_type, message_data, remaining_data = self._unpack_message(receive_buffer)if message_type is None:# 没有完整的数据包，等待更多数据if processed_count == 0 and len(receive_buffer) > self.max_packet_size:# 缓冲区过大但没有完整包，可能是协议错误，清空缓冲区logger.warning(f"Buffer too large ({len(receive_buffer)} bytes), clearing buffer")receive_buffer = b''break# 更新缓冲区为剩余数据receive_buffer = remaining_dataprocessed_count += 1if message_type == 2:  # 类型2: 客户端命令if message_data:response = self.process_command(message_data)self._send_message(self.client_conn, 3, response)  # 类型3: 命令响应else:logger.warning("Received empty message data for command")else:logger.warning(f"Unknown message type: {message_type}")error_response = {"status": "error","message": f"Unknown message type: {message_type}"}self._send_message(self.client_conn, 3, error_response)except socket.timeout:# 超时，继续检查运行状态continueexcept BlockingIOError:# 非阻塞模式下无数据可用，继续检查continueexcept ConnectionResetError:logger.info("Client connection reset")except Exception as e:if not self.shutting_down:  # 只有在非关闭状态下才记录错误logger.error(f"Client handling error: {e}")finally:logger.info(f"Client disconnected: {self.client_addr}")if self.client_conn:try:self.client_conn.close()except Exception as e:logger.error(f"Error closing client connection: {e}")finally:self.client_conn = Nonedef start(self):"""启动服务器"""self.socket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)self.socket.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)try:self.socket.bind((self.host, self.port))self.socket.listen(1)self.running = Trueself.shutting_down = Falselogger.info(f"Server started on {self.host}:{self.port}")logger.info(f"Header size: {self.header_size} bytes")logger.info(f"Max packet size: {self.max_packet_size} bytes")logger.info("Press Ctrl+C to gracefully shutdown the server")while self.running and not self.shutting_down:try:# 设置accept超时，以便定期检查关闭状态self.socket.settimeout(1.0)self.client_conn, self.client_addr = self.socket.accept()# 设置socket选项self.client_conn.setsockopt(socket.IPPROTO_TCP, socket.TCP_NODELAY, 1)self.handle_client()except socket.timeout:# 超时，继续检查运行状态continueexcept OSError as e:if self.shutting_down:# 在关闭过程中，socket被关闭是预期的breakelse:logger.error(f"Socket error: {e}")breakexcept Exception as e:if not self.shutting_down:  # 只有在非关闭状态下才记录错误logger.error(f"Server error: {e}")finally:self.graceful_shutdown()def stop(self):"""停止服务器 - 向后兼容"""self.graceful_shutdown()def register_command_handler(self, command, handler):"""注册新的命令处理函数"""self.command_handlers[command] = handlerlogger.info(f"Registered new command handler for: {command}")def my_custom_handler(data):print(data)return {"status": "success", "data": {"result": "custom operation"}}if __name__ == "__main__":server = CommandServer()server.register_command_handler("custom_command", my_custom_handler)try:server.start()except KeyboardInterrupt:logger.info("Server interrupted by user (KeyboardInterrupt)")server.graceful_shutdown()except Exception as e:logger.error(f"Unexpected error: {e}")server.graceful_shutdown()

2、 Qt+Qml客户端 - 响应式用户界面

2.1、tcpclient.h

#ifndef TCPCLIENT_H
#define TCPCLIENT_H#include <QObject>
#include <QTcpSocket>
#include <QTimer>
#include <QJsonDocument>
#include <QJsonObject>
#include <QJsonArray>
#include <QByteArray>class TcpClient : public QObject
{Q_OBJECTQ_PROPERTY(bool connected READ connected NOTIFY connectedChanged)Q_PROPERTY(QString status READ status NOTIFY statusChanged)Q_PROPERTY(QString lastError READ lastError NOTIFY lastErrorChanged)public:explicit TcpClient(QObject *parent = nullptr);~TcpClient();bool connected() const { return m_connected; }QString status() const { return m_status; }QString lastError() const { return m_lastError; }Q_INVOKABLE void connectToServer(const QString &host, int port);Q_INVOKABLE void disconnectFromServer();Q_INVOKABLE void sendCommand(const QString &command, const QJsonObject &data = QJsonObject());private:// 数据包类型定义enum MessageType {StatusUpdate = 1,ClientCommand = 2,CommandResponse = 3};QByteArray packMessage(quint8 type, const QJsonObject &data);bool unpackMessage(const QByteArray &data, quint8 &type, QJsonObject &message, QByteArray &remaining);void processReceivedData();private slots:void onConnected();void onDisconnected();void onReadyRead();void onErrorOccurred(QAbstractSocket::SocketError error);signals:void connectedChanged(bool connected);void statusChanged(const QString &status);void lastErrorChanged(const QString &error);void statusUpdateReceived(const QJsonObject &status);void commandResponseReceived(const QJsonObject &response);void serverMessageReceived(const QString &message);private:QTcpSocket *m_socket;bool m_connected;QString m_status;QString m_lastError;QByteArray m_receiveBuffer;
};#endif // TCPCLIENT_H

2.2、tcpclient.cpp

#include "tcpclient.h"
#include <QDebug>
#include <QDataStream>TcpClient::TcpClient(QObject *parent): QObject(parent), m_socket(new QTcpSocket(this)), m_connected(false), m_status("Disconnected"), m_lastError("")
{connect(m_socket, &QTcpSocket::connected, this, &TcpClient::onConnected);connect(m_socket, &QTcpSocket::disconnected, this, &TcpClient::onDisconnected);connect(m_socket, &QTcpSocket::readyRead, this, &TcpClient::onReadyRead);connect(m_socket, &QTcpSocket::errorOccurred, this, &TcpClient::onErrorOccurred);// 设置socket选项m_socket->setSocketOption(QAbstractSocket::LowDelayOption, 1);
}TcpClient::~TcpClient()
{disconnectFromServer();
}QByteArray TcpClient::packMessage(quint8 type, const QJsonObject &data)
{QByteArray packet;QDataStream stream(&packet, QIODevice::WriteOnly);stream.setByteOrder(QDataStream::LittleEndian);// 将JSON转换为字节数组QJsonDocument doc(data);QByteArray jsonData = doc.toJson(QJsonDocument::Compact);quint32 dataLength = static_cast<quint32>(jsonData.size());// 打包：类型(1字节) + 数据长度(4字节) + 数据stream << type;stream << dataLength;stream.writeRawData(jsonData.constData(), jsonData.size());return packet;
}bool TcpClient::unpackMessage(const QByteArray &data, quint8 &type, QJsonObject &message, QByteArray &remaining)
{const int HEADER_SIZE = 5; // 类型(1) + 长度(4)if (data.size() < HEADER_SIZE) {remaining = data;return false;}QDataStream stream(data);stream.setByteOrder(QDataStream::LittleEndian);quint32 dataLength = 0;stream >> type;stream >> dataLength;// 检查数据包大小（防止过大包）if (dataLength > 1024 * 1024) { // 1MB限制qWarning() << "Packet too large:" << dataLength << "bytes";// 尝试跳过这个数据包int totalSize = HEADER_SIZE + dataLength;if (data.size() >= totalSize) {remaining = data.mid(totalSize);} else {remaining = QByteArray();}return false;}// 检查是否有完整的数据int totalPacketSize = HEADER_SIZE + dataLength;if (data.size() < totalPacketSize) {remaining = data;return false;}// 读取JSON数据QByteArray jsonData = data.mid(HEADER_SIZE, dataLength);// 解析JSONQJsonParseError parseError;QJsonDocument doc = QJsonDocument::fromJson(jsonData, &parseError);if (parseError.error != QJsonParseError::NoError) {qWarning() << "JSON parse error:" << parseError.errorString();// 跳过这个错误的数据包remaining = data.mid(totalPacketSize);return false;}if (!doc.isObject()) {qWarning() << "Received data is not a JSON object";remaining = data.mid(totalPacketSize);return false;}message = doc.object();remaining = data.mid(totalPacketSize);return true;
}void TcpClient::processReceivedData()
{int processedCount = 0;while (!m_receiveBuffer.isEmpty()) {quint8 messageType;QJsonObject message;QByteArray remaining;if (!unpackMessage(m_receiveBuffer, messageType, message, remaining)) {// 没有完整的数据包，等待更多数据if (processedCount == 0 && m_receiveBuffer.size() > 1024 * 1024) {// 缓冲区过大但没有完整包，可能是协议错误，清空缓冲区qWarning() << "Buffer too large (" << m_receiveBuffer.size() << "bytes) clearing buffer";m_receiveBuffer.clear();}break;}m_receiveBuffer = remaining;processedCount++;switch (messageType) {case StatusUpdate:if (message.contains("data")) {QJsonObject statusData = message["data"].toObject();emit statusUpdateReceived(statusData);}break;case CommandResponse:emit commandResponseReceived(message);break;default:qWarning() << "Unknown message type:" << messageType;break;}}
}void TcpClient::connectToServer(const QString &host, int port)
{if (m_connected) {disconnectFromServer();}m_status = "Connecting...";emit statusChanged(m_status);m_socket->connectToHost(host, port);
}void TcpClient::disconnectFromServer()
{m_socket->disconnectFromHost();m_receiveBuffer.clear();
}void TcpClient::sendCommand(const QString &command, const QJsonObject &data)
{if (!m_connected) {m_lastError = "Not connected to server";emit lastErrorChanged(m_lastError);return;}QJsonObject commandObj;commandObj["command"] = command;commandObj["data"] = data;QByteArray packet = packMessage(ClientCommand, commandObj);if (packet.isEmpty()) {m_lastError = "Failed to pack command";emit lastErrorChanged(m_lastError);return;}qint64 bytesWritten = m_socket->write(packet);if (bytesWritten == -1) {m_lastError = "Failed to send command: " + m_socket->errorString();emit lastErrorChanged(m_lastError);} else if (bytesWritten != packet.size()) {m_lastError = "Incomplete command sent: " + QString::number(bytesWritten) + "/" + QString::number(packet.size());emit lastErrorChanged(m_lastError);}
}void TcpClient::onConnected()
{m_connected = true;m_status = "Connected";m_lastError = "";m_receiveBuffer.clear();emit connectedChanged(m_connected);emit statusChanged(m_status);emit lastErrorChanged(m_lastError);
}void TcpClient::onDisconnected()
{m_connected = false;m_status = "Disconnected";m_receiveBuffer.clear();emit connectedChanged(m_connected);emit statusChanged(m_status);
}void TcpClient::onReadyRead()
{QByteArray newData = m_socket->readAll();m_receiveBuffer.append(newData);processReceivedData();
}void TcpClient::onErrorOccurred(QAbstractSocket::SocketError error)
{Q_UNUSED(error);m_lastError = m_socket->errorString();emit lastErrorChanged(m_lastError);
}

2.3、main.cpp

// main.cpp
#include <QGuiApplication>
#include <QQmlApplicationEngine>
#include <QQmlContext>
#include "tcpclient.h"
#include <QQuickStyle>int main(int argc, char *argv[])
{QGuiApplication app(argc, argv);QQuickStyle::setStyle("Fusion");// 注册TCP客户端类到QMLqmlRegisterType<TcpClient>("com.example", 1, 0, "TcpClient");QQmlApplicationEngine engine;const QUrl url(QStringLiteral("qrc:/QtCommand/main.qml"));QObject::connect(&engine, &QQmlApplicationEngine::objectCreated,&app, [url](QObject *obj, const QUrl &objUrl) {if (!obj && url == objUrl)QCoreApplication::exit(-1);}, Qt::QueuedConnection);engine.load(url);return app.exec();
}

2.4、main.qml

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import QtQuick.Dialogs
import com.example 1.0Window {id: windowwidth: 600height: 900title: "TCP Client"visible: trueTcpClient {id: tcpClient}// 自定义样式property int textFieldHeight: 40property int buttonHeight: 40property int fontSize: 14ColumnLayout {anchors.fill: parentanchors.margins: 10spacing: 10// 连接控制区域GroupBox {title: "连接管理"Layout.fillWidth: trueRowLayout {width: parent.widthspacing: 10TextField {id: hostFieldplaceholderText: "服务器地址"text: "127.0.0.1"Layout.fillWidth: trueheight: textFieldHeightimplicitHeight: textFieldHeightfont.pixelSize: fontSizebackground: Rectangle {color: "#ffffff"border.color: hostField.activeFocus ? "#2196F3" : "#cccccc"border.width: 1radius: 4}}TextField {id: portFieldplaceholderText: "服务器端口"text: "8000"validator: IntValidator {bottom: 1top: 65535}Layout.preferredWidth: 100height: textFieldHeightimplicitHeight: textFieldHeightfont.pixelSize: fontSizebackground: Rectangle {color: "#ffffff"border.color: portField.activeFocus ? "#2196F3" : "#cccccc"border.width: 1radius: 4}}Button {text: tcpClient.connected ? "断开" : "连接"onClicked: {console.log(new Date().toLocaleTimeString())if (!hostField.acceptableInput) {showMessage("Error", "Invalid host address")return}if (!portField.acceptableInput) {showMessage("Error", "Invalid port number")return}if (tcpClient.connected) {tcpClient.disconnectFromServer()} else {tcpClient.connectToServer(hostField.text,parseInt(portField.text))}}height: buttonHeightimplicitHeight: buttonHeightfont.pixelSize: fontSizebackground: Rectangle {color: parent.down ? "#1565C0" : parent.hovered ? "#1976D2" : "#2196F3"radius: 4}contentItem: Text {text: parent.textcolor: "white"horizontalAlignment: Text.AlignHCenterverticalAlignment: Text.AlignVCenterfont: parent.font}}Label {text: tcpClient.statuscolor: tcpClient.connected ? "green" : "red"font.bold: truefont.pixelSize: fontSizeLayout.minimumWidth: 120}}}// 状态显示区域GroupBox {title: "服务器状态"Layout.fillWidth: trueLayout.preferredHeight: 150GridLayout {columns: 2width: parent.widthrowSpacing: 5columnSpacing: 10StatusItem {label: "CPU利用率"value: serverStatus.cpu_usage ? (serverStatus.cpu_usage * 100).toFixed(1) + "%" : "N/A"color: serverStatus.cpu_usage> 0.8 ? "red" : serverStatus.cpu_usage > 0.6 ? "orange" : "green"}StatusItem {label: "内存利用率"value: serverStatus.memory_usage ? serverStatus.memory_usage.toFixed(1) + " MB" : "N/A"color: serverStatus.memory_usage> 80 ? "red" : serverStatus.memory_usage > 60 ? "orange" : "green"}StatusItem {label: "已运行时长"value: serverStatus.uptime ? formatUptime(serverStatus.uptime) : "N/A"}StatusItem {label: "客户端连接数"value: serverStatus.connected_clients!== undefined ? serverStatus.connected_clients : "0"}StatusItem {label: "上次更新时间"value: serverStatus.timestamp ? formatTimestamp(serverStatus.timestamp) : "N/A"}}}GroupBox {title: "命令发送区域"Layout.fillWidth: trueLayout.fillHeight: trueColumnLayout {width: parent.widthspacing: 10// 预设命令按钮GridLayout {columns: 2Layout.fillWidth: truerowSpacing: 5columnSpacing: 5Repeater {model: [{"text": "获取服务器信息","command": "get_info","data": {}}, {"text": "Echo","command": "echo","data": {"message": "Hello from QML Client!"}}, {"text": "加法","command": "calculate","data": {"operation": "add","a": 15,"b": 25}}, {"text": "乘法","command": "calculate","data": {"operation": "multiply","a": 7,"b": 8}}]Button {text: modelData.textonClicked: tcpClient.sendCommand(modelData.command,modelData.data)Layout.fillWidth: trueheight: buttonHeightimplicitHeight: buttonHeightfont.pixelSize: fontSize - 1background: Rectangle {color: parent.down ? "#388E3C" : parent.hovered ? "#4CAF50" : "#66BB6A"radius: 4}contentItem: Text {text: parent.textcolor: "white"horizontalAlignment: Text.AlignHCenterverticalAlignment: Text.AlignVCenterfont: parent.font}}}}GroupBox {title: "自定义命令"Layout.fillWidth: trueColumnLayout {width: parent.widthspacing: 5RowLayout {spacing: 5TextField {id: customCommandFieldLayout.fillWidth: trueheight: textFieldHeightimplicitHeight: textFieldHeightfont.pixelSize: fontSizetext: "custom_command"background: Rectangle {color: "#ffffff"border.color: customCommandField.activeFocus ? "#2196F3" : "#cccccc"border.width: 1radius: 4}}Button {text: "验证JSON合法性"onClicked: {if (customDataField.text) {try {JSON.parse(customDataField.text)responseArea.append("✓ JSON is valid")} catch (e) {responseArea.append("✗ JSON error: " + e.toString())}} else {responseArea.append("✓ Empty data is valid")}}height: buttonHeightimplicitHeight: buttonHeightfont.pixelSize: fontSize - 1background: Rectangle {color: parent.down ? "#F57C00" : parent.hovered ? "#FF9800" : "#FFB74D"radius: 4}contentItem: Text {text: parent.textcolor: "white"horizontalAlignment: Text.AlignHCenterverticalAlignment: Text.AlignVCenterfont: parent.font}}}TextField {id: customDataFieldtext: '{"key": 123}'Layout.fillWidth: trueheight: textFieldHeightimplicitHeight: textFieldHeightfont.pixelSize: fontSizebackground: Rectangle {color: "#ffffff"border.color: customDataField.activeFocus ? "#2196F3" : "#cccccc"border.width: 1radius: 4}}Button {text: "发送命令"onClicked: {if (!customCommandField.acceptableInput) {showMessage("Error","Invalid command name (only letters, numbers, underscore)")return}if (customCommandField.text === "") {showMessage("Error","Please enter a command name")return}let data = {}if (customDataField.text) {try {data = JSON.parse(customDataField.text)} catch (e) {showMessage("JSON Error","Invalid JSON format: " + e.toString())return}}tcpClient.sendCommand(customCommandField.text,data)}Layout.fillWidth: trueheight: buttonHeightimplicitHeight: buttonHeightfont.pixelSize: fontSizebackground: Rectangle {color: parent.down ? "#7B1FA2" : parent.hovered ? "#9C27B0" : "#BA68C8"radius: 4}contentItem: Text {text: parent.textcolor: "white"horizontalAlignment: Text.AlignHCenterverticalAlignment: Text.AlignVCenterfont: parent.font}}}}GroupBox {title: "响应显示区域"Layout.fillWidth: trueLayout.fillHeight: trueTextArea {id: responseAreaplaceholderText: "Server responses will appear here..."readOnly: truefont.family: "Courier New"font.pixelSize: fontSize - 1selectByMouse: truewrapMode: TextArea.Wrapanchors.fill: parentbackground: Rectangle {color: "#f8f8f8"border.color: "#cccccc"border.width: 1radius: 3}}}}}// 错误显示Label {visible: tcpClient.lastErrortext: "Error: " + tcpClient.lastErrorcolor: "red"font.bold: truefont.pixelSize: fontSizeLayout.fillWidth: true}}// 消息对话框MessageDialog {id: messageDialogtitle: "Information"}// 服务器状态数据property var serverStatus: ({})// 显示消息function showMessage(title, message) {messageDialog.title = titlemessageDialog.text = messagemessageDialog.open()}// 格式化运行时间function formatUptime(seconds) {if (!seconds)return "N/A"let hours = Math.floor(seconds / 3600)let minutes = Math.floor((seconds % 3600) / 60)let secs = Math.floor(seconds % 60)return hours + "h " + minutes + "m " + secs + "s"}// 格式化时间戳function formatTimestamp(timestamp) {if (!timestamp)return "N/A"let date = new Date(timestamp)return date.toLocaleTimeString()}// 连接信号Connections {target: tcpClientfunction onStatusUpdateReceived(status) {serverStatus = status}function onCommandResponseReceived(response) {responseArea.clear()let time = new Date().toLocaleTimeString()let output = `[${time}] === Command Response ===\n`output += "Command: " + (response.command || "unknown") + "\n"output += "Status: " + (response.status || "unknown") + "\n"if (response.message) {output += "Message: " + response.message + "\n"}if (response.data) {output += "Data: " + JSON.stringify(response.data,null, 2) + "\n"}output += "========================\n"responseArea.append(output)}function onConnectedChanged(connected) {responseArea.clear()if (connected) {console.log(new Date().toLocaleTimeString())responseArea.append("=== Connected to server ===\n")} else {responseArea.append("=== Disconnected from server ===\n")}}}
}

2.5、StatusItem.qml

import QtQuick 2.15
import QtQuick.Controls 2.15
import QtQuick.Layouts 1.15RowLayout {property string labelproperty string valueproperty color color: "black"Label {text: parent.label + ":"font.bold: trueLayout.preferredWidth: 120}Label {text: parent.valuecolor: parent.colorLayout.fillWidth: true}
}

七、开发建议和最佳实践

1、 错误处理增强

def safe_command_handler(handler):"""装饰器：确保命令处理器不会崩溃"""def wrapper(data):try:return handler(data)except Exception as e:logger.error(f"Command handler error: {e}")return {"status": "error", "message": "Internal server error"}return wrapper# 使用装饰器
@safe_command_handler
def calculate_handler(data):# 业务逻辑return result

2、 性能优化

// 对于频繁更新的数据，使用批处理
Timer {id: batchTimerinterval: 16  // ~60fpsrepeat: trueonTriggered: {// 批量更新UI，避免频繁重绘updateBatchUI()}
}

3、 安全性考虑

def validate_command(self, command_data):"""命令验证"""# 检查命令名合法性if not command_data['command'].isidentifier():return False, "Invalid command name"# 防止命令注入if len(command_data['command']) > 100:return False, "Command name too long"# 数据大小限制if len(str(command_data.get('data', ''))) > 10000:return False, "Data too large"return True, "Valid"

八、总结

这个网络通信原型展示了现代客户端-服务器应用的核心技术栈：

• Python服务端：处理业务逻辑、命令路由、状态管理
• Qt+Qml客户端：提供响应式、数据绑定的用户界面
• TCP+JSON通信：可靠的数据传输和结构化数据交换
• 可扩展架构：轻松添加新命令和功能

通过理解这个原型，你可以快速开发各种网络应用。数据绑定机制让你专注于业务逻辑，而不是繁琐的UI更新代码，大大提高开发效率。
