在R中绘制条形图主要使用barplot()函数（基础绘图）和ggplot2包。下面我将展示多种类型的条形图及其实现方法。

欢迎大家在评论区留言或私信，交流学习心得或学习R的过程中遇到的问题。感谢大家的支持和关注，您的支持是我创作的最大动力。

1.基础数据准备

# 安装和加载必要的包（如果前期已安装可忽略）
#install.packages("ggplot2")
#install.packages("dplyr")
#install.packages("reshape2")library(ggplot2)
library(dplyr)
library(reshape2)# 创建示例数据
set.seed(123)
data <- data.frame(Category = c("A", "B", "C", "D", "E"),Value1 = c(23, 45, 56, 34, 67),Value2 = c(34, 38, 49, 28, 52),Group = c("X", "X", "Y", "Y", "Z")
)

2.使用barplot绘图

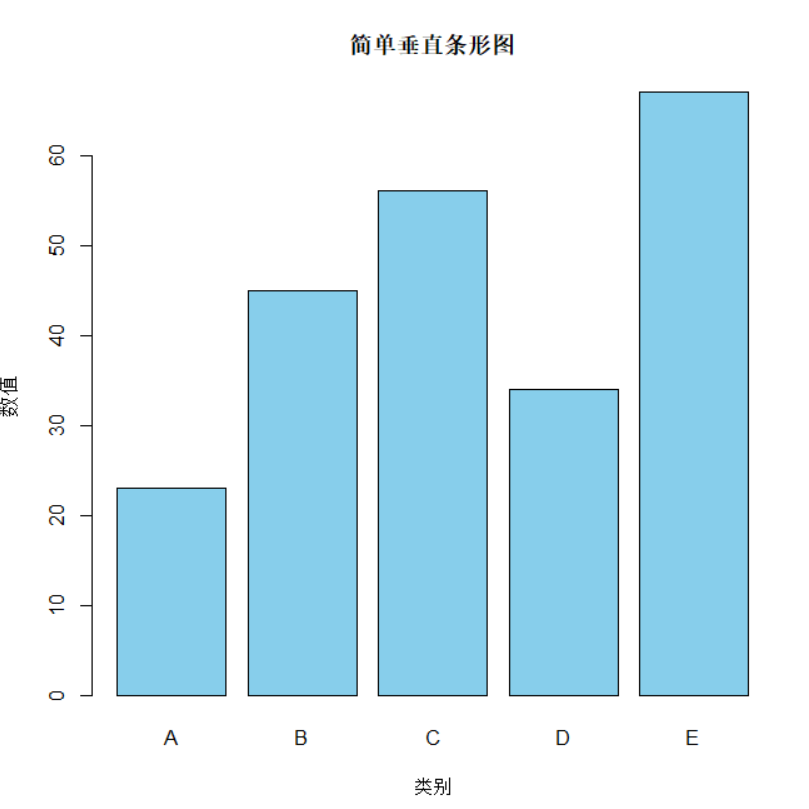

• 简单条形图

# 垂直条形图
barplot(data$Value1, names.arg = data$Category,main = "简单垂直条形图",xlab = "类别",ylab = "数值",col = "skyblue")

出图效果如下：

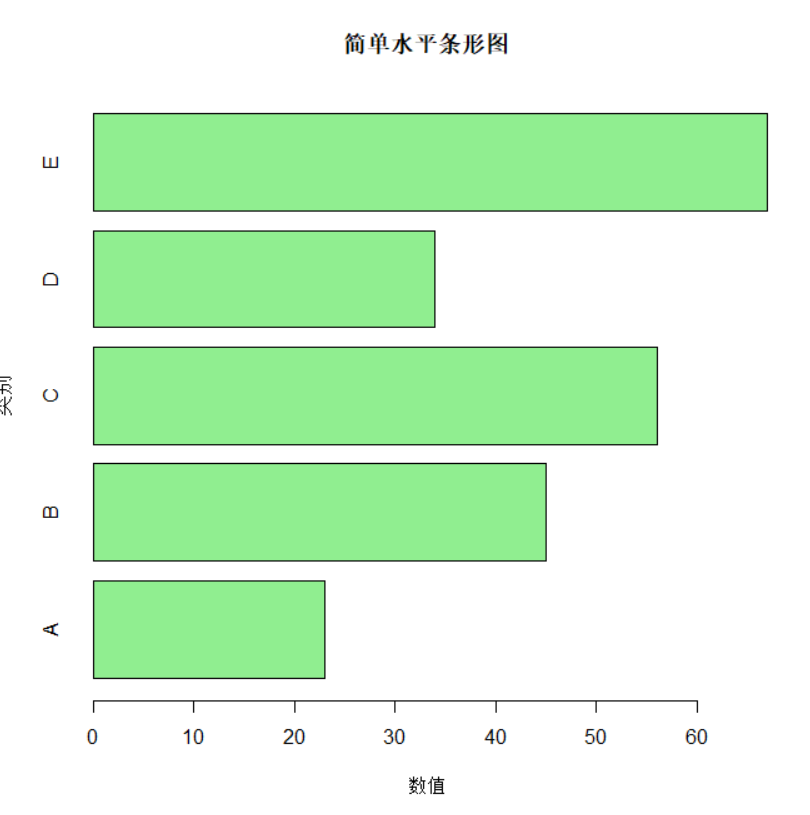

• 水平条形图

# 水平条形图
barplot(data$Value1, names.arg = data$Category,main = "简单水平条形图",xlab = "数值",ylab = "类别",col = "lightgreen",horiz = TRUE)

出图效果如下：

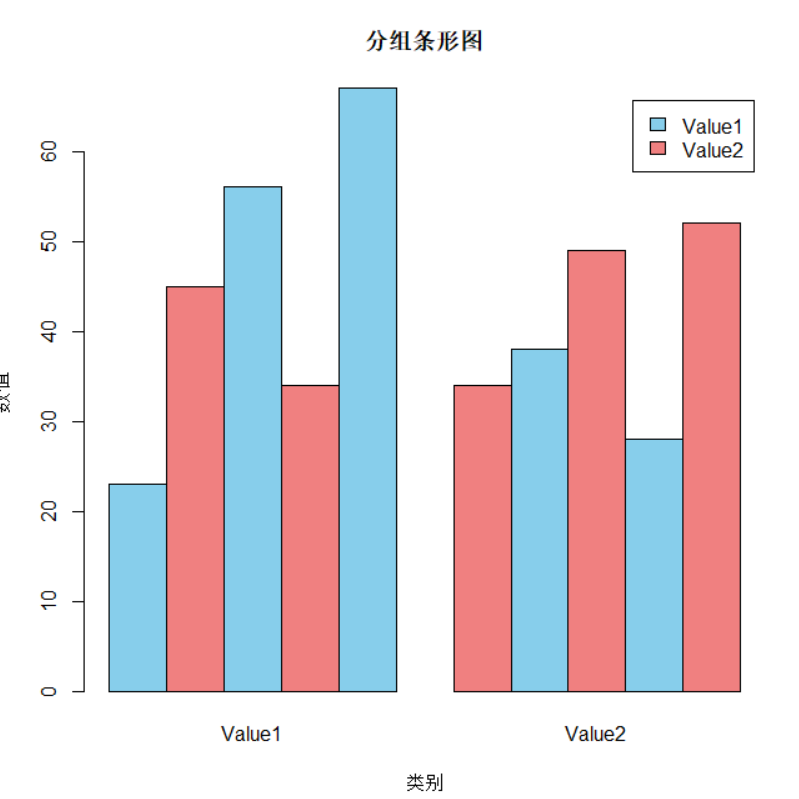

• 分组条形图

# 准备矩阵数据
matrix_data <- as.matrix(data[, c("Value1", "Value2")])
rownames(matrix_data) <- data$Category# 分组条形图
barplot(matrix_data, beside = TRUE,main = "分组条形图",xlab = "类别",ylab = "数值",col = c("skyblue", "lightcoral"),legend.text = c("Value1", "Value2"))

出图效果如下：

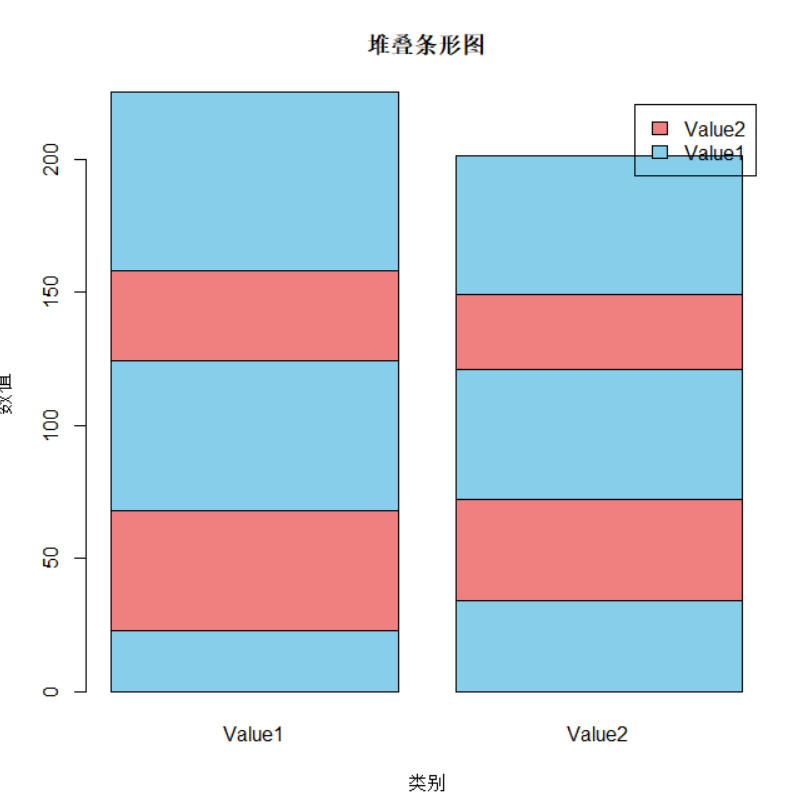

• 堆叠条形图

# 堆叠条形图
barplot(matrix_data, beside = FALSE,main = "堆叠条形图",xlab = "类别",ylab = "数值",col = c("skyblue", "lightcoral"),legend.text = c("Value1", "Value2"))

出图效果如下：

3.使用ggplot2绘图

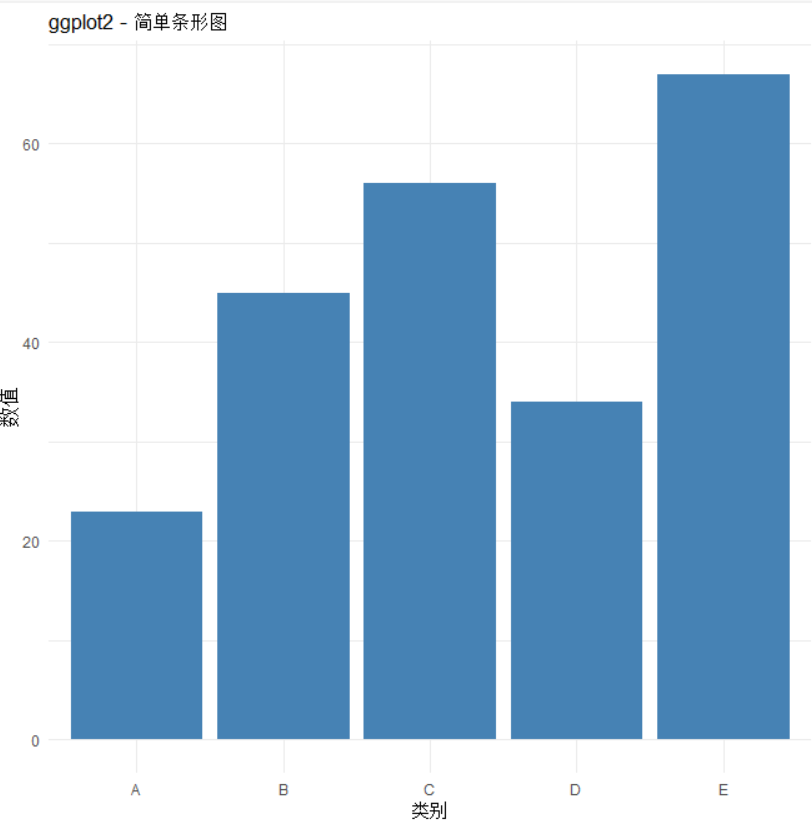

• 简单条形图

# 基本条形图
ggplot(data, aes(x = Category, y = Value1)) +geom_bar(stat = "identity", fill = "steelblue") +labs(title = "ggplot2 - 简单条形图", x = "类别", y = "数值") +theme_minimal()

出图效果如下：

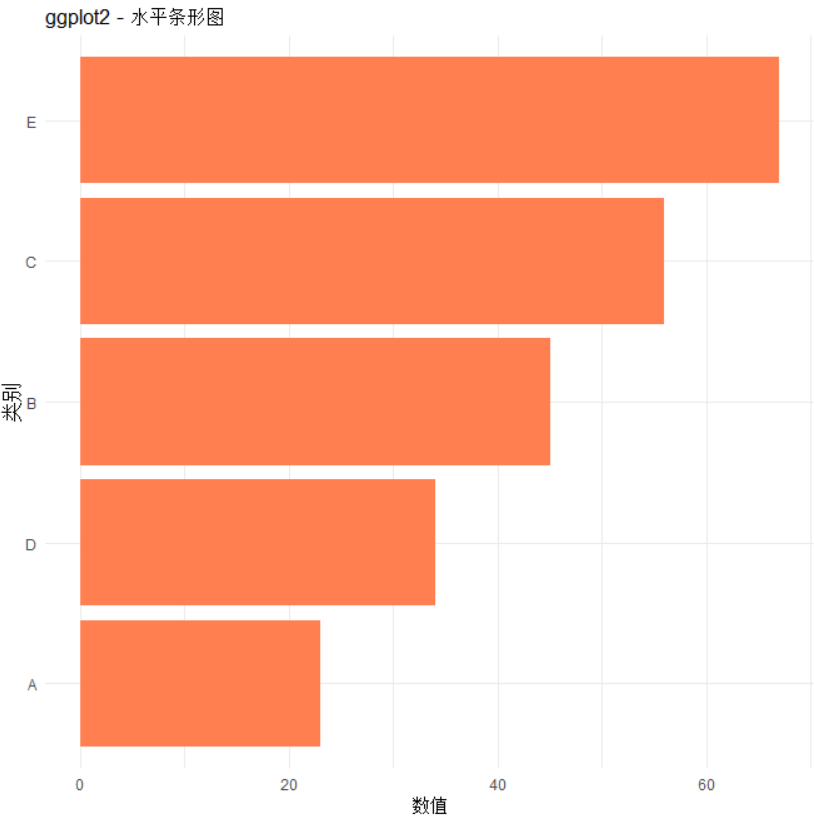

• 水平条形图

ggplot(data, aes(x = reorder(Category, Value1), y = Value1)) +geom_bar(stat = "identity", fill = "coral") +coord_flip() +labs(title = "ggplot2 - 水平条形图", x = "类别", y = "数值") +theme_minimal()

出图效果如下：

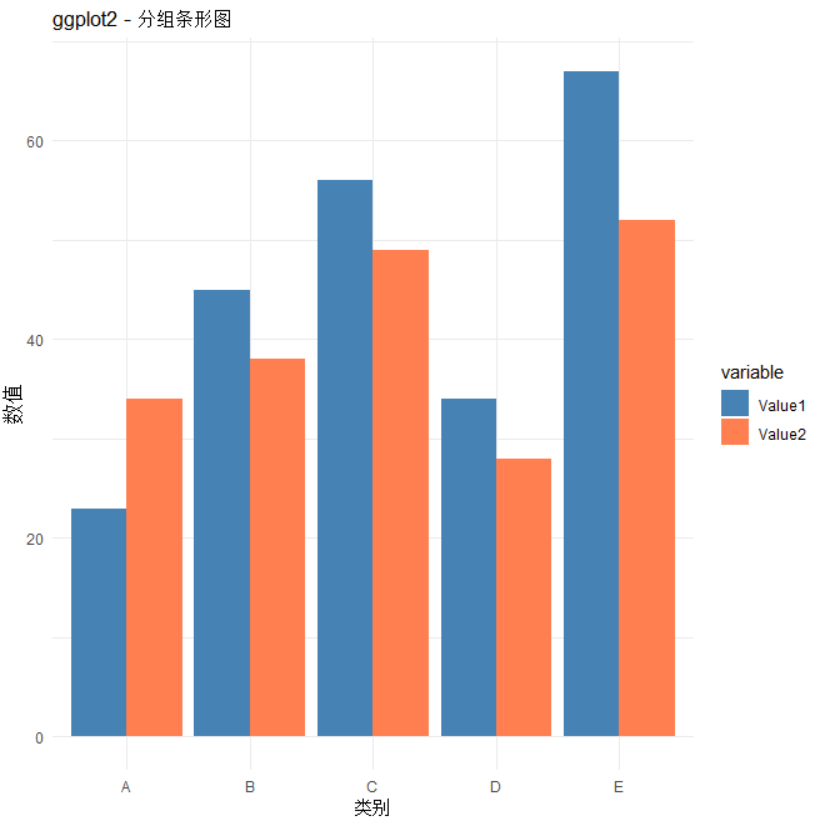

• 分组条形图

data_long <- melt(data[, 1:3], id.vars = "Category")ggplot(data_long, aes(x = Category, y = value, fill = variable)) +geom_bar(stat = "identity", position = "dodge") +labs(title = "ggplot2 - 分组条形图", x = "类别", y = "数值") +scale_fill_manual(values = c("Value1" = "steelblue", "Value2" = "coral")) +theme_minimal()

出图效果如下：

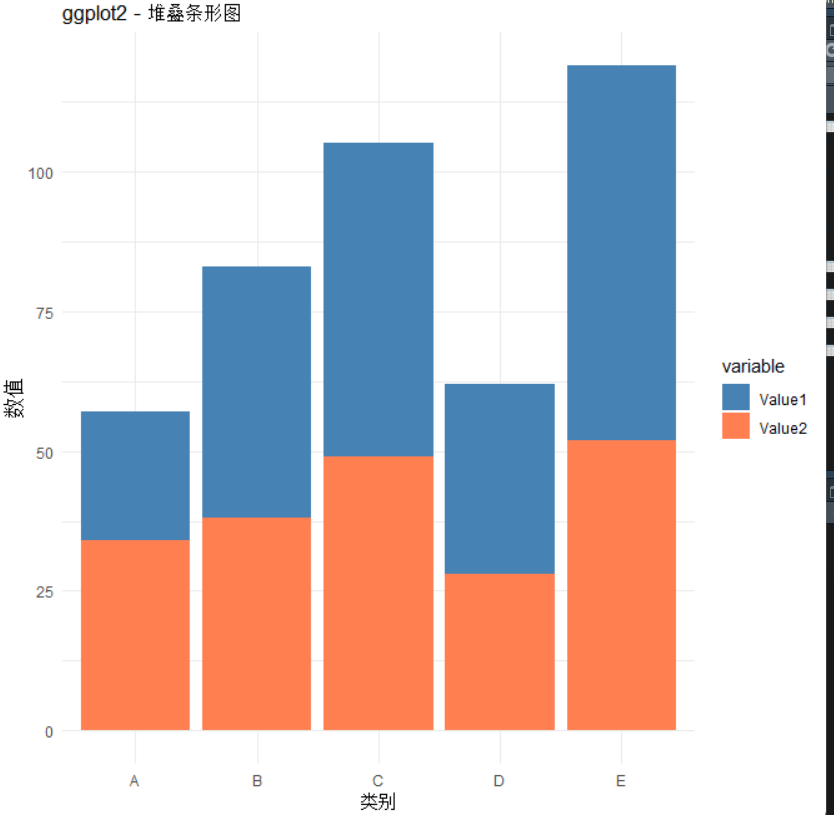

• 堆叠条形图

ggplot(data_long, aes(x = Category, y = value, fill = variable)) +geom_bar(stat = "identity", position = "stack") +labs(title = "ggplot2 - 堆叠条形图", x = "类别", y = "数值") +scale_fill_manual(values = c("Value1" = "steelblue", "Value2" = "coral")) +theme_minimal()

出图效果如下：

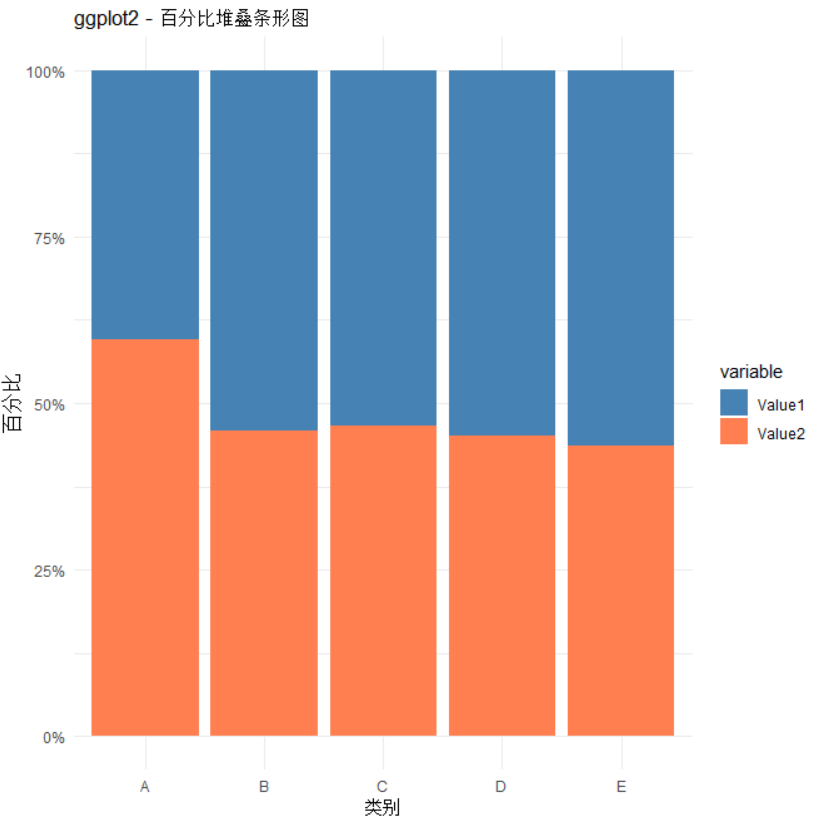

• 百分比条形图

ggplot(data_long, aes(x = Category, y = value, fill = variable)) +geom_bar(stat = "identity", position = "fill") +labs(title = "ggplot2 - 百分比堆叠条形图", x = "类别", y = "百分比") +scale_y_continuous(labels = scales::percent) +scale_fill_manual(values = c("Value1" = "steelblue", "Value2" = "coral")) +theme_minimal()

出图效果如下：

4.高级条形图绘制

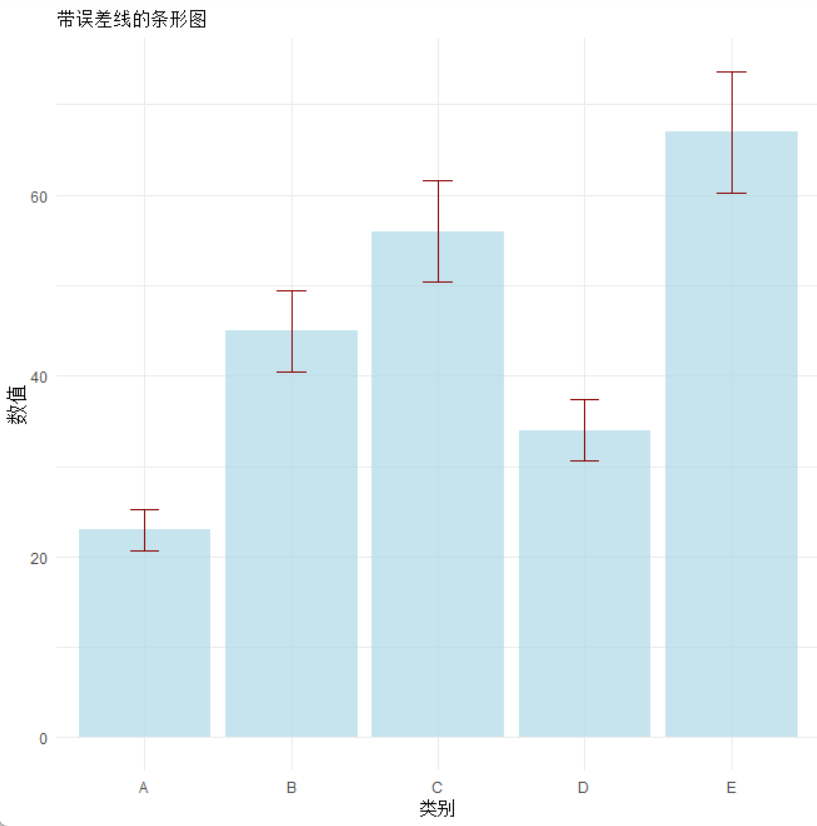

• 误差条形图

# 创建包含误差的数据
data_error <- data %>%mutate(se = Value1 * 0.1)  # 假设标准误为10%ggplot(data_error, aes(x = Category, y = Value1)) +geom_bar(stat = "identity", fill = "lightblue", alpha = 0.7) +geom_errorbar(aes(ymin = Value1 - se, ymax = Value1 + se), width = 0.2, color = "darkred") +labs(title = "带误差线的条形图", x = "类别", y = "数值") +theme_minimal()

出图效果如下：

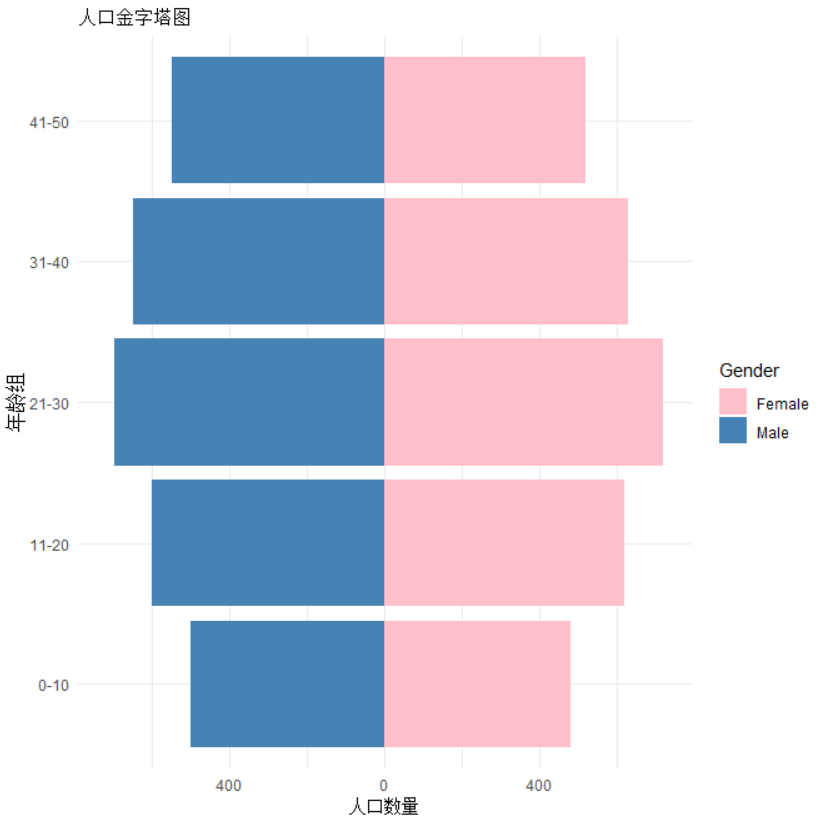

• 金字塔条形图（人口金字塔）

# 创建示例数据
pyramid_data <- data.frame(AgeGroup = rep(c("0-10", "11-20", "21-30", "31-40", "41-50"), 2),Gender = rep(c("Male", "Female"), each = 5),Population = c(500, 600, 700, 650, 550, 480, 620, 720, 630, 520)
)ggplot(pyramid_data, aes(x = AgeGroup, y = ifelse(Gender == "Male", -Population, Population), fill = Gender)) +geom_bar(stat = "identity") +coord_flip() +scale_y_continuous(labels = abs, limits = max(pyramid_data$Population) * c(-1, 1)) +labs(title = "人口金字塔图", x = "年龄组", y = "人口数量") +scale_fill_manual(values = c("Male" = "steelblue", "Female" = "pink")) +theme_minimal()

出图效果如下：

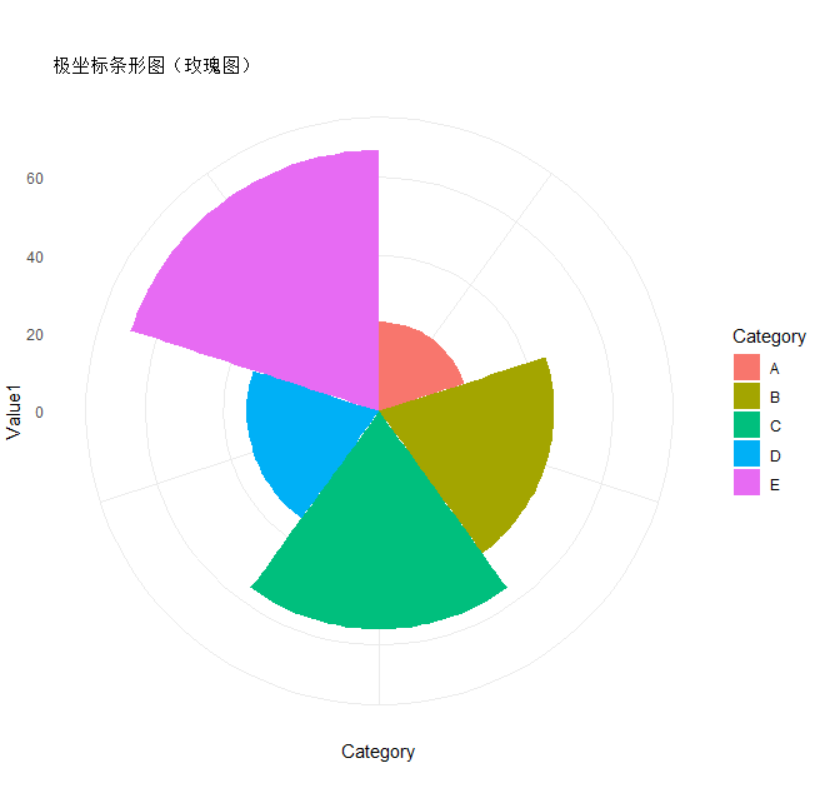

• 极坐标条形图（玫瑰图）

ggplot(data, aes(x = Category, y = Value1, fill = Category)) +geom_bar(stat = "identity", width = 1) +coord_polar() +labs(title = "极坐标条形图（玫瑰图）") +theme_minimal() +theme(axis.text.x = element_blank())

出图效果如下：
