基于python+Java的二手车与奔驰销量数据可视化平台

news 2025/10/15 8:53:53

目录

1、数据采集

（1）二手⻋数据

​（2）奔驰上市新⻋数据

（3）⻋系⽉销榜数据

（4）⻋系⽉销售排⾏榜数据

（5）MySQL数据存储

2、数据仓库建模

（1）Spark开发环境搭建

1、创建maven项⽬；

2、添加pom.xml依赖；

3、配置scala环境；

4、创建测试连接hive⽂件；

5、创建数据仓库分层⽬录；

（1）ODS层建模

1、创建数据库；

2、编写DATAX脚本

①、编写合肥⼆⼿⻋数据脚本ods_hefei_er_shou_car_info.json

②、编写奔驰新⻋资讯数据脚本

③、编写奔驰近半年⻋型排⾏榜数据脚本

④、编写⽉度汽⻋销量排⾏榜数据脚本

（2）DWD层建模

1、创建数据库；

2、创建DWD层表；

3、数据清洗；

（3）DWS层建模

1、创建数据库；

2、创建表；

（4）ADS层建模

1、创建数据库；

2、创建表；

3、数据可视化

1、通过启动datax脚本将数据导⼊到mysql中

2、可视化

1、数据采集

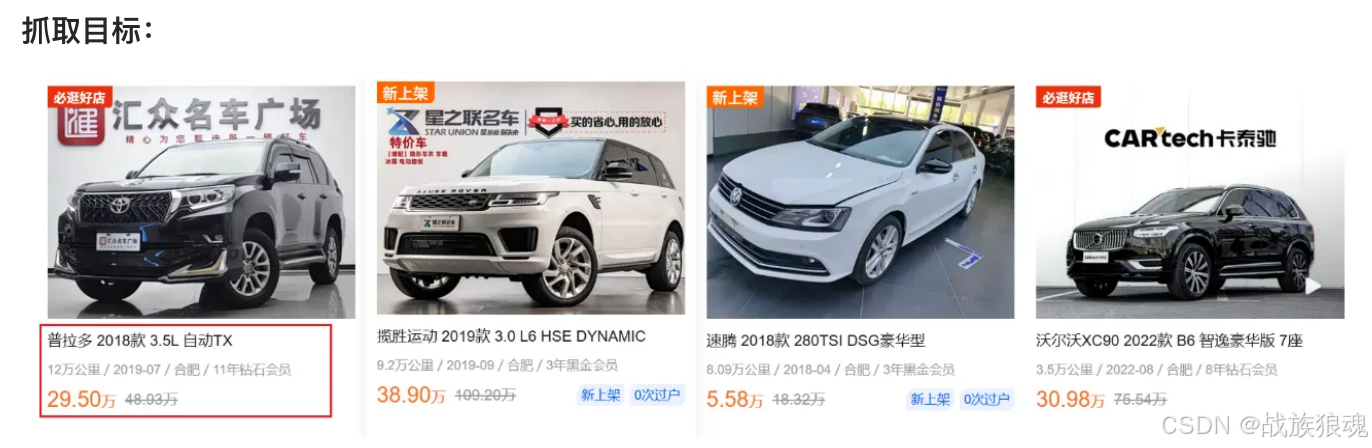

（1）二手⻋数据

https://www.che168.com/hefei/a0_0msdgscncgpi1ltocsp1exx0/?pvareaid=102179https://www.che168.com/hefei/a0_0msdgscncgpi1ltocsp2exx0/?pvareaid=102179

抓取地址：

https://www.che168.com/hefei/a0_0msdgscncgpi1ltocsp3exx0/?pvareaid=102179#currengpostion


（2）奔驰上市新⻋数据

https://www.autohome.com.cn/newbrand/36-0-0-2025-0.html

（3）⻋系⽉销榜数据

https://www.autohome.com.cn/rank/1-1-0-0_9000-x-x-36/2025-03_2025-08.html
https://www.autohome.com.cn/web-main/car/rank/getList?from=28&pm=2&pluginversion=11.75.8&model=1&channel=0&pageindex=1&pagesize=50&typeid=
1&subranktypeid=1&levelid=0&price=0-9000&brandid=36&date=2025-03_2025-08

（4）⻋系⽉销售排⾏榜数据

https://www.autohome.com.cn/rank/1-1-0-0_9000-x-x-x/2025-08.html
https://www.autohome.com.cn/web-main/car/rank/getList?from=28&pm=2&pluginversion=11.75.8&model=1&channel=0&pageindex=1&pagesize=50&typeid=1&subranktypeid=1&levelid=0&price=0-9000&date=2025-08

（5）MySQL数据存储

①、创建数据库；
create database car_db;
②、hefei_er_shou_car_info表(合肥⼆⼿⻋数据表)
CREATE TABLE `hefei_er_shou_car_info` (`specId` varchar(255) DEFAULT NULL,`car_name` varchar(255) DEFAULT NULL,`kilometer` varchar(255) DEFAULT NULL,`car_time` varchar(255) DEFAULT NULL,`car_location` varchar(255) DEFAULT NULL,`sell_price` varchar(255) DEFAULT NULL,`true_price` varchar(255) DEFAULT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;

③、benchi_new_car_info表(奔驰新⻋资讯数据表)

CREATE TABLE `benchi_new_car_info` (`car_time` varchar(255) DEFAULT NULL,`info` text
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;
④、benchi_car_half_year表(奔驰近半年⻋型排⾏榜数据表)
CREATE TABLE `benchi_car_half_year` (`rank` int DEFAULT NULL,`seriesname` varchar(255) DEFAULT NULL,`priceinfo` varchar(255) DEFAULT NULL,`scorevalue` decimal(3,2) DEFAULT NULL,`salecount` int DEFAULT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;
⑤、month_car_top表(⽉度汽⻋销量排⾏榜数据表)
CREATE TABLE `month_car_top` (`rank` int DEFAULT NULL,`seriesname` varchar(255) DEFAULT NULL,`priceinfo` varchar(255) DEFAULT NULL,`scorevalue` decimal(3,2) DEFAULT NULL,`salecount` int DEFAULT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;

2、数据仓库建模

（1）Spark开发环境搭建

        1、创建maven项⽬；

2、添加pom.xml依赖；

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 htt
p://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><groupId>com.shujia</groupId><artifactId>hbuu_test</artifactId><version>1.0-SNAPSHOT</version><properties><maven.compiler.source>8</maven.compiler.source><maven.compiler.target>8</maven.compiler.target><project.build.sourceEncoding>UTF-8</project.build.sourceEnc
oding></properties><dependencies><!-- https://mvnrepository.com/artifact/org.apache.spark/spa
rk-core --><dependency><groupId>org.apache.spark</groupId><artifactId>spark-core_2.12</artifactId><version>3.1.3</version></dependency><!-- https://mvnrepository.com/artifact/org.apache.spark/spa
rk-sql --><dependency><groupId>org.apache.spark</groupId><artifactId>spark-sql_2.12</artifactId><version>3.1.3</version></dependency><!-- https://mvnrepository.com/artifact/org.apache.spark/spa
rk-streaming --><dependency><groupId>org.apache.spark</groupId><artifactId>spark-streaming_2.12</artifactId><version>3.1.3</version></dependency><!-- https://mvnrepository.com/artifact/org.apache.spark/spa
rk-mllib --><dependency><groupId>org.apache.spark</groupId><artifactId>spark-mllib_2.12</artifactId><version>3.1.3</version></dependency><!-- https://mvnrepository.com/artifact/org.apache.spark/spa
rk-hive --><dependency><groupId>org.apache.spark</groupId><artifactId>spark-hive_2.12</artifactId><version>3.1.3</version></dependency><!-- https://mvnrepository.com/artifact/org.apache.hive/hive
-exec --><dependency><groupId>org.apache.hive</groupId><artifactId>hive-exec</artifactId><version>3.1.3</version></dependency><!-- https://mvnrepository.com/artifact/com.mysql/mysql-conn
ector-j --><dependency><groupId>com.mysql</groupId><artifactId>mysql-connector-j</artifactId><version>8.0.33</version></dependency><dependency><groupId>com.fasterxml.jackson.core</groupId><artifactId>jackson-databind</artifactId><version>2.10.0</version></dependency><dependency><groupId>com.fasterxml.jackson.core</groupId><artifactId>jackson-core</artifactId><version>2.10.0</version></dependency><dependency><groupId>org.apache.logging.log4j</groupId><artifactId>log4j-core</artifactId><version>2.17.1</version></dependency><dependency><groupId>org.apache.poi</groupId><artifactId>poi</artifactId><version>5.2.2</version><exclusions><exclusion><groupId>org.apache.logging.log4j</groupId><artifactId>log4j-api</artifactId></exclusion></exclusions></dependency><!-- https://mvnrepository.com/artifact/org.apache.hadoop/ha
doop-auth --><dependency><groupId>org.apache.hadoop</groupId><artifactId>hadoop-auth</artifactId><version>3.1.3</version></dependency></dependencies>
</project>

3、配置scala环境；

4、创建测试连接hive⽂件；

import org.apache.spark.sql.SparkSession
object Demo01_test {def main(args: Array[String]): Unit = {val spark: SparkSession = SparkSession.builder().appName("测试").master("local[*]").config("spark.sql.shuffle.partitions", "1").enableHiveSupport().getOrCreate()spark.sql("""|show databases|""".stripMargin).show()spark.stop()}
}

5、创建数据仓库分层⽬录；

（1）ODS层建模
        1、创建数据库；
/*Navicat Premium Dump SQLSource Server         : localhostSource Server Type    : MySQLSource Server Version : 80041 (8.0.41)Source Host           : localhost:3306Source Schema         : qiche_odsTarget Server Type    : MySQLTarget Server Version : 80041 (8.0.41)File Encoding         : 65001Date: 09/10/2025 20:56:18
*/SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;-- ----------------------------
-- Table structure for ods_benchi_car_half_year
-- ----------------------------
DROP TABLE IF EXISTS `ods_benchi_car_half_year`;
CREATE TABLE `ods_benchi_car_half_year`  (`rank` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '排名',`seriesname` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '车型名称',`priceinfo` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '价格区间',`scorevalue` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '评分',`salecount` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '销量'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ods_benchi_car_half_year
-- ------------------------------ ----------------------------
-- Table structure for ods_benchi_new_car_info
-- ----------------------------
DROP TABLE IF EXISTS `ods_benchi_new_car_info`;
CREATE TABLE `ods_benchi_new_car_info`  (`car_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '资讯月份',`info` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '资讯'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ods_benchi_new_car_info
-- ------------------------------ ----------------------------
-- Table structure for ods_hefei_er_shou_car_info
-- ----------------------------
DROP TABLE IF EXISTS `ods_hefei_er_shou_car_info`;
CREATE TABLE `ods_hefei_er_shou_car_info`  (`specId` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '车型ID',`car_name` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '车辆名称',`kilometer` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '里程数',`car_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '购买年份',`car_location` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '所在地区',`sell_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '售价',`true_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '真实价格'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ods_hefei_er_shou_car_info
-- ------------------------------ ----------------------------
-- Table structure for ods_month_car_top
-- ----------------------------
DROP TABLE IF EXISTS `ods_month_car_top`;
CREATE TABLE `ods_month_car_top`  (`rank` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '排名',`seriesname` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '车型名称',`priceinfo` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '价格区间',`scorevalue` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '评分',`salecount` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '销量'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ods_month_car_top
-- ----------------------------SET FOREIGN_KEY_CHECKS = 1;

        2、编写DATAX脚本
 ①、编写合肥⼆⼿⻋数据脚本ods_hefei_er_shou_car_info.json
{"job": {"content": [{"reader": {"name": "mysqlreader","parameter": {"column": ["specId","car_name","kilometer","car_time","car_location","sell_price","true_price"],"connection": [{"jdbcUrl": ["jdbc:mysql://localhost:3306/car_db?useSSL=false&useUnicode=true&characterEncoding=utf8"],"table": ["hefei_er_shou_car_info"]}],"username": "root","password": "root"}},"writer": {"name": "hdfswriter","parameter": {"column": [{"name": "col1","type": "STRING"},{"name": "col2","type": "STRING"},{"name": "col3","type": "STRING"},{"name": "col4","type": "STRING"},{"name": "col5","type": "STRING"},{"name": "col6","type": "STRING"},{"name": "col7","type": "STRING"}],"defaultFS": "hdfs://localhost:9000","fieldDelimiter": ",","fileName": "hefei_er_shou_car_info","fileType": "text","path": "/data/qiche/ods/ods_hefei_er_shou_car_info","writeMode": "append"}}}],"setting": {"speed": {"channel": "1"}}}
}
②、编写奔驰新⻋资讯数据脚本
{"job": {"content": [{"reader": {"name": "mysqlreader","parameter": {"column": ["`rank`","seriesname","priceinfo","scorevalue","salecount"],"connection": [{"jdbcUrl": ["jdbc:mysql://localhost:3306/car_db?useSSL=false&useUnicode=true&characterEncoding=utf8"],"table": ["benchi_car_half_year"]}],"username": "root","password": "root"}},"writer": {"name": "hdfswriter","parameter": {"column": [{"name": "col1","type": "STRING"},{"name": "col2","type": "STRING"},{"name": "col3","type": "STRING"},{"name": "col4","type": "STRING"},{"name": "col5","type": "STRING"}],"defaultFS": "hdfs://localhost:9000","fieldDelimiter": ",","fileName": "benchi_car_half_year","fileType": "text","path": "/data/qiche/ods/ods_benchi_car_half_year","writeMode": "append"}}}],"setting": {"speed": {"channel": "1"}}}
}
③、编写奔驰近半年⻋型排⾏榜数据脚本
{"job": {"content": [{"reader": {"name": "mysqlreader","parameter": {"column": ["`rank`","seriesname","priceinfo","scorevalue","salecount"],"connection": [{"jdbcUrl": ["jdbc:mysql://localhost:3306/car_db?useSSL=false&useUnicode=true&characterEncoding=utf8"],"table": ["benchi_car_half_year"]}],"username": "root","password": "root"}},"writer": {"name": "hdfswriter","parameter": {"column": [{"name": "col1","type": "STRING"},{"name": "col2","type": "STRING"},{"name": "col3","type": "STRING"},{"name": "col4","type": "STRING"},{"name": "col5","type": "STRING"}],"defaultFS": "hdfs://localhost:9000","fieldDelimiter": ",","fileName": "benchi_car_half_year","fileType": "text","path": "/data/qiche/ods/ods_benchi_car_half_year","writeMode": "append"}}}],"setting": {"speed": {"channel": "1"}}}
}
④、编写⽉度汽⻋销量排⾏榜数据脚本
{"job": {"content": [{"reader": {"name": "mysqlreader","parameter": {"column": ["`rank`","seriesname","priceinfo","scorevalue","salecount"],"connection": [{"jdbcUrl": ["jdbc:mysql://localhost:3306/car_db?useSSL=false&useUnicode=true&characterEncoding=utf8"],"table": ["month_car_top"]}],"password": "root","username": "root"}},"writer": {"name": "hdfswriter","parameter": {"column": [{"name": "col1","type": "STRING"},{"name": "col2","type": "STRING"},{"name": "col3","type": "STRING"},{"name": "col4","type": "STRING"},{"name": "col5","type": "STRING"}],"defaultFS": "hdfs://localhost:9000","fieldDelimiter": ",","fileName": "month_car_top","fileType": "text","path": "/data/qiche/ods/ods_month_car_top","writeMode": "append"}}}],"setting": {"speed": {"channel": "1"}}}
}
（2）DWD层建模
1、创建数据库；
create database qiche_dwd location '/data/qiche/dwd';
2、创建DWD层表；
/*Navicat Premium Dump SQLSource Server         : localhostSource Server Type    : MySQLSource Server Version : 80041 (8.0.41)Source Host           : localhost:3306Source Schema         : qiche_dwdTarget Server Type    : MySQLTarget Server Version : 80041 (8.0.41)File Encoding         : 65001Date: 09/10/2025 20:55:59
*/SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;-- ----------------------------
-- Table structure for dwd_benchi_car_half_year
-- ----------------------------
DROP TABLE IF EXISTS `dwd_benchi_car_half_year`;
CREATE TABLE `dwd_benchi_car_half_year`  (`rank` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '排名',`seriesname` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '车型名称',`priceinfo` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '价格区间',`scorevalue` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '评分',`salecount` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '销量'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of dwd_benchi_car_half_year
-- ------------------------------ ----------------------------
-- Table structure for dwd_benchi_new_car_info
-- ----------------------------
DROP TABLE IF EXISTS `dwd_benchi_new_car_info`;
CREATE TABLE `dwd_benchi_new_car_info`  (`car_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '资讯月份',`info` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '资讯'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of dwd_benchi_new_car_info
-- ------------------------------ ----------------------------
-- Table structure for dwd_hefei_er_shou_car_info
-- ----------------------------
DROP TABLE IF EXISTS `dwd_hefei_er_shou_car_info`;
CREATE TABLE `dwd_hefei_er_shou_car_info`  (`specId` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '车型ID',`car_name` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '车辆名称',`kilometer` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '里程数',`car_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '购买年份',`car_location` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '所在地区',`sell_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '售价',`true_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '真实价格'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of dwd_hefei_er_shou_car_info
-- ------------------------------ ----------------------------
-- Table structure for dwd_month_car_top
-- ----------------------------
DROP TABLE IF EXISTS `dwd_month_car_top`;
CREATE TABLE `dwd_month_car_top`  (`rank` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '排名',`seriesname` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '车型名称',`priceinfo` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '价格区间',`scorevalue` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '评分',`salecount` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '销量'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of dwd_month_car_top
-- ----------------------------SET FOREIGN_KEY_CHECKS = 1;
3、数据清洗；
（3）DWS层建模
1、创建数据库；
create database qiche_dws location '/data/qiche/dws';
2、创建表；
/*Navicat Premium Dump SQLSource Server         : localhostSource Server Type    : MySQLSource Server Version : 80041 (8.0.41)Source Host           : localhost:3306Source Schema         : qiche_dwsTarget Server Type    : MySQLTarget Server Version : 80041 (8.0.41)File Encoding         : 65001Date: 09/10/2025 20:56:09
*/SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;-- ----------------------------
-- Table structure for dws_benchi_year_count
-- ----------------------------
DROP TABLE IF EXISTS `dws_benchi_year_count`;
CREATE TABLE `dws_benchi_year_count`  (`year_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`count` int NULL DEFAULT NULL
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of dws_benchi_year_count
-- ------------------------------ ----------------------------
-- Table structure for dws_hefei_er_shou_car_info
-- ----------------------------
DROP TABLE IF EXISTS `dws_hefei_er_shou_car_info`;
CREATE TABLE `dws_hefei_er_shou_car_info`  (`specId` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`car_name` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`kilometer` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`car_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`car_location` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`sell_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`true_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of dws_hefei_er_shou_car_info
-- ----------------------------SET FOREIGN_KEY_CHECKS = 1;
（4）ADS层建模
1、创建数据库；
create database qiche_ads location '/data/qiche/ads';
2、创建表；
/*Navicat Premium Dump SQLSource Server         : localhostSource Server Type    : MySQLSource Server Version : 80041 (8.0.41)Source Host           : localhost:3306Source Schema         : qiche_adsTarget Server Type    : MySQLTarget Server Version : 80041 (8.0.41)File Encoding         : 65001Date: 09/10/2025 20:55:49
*/SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;-- ----------------------------
-- Table structure for ads_benchi_car_half_year
-- ----------------------------
DROP TABLE IF EXISTS `ads_benchi_car_half_year`;
CREATE TABLE `ads_benchi_car_half_year`  (`rank` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '排名',`seriesname` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '车型名称',`priceinfo` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '价格区间',`scorevalue` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '评分',`salecount` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '销量'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ads_benchi_car_half_year
-- ------------------------------ ----------------------------
-- Table structure for ads_benchi_new_car_info
-- ----------------------------
DROP TABLE IF EXISTS `ads_benchi_new_car_info`;
CREATE TABLE `ads_benchi_new_car_info`  (`car_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '资讯月份',`info` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '资讯'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ads_benchi_new_car_info
-- ------------------------------ ----------------------------
-- Table structure for ads_benchi_year_count
-- ----------------------------
DROP TABLE IF EXISTS `ads_benchi_year_count`;
CREATE TABLE `ads_benchi_year_count`  (`year_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`count` int NULL DEFAULT NULL
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ads_benchi_year_count
-- ------------------------------ ----------------------------
-- Table structure for ads_hefei_er_shou_car_info
-- ----------------------------
DROP TABLE IF EXISTS `ads_hefei_er_shou_car_info`;
CREATE TABLE `ads_hefei_er_shou_car_info`  (`specId` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`car_name` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`kilometer` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`car_time` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`car_location` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`sell_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL,`true_price` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ads_hefei_er_shou_car_info
-- ------------------------------ ----------------------------
-- Table structure for ads_month_car_top
-- ----------------------------
DROP TABLE IF EXISTS `ads_month_car_top`;
CREATE TABLE `ads_month_car_top`  (`rank` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '排名',`seriesname` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '车型名称',`priceinfo` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '价格区间',`scorevalue` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '评分',`salecount` varchar(250) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '销量'
) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic;-- ----------------------------
-- Records of ads_month_car_top
-- ----------------------------SET FOREIGN_KEY_CHECKS = 1;

3、数据可视化

1、通过启动datax脚本将数据导⼊到mysql中

2、可视化

# 下载finebi安装包并上传服务器
# 下载地址：https://www.finebi.com/product/download
# 安装linux_unix_FineBI6_1-CN.sh
bash linux_unix_FineBI6_1-CN.sh
# 遵循安装引导，⼀步步安装（注意中间会有⼀个修改安装位置，将位置切换为/usr/local/sof
t/finebi）
# 访问finebiweb⻚⾯
http://master:37799/webroot/decision
# 设置⽤户名和密码
# ⽤户名 root
# 密码 123456
# 选择外接数据库
# 需要在mysql中创建finebi数据库
# MySQL 8.0.28 及之后版本，推荐设置数据库默认字符集为 utf8mb3，默认排序规则为 utf8mb3_bin 。

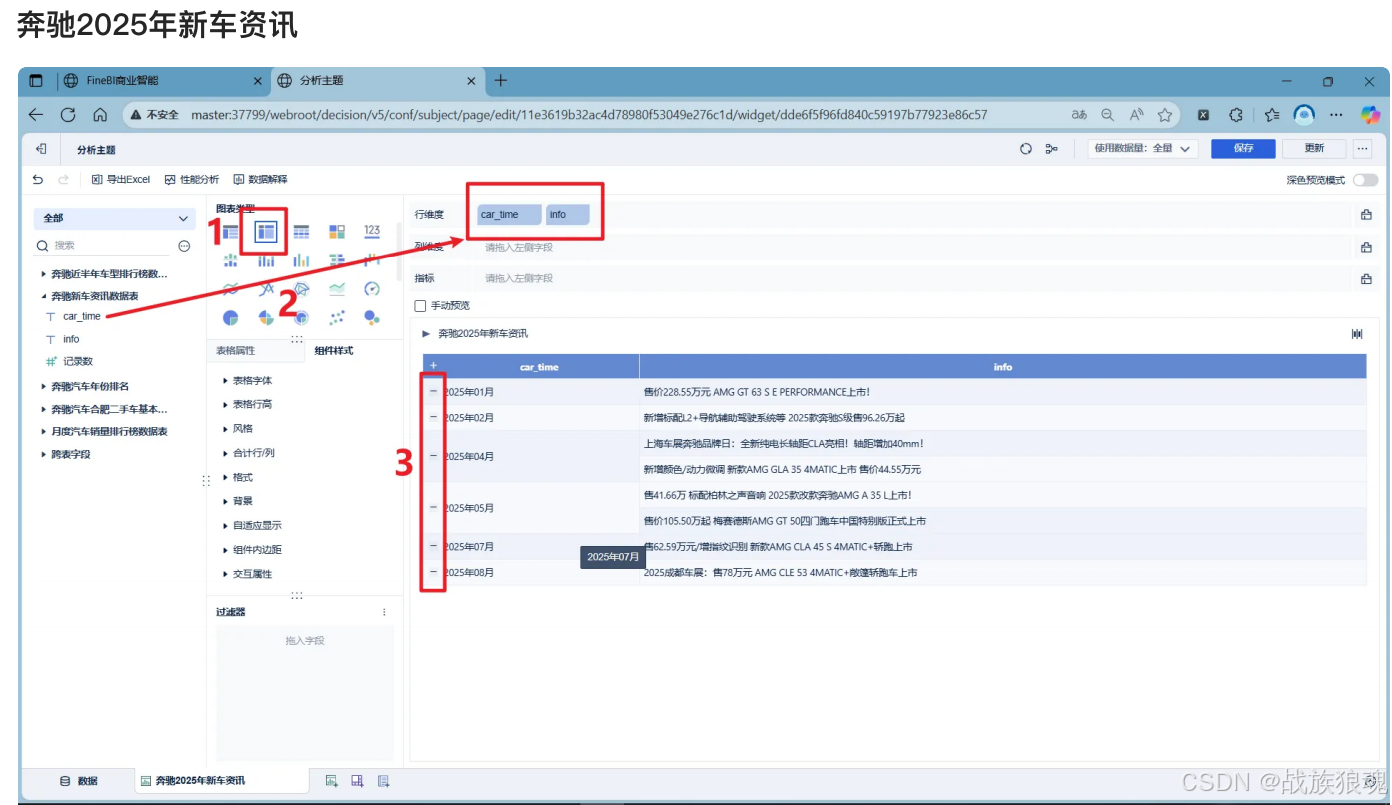

奔驰2025年新⻋资讯
奔驰2025年新⻋资讯

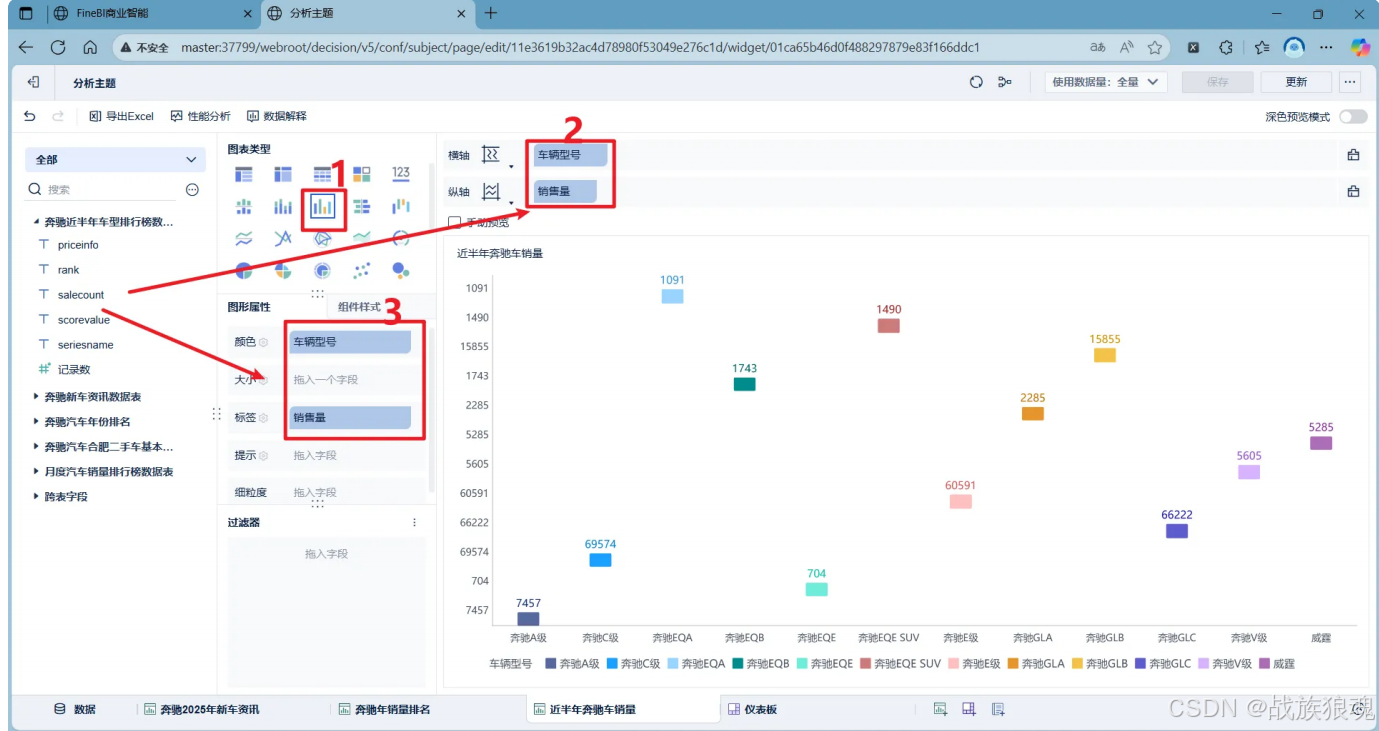

近半年奔驰⻋销量
近半年奔驰⻋销量

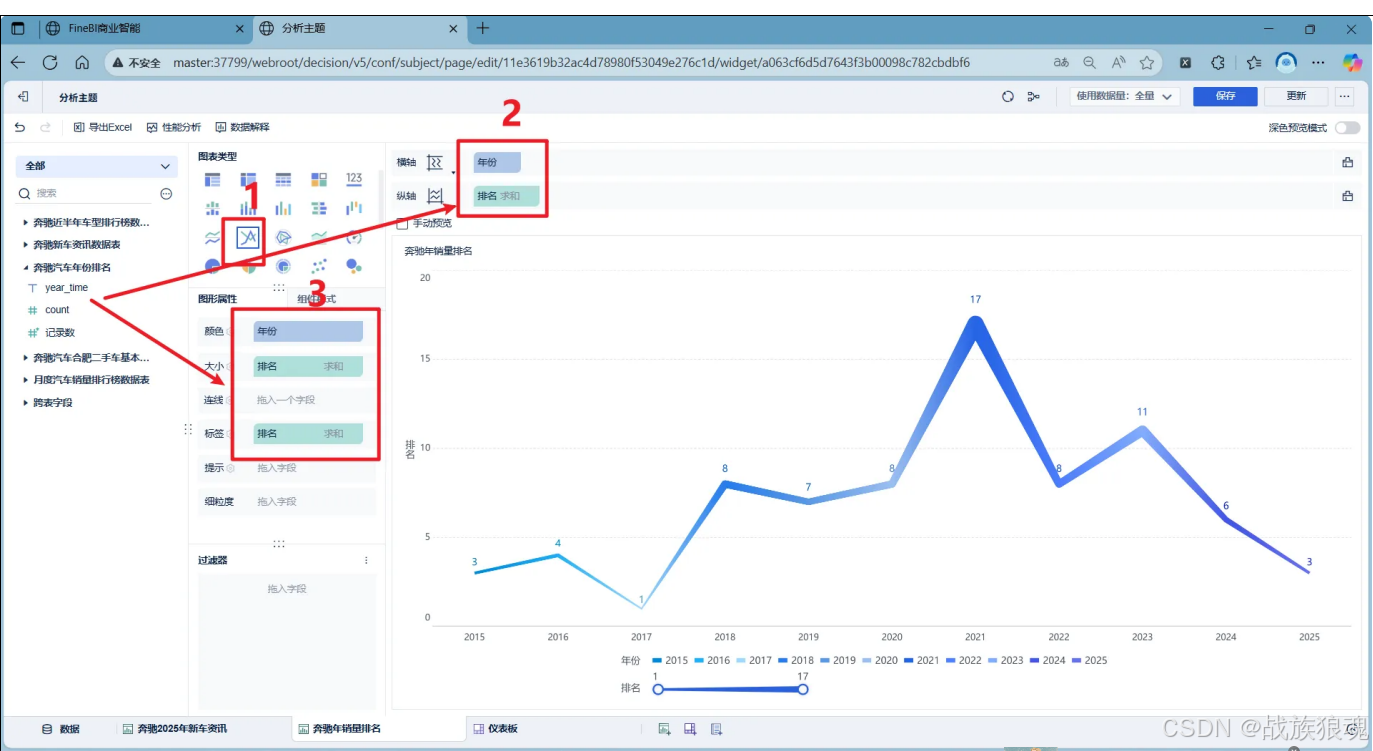

奔驰年销量排名
奔驰年销量排名

本博客仅供个人参考学习使用，禁止用于商用，如遇到法律纠纷，一概与本人无关，如有侵权，请联系删除！！！
