multi-head attention 多头注意力实现细节

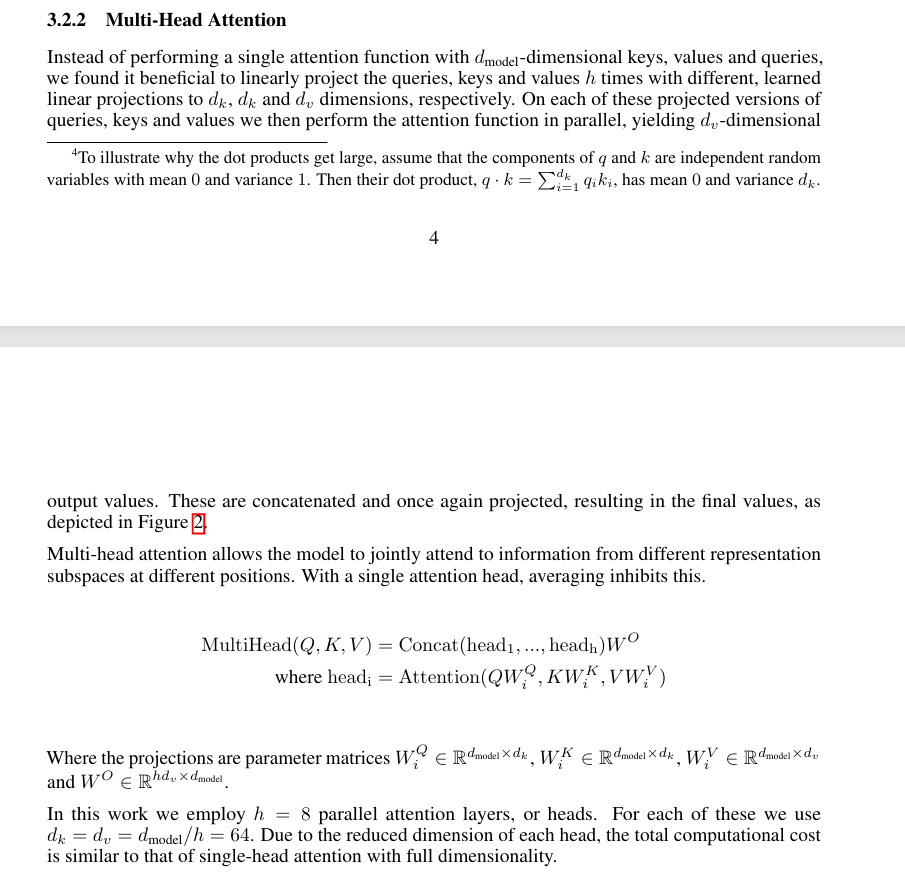

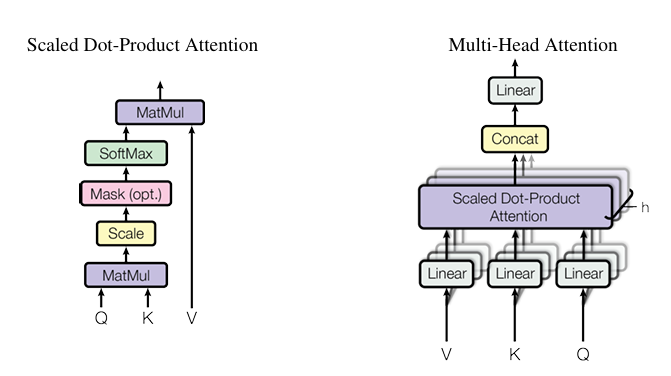

论文中关于多头注意力的描述
1706.03762
代码实现
import torch
import torch.nn as nn
import torch.nn.functional as F
import mathclass MultiHeadAttention(nn.Module):def __init__(self, d_model, num_heads):super(MultiHeadAttention, self).__init__()self.d_model = d_modelself.num_heads = num_headsself.d_k = d_model // num_headsassert d_model % num_heads == 0, "d_model must be divisible by num_heads"# Linear projections for Q, K, Vself.W_q = nn.Linear(d_model, d_model)self.W_k = nn.Linear(d_model, d_model)self.W_v = nn.Linear(d_model, d_model)self.W_o = nn.Linear(d_model, d_model)def scaled_dot_product_attention(self, Q, K, V, mask=None):# Q, K, V: (batch_size, num_heads, seq_len, d_k)scores = torch.matmul(Q, K.transpose(-2, -1)) / math.sqrt(self.d_k)if mask is not None:scores = scores.masked_fill(mask == 0, float('-inf'))attn = F.softmax(scores, dim=-1)return torch.matmul(attn, V)def split_heads(self, x, batch_size):# x: (batch_size, seq_len, d_model)x = x.view(batch_size, -1, self.num_heads, self.d_k) # (batch_size, seq_len, num_heads, d_k)return x.transpose(1, 2) # (batch_size, num_heads, seq_len, d_k)def combine_heads(self, x, batch_size):# x: (batch_size, num_heads, seq_len, d_k)x = x.transpose(1, 2).contiguous() # (batch_size, seq_len, num_heads, d_k)return x.view(batch_size, -1, self.d_model) # (batch_size, seq_len, d_model)def forward(self, Q, K, V, mask=None):batch_size = Q.size(0)Q = self.W_q(Q) # (batch_size, seq_len, d_model)K = self.W_k(K)V = self.W_v(V)Q = self.split_heads(Q, batch_size) # (batch_size, num_heads, seq_len, d_k)K = self.split_heads(K, batch_size)V = self.split_heads(V, batch_size)attn_output = self.scaled_dot_product_attention(Q, K, V, mask)output = self.combine_heads(attn_output, batch_size)return self.W_o(output) # Final linear projection会发现其实代码和论文不是完全一样的，论文看起来是每个头有单独的W去乘，但是代码里是所有头共用W再拆分。其实两者是等价的。要注意一下，在multi-head attention中，输入是不被拆分的，它的shape一直是[L,D_model]，拆分的是W，把[D_model, D_model]的矩阵拆分成K个[D_k, D_model]的矩阵。
根据矩阵的乘法定义
Y = X W = X [W₁ W₂] = [X W₁ X W₂]乘之前拆分还是乘之后拆分，是一样的。代码用大矩阵来乘，可以加快计算。
