阿里云k8s部署微服务yaml和Dockerfile文件脚本

news 2025/10/15 6:37:40

Dockerfile 文件

#基础镜像，如果本地仓库没有，会从远程仓库拉取 openjdk:8
FROM registry.cn-hangzhou.aliyuncs.com/dockerhub_mirror/java:21-anolis
#暴露端口
EXPOSE 8080
#容器中创建目录
RUN mkdir -p /usr/local/cenobitor
#编译后的jar包copy到容器中创建到目录内12
COPY target/codeup-demo-0.0.1.jar /usr/local/cenobitor/codeup-demo-0.0.1.jar
#指定容器时区
RUN rm -f /etc/localtime \
&& ln -sv /usr/share/zoneinfo/Asia/Shanghai /etc/localtime \
&& echo "Asia/Shanghai" > /etc/timezone
#指定容器启动时要执行的命令
ENTRYPOINT ["java","-Dserver.port=8080","-jar","/usr/local/cenobitor/codeup-demo-0.0.1.jar"]

k8s yaml文件

apiVersion: v1
kind: Service
metadata:name: codeup-demonamespace: scplabels:app: codeup-demo
spec:type: ClusterIP #NodePortports:- name: 8080-8080-tcpport: 8080protocol: TCPtargetPort: 8080#nodePort: 31080 #service对外开放端口selector:app: codeup-demo
---
apiVersion: apps/v1
kind: Deployment #对象类型
metadata:name: codeup-demo #名称namespace: scplabels:app: codeup-demo #标注
spec:replicas: 1 #运行容器的副本数，修改这里可以快速修改分布式节点数量progressDeadlineSeconds: 600 #在Deployment 在进度卡住6分钟后报告minReadySeconds: 10 #Pod被认为是可用状态的最小秒数。默认是0strategy:rollingUpdate:maxSurge: 1 #升级过程中激增Pod的最大数量maxUnavailable: 0 #升级过程中不可用Pod的最大数量type: RollingUpdateselector:matchLabels:app: codeup-demotemplate:metadata:labels:app: codeup-demospec:containers: #docker容器的配置- name: codeup-demo#image: shpl-acr-registry.cn-shanghai.cr.aliyuncs.com/scp-uat/codeup-demo:$IMG_TAG # pull镜像的地址 ip:prot/dir/images:tagimage: ${image}imagePullPolicy: Always #pull镜像时机，ports:- containerPort: 8080 #容器对外开放端口,需与springboot配置文件一致env:- name: aliyun_logs_catalinavalue: stdoutvolumeMounts:- name: time-configmountPath: /etc/localtimereadOnly: true#- name: volume-logs#  mountPath: /logs#  subPath: logsresources:limits:cpu: 50mmemory: 1Girequests:cpu: 10mmemory: 200Mi#从私有仓库拉取镜像凭证imagePullSecrets:- name: scp-acr-temp #scp-acr-secretnodeSelector:env: scp  # 节点标签的键值对volumes:- name: time-confighostPath:path: /usr/share/zoneinfo/Asia/Shanghai
#        - name: volume-logs
#          persistentVolumeClaim:
#            claimName: rz-dt-nas-volume-claim-real

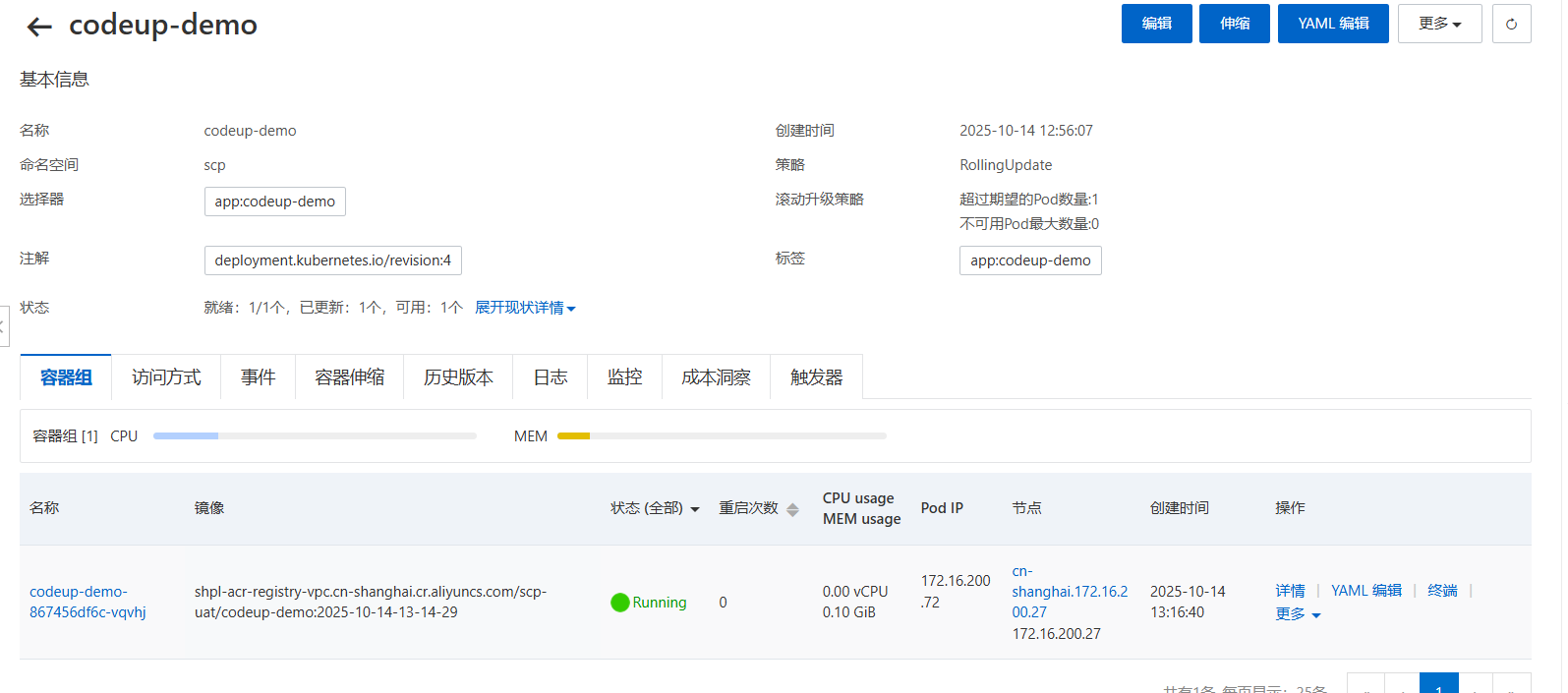

3. 执行kubectl 客户端部署命令，发布成功
