1.data(数组)组件
1.1table 表格
1.1.1table基本用法
通过自动遍历数组 展示数据
:data="tableData" 绑定数组
<el-table-column prop="name" label="名称"> </el-table-column> 指定列
<script setup> import { ref } from 'vue' const tableData = [{date: '2016-05-03',name: 'Tom1',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-02',name: 'Tom2',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',} ] </script> <template><el-table :data="tableData" style="width: 100%"><el-table-column prop="date" label="日期" width="180"> </el-table-column> <el-table-column prop="name" label="名称"> </el-table-column><el-table-column prop="address" label="地址"> </el-table-column></el-table> </template> <style scoped> </style>
1.1.2table样式
隔行变色 边框
固定表头: table上加height属性 固定高度
<el-table :data="tableData" border height="350" stripe style="width: 100%">
固定列:在column上 加fixed属性
注意:如果要固定列效果 不能使用列自适应宽度 需要指定宽度
左固定
<el-table-column fixed prop="date" label="日期" width="180"> </el-table-column>
右固定
<el-table-column fixed="right" prop="address" label="地址" width="280"> </el-table-column>
<script setup> import { ref } from 'vue' const tableData = [{date: '2016-05-03',name: 'Tom1',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-02',name: 'Tom2',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',}, {date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',}, {date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',}, {date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',}, {date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',}, {date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',} ] </script> <template><el-table :data="tableData" border height="350" stripe style="width: 100%"><el-table-column fixed prop="date" label="日期" width="180"> </el-table-column> <el-table-column fixed prop="name" label="名称" width="180"> </el-table-column><el-table-column prop="address" label="地址" width="280"> </el-table-column><el-table-column prop="address" label="地址" width="280"> </el-table-column> <el-table-column prop="address" label="地址" width="280"> </el-table-column> <el-table-column prop="address" label="地址" width="280"> </el-table-column><el-table-column prop="address" label="地址" width="280"> </el-table-column><el-table-column fixed="right" prop="address" label="地址" width="280"> </el-table-column> </el-table> </template> <style scoped> </style>
1.1.3table选择
1.3.1单选
注意:
1.highlight-current-row 选中样式
2.增加 @current-change="handleCurrentChange" 可以选中被选到的数据
const handleCurrentChange = (val)=>{console.log("选中了一行",val);currentRow = val }
3.如果要跨函数使用 注意加中间变量
let currentRow ={} const handleCurrentChange = (val)=>{console.log("选中了一行",val);currentRow = val } const myDelete = ()=>{console.log("删除");console.log(currentRow);}
<script setup> import { ref } from 'vue' const tableData = [{date: '2016-05-03',name: 'Tom1',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-02',name: 'Tom2',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',}, {date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',}, {date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',}, {date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',}, {date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',}, {date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',} ] let currentRow ={} const handleCurrentChange = (val)=>{console.log("选中了一行",val);currentRow = val } const myDelete = ()=>{console.log("删除");console.log(currentRow);} </script> <template><el-table :data="tableData" highlight-current-row border height="350" @current-change="handleCurrentChange" style="width: 100%"><el-table-column fixed prop="date" label="日期" width="180"> </el-table-column> <el-table-column fixed prop="name" label="名称" width="180"> </el-table-column><el-table-column prop="address" label="地址" width="280"> </el-table-column><el-table-column prop="address" label="地址" width="280"> </el-table-column> <el-table-column prop="address" label="地址" width="280"> </el-table-column> <el-table-column prop="address" label="地址" width="280"> </el-table-column><el-table-column prop="address" label="地址" width="280"> </el-table-column><el-table-column fixed="right" prop="address" label="地址" width="280"> </el-table-column> </el-table><button @click="myDelete" >删除</button> </template> <style scoped> </style>
1.3.2多选
1.增加多选框
<el-table-column type="selection" width="55" />
2.操作选中的数据
通过table对象操作
table上加ref属性 <el-table ref="tableRef" :data="tableData" border height="350" style="width: 100%">获取table的Ref对象 const tableRef = ref() 通过table对象操作数据 const myDelete = ()=>{console.log("删除");//console.log(currentRow);//读取table里的选中行console.log(tableRef.value.getSelectionRows());}
<script setup> import { ref } from 'vue' const tableData = [{date: '2016-05-03',name: 'Tom1',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-02',name: 'Tom2',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',}, {date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',}, {date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',}, {date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',}, {date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',}, {date: '2016-05-04',name: 'Tom3',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',address: 'No. 189, Grove St, Los Angeles',} ] let currentRow ={} const handleCurrentChange = (val)=>{console.log("选中了一行",val);currentRow = val } const tableRef = ref() const myDelete = ()=>{console.log("删除");//console.log(currentRow);//读取table里的选中行console.log(tableRef.value.getSelectionRows());} </script> <template><!-- <el-table :data="tableData" highlight-current-row border height="350" @current-change="handleCurrentChange" style="width: 100%"><el-table-column fixed prop="date" label="日期" width="180"> </el-table-column> <el-table-column fixed prop="name" label="名称" width="180"> </el-table-column><el-table-column prop="address" label="地址" width="280"> </el-table-column><el-table-column prop="address" label="地址" width="280"> </el-table-column> <el-table-column prop="address" label="地址" width="280"> </el-table-column> <el-table-column prop="address" label="地址" width="280"> </el-table-column><el-table-column prop="address" label="地址" width="280"> </el-table-column><el-table-column fixed="right" prop="address" label="地址" width="280"> </el-table-column> </el-table> --><el-table ref="tableRef" :data="tableData" border height="350" style="width: 100%"><el-table-column type="selection" width="55" /><el-table-column fixed prop="date" label="日期" width="180"> </el-table-column> <el-table-column fixed prop="name" label="名称" width="180"> </el-table-column><el-table-column prop="address" label="地址" width="280"> </el-table-column><el-table-column prop="address" label="地址" width="280"> </el-table-column> <el-table-column prop="address" label="地址" width="280"> </el-table-column> <el-table-column prop="address" label="地址" width="280"> </el-table-column><el-table-column prop="address" label="地址" width="280"> </el-table-column><el-table-column fixed="right" prop="address" label="地址" width="280"> </el-table-column> </el-table><button @click="myDelete" >删除</button> </template> <style scoped> </style>
1.3.3自定义列数据
table的数据插槽用法1 配合自定义按钮 获取当前行数据2 让table中的数据提高体验 1加入动态数据2通过v-if 切换不同的状态显示3通过函数处理复杂数据逻辑
<script setup> import { ref } from 'vue' import { Finished, Phone } from '@element-plus/icons-vue' //1男 2女 const tableData = [{date: '2016-05-03',name: 'Tom1',gender: '1',phone: '12345678901',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-02',name: 'Tom2',gender: '1',phone: '3345345',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-04',name: 'Tom3',gender: '2',phone: '234566234',address: 'No. 189, Grove St, Los Angeles',},{date: '2016-05-01',name: 'Tom4',gender: '1',phone: '656544444',address: 'No. 189, Grove St, Los Angeles',} ]const myEdit = (currentRow) => {console.log('点击了修改按钮',currentRow) }const transPhone = (phone) => {let phoneEnd = phone.substr(phone.length-4) return '******'+phoneEnd }</script><template><!-- table的数据插槽用法1 配合自定义按钮 获取当前行数据2 让table中的数据提高体验 1加入动态数据2通过v-if 切换不同的状态显示3通过函数处理复杂数据逻辑--><el-table ref="tableRef" :data="tableData" border height="350" style="width: 100%"><el-table-column type="selection" width="55" /><el-table-column fixed label="日期" width="180"><template #default="scope"><el-icon><Finished /></el-icon> {{ scope.row.date }} </template></el-table-column> <el-table-column fixed prop="name" label="名称" width="180"> </el-table-column><el-table-column prop="gender" label="性别" width="280"><template #default="scope"><el-text v-if="scope.row.gender=='1'" type="success">男</el-text><el-text v-else type="danger">女</el-text></template> </el-table-column><el-table-column prop="phone" label="手机号" width="280"><template #default="scope"><el-icon><Phone /></el-icon> {{ transPhone(scope.row.phone) }}</template> </el-table-column><el-table-column prop="address" label="地址" width="280"> </el-table-column><el-table-column label="操作" width="280"> <!-- table 的数据插槽 --><template #default="scope"><el-button @click="myEdit(scope.row)">修改</el-button></template><!-- <el-button @click="myEdit">修改</el-button> --></el-table-column></el-table></template><style scoped></style>
1.2分页组件
独立的组件 传入 total page pageSize 可以自动改变分页组件的数据
注意:
1分页组件 通常搭配其他组件使用 搭配tableconst tableData = reactive({tableList:[],// 分页信息//后端查完数据 给分页参数赋值 页面参数自动变化pageInfo:{total:77,pageSize:10,page:3} })2分页组件的关键参数<el-paginationv-model:current-page="tableData.pageInfo.page" 当前页v-model:page-size="tableData.pageInfo.pageSize" 每页多少条:total="tableData.pageInfo.total" 总记录数:page-sizes="[10, 20, 30]"layout="total, sizes, prev, pager, next, jumper"@current-change="handleCurrentChange"@size-change="handleSizeChange"/>3分页组件的函数从后端取最新的数据 到前端显示current-change 当前页发生改变size-change 每页多少条发生改变
<script setup> import { ref,reactive } from 'vue' const tableData = reactive({tableList:[],// 分页信息//后端查完数据 给分页参数赋值 页面参数自动变化pageInfo:{total:77,pageSize:10,page:3} })const handleCurrentChange = (page)=>{tableData.pageInfo.page = pageconsole.log("页码切换了",tableData.pageInfo); }const handleSizeChange = (pageSize)=>{tableData.pageInfo.pageSize = pageSizeconsole.log("每页多少条切换了",tableData.pageInfo); }</script><template> <!-- 1.控制分页组件使用哪些功能layout="total, sizes, prev, pager, next, jumper"总记录数 每页多少条 上一页 页码 下一页 跳页2.控制每页多少跳下拉列表的值:page-sizes="[100, 200, 300, 400]"3.页码组件主要切换参数:total="400" 总共多少跳v-model:page-size="pageSize4" 每页实际多少条v-model:current-page="currentPage4" 当前页 --><el-paginationv-model:current-page="tableData.pageInfo.page"v-model:page-size="tableData.pageInfo.pageSize":total="tableData.pageInfo.total":page-sizes="[10, 20, 30]"layout="total, sizes, prev, pager, next, jumper"@current-change="handleCurrentChange"@size-change="handleSizeChange"/><!-- @size-change="handleSizeChange"--> </template><style scoped></style>
1.3tree树形组件
注意:
1 tree主要用来展示 父子关系的数据 2 可以搭配checkbox 做选择效果3 读取 设置 清空const showData = ()=>{//如果只要子数据 就用getCheckedKeys(true) 否则全选时会带父数据console.log(treeRef.value.getCheckedKeys(true));//console.log(treeRef.value.getCheckedNodes());}const setData = ()=>{treeRef.value.setCheckedKeys(['710000','659006']);}const resetData = ()=>{treeRef.value.setCheckedKeys([]);}
<script setup> import { ref } from 'vue' import areaData from '@/myjs/myData.js'console.log(areaData);const treeData = ref([])treeData.value = areaDataconst defaultProps = {children: 'subArea',label: 'name', }const treeRef = ref()const showData = ()=>{//如果只要子数据 就用getCheckedKeys(true) 否则全选时会带父数据console.log(treeRef.value.getCheckedKeys(true));//console.log(treeRef.value.getCheckedNodes()); } const setData = ()=>{treeRef.value.setCheckedKeys(['710000','659006']); } const resetData = ()=>{treeRef.value.setCheckedKeys([]); }</script><template><el-button @click="showData">查看选中项</el-button><el-button @click="setData">设置选中项</el-button><el-button @click="resetData">清空选中项</el-button><el-treeref="treeRef"style="max-width: 600px"show-checkbox:data="treeData"default-expand-allnode-key="code":props="defaultProps"/></template><style scoped></style>
1.4其他数据组件(了解)
2菜单组件
2.1导航菜单
注意:
1. 菜单需要做成动态菜单 (由后端查询数据 前端只负责展示 菜单需要带父子关系)
2.图标如果要配合菜单动态生成 需要使用<component :is="menu.icon" /> 动态生成
如果要正常显示 需要把图标 全局注册给vue对象 挂载到vue的组件中 才能识别出图标显示
3.v-for 可以嵌套使用 如果子数据中有集合 可以多层嵌套
<script setup> import { ref } from 'vue' import {Document,Edit,Location,Setting,Check,Message,UploadFilled } from '@element-plus/icons-vue'const menuList = [{mid: '1',menuname: '用户管理',icon: 'Location',subMenu: [{mid: '1-1',menuname: '用户添加',icon: 'Setting',},{mid: '1-2',menuname: '用户查找',icon: 'Edit',}]},{mid: '2',menuname: '财务2管理',icon: 'Check',subMenu: [{mid: '2-1',menuname: '财务对账',icon: 'Message',},{mid: '2-2',menuname: '财务信息',icon: 'UploadFilled',}]} ]console.log(menuList);</script><template><el-row><el-col :span="8"><el-menu active-text-color="#ffd04b" background-color="#545c64" text-color="#fff"><!-- el-sub-menu 可展开菜单 --><el-sub-menu v-for="menu in menuList" :index="menu.mid"><template #title><el-icon><!-- 根据字符串生成标签 --><!-- //<location /> --><component :is="menu.icon" /></el-icon><span>{{menu.menuname}}</span></template><el-menu-item v-for="subM in menu.subMenu" :index="subM.mid"><el-icon><component :is="subM.icon" /></el-icon><span>{{ subM.menuname }}</span></el-menu-item></el-sub-menu></el-menu></el-col></el-row><!-- 菜单需要做成动态菜单 效果:由后端查询出来 前端负责展示 不同权限的人 看到菜单不同--><!-- <component is="button" value="jack">jack</component> --></template><style scoped></style>
2.2菜单跳转

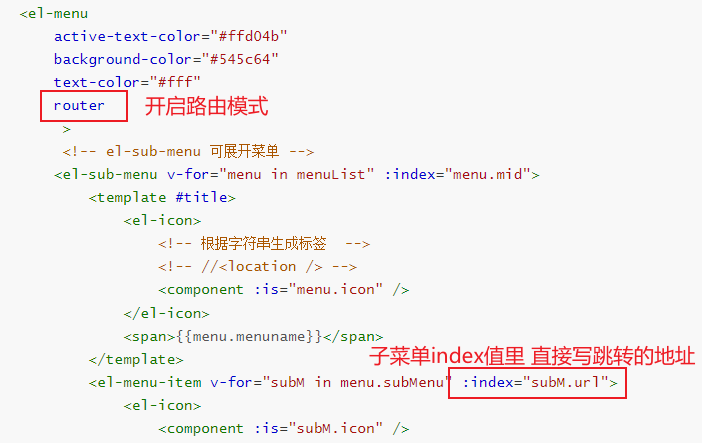

菜单可以启动路由模式(需要安装router插件)
<script setup> import { ref } from 'vue' import router from '@/router' import {Document,Edit,Location,Setting,Check,Message,UploadFilled } from '@element-plus/icons-vue'// const myHref = (url)=>{ // router.push(url) // }const menuList = [{mid: '1',menuname: '用户管理',icon: 'Location',subMenu: [{mid: '1-1',menuname: '用户添加',icon: 'Setting',url:'/1button'},{mid: '1-2',menuname: '用户查找',icon: 'Edit',url:'/2button'}]},{mid: '2',menuname: '财务2管理',icon: 'Check',subMenu: [{mid: '2-1',menuname: '财务对账',icon: 'Message',url:'/3button'},{mid: '2-2',menuname: '财务信息',icon: 'UploadFilled',url:'/4button'}]} ]console.log(menuList);</script><template><el-row><el-col :span="8"><el-menu active-text-color="#ffd04b" background-color="#545c64" text-color="#fff"router><!-- el-sub-menu 可展开菜单 --><el-sub-menu v-for="menu in menuList" :index="menu.mid"><template #title><el-icon><!-- 根据字符串生成标签 --><!-- //<location /> --><component :is="menu.icon" /></el-icon><span>{{menu.menuname}}</span></template><el-menu-item v-for="subM in menu.subMenu" :index="subM.url"><el-icon><component :is="subM.icon" /></el-icon><span>{{ subM.menuname }}</span></el-menu-item></el-sub-menu></el-menu></el-col></el-row><!-- 菜单需要做成动态菜单 效果:由后端查询出来 前端负责展示 不同权限的人 看到菜单不同--><!-- <component is="button" value="jack">jack</component> --></template><style scoped></style>
3反馈组件
3.1消息提示类
有预设的界面和结构
调用比较简单
引入组件 import { ElMessage, ElMessageBox } from 'element-plus'
参考文档 设置组件要使用的参数
有固定的格式 (限制比较多)
<script setup> import { ref } from 'vue' import { ElMessage, ElMessageBox } from 'element-plus'const openMessage = () => { // ElMessage({ // message: '恭喜你,这是一条成功消息', // type: 'error', // }) //简化写法 success 绿色 info 灰色 warning 黄色 error 红色 ElMessage.success('恭喜你,这是一条成功消息') }const openMessageBox = ()=>{ElMessageBox.confirm('提示信息.....','警告',{confirmButtonText: '确认',cancelButtonText: '取消',type: 'warning',}) // promise对象 then catch .then(() => {//确定之后 干什么console.log("确定了");}).catch(() => {//取消之后 干什么console.log("取消了");}) }</script><template><el-button @click="openMessage">成功</el-button><el-button @click="openMessageBox">对话框</el-button> </template><style scoped></style>
3.2对话框类
需要自己编辑弹出框样式 仅提供弹出界面 使用起来更自由 可以与其他功能组件组合使用
对话框 抽屉 用法类似
1.确定触发方式 (例子中是点击按钮 可以配合其他事件触发)
2.需要配置bol值 控制界面的打开/关闭
const dialogVisible = ref(false) const drawerVisible = ref(false)
3.需要手动编辑弹出框界面 (可以与其他功能组件组合界面)
对话框 <el-dialogv-model="dialogVisible"title="对话框"width="500">空的对话框....<template #footer><div class="dialog-footer"><el-button @click="dialogVisible = false">取消</el-button><el-button type="primary" @click="dialogVisible = false">确定</el-button></div></template></el-dialog>抽屉<el-drawerv-model="drawerVisible"title="这是抽屉"direction="btt" size="70%">空抽屉 啥都能放<el-button plain @click="openInnerDrawer">打开子抽屉</el-button><el-drawerv-model="drawerInnerVisible"title="这是子抽屉"direction="btt" size="50%">内部抽屉</el-drawer></el-drawer>
<script setup> import { ref } from 'vue' const openDialog = ()=>{dialogVisible.value = true }const openDrawer = ()=>{drawerVisible.value = true }const openInnerDrawer = ()=>{drawerInnerVisible.value = true }const dialogVisible = ref(false) const drawerVisible = ref(false)const drawerInnerVisible = ref(false)</script><template><!-- 对话框 是一个空的悬浮框 (模态框)可以搭配其他的组件 构成 一个完整的对话框用法:组合页面 减少页面数量 --><el-button plain @click="openDialog">Click to open the Dialog</el-button><el-button plain @click="openDrawer">打开抽屉</el-button><el-dialogv-model="dialogVisible"title="对话框"width="500">空的对话框....<template #footer><div class="dialog-footer"><el-button @click="dialogVisible = false">取消</el-button><el-button type="primary" @click="dialogVisible = false">确定</el-button></div></template></el-dialog><el-drawerv-model="drawerVisible"title="这是抽屉"direction="btt" size="70%">空抽屉 啥都能放<el-button plain @click="openInnerDrawer">打开子抽屉</el-button><el-drawerv-model="drawerInnerVisible"title="这是子抽屉"direction="btt" size="50%">内部抽屉</el-drawer></el-drawer></template><style scoped></style>
作用:
组合界面使用 可以把有数据关联的功能 做到一个页面中 减少页面跳转数量
