Oracle AWR报告中Load Profile源码

news 2025/10/14 7:03:53

在这里插入图片描述

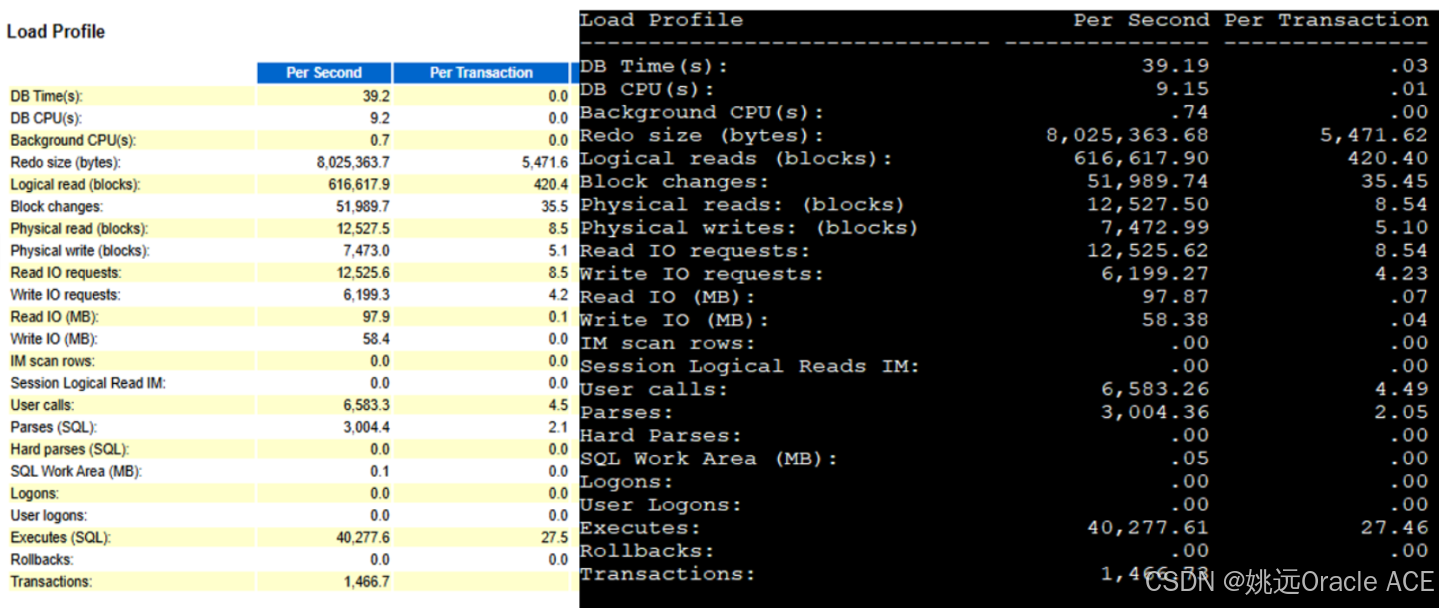

生成的Load Profile效果如图，下面是源代码：

SET VERIFY OFFDEFINE beg_snap = 1120;
DEFINE end_snap = 1121;COLUMN short_name FORMAT a30 HEADING 'Load Profile';
COLUMN per_sec    FORMAT 999,999,999.99 HEADING 'Per Second';
COLUMN per_tx     FORMAT 999,999,999.99 HEADING 'Per Transaction';SET PAGESIZE 200;WITH db_info AS (SELECT(SELECT dbid FROM v$database) AS db_id,(SELECT instance_number FROM v$instance) AS instance_numberFROM dual
),
st_list_mod AS (SELECT 'DB time' stat_name, 'DB Time(s):' short_name, 1 st_order FROM dualUNION ALLSELECT 'DB CPU' stat_name, 'DB CPU(s):' short_name, 2 st_order FROM dualUNION ALLSELECT 'background cpu time' stat_name, 'Background CPU(s):' short_name, 3 st_order FROM dual
),
st_list_sys AS (SELECT 'redo size' stat_name, 'Redo size (bytes):' short_name, 4 st_order FROM dualUNION ALLSELECT 'session logical reads' stat_name, 'Logical reads (blocks):' short_name, 5 st_order FROM dualUNION ALLSELECT 'db block changes' stat_name, 'Block changes:' short_name, 6 st_order FROM dualUNION ALLSELECT 'physical reads' stat_name, 'Physical reads: (blocks)' short_name, 7 st_order FROM dualUNION ALLSELECT 'physical writes' stat_name, 'Physical writes: (blocks)' short_name, 8 st_order FROM dualUNION ALLSELECT 'physical read IO requests' stat_name, 'Read IO requests:' short_name, 9 st_order FROM dualUNION ALLSELECT 'physical write IO requests' stat_name, 'Write IO requests:' short_name, 10 st_order FROM dualUNION ALLSELECT 'physical read bytes' stat_name, 'Read IO (MB):' short_name, 11 st_order FROM dualUNION ALLSELECT 'physical write bytes' stat_name, 'Write IO (MB):' short_name, 12 st_order FROM dualUNION ALLSELECT 'IM scan rows' stat_name, 'IM scan rows:' short_name, 13 st_order FROM dualUNION ALLSELECT 'session logical reads - IM' stat_name, 'Session Logical Reads IM:' short_name, 14 st_order FROM dualUNION ALLSELECT 'user calls' stat_name, 'User calls:' short_name, 15 st_order FROM dualUNION ALLSELECT 'parse count (total)' stat_name, 'Parses:' short_name, 16 st_order FROM dualUNION ALLSELECT 'parse count (hard)' stat_name, 'Hard Parses:' short_name, 17 st_order FROM dualUNION ALLSELECT 'logons cumulative' stat_name, 'Logons:' short_name, 19 st_order FROM dualUNION ALLSELECT 'user logons cumulative' stat_name, 'User Logons:' short_name, 20 st_order FROM dualUNION ALLSELECT 'execute count' stat_name, 'Executes:' short_name, 21 st_order FROM dualUNION ALLSELECT 'user rollbacks' stat_name, 'Rollbacks:' short_name, 22 st_order FROM dual
),
elp_time AS (SELECTEXTRACT(DAY FROM e.end_interval_time - b.end_interval_time) * 86400+ EXTRACT(HOUR FROM e.end_interval_time - b.end_interval_time) * 3600+ EXTRACT(MINUTE FROM e.end_interval_time - b.end_interval_time) * 60+ EXTRACT(SECOND FROM e.end_interval_time - b.end_interval_time) AS d_elp_timeFROM dba_hist_snapshot b, dba_hist_snapshot e, db_info snWHERE e.snap_id = &end_snapAND b.snap_id = &beg_snapAND b.dbid = sn.db_idAND b.instance_number = sn.instance_numberAND e.dbid = sn.db_idAND e.instance_number = sn.instance_number
),
e_trx_val AS (SELECT SUM(VALUE) AS end_valFROM dba_hist_sysstat e, db_info snWHERE e.snap_id = &end_snapAND e.dbid = sn.db_idAND e.instance_number = sn.instance_numberAND e.stat_name IN ('user rollbacks', 'user commits')
),
b_trx_val AS (SELECT SUM(VALUE) AS bgn_valFROM dba_hist_sysstat b, db_info snWHERE b.snap_id = &beg_snapAND b.dbid = sn.db_idAND b.instance_number = sn.instance_numberAND b.stat_name IN ('user rollbacks', 'user commits')
),
trx_val AS (SELECT end_val - bgn_val AS usr_valFROM e_trx_val, b_trx_val
),
beg_value_mod AS (SELECT /*+ use_hash(s) */b.short_name, a.stat_name, a.VALUE, b.st_orderFROM dba_hist_sys_time_model a, st_list_mod b, db_info snWHERE a.stat_name = b.stat_nameAND a.snap_id = &beg_snapAND a.dbid = sn.db_idAND a.instance_number = sn.instance_number
),
beg_value_sys AS (SELECT /*+ use_hash(s) */b.short_name, a.stat_name, a.VALUE, b.st_orderFROM dba_hist_sysstat a, st_list_sys b, db_info snWHERE a.stat_name = b.stat_nameAND a.snap_id = &beg_snapAND a.dbid = sn.db_idAND a.instance_number = sn.instance_number
),
beg_workarea AS (SELECT 'SQL Work Area (MB):' short_name, 'SQL Work Area (MB):' stat_name, BYTES_PROCESSED VALUE, 18 st_orderFROM wrh$_pga_target_advice a, db_info snWHERE a.PGA_TARGET_FACTOR = 1AND a.snap_id = &beg_snapAND a.dbid = sn.db_idAND a.instance_number = sn.instance_number
),
end_workarea AS (SELECT 'SQL Work Area (MB):' short_name, 'SQL Work Area (MB):' stat_name, BYTES_PROCESSED VALUE, 18 st_orderFROM wrh$_pga_target_advice a, db_info snWHERE a.PGA_TARGET_FACTOR = 1AND a.snap_id = &end_snapAND a.dbid = sn.db_idAND a.instance_number = sn.instance_number
),
end_value_mod AS (SELECT /*+ use_hash(s) */b.short_name, a.stat_name, a.VALUE, b.st_orderFROM dba_hist_sys_time_model a, st_list_mod b, db_info snWHERE a.stat_name = b.stat_nameAND a.snap_id = &end_snapAND a.dbid = sn.db_idAND a.instance_number = sn.instance_number
),
end_value_sys AS (SELECT /*+ use_hash(s) */b.short_name, a.stat_name, a.VALUE, b.st_orderFROM dba_hist_sysstat a, st_list_sys b, db_info snWHERE a.stat_name = b.stat_nameAND a.snap_id = &end_snapAND a.dbid = sn.db_idAND a.instance_number = sn.instance_number
)
SELECT short_name, per_sec, per_tx
FROM (SELECT e.short_name,ROUND((e.VALUE - b.VALUE) / 1000000 / (SELECT d_elp_time FROM elp_time), 2) AS per_sec,ROUND((e.VALUE - b.VALUE) / 1000000 / (SELECT usr_val FROM trx_val), 2) AS per_tx,e.st_orderFROM beg_value_mod b, end_value_mod eWHERE e.stat_name = b.stat_nameAND e.st_order = b.st_orderUNION ALLSELECT e.short_name,CASEWHEN e.st_order IN (11, 12) THENROUND((e.VALUE - b.VALUE) / (SELECT d_elp_time FROM elp_time) / 1024 / 1024, 2)ELSEROUND((e.VALUE - b.VALUE) / (SELECT d_elp_time FROM elp_time), 2)END AS per_sec,CASEWHEN e.st_order IN (11, 12) THENROUND((e.VALUE - b.VALUE) / (SELECT usr_val FROM trx_val) / 1024 / 1024, 2)ELSEROUND((e.VALUE - b.VALUE) / (SELECT usr_val FROM trx_val), 2)END AS per_tx,e.st_orderFROM beg_value_sys b, end_value_sys eWHERE e.stat_name = b.stat_nameAND e.st_order = b.st_orderUNION ALLSELECT e.short_name,ROUND((e.VALUE - b.VALUE) / 1024 / 1024 / (SELECT d_elp_time FROM elp_time), 2) AS per_sec,ROUND((e.VALUE - b.VALUE) / 1024 / 1024 / (SELECT usr_val FROM trx_val), 2) AS per_tx,e.st_orderFROM beg_workarea b, end_workarea eUNION ALLSELECT 'Transactions:',ROUND(usr_val / (SELECT d_elp_time FROM elp_time), 2),NULL,23FROM trx_val
)
ORDER BY st_order;
