Flutter 仿网易云音乐播放器：唱片旋转 + 歌词滚动实现记录

news 2025/10/12 8:04:14

最近闲着的时候，用 Flutter 做了一个仿网易云音乐播放页面的小练手项目，主要是想实现两个效果：

唱片旋转、唱针随播放状态摆动
播放时歌词自动滚动，当前行高亮

做完之后发现，除了好玩之外，这个过程也算帮我复习了 Flutter 的动画、布局，以及音频播放的相关知识。这里就把整个实现过程聊一下，给有兴趣的朋友参考。

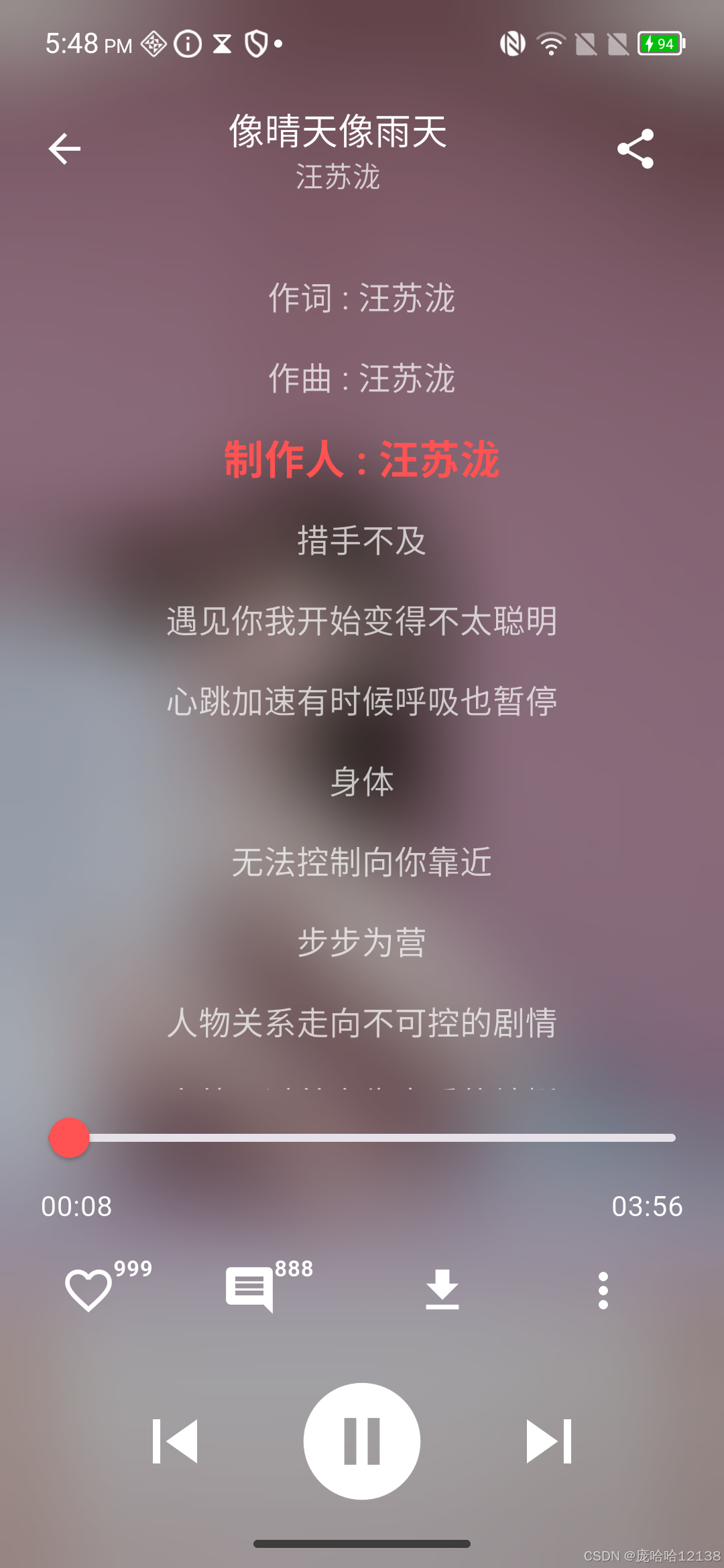

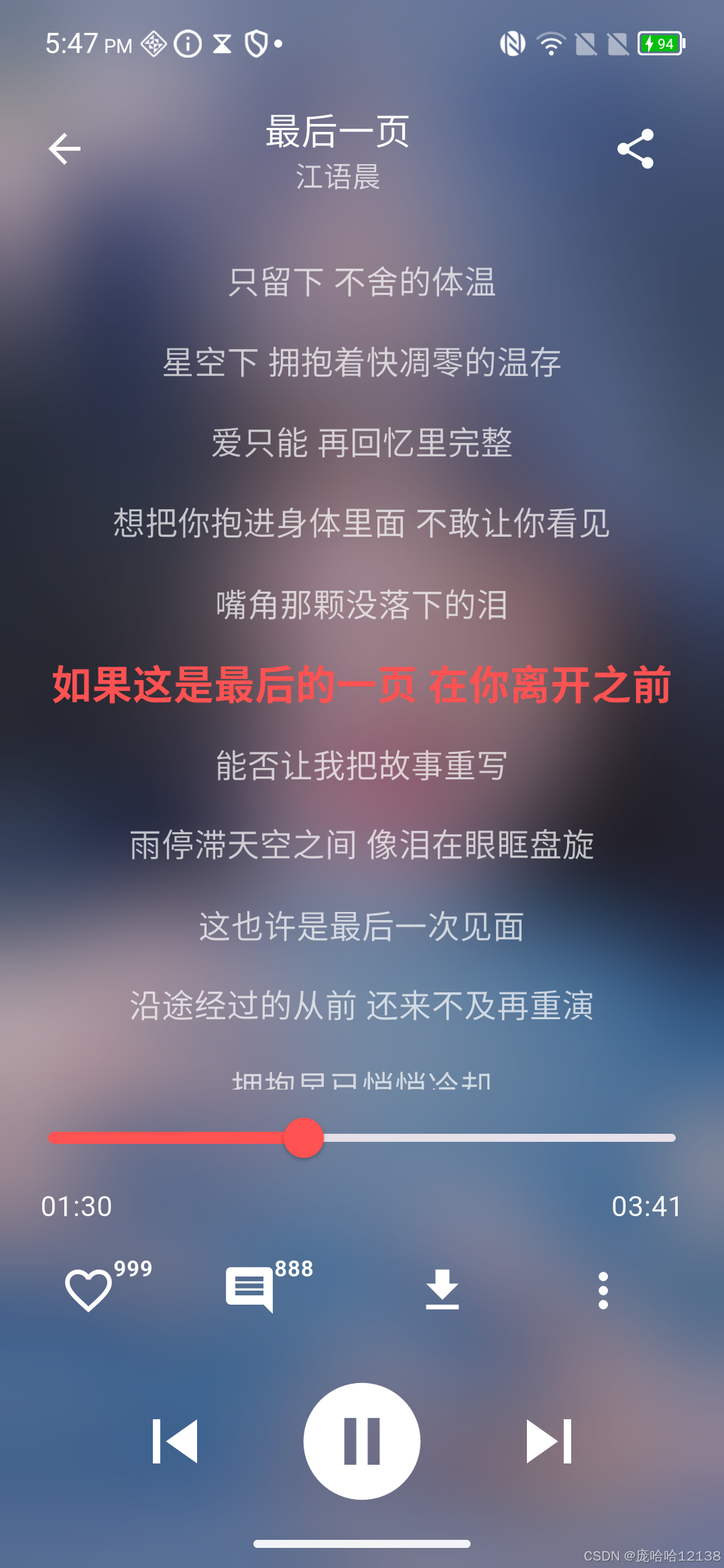

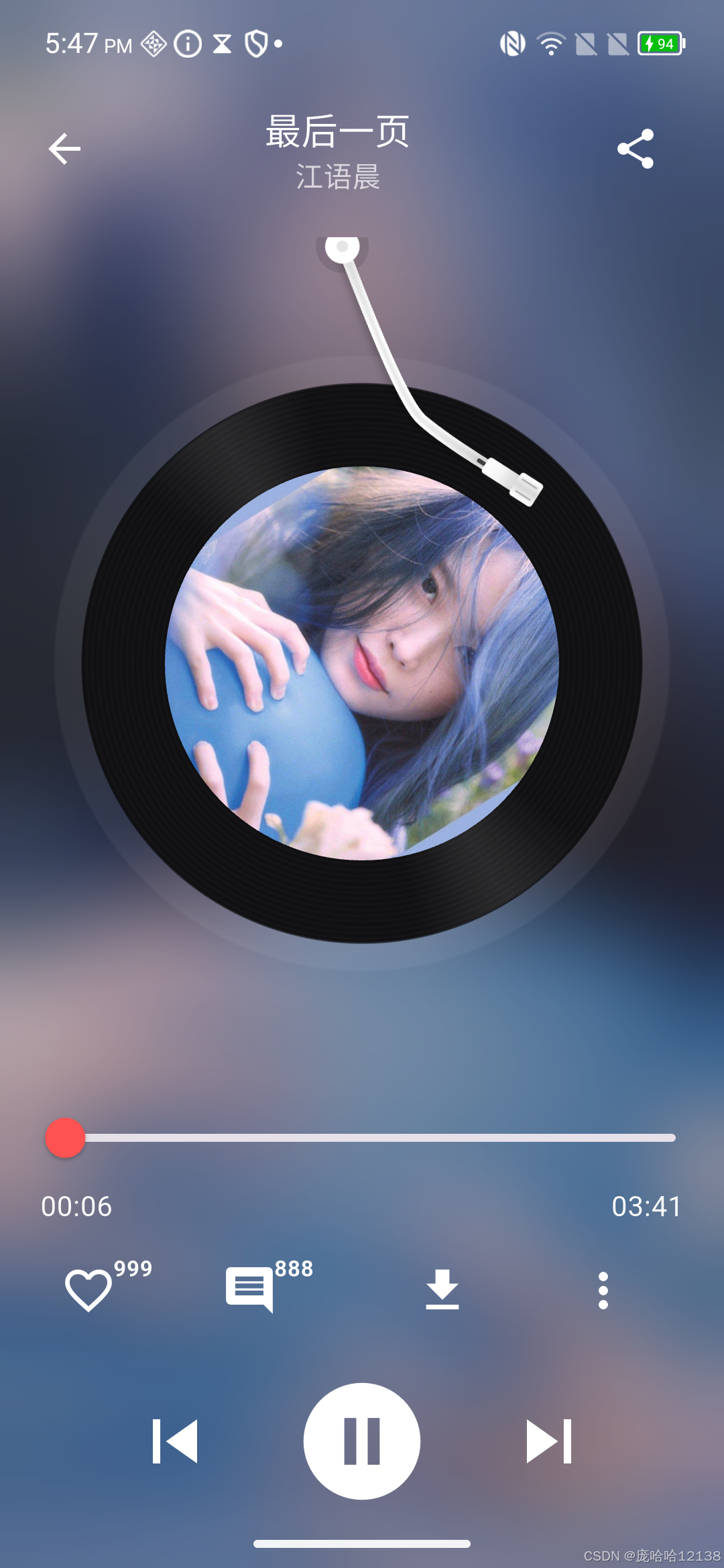

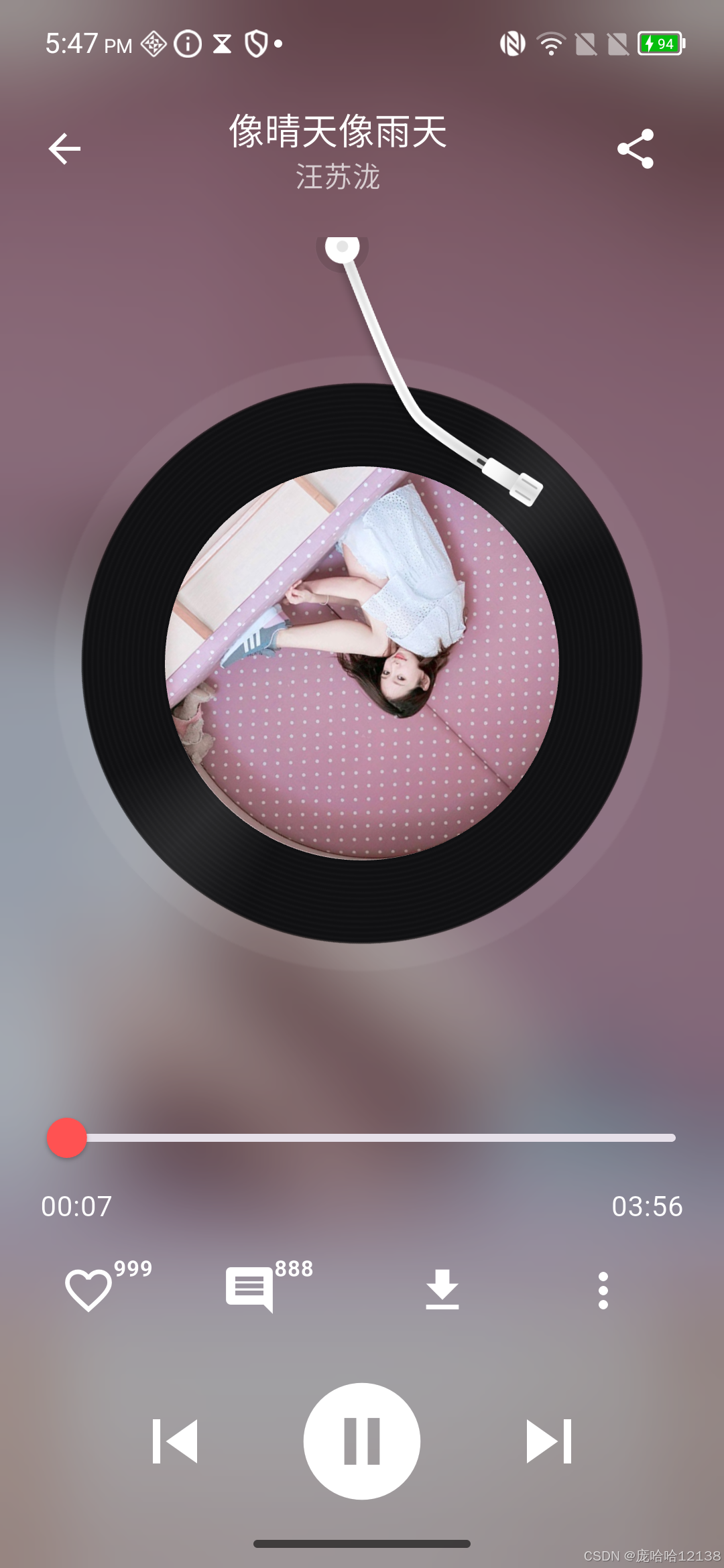

demo效果图

先说整体结构

页面主要分成几个部分：

模糊背景：用当前歌曲封面图作为背景，再加毛玻璃效果，整个画面有点沉浸感。
顶部信息栏：歌名、歌手，以及返回和分享按钮。
中间：默认是唱片+唱针，点击一下切到歌词，再点回来。
底部：进度条+播放时间，点赞/评论/下载等小按钮，以及控制播放的三个大按钮。

这个页面我用一个 StatefulWidget 来做，方便统一管理播放状态、动画、歌词数据等等。

背景模糊

背景的效果特别简单，封面图铺满全屏，然后用 BackdropFilter + 高斯模糊处理一下，再盖一层半透明黑色，让前景更突出：

Positioned.fill( child: Image.asset(song.coverPath, fit: BoxFit.cover), ), Positioned.fill( child: BackdropFilter( filter: ImageFilter.blur(sigmaX: 30, sigmaY: 30), child: Container(color: Colors.black.withOpacity(0.3)), ), ),

模糊的程度我随便调了个值，基本是越大的 sigma 越糊。

唱片旋转和唱针动画

网易云那个唱片和唱针联动的效果，我是用两个 AnimationController 控的：

_rotationController：控制唱片旋转
_needleController：控制唱针压下/抬起的角度

唱片部分套一个 RotationTransition，播放时 repeat()，暂停时 stop()。

唱针这块稍微有意思一点，我用了 lerpDouble 来做角度的插值，这样播放的时候唱针就慢慢压下来：

final double angle = lerpDouble(-0.7, -0.18, _needleController.value)!; Transform.rotate(angle: angle, alignment: Alignment.topCenter, child: Image.asset('assets/ic_needle.png'));

0.0 态是抬起，1.0 态是压下，动画时间我设成 400ms，感觉还算柔和。

点击切换歌词视图

这个很简单，弄个 bool showLyrics 标记，外面套一个 AnimatedSwitcher：

AnimatedSwitcher( duration: const Duration(milliseconds: 300), child: showLyrics ? _buildLyricView() : _buildNeedleAndDisc(discSize, song), )

外层加 GestureDetector，点一下就 setState(() => showLyrics = !showLyrics) 切状态。

歌词解析

我在 assets 里放了几首歌的 .lrc 文件，然后用 rootBundle.loadString() 读取。解析的时候就是按行找时间戳和歌词内容：

int start = line.indexOf('['); int end = line.indexOf(']'); String timeStr = line.substring(start + 1, end); String lyricText = line.substring(end + 1).trim();

时间部分用 Duration 来存，歌词用一个简单的 LyricLine 类管理。最后按时间排序一下。

歌词滚动和高亮

我监听了 _audioPlayer.onPositionChanged，每次播放位置变动的时候，去找当前应该显示的歌词行，然后更新 currentLyricIndex，同时调用 _scrollLyricsToIndex() 来让滚动条居中到这一行：

double targetOffset = index * lineHeight - (viewportHeight / 2) + (lineHeight / 2); _lyricScrollController.animateTo(targetOffset, duration: Duration(milliseconds: 300), curve: Curves.easeInOut);

渲染的时候，如果是当前行就换个颜色、调大字体：

style: TextStyle( color: isActive ? Colors.redAccent : Colors.white70, fontSize: isActive ? 20 : 16, fontWeight: isActive ? FontWeight.bold : FontWeight.normal, ),

挺简单的，但是效果出来很像网易云。

音频播放

用的是 audioplayers，本地播放资源直接用 AssetSource：

_audioPlayer.play(AssetSource(song.musicFile.replaceFirst('assets/', '')));

状态监听：

_audioPlayer.onDurationChanged.listen((d) => setState(() => duration = d)); _audioPlayer.onPositionChanged.listen((p) { setState(() => position = p); _updateCurrentLyric(p); });

这样歌词滚动就跟着时间走了。

交互细节

除了播放控制之外，我还仿着网易云加了点赞、评论、下载三个按钮，每个按钮的图标和颜色会根据状态切换。评论会弹一个 AlertDialog 输入框，点赞会有数量变化，分享用 share_plus 发一条“我正在听xxx”这样的文本。

整体源码

import 'dart:ui';
import 'package:audioplayers/audioplayers.dart';
import 'package:flutter/material.dart';
import 'package:flutter/services.dart' show rootBundle;
import 'package:share_plus/share_plus.dart';void main() {runApp(const MyApp());
}class MyApp extends StatelessWidget {const MyApp({super.key});@overrideWidget build(BuildContext context) {return const MaterialApp(debugShowCheckedModeBanner: false,home: PlayerPage(),);}
}class Song {final String title;final String artist;final String coverPath;final String musicFile;final String lyricFile;Song(this.title, this.artist, this.coverPath, this.musicFile, this.lyricFile);
}class LyricLine {final Duration timestamp;final String text;LyricLine(this.timestamp, this.text);
}class PlayerPage extends StatefulWidget {const PlayerPage({super.key});@overrideState<PlayerPage> createState() => _PlayerPageState();
}class _PlayerPageState extends State<PlayerPage> with TickerProviderStateMixin {final AudioPlayer _audioPlayer = AudioPlayer();bool isPlaying = false;bool showLyrics = false;Duration position = Duration.zero;Duration duration = Duration.zero;late AnimationController _rotationController;late AnimationController _needleController;List<LyricLine> _lyrics = [];int currentLyricIndex = 0;bool isLiked = false;bool isDownloaded = false;final ScrollController _lyricScrollController = ScrollController();final List<Song> playlist = [Song('像晴天像雨天','汪苏泷','assets/cover_demo1.png','assets/music1.mp3','assets/music1.lrc',),Song('忘不掉的你','h3R3','assets/cover_demo2.jpg','assets/music2.mp3','assets/music2.lrc',),Song('最后一页','江语晨','assets/cover_demo3.jpg','assets/music3.mp3','assets/music3.lrc',),Song('跳楼机','LBI利比','assets/cover_demo2.jpg','assets/music4.mp3','assets/music4.lrc',),];int currentIndex = 0;@overridevoid initState() {super.initState();_rotationController = AnimationController(vsync: this,duration: const Duration(seconds: 20),)..stop();_needleController = AnimationController(vsync: this,duration: const Duration(milliseconds: 400),)..value = 0.0;_audioPlayer.onDurationChanged.listen((d) {if (mounted) setState(() => duration = d);});_audioPlayer.onPositionChanged.listen((p) {if (mounted) setState(() => position = p);});_audioPlayer.onPositionChanged.listen((p) {_updateCurrentLyric(p);});_audioPlayer.onPlayerComplete.listen((_) => _nextSong());_loadLyricsForCurrent();_playCurrent();}Future<void> _loadLyricsForCurrent() async {final song = playlist[currentIndex];try {final raw = await rootBundle.loadString(song.lyricFile);final lines = raw.split('\n');final List<LyricLine> parsed = [];for (var line in lines) {// 每一行找 '[' 和 ']' 之间的时间标签int start = line.indexOf('[');int end = line.indexOf(']');if (start != -1 && end != -1) {String timeStr = line.substring(start + 1,end,); // 取出 mm:ss.xxx 或 mm:ssString lyricText = line.substring(end + 1).trim(); // 取 ']' 后面的歌词if (lyricText.isEmpty) continue; // 没歌词就跳过// 解析时间List<String> timeParts = timeStr.split(':'); // 分成 mm 和 ss.xxxint minute = int.parse(timeParts[0]);double secondsDouble = double.parse(timeParts[1]);int second = secondsDouble.floor();int millisecond = ((secondsDouble - second) * 1000).round();parsed.add(LyricLine(Duration(minutes: minute,seconds: second,milliseconds: millisecond,),lyricText,),);}}// 排序parsed.sort((a, b) => a.timestamp.compareTo(b.timestamp));if (mounted) {setState(() {_lyrics = parsed;currentLyricIndex = 0;});}} catch (e) {debugPrint('歌词加载失败: $e');if (mounted) {setState(() {_lyrics = [];currentLyricIndex = 0;});}}}void _updateCurrentLyric(Duration pos) {for (int i = 0; i < _lyrics.length; i++) {if (pos >= _lyrics[i].timestamp &&(i == _lyrics.length - 1 || pos < _lyrics[i + 1].timestamp)) {if (currentLyricIndex != i) {setState(() {currentLyricIndex = i;});_scrollLyricsToIndex(i);}break;}}}void _scrollLyricsToIndex(int index) {if (!_lyricScrollController.hasClients) return;double lineHeight = 40;double viewportHeight = _lyricScrollController.position.viewportDimension;// 当前行的理论位置double targetOffset =index * lineHeight - (viewportHeight / 2) + (lineHeight / 2);if (targetOffset < 0) targetOffset = 0;_lyricScrollController.animateTo(targetOffset,duration: const Duration(milliseconds: 300),curve: Curves.easeInOut,);}Future<void> _playCurrent() async {final song = playlist[currentIndex];await _audioPlayer.play(AssetSource(song.musicFile.replaceFirst('assets/', '')),);_rotationController.repeat();_needleController.forward();setState(() => isPlaying = true);await _loadLyricsForCurrent();}void _togglePlay() async {if (isPlaying) {await _audioPlayer.pause();_rotationController.stop();_needleController.reverse();setState(() => isPlaying = false);} else {await _playCurrent();}}void _nextSong() async {currentIndex = (currentIndex + 1) % playlist.length;await _playCurrent();}void _prevSong() async {currentIndex = (currentIndex - 1 + playlist.length) % playlist.length;await _playCurrent();}void _seekToSecond(double value) {_audioPlayer.seek(Duration(seconds: value.toInt()));}@overridevoid dispose() {_audioPlayer.dispose();_rotationController.dispose();_needleController.dispose();_lyricScrollController.dispose();super.dispose();}@overrideWidget build(BuildContext context) {final song = playlist[currentIndex];double discSize = MediaQuery.of(context).size.width * 0.85;return Scaffold(body: Stack(children: [Positioned.fill(child: Image.asset(song.coverPath, fit: BoxFit.cover),),Positioned.fill(child: BackdropFilter(filter: ImageFilter.blur(sigmaX: 30, sigmaY: 30),child: Container(color: Colors.black.withOpacity(0.3)),),),Column(children: [const SizedBox(height: 50),_buildHeader(song),const SizedBox(height: 20),// 唱针 + 唱片容器分离Expanded(child: GestureDetector(onTap: () => setState(() => showLyrics = !showLyrics),child: AnimatedSwitcher(duration: const Duration(milliseconds: 300),child:showLyrics? _buildLyricView(): _buildNeedleAndDisc(discSize, song),),),),_buildSlider(),_buildTimeLabels(),_buildSmallButtons(),_buildPlayControls(),const SizedBox(height: 20),],),],),);}Widget _buildHeader(Song song) {return Padding(padding: const EdgeInsets.symmetric(horizontal: 20),child: Row(mainAxisAlignment: MainAxisAlignment.spaceBetween,children: [const Icon(Icons.arrow_back, color: Colors.white),Column(children: [Text(song.title,style: const TextStyle(color: Colors.white, fontSize: 18),),Text(song.artist,style: const TextStyle(color: Colors.white70, fontSize: 14),),],),IconButton(icon: const Icon(Icons.share, color: Colors.white),onPressed: () => Share.share('我正在听 "${song.title} - ${song.artist}" 推荐给你'),),],),);}/// 唱针和唱片的组合视图/// [discSize] 唱片的整体宽度（根据屏幕宽计算）/// [song] 当前歌曲信息，用于显示封面Widget _buildNeedleAndDisc(double discSize, Song song) {/// 唱针图片的宽度（像素）final double needleWidth = discSize * 0.32;/// 唱针图片的高度（像素）final double needleHeight = needleWidth * 1.8;/// 屏幕总宽度，方便居中针的位置final double screenW = MediaQuery.of(context).size.width;/// 水平方向针的摆放位置（left），这样针根能居中于屏幕final double needleLeft = (screenW - needleWidth) / 2 + 15;/// 垂直方向针的位置（top）/// 负值表示针根在唱片中心点上方/// 这个值决定针的根离唱片有多高/// 调大负值（比如 -discSize * 0.2）针会更高，调小负值针会更低更接近唱片final double needleTop = -discSize * 0.1;return Stack(alignment: Alignment.center, // 让唱片中心在 Stack 中居中children: [// -------------------------------// 唱片底层（在针下面绘制）// -------------------------------Center(child: RotationTransition(turns: _rotationController, // 控制唱片旋转动画child: Stack(alignment: Alignment.center, // 图片居中叠放children: [// 唱片背景圈Image.asset('assets/ic_disc_blackground.png',width: discSize,height: discSize,),// 唱片主体图层Image.asset('assets/ic_disc.png',width: discSize - 20,height: discSize - 20,),// 中心封面（裁剪为圆形）ClipOval(child: Image.asset(song.coverPath,fit: BoxFit.cover,width: discSize - 110,height: discSize - 110,),),],),),),// -------------------------------// 唱针上层（在唱片上方显示）// -------------------------------Positioned(top: needleTop, // 垂直偏移（针根高度）left: needleLeft, // 水平居中偏移child: AnimatedBuilder(animation: _needleController, // 播放/暂停控制针动画builder: (context, child) {// 从抬起角度到压下角度的插值// 第一个参数：暂停时的角度   （负值表示向外抬起）// 第二个参数：播放时的角度   （通常为0，表示竖直压下）// 根据 _needleController.value 在 0~1 之间插值计算实际角度final double angle =lerpDouble(-0.7, -0.18, _needleController.value)!;return Transform.translate(offset: const Offset(0, 0),child: Transform.rotate(angle: angle,alignment: Alignment.topCenter,child: Image.asset('assets/ic_needle.png',width: needleWidth,height: needleHeight,),),);},),),],);}Widget _buildLyricView() {return ListView.builder(controller: _lyricScrollController,key: const ValueKey('lyrics'),padding: const EdgeInsets.symmetric(horizontal: 20, vertical: 10),itemCount: _lyrics.length,itemBuilder: (context, index) {final isActive = index == currentLyricIndex;return SizedBox(height: 40,child: Center(child: Text(_lyrics[index].text,textAlign: TextAlign.center,style: TextStyle(color: isActive ? Colors.redAccent : Colors.white70,fontSize: isActive ? 20 : 16,fontWeight: isActive ? FontWeight.bold : FontWeight.normal,),),),);},);}Widget _buildSlider() {return Slider(value: position.inSeconds.toDouble(),min: 0.0,max: duration.inSeconds > 0 ? duration.inSeconds.toDouble() : 1.0,onChanged: _seekToSecond,activeColor: Colors.redAccent,);}Widget _buildTimeLabels() {return Padding(padding: const EdgeInsets.symmetric(horizontal: 20),child: Row(mainAxisAlignment: MainAxisAlignment.spaceBetween,children: [Text(_formatDuration(position),style: const TextStyle(color: Colors.white),),Text(_formatDuration(duration),style: const TextStyle(color: Colors.white),),],),);}Widget _buildSmallButtons() {int likeCount = 999;int commentCount = 888;return Padding(padding: const EdgeInsets.symmetric(horizontal: 20, vertical: 8),child: Row(children: [Expanded(child: _iconBtnWithBadge(iconOn: Icons.favorite,iconOff: Icons.favorite_border,state: isLiked,badgeCount: likeCount,onPressed: () {setState(() {if (isLiked) {likeCount = (likeCount > 0) ? likeCount - 1 : 0;isLiked = false;} else {likeCount++;isLiked = true;}});},color: isLiked ? Colors.redAccent : Colors.white,),),Expanded(child: _iconBtnWithBadge(iconOn: Icons.comment,iconOff: null,state: false,badgeCount: commentCount,onPressed: () {_showCommentDialog();setState(() {commentCount++;});},color: Colors.white,),),Expanded(child: _iconBtn(Icons.download,null,false,() => setState(() => isDownloaded = !isDownloaded),isDownloaded ? Colors.redAccent : Colors.white,),),Expanded(child: _iconBtn(Icons.more_vert, null, false, () {}, Colors.white),),],),);}Widget _iconBtnWithBadge({required IconData iconOn,IconData? iconOff,required bool state,required int badgeCount,required VoidCallback onPressed,required Color color,}) {return Stack(clipBehavior: Clip.none,children: [IconButton(icon: Icon(state ? iconOn : (iconOff ?? iconOn), color: color),onPressed: onPressed,iconSize: 28,),if (badgeCount > 0)Positioned(// 位置卡在 icon 的右上角right: 24,top: 5,child: Text(badgeCount.toString(),style: const TextStyle(color: Colors.white,fontSize: 11,fontWeight: FontWeight.bold,),),),],);}Widget _buildPlayControls() {return Row(mainAxisAlignment: MainAxisAlignment.center,children: [IconButton(icon: const Icon(Icons.skip_previous, color: Colors.white, size: 44),onPressed: _prevSong,),const SizedBox(width: 20),IconButton(icon: Icon(isPlaying ? Icons.pause_circle : Icons.play_circle,color: Colors.white,size: 70,),onPressed: _togglePlay,),const SizedBox(width: 20),IconButton(icon: const Icon(Icons.skip_next, color: Colors.white, size: 44),onPressed: _nextSong,),],);}Widget _iconBtn(IconData iconOn,IconData? iconOff,bool state,VoidCallback onPressed,Color color,) {return IconButton(icon: Icon(state ? iconOn : (iconOff ?? iconOn), color: color),onPressed: onPressed,iconSize: 28,);}void _showCommentDialog() {String commentText = '';showDialog(context: context,builder: (ctx) {return AlertDialog(title: const Text('发表评论'),content: TextField(autofocus: true,decoration: const InputDecoration(hintText: '输入内容...'),onChanged: (val) => commentText = val,),actions: [TextButton(onPressed: () => Navigator.pop(ctx),child: const Text('取消'),),TextButton(onPressed: () {Navigator.pop(ctx);ScaffoldMessenger.of(context,).showSnackBar(SnackBar(content: Text('已评论: $commentText')));},child: const Text('发送'),),],);},);}String _formatDuration(Duration d) {String twoDigits(int n) => n.toString().padLeft(2, '0');return "${twoDigits(d.inMinutes)}:${twoDigits(d.inSeconds % 60)}";}
}
