20250929给PRO-RK3566开发板在Buildroot系统下裁剪内核【已关闭摄像头ov4689为例子】

news 2025/9/30 8:27:29

20250929给PRO-RK3566开发板在Buildroot系统下裁剪内核【已关闭摄像头ov4689为例子】
2025/9/29 18:19

缘起：PM要裁剪内核。
测试：关闭摄像头 OV4689

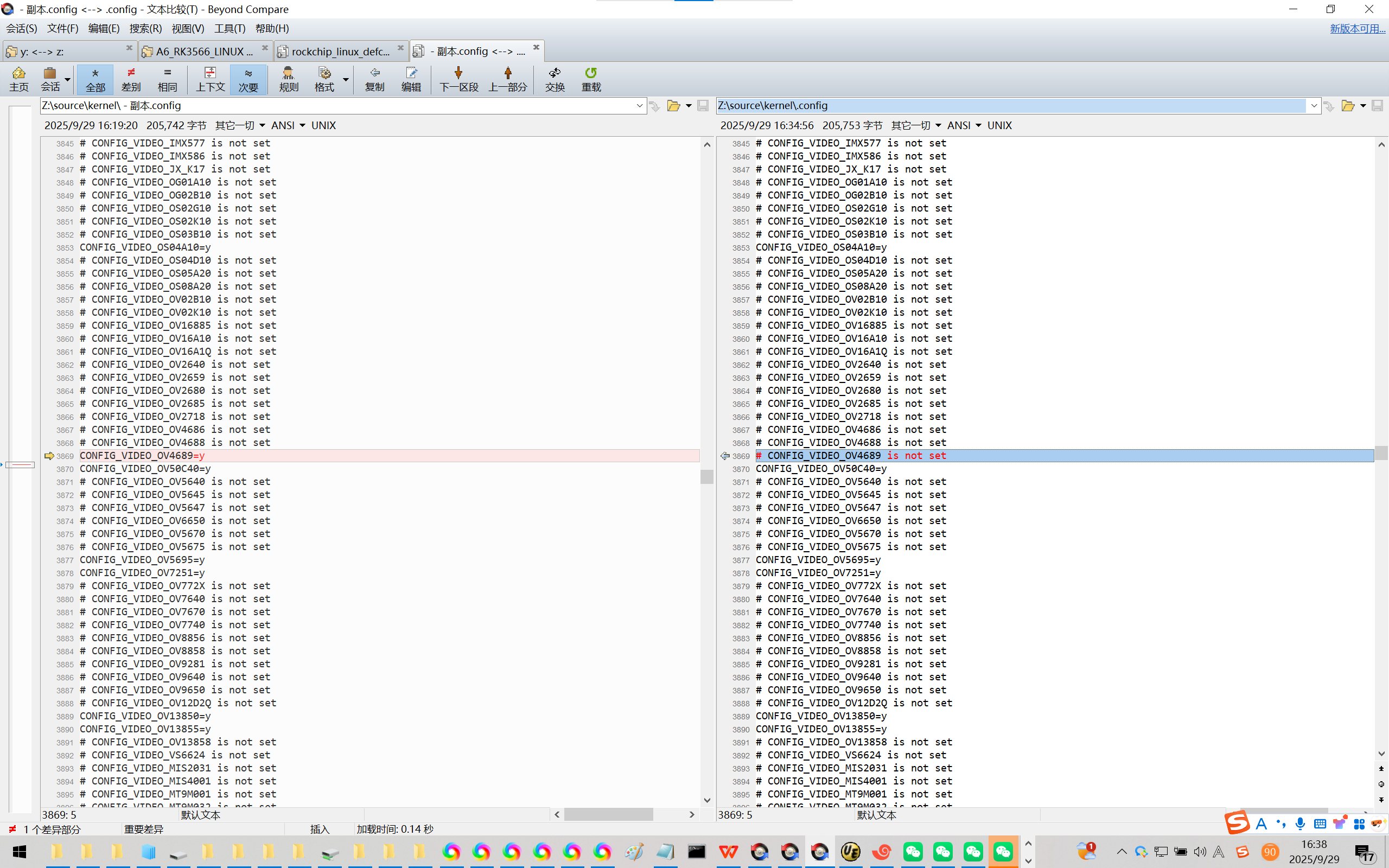

可以在.config中确认ov4689已经关闭

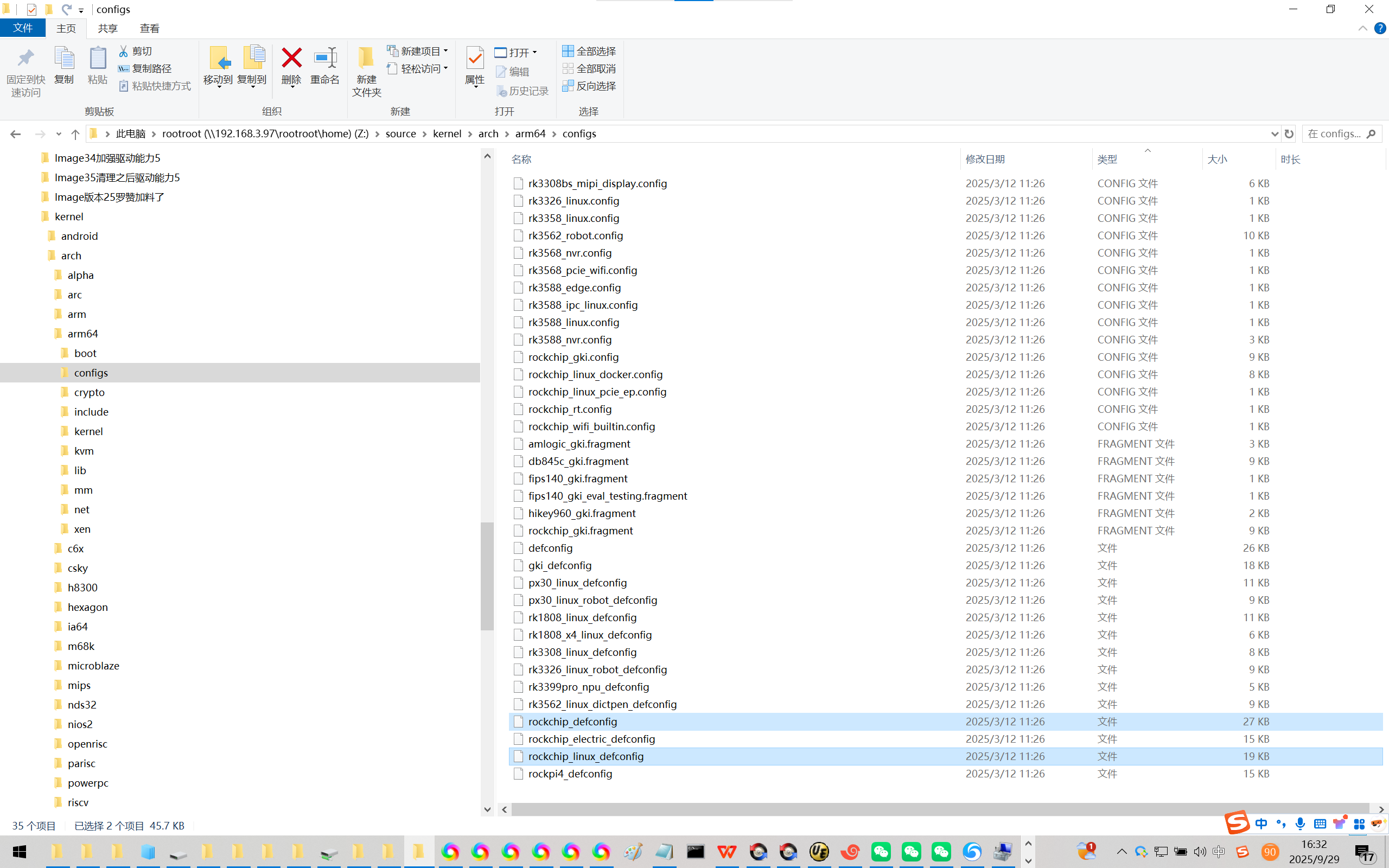

Y:\A6_RK3566_LINUX\kernel\arch\arm64\configs\rockchip_linux_defconfig
Z:\source\kernel\arch\arm64\configs\rockchip_linux_defconfig

CONFIG_VIDEO_RK628_CSI=y
CONFIG_VIDEO_RK628_BT1120=y
CONFIG_VIDEO_TC35874X=y
CONFIG_VIDEO_RK_IRCUT=y
CONFIG_VIDEO_GC2093=y
CONFIG_VIDEO_GC8034=y
CONFIG_VIDEO_IMX334=y
CONFIG_VIDEO_IMX415=y
CONFIG_VIDEO_IMX464=y
CONFIG_VIDEO_OS04A10=y
CONFIG_VIDEO_OV4689=y
CONFIG_VIDEO_OV50C40=y
CONFIG_VIDEO_OV5695=y
CONFIG_VIDEO_OV7251=y
CONFIG_VIDEO_OV13850=y
CONFIG_VIDEO_OV13855=y
CONFIG_VIDEO_DW9763=y
CONFIG_VIDEO_VM149C=y
CONFIG_VIDEO_XS9922=y
CONFIG_VIDEO_GC2093_CLK_24M=y

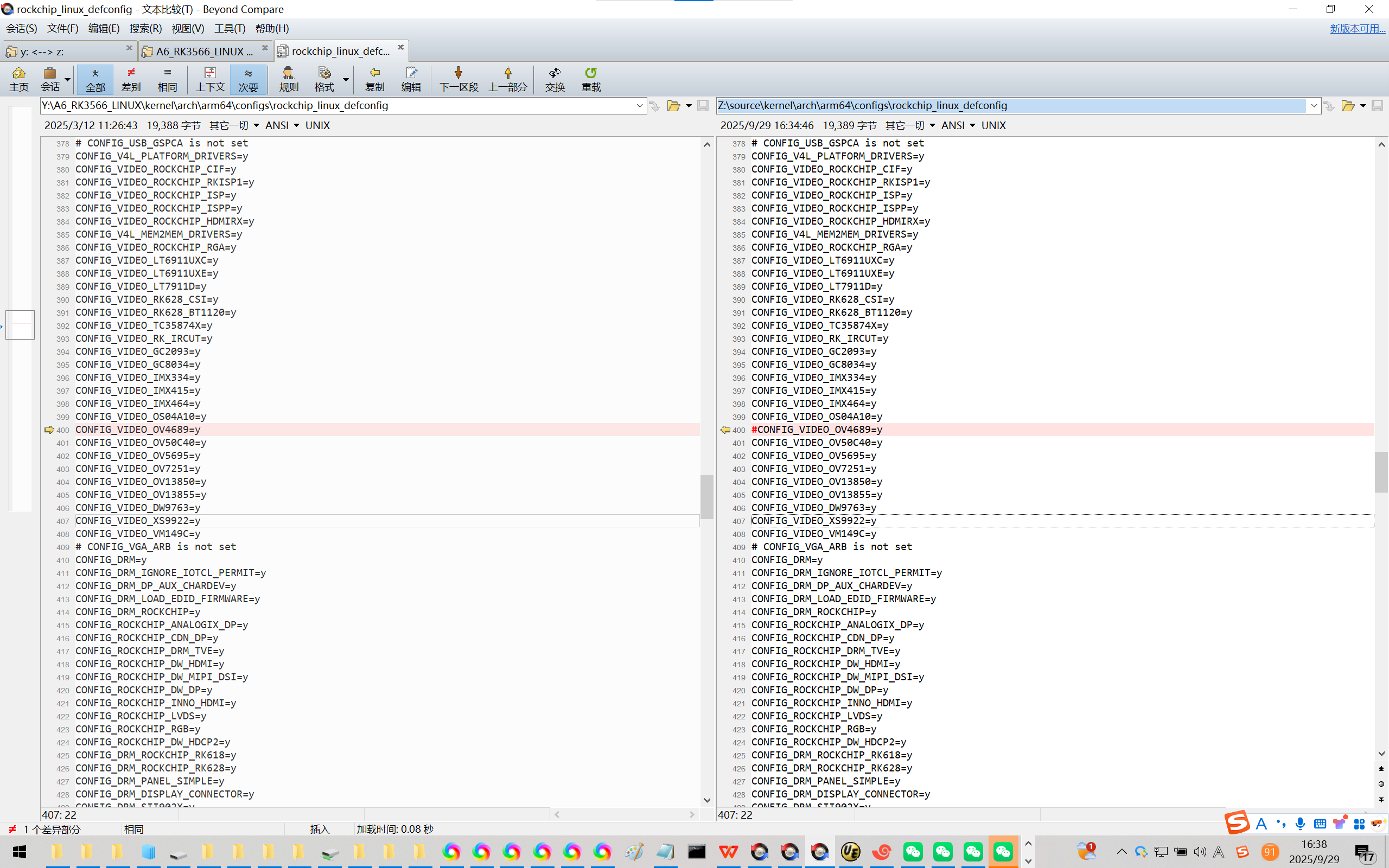

修改为：

CONFIG_VIDEO_RK628_CSI=y
CONFIG_VIDEO_RK628_BT1120=y
CONFIG_VIDEO_TC35874X=y
CONFIG_VIDEO_RK_IRCUT=y
CONFIG_VIDEO_GC2093=y
CONFIG_VIDEO_GC8034=y
CONFIG_VIDEO_IMX334=y
CONFIG_VIDEO_IMX415=y
CONFIG_VIDEO_IMX464=y
CONFIG_VIDEO_OS04A10=y
#CONFIG_VIDEO_OV4689=y
CONFIG_VIDEO_OV50C40=y
CONFIG_VIDEO_OV5695=y
CONFIG_VIDEO_OV7251=y
CONFIG_VIDEO_OV13850=y
CONFIG_VIDEO_OV13855=y
CONFIG_VIDEO_DW9763=y
CONFIG_VIDEO_VM149C=y
CONFIG_VIDEO_XS9922=y
CONFIG_VIDEO_GC2093_CLK_24M=y

完整的LOG：

rootroot@rootroot-X99-Turbo:~/source$ cd kernel/
rootroot@rootroot-X99-Turbo:~/source/kernel$
rootroot@rootroot-X99-Turbo:~/source/kernel$ ll
total 2169248
drwxrwxr-x 26 rootroot rootroot 4096 9月 29 17:12 ./
drwxrwxrwx 30 rootroot rootroot 4096 8月 19 13:45 ../
drwxrwxr-x 2 rootroot rootroot 4096 3月 12 2025 android/
drwxrwxr-x 26 rootroot rootroot 4096 3月 12 2025 arch/
drwxrwxr-x 3 rootroot rootroot 4096 9月 29 16:20 block/
-rw-rw-r-- 1 rootroot rootroot 43238912 9月 29 17:12 boot.img
-rw-rw-r-- 1 rootroot rootroot 1410 3月 12 2025 boot.its
-rw-rw-r-- 1 rootroot rootroot 296 3月 12 2025 build.config.aarch64
-rw-rw-r-- 1 rootroot rootroot 429 3月 12 2025 build.config.allmodconfig
-rw-rw-r-- 1 rootroot rootroot 152 3月 12 2025 build.config.allmodconfig.aarch64
-rw-rw-r-- 1 rootroot rootroot 148 3月 12 2025 build.config.allmodconfig.arm
-rw-rw-r-- 1 rootroot rootroot 151 3月 12 2025 build.config.allmodconfig.x86_64
-rw-rw-r-- 1 rootroot rootroot 1214 3月 12 2025 build.config.amlogic
-rw-rw-r-- 1 rootroot rootroot 198 3月 12 2025 build.config.arm
-rw-rw-r-- 1 rootroot rootroot 378 3月 12 2025 build.config.common
-rw-rw-r-- 1 rootroot rootroot 795 3月 12 2025 build.config.db845c
-rw-rw-r-- 1 rootroot rootroot 63 3月 12 2025 build.config.gki
-rw-rw-r-- 1 rootroot rootroot 1416 3月 12 2025 build.config.gki.aarch64
-rw-rw-r-- 1 rootroot rootroot 638 3月 12 2025 build.config.gki.aarch64.fips140
-rw-rw-r-- 1 rootroot rootroot 230 3月 12 2025 build.config.gki.aarch64.fips140_eval_testing
-rw-rw-r-- 1 rootroot rootroot 106 3月 12 2025 build.config.gki-debug.aarch64
-rw-rw-r-- 1 rootroot rootroot 105 3月 12 2025 build.config.gki-debug.x86_64
-rw-rw-r-- 1 rootroot rootroot 664 3月 12 2025 build.config.gki_kasan
-rw-rw-r-- 1 rootroot rootroot 148 3月 12 2025 build.config.gki_kasan.aarch64
-rw-rw-r-- 1 rootroot rootroot 148 3月 12 2025 build.config.gki_kasan.x86_64
-rw-rw-r-- 1 rootroot rootroot 629 3月 12 2025 build.config.gki_kprobes
-rw-rw-r-- 1 rootroot rootroot 151 3月 12 2025 build.config.gki_kprobes.aarch64
-rw-rw-r-- 1 rootroot rootroot 150 3月 12 2025 build.config.gki_kprobes.x86_64
-rw-rw-r-- 1 rootroot rootroot 142 3月 12 2025 build.config.gki.x86_64
-rw-rw-r-- 1 rootroot rootroot 740 3月 12 2025 build.config.hikey960
-rw-rw-r-- 1 rootroot rootroot 544 3月 12 2025 build.config.khwasan
-rw-rw-r-- 1 rootroot rootroot 478 3月 12 2025 build.config.rockchip
-rw-rw-r-- 1 rootroot rootroot 274 3月 12 2025 build.config.x86_64
drwxrwxr-x 2 rootroot rootroot 4096 9月 29 16:19 certs/
-rw-rw-r-- 1 rootroot rootroot 16673 3月 12 2025 .clang-format
-rw-rw-r-- 1 rootroot rootroot 59 3月 12 2025 .cocciconfig
-rw-rw-r-- 1 rootroot rootroot 205552 9月 29 16:50 .config
-rw-rw-r-- 1 rootroot rootroot 205764 9月 29 16:42 .config.old
-rw-rw-r-- 1 rootroot rootroot 496 3月 12 2025 COPYING
-rw-rw-r-- 1 rootroot rootroot 100478 3月 12 2025 CREDITS
drwxrwxr-x 4 rootroot rootroot 16384 9月 29 16:20 crypto/
drwxrwxr-x 82 rootroot rootroot 4096 3月 12 2025 Documentation/
drwxrwxr-x 147 rootroot rootroot 4096 9月 29 17:12 drivers/
drwxrwxr-x 80 rootroot rootroot 12288 9月 29 16:24 fs/
-rw-rw-r-- 1 rootroot rootroot 71 3月 12 2025 .get_maintainer.ignore
-rw-rw-r-- 1 rootroot rootroot 62 3月 12 2025 .gitattributes
-rw-rw-r-- 1 rootroot rootroot 1944 3月 12 2025 .gitignore
drwxrwxr-x 31 rootroot rootroot 4096 9月 29 16:19 include/
drwxrwxr-x 2 rootroot rootroot 4096 9月 29 17:12 init/
drwxrwxr-x 2 rootroot rootroot 4096 9月 29 16:20 io_uring/
drwxrwxr-x 2 rootroot rootroot 4096 9月 29 16:19 ipc/
-rw-rw-r-- 1 rootroot rootroot 1327 3月 12 2025 Kbuild
-rw-rw-r-- 1 rootroot rootroot 555 3月 12 2025 Kconfig
drwxrwxr-x 21 rootroot rootroot 12288 9月 29 17:12 kernel/
drwxrwxr-x 21 rootroot rootroot 24576 9月 29 16:21 lib/
drwxrwxr-x 6 rootroot rootroot 4096 3月 12 2025 LICENSES/
-rw-rw-r-- 1 rootroot rootroot 12936 3月 12 2025 logo2.bmp
-rwx------ 1 rootroot rootroot 178198 7月 8 09:27 logo.bmp*
-rw-rw-r-- 1 rootroot rootroot 22364 3月 12 2025 logo_kernel2.bmp
-rwx------ 1 rootroot rootroot 178198 7月 8 09:27 logo_kernel.bmp*
-rw-rw-r-- 1 rootroot rootroot 18204 3月 12 2025 .mailmap
-rw-rw-r-- 1 rootroot rootroot 577590 3月 12 2025 MAINTAINERS
-rwx------ 1 rootroot rootroot 68469 4月 19 10:59 Makefile*
-rw-rw-r-- 1 rootroot rootroot 68440 3月 12 2025 Makefile荣品
-rw-rw-r-- 1 rootroot rootroot 577 9月 29 17:12 .missing-syscalls.d
drwxrwxr-x 5 rootroot rootroot 12288 9月 29 16:20 mm/
-rw-rw-r-- 1 rootroot rootroot 28589 9月 29 17:12 modules.builtin
-rw-rw-r-- 1 rootroot rootroot 186208 9月 29 17:12 modules.builtin.modinfo
-rw-rw-r-- 1 rootroot rootroot 15726 9月 29 17:12 modules-only.symvers
-rw-rw-r-- 1 rootroot rootroot 138 9月 29 17:12 .modules-only.symvers.cmd
-rw-rw-r-- 1 rootroot rootroot 5790 9月 29 17:12 modules.order
-rw-rw-r-- 1 rootroot rootroot 421 9月 29 17:12 .modules.order.cmd
-rw-rw-r-- 1 rootroot rootroot 830844 9月 29 17:12 Module.symvers
-rw-rw-r-- 1 rootroot rootroot 80 9月 29 17:12 .Module.symvers.cmd
drwxrwxr-x 72 rootroot rootroot 4096 9月 29 16:24 net/
-rw-rw-r-- 1 rootroot rootroot 438 3月 12 2025 OWNERS
-rw-rw-r-- 1 rootroot rootroot 727 3月 12 2025 README
-rw-rw-r-- 1 rootroot rootroot 6402 3月 12 2025 README.md
-rw-rw-r-- 1 rootroot rootroot 528896 9月 29 17:12 resource.img
drwxrwxr-x 33 rootroot rootroot 4096 3月 12 2025 samples/
-rw-rw-r-- 1 rootroot rootroot 0 3月 12 2025 .scmversion
drwxrwxr-x 17 rootroot rootroot 4096 9月 29 16:20 scripts/
drwxrwxr-x 13 rootroot rootroot 4096 9月 29 16:19 security/
drwxrwxr-x 26 rootroot rootroot 4096 9月 29 16:21 sound/
-rw-rw-r-- 1 rootroot rootroot 7921108 9月 29 17:12 System.map
-rw-rw-r-- 1 rootroot rootroot 7921252 9月 29 17:12 .tmp_kallsyms
-rw-rw-r-- 1 rootroot rootroot 7921108 9月 29 17:12 .tmp_System.map
-rwxrwxr-x 1 rootroot rootroot 50369504 9月 29 17:12 .tmp_vmlinux.kallsyms1*
-rw-rw-r-- 1 rootroot rootroot 1310808 9月 29 17:12 .tmp_vmlinux.kallsyms1.o
-rw-rw-r-- 1 rootroot rootroot 7717977 9月 29 17:12 .tmp_vmlinux.kallsyms1.S
-rwxrwxr-x 1 rootroot rootroot 51680592 9月 29 17:12 .tmp_vmlinux.kallsyms2*
-rw-rw-r-- 1 rootroot rootroot 1310808 9月 29 17:12 .tmp_vmlinux.kallsyms2.o
-rw-rw-r-- 1 rootroot rootroot 7717977 9月 29 17:12 .tmp_vmlinux.kallsyms2.S
drwxrwxr-x 37 rootroot rootroot 4096 3月 12 2025 tools/
drwxrwxr-x 3 rootroot rootroot 4096 9月 29 16:19 usr/
-rw-rw-r-- 1 rootroot rootroot 2 9月 29 17:12 .version
drwxrwxr-x 4 rootroot rootroot 4096 9月 29 16:19 virt/
-rwxrwxr-x 1 rootroot rootroot 583762840 9月 29 17:12 vmlinux*
-rw-rw-r-- 1 rootroot rootroot 404 9月 29 17:12 .vmlinux.cmd
-rw-rw-r-- 1 rootroot rootroot 1426869472 9月 29 17:12 vmlinux.o
-rw-rw-r-- 1 rootroot rootroot 815118 9月 29 17:12 vmlinux.symvers
-rw-rw-r-- 1 rootroot rootroot 19152896 9月 29 17:12 zboot.img
-rwx------ 1 rootroot rootroot 205742 9月 29 16:19 ' - 副本.config'*

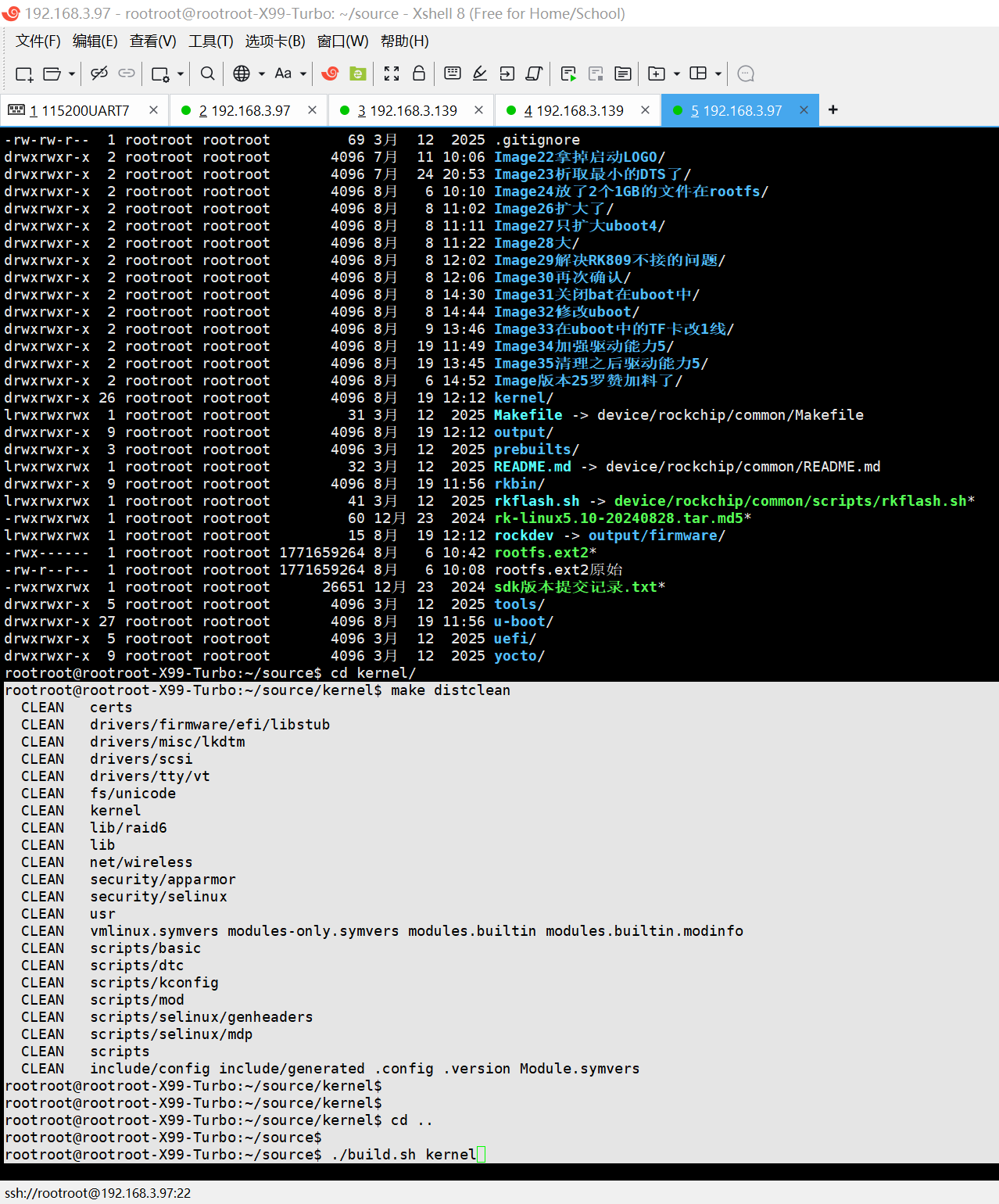

rootroot@rootroot-X99-Turbo:~/source/kernel$ make distclean
CLEAN certs
CLEAN drivers/firmware/efi/libstub
CLEAN drivers/misc/lkdtm
CLEAN drivers/scsi
CLEAN drivers/tty/vt
CLEAN fs/unicode
CLEAN kernel
CLEAN lib/raid6
CLEAN lib
CLEAN net/wireless
CLEAN security/apparmor
CLEAN security/selinux
CLEAN usr
CLEAN vmlinux.symvers modules-only.symvers modules.builtin modules.builtin.modinfo
CLEAN scripts/basic
CLEAN scripts/dtc
CLEAN scripts/kconfig
CLEAN scripts/mod
CLEAN scripts/selinux/genheaders
CLEAN scripts/selinux/mdp
CLEAN scripts
CLEAN include/config include/generated .config .config.old .version Module.symvers
rootroot@rootroot-X99-Turbo:~/source/kernel$
rootroot@rootroot-X99-Turbo:~/source/kernel$
rootroot@rootroot-X99-Turbo:~/source/kernel$ ll
total 63208
drwxrwxr-x 26 rootroot rootroot 4096 9月 29 18:25 ./
drwxrwxrwx 30 rootroot rootroot 4096 8月 19 13:45 ../
drwxrwxr-x 2 rootroot rootroot 4096 3月 12 2025 android/
drwxrwxr-x 26 rootroot rootroot 4096 3月 12 2025 arch/
drwxrwxr-x 3 rootroot rootroot 4096 9月 29 18:25 block/
-rw-rw-r-- 1 rootroot rootroot 43238912 9月 29 17:12 boot.img
-rw-rw-r-- 1 rootroot rootroot 1410 3月 12 2025 boot.its
-rw-rw-r-- 1 rootroot rootroot 296 3月 12 2025 build.config.aarch64
-rw-rw-r-- 1 rootroot rootroot 429 3月 12 2025 build.config.allmodconfig
-rw-rw-r-- 1 rootroot rootroot 152 3月 12 2025 build.config.allmodconfig.aarch64
-rw-rw-r-- 1 rootroot rootroot 148 3月 12 2025 build.config.allmodconfig.arm
-rw-rw-r-- 1 rootroot rootroot 151 3月 12 2025 build.config.allmodconfig.x86_64
-rw-rw-r-- 1 rootroot rootroot 1214 3月 12 2025 build.config.amlogic
-rw-rw-r-- 1 rootroot rootroot 198 3月 12 2025 build.config.arm
-rw-rw-r-- 1 rootroot rootroot 378 3月 12 2025 build.config.common
-rw-rw-r-- 1 rootroot rootroot 795 3月 12 2025 build.config.db845c
-rw-rw-r-- 1 rootroot rootroot 63 3月 12 2025 build.config.gki
-rw-rw-r-- 1 rootroot rootroot 1416 3月 12 2025 build.config.gki.aarch64
-rw-rw-r-- 1 rootroot rootroot 638 3月 12 2025 build.config.gki.aarch64.fips140
-rw-rw-r-- 1 rootroot rootroot 230 3月 12 2025 build.config.gki.aarch64.fips140_eval_testing
-rw-rw-r-- 1 rootroot rootroot 106 3月 12 2025 build.config.gki-debug.aarch64
-rw-rw-r-- 1 rootroot rootroot 105 3月 12 2025 build.config.gki-debug.x86_64
-rw-rw-r-- 1 rootroot rootroot 664 3月 12 2025 build.config.gki_kasan
-rw-rw-r-- 1 rootroot rootroot 148 3月 12 2025 build.config.gki_kasan.aarch64
-rw-rw-r-- 1 rootroot rootroot 148 3月 12 2025 build.config.gki_kasan.x86_64
-rw-rw-r-- 1 rootroot rootroot 629 3月 12 2025 build.config.gki_kprobes
-rw-rw-r-- 1 rootroot rootroot 151 3月 12 2025 build.config.gki_kprobes.aarch64
-rw-rw-r-- 1 rootroot rootroot 150 3月 12 2025 build.config.gki_kprobes.x86_64
-rw-rw-r-- 1 rootroot rootroot 142 3月 12 2025 build.config.gki.x86_64
-rw-rw-r-- 1 rootroot rootroot 740 3月 12 2025 build.config.hikey960
-rw-rw-r-- 1 rootroot rootroot 544 3月 12 2025 build.config.khwasan
-rw-rw-r-- 1 rootroot rootroot 478 3月 12 2025 build.config.rockchip
-rw-rw-r-- 1 rootroot rootroot 274 3月 12 2025 build.config.x86_64
drwxrwxr-x 2 rootroot rootroot 4096 9月 29 18:25 certs/
-rw-rw-r-- 1 rootroot rootroot 16673 3月 12 2025 .clang-format
-rw-rw-r-- 1 rootroot rootroot 59 3月 12 2025 .cocciconfig
-rw-rw-r-- 1 rootroot rootroot 496 3月 12 2025 COPYING
-rw-rw-r-- 1 rootroot rootroot 100478 3月 12 2025 CREDITS
drwxrwxr-x 4 rootroot rootroot 16384 9月 29 18:25 crypto/
drwxrwxr-x 82 rootroot rootroot 4096 3月 12 2025 Documentation/
drwxrwxr-x 147 rootroot rootroot 4096 9月 29 18:25 drivers/
drwxrwxr-x 80 rootroot rootroot 12288 9月 29 18:25 fs/
-rw-rw-r-- 1 rootroot rootroot 71 3月 12 2025 .get_maintainer.ignore
-rw-rw-r-- 1 rootroot rootroot 62 3月 12 2025 .gitattributes
-rw-rw-r-- 1 rootroot rootroot 1944 3月 12 2025 .gitignore
drwxrwxr-x 29 rootroot rootroot 4096 9月 29 18:25 include/
drwxrwxr-x 2 rootroot rootroot 4096 9月 29 18:25 init/
drwxrwxr-x 2 rootroot rootroot 4096 9月 29 18:25 io_uring/
drwxrwxr-x 2 rootroot rootroot 4096 9月 29 18:25 ipc/
-rw-rw-r-- 1 rootroot rootroot 1327 3月 12 2025 Kbuild
-rw-rw-r-- 1 rootroot rootroot 555 3月 12 2025 Kconfig
drwxrwxr-x 21 rootroot rootroot 12288 9月 29 18:25 kernel/
drwxrwxr-x 21 rootroot rootroot 24576 9月 29 18:25 lib/
drwxrwxr-x 6 rootroot rootroot 4096 3月 12 2025 LICENSES/
-rw-rw-r-- 1 rootroot rootroot 12936 3月 12 2025 logo2.bmp
-rwx------ 1 rootroot rootroot 178198 7月 8 09:27 logo.bmp*
-rw-rw-r-- 1 rootroot rootroot 22364 3月 12 2025 logo_kernel2.bmp
-rwx------ 1 rootroot rootroot 178198 7月 8 09:27 logo_kernel.bmp*
-rw-rw-r-- 1 rootroot rootroot 18204 3月 12 2025 .mailmap
-rw-rw-r-- 1 rootroot rootroot 577590 3月 12 2025 MAINTAINERS
-rwx------ 1 rootroot rootroot 68469 4月 19 10:59 Makefile*
-rw-rw-r-- 1 rootroot rootroot 68440 3月 12 2025 Makefile荣品
drwxrwxr-x 5 rootroot rootroot 12288 9月 29 18:25 mm/
drwxrwxr-x 72 rootroot rootroot 4096 9月 29 18:25 net/
-rw-rw-r-- 1 rootroot rootroot 438 3月 12 2025 OWNERS
-rw-rw-r-- 1 rootroot rootroot 727 3月 12 2025 README
-rw-rw-r-- 1 rootroot rootroot 6402 3月 12 2025 README.md
-rw-rw-r-- 1 rootroot rootroot 528896 9月 29 17:12 resource.img
drwxrwxr-x 33 rootroot rootroot 4096 3月 12 2025 samples/
-rw-rw-r-- 1 rootroot rootroot 0 3月 12 2025 .scmversion
drwxrwxr-x 17 rootroot rootroot 4096 9月 29 18:25 scripts/
drwxrwxr-x 13 rootroot rootroot 4096 9月 29 18:25 security/
drwxrwxr-x 26 rootroot rootroot 4096 9月 29 18:25 sound/
drwxrwxr-x 37 rootroot rootroot 4096 3月 12 2025 tools/
drwxrwxr-x 3 rootroot rootroot 4096 9月 29 18:25 usr/
drwxrwxr-x 4 rootroot rootroot 4096 9月 29 18:25 virt/
-rw-rw-r-- 1 rootroot rootroot 19152896 9月 29 17:12 zboot.img
-rwx------ 1 rootroot rootroot 205742 9月 29 16:19 ' - 副本.config'*
rootroot@rootroot-X99-Turbo:~/source/kernel$
rootroot@rootroot-X99-Turbo:~/source/kernel$
rootroot@rootroot-X99-Turbo:~/source/kernel$ rm *.img
rootroot@rootroot-X99-Turbo:~/source/kernel$ ll *.img
ls: cannot access '*.img': No such file or directory
rootroot@rootroot-X99-Turbo:~/source/kernel$
rootroot@rootroot-X99-Turbo:~/source/kernel$
rootroot@rootroot-X99-Turbo:~/source/kernel$ cd //
rootroot@rootroot-X99-Turbo://$
rootroot@rootroot-X99-Turbo://$
rootroot@rootroot-X99-Turbo://$ .bu.
^Crootroot@rootroot-X99-Turbo://$ ./bu.^C
rootroot@rootroot-X99-Turbo://$ cd -
/home/rootroot/source/kernel
rootroot@rootroot-X99-Turbo:~/source/kernel$
rootroot@rootroot-X99-Turbo:~/source/kernel$
rootroot@rootroot-X99-Turbo:~/source/kernel$ cd ..
rootroot@rootroot-X99-Turbo:~/source$ ll
total 5667332
drwxrwxrwx 30 rootroot rootroot 4096 8月 19 13:45 ./
drwxr-xr-x 48 rootroot rootroot 12288 9月 29 17:34 ../
-rw-rw-r-- 1 rootroot rootroot 1073741824 8月 6 10:01 1GBfile
-rw-rw-r-- 1 rootroot rootroot 1073741824 8月 6 10:01 1GBfile2
drwxrwxr-x 8 rootroot rootroot 4096 3月 12 2025 app/
drwxrwxr-x 18 rootroot rootroot 4096 8月 19 12:11 buildroot/
lrwxrwxrwx 1 rootroot rootroot 39 3月 12 2025 build.sh -> device/rockchip/common/scripts/build.sh*
lrwxrwxrwx 1 rootroot rootroot 22 3月 12 2025 common -> device/rockchip/common/
drwxrwxr-x 9 rootroot rootroot 4096 3月 12 2025 debian/
drwxrwxr-x 3 rootroot rootroot 4096 3月 12 2025 device/
drwxrwxr-x 6 rootroot rootroot 4096 3月 12 2025 docs/
-rw-rw-r-- 1 rootroot rootroot 959506039 7月 29 18:16 docs1吊舱-荣品PRO-RK3566.zip
drwxrwxr-x 29 rootroot rootroot 4096 3月 26 2025 external/
-rw-rw-r-- 1 rootroot rootroot 69 3月 12 2025 .gitignore
drwxrwxr-x 2 rootroot rootroot 4096 7月 11 10:06 Image22拿掉启动LOGO/
drwxrwxr-x 2 rootroot rootroot 4096 7月 24 20:53 Image23析取最小的DTS了/
drwxrwxr-x 2 rootroot rootroot 4096 8月 6 10:10 Image24放了2个1GB的文件在rootfs/
drwxrwxr-x 2 rootroot rootroot 4096 8月 8 11:02 Image26扩大了/
drwxrwxr-x 2 rootroot rootroot 4096 8月 8 11:11 Image27只扩大uboot4/
drwxrwxr-x 2 rootroot rootroot 4096 8月 8 11:22 Image28大/
drwxrwxr-x 2 rootroot rootroot 4096 8月 8 12:02 Image29解决RK809不接的问题/
drwxrwxr-x 2 rootroot rootroot 4096 8月 8 12:06 Image30再次确认/
drwxrwxr-x 2 rootroot rootroot 4096 8月 8 14:30 Image31关闭bat在uboot中/
drwxrwxr-x 2 rootroot rootroot 4096 8月 8 14:44 Image32修改uboot/
drwxrwxr-x 2 rootroot rootroot 4096 8月 9 13:46 Image33在uboot中的TF卡改1线/
drwxrwxr-x 2 rootroot rootroot 4096 8月 19 11:49 Image34加强驱动能力5/
drwxrwxr-x 2 rootroot rootroot 4096 8月 19 13:45 Image35清理之后驱动能力5/
drwxrwxr-x 2 rootroot rootroot 4096 8月 6 14:52 Image版本25罗赞加料了/
drwxrwxr-x 26 rootroot rootroot 4096 9月 29 18:25 kernel/
lrwxrwxrwx 1 rootroot rootroot 31 3月 12 2025 Makefile -> device/rockchip/common/Makefile
drwxrwxr-x 9 rootroot rootroot 4096 9月 29 17:11 output/
drwxrwxr-x 3 rootroot rootroot 4096 3月 12 2025 prebuilts/
lrwxrwxrwx 1 rootroot rootroot 32 3月 12 2025 README.md -> device/rockchip/common/README.md
drwxrwxr-x 9 rootroot rootroot 4096 8月 19 11:56 rkbin/
lrwxrwxrwx 1 rootroot rootroot 41 3月 12 2025 rkflash.sh -> device/rockchip/common/scripts/rkflash.sh*
-rwxrwxrwx 1 rootroot rootroot 60 12月 23 2024 rk-linux5.10-20240828.tar.md5*
lrwxrwxrwx 1 rootroot rootroot 15 8月 19 12:12 rockdev -> output/firmware/
-rwx------ 1 rootroot rootroot 1771659264 8月 6 10:42 rootfs.ext2*
-rw-r--r-- 1 rootroot rootroot 1771659264 8月 6 10:08 rootfs.ext2原始
-rwxrwxrwx 1 rootroot rootroot 26651 12月 23 2024 sdk版本提交记录.txt*
drwxrwxr-x 5 rootroot rootroot 4096 3月 12 2025 tools/
drwxrwxr-x 27 rootroot rootroot 4096 8月 19 11:56 u-boot/
drwxrwxr-x 5 rootroot rootroot 4096 3月 12 2025 uefi/
drwxrwxr-x 9 rootroot rootroot 4096 3月 12 2025 yocto/
rootroot@rootroot-X99-Turbo:~/source$ ./build.sh --help
Log colors: message notice warning error fatal

Usage: build.sh [OPTIONS]
Available options:
chip[:<chip>[:<config>]]     choose chip
defconfig[:<config>]     choose defconfig
*_defconfig     switch to specified defconfig
available defconfigs:
dr4-rk3566-buildroot_defconfig
dr4-rk3566-debian_defconfig
dr4-rk3566-openkylin_defconfig
dr4-rk3566-ubuntu_defconfig
dr4-rk3568-buildroot_defconfig
dr4-rk3568-debian_defconfig
dr4-rk3568-openkylin_defconfig
dr4-rk3568-ubuntu_defconfig
lga-rk3566-buildroot_defconfig
lga-rk3566-debian_defconfig
lga-rk3566-openkylin_defconfig
lga-rk3566-ubuntu_defconfig
lga-rk3568-buildroot_defconfig
lga-rk3568-debian_defconfig
lga-rk3568-openkylin_defconfig
lga-rk3568-ubuntu_defconfig
mini-pc-rk3566-buildroot_defconfig
mini-pc-rk3566-debian_defconfig
mini-pc-rk3566-openkylin_defconfig
mini-pc-rk3566-ubuntu_defconfig
nano-box-rk3566-buildroot_defconfig
nano-box-rk3566-debian_defconfig
nano-box-rk3566-openkylin_defconfig
nano-box-rk3566-ubuntu_defconfig
nano-box-rk3568-buildroot_defconfig
nano-box-rk3568-debian_defconfig
nano-box-rk3568-openkylin_defconfig
nano-box-rk3568-ubuntu_defconfig
nano-rk3566-buildroot_defconfig
nano-rk3566-debian_defconfig
nano-rk3566-openkylin_defconfig
nano-rk3566-ubuntu_defconfig
nano-rk3568-buildroot_defconfig
nano-rk3568-debian_defconfig
nano-rk3568-openkylin_defconfig
nano-rk3568-ubuntu_defconfig
pro-rk3566-buildroot_defconfig
pro-rk3566-debian_defconfig
pro-rk3566-openkylin_defconfig
pro-rk3566-ubuntu_defconfig
pro-rk3568-ahd-buildroot_defconfig
pro-rk3568-ahd-debian_defconfig
pro-rk3568-ahd-openkylin_defconfig
pro-rk3568-ahd-ubuntu_defconfig
pro-rk3568-buildroot_defconfig
pro-rk3568-debian_defconfig
pro-rk3568-h-buildroot_defconfig
pro-rk3568-h-debian_defconfig
pro-rk3568-h-openkylin_defconfig
pro-rk3568-h-ubuntu_defconfig
pro-rk3568-openkylin_defconfig
pro-rk3568-ubuntu_defconfig
rp-box-rk3566-buildroot_defconfig
rp-box-rk3566-debian_defconfig
rp-box-rk3566-openkylin_defconfig
rp-box-rk3566-ubuntu_defconfig
rp-box-rk3568-buildroot_defconfig
rp-box-rk3568-debian_defconfig
rp-box-rk3568-openkylin_defconfig
rp-box-rk3568-ubuntu_defconfig
rp-rk3566-buildroot_defconfig
rp-rk3566-debian_defconfig
rp-rk3566-openkylin_defconfig
rp-rk3566-ubuntu_defconfig
rp-rk3568-buildroot_defconfig
rp-rk3568-debian_defconfig
rp-rk3568-openkylin_defconfig
rp-rk3568-ubuntu_defconfig
olddefconfig    resolve any unresolved symbols in .config
savedefconfig     save current config to defconfig
menuconfig    interactive curses-based configurator
config     modify SDK defconfig
print-parts     print partitions
list-parts    alias of print-parts
mod-parts     interactive partition table modify
edit-parts    edit raw partitions
new-parts:<offset>:<name>:<size>...   re-create partitions
insert-part:<idx>:<name>[:<size>]     insert partition
del-part:(<idx>|<name>)     delete partition
move-part:(<idx>|<name>):<idx>    move partition
rename-part:(<idx>|<name>):<name>     rename partition
resize-part:(<idx>|<name>):<size>     resize partition
misc     pack misc image
kernel[:cmds]     build kernel
recovery-kernel[:cmds]    build kernel for recovery
modules[:cmds]    build kernel modules
linux-headers[:cmds]    build linux-headers
kernel-config[:cmds]    modify kernel defconfig
kconfig[:cmds]    alias of kernel-config
kernel-make[:<arg1>:<arg2>]     run kernel make
kmake[:<arg1>:<arg2>]     alias of kernel-make
wifibt[:<dst dir>[:<chip>]]    build Wifi/BT
rtos    build and pack RTOS
buildroot-config[:<config>]    modify buildroot defconfig
bconfig[:<config>]     alias of buildroot-config
buildroot-make[:<arg1>:<arg2>]     run buildroot make
bmake[:<arg1>:<arg2>]    alias of buildroot-make
rootfs[:<rootfs type>]     build default rootfs
buildroot    build buildroot rootfs
yocto    build yocto rootfs
debian     build debian rootfs
recovery     build recovery
pcba     build PCBA
security-createkeys    create keys for security
security-misc    build misc with system encryption key
security-ramboot     build security ramboot
security-system    build security system
loader[:cmds]     build loader (uboot)
uboot[:cmds]    build u-boot
uefi[:cmds]     build uefi
extra-part     pack extra partition images
firmware     pack and check firmwares
edit-package-file    edit package-file
edit-ota-package-file    edit package-file for OTA
updateimg    build update image
ota-updateimg    build update image for OTA
all    build images
release    release images and build info
all-release    build and release images
shell    setup a shell for developing
cleanall     cleanup
clean[:module[:module]]...     cleanup modules
available modules:
all
config
extra-part
firmware
kernel
loader
misc
pcba
recovery
rootfs
rtos
security
updateimg
post-rootfs <rootfs dir>     trigger post-rootfs hook scripts
help     usage
