keepalived部署
keepalived部署

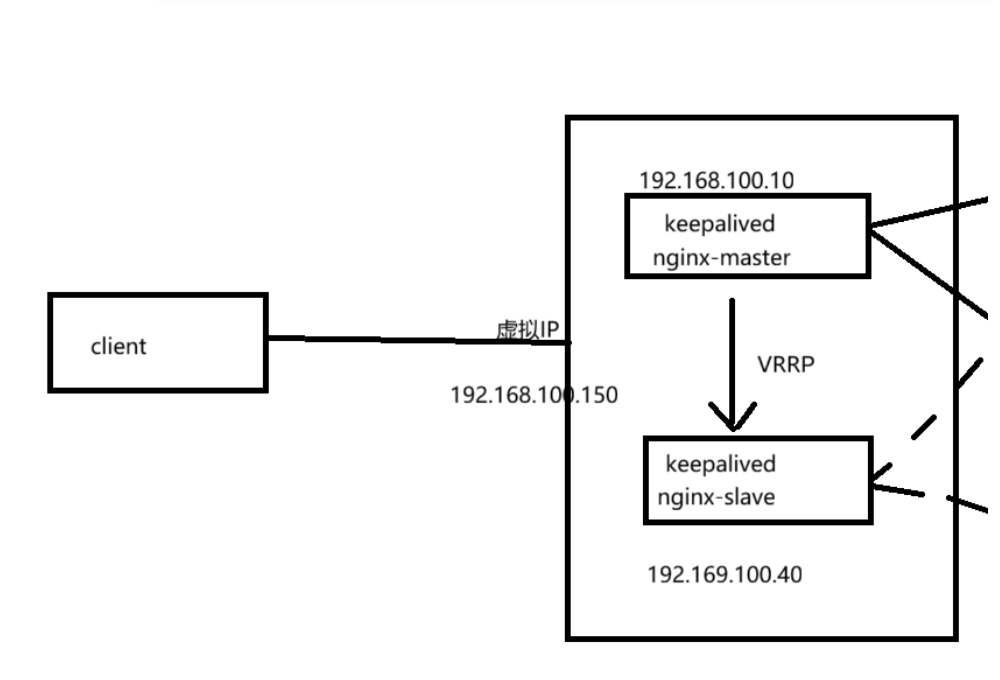

master：192.168.100.10
slave： 192.168.100.40
直接将nginx作为后端web站点
一、Master主节点和slave备份节点：
1、关闭防火墙和selinux（略）
2、配置网络源–阿里源centos7和epel源
[root@stw ~]# cd /etc/yum.repos.d/
[root@stw yum.repos.d]# ls
CentOS-Base.repo CentOS-Debuginfo.repo CentOS-Media.repo CentOS-Vault.repo
CentOS-CR.repo CentOS-fasttrack.repo CentOS-Sources.repo
[root@stw yum.repos.d]# rm -rf *
[root@stw yum.repos.d]# wget -O /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-7.repo
[root@stw yum.repos.d]# yum -y install epel-release
[root@stw ~]# cd /etc/yum.repos.d/
[root@stw yum.repos.d]# ls
CentOS-Base.repo epel.repo epel-testing.repo
3、安装一下常用命令
yum -y install vim wget gcc gcc-c++
4、安装keepalived和nginx
[root@stw ~]# yum -y install nginx keepalived
[root@stw ~]# systemctl restart nginx.service
[root@stw ~]# systemctl enable nginx.service
Created symlink from /etc/systemd/system/multi-user.target.wants/nginx.service to /usr/lib/systemd/system/nginx.service.
[root@stw ~]# ss -anlt
State Recv-Q Send-Q Local Address:Port Peer Address:Port
LISTEN 0 128 *:111 *:*
LISTEN 0 128 *:80 *:*
LISTEN 0 128 *:6000 *:*
LISTEN 0 5 192.168.122.1:53 *:*
LISTEN 0 128 *:22 *:*
LISTEN 0 128 127.0.0.1:631 *:*
LISTEN 0 100 127.0.0.1:25 *:*
LISTEN 0 128 127.0.0.1:6010 *:*
LISTEN 0 128 :::111 :::*
LISTEN 0 128 :::80 :::*
LISTEN 0 128 :::6000 :::*
LISTEN 0 128 :::22 :::*
LISTEN 0 128 ::1:631 :::*
LISTEN 0 100 ::1:25 :::*
LISTEN 0 128 ::1:6010 :::*

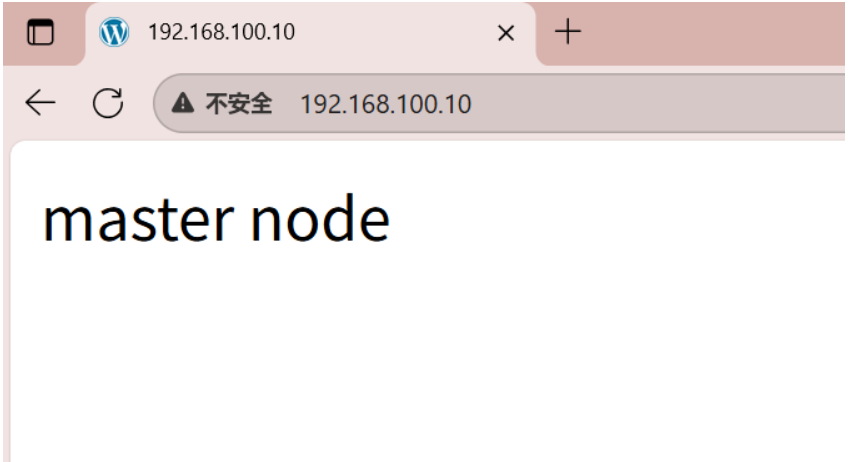

5、在nginx中添加测试网页
[root@stw ~]# cd /usr/share/nginx/html
[root@stw html]# ls
404.html en-US img nginx-logo.png
50x.html icons index.html poweredby.png
[root@stw html]# echo "master node" > index.html[root@stw4 ~]# cd /usr/share/nginx/html/
[root@stw4 html]# echo "slave node" > index.html
二、配置主keepalived
1、先将主机名称更改（10网段为master，40网段为slave）
[root@stw ~]# hostnamectl set-hostname master.example.com
[root@stw ~]# bash
[root@master ~]# [root@stw4 html]# echo "slave node" > index.html
[root@stw4 html]# hostnamectl set-hostname slave.example.com
[root@stw4 html]# bash
[root@slave html]#
2、更改配置文件之前先备份
[root@master ~]# cd /etc/keepalived/
[root@master keepalived]# ls
keepalived.conf
[root@master keepalived]# cp keepalived.conf keepalived.conf.bak
[root@master keepalived]# ls
keepalived.conf keepalived.conf.bak
3、更改配置文件
[root@master keepalived]# vim keepalived.conf
[root@master keepalived]# systemctl restart keepalived.service
[root@master keepalived]# systemctl enable keepalived.service
Created symlink from /etc/systemd/system/multi-user.target.wants/keepalived.service to /usr/lib/systemd/system/keepalived.service.
! Configuration File for keepalivedglobal_defs {router_id stw01
}vrrp_instance VI_1 {state MASTERinterface ens33virtual_router_id 51priority 100advert_int 1authentication {auth_type PASSauth_pass 1111}virtual_ipaddress {192.168.100.150}
}virtual_server 192.168.100.150 80 {delay_loop 6lb_algo rrlb_kind DRpersistence_timeout 50protocol TCPreal_server 192.168.100.10 80 {weight 1TCP_CHECK {connect_port 80connect_timeout 3nb_get_retry 3delay_before_retry 3}}real_server 192.168.100.40 80 {weight 1TCP_CHECK {connect_port 80connect_timeout 3nb_get_retry 3delay_before_retry 3}}
}
三、在slave节点配置备份keepalived
[root@slave ~]# cd /etc/keepalived/
[root@slave keepalived]# ls
keepalived.conf
[root@slave keepalived]# cp keepalived.conf keepalived.conf.bak
[root@slave keepalived]# scp root@192.168.100.10:/etc/keepalived/keepalived.conf .
The authenticity of host '192.168.100.10 (192.168.100.10)' can't be established.
ECDSA key fingerprint is SHA256:R7/1dpul7cu8SnefsN2wQw5hKDL+xekk0ffasLS6OGI.
ECDSA key fingerprint is MD5:81:88:a1:16:52:83:c0:d5:59:ad:2b:3a:d5:52:02:bc.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.100.10' (ECDSA) to the list of known hosts.
root@192.168.100.10's password:
keepalived.conf 100% 846 616.4KB/s 00:00
[root@slave keepalived]# ls
keepalived.conf keepalived.conf.bak
[root@slave keepalived]# vim keepalived.conf
[root@slave keepalived]# systemctl restart keepalived.service
[root@slave keepalived]# systemctl enable keepalived.service
Created symlink from /etc/systemd/system/multi-user.target.wants/keepalived.service to /usr/lib/systemd/system/keepalived.service.
! Configuration File for keepalivedglobal_defs {router_id stw02
}vrrp_instance VI_1 {state BACKUPinterface ens33virtual_router_id 51priority 90advert_int 1authentication {auth_type PASSauth_pass 1111}virtual_ipaddress {192.168.100.150}
}virtual_server 192.168.100.150 80 {delay_loop 6lb_algo rrlb_kind DRpersistence_timeout 50protocol TCPreal_server 192.168.100.10 80 {weight 1TCP_CHECK {connect_port 80connect_timeout 3nb_get_retry 3delay_before_retry 3}}real_server 192.168.100.40 80 {weight 1TCP_CHECK {connect_port 80connect_timeout 3nb_get_retry 3delay_before_retry 3}}
}

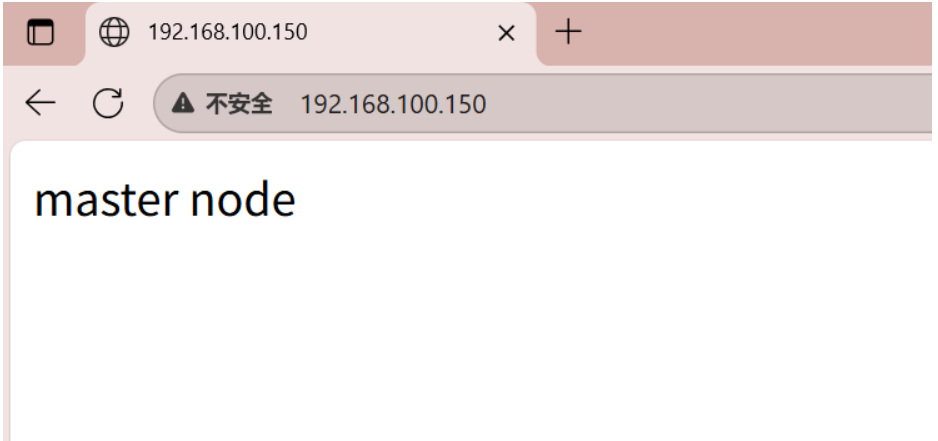

四、查看IP（此时主keepalived工作）
主keepalived中能查看到虚拟IP
[root@master keepalived]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00inet 127.0.0.1/8 scope host lovalid_lft forever preferred_lft foreverinet6 ::1/128 scope host valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000link/ether 00:0c:29:b9:a3:2a brd ff:ff:ff:ff:ff:ffinet 192.168.100.10/24 brd 192.168.100.255 scope global noprefixroute ens33valid_lft forever preferred_lft foreverinet 192.168.100.150/32 scope global ens33valid_lft forever preferred_lft foreverinet6 fe80::3233:2f91:158e:95c2/64 scope link noprefixroute valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ffinet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc pfifo_fast master virbr0 state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ff
slave节点中查看不到
[root@slave keepalived]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00inet 127.0.0.1/8 scope host lovalid_lft forever preferred_lft foreverinet6 ::1/128 scope host valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000link/ether 00:0c:29:85:55:d3 brd ff:ff:ff:ff:ff:ffinet 192.168.100.40/24 brd 192.168.100.255 scope global noprefixroute ens33valid_lft forever preferred_lft foreverinet6 fe80::9510:d8d7:5d52:d7b3/64 scope link tentative noprefixroute dadfailed valid_lft forever preferred_lft foreverinet6 fe80::2850:4f7d:bcdd:ccb3/64 scope link tentative noprefixroute dadfailed valid_lft forever preferred_lft foreverinet6 fe80::a087:fe31:95a7:535/64 scope link noprefixroute valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ffinet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc pfifo_fast master virbr0 state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ff
五、修改内核参数，开启侦听VIP功能（此步可做可不做，该功能可用于仅监听VIP）
[root@master ~]# vim /etc/sysctl.conf
[root@master ~]# sysctl -p
net.ipv4.ip_nonlocal_bind = 1[root@slave ~]# vim /etc/sysctl.conf
[root@slave ~]# sysctl -p
net.ipv4.ip_nonlocal_bind = 1

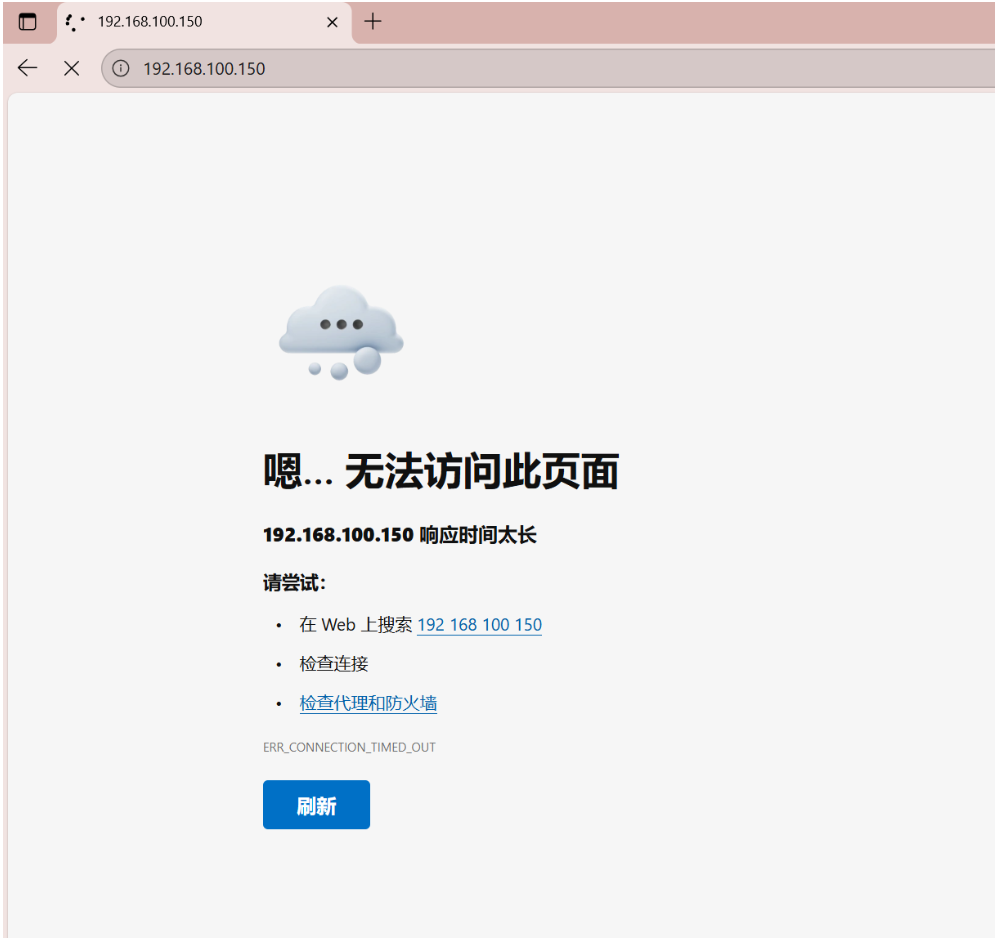

此时客户端去访问192,。168.100.150时，访问不到网页，因为master和slave中的nginx都处于开启阶段，客户端不知道找谁
将slave中的nginx停掉（systemctl stop nginx）
六、让keepalived监控nginx负载均衡（master节点损坏时，自动切换slave节点）
手动修改时：
master：
[root@master ~]# systemctl stop nginx
[root@master ~]# systemctl stop keepalived.service
slave：
[root@slave ~]# systemctl restart nginx
[root@slave ~]# systemctl restart keepalived.service
1、在master上编写脚本
[root@master ~]# mkdir /scripts
[root@master ~]# cd /scripts/
[root@master scripts]# vim check.sh
[root@master scripts]# chmod +x check.sh
[root@master scripts]# vim notify.sh
[root@master scripts]# chmod +x notify.sh
check.sh：
#!/bin/bash
nginx_status=`ps -ef | grep -v "grep" | grep "nginx" | wc -l`
if [ $nginx_status -lt 1 ];thensystemctl stop keepalived
fi
notify.sh：
当服务器切换为 master 状态时，确保 nginx 运行并发送邮件通知
当服务器切换为 backup 状态时，确保 nginx 停止运行
#!/bin/bash
VIP=$2
sendmail () {subject="${VIP}'s server keepalived state is translate"content="`date +'%F %T'`: `hostname`'s state change to master"echo $content | mail -s "$subject" 3256094218@qq.com
}
case "$1" inmaster)nginx_status=$(ps -ef|grep -Ev "grep|$0"|grep '\bnginx\b'|wc -l)if [ $nginx_status -lt 1 ];thensystemctl start nginxfisendmail;;backup)nginx_status=$(ps -ef|grep -Ev "grep|$0"|grep '\bnginx\b'|wc -l)if [ $nginx_status -gt 0 ];thensystemctl stop nginxfi;;*)echo "Usage:$0 master|backup VIP";;
esac2、在slave上编写脚本
[root@slave keepalived]# mkdir /scripts
[root@slave keepalived]# cd /scripts/
[root@slave scripts]# scp root@192.168.100.10:/scripts/check.sh .
root@192.168.100.10's password:
check.sh 100% 143 51.4KB/s 00:00
[root@slave scripts]# scp root@192.168.100.10:/scripts/notify.sh .
root@192.168.100.10's password:
notify.sh 100% 590 399.4KB/s 00:00
[root@slave scripts]# ls
check.sh notify.sh
[root@slave scripts]# chmod +x check.sh
[root@slave scripts]# chmod +x notify.sh
3、配置master的keepalived
[root@master scripts]# vim /etc/keepalived/keepalived.conf
[root@master scripts]# systemctl restart keepalived.service
! Configuration File for keepalivedglobal_defs {router_id stw01
}vrrp_script nginx_check {script "/scripts/check.sh"interval 10weight -20
}vrrp_instance VI_1 {state MASTERinterface ens33virtual_router_id 51priority 100advert_int 1authentication {auth_type PASSauth_pass 1111}virtual_ipaddress {192.168.100.150}track_script {nginx_check}notify_master "/scripts/notify.sh master 192.168.100.150"notify_backup "/scripts/notify.sh backup 192.168.100.150"
}virtual_server 192.168.100.150 80 {delay_loop 6lb_algo rrlb_kind DRpersistence_timeout 50protocol TCPreal_server 192.168.100.10 80 {weight 1TCP_CHECK {connect_port 80connect_timeout 3nb_get_retry 3delay_before_retry 3}}real_server 192.168.100.40 80 {weight 1TCP_CHECK {connect_port 80connect_timeout 3nb_get_retry 3delay_before_retry 3}}
}
4、配置slave的keepalived
[root@slave scripts]# vim /etc/keepalived/keepalived.conf
[root@slave scripts]# systemctl restart keepalived.service
! Configuration File for keepalivedglobal_defs {router_id stw02
}vrrp_instance VI_1 {state BACKUPinterface ens33virtual_router_id 51priority 90advert_int 1authentication {auth_type PASSauth_pass 1111}virtual_ipaddress {192.168.100.150}notify_master "/scripts/notify.sh master 192.168.100.150"notify_backup "/scripts/notify.sh backup 192.168.100.150"
}virtual_server 192.168.100.150 80 {delay_loop 6lb_algo rrlb_kind DRpersistence_timeout 50protocol TCPreal_server 192.168.100.10 80 {weight 1TCP_CHECK {connect_port 80connect_timeout 3nb_get_retry 3delay_before_retry 3}}real_server 192.168.100.40 80 {weight 1TCP_CHECK {connect_port 80connect_timeout 3nb_get_retry 3delay_before_retry 3}}
}
5、模拟故障
master：
[root@master scripts]# systemctl stop nginx
[root@master scripts]# ss -anlt
State Recv-Q Send-Q Local Address:Port Peer Address:Port
LISTEN 0 128 *:111 *:*
LISTEN 0 128 *:6000 *:*
LISTEN 0 5 192.168.122.1:53 *:*
LISTEN 0 128 *:22 *:*
LISTEN 0 128 127.0.0.1:631 *:*
LISTEN 0 100 127.0.0.1:25 *:*
LISTEN 0 128 127.0.0.1:6010 *:*
LISTEN 0 128 :::111 :::*
LISTEN 0 128 :::6000 :::*
LISTEN 0 128 :::22 :::*
LISTEN 0 128 ::1:631 :::*
LISTEN 0 100 ::1:25 :::*
LISTEN 0 128 ::1:6010 :::*
[root@master scripts]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00inet 127.0.0.1/8 scope host lovalid_lft forever preferred_lft foreverinet6 ::1/128 scope host valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000link/ether 00:0c:29:b9:a3:2a brd ff:ff:ff:ff:ff:ffinet 192.168.100.10/24 brd 192.168.100.255 scope global noprefixroute ens33valid_lft forever preferred_lft foreverinet6 fe80::3233:2f91:158e:95c2/64 scope link noprefixroute valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ffinet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc pfifo_fast master virbr0 state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ff
slave：
[root@slave scripts]# ss -anlt
State Recv-Q Send-Q Local Address:Port Peer Address:Port
LISTEN 0 128 *:111 *:*
LISTEN 0 128 *:80 *:*
LISTEN 0 128 *:6000 *:*
LISTEN 0 5 192.168.122.1:53 *:*
LISTEN 0 128 *:22 *:*
LISTEN 0 128 127.0.0.1:631 *:*
LISTEN 0 100 127.0.0.1:25 *:*
LISTEN 0 128 127.0.0.1:6010 *:*
LISTEN 0 128 :::111 :::*
LISTEN 0 128 :::80 :::*
LISTEN 0 128 :::6000 :::*
LISTEN 0 128 :::22 :::*
LISTEN 0 128 ::1:631 :::*
LISTEN 0 100 ::1:25 :::*
LISTEN 0 128 ::1:6010 :::*
[root@slave scripts]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00inet 127.0.0.1/8 scope host lovalid_lft forever preferred_lft foreverinet6 ::1/128 scope host valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000link/ether 00:0c:29:85:55:d3 brd ff:ff:ff:ff:ff:ffinet 192.168.100.40/24 brd 192.168.100.255 scope global noprefixroute ens33valid_lft forever preferred_lft foreverinet 192.168.100.150/32 scope global ens33valid_lft forever preferred_lft foreverinet6 fe80::9510:d8d7:5d52:d7b3/64 scope link tentative noprefixroute dadfailed valid_lft forever preferred_lft foreverinet6 fe80::2850:4f7d:bcdd:ccb3/64 scope link tentative noprefixroute dadfailed valid_lft forever preferred_lft foreverinet6 fe80::a087:fe31:95a7:535/64 scope link noprefixroute valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ffinet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc pfifo_fast master virbr0 state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ff

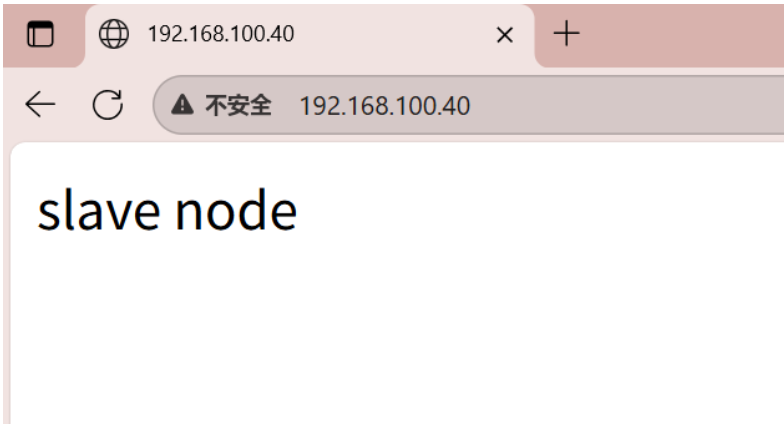

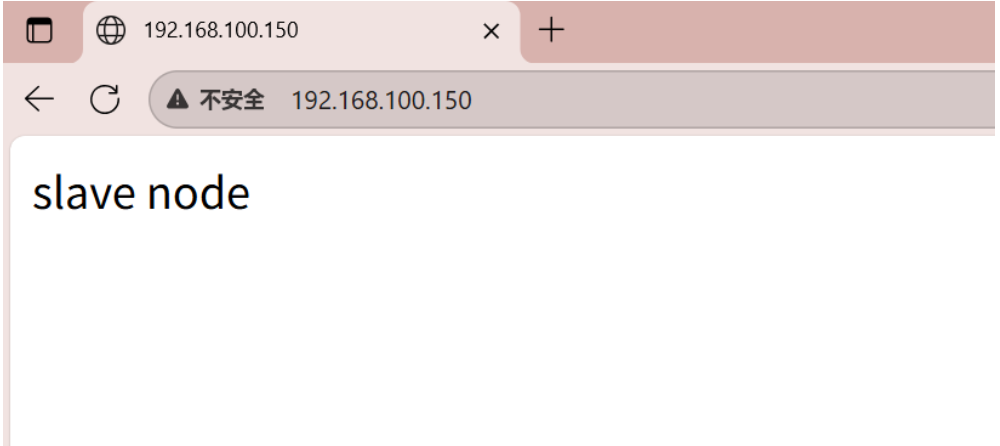

测试访问：

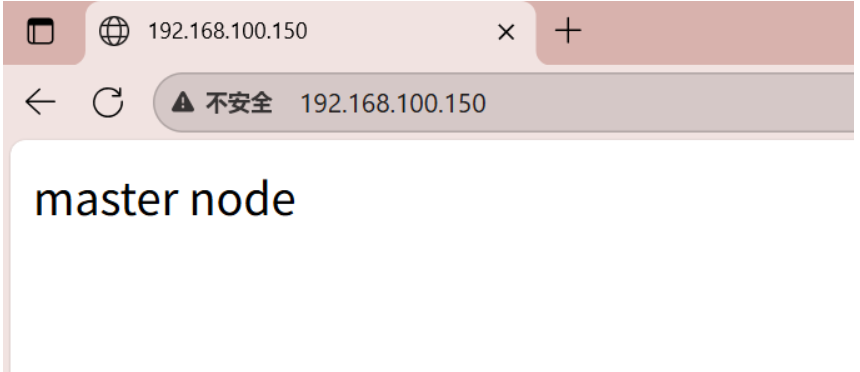

恢复：
slave：
[root@slave scripts]# systemctl stop nginx
[root@slave scripts]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00inet 127.0.0.1/8 scope host lovalid_lft forever preferred_lft foreverinet6 ::1/128 scope host valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000link/ether 00:0c:29:85:55:d3 brd ff:ff:ff:ff:ff:ffinet 192.168.100.40/24 brd 192.168.100.255 scope global noprefixroute ens33valid_lft forever preferred_lft foreverinet6 fe80::9510:d8d7:5d52:d7b3/64 scope link tentative noprefixroute dadfailed valid_lft forever preferred_lft foreverinet6 fe80::2850:4f7d:bcdd:ccb3/64 scope link tentative noprefixroute dadfailed valid_lft forever preferred_lft foreverinet6 fe80::a087:fe31:95a7:535/64 scope link noprefixroute valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ffinet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc pfifo_fast master virbr0 state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ff
master：
[root@master scripts]# systemctl restart nginx
[root@master scripts]# systemctl restart keepalived.service
[root@master scripts]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00inet 127.0.0.1/8 scope host lovalid_lft forever preferred_lft foreverinet6 ::1/128 scope host valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000link/ether 00:0c:29:b9:a3:2a brd ff:ff:ff:ff:ff:ffinet 192.168.100.10/24 brd 192.168.100.255 scope global noprefixroute ens33valid_lft forever preferred_lft foreverinet 192.168.100.150/32 scope global ens33valid_lft forever preferred_lft foreverinet6 fe80::3233:2f91:158e:95c2/64 scope link noprefixroute valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ffinet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc pfifo_fast master virbr0 state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ff

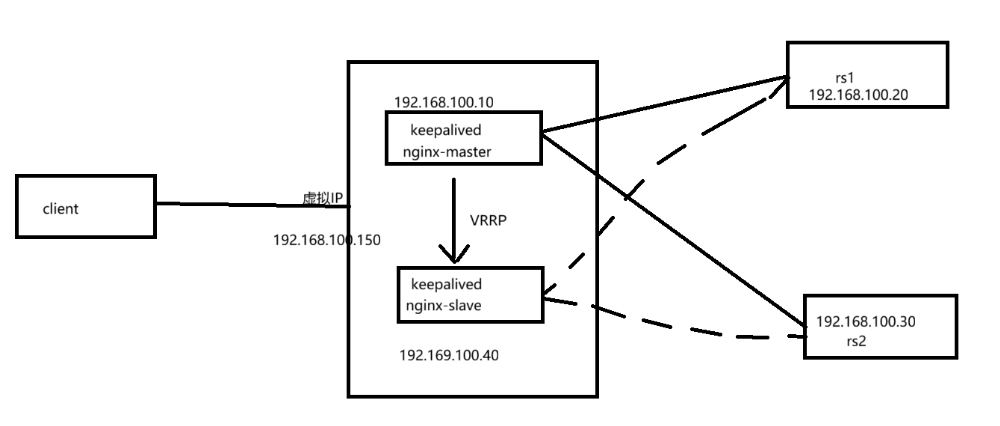

将真实服务器作为后端web服务器
1、配置好rs1、rs2的作为后端web服务器
[root@stw2 ~]# cd /etc/yum.repos.d/
[root@stw2 yum.repos.d]# rm -rf *
[root@stw2 yum.repos.d]# vim server.repo
[root@stw2 yum.repos.d]# cat server.repo
[aa]
name=aa1
baseurl=file:///mnt
enabled=1
gpgcheck=0
[root@stw2 yum.repos.d]# mount /dev/cdrom /mnt
mount: /dev/sr0 is write-protected, mounting read-only
[root@stw2 yum.repos.d]# yum -y install httpd
[root@stw2 yum.repos.d]# echo "this is rs1" > /var/www/html/index.html
[root@stw2 yum.repos.d]# systemctl restart httpd
[root@stw2 yum.repos.d]# systemctl enable httpd
Created symlink from /etc/systemd/system/multi-user.target.wants/httpd.service to /usr/lib/systemd/system/httpd.service.

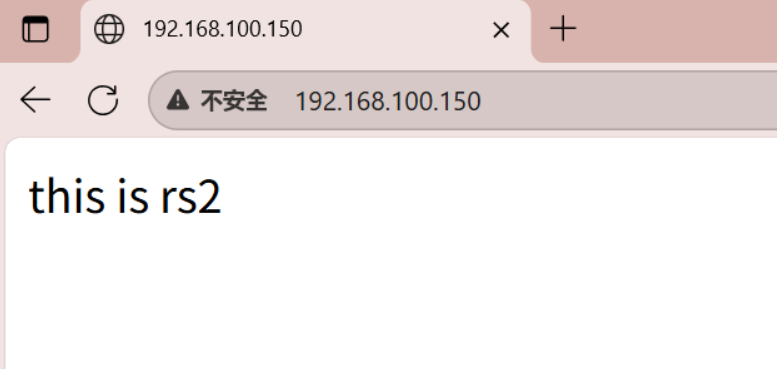

[root@slave scripts]# curl http://192.168.100.20
this is rs1
[root@slave scripts]# curl http://192.168.100.30
this is rs2

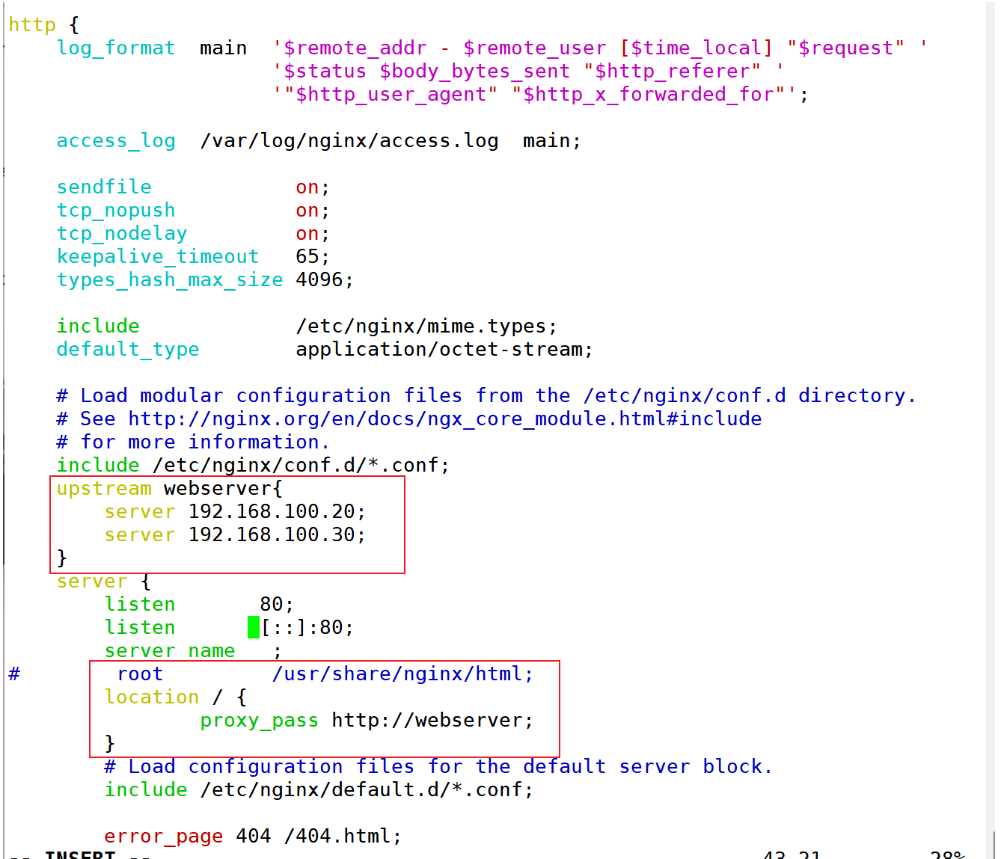

2、修改nginx服务器配置文件
master和slave都需要配置：
[root@master scripts]# vim /etc/nginx/nginx.conf
You have mail in /var/spool/mail/root
[root@master scripts]# nginx -t
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful
[root@master scripts]# systemctl restart nginx.service
[root@master scripts]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00inet 127.0.0.1/8 scope host lovalid_lft forever preferred_lft foreverinet6 ::1/128 scope host valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000link/ether 00:0c:29:b9:a3:2a brd ff:ff:ff:ff:ff:ffinet 192.168.100.10/24 brd 192.168.100.255 scope global noprefixroute ens33valid_lft forever preferred_lft foreverinet 192.168.100.150/32 scope global ens33valid_lft forever preferred_lft foreverinet6 fe80::3233:2f91:158e:95c2/64 scope link noprefixroute valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ffinet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc pfifo_fast master virbr0 state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ff

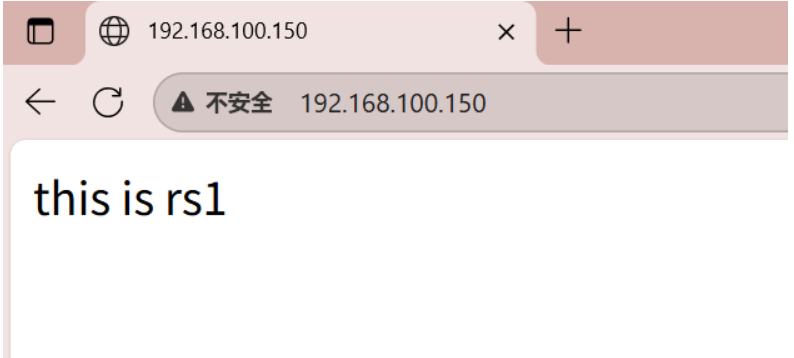

再次模拟master故障
master：
[root@master scripts]# systemctl stop nginx.service
[root@master scripts]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00inet 127.0.0.1/8 scope host lovalid_lft forever preferred_lft foreverinet6 ::1/128 scope host valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000link/ether 00:0c:29:b9:a3:2a brd ff:ff:ff:ff:ff:ffinet 192.168.100.10/24 brd 192.168.100.255 scope global noprefixroute ens33valid_lft forever preferred_lft foreverinet6 fe80::3233:2f91:158e:95c2/64 scope link noprefixroute valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ffinet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc pfifo_fast master virbr0 state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ff
slave：
[root@slave scripts]# ss -anlt
State Recv-Q Send-Q Local Address:Port Peer Address:Port
LISTEN 0 128 *:111 *:*
LISTEN 0 128 *:80 *:*
LISTEN 0 128 *:6000 *:*
LISTEN 0 5 192.168.122.1:53 *:*
LISTEN 0 128 *:22 *:*
LISTEN 0 128 127.0.0.1:631 *:*
LISTEN 0 100 127.0.0.1:25 *:*
LISTEN 0 128 127.0.0.1:6010 *:*
LISTEN 0 128 :::111 :::*
LISTEN 0 128 :::80 :::*
LISTEN 0 128 :::6000 :::*
LISTEN 0 128 :::22 :::*
LISTEN 0 128 ::1:631 :::*
LISTEN 0 100 ::1:25 :::*
LISTEN 0 128 ::1:6010 :::*
[root@slave scripts]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00inet 127.0.0.1/8 scope host lovalid_lft forever preferred_lft foreverinet6 ::1/128 scope host valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000link/ether 00:0c:29:85:55:d3 brd ff:ff:ff:ff:ff:ffinet 192.168.100.40/24 brd 192.168.100.255 scope global noprefixroute ens33valid_lft forever preferred_lft foreverinet 192.168.100.150/32 scope global ens33valid_lft forever preferred_lft foreverinet6 fe80::9510:d8d7:5d52:d7b3/64 scope link tentative noprefixroute dadfailed valid_lft forever preferred_lft foreverinet6 fe80::2850:4f7d:bcdd:ccb3/64 scope link tentative noprefixroute dadfailed valid_lft forever preferred_lft foreverinet6 fe80::a087:fe31:95a7:535/64 scope link noprefixroute valid_lft forever preferred_lft forever
3: virbr0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ffinet 192.168.122.1/24 brd 192.168.122.255 scope global virbr0valid_lft forever preferred_lft forever
4: virbr0-nic: <BROADCAST,MULTICAST> mtu 1500 qdisc pfifo_fast master virbr0 state DOWN group default qlen 1000link/ether 52:54:00:07:f1:30 brd ff:ff:ff:ff:ff:ff
测试访问：（能够正常访问到后端服务器）
对于客户端而言，我只需要访问到后端服务器就行，前面将nginx设置为web服务器是因为可以更直观地看到master节点故障之后换成slave节点工作的过程
