一、延迟渲染 (Deferred Rendering)

至此为止，我们一直使用的光照方式叫做 前向渲染 (Forward Rendering)，在场景中我们根据所有光源依次渲染所有物体，但是由于它需要每一个物体遍历每一个光源，随着我们物体的光源的增多，其开销是指数级上升的

延迟渲染 则可以解决这个问题，它包含两个处理阶段(Pass)
几何处理阶段 (Geometry Pass) 中，我们先渲染场景一次，但是不计算光照，只是将计算光照所需要的数据 (位置向量、颜色向量、法向量、镜面值等) 储存在 G缓冲 (G-Buffer, Geometry Buffer) 中
光照处理阶段 (Lighting Pass) 中读取G-Buffer中的数据，计算光照结果并绘制到类似屏幕后处理的一个Quad上

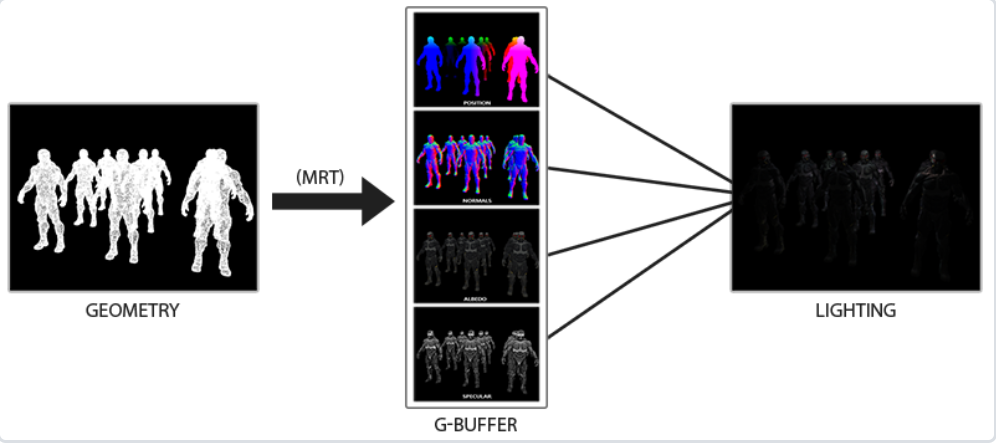

下图展示了一个延迟渲染的过程 (图片来自于LearnOpenGL)
其中MRT为多渲染目标 (Multiple Render Targets)，它可以在一个Pass内渲染到多个纹理附件上，马上会用到

先准备一个简单的场景
Main_Deferred.cpp 新建

#include <iostream>
#include <map>#include <glad/glad.h>
#include <GLFW/glfw3.h>
#include <glm.hpp>
#include <gtc/matrix_transform.hpp>
#include <gtc/type_ptr.hpp>
#include "stb_image.h"#include <assimp/Importer.hpp>
#include <assimp/scene.h>
#include <assimp/postprocess.h>#include "Define.h"
#include "BuiltinData.h"
#include "Shader.h"
#include "Camera.h"
#include "Texture.h"
#include "Model.h"
#include "TextureCube.h"float screenWidth = 800;
float screenHeight = 600;float deltaTime = 0.0f;
float lastFrame = 0.0f;Camera camera;void ProcessKeyboardInput(GLFWwindow* window)
{if (glfwGetKey(window, GLFW_KEY_ESCAPE)){glfwSetWindowShouldClose(window, true);}if (glfwGetKey(window, GLFW_KEY_LEFT_ALT)){glfwSetInputMode(window, GLFW_CURSOR, GLFW_CURSOR_NORMAL);}else{glfwSetInputMode(window, GLFW_CURSOR, GLFW_CURSOR_DISABLED);}camera.ProcessKeyboardInput(window, deltaTime);
}void ProcessMouseInput(GLFWwindow* window, double x, double y)
{camera.ProcessMouseInput(window, x, y, deltaTime);
}void ProcessMouseWheelInput(GLFWwindow* window, double x, double y)
{camera.ProcessMouseWheelInput(window, x, y, deltaTime);
}void OnSetFrameBufferSize(GLFWwindow* window, int width, int height)
{screenWidth = width;screenHeight = height;glViewport(0, 0, screenWidth, screenHeight);camera.UpdateCameraVector();
}GLFWwindow* InitEnv()
{glfwInit();glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);GLFWwindow* window = glfwCreateWindow(screenWidth, screenHeight, "OpenGLRenderer", NULL, NULL);if (window == NULL){std::cout << "Failed to create GLFW window" << std::endl;return nullptr;}glfwMakeContextCurrent(window);if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress)){std::cout << "Failed to initialize GLAD" << std::endl;return nullptr;}glfwSetFramebufferSizeCallback(window, OnSetFrameBufferSize);glfwSetCursorPosCallback(window, ProcessMouseInput);glfwSetScrollCallback(window, ProcessMouseWheelInput);return window;
}void InitCamera()
{Transform cameraTransform;cameraTransform.position = glm::vec3(0, 0, 3);cameraTransform.front = glm::vec3(0, 0, -1);cameraTransform.up = glm::vec3(0, 1, 0);cameraTransform.rotate.yaw = -90;camera = Camera(cameraTransform);camera.far = 100;
}int main()
{GLFWwindow* window = InitEnv();if (window == nullptr){EXIT;}InitCamera();stbi_set_flip_vertically_on_load(true);glEnable(GL_DEPTH_TEST);glDepthFunc(GL_LESS);glEnable(GL_STENCIL_TEST);glStencilOp(GL_KEEP, GL_KEEP, GL_REPLACE);// 关闭混合// glEnable(GL_BLEND);// glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);glEnable(GL_CULL_FACE);glCullFace(GL_BACK);glFrontFace(GL_CCW);Shader shader("Shader/VertexShader.glsl", "Shader/FragmentShader.glsl");Shader cubeShader("Shader/CubeVertex.glsl", "Shader/CubeFragment.glsl");Model model("F:/Scripts/Cpp/LearnOpenGL/learn-open-gl/Resource/backpack/backpack.obj");unsigned int uboMaterices;glGenBuffers(1, &uboMaterices);glBindBuffer(GL_UNIFORM_BUFFER, uboMaterices);glBufferData(GL_UNIFORM_BUFFER, 2 * sizeof(glm::mat4), NULL, GL_STATIC_DRAW);glBindBuffer(GL_UNIFORM_BUFFER, 0);glBindBufferRange(GL_UNIFORM_BUFFER, 0, uboMaterices, 0, 2 * sizeof(glm::mat4));BindMatericesBlock(bag, shader, 0);const int bagInstanceCnt = 27;glm::vec3 instanceOffsets[bagInstanceCnt];int instanceOffsetsIdx = 0;for (int i = 0; i < 3; i++){for (int j = 0; j < 3; j++){for (int k = 0; k < 3; k++){glm::vec3 offset;offset.x = i * 5;offset.y = j * 5;offset.z = k * -5;instanceOffsets[instanceOffsetsIdx++] = offset;}}}// glPolygonMode(GL_FRONT_AND_BACK, GL_LINE);while (!glfwWindowShouldClose(window)){float currentFrame = glfwGetTime();deltaTime = currentFrame - lastFrame;lastFrame = currentFrame;glClearColor(0.1f, 0.1f, 0.1f, 1.0f);glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT | GL_STENCIL_BUFFER_BIT);ProcessKeyboardInput(window);glm::mat4 view = camera.GetViewMatrix();glm::mat4 projection = glm::mat4(1);projection = glm::perspective(glm::radians(camera.fov), screenWidth / screenHeight, camera.near, camera.far);glBindBuffer(GL_UNIFORM_BUFFER, uboMaterices);glBufferSubData(GL_UNIFORM_BUFFER, 0, sizeof(glm::mat4), glm::value_ptr(view));glBufferSubData(GL_UNIFORM_BUFFER, sizeof(glm::mat4), sizeof(glm::mat4), glm::value_ptr(projection));glBindBuffer(GL_UNIFORM_BUFFER, 0);shader.Use();shader.SetVec3("lightColor", glm::vec3(1.0f, 1.0f, 1.0f));shader.SetVec3("viewPos", camera.transform.position);shader.SetFloat("near", camera.near);shader.SetFloat("far", camera.far);shader.SetVec3("dirLight.ambient", glm::vec3(0.3f));shader.SetVec3("dirLight.diffuse", glm::vec3(0.9f));shader.SetVec3("dirLight.specular", glm::vec3(0.6f));shader.SetVec3("dirLight.direction", glm::vec3(-0.2f, -1.0f, -0.3f));shader.SetFloat("material.shininess", 32.0f);for (int i = 0; i < 4; i++){shader.SetVec3("pointLight[" + std::to_string(i) + "].ambient", glm::vec3(0.05f));shader.SetVec3("pointLight[" + std::to_string(i) + "].diffuse", glm::vec3(0.8f));shader.SetVec3("pointLight[" + std::to_string(i) + "].specular", glm::vec3(1.0f));shader.SetVec3("pointLight[" + std::to_string(i) + "].position", glm::vec3(pointLightPositions[i]));shader.SetFloat("pointLight[" + std::to_string(i) + "].constant", 1.0f);shader.SetFloat("pointLight[" + std::to_string(i) + "].diffuse", 0.09f);shader.SetFloat("pointLight[" + std::to_string(i) + "].quadratic", 0.032f);}shader.SetVec3("spotLight.ambient", glm::vec3(0));shader.SetVec3("spotLight.diffuse", glm::vec3(1));shader.SetVec3("spotLight.specular", glm::vec3(1));shader.SetVec3("spotLight.position", camera.transform.position);shader.SetVec3("spotLight.direction", camera.transform.front);shader.SetFloat("spotLight.cutOff", glm::cos(glm::radians(12.5f)));shader.SetFloat("spotLight.cutOffOuter", glm::cos(glm::radians(17.5f)));shader.SetFloat("spotLight.constant", 1.0f);shader.SetFloat("spotLight.linear", 0.09f);shader.SetFloat("spotLight.quadratic", 0.032f);shader.SetFloat("time", glfwGetTime());for (int i = 0; i < bagInstanceCnt; i++){glm::mat4 modelMatrix = glm::mat4(1.0f);modelMatrix = glm::translate(modelMatrix, instanceOffsets[i]);shader.SetMat4("model", modelMatrix);model.Draw(shader);}glfwSwapBuffers(window);glfwPollEvents();}glfwTerminate();return 0;
}

调整一下点光源的位置
BuiltinData.h

// 点光源位置
glm::vec3 pointLightPositions[] = {glm::vec3(0.2f, 5, -3.54f),glm::vec3(10.7f, 0, -3),glm::vec3(-4.0f,  2.0f, -12.0f),glm::vec3(0.0f,  0.0f, -3.0f)
};

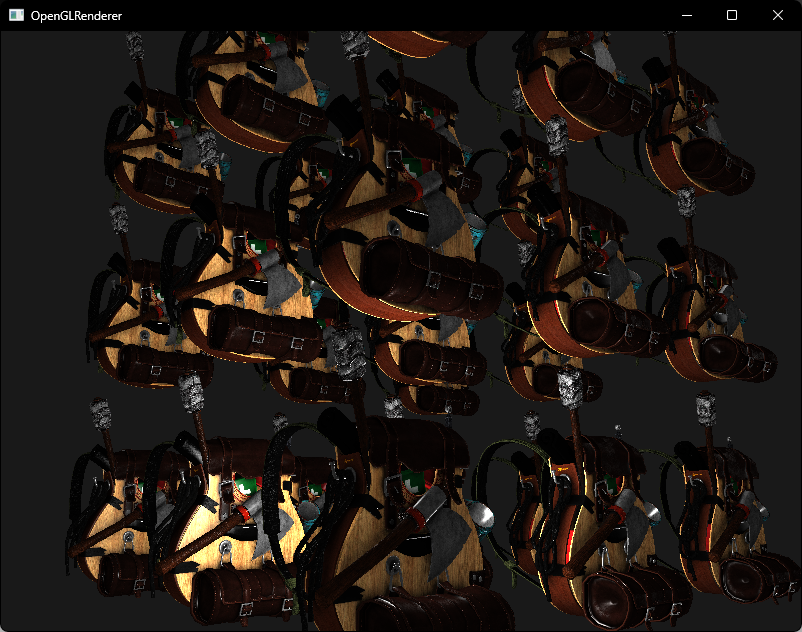

编译运行，顺利的话可以看见以下图像

二、G-Buffer、Geometry Pass

首先来创建G-Buffer并进行Geometry Pass
我们创建一个FBO并附加三张纹理附件，第一张存储位置向量，第二张存储法向量，最后一张的RGB通道存储颜色向量，A通道存储镜面反射值
Main_Deferred.cpp

// [main]
// 创建 G-Buffer
unsigned int gBuffer;
glGenFramebuffers(1, &gBuffer);
glBindFramebuffer(GL_FRAMEBUFFER, gBuffer);unsigned int gPosition, gNormal, gAlbedoSpec;
// 位置
glGenTextures(1, &gPosition);
glBindTexture(GL_TEXTURE_2D, gPosition);
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB16F, screenWidth, screenHeight, 0, GL_RGB, GL_FLOAT, NULL);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST);
glFramebufferTexture2D(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT0, GL_TEXTURE_2D, gPosition, 0);
// 法线
glGenTextures(1, &gNormal);
glBindTexture(GL_TEXTURE_2D, gNormal);
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB16F, screenWidth, screenHeight, 0, GL_RGB, GL_FLOAT, NULL);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST);
glFramebufferTexture2D(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT1, GL_TEXTURE_2D, gNormal, 0);
// 颜色、镜面
glGenTextures(1, &gAlbedoSpec);
glBindTexture(GL_TEXTURE_2D, gAlbedoSpec);
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA, screenWidth, screenHeight, 0, GL_RGBA, GL_UNSIGNED_BYTE, NULL);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_NEAREST);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_NEAREST);
glFramebufferTexture2D(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT2, GL_TEXTURE_2D, gAlbedoSpec, 0);// 告诉OpenGL我们要使用这三张纹理附件作为输出
unsigned int attachments[3] = { GL_COLOR_ATTACHMENT0, GL_COLOR_ATTACHMENT1, GL_COLOR_ATTACHMENT2 };
glDrawBuffers(3, attachments);unsigned int rboDepth;
glGenRenderbuffers(1, &rboDepth);
glBindRenderbuffer(GL_RENDERBUFFER, rboDepth);
glRenderbufferStorage(GL_RENDERBUFFER, GL_DEPTH_COMPONENT, screenWidth, screenHeight);
glFramebufferRenderbuffer(GL_FRAMEBUFFER, GL_DEPTH_ATTACHMENT, GL_RENDERBUFFER, rboDepth);if (glCheckFramebufferStatus(GL_FRAMEBUFFER) != GL_FRAMEBUFFER_COMPLETE)
{std::cout << "[Error] G-Buffer Framebuffer is not complete" << std::endl;EXIT
}
glBindFramebuffer(GL_FRAMEBUFFER, 0);

修改一下Shader，将原来的光照计算换为数据写入
DeferredFragmentShader.glsl 新建

#version 330 corelayout (location = 0) out vec3 gPosition;
layout (location = 1) out vec3 gNormal;
layout (location = 2) out vec4 gAlbedoSpec;struct Material {sampler2D tex_diffuse1;sampler2D tex_diffuse2;// ...sampler2D tex_specular1;sampler2D tex_specular2;// ...sampler2D tex_normal1;sampler2D tex_normal2;// ...float shininess;
};uniform Material material;in vec3 FragPos;
in vec3 Normal;
in vec2 TexCoords;void main()
{    // 片段位置向量gPosition = FragPos;// 法向量gNormal = normalize(Normal);// rgb通道存储颜色值gAlbedoSpec.rgb = texture(material.tex_diffuse1, TexCoords).rgb;// a通道存储镜面反射值gAlbedoSpec.a = texture(material.tex_specular1, TexCoords).r;
}

最后修改主循环
Main_Deferred.cpp

// [main]
Shader shader("Shader/VertexShader.glsl", "Shader/DeferredFragmentShader.glsl");// ...while (!glfwWindowShouldClose(window))
{float currentFrame = glfwGetTime();deltaTime = currentFrame - lastFrame;lastFrame = currentFrame;ProcessKeyboardInput(window);glBindFramebuffer(GL_FRAMEBUFFER, gBuffer);glClearColor(0.1f, 0.1f, 0.1f, 1.0f);glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT | GL_STENCIL_BUFFER_BIT);glm::mat4 view = camera.GetViewMatrix();glm::mat4 projection = glm::mat4(1);projection = glm::perspective(glm::radians(camera.fov), screenWidth / screenHeight, camera.near, camera.far);glBindBuffer(GL_UNIFORM_BUFFER, uboMaterices);glBufferSubData(GL_UNIFORM_BUFFER, 0, sizeof(glm::mat4), glm::value_ptr(view));glBufferSubData(GL_UNIFORM_BUFFER, sizeof(glm::mat4), sizeof(glm::mat4), glm::value_ptr(projection));glBindBuffer(GL_UNIFORM_BUFFER, 0);shader.Use();for (int i = 0; i < bagInstanceCnt; i++){glm::mat4 modelMatrix = glm::mat4(1.0f);modelMatrix = glm::translate(modelMatrix, instanceOffsets[i]);shader.SetMat4("model", modelMatrix);model.Draw(shader);}glfwSwapBuffers(window);glfwPollEvents();
}

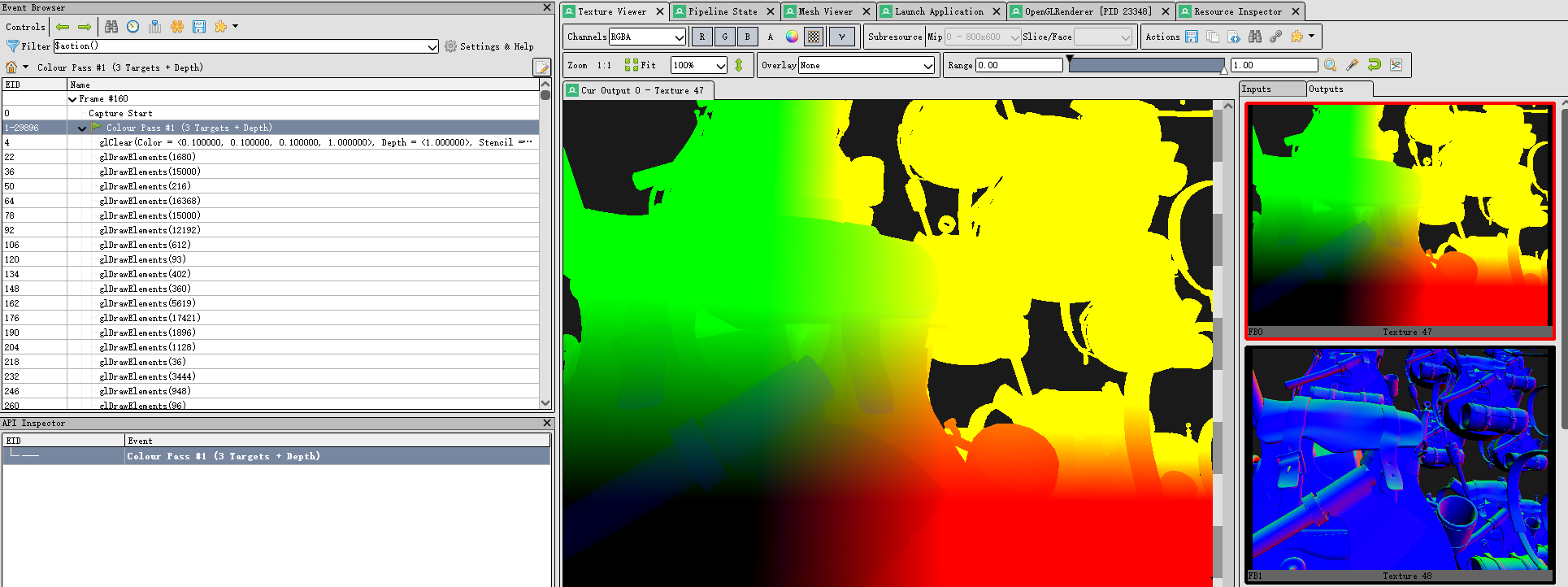

我们可以将G-Buffer的三个纹理附件输出到屏幕上查看，或是运行后在RenderDoc中截帧

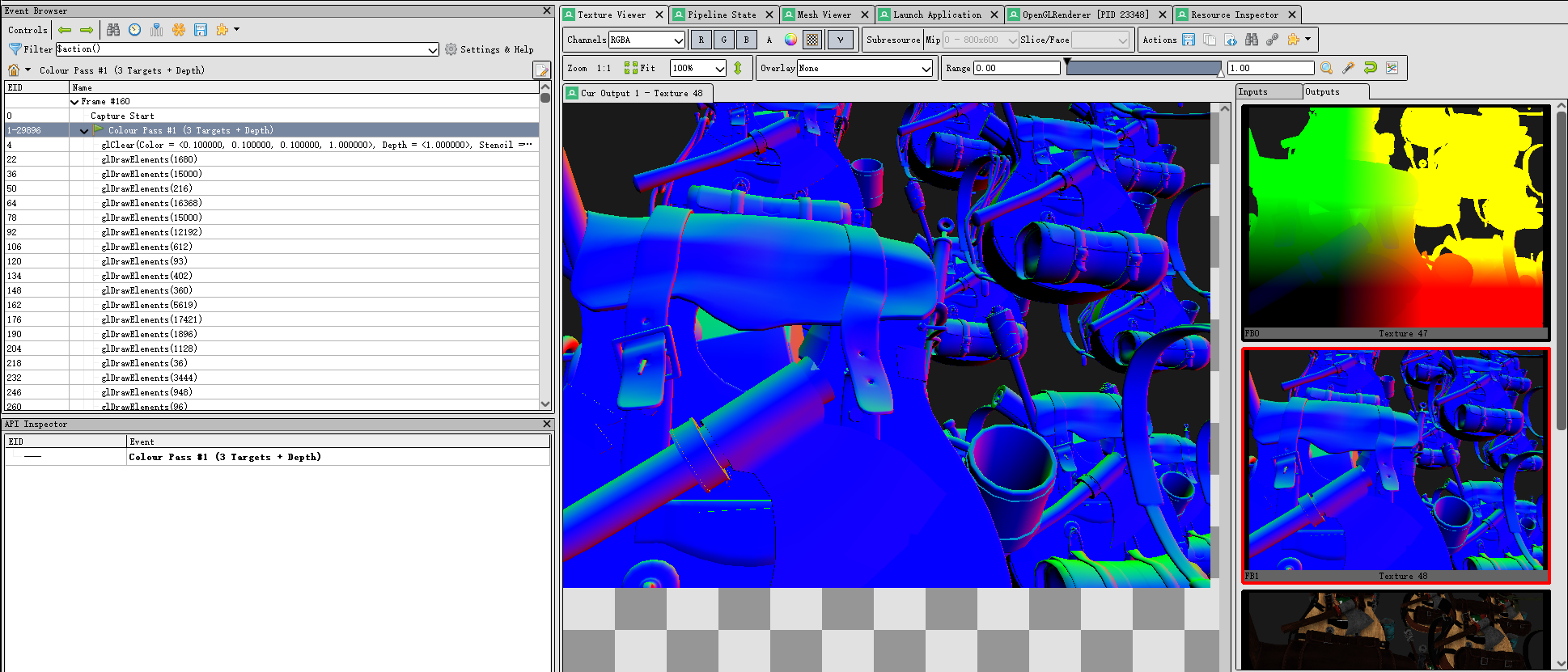

gPosition

gNormal

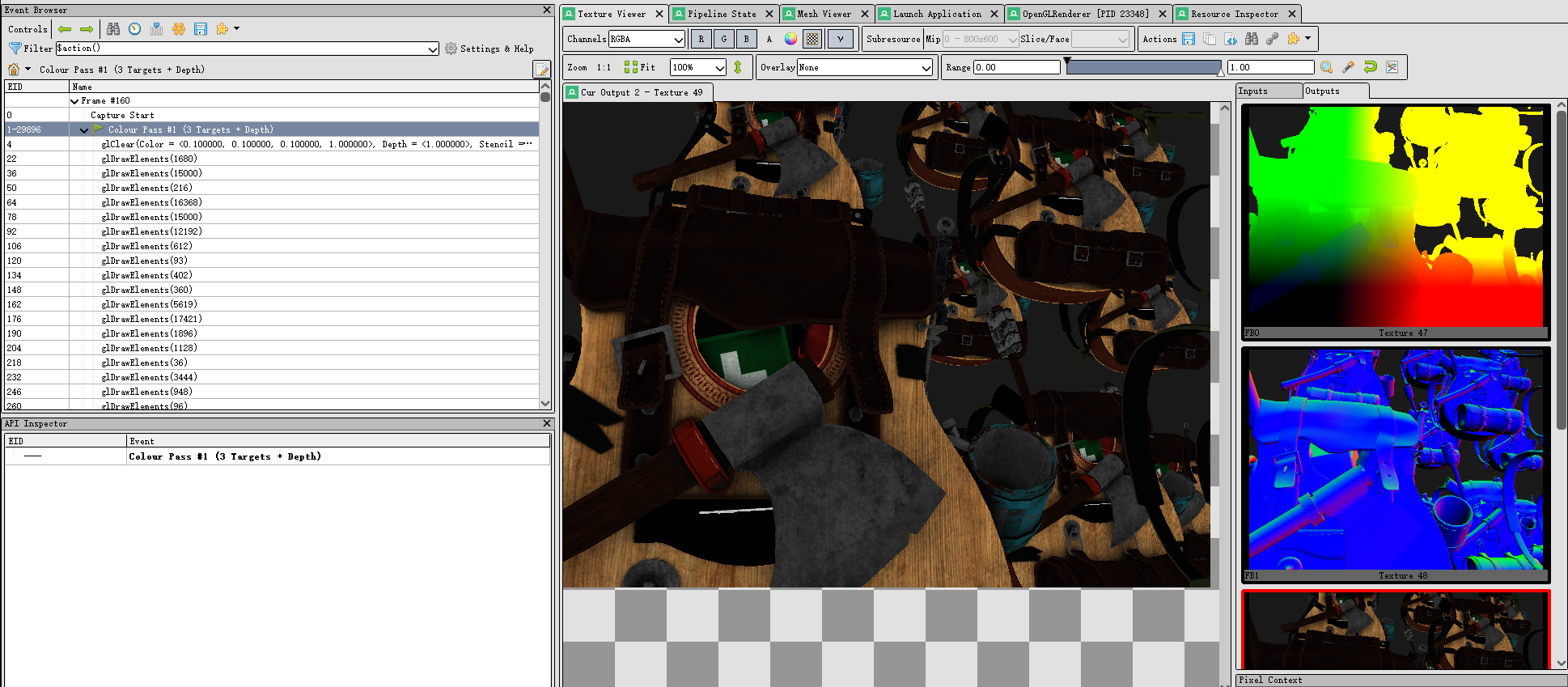

gAlbedoSpec

三、Lighting Pass

和后处理类似的方式，我们在屏幕上绘制一个Quad，然后在片段着色器中采样G-Buffer进行光照计算

// [main]
unsigned int screenQuadVAO, screenQuadVBO;
glGenVertexArrays(1, &screenQuadVAO);
glGenBuffers(1, &screenQuadVBO);
glBindVertexArray(screenQuadVAO);
glBindBuffer(GL_ARRAY_BUFFER, screenQuadVBO);
glBufferData(GL_ARRAY_BUFFER, sizeof(screenQuadVertices), &screenQuadVertices, GL_STATIC_DRAW);
glEnableVertexAttribArray(0);
glVertexAttribPointer(0, 2, GL_FLOAT, GL_FALSE, 4 * sizeof(float), (void*)0);
glEnableVertexAttribArray(1);
glVertexAttribPointer(1, 2, GL_FLOAT, GL_FALSE, 4 * sizeof(float), (void*)(2 * sizeof(float)));Shader screenShader("Shader/DeferredScreenVertex.glsl", "Shader/DeferredScreenFragment.glsl");// [主循环]
// Lighting Pass
glBindFramebuffer(GL_FRAMEBUFFER, 0);
glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT | GL_STENCIL_BUFFER_BIT);screenShader.Use();
screenShader.SetInt("gPosition", 0);
screenShader.SetInt("gNormal", 1);
screenShader.SetInt("gAlbedoSpec", 2);
screenShader.SetVec3("viewPos", camera.transform.position);
for (int i = 0; i < 4; i++)
{screenShader.SetVec3("lights[" + std::to_string(i) + "].Position", glm::vec3(pointLightPositions[i]));screenShader.SetVec3("lights[" + std::to_string(i) + "].Color", glm::vec3(pointLightColors[i]));
}
glBindVertexArray(screenQuadVAO);
glDisable(GL_DEPTH_TEST);
glActiveTexture(GL_TEXTURE0);
glBindTexture(GL_TEXTURE_2D, gPosition);
glActiveTexture(GL_TEXTURE1);
glBindTexture(GL_TEXTURE_2D, gNormal);
glActiveTexture(GL_TEXTURE2);
glBindTexture(GL_TEXTURE_2D, gAlbedoSpec);
glDrawArrays(GL_TRIANGLES, 0, 6);
glEnable(GL_DEPTH_TEST);

BuiltinData.h
加上了点光源的颜色

// 点光源颜色
glm::vec3 pointLightColors[] = {glm::vec3(1, 1, 1),glm::vec3(0, 0, 1),glm::vec3(1, 0, 0),glm::vec3(0, 1, 0)
};

DeferredScreenVertex.glsl 新建
直接传递顶点和UV

#version 330 corelayout (location = 0) in vec2 aPos;
layout (location = 1) in vec2 aTexCoords;out vec2 TexCoords;void main()
{gl_Position = vec4(aPos.x, aPos.y, 0.0, 1.0); TexCoords = aTexCoords;
}

DeferredScreenFragment.glsl 新建
采样G-Buffer并计算光照

#version 330 coreout vec4 FragColor;in vec2 TexCoords;uniform sampler2D gPosition;
uniform sampler2D gNormal;
uniform sampler2D gAlbedoSpec;struct Light {vec3 Position;vec3 Color;
};
const int NR_LIGHTS = 4;
uniform Light lights[NR_LIGHTS];
uniform vec3 viewPos;void main()
{   // G-Buffer 中读取数据vec3 FragPos = texture(gPosition, TexCoords).rgb;vec3 Normal = texture(gNormal, TexCoords).rgb;vec3 Albedo = texture(gAlbedoSpec, TexCoords).rgb;float Specular = texture(gAlbedoSpec, TexCoords).a;// 计算光照vec3 lighting = Albedo * 0.1;vec3 viewDir = normalize(viewPos - FragPos);for(int i = 0; i < NR_LIGHTS; ++i){vec3 lightDir = normalize(lights[i].Position - FragPos);vec3 diffuse = max(dot(Normal, lightDir), 0.0) * Albedo * lights[i].Color;lighting += diffuse;}FragColor = vec4(lighting, 1.0);
}

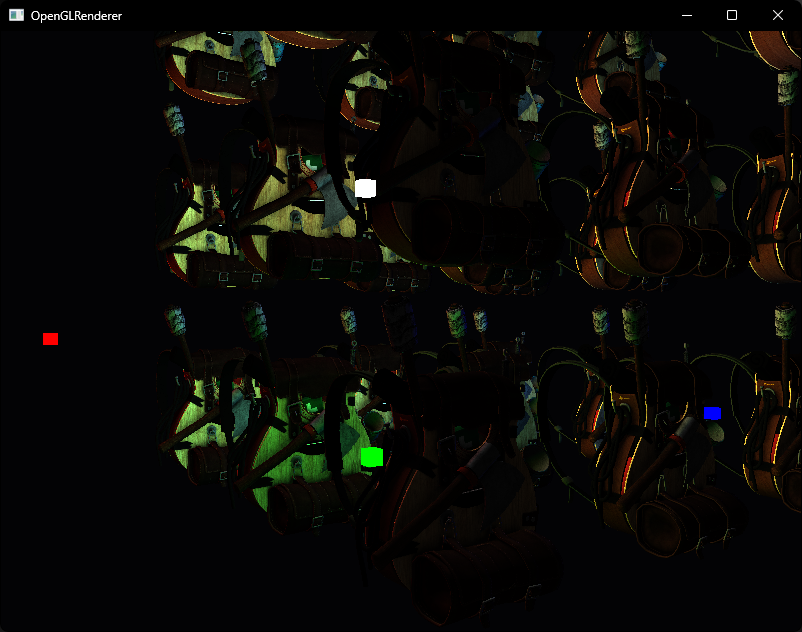

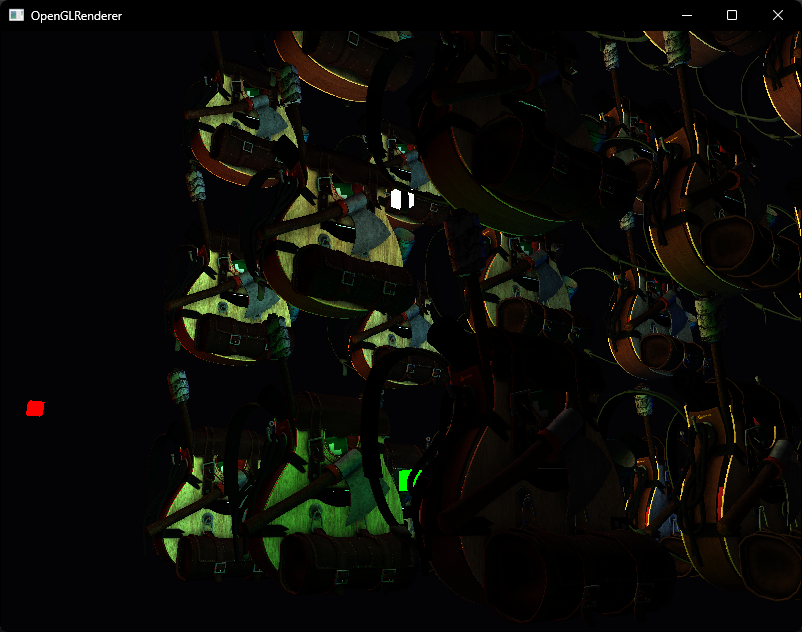

编译运行，顺利的话可以看见以下图像

四、延迟渲染 + 前向渲染

我们可以将延迟渲染和前向渲染结合起来使用，例如我们现在想在光源的位置渲染Cube出来，在延迟渲染完场景之后，我们使用前向渲染绘制Cube
Main_Deferred.cpp

// [main]
// [主循环]// 延迟渲染
// ...// 前向渲染
cubeShader.Use();
cubeShader.SetMat4("view", view);
cubeShader.SetMat4("projection", projection);
for (int i = 0; i < 4; i++)
{cubeShader.SetVec3("color", pointLightColors[i]);glm::mat4 model = glm::mat4(1);model = glm::translate(model, pointLightPositions[i]);model = glm::scale(model, glm::vec3(0.3, 0.3, 0.3));cubeShader.SetMat4("model", model);RenderCube();
}GLuint cubeVAO = 0;
GLuint cubeVBO = 0;
void RenderCube()
{// Initialize (if necessary)if (cubeVAO == 0){GLfloat vertices[] = {// Back face-0.5f, -0.5f, -0.5f, 0.0f, 0.0f, -1.0f, 0.0f, 0.0f, // Bottom-left0.5f, 0.5f, -0.5f, 0.0f, 0.0f, -1.0f, 1.0f, 1.0f, // top-right0.5f, -0.5f, -0.5f, 0.0f, 0.0f, -1.0f, 1.0f, 0.0f, // bottom-right         0.5f, 0.5f, -0.5f, 0.0f, 0.0f, -1.0f, 1.0f, 1.0f,  // top-right-0.5f, -0.5f, -0.5f, 0.0f, 0.0f, -1.0f, 0.0f, 0.0f,  // bottom-left-0.5f, 0.5f, -0.5f, 0.0f, 0.0f, -1.0f, 0.0f, 1.0f,// top-left// Front face-0.5f, -0.5f, 0.5f, 0.0f, 0.0f, 1.0f, 0.0f, 0.0f, // bottom-left0.5f, -0.5f, 0.5f, 0.0f, 0.0f, 1.0f, 1.0f, 0.0f,  // bottom-right0.5f, 0.5f, 0.5f, 0.0f, 0.0f, 1.0f, 1.0f, 1.0f,  // top-right0.5f, 0.5f, 0.5f, 0.0f, 0.0f, 1.0f, 1.0f, 1.0f, // top-right-0.5f, 0.5f, 0.5f, 0.0f, 0.0f, 1.0f, 0.0f, 1.0f,  // top-left-0.5f, -0.5f, 0.5f, 0.0f, 0.0f, 1.0f, 0.0f, 0.0f,  // bottom-left// Left face-0.5f, 0.5f, 0.5f, -1.0f, 0.0f, 0.0f, 1.0f, 0.0f, // top-right-0.5f, 0.5f, -0.5f, -1.0f, 0.0f, 0.0f, 1.0f, 1.0f, // top-left-0.5f, -0.5f, -0.5f, -1.0f, 0.0f, 0.0f, 0.0f, 1.0f,  // bottom-left-0.5f, -0.5f, -0.5f, -1.0f, 0.0f, 0.0f, 0.0f, 1.0f, // bottom-left-0.5f, -0.5f, 0.5f, -1.0f, 0.0f, 0.0f, 0.0f, 0.0f,  // bottom-right-0.5f, 0.5f, 0.5f, -1.0f, 0.0f, 0.0f, 1.0f, 0.0f, // top-right// Right face0.5f, 0.5f, 0.5f, 1.0f, 0.0f, 0.0f, 1.0f, 0.0f, // top-left0.5f, -0.5f, -0.5f, 1.0f, 0.0f, 0.0f, 0.0f, 1.0f, // bottom-right0.5f, 0.5f, -0.5f, 1.0f, 0.0f, 0.0f, 1.0f, 1.0f, // top-right         0.5f, -0.5f, -0.5f, 1.0f, 0.0f, 0.0f, 0.0f, 1.0f,  // bottom-right0.5f, 0.5f, 0.5f, 1.0f, 0.0f, 0.0f, 1.0f, 0.0f,  // top-left0.5f, -0.5f, 0.5f, 1.0f, 0.0f, 0.0f, 0.0f, 0.0f, // bottom-left     // Bottom face-0.5f, -0.5f, -0.5f, 0.0f, -1.0f, 0.0f, 0.0f, 1.0f, // top-right0.5f, -0.5f, -0.5f, 0.0f, -1.0f, 0.0f, 1.0f, 1.0f, // top-left0.5f, -0.5f, 0.5f, 0.0f, -1.0f, 0.0f, 1.0f, 0.0f,// bottom-left0.5f, -0.5f, 0.5f, 0.0f, -1.0f, 0.0f, 1.0f, 0.0f, // bottom-left-0.5f, -0.5f, 0.5f, 0.0f, -1.0f, 0.0f, 0.0f, 0.0f, // bottom-right-0.5f, -0.5f, -0.5f, 0.0f, -1.0f, 0.0f, 0.0f, 1.0f, // top-right// Top face-0.5f, 0.5f, -0.5f, 0.0f, 1.0f, 0.0f, 0.0f, 1.0f,// top-left0.5f, 0.5f, 0.5f, 0.0f, 1.0f, 0.0f, 1.0f, 0.0f, // bottom-right0.5f, 0.5f, -0.5f, 0.0f, 1.0f, 0.0f, 1.0f, 1.0f, // top-right     0.5f, 0.5f, 0.5f, 0.0f, 1.0f, 0.0f, 1.0f, 0.0f, // bottom-right-0.5f, 0.5f, -0.5f, 0.0f, 1.0f, 0.0f, 0.0f, 1.0f,// top-left-0.5f, 0.5f, 0.5f, 0.0f, 1.0f, 0.0f, 0.0f, 0.0f // bottom-left        };glGenVertexArrays(1, &cubeVAO);glGenBuffers(1, &cubeVBO);// Fill bufferglBindBuffer(GL_ARRAY_BUFFER, cubeVBO);glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);// Link vertex attributesglBindVertexArray(cubeVAO);glEnableVertexAttribArray(0);glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 8 * sizeof(GLfloat), (GLvoid*)0);glEnableVertexAttribArray(1);glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, 8 * sizeof(GLfloat), (GLvoid*)(3 * sizeof(GLfloat)));glEnableVertexAttribArray(2);glVertexAttribPointer(2, 2, GL_FLOAT, GL_FALSE, 8 * sizeof(GLfloat), (GLvoid*)(6 * sizeof(GLfloat)));glBindBuffer(GL_ARRAY_BUFFER, 0);glBindVertexArray(0);}// Render CubeglBindVertexArray(cubeVAO);glDrawArrays(GL_TRIANGLES, 0, 36);glBindVertexArray(0);
}

Shader

// CubeVertex.glsl
#version 330 corelayout (location = 0) in vec3 aPos;
layout (location = 1) in vec3 aNormal;
layout (location = 2) in vec2 aTexCoords;uniform mat4 projection;
uniform mat4 view;
uniform mat4 model;out vec3 Normal;
out vec2 TexCoords;void main()
{gl_Position = projection * view * model * vec4(aPos, 1.0);Normal = mat3(transpose(inverse(model))) * aNormal;TexCoords = aTexCoords;
}// CubeFragment.glsl
#version 330 coreout vec4 FragColor;uniform vec3 color;in vec3 Normal;
in vec2 TexCoords;void main()
{FragColor = vec4(color.rgb, 1.0);
}

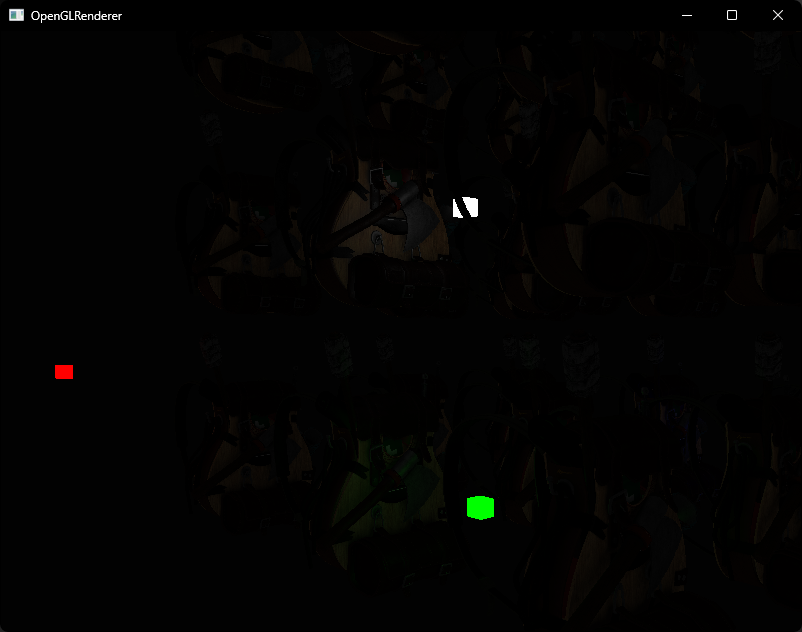

编译运行，我们可以看见场景中以及绘制出四个不同颜色的立方体
但它们并没有正确的深度关系

接下来我们可以使用在MSAA中用到过的 glBlitFramebuffer 来将G-Buffer中的深度缓冲拷贝到默认帧缓冲中

// 同步深度缓冲
glBindFramebuffer(GL_READ_FRAMEBUFFER, gBuffer);
glBindFramebuffer(GL_DRAW_FRAMEBUFFER, 0);
glBlitFramebuffer(0, 0, screenWidth, screenHeight, 0, 0, screenWidth, screenHeight, GL_DEPTH_BUFFER_BIT, GL_NEAREST);

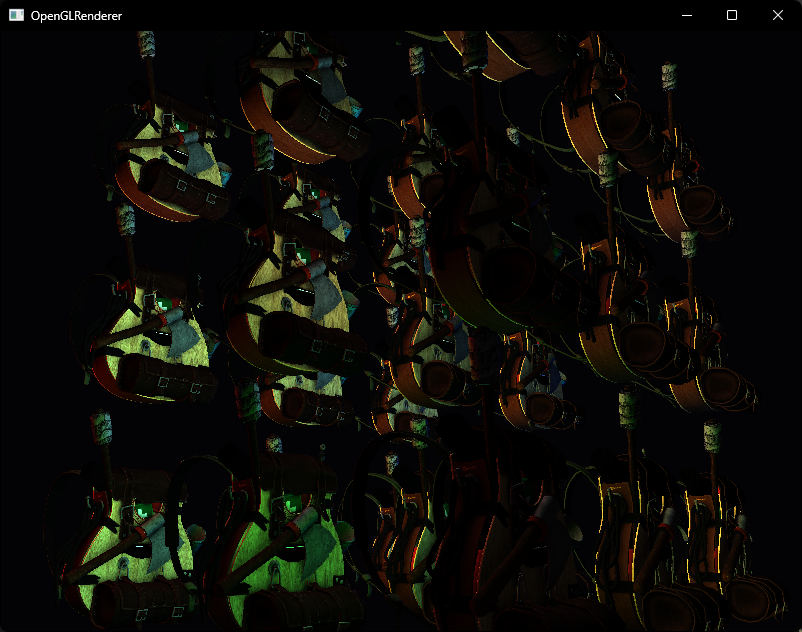

这样就得到了正确的遮挡关系

五、光体积 (Light Volume)

目前我们计算光照是遍历每个光源来对每个片段进行计算，虽然比之前优化了很多，不过依然有很多冗余的计算
因为目前不管片段距离光源有多远，我们都进行了计算，但是距离过远很可能光源并不会对其产生影响，接下来我们来计算一个点光源的体积或半径，判断片段是否会受到这个点光源的影响，是则计算光照，否则跳过

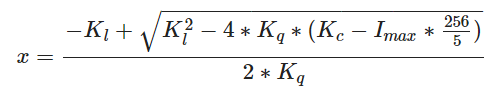

我们会引入一个更为复杂但是更加灵活的衰减方程，其中I为光源最亮的颜色分量

简化


Main_Deferred.cpp
计算半径并传入着色器

const float constant = 1.0;
const float linear = 0.7;
const float quadratic = 1.8;
for (int i = 0; i < 4; i++)
{// ...screenShader.SetFloat("lights[" + std::to_string(i) + "].Linear", linear);screenShader.SetFloat("lights[" + std::to_string(i) + "].Quadratic", quadratic);const float maxBrightness = std::fmaxf(std::fmaxf(pointLightColors[i].r, pointLightColors[i].g), pointLightColors[i].b);float radius = (-linear + std::sqrtf(linear * linear - 4 * quadratic * (constant - (256.0 / 5.0) * maxBrightness))) / (2 * quadratic);screenShader.SetFloat("lights[" + std::to_string(i) + "].Radius", radius);
}

DeferredScreenFragment.glsl
引入点光源衰减并比较距离

#version 330 coreout vec4 FragColor;in vec2 TexCoords;uniform sampler2D gPosition;
uniform sampler2D gNormal;
uniform sampler2D gAlbedoSpec;struct Light {vec3 Position;vec3 Color;float Linear;float Quadratic;float Radius;
};
const int NR_LIGHTS = 4;
uniform Light lights[NR_LIGHTS];
uniform vec3 viewPos;void main()
{   // G-Buffer 中读取数据vec3 FragPos = texture(gPosition, TexCoords).rgb;vec3 Normal = texture(gNormal, TexCoords).rgb;vec3 Albedo = texture(gAlbedoSpec, TexCoords).rgb;float Specular = texture(gAlbedoSpec, TexCoords).a;// 计算光照vec3 lighting = Albedo * 0.1;vec3 viewDir = normalize(viewPos - FragPos);for(int i = 0; i < NR_LIGHTS; ++i){// 判断距离float dist = length(lights[i].Position - FragPos);if (dist < lights[i].Radius){// Diffusevec3 lightDir = normalize(lights[i].Position - FragPos);vec3 diffuse = max(dot(Normal, lightDir), 0.0) * Albedo * lights[i].Color;// Specularvec3 halfwayDir = normalize(lightDir + viewDir);  float spec = pow(max(dot(Normal, halfwayDir), 0.0), 16.0);vec3 specular = lights[i].Color * spec * Specular;// Attenuationfloat attenuation = 1.0 / (1.0 + lights[i].Linear * dist + lights[i].Quadratic * dist * dist);diffuse *= attenuation;specular *= attenuation;lighting += diffuse + specular;}}FragColor = vec4(lighting, 1.0);
}

但这种方式在实际情况下并不能真正的生效

然而事实上，你的GPU和GLSL并不擅长优化循环和分支。这一缺陷的原因是GPU中着色器的运行是高度并行的，大部分的架构要求对于一个大的线程集合，GPU需要对它运行完全一样的着色器代码从而获得高效率。这通常意味着一个着色器运行时总是执行一个if语句所有的分支从而保证着色器运行都是一样的，这使得我们之前的半径检测优化完全变得无用，我们仍然在对所有光源计算光照！

因此，使用 Lighting Volume 更好的方式是在点光源中心渲染一个实际的球体，并根据光体积的半径进行缩放，绘制球体时写入到模板缓冲中，后续使用模板缓冲剔除掉不需要计算光照的片段

完整代码可在顶部Git仓库找到
