LVS 负载均衡

news 2025/9/24 7:10:13

LVS 负载均衡

一、LVS 基础概述

LVS（Linux Virtual Server，Linux 虚拟服务器）是由章文嵩博士主导的开源负载均衡项目，已集成到 Linux 内核，核心是实现基于 IP 层的数据请求负载均衡调度。终端用户访问 LVS 调度器（请求目标为 VIP，虚拟 IP），调度器按预设算法将请求分发至后端 Real Server（真实服务器，IP 为 RIP）；若 Real Server 挂载相同存储、提供相同服务，集群对用户透明，Real Server 按 LVS 工作模式将数据回传用户。其官方站点为http://www.linuxvirtualserver.org，支持 NAT、TUN、DR 三种工作模式

二、LVS 体系结构

LVS 集群系统由三层架构组成，用户仅感知 “虚拟服务器”，核心为 Director Server（调度服务器）：

层级组成与功能
负载均衡层（Loader Balancer）含 1 台 / 多台 Director Server，安装 LVS 内核模块（实现路由分发）和 Ldirectord 监控模块（检测 Real Server 健康，异常时剔除、恢复后重新加入），类似路由器角色
服务器群组层（Server Array）由 Real Server 组成，可部署 WEB、MAIL、FTP 等服务；Real Server 间通过高速 LAN/WAN 连接，Director Server 也可兼任 Real Server
数据共享存储层（Shared Storage）多为磁盘阵列，提供共享存储与内容一致性；支持 NFS（简易但高并发性能差）或集群文件系统（如 Red Hat GFS、Oracle OCFS2）

系统支持：Director Server 仅支持 Linux（2.6 + 内核原生支持）和 FreeBSD（应用少、性能一般）；Real Server 支持 Linux、Windows、Solaris、AIX 等多系统

三、LVS 核心管理工具

LVS 依赖 “内核模块 + 用户工具” 协同工作，核心工具为ipvs和ipvsadm：

1. ipvs（内核核心组件）

  • 定位：LVS 软件内核层核心，运行于负载均衡层，负责 IP 包处理、负载均衡算法执行、系统配置与管理，维护虚拟服务器与 Real Server 链表
  • 关键特性：1 台 ipvs 主机可定义多个集群服务（可能影响调度性能），每个集群服务至少需 1 台 Real Server

2. ipvsadm（用户空间命令行工具）

  • 定位：用于管理集群服务与 Real Server，支持增、删、改、查操作，指定工作模式、权重等

  • 常用命令与功能：

    功能分类关键命令示例
    集群服务管理增（-A -t ip:port -s 算法）、改（-E）、删（-D）、清空（-C）、保存（-S > /etc/sysconfig/ipvsadm）、重载（-R < /etc/sysconfig/ipvsadm）
    Real Server 管理增（-a -t ip:port -r rip:port -g/i/m）、改（-e）、删（-d）、指定权重（-w 数值）
    查看与格式列表（-L/-l）、数字显示 IP / 端口（-n，需跟在-L后）
    工作模式指定DR 模式（-g，默认）、TUN 模式（-i）、NAT 模式（-m）

  • 核心语法示例：ipvsadm -A -t 172.16.30.10:80 -s rr（创建 TCP 80 端口集群服务，轮询算法）ipvsadm -a -t 172.16.30.10:80 -r 192.168.100.20:80 -m`（添加 Real Server，NAT 模式）

四、LVS 工作模式及原理

1. NAT 模式（网络地址转换）

  • 原理：请求与响应均经过 Director Server，通过地址转换实现调度：
    1. 客户端请求（源 CIP，目标 VIP）到达 Director
    2. Director 将目标 IP 改为 RIP，转发至 Real Server
    3. Real Server（网关指向 Director）处理后，将响应（源 RIP，目标 CIP）发回 Director
    4. Director 将源 IP 改为 VIP，回传客户端
  • 特点：仅需 Director 配置公网 IP；支持 IP / 端口转换；Real Server 系统灵活，但 Director 易成瓶颈（仅支持 10-20 台 RS）
  • 关键要求：Real Server 网关必须指向 Director 的内网 IP（DIP）

2. DR 模式（直接路由）

  • 原理：仅修改请求报文的 MAC 地址，响应直接回客户端（无需经 Director）：
    1. 客户端请求（CIP→VIP）到达 Director
    2. Director 将源 MAC 改为 DIP 的 MAC，目标 MAC 改为 RIP 的 MAC，转发至 Real Server
    3. Real Server 识别目标 MAC 为自身，处理后通过 lo 接口→eth0 直接回传客户端
  • 特点：无 IP 隧道开销，性能高；需 Director 与 Real Server 在同一局域网；Real Server 需配置 VIP（lo 接口，32 位子网掩码，避免 ARP 响应冲突）
  • 关键要求：Real Server 配置arp_ignore=1（仅回应自身接口 IP 的 ARP 请求）、arp_announce=2（ARP 请求源 IP 为 RIP）

3. TUN 模式（隧道模式）

  • 原理：通过 IP 隧道封装请求，响应直接回客户端：
    1. 客户端请求（CIP→VIP）到达 Director
    2. Director 在请求报文外封装新 IP 头（源 DIP，目标 RIP），通过隧道发至 Real Server
    3. Real Server 解封装后，识别目标 VIP（lo 接口配置），处理后直接回传客户端
  • 特点：Director 无瓶颈（仅分发请求），支持跨地域部署；但 Real Server 需合法 IP，且支持 “IP Tunneling” 协议（多为 Linux 系统）

五、LVS 调度算法

LVS 调度算法分静态（不考虑服务器负载）和动态（基于服务器实时负载调整）两类，共 10 种：

1. 静态调度算法（4 种）

  • rr（轮询）：均等分发请求，不考虑服务器连接数 / 负载。
  • wrr（加权轮询）：按权重分发，可动态调整 Real Server 权重（依据负载）
  • sh（源地址散列）：按客户端源 IP 散列，固定将同一客户端请求分发至同一 Real Server
  • dh（目标地址散列）：按请求目标 IP 散列，固定将同一目标 IP 请求分发至同一 Real Server

2. 动态调度算法（6 种）

  • lc（最少链接）：将请求分发至当前连接数最少的 Real Server（适用于 RS 性能相近场景）
  • wlc（加权最少链接）：结合权重与连接数，权重高、连接数少的 RS 优先分配（适用于 RS 性能差异大场景）
  • lblc（基于局部性最少连接）：优先将同一目标 IP 请求分发至最近使用过的 RS（若 RS 可用且负载低）
  • lblcr（复杂基于局部性最少连接）：维护 “目标 IP→RS 组” 映射，避免单点 RS 负载过高
  • sed（最少期望延迟）：不考虑非活动连接，权重高的 RS 优先分配（可能导致高权重 RS 繁忙）
  • nq（永不排队）：直接将请求分发至连接数为 0 的 RS，无排队等待

六、LVS 典型配置案例

文档提供 4 类配置案例，核心步骤均含 “环境准备→基础配置→服务部署→规则配置→测试验证”，关键差异如下：

1. LVS-NAT 模式（HTTP 负载集群）

  • 环境：Client（192.168.100.200）、Director（DIP：192.168.100.10，VIP：172.16.30.10）、RS1（192.168.100.20，网关 192.168.100.10）、RS2（192.168.100.30，网关 192.168.100.10），均为 Rocky Linux 9
  • 关键步骤：
    1. 所有主机关闭防火墙（systemctl stop/disable firewalld）与 SELinux（SELINUX=disabled）；
    2. 配置 IP 与网关（RS 网关指向 Director 的 DIP）
    3. RS 部署 httpd（yum install httpd），生成差异化首页（如echo RS1 > /var/www/html/index.html）
    4. Director 开启 IP 转发（net.ipv4.ip_forward=1，sysctl -p），安装 ipvsadm 并添加规则（ipvsadm -A -t 172.16.30.10:80 -s rr，ipvsadm -a ... -m）
    5. 保存规则（ipvsadm -Sn > /etc/sysconfig/ipvsadm），重启 ipvsadm
    6. 客户端测试（curl http://172.16.30.10），轮询返回 RS1/RS2

2. LVS-NAT 模式（HTTPS 负载集群）

  • 新增步骤：
    1. Director 生成 CA 密钥与证书（openssl genrsa、openssl req -new -x509）
    2. RS 生成证书请求（CSR），发送至 Director
    3. Director 签署 CSR 生成证书，回传 RS
    4. RS 配置 httpd 的 SSL 模块（mod_ssl），指定证书路径
    5. Director 添加 443 端口规则（ipvsadm -A -t 172.16.30.10:443 -s rr，ipvsadm -a ... -m）；
    6. 客户端测试（curl -k https://172.16.30.10），轮询返回 RS1/RS2

3. LVS-DR 模式（HTTP 负载集群）

  • 环境：Director（DIP：192.168.100.10，VIP：192.168.100.100）、RS1/RS2（RIP：192.168.100.20/30，VIP：192.168.100.100）
  • 关键差异：
    1. RS 配置 ARP 内核参数（arp_ignore=1、arp_announce=2，sysctl -p）
    2. RS 在 lo 接口配置 VIP（ifconfig lo 192.168.100.100/32 up），添加路由（route add -host 192.168.100.100 dev lo）
    3. Director 添加规则时指定 DR 模式（-g，默认），无需开启 IP 转发
    4. 客户端测试（curl http://192.168.100.100），轮询返回 RS1/RS2

4. LVS-TUN 模式（HTTP 负载集群）

  • 环境：Director（VIP：192.168.100.55，tunl0 接口）、RS1/RS2（RIP：192.168.100.20/30，tunl0 接口 VIP）
  • 关键差异：
    1. 所有主机开启 IP 转发
    2. RS 加载 ipip 模块（modprobe ipip），配置 tunl0 接口 VIP（ifconfig tunl0 192.168.100.55/32 up）
    3. RS 配置内核参数（rp_filter=0，避免反向路径过滤）
    4. Director 添加规则时指定 TUN 模式（-i）
    5. 客户端测试（curl http://192.168.100.55），轮询返回 RS1/RS2

具体示例：配置lvs-nat模式的httpd负载集群—http

DR、RS1、RS2三台主机关闭防火墙和selinux 略

RS1：

[root@rs1 ~]# vim /etc/sysconfig/network-scripts/ifcfg-ens33 PREFIX=24
GATEWAY=192.168.100.10
IPV6_PRIVACY=no
~
[root@rs1 ~]# systemctl restart network

RS2：

[root@rs2 ~]# vim /etc/sysconfig/network-scripts/ifcfg-ens33
PREFIX=24
GATEWAY=192.168.100.10
IPV6_PRIVACY=no
~
[root@rs2 ~]# systemctl restart network

lvs-dr：

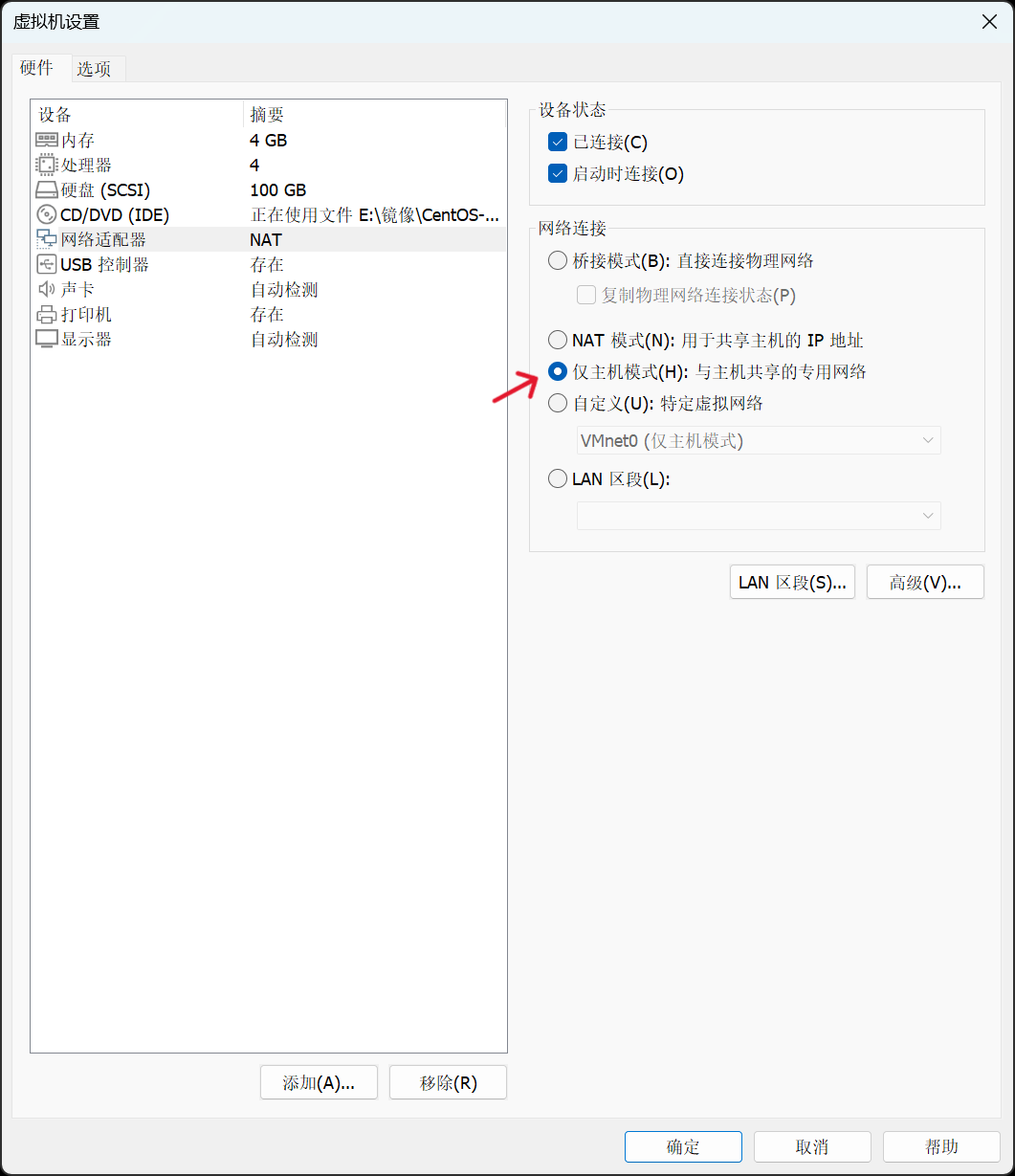

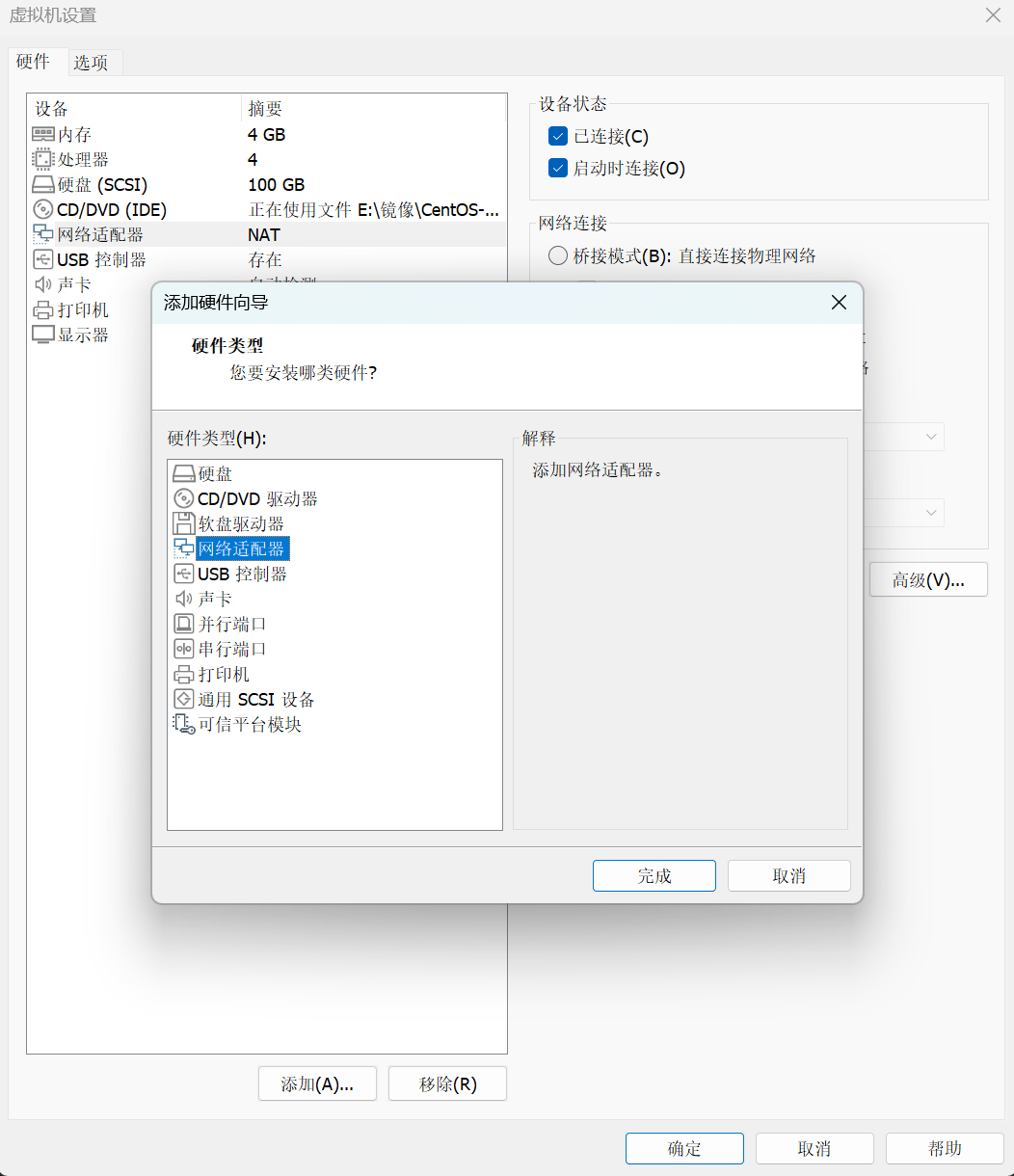

在这里插入图片描述

在这里插入图片描述

lvs-dr：

[root@lvs-dr ~]# nmcli connection show
NAME                UUID                                  TYPE
ens33               1b997c48-8eff-4fa9-be0d-5e2acd617368  ethernet
virbr0              8cb8b09f-e215-4ef7-a952-30012815b908  bridge
Wired connection 1  5d0b9ad8-d21e-344a-8a1f-5207b018d317  ethernet
[root@lvs-dr ~]# nmcli connection delete Wired\ connection\ 1
Connection 'Wired connection 1' (5d0b9ad8-d21e-344a-8a1f-5207b018d317) successfully deleted.
[root@lvs-dr ~]# nmcli connection add con-name ens36 ifname ens36 type ethernet
Connection 'ens36' (c5ea1843-9f29-4242-a6f0-d53457489a7e) successfully added.
[root@lvs-dr ~]# nmcli connection show
NAME    UUID                                  TYPE      DEVICE
ens33   1b997c48-8eff-4fa9-be0d-5e2acd617368  ethernet  ens33
ens36   c5ea1843-9f29-4242-a6f0-d53457489a7e  ethernet  ens36
virbr0  8cb8b09f-e215-4ef7-a952-30012815b908  bridge    virbr0
[root@lvs-dr ~]# nmcli connection modify ens36 ipv4.addresses 172.16.30.10/24 ipv4.method manual connection.autoconnect yes
[root@lvs-dr ~]# nmcli connection up ens36
Connection successfully activated (D-Bus active path: /org/freedesktop/NetworkManager/ActiveConnection/6)
[root@lvs-dr ~]# ifconfig ens36
ens36: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500inet 172.16.30.10  netmask 255.255.255.0  broadcast 172.16.30.255inet6 fe80::947e:8560:897e:6572  prefixlen 64  scopeid 0x20<link>ether 00:0c:29:e4:65:28  txqueuelen 1000  (Ethernet)RX packets 235  bytes 55357 (54.0 KiB)RX errors 0  dropped 0  overruns 0  frame 0TX packets 77  bytes 12865 (12.5 KiB)TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lvs-dr：（配置DR，开启IP转发功能）

[root@lvs-dr ~]# vim /etc/sysctl.conf net.ipv4.ip_forward = 1
~
[root@lvs-dr ~]# sysctl -p
net.ipv4.ip_forward = 1

后端RS1和RS2部署WEB服务器：

RS1：

[root@rs1 ~]# mount /dev/cdrom /mnt/
mount: /dev/sr0 is write-protected, mounting read-only
[root@rs1 ~]# cd /etc/yum.repos.d/
[root@rs1 yum.repos.d]# ls
CentOS-Base.repo       CentOS-fasttrack.repo  CentOS-Vault.repo
CentOS-CR.repo         CentOS-Media.repo
CentOS-Debuginfo.repo  CentOS-Sources.repo
[root@rs1 yum.repos.d]# rm -rf *
[root@rs1 yum.repos.d]# vim sy.repo[aa]
name=aa1
baseurl=file:///mnt
enabled=1
gpgcheck=0
~
[root@rs1 ~]# yum -y install httpd

RS2：

[root@rs2 ~]# mount /dev/cdrom /mnt/
mount: /dev/sr0 is write-protected, mounting read-only
[root@rs2 ~]# cd /etc/yum.repos.d/
[root@rs2 yum.repos.d]# ls
CentOS-Base.repo       CentOS-fasttrack.repo  CentOS-Vault.repo
CentOS-CR.repo         CentOS-Media.repo
CentOS-Debuginfo.repo  CentOS-Sources.repo
[root@rs2 yum.repos.d]# rm -rf *
[root@rs2 yum.repos.d]# vim syy.repo[aa]
name=aa1
baseurl=file:///mnt
enabled=1
gpgcheck=0
~
[root@rs2 ~]# yum -y install httpd

RS1：

[root@rs1 ~]# cd /var/www/html/
[root@rs1 html]# ls
[root@rs1 html]# vim index.html
RS1
~
[root@rs1 html]# systemctl restart httpd
[root@rs1 html]# systemctl enable httpd
Created symlink from /etc/systemd/system/multi-user.target.wants/httpd.service to /usr/lib/systemd/system/httpd.service.

RS2：

[root@rs2 ~]# cd /var/www/html/
[root@rs2 html]# ls
[root@rs2 html]# vim index.html
RS2
~
[root@rs2 html]# systemctl restart httpd
[root@rs2 html]# systemctl enable httpd
Created symlink from /etc/systemd/system/multi-user.target.wants/httpd.service to /usr/lib/systemd/system/httpd.service.

client：

[root@client ~]# curl http://192.168.100.20
RS1
[root@client ~]# curl http://192.168.100.30
RS2

安装ipvsadm并添加规则：

lvs-dr：

[root@lvs-dr ~]# rpm -q ipvsadm
package ipvsadm is not installed
[root@lvs-dr ~]# mount /dev/cdrom /mnt/
mount: /dev/sr0 is write-protected, mounting read-only
[root@lvs-dr ~]# cd /etc/yum.repos.d/
[root@lvs-dr yum.repos.d]# ls
CentOS-Base.repo       CentOS-fasttrack.repo  CentOS-Vault.repo
CentOS-CR.repo         CentOS-Media.repo
CentOS-Debuginfo.repo  CentOS-Sources.repo
[root@lvs-dr yum.repos.d]# rm -rf *
[root@lvs-dr yum.repos.d]# vim qvq.repo[aa]
name=aa1
baseurl=file:///mnt
enabled=1
gpgcheck=0
~[root@lvs-dr ~]# yum -y install ipvsadm

[root@lvs-dr ~]# ipvsadm -A -t 172.16.30.10:80 -s rr
[root@lvs-dr ~]# ipvsadm -a -t 172.16.30.10:80 -r 192.168.100.20:80 -m
[root@lvs-dr ~]# ipvsadm -a -t 172.16.30.10:80 -r 192.168.100.30:80 -m
[root@lvs-dr ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags-> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  172.16.30.10:80 rr-> 192.168.100.20:80            Masq    1      0          0         -> 192.168.100.30:80            Masq    1      0          0
[root@lvs-dr ~]# ipvsadm -Sn > /etc/sysconfig/ipvsadm
[root@lvs-dr ~]# systemctl restart ipvsadm.service
[root@lvs-dr ~]# systemctl enable ipvsadm
Created symlink from /etc/systemd/system/multi-user.target.wants/ipvsadm.service to /usr/lib/systemd/system/ipvsadm.service.

客户端测试：

client：

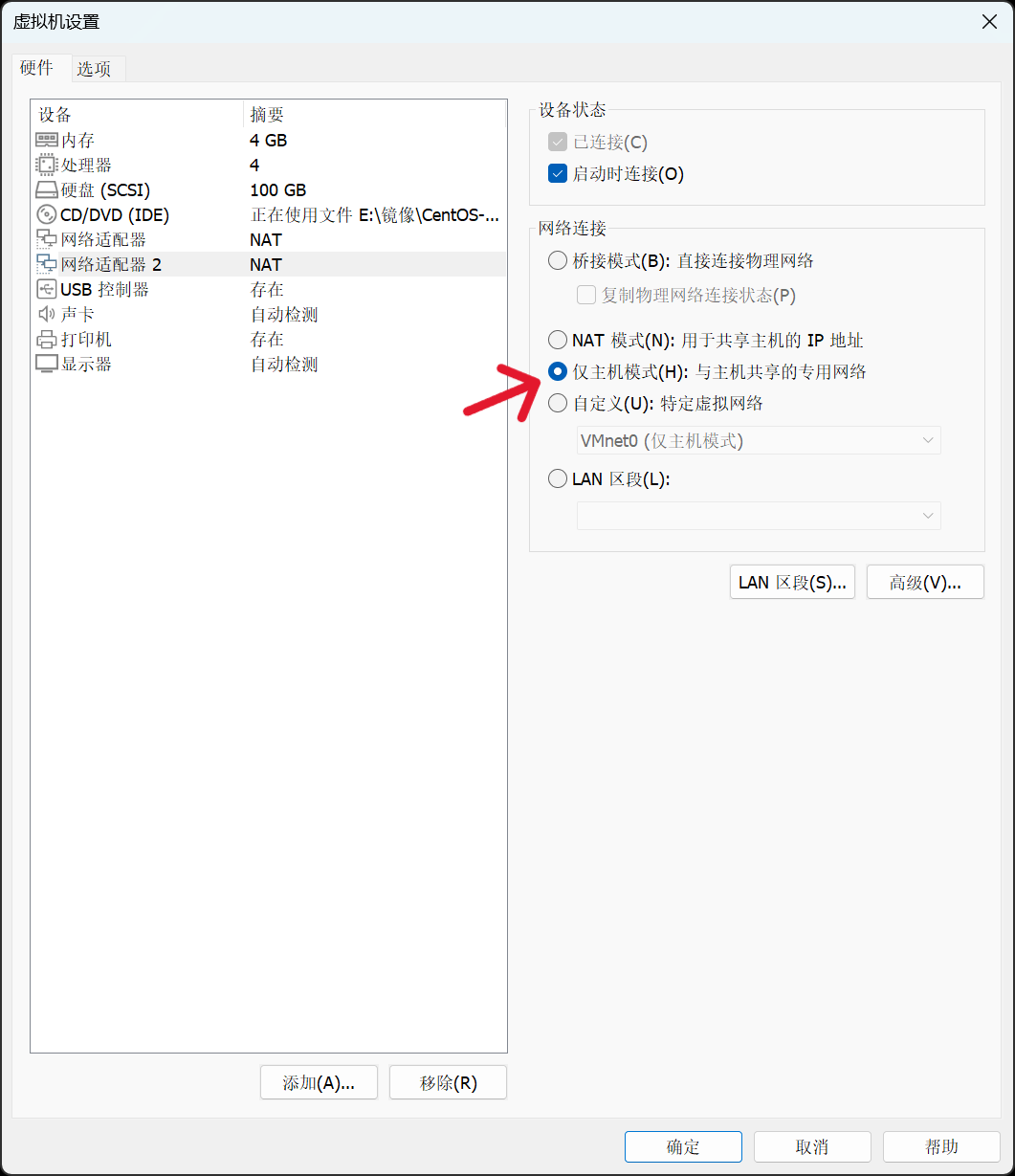

在这里插入图片描述

[root@client ~]# vim /etc/sysconfig/network-scripts/ifcfg-ens33 IPADDR=172.16.30.20
PREFIX=24
~
[root@client ~]# systemctl restart network
[root@client ~]# curl http://172.16.30.10
RS2
[root@client ~]# curl http://172.16.30.10
RS1
[root@client ~]# curl http://172.16.30.10
RS2
[root@client ~]# curl http://172.16.30.10
RS1

配置lvs-nat模式的httpd负载集群—https

lvs-dr：

[root@lvs-dr ~]# cd /etc/pki/CA/
[root@lvs-dr CA]# ls
certs  crl  newcerts  private
[root@lvs-dr CA]# (umask 077;openssl genrsa -out private/cakey.pem 2048)
Generating RSA private key, 2048 bit long modulus
................................+++
...................+++
e is 65537 (0x10001)
[root@lvs-dr CA]# openssl rsa -in private/cakey.pem -pubout
writing RSA key
-----BEGIN PUBLIC KEY-----
MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA1vSNIqqEysdxli2WpN25
+3Hwkj/y1j6BpqDFSqCuzSzxYxyrlp2W6Ef8o3QARD5NVXmaWgR0Vs+p+FiudI7w
nc/doiY9ko5JuzLuUJANXYGsaYY4zli24uLcgWIGdgWD4/d7Ym5t/BrIGozVjUDR
OEygS6ueiLQcaxUG3KbL59IbejqzQdtj7NvtROpaq2iwAAQQ1QUpPqLNwSd0Q7AF
lekrJeTmfRRfvCk0QDeiTo0QrVqwyEaBf+ZPxk/H3kAjsrp+kJxCewMlI4nks4Oe
/JnXzkeBDmrXh5E+Fc47CZlyGwfeMGMTQEYa1Hg2OfxcMQEhCjTuv3Cc2nFOGFwu
5QIDAQAB
-----END PUBLIC KEY-----
[root@lvs-dr CA]# ls
certs  crl  newcerts  private
[root@lvs-dr CA]# ls private/
cakey.pem
[root@lvs-dr CA]# openssl req -new -x509 -key private/cakey.pem -out cacert.pem -days 1024
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:HB
Locality Name (eg, city) [Default City]:WH
Organization Name (eg, company) [Default Company Ltd]:LQ
Organizational Unit Name (eg, section) []:linux
Common Name (eg, your name or your server's hostname) []:server.example.com
Email Address []:shenyi@example.com
[root@lvs-dr CA]# touch index.txt
[root@lvs-dr CA]# echo 01 > serial

在RS1中生成证书签署请求，并发送给CA

RS1：

[root@rs1 html]# yum -y install mod_ssl[root@rs1 html]# cd /etc/httpd/
[root@rs1 httpd]# ls
conf  conf.d  conf.modules.d  logs  modules  run
[root@rs1 httpd]# mkdir ssl
[root@rs1 httpd]# cd ssl/
[root@rs1 ssl]# (umask 077;openssl genrsa -out httpd.key 2048)
Generating RSA private key, 2048 bit long modulus
.................................................................................................+++
................................................................................................+++
e is 65537 (0x10001)
[root@rs1 ssl]# openssl req -new -key httpd.key -days 1024 -out httpd.csr
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:HB
Locality Name (eg, city) [Default City]:WH
Organization Name (eg, company) [Default Company Ltd]:LQ
Organizational Unit Name (eg, section) []:linux
Common Name (eg, your name or your server's hostname) []:rs1.example.com
Email Address []:shenyi@example.comPlease enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:

RS2：

[root@rs2 html]# yum -y install mod_ssl[root@rs2 html]# cd /etc/httpd/
[root@rs2 httpd]# ls
conf  conf.d  conf.modules.d  logs  modules  run
[root@rs2 httpd]# mkdir ssl
[root@rs2 httpd]# cd ssl/
[root@rs2 ssl]# (umask 077;openssl genrsa -out httpd2.key 2048)
Generating RSA private key, 2048 bit long modulus
.+++
....+++
e is 65537 (0x10001)
[root@rs2 ssl]# openssl req -new -key httpd2.key -days 1024 -out httpd2.csr
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:HB
Locality Name (eg, city) [Default City]:WH
Organization Name (eg, company) [Default Company Ltd]:LQ
Organizational Unit Name (eg, section) []:linux
Common Name (eg, your name or your server's hostname) []:rs2.example.com
Email Address []:shenyi@example.comPlease enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:

RS1：

[root@rs1 ssl]# scp httpd.csr root@192.168.100.10:/root/
The authenticity of host '192.168.100.10 (192.168.100.10)' can't be established.
ECDSA key fingerprint is SHA256:UN0UZbtBfFQeLR3836aFd9k4cm9na95JOPqBnPk05VU.
ECDSA key fingerprint is MD5:20:05:39:25:84:f6:1b:bb:8b:b3:ed:b9:bf:96:99:ba.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.100.10' (ECDSA) to the list of known hosts.
root@192.168.100.10's password:
httpd.csr                          100% 1041     1.1MB/s   00:00

在DR中查看：

[root@lvs-dr ~]# cd -
/etc/pki/CA
[root@lvs-dr CA]# ls
cacert.pem  certs  crl  index.txt  newcerts  private  serial
[root@lvs-dr ~]# ls
anaconda-ks.cfg  Downloads             Music     Templates
Desktop          httpd.csr             Pictures  Videos
Documents        initial-setup-ks.cfg  Public

CA签署证书并发给RS1：

[root@lvs-dr ~]# openssl ca -in httpd.csr -out httpd.crt -days 1024
Using configuration from /etc/pki/tls/openssl.cnf
Check that the request matches the signature
Signature ok
Certificate Details:Serial Number: 1 (0x1)ValidityNot Before: Sep 22 12:56:12 2025 GMTNot After : Jul 12 12:56:12 2028 GMTSubject:countryName               = CNstateOrProvinceName       = HBorganizationName          = LQorganizationalUnitName    = linuxcommonName                = rs1.example.comemailAddress              = shenyi@example.comX509v3 extensions:X509v3 Basic Constraints: CA:FALSENetscape Comment: OpenSSL Generated CertificateX509v3 Subject Key Identifier: 74:C4:69:A0:7B:BB:49:42:7B:6D:81:5A:07:5C:BC:42:74:BF:89:8DX509v3 Authority Key Identifier: keyid:09:F9:B7:D5:02:F9:3A:2F:AC:03:F5:55:05:1B:22:74:7B:3D:52:3DCertificate is to be certified until Jul 12 12:56:12 2028 GMT (1024 days)
Sign the certificate? [y/n]:y1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated
[root@lvs-dr ~]# ls
anaconda-ks.cfg  Downloads  initial-setup-ks.cfg  Public
Desktop          httpd.crt  Music                 Templates
Documents        httpd.csr  Pictures              Videos

将CA签署的证书httpd.crt和服务器的证书cacert.pem发送给RS1

[root@lvs-dr ~]# scp httpd.crt root@192.168.100.20:/etc/httpd/ssl
root@192.168.100.20's password:
httpd.crt                       100% 4587     3.0MB/s   00:00

RS1：

[root@rs1 ~]# cd /etc/httpd/
[root@rs1 httpd]# cd ssl/
[root@rs1 ssl]# ls
httpd.crt  httpd.csr  httpd.key

RS2：

[root@rs2 ~]# cd /etc/httpd/
[root@rs2 httpd]# ls ssl/
httpd2.csr  httpd2.key  httpd.key
[root@rs2 httpd]# cd ssl/
[root@rs2 ssl]# rm -rf http*

RS1中把RS1的证书和密钥发送给RS2

RS1：

[root@rs1 ssl]# scp httpd.crt httpd.key root@192.168.100.30:/etc/httpd/ssl/
The authenticity of host '192.168.100.30 (192.168.100.30)' can't be established.
ECDSA key fingerprint is SHA256:UN0UZbtBfFQeLR3836aFd9k4cm9na95JOPqBnPk05VU.
ECDSA key fingerprint is MD5:20:05:39:25:84:f6:1b:bb:8b:b3:ed:b9:bf:96:99:ba.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.100.30' (ECDSA) to the list of known hosts.
root@192.168.100.30's password:
httpd.crt                          100% 4587     3.2MB/s   00:00
httpd.key                          100% 1679     1.9MB/s   00:00

RS2：

[root@rs2 ssl]# ls
httpd.crt  httpd.key

在RS1中修改https的配置文件

[root@lvs-dr ~]# cd /etc/pki/CA/private/
[root@lvs-dr private]# ls
cakey.pem
[root@lvs-dr private]# cd ..
[root@lvs-dr CA]# ls
cacert.pem  crl        index.txt.attr  newcerts  serial
certs       index.txt  index.txt.old   private   serial.old
[root@lvs-dr CA]# scp cacert.pem root@192.168.100.20:/etc/httpd/ssl/
root@192.168.100.20's password:
cacert.pem                      100% 1399   687.2KB/s   00:00
[root@lvs-dr CA]# scp cacert.pem root@192.168.100.30:/etc/httpd/ssl/
The authenticity of host '192.168.100.30 (192.168.100.30)' can't be established.
ECDSA key fingerprint is SHA256:UN0UZbtBfFQeLR3836aFd9k4cm9na95JOPqBnPk05VU.
ECDSA key fingerprint is MD5:20:05:39:25:84:f6:1b:bb:8b:b3:ed:b9:bf:96:99:ba.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.100.30' (ECDSA) to the list of known hosts.
root@192.168.100.30's password:
cacert.pem                      100% 1399   815.3KB/s   00:00

RS1：

[root@rs1 ssl]# vim /etc/httpd/conf.d/ssl.conf SSLCertificateFile /etc/httpd/ssl/httpd.crt   ////#   Server Private Key:
#   If the key is not combined with the certificate, use this
#   directive to point at the key file.  Keep in mind that if
#   you've both a RSA and a DSA private key you can configure
#   both in parallel (to also allow the use of DSA ciphers, etc.)
SSLCertificateKeyFile /etc/httpd/ssl/httpd.key     ////
.....
#SSLCACertificateFile /etc/pki/tls/certs/ca-bundle.crt
SSLCACertificateFile /etc/httpd/ssl/cacert.pem      /////#   Client Authentication (Type):[root@rs1 ssl]# scp /etc/httpd/conf.d/ssl.conf root@192.168.100.30:/etc/httpd/conf.d/ssl.conf
root@192.168.100.30's password:
ssl.conf                           100% 9474     3.4MB/s   00:00
[root@rs1 ssl]# systemctl restart httpd

[root@rs2 ssl]# systemctl restart httpd

[root@rs1 ssl]# ss -anlt
State       Recv-Q Send-Q Local Address:Port               Peer Address:Port
LISTEN      0      128     *:111                 *:*
LISTEN      0      128     *:6000                *:*
LISTEN      0      5      192.168.122.1:53                  *:*
LISTEN      0      128     *:22                  *:*
LISTEN      0      128    127.0.0.1:631                 *:*
LISTEN      0      100    127.0.0.1:25                  *:*
LISTEN      0      128    127.0.0.1:6010                *:*
LISTEN      0      128    127.0.0.1:6011                *:*
LISTEN      0      128    :::111                :::*
LISTEN      0      128    :::80                 :::*
LISTEN      0      128    :::6000               :::*
LISTEN      0      128    :::22                 :::*
LISTEN      0      128       ::1:631                :::*
LISTEN      0      100       ::1:25                 :::*
LISTEN      0      128       ::1:6010               :::*
LISTEN      0      128    :::443                :::*
LISTEN      0      128       ::1:6011               :::*

在DR中添加规则：

[root@lvs-dr ~]# ipvsadm -A -t 172.16.30.10:443 -s rr
[root@lvs-dr ~]# ipvsadm -a -t 172.16.30.10:443 -r 192.168.100.20 -m
[root@lvs-dr ~]# ipvsadm -a -t 172.16.30.10:443 -r 192.168.100.30 -m
[root@lvs-dr ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags-> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  172.16.30.10:80 rr-> 192.168.100.20:80            Masq    1      0          0         -> 192.168.100.30:80            Masq    1      0          0
TCP  172.16.30.10:443 rr-> 192.168.100.20:443           Masq    1      0          0         -> 192.168.100.30:443           Masq    1      0          0
[root@lvs-dr ~]# ipvsadm -Sn > /etc/sysconfig/ipvsadm
[root@lvs-dr ~]# systemctl restart ipvsadm

客户端测试

[root@client ~]# curl -k https://172.16.30.10:443
RS2
[root@client ~]# curl -k https://172.16.30.10:443
RS1
[root@client ~]# curl -k https://172.16.30.10:443
RS2
[root@client ~]# curl -k https://172.16.30.10:443
RS1

配置LVS-DR模式的httpd负载集群：

关闭防火墙和selinux 略

RS1：（配置本地yum仓库）

[root@rs1 ~]# mount /dev/cdrom /mnt/
mount: /dev/sr0 is write-protected, mounting read-only
[root@rs1 ~]# cd /etc/yum.repos.d/
[root@rs1 yum.repos.d]# ls
CentOS-Base.repo       CentOS-fasttrack.repo  CentOS-Vault.repo
CentOS-CR.repo         CentOS-Media.repo
CentOS-Debuginfo.repo  CentOS-Sources.repo
[root@rs1 yum.repos.d]# rm -rf *
[root@rs1 yum.repos.d]# vim sy.repo
[aa]
name=aa1
baseurl=file:///mnt
enabled=1
gpgcheck=0
~

安装httpd：

[root@rs1 ~]# yum -y install httpd[root@rs1 ~]# echo RS1 > /var/www/html/index.html
[root@rs1 ~]# systemctl restart httpd
[root@rs1 ~]# systemctl enable httpd
Created symlink from /etc/systemd/system/multi-user.target.wants/httpd.service to /usr/lib/systemd/system/httpd.service.

RS2：（配置本地yum仓库）

[root@rs2 ~]# mount /dev/cdrom /mnt/
mount: /dev/sr0 is write-protected, mounting read-only
[root@rs2 ~]# cd /etc/yum.repos.d/
[root@rs2 yum.repos.d]# ls
CentOS-Base.repo       CentOS-fasttrack.repo  CentOS-Vault.repo
CentOS-CR.repo         CentOS-Media.repo
CentOS-Debuginfo.repo  CentOS-Sources.repo
[root@rs2 yum.repos.d]# rm -rf *
[root@rs2 yum.repos.d]# vim sy.repo
[aa]
name=aa1
baseurl=file:///mnt
enabled=1
gpgcheck=0
~

安装httpd：

[root@rs2 ~]# yum -y install httpd[root@rs2 ~]# echo RS2 > /var/www/html/index.html
[root@rs2 ~]# systemctl restart httpd
[root@rs2 ~]# systemctl enable httpd
Created symlink from /etc/systemd/system/multi-user.target.wants/httpd.service to /usr/lib/systemd/system/httpd.service.

LVS-DR：

[root@lvs-dr ~]# curl http://192.168.100.20
RS1
[root@lvs-dr ~]# curl http://192.168.100.30
RS2

LVS上配置ip：（关闭防火墙和selinux 略）

添加IP：

[root@lvs-dr ~]# ifconfig lo 192.168.100.100/32 broadcast 192.168.100.100 netmask 255.255.255.255 up
[root@lvs-dr ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00inet 192.168.100.100/0 brd 192.168.100.100 scope global lovalid_lft forever preferred_lft foreverinet6 ::1/128 scope host valid_lft forever preferred_lft forever

RS上配置arp内核参数

RS1：

[root@rs1 ~]# vim /etc/sysctl.conf
# 将对应网卡设置为只回应目标IP为自身接口地址的ARP请求
net.ipv4.conf.all.arp_ignore = 1
# 将ARP请求的源IP设置为所有接口的IP，也就是RIP
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.lo.arp_ignore = 1
net.ipv4.conf.lo.arp_announce = 2
~
[root@rs1 ~]# sysctl -p
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.lo.arp_ignore = 1
net.ipv4.conf.lo.arp_announce = 2

RS2：

[root@rs2 ~]# vim /etc/sysctl.conf
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.lo.arp_ignore = 1
net.ipv4.conf.lo.arp_announce = 2
~
[root@rs2 ~]# sysctl -p
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.lo.arp_ignore = 1
net.ipv4.conf.lo.arp_announce = 2

RS上配置VIP

一定要先配置好内核参数，再配置VIP，如果先配置VIP，VIP配置好后会立即通告给所有人，而修改内核参数就是为了不通告

LVS服务器的ens160网卡的ip：192.168.100.100作为VIP

RS1：

[root@rs1 ~]# ifconfig lo 192.168.100.100/32 broadcast 192.168.100.100 netmask 255.255.255.255 up

RS2：

[root@rs2 ~]# ifconfig lo 192.168.100.100/32 broadcast 192.168.100.100 netmask 255.255.255.255 up

添加路由信息

RS1：

[root@rs1 ~]# route add -host 192.168.100.100/32 dev lo
[root@rs1 ~]# route
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
default         gateway         0.0.0.0         UG    100    0        0 ens33
192.168.100.0   0.0.0.0         255.255.255.0   U     100    0        0 ens33
rs1.example.com 0.0.0.0         255.255.255.255 UH    0      0        0 lo
192.168.122.0   0.0.0.0         255.255.255.0   U     0      0        0 virbr0

RS2：

[root@rs2 ~]# route add -host 192.168.100.100/32 dev lo
[root@rs2 ~]# route
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
default         gateway         0.0.0.0         UG    100    0        0 ens33
192.168.100.0   0.0.0.0         255.255.255.0   U     100    0        0 ens33
rs2.example.com 0.0.0.0         255.255.255.255 UH    0      0        0 lo
192.168.122.0   0.0.0.0         255.255.255.0   U     0      0        0 virbr0

添加并保存规则

LVS-DR：

[root@lvs-dr ~]# mount /dev/cdrom /mnt/
mount: /dev/sr0 is write-protected, mounting read-only
[root@lvs-dr ~]# cd /etc/yum.repos.d/
[root@lvs-dr yum.repos.d]# ls
CentOS-Base.repo       CentOS-fasttrack.repo  CentOS-Vault.repo
CentOS-CR.repo         CentOS-Media.repo
CentOS-Debuginfo.repo  CentOS-Sources.repo
[root@lvs-dr yum.repos.d]# rm -rf *
[root@lvs-dr yum.repos.d]# vim sy.repo
[aa]
name=aa1
baseurl=file:///mnt
enabled=1
gpgcheck=0
~   [root@lvs-dr ~]# yum -y install ipvsadm

[root@lvs-dr ~]# ipvsadm -A -t 192.168.100.100:80 -s rr
[root@lvs-dr ~]# ipvsadm -a -t 192.168.100.100:80 -r 192.168.100.20 -g
[root@lvs-dr ~]# ipvsadm -a -t 192.168.100.100:80 -r 192.168.100.30 -g
[root@lvs-dr ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags-> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.100.100:80 rr-> 192.168.100.20:80            Route   1      0          0         -> 192.168.100.30:80            Route   1      0          0
[root@lvs-dr ~]# vim /etc/sysctl.conf
net.ipv4.ip_forward = 1
~
[root@lvs-dr ~]# sysctl -p
net.ipv4.ip_forward = 1
[root@lvs-dr ~]# ipvsadm -Sn > /etc/sysconfig/ipvsadm
[root@lvs-dr ~]# systemctl restart ipvsadm
[root@lvs-dr ~]# systemctl enable ipvsadm
Created symlink from /etc/systemd/system/multi-user.target.wants/ipvsadm.service to /usr/lib/systemd/system/ipvsadm.service.

客户端验证

client：

[root@client ~]# vim /etc/sysconfig/network-scripts/ifcfg-ens33
IPADDR=192.168.100.40
PREFIX=24
~
[root@client ~]# systemctl restart network
[root@client ~]# curl http://192.168.100.100
RS2
[root@client ~]# curl http://192.168.100.100
RS1
[root@client ~]# curl http://192.168.100.100
RS2
[root@client ~]# curl http://192.168.100.100
RS1

权重论调：

LVS-DR：

[root@lvs-dr ~]# ipvsadm -C
[root@lvs-dr ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags-> RemoteAddress:Port           Forward Weight ActiveConn InActConn

[root@lvs-dr ~]# ipvsadm -A -t 192.168.100.100:80 -s wrr
[root@lvs-dr ~]# ipvsadm -a -t 192.168.100.100:80 -r 192.168.100.20 -g -w 3
[root@lvs-dr ~]# ipvsadm -a -t 192.168.100.100:80 -r 192.168.100.30 -g
[root@lvs-dr ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags-> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.100.100:80 wrr-> 192.168.100.20:80            Route   3      0          0         -> 192.168.100.30:80            Route   1      0          0
[root@lvs-dr ~]# ipvsadm -Sn > /etc/sysconfig/ipvsadm
[root@lvs-dr ~]# systemctl restart ipvsadm

client：

[root@client ~]# curl http://192.168.100.100
RS2
[root@client ~]# curl http://192.168.100.100
RS1
[root@client ~]# curl http://192.168.100.100
RS1
[root@client ~]# curl http://192.168.100.100
RS1
[root@client ~]# curl http://192.168.100.100
RS2
[root@client ~]# curl http://192.168.100.100
RS1
[root@client ~]# curl http://192.168.100.100
RS1
[root@client ~]# curl http://192.168.100.100
RS1
[root@client ~]# curl http://192.168.100.100
RS2

TUN模式

关闭防火墙和selinux

RS1：（配置本地yum仓库，部署httpd）

[root@rs1 ~]# mount /dev/cdrom /mnt/
mount: /dev/sr0 is write-protected, mounting read-only
[root@rs1 ~]# cd /etc/yum.repos.d/
[root@rs1 yum.repos.d]# ls
CentOS-Base.repo       CentOS-fasttrack.repo  CentOS-Vault.repo
CentOS-CR.repo         CentOS-Media.repo
CentOS-Debuginfo.repo  CentOS-Sources.repo
[root@rs1 yum.repos.d]# rm -rf *
[root@rs1 yum.repos.d]# vim sy.repo
[aa]
name=aa1
baseurl=file:///mnt
enabled=1
gpgcheck=0
~
[root@rs1 ~]# yum -y install httpd[root@rs1 ~]# echo RS1 > /var/www/html/index.html
[root@rs1 ~]# systemctl restart httpd
[root@rs1 ~]# systemctl enable httpd
Created symlink from /etc/systemd/system/multi-user.target.wants/httpd.service to /usr/lib/systemd/system/httpd.service.

RS2：（配置本地yum仓库，部署httpd）

[root@rs2 ~]# mount /dev/cdrom /mnt/
mount: /dev/sr0 is write-protected, mounting read-only
[root@rs2 ~]# cd /etc/yum.repos.d/
[root@rs2 yum.repos.d]# ls
CentOS-Base.repo       CentOS-fasttrack.repo  CentOS-Vault.repo
CentOS-CR.repo         CentOS-Media.repo
CentOS-Debuginfo.repo  CentOS-Sources.repo
[root@rs2 yum.repos.d]# rm -rf *
[root@rs2 yum.repos.d]# vim sy.repo
[aa]
name=aa1
baseurl=file:///mnt
enabled=1
gpgcheck=0
~
[root@rs2 ~]# yum -y install httpd[root@rs2 ~]# echo RS2 > /var/www/html/index.html
[root@rs2 ~]# systemctl restart httpd
[root@rs2 ~]# systemctl enable httpd
Created symlink from /etc/systemd/system/multi-user.target.wants/httpd.service to /usr/lib/systemd/system/httpd.service.

LVS-DR：（配置本地yum仓库）

[root@lvs-dr ~]# mount /dev/cdrom /mnt/
mount: /dev/sr0 is write-protected, mounting read-only
[root@lvs-dr ~]# cd /etc/yum.repos.d/
[root@lvs-dr yum.repos.d]# ls
CentOS-Base.repo       CentOS-fasttrack.repo  CentOS-Vault.repo
CentOS-CR.repo         CentOS-Media.repo
CentOS-Debuginfo.repo  CentOS-Sources.repo
[root@lvs-dr yum.repos.d]# rm -rf *
[root@lvs-dr yum.repos.d]# vim sy.repo
[aa]
name=aa1
baseurl=file:///mnt
enabled=1
gpgcheck=0
~

LVS-DR：修改内核参数，开启IP转发

[root@lvs-dr ~]# vim /etc/sysctl.conf
net.ipv4.ip_forward = 1
~
[root@lvs-dr ~]# sysctl -p
net.ipv4.ip_forward = 1
[root@lvs-dr ~]# yum -y install ipvsadm
[root@lvs-dr ~]# ifconfig tunl0 192.168.100.55 broadcast 192.168.100.55 netmask 255.255.255.255 up

启用ipip模块

RS1：

[root@rs1 ~]# lsmod | grep ipip
[root@rs1 ~]# modprobe ipip
[root@rs1 ~]# lsmod | grep ipip
ipip                   13465  0
tunnel4                13252  1 ipip
ip_tunnel              25163  1 ipip
[root@rs1 ~]# ifconfig tunl0 192.168.100.55 broadcast 192.168.100.55 netmask 255.255.255.255 up

RS2：

[root@rs2 ~]# modprobe ipip
[root@rs2 ~]# ifconfig tunl0 192.168.100.55 broadcast 192.168.100.55 netmask 255.255.255.255 up

修改内核参数为：

RS1：

[root@rs1 ~]# vim /etc/sysctl.conf
net.ipv4.conf.tunl0.arp_ignore = 1
net.ipv4.conf.tunl0.arp_announce = 2
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.tunl0.rp_filter = 0
net.ipv4.conf.all.rp_filter = 0
~
[root@rs1 ~]# sysctl -p
net.ipv4.conf.tunl0.arp_ignore = 1
net.ipv4.conf.tunl0.arp_announce = 2
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.tunl0.rp_filter = 0
net.ipv4.conf.all.rp_filter = 0

RS2：

[root@rs2 ~]# vim /etc/sysctl.conf
net.ipv4.conf.tunl0.arp_ignore = 1
net.ipv4.conf.tunl0.arp_announce = 2
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.tunl0.rp_filter = 0
net.ipv4.conf.all.rp_filter = 0
~
[root@rs2 ~]# sysctl -p
net.ipv4.conf.tunl0.arp_ignore = 1
net.ipv4.conf.tunl0.arp_announce = 2
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.tunl0.rp_filter = 0
net.ipv4.conf.all.rp_filter = 0

DR上添加规则：
LVS-DR：

[root@lvs-dr ~]# ipvsadm -A -t 192.168.100.55:80 -s rr
[root@lvs-dr ~]# ipvsadm -a -t 192.168.100.55:80 -r 192.168.100.20 -i
[root@lvs-dr ~]# ipvsadm -a -t 192.168.100.55:80 -r 192.168.100.30 -i
[root@lvs-dr ~]# ipvsadm -Ln
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags-> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.100.55:80 rr-> 192.168.100.20:80            Tunnel  1      0          0         -> 192.168.100.30:80            Tunnel  1      0          0
[root@lvs-dr ~]# ipvsadm -Sn > /etc/sysconfig/ipvsadm
[root@lvs-dr ~]# systemctl restart ipvsadm
[root@lvs-dr ~]# systemctl enable ipvsadm
Created symlink from /etc/systemd/system/multi-user.target.wants/ipvsadm.service to /usr/lib/systemd/system/ipvsadm.service.

客户端验证：
client：

[root@client ~]# curl http://192.168.100.55
RS2
[root@client ~]# curl http://192.168.100.55
RS1
[root@client ~]# curl http://192.168.100.55
RS2
[root@client ~]# curl http://192.168.100.55
RS1
http://www.dtcms.com/a/398211.html

相关文章：

  • Spring AI 进阶之路03：集成RAG构建高效知识库
  • 【日常学习-理解Langchain】从问题出发，我理解了LangChain为什么必须这么设计
  • 科技的温情——挽救鼠鼠/兔兔的生命
  • 科技赋能噪声防控，守护职业安全健康
  • 一站式平台网站开发技术保定网站建设公司大全
  • 响应式网站自助建站深圳全网推广推荐
  • CodeArts IDE for Cangjie客户端下载与安装
  • Vue 3 —— A / 前置基础知识
  • 百度网站名称及网址网页设计素材代码
  • Apache Hive 能否脱离开Hadoop集群工作
  • 双端 FPS 全景解析：Android 与 iOS 的渲染机制、监控与优化
  • redis之缓存
  • 新网站seo外包蓟县做网站公司
  • 六一儿童节网站制作设计公司可以是高新企业
  • VVIC 平台商品详情接口高效调用方案：从签名验证到数据解析全流程
  • 基于物联网的智能衣柜系统的设计（论文+源码）
  • 03)阿里 Arthas（阿尔萨斯）开源的 Java 诊断工具使用-排查web项目请求后响应超时或响应慢；trace、stack、profiler指令使用
  • RNN-Gauss / RNN-GMM 模型的结构
  • Spring框架接口之RequestBodyAdvice和ResponseBodyAdvice
  • Unity 性能优化 之 打包优化（ 耗电量 | 发热量 | 启动时间 | AB包）
  • 北京南站在几环山西路桥建设集团网站
  • 北京专业网站建设公司哪家好网站及备案
  • RabbitMQ-保证消息不丢失的机制、避免消息的重复消费
  • 分布式之RabbitMQ的使用(1)
  • 基于Java后端与Vue前端的MES生产管理系统，涵盖生产调度、资源管控及数据分析，提供全流程可视化支持，包含完整可运行源码，助力企业提升生产效率与管理水平
  • 阿里云ACP云计算和大模型考哪个？
  • RabbitMQ C API 实现 RPC 通信实例
  • Ingress原理：七层流量的路由管家
  • 代理网站推荐做网站公司是干什么的
  • 个人建设门户网站 如何备案网址域名注册信息查询
