kind部署K8S集群并将“修仙业务“部署到kind集群

news 2025/9/20 8:01:31

文章目录

1. 基础环境
2. 安装kubectl客户端
3. 安装kind
4. kind创建k8s集群
5. 部署修仙业务
6. 踩坑记录
- 6.1 loadFlannelSubnetEnv failed: open /run/flannel/subnet.env: no such file or directory
- 6.2 pod拒绝连接

1. 基础环境

虚拟机：类红帽系统
内存：至少4g
处理器：4c
有docker环境
yum install -y lvm2

2. 安装kubectl客户端

编写yum下载源-k8s,使用阿里云源：[kubernetes镜像_kubernetes下载地址_kubernetes安装教程-阿里巴巴开源镜像站](https://developer.aliyun.com/mirror/kubernetes?spm=a2c6h.13651102.0.0.560a1b11oZq8XJ)

cat <<EOF | tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.28/rpm/
enabled=1
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.28/rpm/repodata/repomd.xml.key
EOFsetenforce 0yum install -y  kubectl
# kubeadm kubelet
systemctl enable kubectl && systemctl start kubectl

设置软链接：ln -s /usr/bin/kubectl /usr/local/bin/kubectl

3. 安装kind

kind的github官网：[kubernetes-sigs/kind: Kubernetes IN Docker - local clusters for testing Kubernetes](https://github.com/kubernetes-sigs/kind)
下载kind 1.19

[root@jumpserver ~]# chmod +x kind-linux-amd64
[root@jumpserver ~]# mv kind-linux-amd64 /usr/local/bin/

k8s集群启动文件：kind-1c3w.yaml
mkdir -p /etc/kind
vim /etc/kind/kind-1c3w.yaml

# kind-1c3w.yaml
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:- role: control-plane # 控制平面节点extraPortMappings:- containerPort: 31000hostPort: 31000- role: worker        # 工作节点 1- role: worker        # 工作节点 2- role: worker        # 工作节点 3

4. kind创建k8s集群

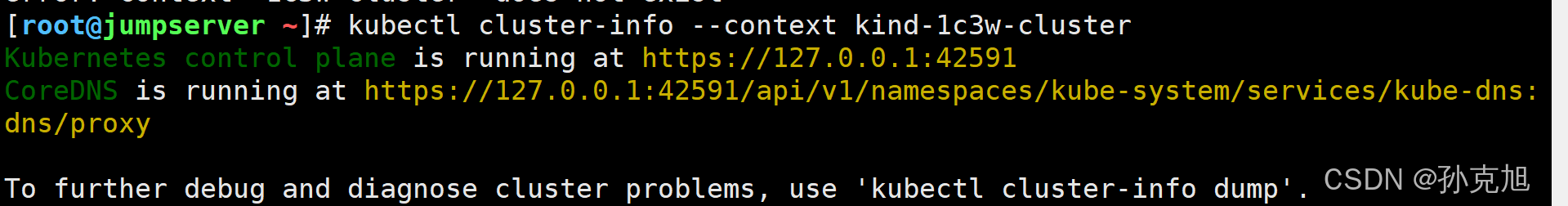

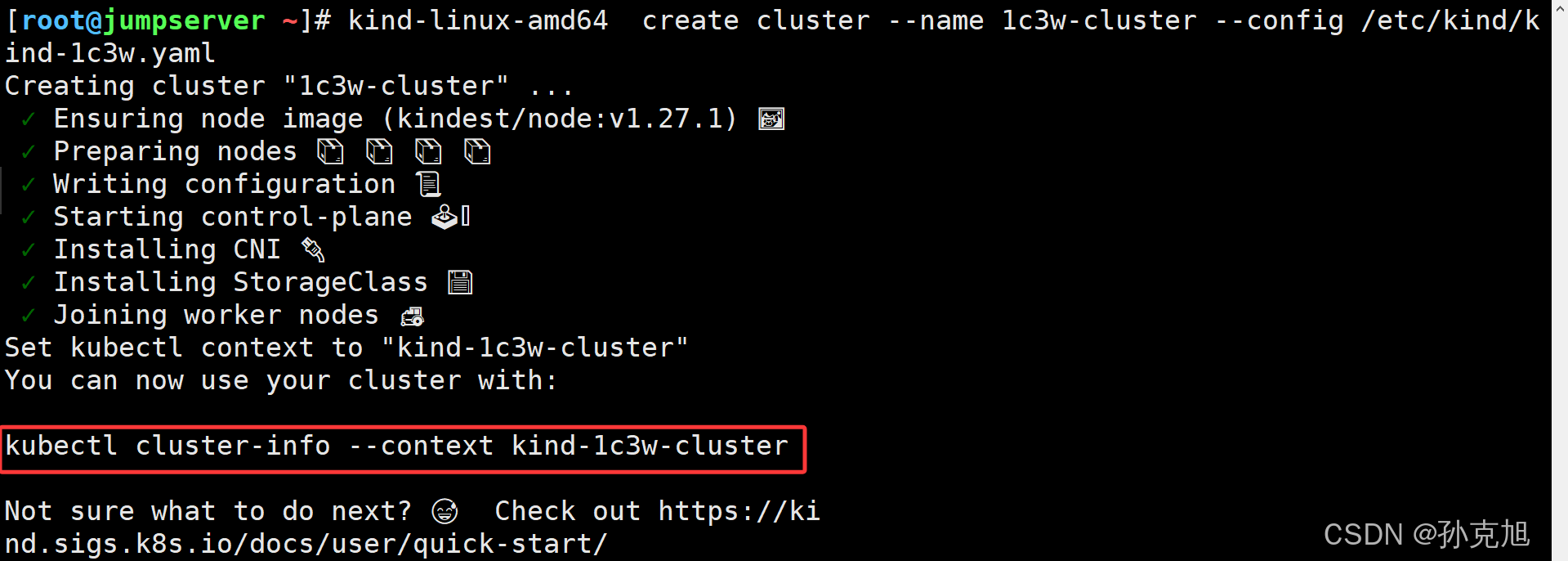

命令：kind-linux-amd64 create cluster --name 1c3w-cluster --config /etc/kind/kind-1c3w.yaml

在这里插入图片描述

5. 部署修仙业务

修仙业务配置文件：oldboyedu-network-cni-test.yaml 链接: https://pan.baidu.com/s/1nuqifEZwkD5b0NC_Gmcd7w?pwd=cypu 提取码: cypu

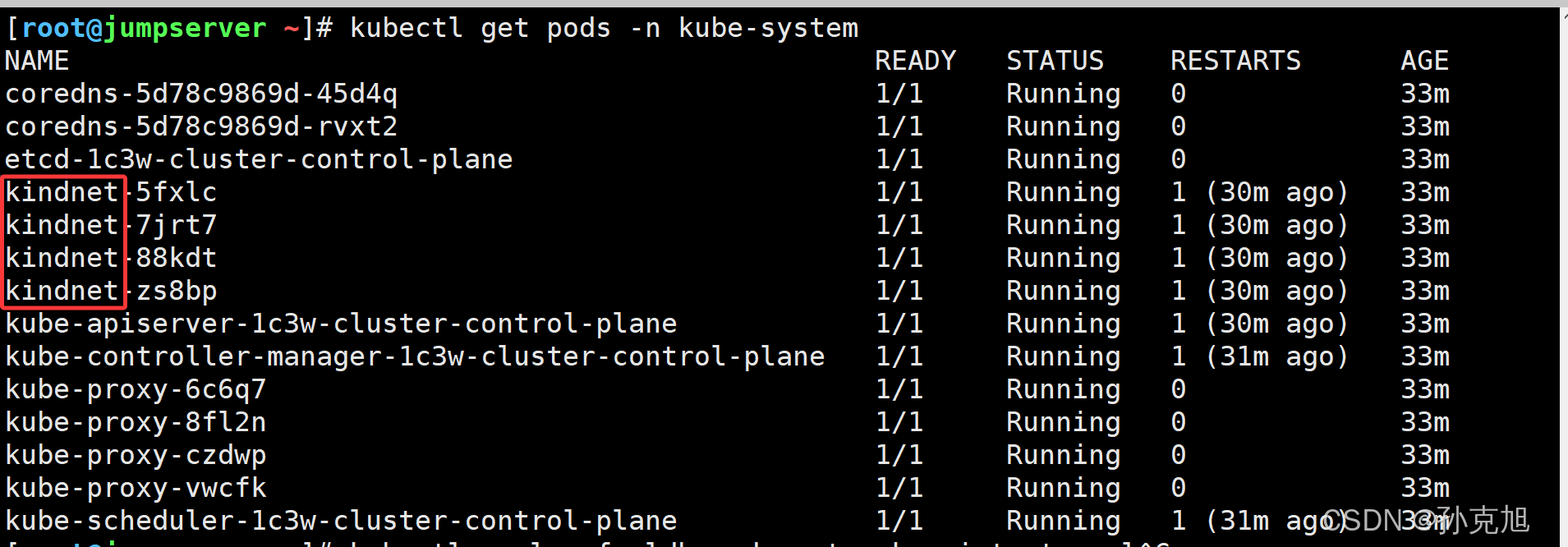

kind自带kindnet，类似于flannel，无需再次安装flannel插件;安装后会有bug，请看踩坑记录

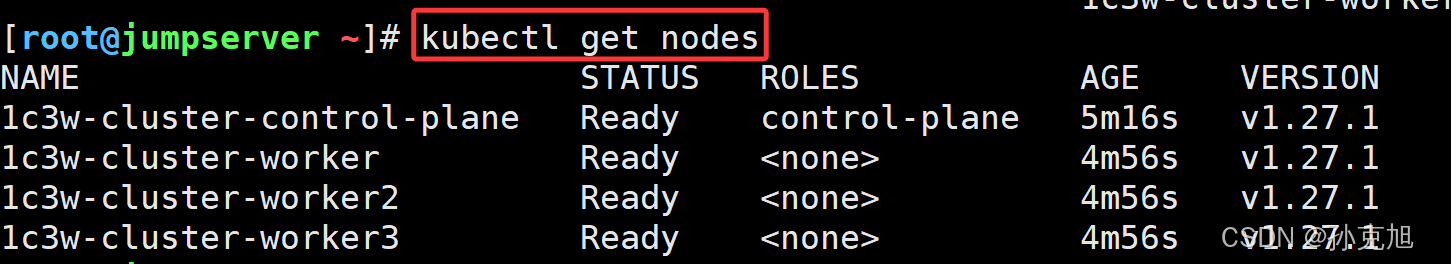

查看k8s节点：

[root@jumpserver ~]# kubectl get nodes
NAME                         STATUS   ROLES           AGE   VERSION
1c3w-cluster-control-plane   Ready    control-plane   37m   v1.27.1
1c3w-cluster-worker          Ready    <none>          37m   v1.27.1
1c3w-cluster-worker2         Ready    <none>          37m   v1.27.1
1c3w-cluster-worker3         Ready    <none>          37m   v1.27.1

修改业务配置文件，将节点名称该为当前worker节点名称：

[root@jumpserver ~]# cat oldboyedu-network-cni-test.yaml
apiVersion: v1
kind: Pod
metadata:name: xiuxian-v1
spec:nodeName: 1c3w-cluster-worker #修改此处containers:- image: registry.cn-hangzhou.aliyuncs.com/yinzhengjie-k8s/apps:v1 name: xiuxian---apiVersion: v1
kind: Pod
metadata:name: xiuxian-v2
spec:nodeName: 1c3w-cluster-worker2 #修改此处containers:- image: registry.cn-hangzhou.aliyuncs.com/yinzhengjie-k8s/apps:v2name: xiuxian

运行pod：

kubectl delete -f oldboyedu-network-cni-test.yaml
kubectl apply -f oldboyedu-network-cni-test.yaml
[root@jumpserver ~]# kubectl get pods
NAME         READY   STATUS    RESTARTS   AGE
xiuxian-v1   1/1     Running   0          13m
xiuxian-v2   1/1     Running   0          13m

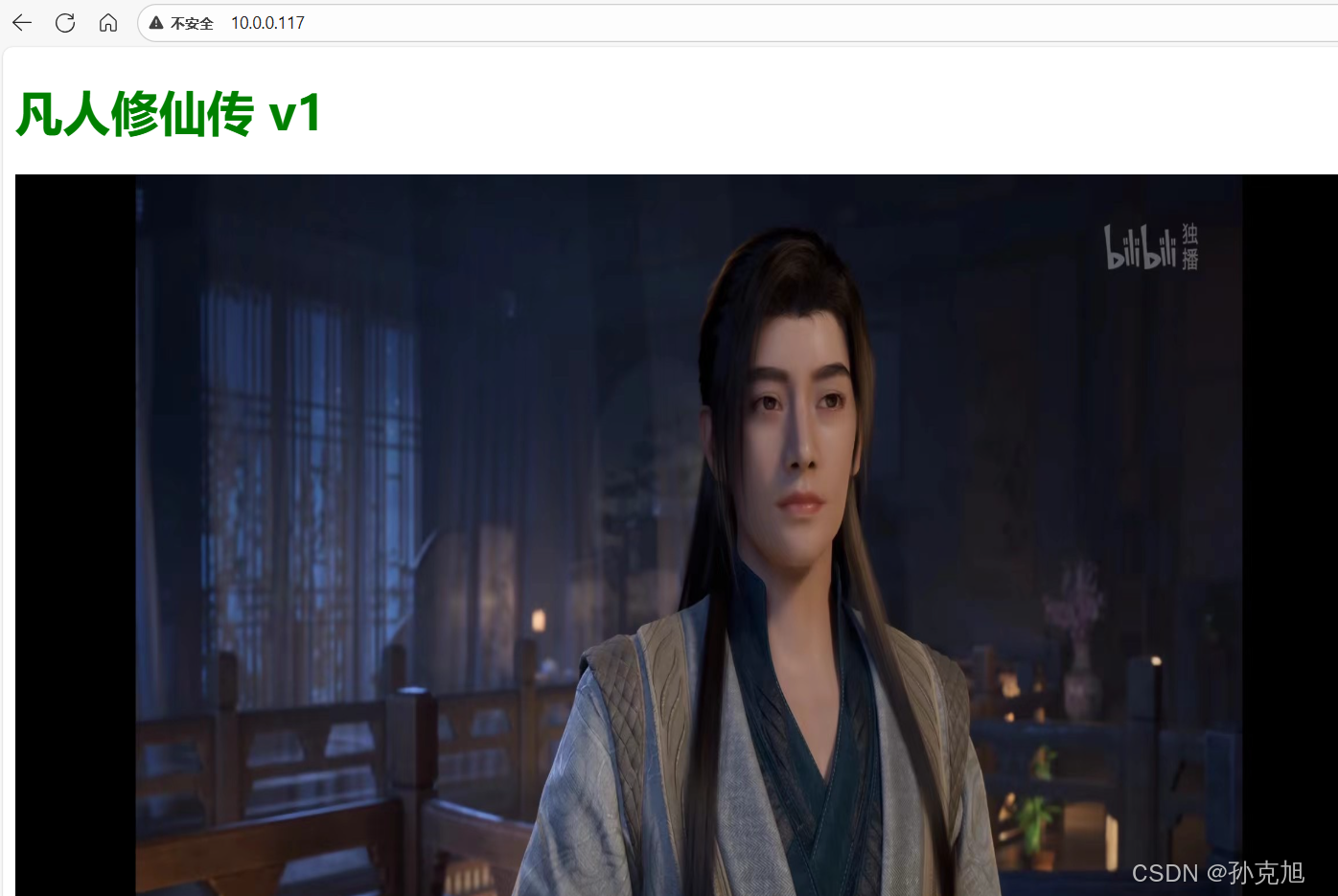

端口映射：
- kubectl port-forward po/xiuxian-v1 --address=0.0.0.0 80:80

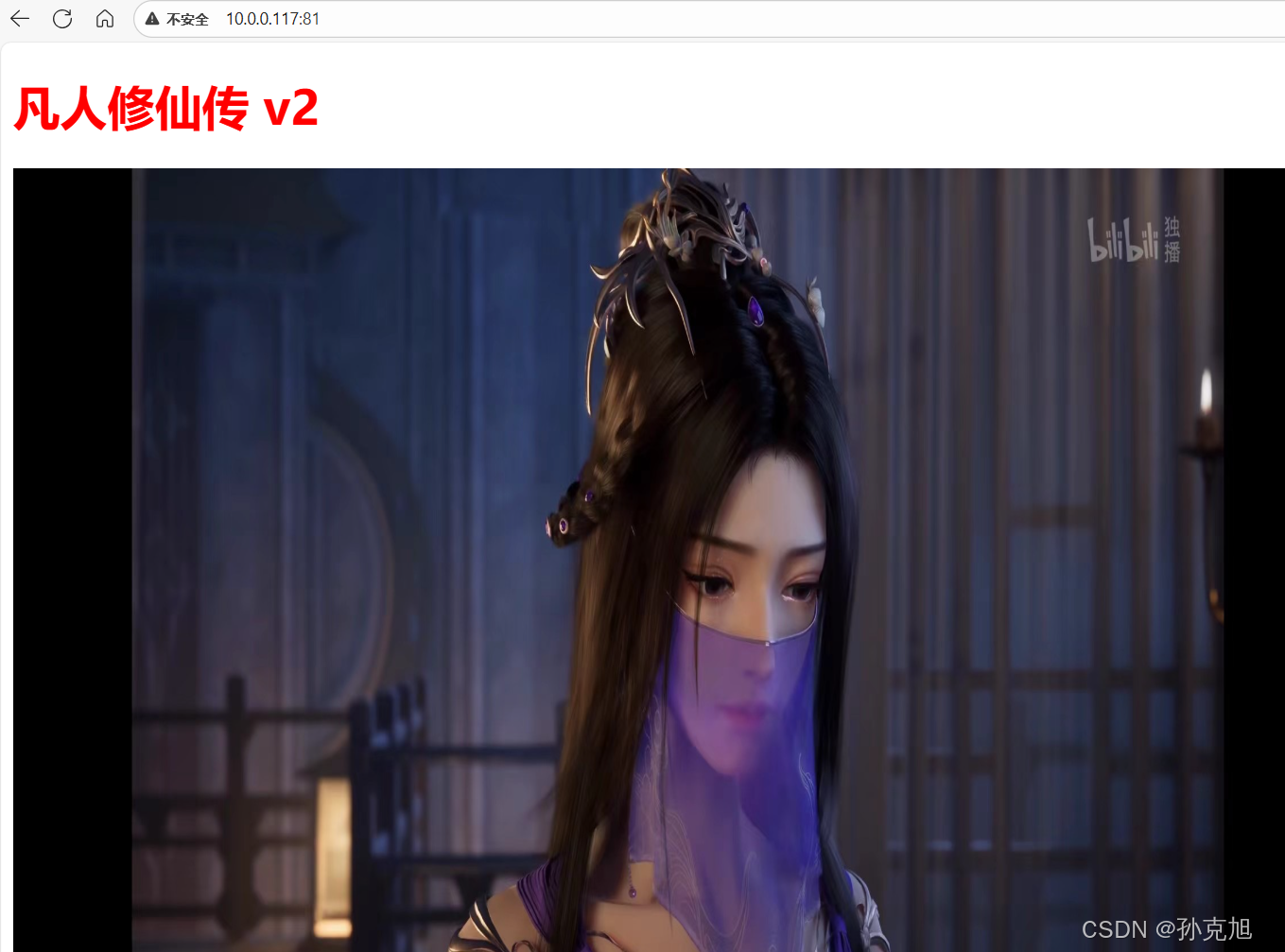

- kubectl port-forward po/xiuxian-v2 --address=0.0.0.0 81:80

在这里插入图片描述

6. 踩坑记录

6.1 loadFlannelSubnetEnv failed: open /run/flannel/subnet.env: no such file or directory

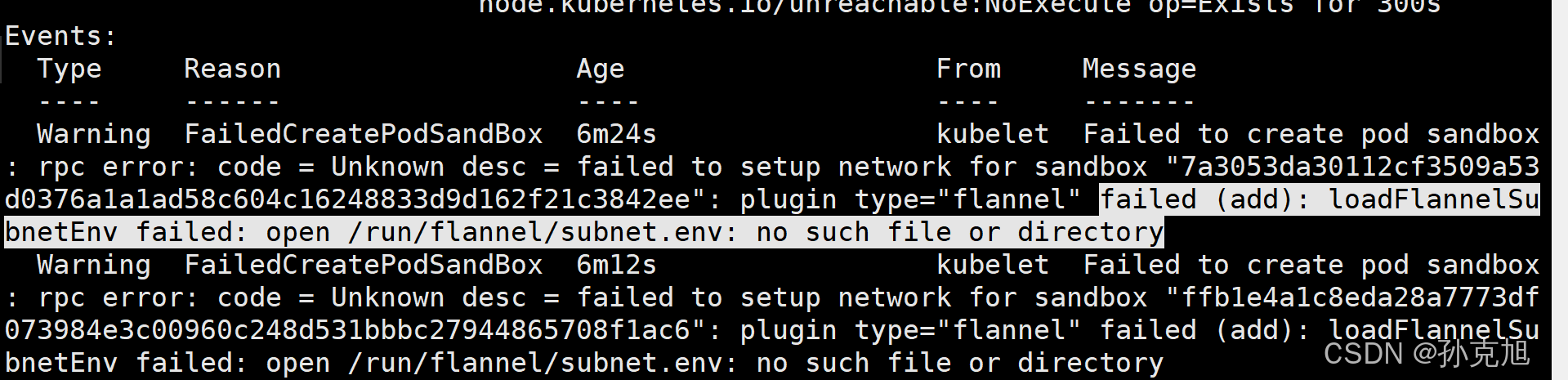

查看当前容器信息：kubectl describe pod xiuxian-v1

在这里插入图片描述

  Warning  FailedCreatePodSandBox  6m24s                 kubelet  Failed to create pod sandbox: rpc error: code = Unknown desc = failed to setup network for sandbox "7a3053da30112cf3509a53d0376a1a1ad58c604c16248833d9d162f21c3842ee": plugin type="flannel" failed (add): loadFlannelSubnetEnv failed: open /run/flannel/subnet.env: no such file or directory

原因：

之前尝试安装过 Flannel，但安装不完整或失败了，导致集群的 CNI 配置指向了 Flannel，而 Flannel 需要的配置文件 (/run/flannel/subnet.env) 却不存在.

解决方案：

# 删除flannel插件
kubectl delete -f https://github.com/flannel-io/flannel/releases/latest/download/kube-flannel.yml
# 如果url访问失败，可以从浏览器下载该yml文件，再上传至服务器
kubectl delete -f kube-flannel.yml # 删除容器内flannel文件
for i in `docker ps --filter "label=io.x-k8s.kind.cluster" --format "{{.Names}}"`; do    docker exec $i rm -rf /etc/cni/net.d/*flannel* /etc/cni/net.d/10-flannel.conflist ; done# 重启容器中kubectl
for i in `docker ps --filter "label=io.x-k8s.kind.cluster" --format "{{.Names}}"`; do docker exec $i systemctl restart kubelet ; done# 删除启动的pod
kubectl delete -f oldboyedu-network-cni-test.yaml# 启动pod
kubectl apply -f oldboyedu-network-cni-test.yaml

6.2 pod拒绝连接

[root@jumpserver ~]# kubectl get pods -o wide
NAME         READY   STATUS    RESTARTS   AGE    IP           NODE                  NOMINATED NODE   READINESS GATES
xiuxian-v1   1/1     Running   0          3m9s   10.244.3.3   1c3w-cluster-worker   <none>           <none>
[root@jumpserver ~]# curl 10.244.3.3
curl: (7) Failed to connect to 10.244.3.3 port 80: 拒绝连接

解决方案：

# 进入pod内部
kubectl exec -it xiuxian-v1 -- /bin/sh

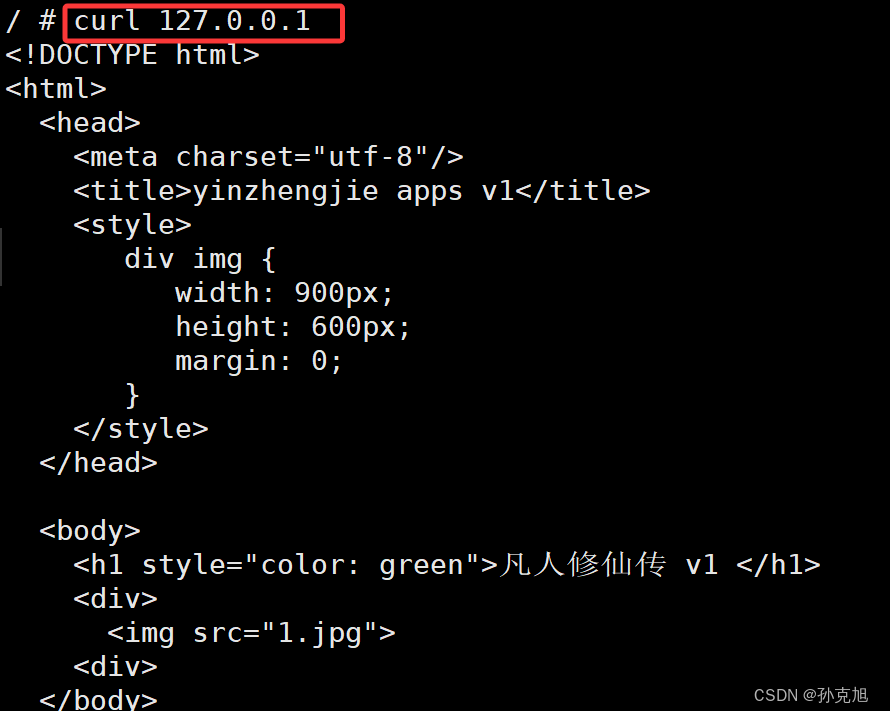

# curl 127.0.0.1
# 在容器内部发现curl成功

在这里插入图片描述

需要端口映射，见上面部署业务

[root@jumpserver ~]# kubectl apply -f oldboyedu-network-cni-test.yaml
pod/xiuxian-v1 created
pod/xiuxian-v2 created
[root@jumpserver ~]# kubectl get pods
NAME         READY   STATUS    RESTARTS   AGE
xiuxian-v1   1/1     Running   0          7s
xiuxian-v2   1/1     Running   0          7s
[root@jumpserver ~]# kubectl get pods -o wide
NAME         READY   STATUS    RESTARTS   AGE   IP           NODE                   NOMINATED NODE   READINESS GATES
xiuxian-v1   1/1     Running   0          10s   10.244.3.6   1c3w-cluster-worker    <none>           <none>
xiuxian-v2   1/1     Running   0          10s   10.244.1.3   1c3w-cluster-worker2   <none>           <none>
[root@jumpserver ~]# curl 10.244.3.6
curl: (7) Failed to connect to 10.244.3.6 port 80: 拒绝连接
[root@jumpserver ~]# kubectl exec -it xiuxian-v1 sh
kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl exec [POD] -- [COMMAND] instead.
/ # curl 127.0.0.1
<!DOCTYPE html>
<html><head><meta charset="utf-8"/><title>yinzhengjie apps v1</title><style>div img {width: 900px;height: 600px;margin: 0;}</style></head><body><h1 style="color: green">凡人修仙传 v1 </h1><div><img src="1.jpg"><div></body></html>
