《嵌入式硬件（十四）：基于IMX6ULL的通用目的定时器（GPT）操作》

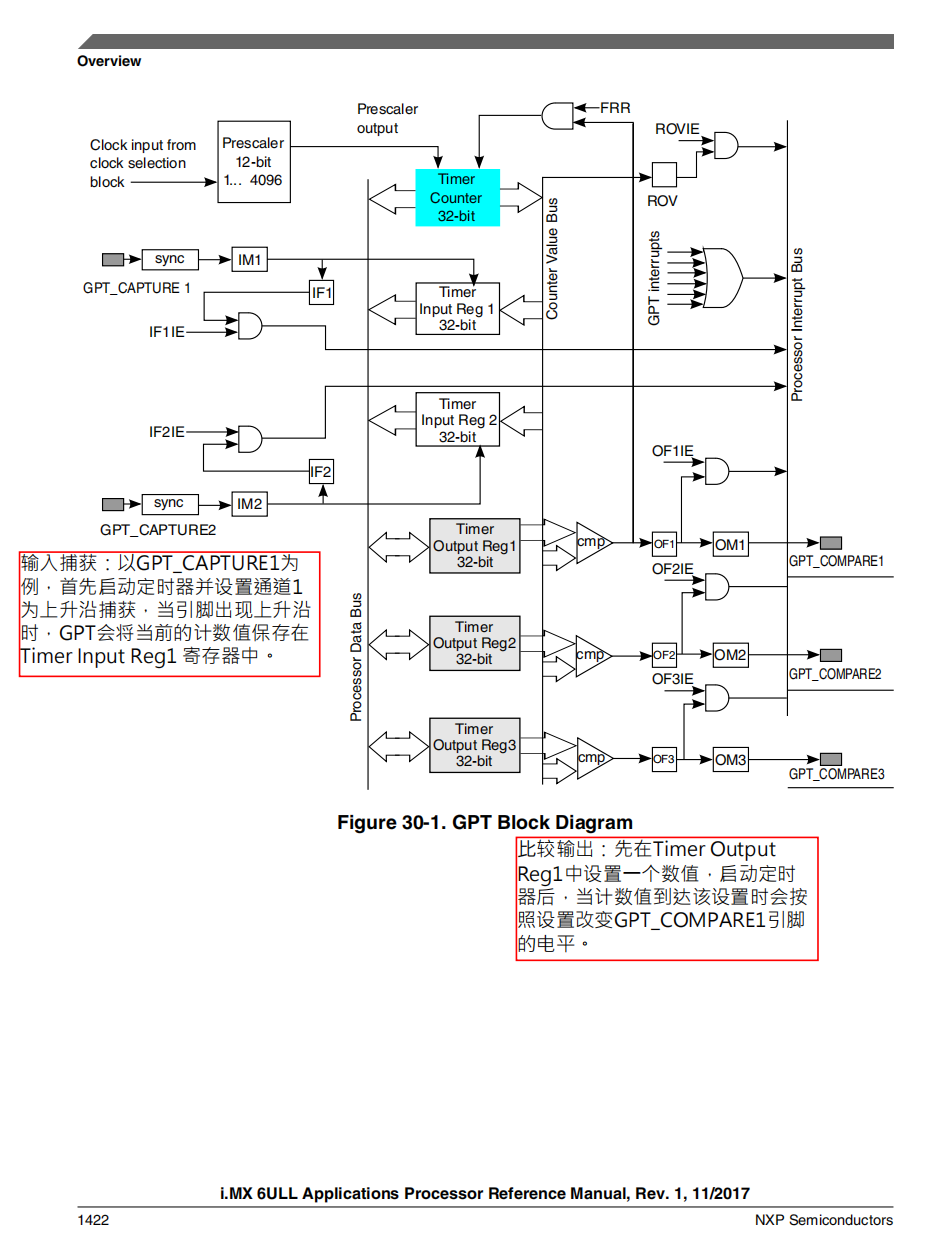

一、通用目的定时器概念

        32位，增定时器

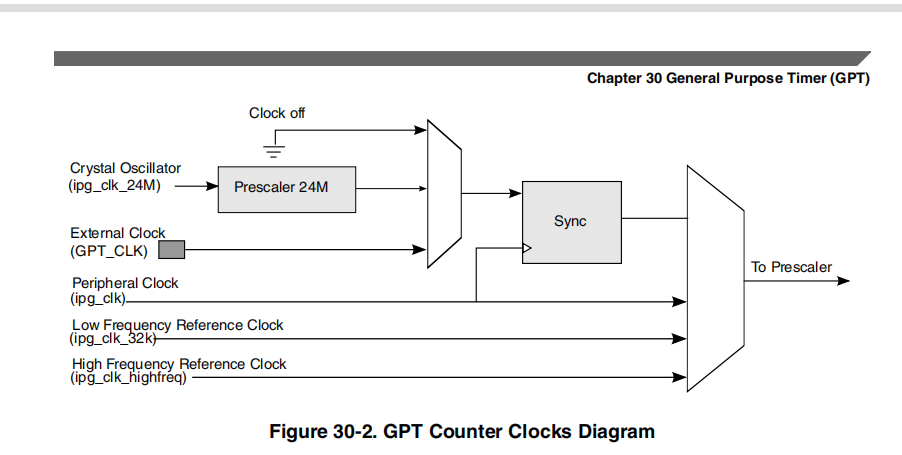

        选ipg_clk，66m

        引脚电平捕获可以测俩个上升沿之间的时间

二、步骤

使用GPT实现高精度延时

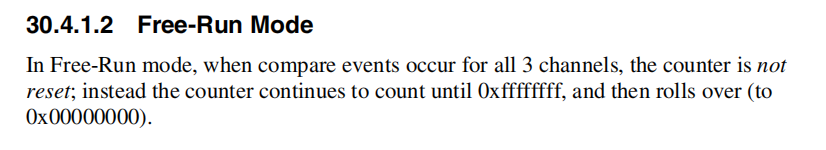

        1.设定模式为自由

        2.设置时钟为1MHz

        3.实现延时

                溢出回滚的解决

三、原理

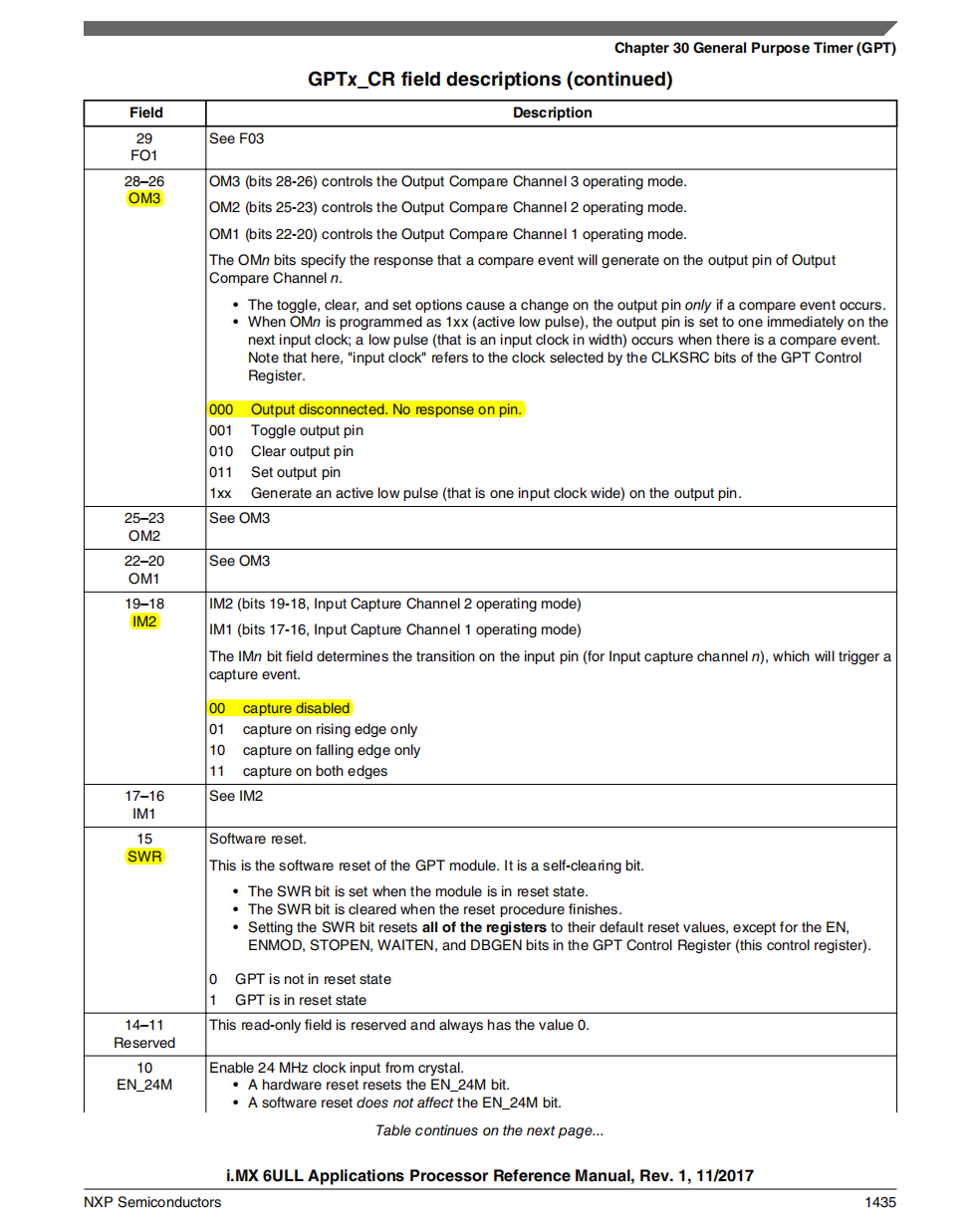

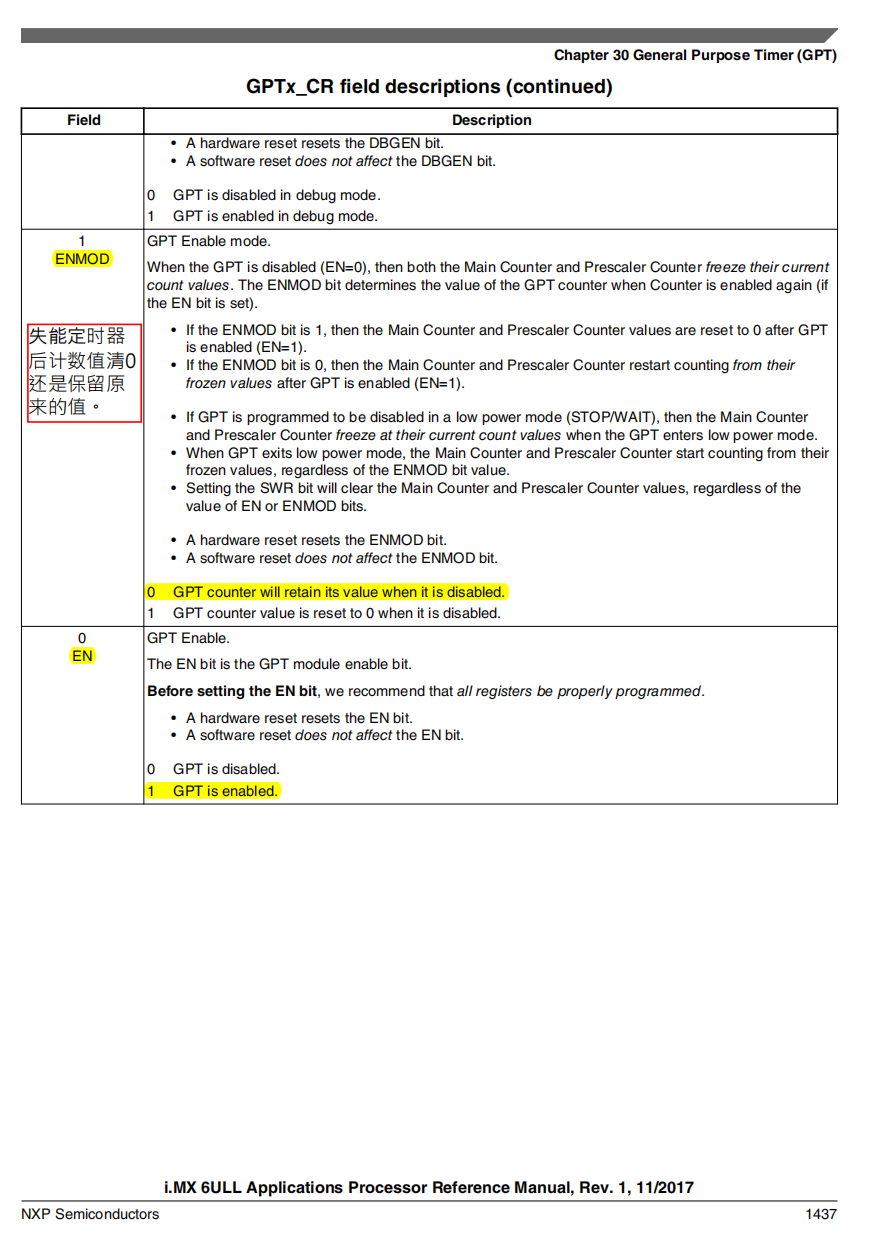

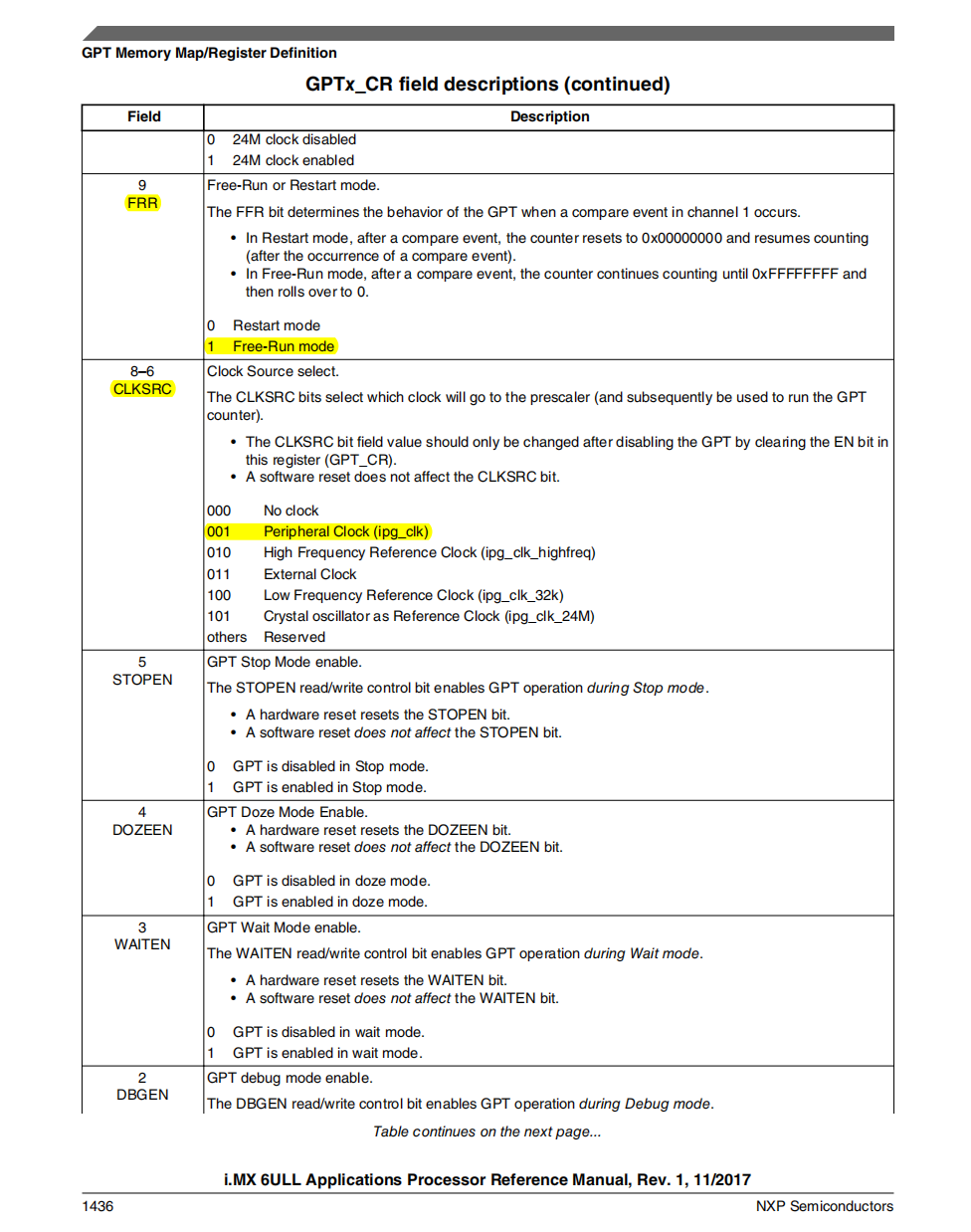

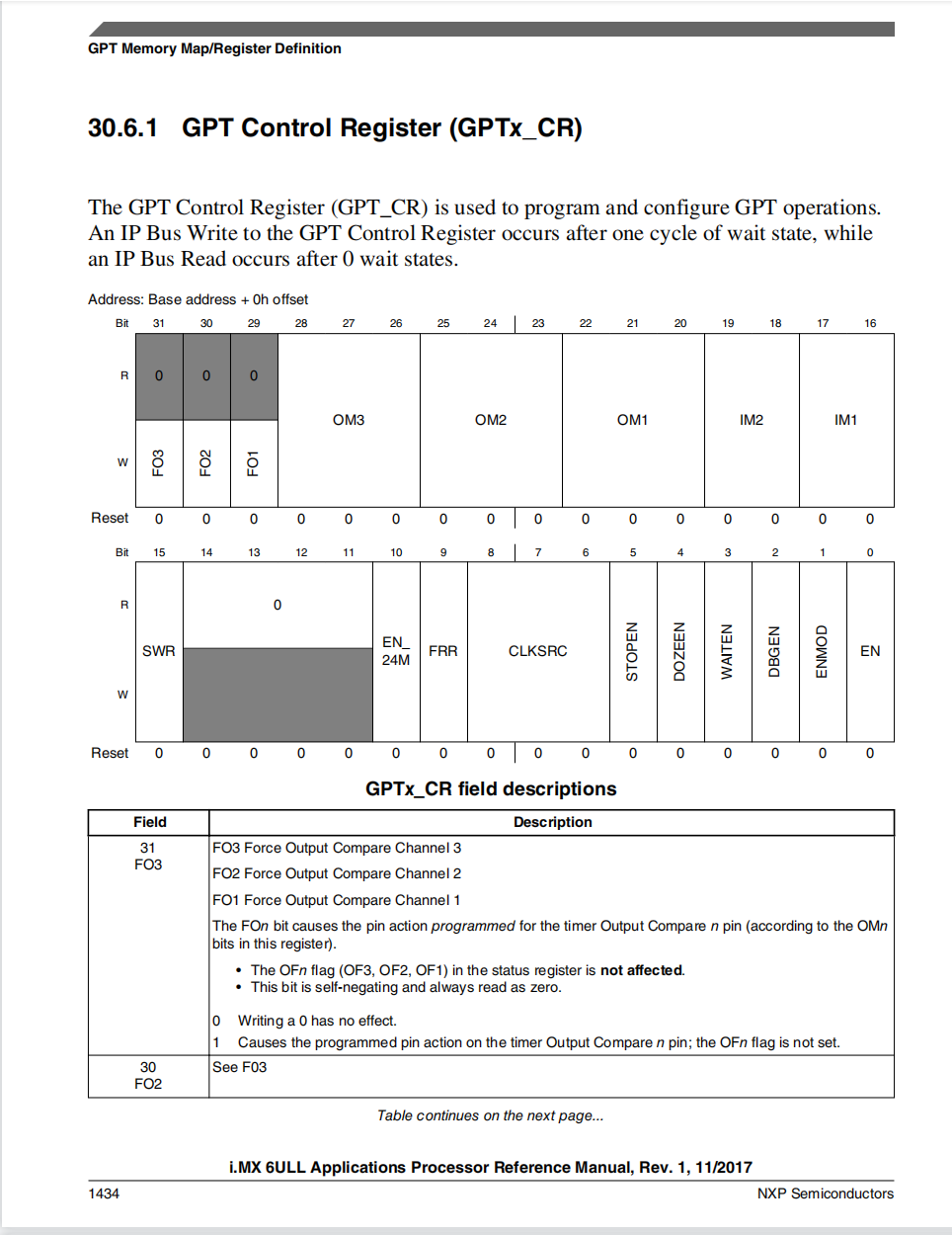

        1.CR（控制寄存器）

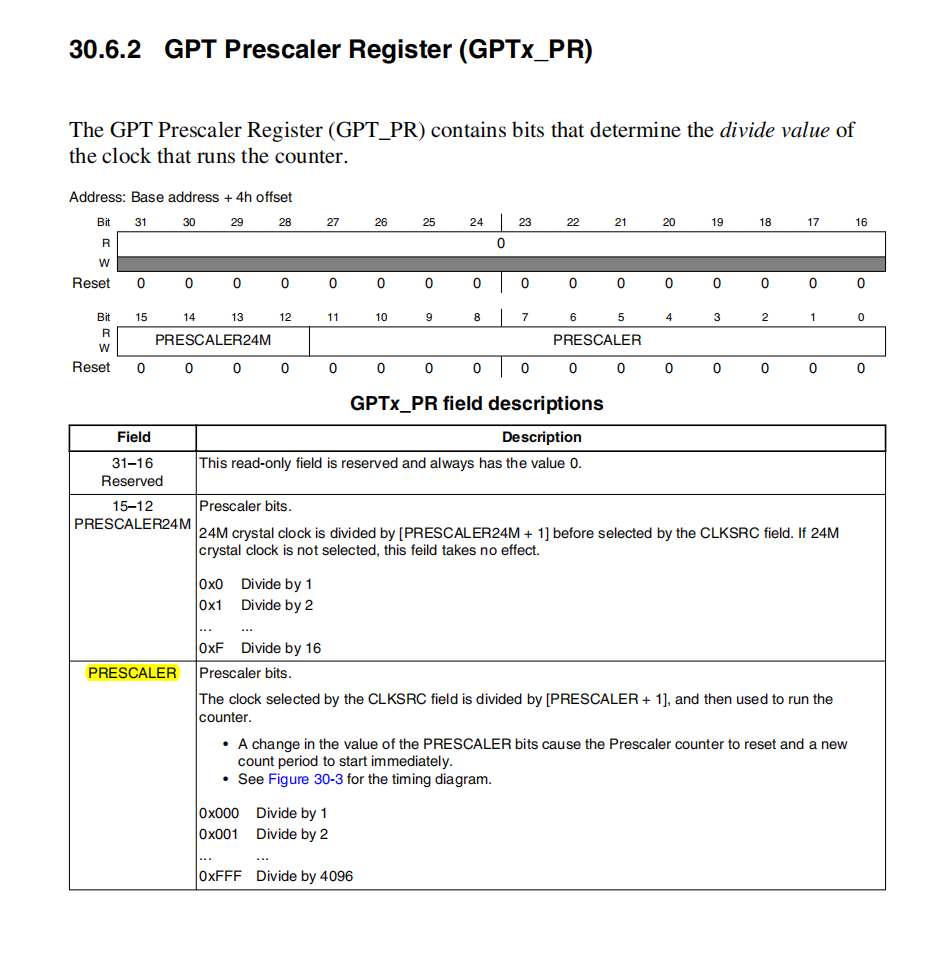

2.PR（分频寄存器）

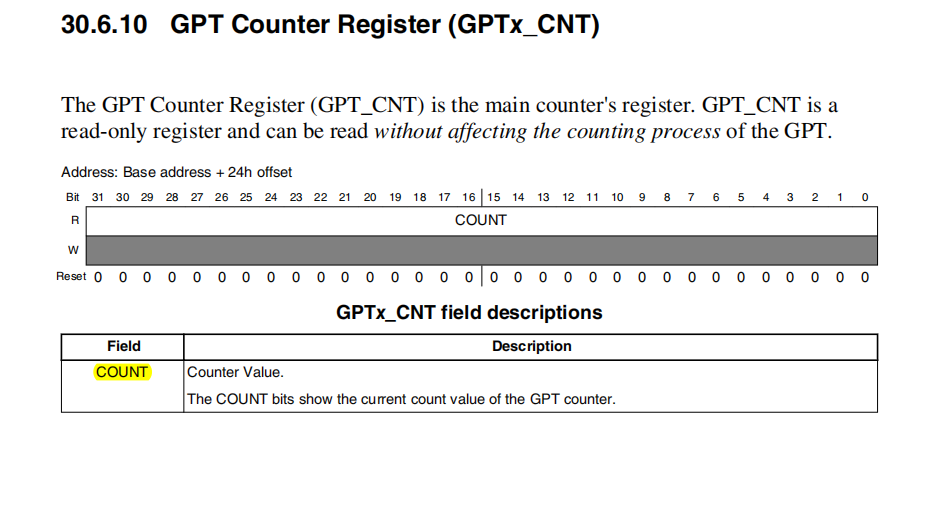

        3.CNT（计数器寄存器）

四、代码

1.gpt.c

#include "gpt.h"
#include "MCIMX6Y2.h"void int_gpt1(void)
{GPT1->CR = 0;GPT1->CR |= (1 << 15);while((GPT1->CR & (1 << 15)) != 0);GPT1->CR |= (1 << 9) | (1 << 6);GPT1->PR |= 65;GPT1->CR |= (1 << 0);
}

2.gpt.h

#ifndef _GPT_H_
#define _GPT_H_extern void int_gpt1(void);#endif

3.delay.c

#include "delay.h"
#include "MCIMX6Y2.h"void delay(unsigned int n)
{while(n--){}
}void delayus(unsigned int n)
{unsigned int counter = 0;unsigned int new_counter, old_counter;old_counter = GPT1->CNT;while(1){new_counter = GPT1->CNT;if(new_counter != old_counter){if(new_counter > old_counter){counter += new_counter - old_counter; }else{counter += 0xFFFFFFFF - old_counter + new_counter;}if(counter >= n){return;}old_counter = new_counter;}}
}void delayms(unsigned int n)
{while(n--){delayus(1000);}
}

4.delay.h

#ifndef _DELAY_H_
#define _DELAY_H_extern void delay(unsigned int n);
extern void delayus(unsigned int n);
extern void delayms(unsigned int n);#endif

5.main.c

#include "beep.h"
#include "led.h"
#include "key.h"
#include "MCIMX6Y2.h"
#include "core_ca7.h"
#include "gpio.h"
#include "interrupt.h"
#include "clock.h"
#include "epit.h"#include "gpt.h"
#include "delay.h"int main(void)
{init_clock();system_interrupt_init();init_led();init_beep();init_epit();int_gpt1();   while(1){led_nor();delayms(1000);}return 0;
}
