嵌入式数据结构笔记五——循环链表内核链表

---

前言

单向链表只能从前往后找，双向链表多了一个从后向前找，循环链表可以从最后一个找到第一个。但我们所使用的链表只能存放一种数据类型，因此引入了内核链表的概念。

---

正文内容：

一、循环链表：

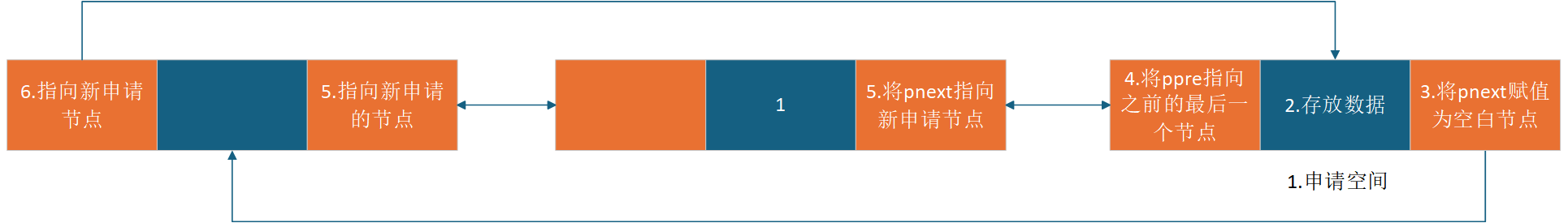

1.链表尾插法：

• 申请节点空间
• 将数据存放到节点中
• 将pnext赋值为空白节点
• 将ppre赋值为之前的最后一个节点地址
• 将之前最后一个节点的pnext指向新申请节点
• 将空白节点的ppre指向新申请节点

代码如下：

/* 尾插法 */
int insert_tail_linklist(linknode *phead, datatype tmpdata)
{linknode *ptmpnode = NULL;ptmpnode = malloc(sizeof(linknode));if (NULL == ptmpnode){perror("fail to malloc");return -1;}ptmpnode->data = tmpdata;ptmpnode->pnext = phead;ptmpnode->ppre = phead->ppre;phead->ppre->pnext = ptmpnode;phead->ppre = ptmpnode;//上两句同等写法//ptmpnode->pnext->ppre = ptmpnode;//ptmpnode->ppre->pnext = ptmpnode;return 0;
}

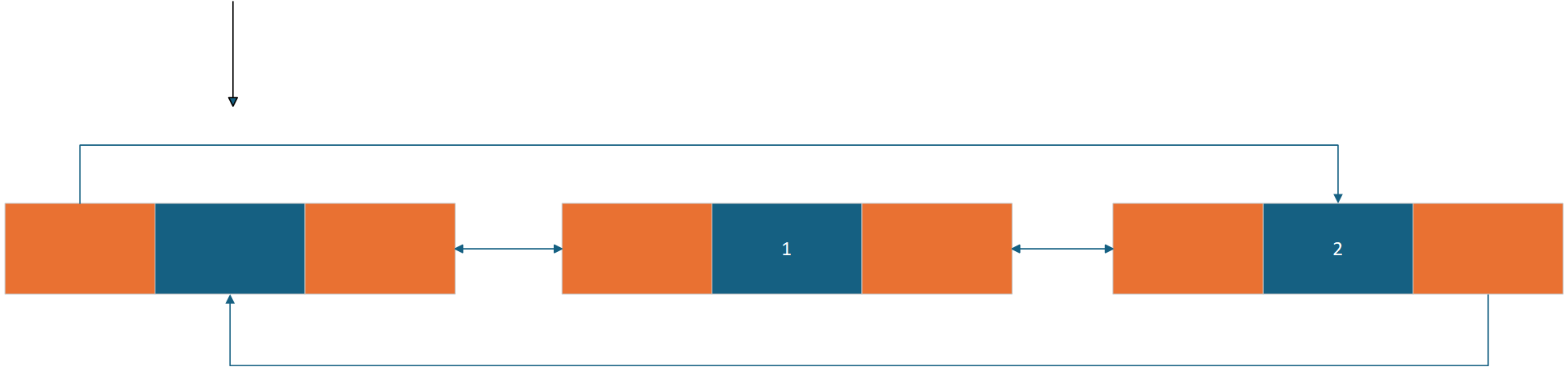

2.链表的遍历：

• 循环链表最终循环条件由 != NULL修改为 != phead

代码如下：

/* 链表节点遍历 */
int show_linklist(linknode *phead)
{linknode *ptmpnode = NULL;ptmpnode = phead->pnext;while (ptmpnode != phead){printf("%d ", ptmpnode->data);ptmpnode = ptmpnode->pnext;}printf("\n");return 0;
}

3.链表的查找：

参考双向链表查找

代码如下：

/* 链表的查找 */
linknode *find_linklist(linknode *phead, datatype tmpdata)
{linknode *ptmpnode = NULL;ptmpnode = phead->pnext;while (ptmpnode != phead){if (ptmpnode->data == tmpdata){return ptmpnode;}ptmpnode = ptmpnode->pnext;}return NULL;
}

4.链表的修改：

参考双向链表修改

代码如下：

/* 链表的修改 */
int update_linklist(linknode *phead, datatype olddata, datatype newdata)
{linknode *ptmpnode = NULL;ptmpnode = phead->pnext;while (ptmpnode != phead){if (ptmpnode->data == olddata){ptmpnode->data = newdata;}ptmpnode = ptmpnode->pnext;}return 0;
}

5.链表的删除：

参考双向链表的删除

代码如下：

/* 链表的删除 */
int delete_linklist(linknode *phead, datatype tmpdata)
{linknode *ptmpnode = NULL;linknode *pfreenode = NULL;ptmpnode = phead->pnext;while (ptmpnode != phead){if (ptmpnode->data == tmpdata){ptmpnode->ppre->pnext = ptmpnode->pnext;ptmpnode->pnext->ppre = ptmpnode->ppre;pfreenode = ptmpnode;ptmpnode = ptmpnode->pnext;free(pfreenode);}else{ptmpnode = ptmpnode->pnext;}}return 0;
}

6.链表的销毁：

参考双向链表的销毁

代码如下：

/* 链表的销毁 */
int destroy_linklist(linknode **pphead)
{linknode *ptmpnode = NULL;linknode *pfreenode = NULL;ptmpnode = (*pphead)->pnext;pfreenode = ptmpnode;while (ptmpnode != *pphead){ptmpnode = ptmpnode->pnext;free(pfreenode);pfreenode = ptmpnode;}free(*pphead);*pphead = NULL;return 0;
}

二、内核链表：

1.概念：

• Linux内核中所使用到的一种链表结构
• 使用同一种结构可以存储不同类型的链表
• 普通链表：链表节点中包含数据

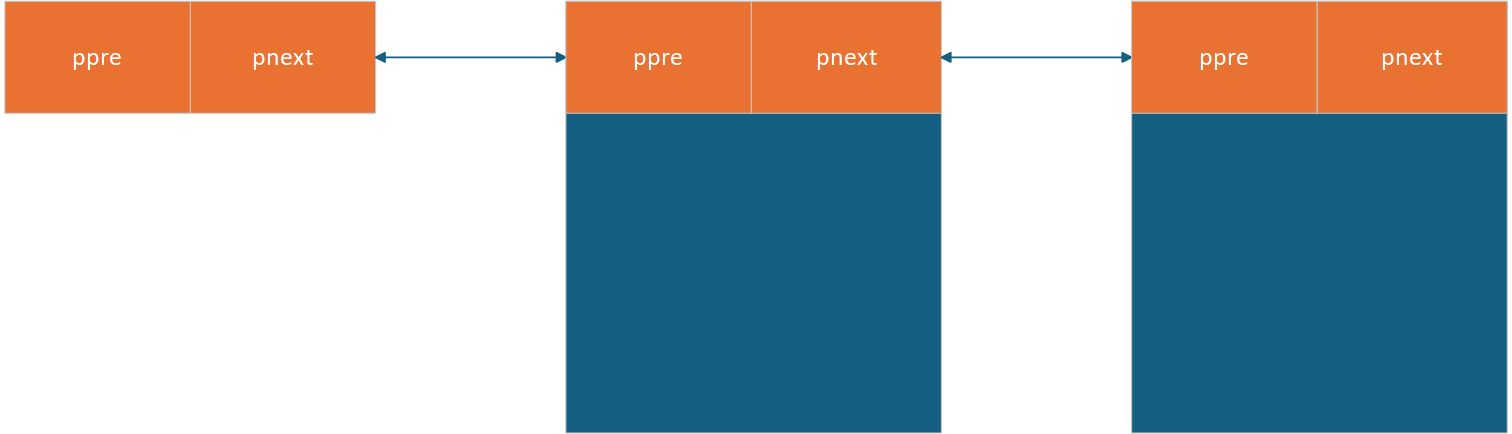

• 内核链表：数据中包含链表节点

2.结构描述：

• 创建：创建空白节点即可
• 插入：申请节点，并按照之前学习的循环链表插入即可（插入的链表节点首地址即数据节点首地
  址）
• 访问节点：通过遍历找到每个节点的首地址，强制类型转换即可获得对应数据空间首地址

3.使用内核链表：

• 可以参考list.h中关于内核链表的常见操作：

/*Copyright (c) 2008-2012 Red Hat, Inc. <http://www.redhat.com>This file is part of GlusterFS.This file is licensed to you under your choice of the GNU LesserGeneral Public License, version 3 or any later version (LGPLv3 orlater), or the GNU General Public License, version 2 (GPLv2), in allcases as published by the Free Software Foundation.
*/#ifndef _LLIST_H
#define _LLIST_H/* 内核链表中的节点类型 */
struct list_head {struct list_head *next;struct list_head *prev;
};/* 初始化空白头结点 */
#define INIT_LIST_HEAD(head) do {			\(head)->next = (head)->prev = head;	\} while (0)/* 头插法 */
static inline void
list_add (struct list_head *new, struct list_head *head)
{new->prev = head;new->next = head->next;new->prev->next = new;new->next->prev = new;
}/* 尾插法 */
static inline void
list_add_tail (struct list_head *new, struct list_head *head)
{new->next = head;new->prev = head->prev;new->prev->next = new;new->next->prev = new;
}/* 按指定顺序插入 */
/* This function will insert the element to the list in a order.Order will be based on the compare function provided as a input.If element to be inserted in ascending order compare should return:0: if both the arguments are equal>0: if first argument is greater than second argument<0: if first argument is less than second argument */
static inline void
list_add_order (struct list_head *new, struct list_head *head,int (*compare)(struct list_head *, struct list_head *))
{struct list_head *pos = head->prev;while ( pos != head ) {if (compare(new, pos) >= 0)break;/* Iterate the list in the reverse order. This will havebetter efficiency if the elements are inserted in theascending order */pos = pos->prev;}list_add (new, pos);
}
/* 将节点移出所属的链表 */
static inline void
list_del (struct list_head *old)
{old->prev->next = old->next;old->next->prev = old->prev;old->next = (void *)0xbabebabe;old->prev = (void *)0xcafecafe;
}/* 将节点移出所属的链表，并初始化 */
static inline void
list_del_init (struct list_head *old)
{old->prev->next = old->next;old->next->prev = old->prev;old->next = old;old->prev = old;
}/* 将节点移动到另一个链表的头部 */
static inline void
list_move (struct list_head *list, struct list_head *head)
{list_del (list);list_add (list, head);
}/* 将节点移动到另一个链表的尾部 */
static inline void
list_move_tail (struct list_head *list, struct list_head *head)
{list_del (list);list_add_tail (list, head);
}/* 判断链表是否为空 */
static inline int
list_empty (struct list_head *head)
{return (head->next == head);
}/* 将list链表所有元素拼到head链表的前面 */
static inline void
__list_splice (struct list_head *list, struct list_head *head)
{(list->prev)->next = (head->next);(head->next)->prev = (list->prev);(head)->next = (list->next);(list->next)->prev = (head);
}/* 将list链表所有元素拼到head链表的前面 */
static inline void
list_splice (struct list_head *list, struct list_head *head)
{if (list_empty (list))return;__list_splice (list, head);
}/* 将list链表所有元素拼到head链表的前面，并初始化list头结点 */
/* Splice moves @list to the head of the list at @head. */
static inline void
list_splice_init (struct list_head *list, struct list_head *head)
{if (list_empty (list))return;__list_splice (list, head);INIT_LIST_HEAD (list);
}/* 将list链表所有元素追加到head链表的后面 */
static inline void
__list_append (struct list_head *list, struct list_head *head)
{(head->prev)->next = (list->next);(list->next)->prev = (head->prev);(head->prev) = (list->prev);(list->prev)->next = head;
}/* 将list链表所有元素追加到head链表的后面 */
static inline void
list_append (struct list_head *list, struct list_head *head)
{if (list_empty (list))return;__list_append (list, head);
}/* 将list链表所有元素追加到head链表的后面，并初始化list */
/* Append moves @list to the end of @head */
static inline void
list_append_init (struct list_head *list, struct list_head *head)
{if (list_empty (list))return;__list_append (list, head);INIT_LIST_HEAD (list);
}
/* 判断当前节点是否为最后一个节点 */
static inline int
list_is_last (struct list_head *list, struct list_head *head)
{return (list->next == head);
}
/* 判断链表是否只有一个节点 */
static inline int
list_is_singular(struct list_head *head)
{return !list_empty(head) && (head->next == head->prev);
}
/* 将旧节点用新节点替换 */
/*** list_replace - replace old entry by new one* @old : the element to be replaced* @new : the new element to insert** If @old was empty, it will be overwritten.*/
static inline void list_replace(struct list_head *old,struct list_head *new)
{new->next = old->next;new->next->prev = new;new->prev = old->prev;new->prev->next = new;
}
/* 将旧节点用新节点替换，并初始化旧节点 */
static inline void list_replace_init(struct list_head *old,struct list_head *new)
{list_replace(old, new);INIT_LIST_HEAD(old);
}
/* 内核链表左旋 */
/*** list_rotate_left - rotate the list to the left* @head: the head of the list*/
static inline void list_rotate_left (struct list_head *head)
{struct list_head *first;if (!list_empty (head)) {first = head->next;list_move_tail (first, head);}
}
/* 根据链表节点地址找到数据元素首地址 */
#define list_entry(ptr, type, member)					\((type *)((char *)(ptr)-(unsigned long)(&((type *)0)->member)))
/* 找到第一个数据元素地址 */
#define list_first_entry(ptr, type, member)     \list_entry((ptr)->next, type, member)
/* 找到最后一个数据元素地址 */
#define list_last_entry(ptr, type, member)     \list_entry((ptr)->prev, type, member)
/* 找到下一个数据元素地址 */
#define list_next_entry(pos, member) \list_entry((pos)->member.next, typeof(*(pos)), member)
/* 找到上一个数据元素地址 */
#define list_prev_entry(pos, member) \list_entry((pos)->member.prev, typeof(*(pos)), member)
/* 遍历链表节点元素地址 */
#define list_for_each(pos, head)                                        \for (pos = (head)->next; pos != (head); pos = pos->next)
/* 遍历所有数据元素首地址 */
#define list_for_each_entry(pos, head, member)				\for (pos = list_entry((head)->next, typeof(*pos), member);	\&pos->member != (head); 					\pos = list_entry(pos->member.next, typeof(*pos), member))/* 遍历所有数据元素首地址(可以在遍历过程中修改数据元素指针) */
#define list_for_each_entry_safe(pos, n, head, member)			\for (pos = list_entry((head)->next, typeof(*pos), member),	\n = list_entry(pos->member.next, typeof(*pos), member);	\&pos->member != (head); 					\pos = n, n = list_entry(n->member.next, typeof(*n), member))
/* 倒着遍历所有数据元素首地址 */
#define list_for_each_entry_reverse(pos, head, member)                  \for (pos = list_entry((head)->prev, typeof(*pos), member);      \&pos->member != (head);                                    \pos = list_entry(pos->member.prev, typeof(*pos), member))/* 倒着遍历所有数据元素首地址(可以在遍历过程中修改数据元素指针) */
#define list_for_each_entry_safe_reverse(pos, n, head, member)          \for (pos = list_entry((head)->prev, typeof(*pos), member),      \n = list_entry(pos->member.prev, typeof(*pos), member); \&pos->member != (head);                                    \pos = n, n = list_entry(n->member.prev, typeof(*n), member))/** This list implementation has some advantages, but one disadvantage: you* can't use NULL to check whether you're at the head or tail.  Thus, the* address of the head has to be an argument for these macros.*/
/* 获得下一个数据元素空间首地址，如果没有返回NULL */
#define list_next(ptr, head, type, member)      \(((ptr)->member.next == head) ? NULL    \: list_entry((ptr)->member.next, type, member))
/* 获得上一个数据元素空间首地址，如果没有返回NULL */
#define list_prev(ptr, head, type, member)      \(((ptr)->member.prev == head) ? NULL    \: list_entry((ptr)->member.prev, type, member))#endif /* _LLIST_H */

• 使用内核链表插入元素1，2，3并遍历：

#include "list.h"
#include <stdio.h>/* 数据类型 */
typedef struct data
{struct list_head node; // 节点int value;             // 数据元素
} data_t;int main(void)
{struct list_head head;data_t num1 = {.value = 1,};data_t num2 = {.value = 2,};data_t num3 = {.value = 3,};struct list_head *ptmpnode = NULL;INIT_LIST_HEAD(&head);#if 0list_add_tail(&num1.node, &head);list_add_tail(&num2.node, &head);list_add_tail(&num3.node, &head);
#endiflist_add(&num1.node, &head);list_add(&num2.node, &head);list_add(&num3.node, &head);list_for_each(ptmpnode, &head)//宏定义展开{
//        printf("%d ", ((data_t *)ptmpnode)->value);printf("%d ", list_entry(ptmpnode, data_t, node)->value);}printf("\n");return 0;
}

---

重点

• 循环链表在操作时与双向链表的区别
• 内核链表的使用
