prometheus-2.42.0.linux-amd64.tar.gz 安装配置展示

news 2025/9/16 5:50:06

一、prometheus

1.1解压文件

# tar -xzvf prometheus-2.42.0.linux-amd64.tar.gz -C ~/apps/
prometheus-2.42.0.linux-amd64/
prometheus-2.42.0.linux-amd64/NOTICE
prometheus-2.42.0.linux-amd64/consoles/
prometheus-2.42.0.linux-amd64/consoles/index.html.example
prometheus-2.42.0.linux-amd64/consoles/node.html
prometheus-2.42.0.linux-amd64/consoles/prometheus-overview.html
prometheus-2.42.0.linux-amd64/consoles/node-disk.html
prometheus-2.42.0.linux-amd64/consoles/prometheus.html
prometheus-2.42.0.linux-amd64/consoles/node-overview.html
prometheus-2.42.0.linux-amd64/consoles/node-cpu.html
prometheus-2.42.0.linux-amd64/console_libraries/
prometheus-2.42.0.linux-amd64/console_libraries/menu.lib
prometheus-2.42.0.linux-amd64/console_libraries/prom.lib
prometheus-2.42.0.linux-amd64/prometheus.yml
prometheus-2.42.0.linux-amd64/LICENSE
prometheus-2.42.0.linux-amd64/promtool
prometheus-2.42.0.linux-amd64/prometheus

1.2修改名称

# mv prometheus-2.42.0.linux-amd64/ prometheus

1.3编写启停脚本


# 启动脚本
# cat start.sh
nohup ./prometheus --config.file=prometheus.yml >> /data/apps/prometheus/prometheus.out 2>&1 &# 停止脚本
echo ' pkill prometheus' > stop.sh && chmod +x stop.sh

1.4启动

 tail -300f prometheus.out
ts=2025-09-15T08:23:37.761Z caller=main.go:512 level=info msg="No time or size retention was set so using the default time retention" duration=15d
ts=2025-09-15T08:23:37.761Z caller=main.go:556 level=info msg="Starting Prometheus Server" mode=server version="(version=2.42.0, branch=HEAD, revision=225c61122d88b01d1f0eaaee0e05b6f3e0567ac0)"
ts=2025-09-15T08:23:37.761Z caller=main.go:561 level=info build_context="(go=go1.19.5, platform=linux/amd64, user=root@c67d48967507, date=20230201-07:53:32)"
ts=2025-09-15T08:23:37.761Z caller=main.go:562 level=info host_details="(Linux 3.10.0-1160.119.1.el7.x86_64 #1 SMP Tue Jun 4 14:43:51 UTC 2024 x86_64 host-10-15-32-71 (none))"
ts=2025-09-15T08:23:37.761Z caller=main.go:563 level=info fd_limits="(soft=655360, hard=655360)"
ts=2025-09-15T08:23:37.761Z caller=main.go:564 level=info vm_limits="(soft=unlimited, hard=unlimited)"
ts=2025-09-15T08:23:37.764Z caller=web.go:561 level=info component=web msg="Start listening for connections" address=0.0.0.0:9090
ts=2025-09-15T08:23:37.764Z caller=main.go:993 level=info msg="Starting TSDB ..."
ts=2025-09-15T08:23:37.766Z caller=tls_config.go:232 level=info component=web msg="Listening on" address=[::]:9090
ts=2025-09-15T08:23:37.766Z caller=tls_config.go:235 level=info component=web msg="TLS is disabled." http2=false address=[::]:9090
ts=2025-09-15T08:23:37.769Z caller=head.go:564 level=info component=tsdb msg="Replaying on-disk memory mappable chunks if any"
ts=2025-09-15T08:23:37.769Z caller=head.go:608 level=info component=tsdb msg="On-disk memory mappable chunks replay completed" duration=7.861µs
ts=2025-09-15T08:23:37.769Z caller=head.go:614 level=info component=tsdb msg="Replaying WAL, this may take a while"
ts=2025-09-15T08:23:37.772Z caller=head.go:685 level=info component=tsdb msg="WAL segment loaded" segment=0 maxSegment=0
ts=2025-09-15T08:23:37.772Z caller=head.go:722 level=info component=tsdb msg="WAL replay completed" checkpoint_replay_duration=28.034µs wal_replay_duration=3.003054ms wbl_replay_duration=453ns total_replay_duration=3.067185ms
ts=2025-09-15T08:23:37.776Z caller=main.go:1014 level=info fs_type=XFS_SUPER_MAGIC
ts=2025-09-15T08:23:37.776Z caller=main.go:1017 level=info msg="TSDB started"
ts=2025-09-15T08:23:37.776Z caller=main.go:1197 level=info msg="Loading configuration file" filename=prometheus.yml
ts=2025-09-15T08:23:37.777Z caller=main.go:1234 level=info msg="Completed loading of configuration file" filename=prometheus.yml totalDuration=1.36262ms db_storage=6.379µs remote_storage=5.581µs web_handler=803ns query_engine=4.284µs scrape=607.294µs scrape_sd=61.524µs notify=84.945µs notify_sd=22.443µs rules=5.972µs tracing=31.812µs
ts=2025-09-15T08:23:37.777Z caller=main.go:978 level=info msg="Server is ready to receive web requests."
ts=2025-09-15T08:23:37.777Z caller=manager.go:974 level=info component="rule manager" msg="Starting rule manager..."

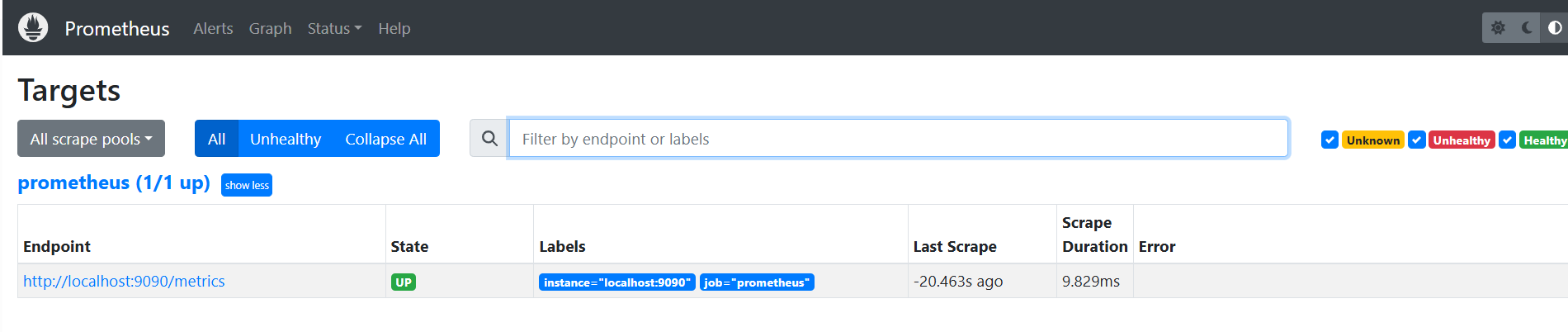

1.5查看页面

二、grafana

2.1下载地址

https://mirrors.huaweicloud.com/grafana

2.2编写start.sh

# cat start.sh
#!/bin/bash
nohup ./bin/grafana-server --config=./conf/custom.ini > logs/grafana.log 2>&1 &

2.3启动

logger=migrator t=2025-09-15T17:14:49.999438776+08:00 level=info msg="Executing migration" id="builtin role migration"
logger="builtin-role migrator" t=2025-09-15T17:14:50.004479811+08:00 level=info msg="no permission to create"
logger=migrator t=2025-09-15T17:14:50.020443663+08:00 level=info msg="Executing migration" id="seed permissions migration"
logger=migrator t=2025-09-15T17:14:50.045292656+08:00 level=info msg="Executing migration" id="managed permissions migration enterprise"
logger=migrator t=2025-09-15T17:14:50.064177991+08:00 level=info msg="migrations completed" performed=555 skipped=0 duration=52.21416628s
logger=sqlstore t=2025-09-15T17:14:50.63994826+08:00 level=info msg="Created default admin" user=admin
logger=sqlstore t=2025-09-15T17:14:50.641549473+08:00 level=info msg="Created default organization"
logger=licensing t=2025-09-15T17:14:50.662044382+08:00 level=info msg="Validated license token" appURL=http:/127.0.0.1:3000/ source=disk status=NotFound
logger=plugin.loader t=2025-09-15T17:14:50.757897484+08:00 level=info msg="Plugin registered" pluginID=input
logger=secrets t=2025-09-15T17:14:50.758477026+08:00 level=info msg="Envelope encryption state" enabled=true currentprovider=secretKey.v1
logger=query_data t=2025-09-15T17:14:50.76300753+08:00 level=info msg="Query Service initialization"
logger=live.push_http t=2025-09-15T17:14:50.858144587+08:00 level=info msg="Live Push Gateway initialization"
logger=infra.usagestats.collector t=2025-09-15T17:14:51.348265962+08:00 level=info msg="registering usage stat providers" usageStatsProvidersLen=2
vision alerting"
ng.alerting t=2025-09-15T17:14:51.349695788+08:00 level=info msg="starting to provision alerting"
logger=provisioning.alerting t=2025-09-15T17:14:51.349770585+08:00 level=info msg="finished to provision alerting"
logger=grafanaStorageLogger t=2025-09-15T17:14:51.350150116+08:00 level=info msg="storage starting"
-15T17:14:51.350438772+08:00 level=info msg="Warming state cache for startup"
logger=report t=2025-09-15T17:14:51.350539253+08:00 level=warn msg="Scheduling and sending of reports disabled, SMTP is not configured and enabled. Configure SMTP to enable."
logger=ngalert.state.manager t=2025-09-15T17:14:51.350438772+08:00 level=info msg="Warming state cache for startup"
logger=ngalert.state.manager t=2025-09-15T17:14:51.354009767+08:00 level=info msg="State cache has been initialized" states=0 duration=3.567255ms
logger=ticker t=2025-09-15T17:14:51.354176273+08:00 level=info msg=starting first_tick=2025-09-15T17:15:00+08:00
logger=ngalert.multiorg.alertmanager t=2025-09-15T17:14:51.354267264+08:00 level=info msg="starting MultiOrg Alertmanager"
logger=http.server t=2025-09-15T17:14:51.356067513+08:00 level=info msg="HTTP Server Listen" address=[::]:3000 protocol=http subUrl= socket=

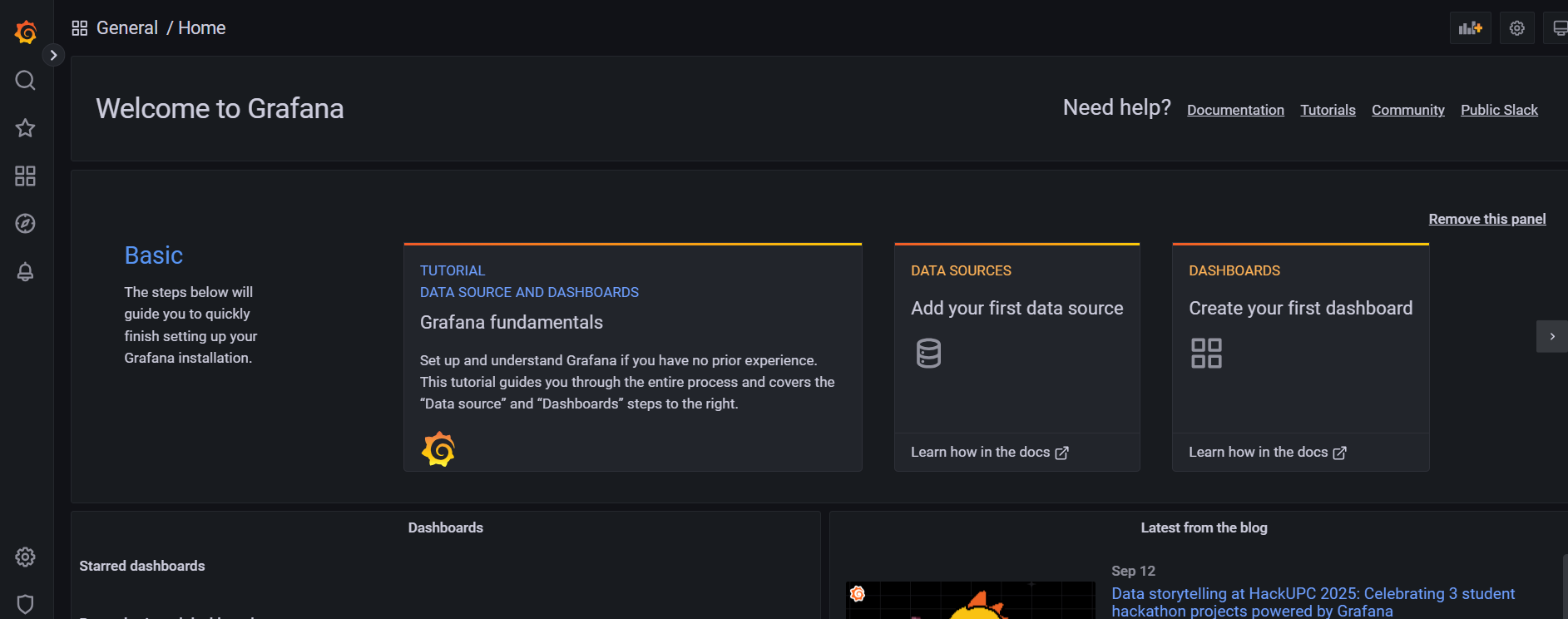

2.4页面登录

三、node_exporter

3.1解压

# tar -xzvf node_exporter-1.5.0.linux-amd64.tar.gz
node_exporter-1.5.0.linux-amd64/
node_exporter-1.5.0.linux-amd64/LICENSE
node_exporter-1.5.0.linux-amd64/NOTICE
node_exporter-1.5.0.linux-amd64/node_exporter

3.2启动

# cat start.sh
./node_exporter &
# ./start.sh
[isee@host-10-15-32-71 node_exporter]$ ts=2025-09-15T09:32:43.494Z caller=node_exporter.go:180 level=info msg="Starting node_exporter" version="(version=1.5.0, branch=HEAD, revision=1b48970ffcf5630534fb00bb0687d73c66d1c959)"
ts=2025-09-15T09:32:43.494Z caller=node_exporter.go:181 level=info msg="Build context" build_context="(go=go1.19.3, user=root@6e7732a7b81b, date=20221129-18:59:09)"
ts=2025-09-15T09:32:43.495Z caller=filesystem_common.go:111 level=info collector=filesystem msg="Parsed flag --collector.filesystem.mount-points-exclude" flag=^/(dev|proc|run/credentials/.+|sys|var/lib/docker/.+|var/lib/containers/storage/.+)($|/)
ts=2025-09-15T09:32:43.495Z caller=filesystem_common.go:113 level=info collector=filesystem msg="Parsed flag --collector.filesystem.fs-types-exclude" flag=^(autofs|binfmt_misc|bpf|cgroup2?|configfs|debugfs|devpts|devtmpfs|fusectl|hugetlbfs|iso9660|mqueue|nsfs|overlay|proc|procfs|pstore|rpc_pipefs|securityfs|selinuxfs|squashfs|sysfs|tracefs)$
ts=2025-09-15T09:32:43.496Z caller=diskstats_common.go:111 level=info collector=diskstats msg="Parsed flag --collector.diskstats.device-exclude" flag=^(ram|loop|fd|(h|s|v|xv)d[a-z]|nvme\d+n\d+p)\d+$
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:110 level=info msg="Enabled collectors"
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=arp
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=bcache
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=bonding
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=btrfs
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=conntrack
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=cpu
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=cpufreq
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=diskstats
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=dmi
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=edac
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=entropy
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=fibrechannel
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=filefd
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=filesystem
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=hwmon
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=infiniband
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=ipvs
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=loadavg
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=mdadm
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=meminfo
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=netclass
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=netdev
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=netstat
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=nfs
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=nfsd
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=nvme
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=os
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=powersupplyclass
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=pressure
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=rapl
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=schedstat
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=selinux
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=sockstat
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=softnet
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=stat
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=tapestats
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=textfile
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=thermal_zone
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=time
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=timex
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=udp_queues
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=uname
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=vmstat
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=xfs
ts=2025-09-15T09:32:43.498Z caller=node_exporter.go:117 level=info collector=zfs
ts=2025-09-15T09:32:43.499Z caller=tls_config.go:232 level=info msg="Listening on" address=[::]:9100
ts=2025-09-15T09:32:43.499Z caller=tls_config.go:235 level=info msg="TLS is disabled." http2=false address=[::]:9100

3.3查看进程

# netstat -antp |grep 9100
(Not all processes could be identified, non-owned process infowill not be shown, you would have to be root to see it all.)
tcp6       0      0 :::9100                 :::*                    LISTEN      30904/./node_export

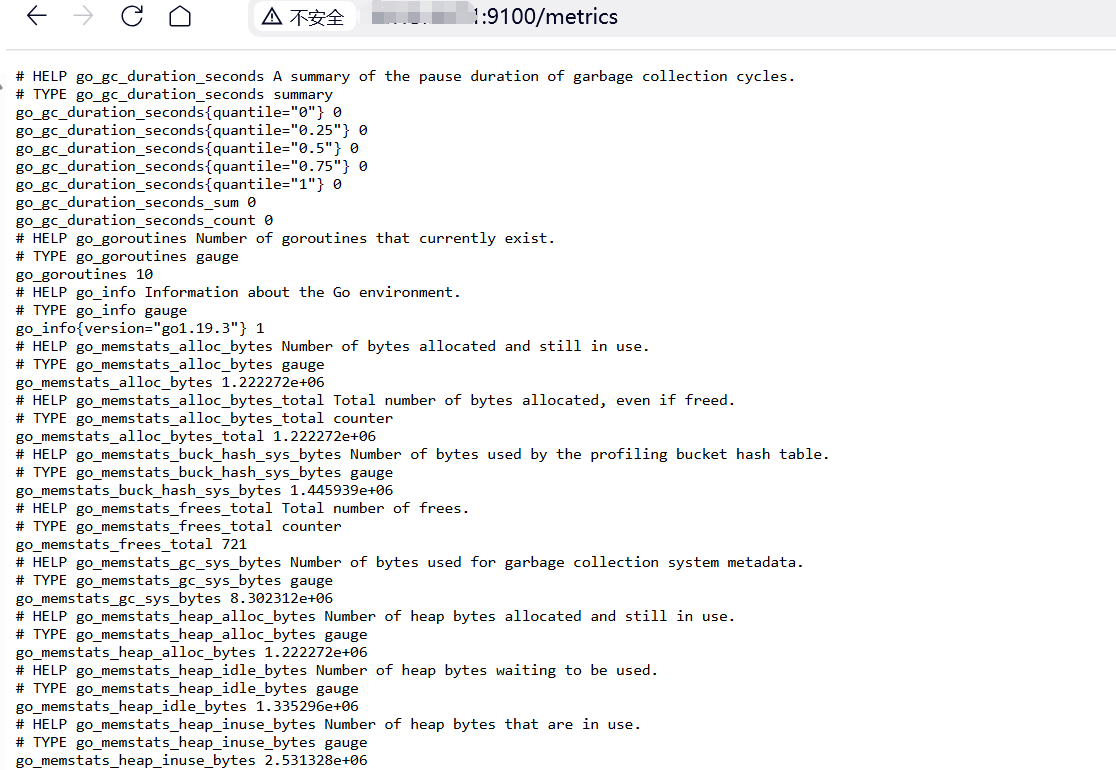

3.4页面查看

四、配置prometheus

4.1修改prometheus.yml

文件最后添加被监控的主机ip:port，将ip换成自己的ip。

static_configs:  - targets: #["192.168.202.128:9090",'192.168.202.128:9100','192.168.202.129:9100']  - "192.168.202.128:9090"- '192.168.202.128:9100'- '192.168.202.129:9100'

4.2重启prometheus

 pkill prometheus

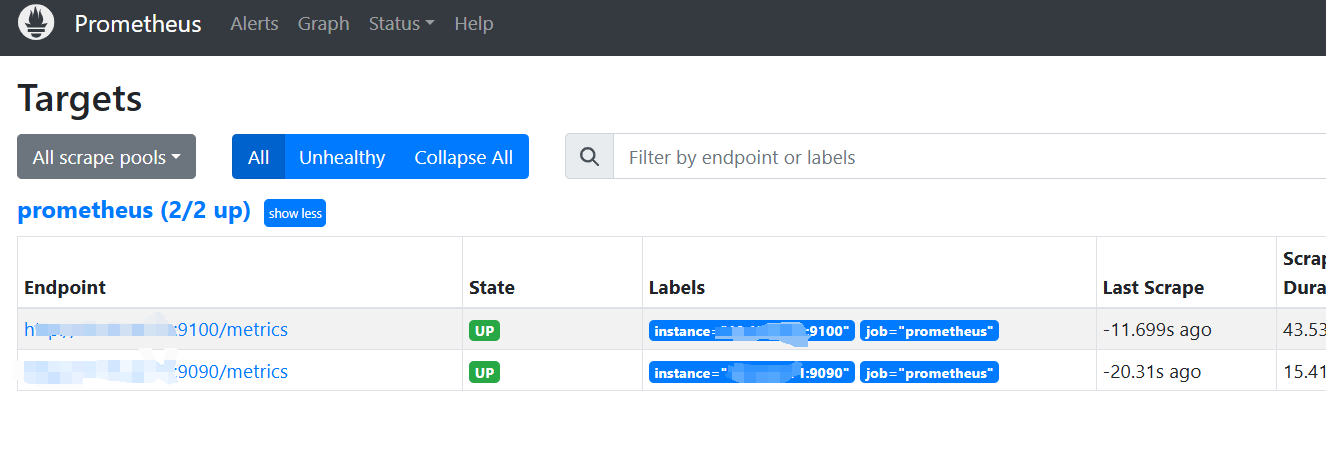

4.3查看页面

新监控的主机，已经能获取到了。

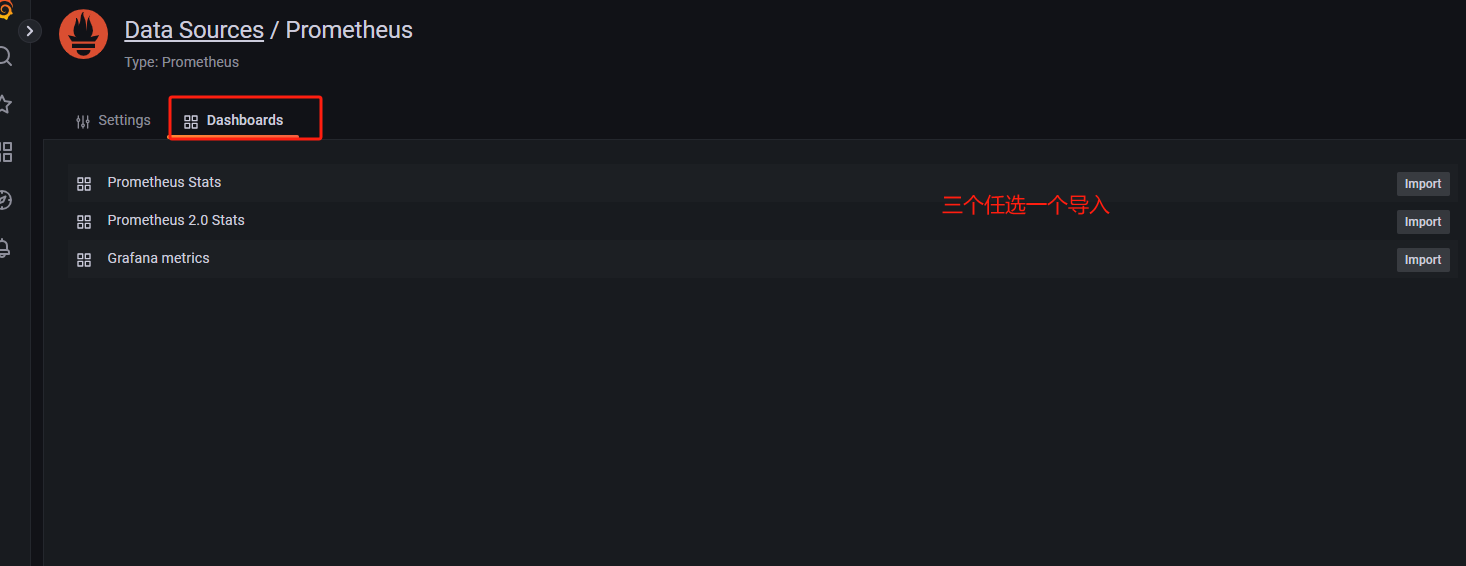

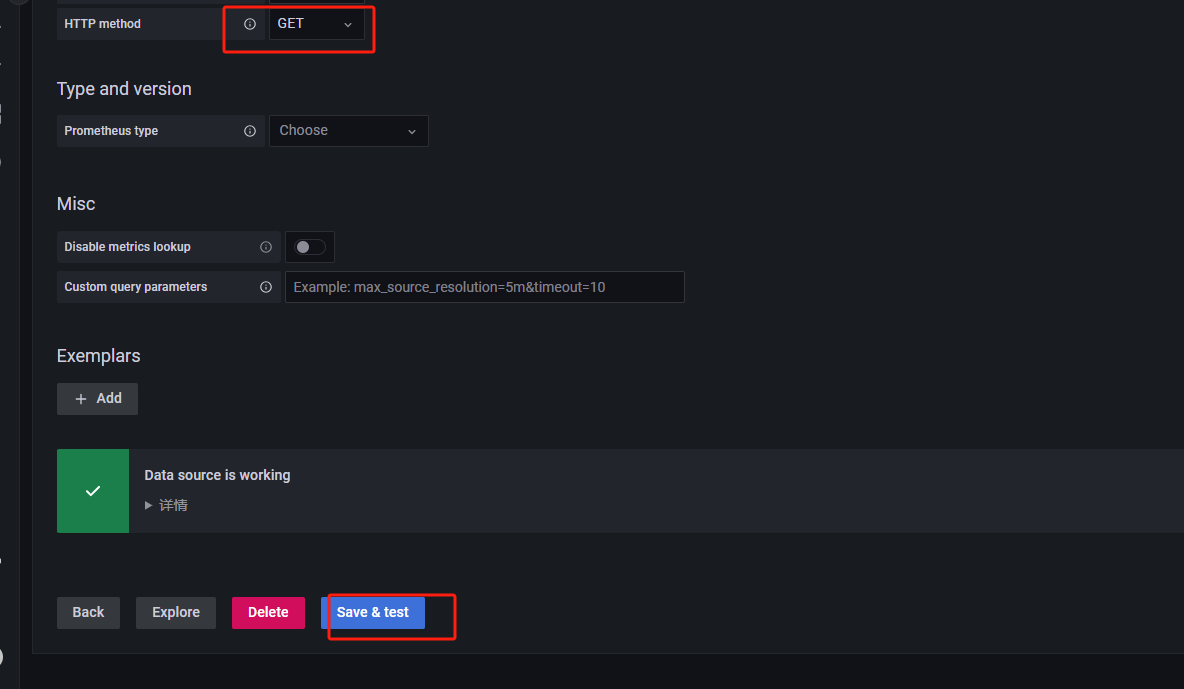

五、配置grafana

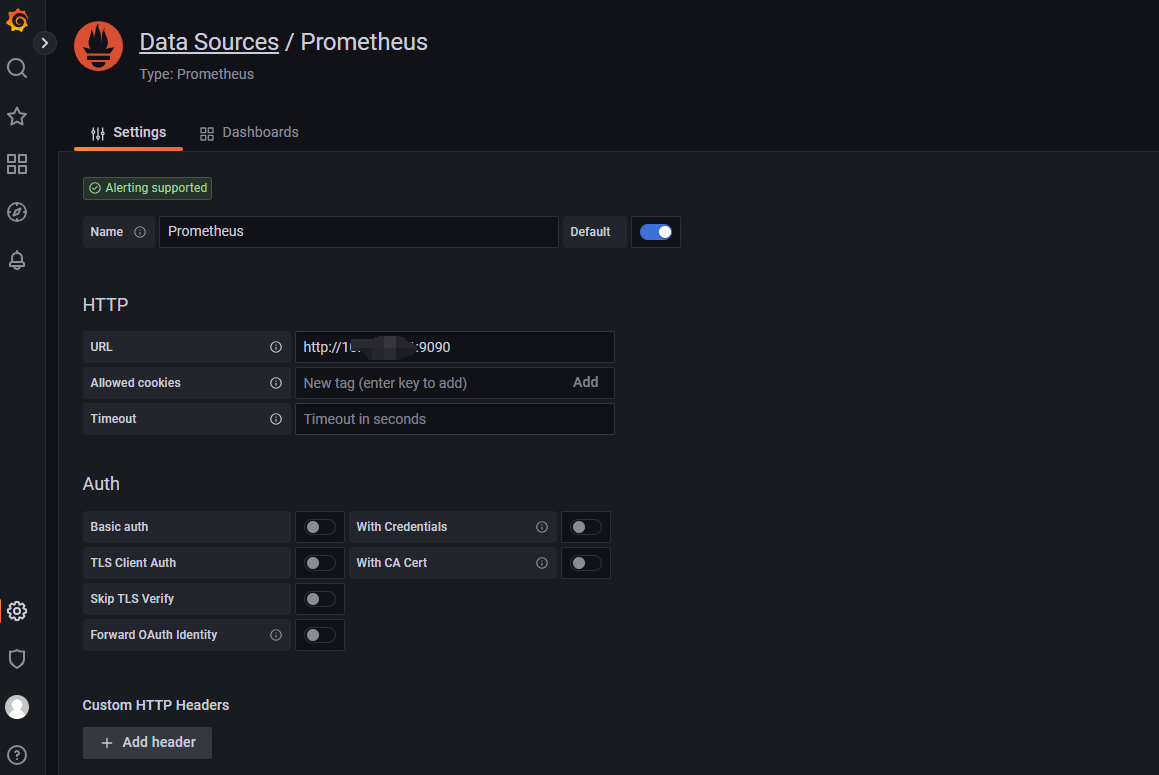

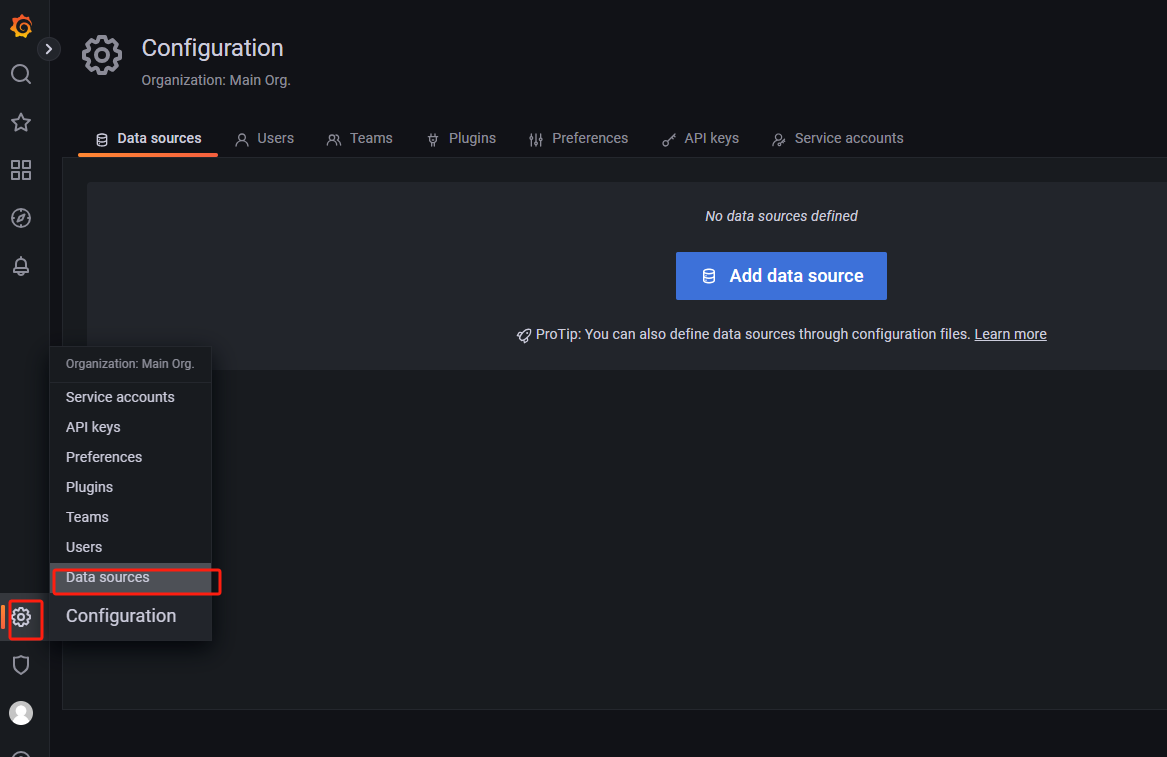

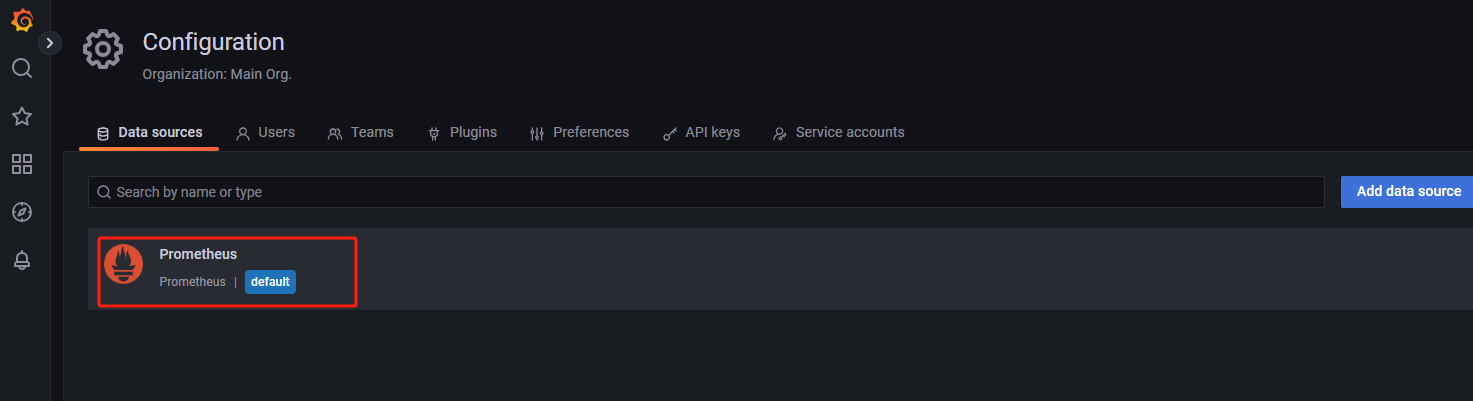

5.1登录grafana页面，并进入主页面

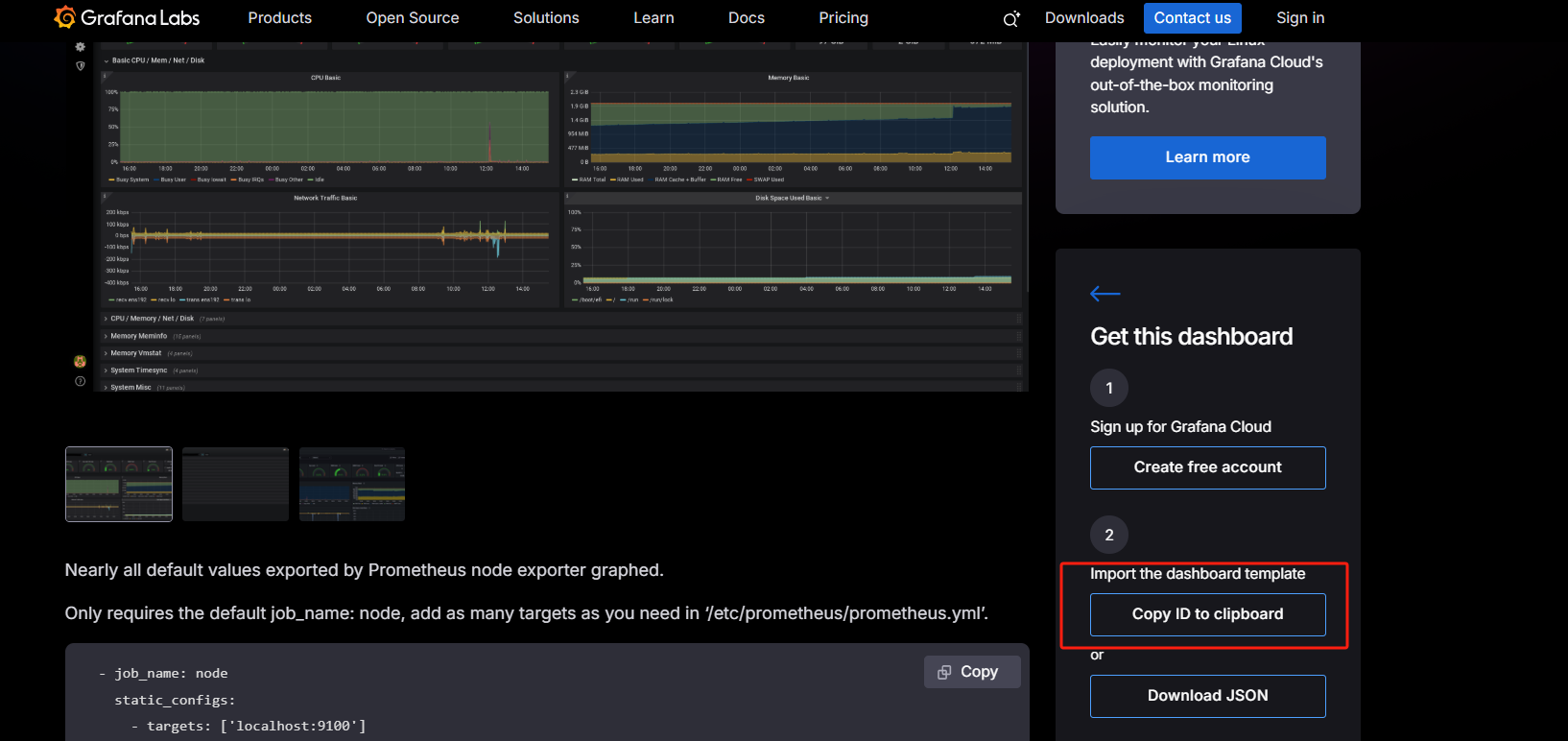

5.2访问下面地址，去选择模板

https://grafana.com/grafana/dashboards/https://grafana.com/grafana/dashboards/

5.3选择一个模板后

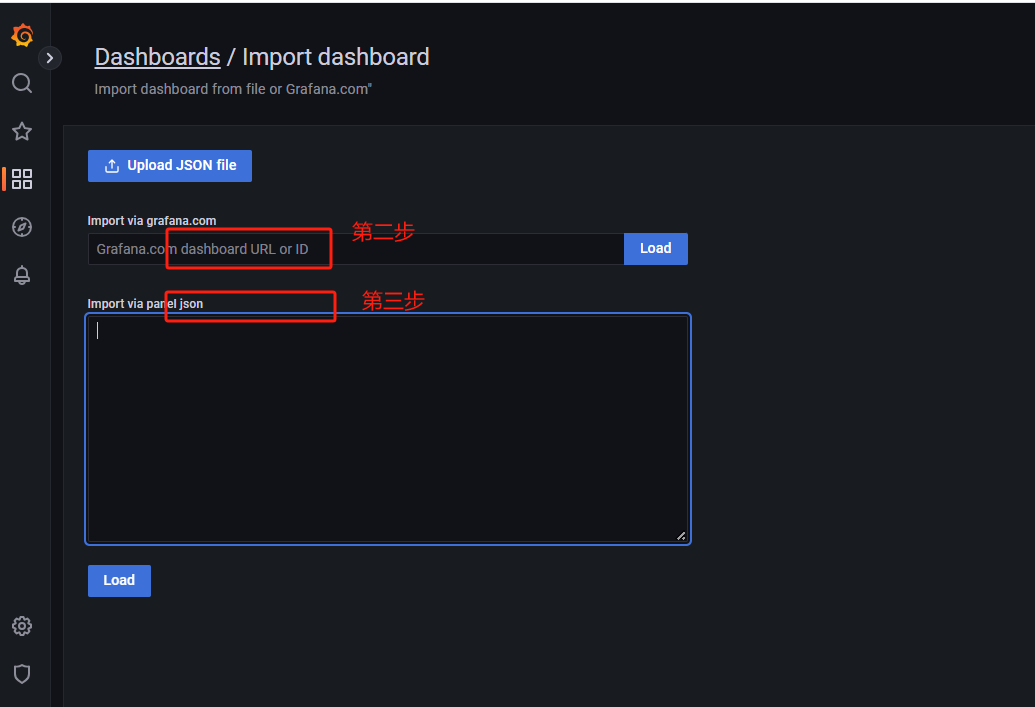

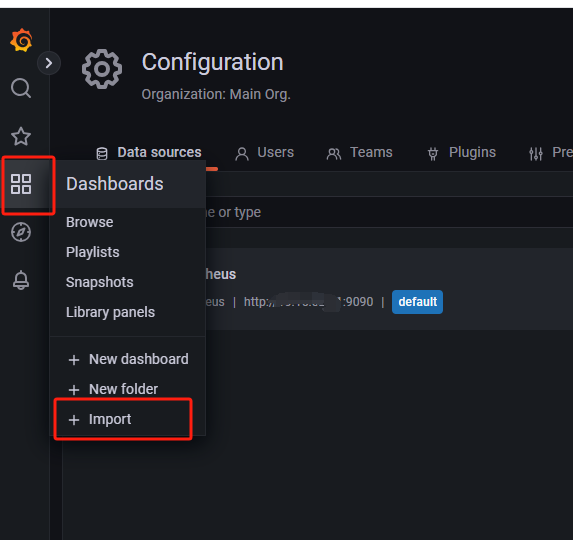

5.4记录第二步，第三步，然后到自己的grafana页面

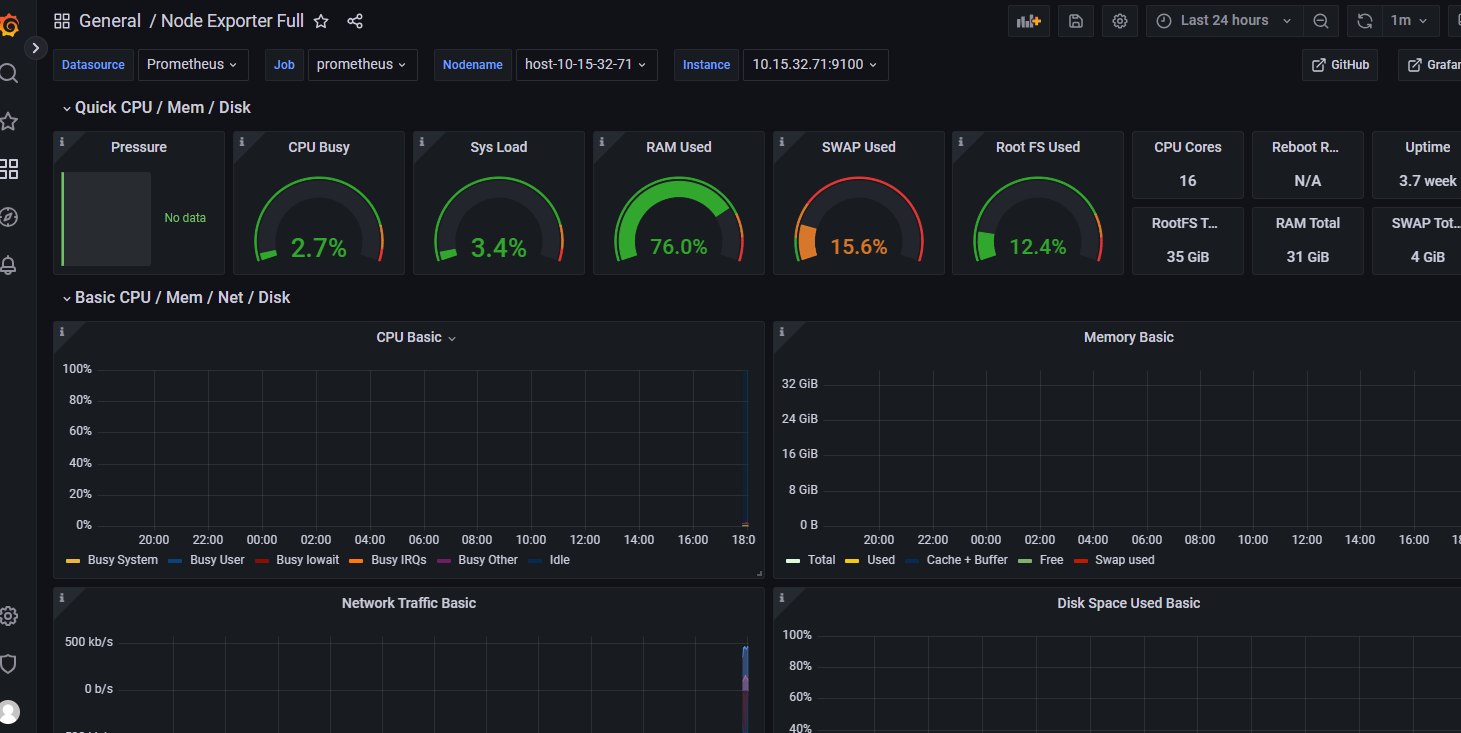

5.5完成效果

https://blog.csdn.net/m0_74766687/article/details/143424636
