Android 项目:画图白板APP开发（五）——橡皮擦（全面）

news 2025/9/11 7:01:15

在画图白板应用中，橡皮擦是一个必不可少的功能。它让用户能够修正错误，精确调整他们的创作。本文将详细介绍如何在Android画图白板应用中实现一个高效且用户友好的橡皮擦功能。主要分为以下部分：

橡皮擦：使用透明笔迹覆盖
一键清屏：清空画布所有内容
按笔迹清除：清除选中的笔迹
橡皮擦（修改原本 Path 结构）：需要更改原笔迹，分割成新笔迹
电子笔笔帽擦除：电子笔笔帽当橡皮擦使用

部分功能演示：

橡皮檫演示效果

一、橡皮擦

1. 使用PorterDuff模式

PorterDuffXfermode是Android中处理图形混合的强大工具。对于橡皮擦，我们可以使用PorterDuff.Mode.CLEAR模式，它会将绘制区域的像素完全清除。

2. 代码

//设置橡皮的属性
paint_eraser.setStrokeWidth(50f);
paint_eraser.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.CLEAR));
paint_eraser.setStyle(Paint.Style.STROKE);
paint_eraser.setStrokeCap(Paint.Cap.ROUND);
paint_eraser.setStrokeJoin(Paint.Join.ROUND);
paint_eraser.setAntiAlias(true);
paint_eraser.setDither(true);
paint_eraser.setFilterBitmap(true);
paint_eraser.setStrokeMiter(1.0f);

注意：此操作不会修改原始的笔迹数据层 (StrokeManager)。它只是在视觉上覆盖。

3. 效果图

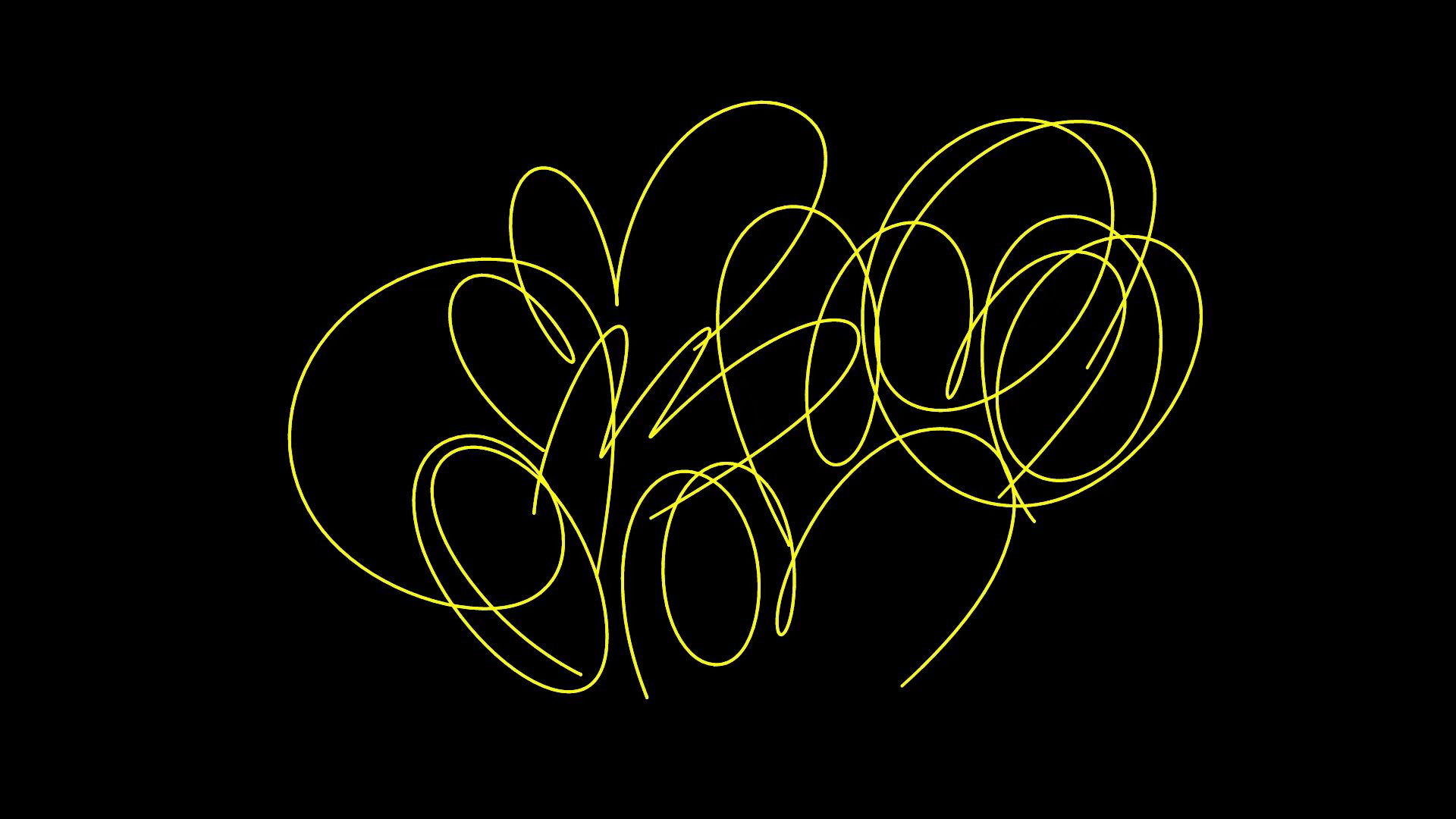

擦除前：

擦除后：

二、一键清屏

1. 代码

//清空画布
cacheCanvas.drawColor(0,PorterDuff.Mode.CLEAR);
invalidate();

清空作为Canvas绘制目标的那块Bitmap，PorterDuff.Mode.CLEAR: 这是核心所在。它是一种混合模式（Blending Mode），其规则是：清除目标图像中的所有像素，忽略源图像。无论原本画布上有什么，这个模式都会将其变为完全透明。

三、按笔迹擦除

1.思路

画一条曲线，清除相交的可视化笔画（橡皮擦笔画除外），下面配置笔迹擦除橡皮。

//设置笔画删除的属性
paint_eraser_sliding.setStrokeWidth(3f);//3
paint_eraser_sliding.setColor(Color.parseColor("#E94F4F"));//设置为红色
paint_eraser_sliding.setStyle(Paint.Style.STROKE);
paint_eraser_sliding.setStrokeCap(Paint.Cap.ROUND);
paint_eraser_sliding.setStrokeJoin(Paint.Join.ROUND);
paint_eraser_sliding.setAntiAlias(true);
paint_eraser_sliding.setDither(true);
paint_eraser_sliding.setFilterBitmap(true);
paint_eraser_sliding.setStrokeMiter(1.0f);
//设置画出来的为虚线
paint_eraser_sliding.setPathEffect( new DashPathEffect(new float[]{20f,10f,5f,10f},0f));

2. 代码

当手指在屏幕上移动，显示笔迹擦除橡皮的同时，记录最新的点和上一个点，判断是否跟可视化笔画相交。

private void actionMove_Sliding(MotionEvent event){//来判断应该删除哪些线条，利用高光显示float cx = (event.getX(0)+ mStartXs[0]) / 2f;float cy = (event.getY(0) + mStartYs[0]) / 2f;mDottedLine.mXY.add(new DottedLineDates.XAndY(event.getX(0),event.getY(0)));mDottedLine.path.quadTo(mStartXs[0], mStartYs[0], cx, cy);//resetDirtyRect(mDottedLine.mRectF,event.getX(0),event.getY(0));//判断是否相交(虚线只用提供两个点即可) isDelete为true时变成高光isCross(mStartXs[0],mStartYs[0],event.getX(0),event.getY(0));mStartXs[0] = event.getX(0);mStartYs[0] = event.getY(0);paths[0].moveTo(cx, cy);cacheCanvas.drawColor(0,PorterDuff.Mode.CLEAR);  //这个很关键invalidateReason = REASON_DRAW_MOVE;invalidate();
}

可视化笔迹的类型：线和点 ，删除笔迹的标准有所不同

线：判断是否相交
点：判断是否相切

为了更严谨些，线除了判断相交之外；还需要判断起点和终点是否相切。下面的代码我只写了起点的判断，还有另外原因，是因为用电子笔按下的点，很大可能性是经历了多个move点，这些move点是重叠的。判断起点是为了排除类似的点。

//判断每个false的是否相交
private void isCross(float x1, float y1, float x2, float y2) {for (int i = 0; i < mPaintedList.size(); i++) {//假如为橡皮擦就continueif(mPaintedList.get(i).mPaint.getXfermode()==paint_eraser.getXfermode()){//如果为橡皮，就passcontinue;}boolean isEnding = false;while (!mPaintedList.get(i).isDelete()&&!isEnding){//判断DOTTED_LINE是否为点（在压力发生改变的时候他就会运行到move）所以这个点很难捕捉//假如没有准备删除就遍历(有两种类型的处理：点和线)if(mPaintedList.get(i).getLineModel()==LINE||mPaintedList.get(i).getLineModel()==DOTTED_LINE){//目前是对线的处理//System.out.println("AAAAAAAAAAAAAAAA 进入了while循环:线 id "+i);boolean b1; //对首点的判断float pointWidth = pointToLine(x1,y1,x2,y2,mPaintedList.get(i).mXToMatrix,mPaintedList.get(i).mYToMatrix);b1 = pointWidth<=mPaintedList.get(i).mWidth;for (int j = 0; j < mPaintedList.get(i).mOnePaths.size() ; j++) {boolean b ;if(j==0){//使用最开始保存的点b = intersection(x1,y1,x2,y2,mPaintedList.get(i).mXToMatrix,mPaintedList.get(i).mYToMatrix,mPaintedList.get(i).mOnePaths.get(j).xToMatrix, mPaintedList.get(i).mOnePaths.get(j).yToMatrix);}else {b = intersection(x1,y1,x2,y2,mPaintedList.get(i).mOnePaths.get(j-1).xToMatrix,mPaintedList.get(i).mOnePaths.get(j-1).yToMatrix,mPaintedList.get(i).mOnePaths.get(j).xToMatrix, mPaintedList.get(i).mOnePaths.get(j).yToMatrix);}if(b||b1){//如果判断出相交 == 成为待删除//System.out.println("AAAAAAAAAAAAAAAA 查找到了一条可擦线段  id为："+ i);mPaintedList.get(i).setDelete(true);//同时保存到删除备选
//                            if(mDeleteList == null){
//                                mDeleteList = new ArrayList<>();
//                            }
//                            mDeleteList.add(new PaintDates(mPaintedList.get(i).mPaint,mPaintedList.get(i).mOnePaths
//                                    ,mPaintedList.get(i).mx,mPaintedList.get(i).my,mPaintedList.get(i).mWidth)); //这里的isDelete默认为falsebreak;}//当结束的时候if(j == (mPaintedList.get(i).mOnePaths.size()- 1)){//结束while循环isEnding=true;}}}else {//对点的处理float pointWidth = pointToLine(x1,y1,x2,y2,mPaintedList.get(i).mXToMatrix,mPaintedList.get(i).mYToMatrix);if(pointWidth<=mPaintedList.get(i).mWidth){//System.out.println("AAAAAAAAAAAAAAAA 查找到了一条可擦点点  id为："+ i);mPaintedList.get(i).setDelete(true);//同时保存到删除备选
//                        if(mDeleteList == null){
//                            mDeleteList = new ArrayList<>();
//                        }
//                        mDeleteList.add(new PaintDates(mPaintedList.get(i).mPaint,mPaintedList.get(i).mOnePaths
//                                ,mPaintedList.get(i).mx,mPaintedList.get(i).my,mPaintedList.get(i).mWidth)); //这里的isDelete默认为falsebreak;}//当结束的时候isEnding=true;}}}
}// 点到直线的最短距离的判断 点（x0,y0） 到由两点组成的线段（x1,y1） ,( x2,y2 )
private float pointToLine(float x1, float y1, float x2, float y2, float x0,float y0) {float space = 0;float a, b, c;a = distanceTo(x1, y1, x2, y2);// 线段的长度b = distanceTo(x1, y1, x0, y0);// (x1,y1)到点的距离c = distanceTo(x2, y2, x0, y0);// (x2,y2)到点的距离if (c <= 0.000001 || b <= 0.000001) {space = 0;return space;}if (a <= 0.000001) {space = b;return space;}if (c * c >= a * a + b * b) {space = b;return space;}if (b * b >= a * a + c * c) {space = c;return space;}float p = (a + b + c) / 2;// 半周长float s = (float) Math.sqrt(p * (p - a) * (p - b) * (p - c));// 海伦公式求面积space = 2 * s / a;// 返回点到线的距离（利用三角形面积公式求高）return space;
}//判断两条直线是否相交
public static boolean intersection(double l1x1, double l1y1, double l1x2, double l1y2,double l2x1, double l2y1, double l2x2, double l2y2)
{// 快速排斥实验 首先判断两条线段在 x 以及 y 坐标的投影是否有重合。 有一个为真，则代表两线段必不可交。if (Math.max(l1x1,l1x2) < Math.min(l2x1 ,l2x2)|| Math.max(l1y1,l1y2) < Math.min(l2y1,l2y2)|| Math.max(l2x1,l2x2) < Math.min(l1x1,l1x2)|| Math.max(l2y1,l2y2) < Math.min(l1y1,l1y2)){return false;}// 跨立实验  如果相交则矢量叉积异号或为零，大于零则不相交return !((((l1x1 - l2x1) * (l2y2 - l2y1) - (l1y1 - l2y1) * (l2x2 - l2x1))* ((l1x2 - l2x1) * (l2y2 - l2y1) - (l1y2 - l2y1) * (l2x2 - l2x1))) > 0)&& !((((l2x1 - l1x1) * (l1y2 - l1y1) - (l2y1 - l1y1) * (l1x2 - l1x1))* ((l2x2 - l1x1) * (l1y2 - l1y1) - (l2y2 - l1y1) * (l1x2 - l1x1))) > 0);
}

流程：

遍历所有可视化线段（排除橡皮擦）
遍历过程中，先判断线段起点是否跟传入的线段相切。
接着判断可视化线段每个点组成的线段，是否跟传入的线段相交。
判断相切或相交了，就将其设置为待删除，同时设置该曲线为高光加粗效果。
点的逻辑就只需判断相切即可。

注意：xToMatrix 和 yToMatrix 在这里是偏移和放大缩小后的线段点的位置，这个在后续讲解放大缩小时会讲解，各个功能之间相互配合，让程序更出彩。

当手指松开之后，就执行下面的代码。

private void actionUp_Sliding(){//UP开始的时候就开始删除（可能有多个）//1.查找并删除(依据撤销，没必要删除)for (int i = mPaintedList.size()-1 ; i>=0 ; i--) {//反着删除if(mPaintedList.get(i).isDelete()){if(mCancelList.get(mCancelList.size()-1).MassageType==SLIDING_MULTI_STROKE_UN_HAVE){//设置成有效操作mCancelList.get(mCancelList.size()-1).MassageType=SLIDING_MULTI_STROKE_HAVE;mCancelList.get(mCancelList.size()-1).paintStrokes = new ArrayList<>();}mCancelList.get(mCancelList.size()-1).paintStrokes.add(new MessageStrokes.IdAndStrokes(i,new PaintDates(mPaintedList.get(i))));mPaintedList.remove(i);}}cacheCanvas.drawColor(0,PorterDuff.Mode.CLEAR);
}

这里简单点理解就是将 mPaintedList.get(i) 的笔迹移除到了mCancelList.get(mCancelList.size()-1).paintStrokes 中，这里的mCancelList是撤销恢复使用的，在这里无需理会。

注意：这里反向删除，是为了避免以下问题。

当从一个 List 中正向遍历（从0到size-1）并删除元素时，每删除一个元素，后续元素的索引都会前移（即索引值减1），这会导致：

如果删除第i个元素，那么原本第i+1个元素会变成第i个，但循环索引i会继续增加，从而跳过这个元素。

还可能因为索引越界而引发异常（比如删除后列表大小变化，但循环仍试图访问原索引）。

反向遍历（从size-1到0）删除可以避免这个问题：

删除一个元素后，前面元素的索引不会改变（因为删除的是当前索引i，而i是递减的，下一个要检查的是i-1，不受删除影响）。

这样确保每个元素都被正确遍历，且不会出现索引越界。

3. 效果图

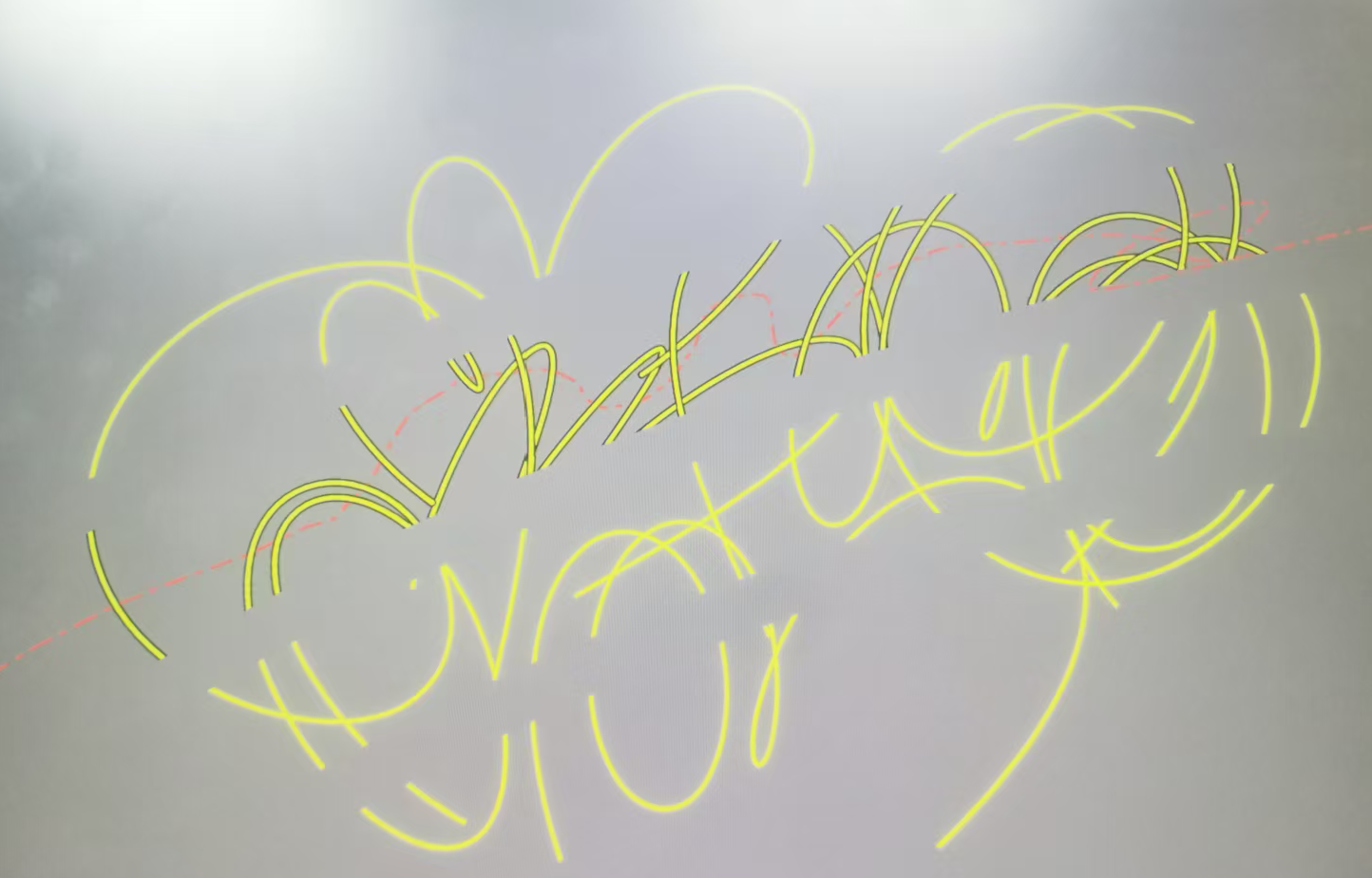

选中后的状态，其中红色虚线为擦除橡皮的轨迹，高光的笔迹就为待删除的笔迹

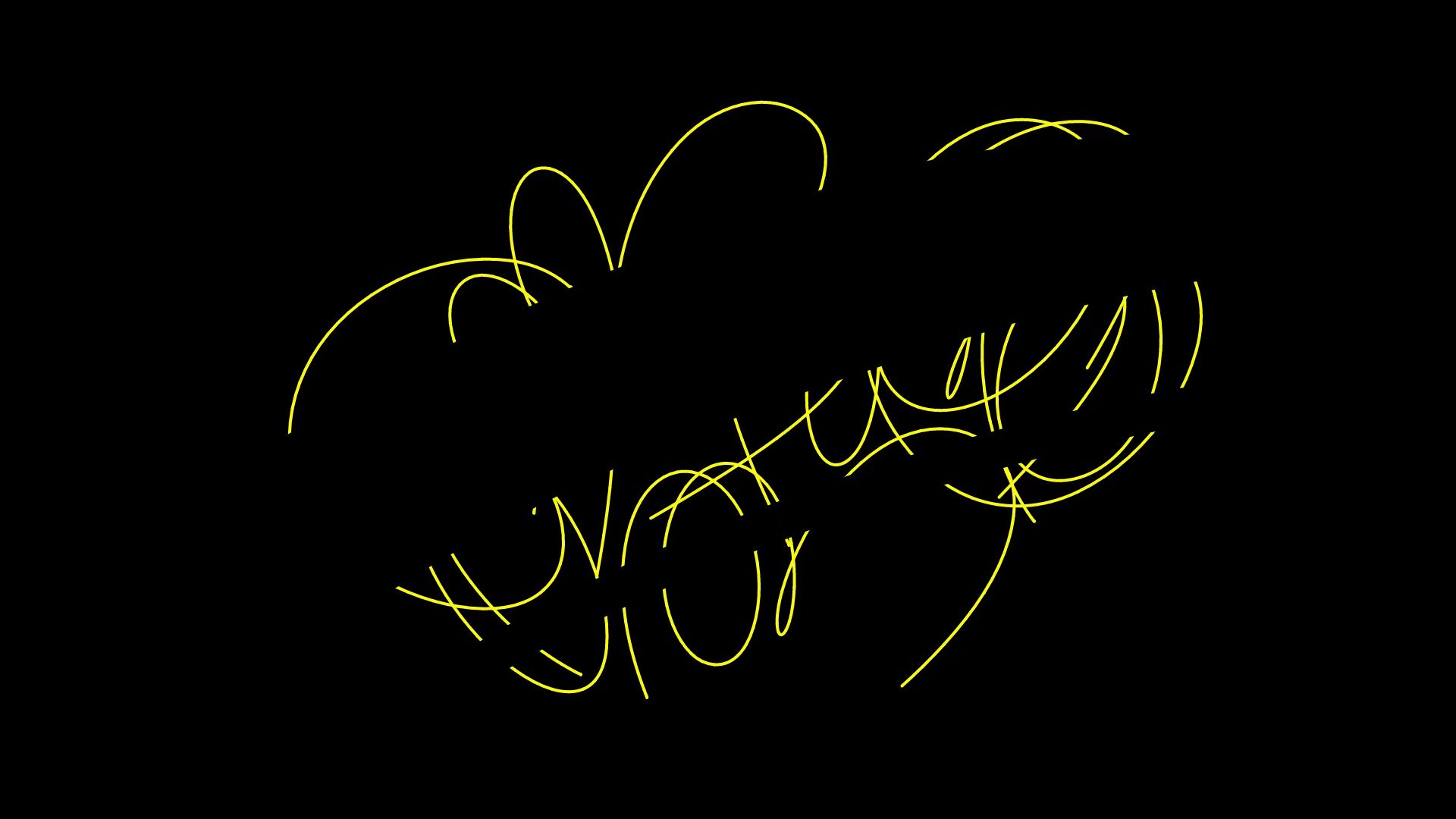

删除结果如下：

四、橡皮擦（修改原本 Path 结构）

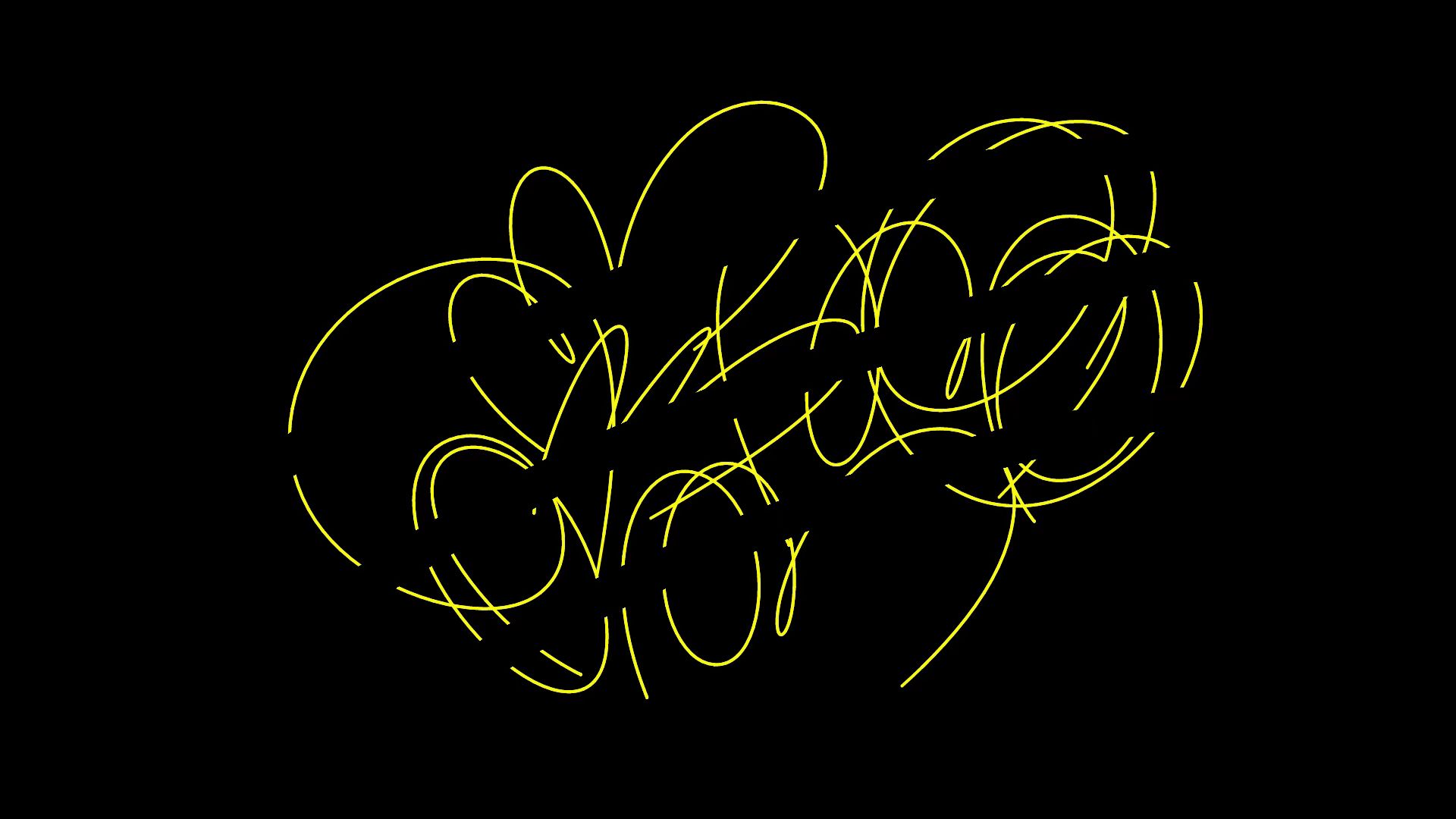

上面的效果，就是根据橡皮擦将原本 Path 分割的结果。

1. 思路

当橡皮擦经过 Path 的时候，除了可以遮挡笔迹之外，还希望将 Path 在遮挡的位置断开，形成新的 Path 。下面代码是橡皮擦在Move的时候执行的部分代码，需要留意的是isCross_eraser。

}else if(mode == ERASER){mEraser.setLayoutParams(new AbsoluteLayout.LayoutParams((int)maxDistance,(int)maxDistance,(int) (event.getX(0)+relativeOffsetX-maxDistance/2), (int) (event.getY(0)+relativeOffsetY-maxDistance/2)));Paints[0].setLineModel(DOTTED_LINE);resetDirtyRect(mRectFs[0],mStartXs[0],mStartYs[0],event.getX(0)+relativeOffsetX,event.getY(0)+relativeOffsetY);float cx = (event.getX(0)+relativeOffsetX+mStartXs[0])/2f;float cy = (event.getY(0)+relativeOffsetY+mStartYs[0])/2f;//用来判断是否相交，如果相交就在的位置断开即可isCross_eraser(mStartXs[0],mStartYs[0],event.getX(0)+relativeOffsetX,event.getY(0)+relativeOffsetY);if(Paints[0].mPath == null){Paints[0].mPath = new Path(paths[0]);}Paints[0].mOnePaths.add(new PaintDates.PathAndWidth(event.getX(0)+relativeOffsetX,event.getY(0)+relativeOffsetY));Paints[0].mPath.quadTo(mStartXs[0],mStartYs[0],cx,cy);mStartXs[0] = event.getX(0)+relativeOffsetX;mStartYs[0] = event.getY(0)+relativeOffsetY;
}

2. 代码

//用来判断是否相交，如果相交就在的位置断开即可
private void isCross_eraser(float x1, float y1, float x2, float y2) {PointF pointF;for (int i = 0; i < mPaintedList.size(); i++) {boolean isEnding = false;while (!isEnding){//判断DOTTED_LINE是否为点（在压力发生改变的时候他就会运行到move）所以这个点很难捕捉//假如没有准备删除就遍历(有两种类型的处理：点和线)if(mPaintedList.get(i).mPaint.getXfermode()==paint_eraser.getXfermode()){//如果为橡皮，就passbreak;}if(mPaintedList.get(i).getLineModel()==POINT){break;}if(mPaintedList.get(i).getLineModel()==LINE||mPaintedList.get(i).getLineModel()==DOTTED_LINE){//目前是对线的处理(除开对橡皮的处理)//其实可以两个点之间就设置一个点（并且实时更新就可）for (int j = 0; j < mPaintedList.get(i).mOnePaths.size() ; j++) {boolean b ;if(j==0){b = intersection(x1,y1,x2,y2,mPaintedList.get(i).mXToMatrix,mPaintedList.get(i).mYToMatrix,mPaintedList.get(i).mOnePaths.get(j).xToMatrix, mPaintedList.get(i).mOnePaths.get(j).yToMatrix);}else {b = intersection(x1,y1,x2,y2,mPaintedList.get(i).mOnePaths.get(j-1).xToMatrix,mPaintedList.get(i).mOnePaths.get(j-1).yToMatrix,mPaintedList.get(i).mOnePaths.get(j).xToMatrix, mPaintedList.get(i).mOnePaths.get(j).yToMatrix);}if(b){//如果判断出相交 == 成为待删除//System.out.println("AAAAAAAAAAAAAAAA 查找到了一条可擦线段  id为："+ i);//mPaintedList.get(i).setDelete(true);//设置状态，求比例，保存在两点之间（因为有漫游效果，所以求点是不现实的）//遍历一笔，看到底有几个交点：决定分成多少段if(!mPaintedList.get(i).isCut()){mPaintedList.get(i).setCut(true);}mPaintedList.get(i).mOnePaths.get(j).isCut = true;if(j==0){pointF = intersectionXY(x1,y1,x2,y2,mPaintedList.get(i).mXToMatrix,mPaintedList.get(i).mYToMatrix,mPaintedList.get(i).mOnePaths.get(j).xToMatrix, mPaintedList.get(i).mOnePaths.get(j).yToMatrix);//assert pointF != null;  //他为空了，中断程序if(pointF!=null){mPaintedList.get(i).mOnePaths.get(j).BL = distanceTo(mPaintedList.get(i).mXToMatrix,mPaintedList.get(i).mYToMatrix,pointF.x,pointF.y)/distanceTo(mPaintedList.get(i).mXToMatrix,mPaintedList.get(i).mYToMatrix,mPaintedList.get(i).mOnePaths.get(j).xToMatrix, mPaintedList.get(i).mOnePaths.get(j).yToMatrix);}else {mPaintedList.get(i).mOnePaths.get(j).isCut = false; //没有值就设置为不割}}else {pointF = intersectionXY(x1,y1,x2,y2,mPaintedList.get(i).mOnePaths.get(j-1).xToMatrix,mPaintedList.get(i).mOnePaths.get(j-1).yToMatrix,mPaintedList.get(i).mOnePaths.get(j).xToMatrix, mPaintedList.get(i).mOnePaths.get(j).yToMatrix);//assert pointF != null;if(pointF!=null){mPaintedList.get(i).mOnePaths.get(j).BL = distanceTo(mPaintedList.get(i).mOnePaths.get(j-1).xToMatrix,mPaintedList.get(i).mOnePaths.get(j-1).yToMatrix,pointF.x,pointF.y)/distanceTo(mPaintedList.get(i).mOnePaths.get(j-1).xToMatrix,mPaintedList.get(i).mOnePaths.get(j-1).yToMatrix,mPaintedList.get(i).mOnePaths.get(j).xToMatrix, mPaintedList.get(i).mOnePaths.get(j).yToMatrix);}else {mPaintedList.get(i).mOnePaths.get(j).isCut = false; //没有值就设置为不割}//System.out.println("AAAAAAAAAAAAAAAAAAAAAAAA"+pointF.x+","+pointF.y+",j="+j+",bl="+mPaintedList.get(i).mOnePaths.get(j).BL);}}if(j == (mPaintedList.get(i).mOnePaths.size()- 1)){//结束while循环（必须遍历所有，知道结尾）isEnding=true;}}}}}
}//判断交点
public static PointF intersectionXY(float x1, float y1, float x2, float y2,float x3, float y3, float x4, float y4)
{float x;float y;float k1=Float.MAX_VALUE;float k2=Float.MAX_VALUE;boolean flag1=false;boolean flag2=false;if((x1-x2)==0)flag1=true;if((x3-x4)==0)flag2=true;if(!flag1)k1=(y1-y2)/(x1-x2);if(!flag2)k2=(y3-y4)/(x3-x4);if(flag1){x=x1;if(k2==0){y=y3;}else{y=k2*(x-x4)+y4;}}else if(flag2){x=x3;if(k1==0){y=y1;}else{y=k1*(x-x2)+y2;}}else{if(k1==0){y=y1;x=(y-y4)/k2+x4;}else if(k2==0){y=y3;x=(y-y2)/k1+x2;}else{x=(k1*x2-k2*x4+y4-y2)/(k1-k2);y=k1*(x-x2)+y2;}}if(between(x1,x2,x)&&between(y1,y2,y)&&between(x3,x4,x)&&between(y3,y4,y)){PointF point=new PointF();point.x = x;point.y = y;return point;}return null;
}

逻辑：

流程跟按笔迹擦除差不多，判断相交之后，保存交点和区域段（需要切割的区域）
move的时候，只需要记录数据。等到手指松开执行 up 时，再去切割所有线段

接下来是松手后执行的代码

private void actionUp_Eraser(){mEraser.setVisibility(GONE);int size =mPaintedList.size();//这里将其分段（理论上分段的操作应该是不会显示出不同的）for (int i = 0 ; i< size ; i++)for (int i = 0 ; i< size ; i++){if(mPaintedList.get(i).isCut()){ //当此线是准备是剪切的//这里是不透明笔锋if(mPaintedList.get(i).getLineModel()==LINE){mCutList.add(new PaintDatesAndID());//首先要添加一个笔画mCutList.get(mCutList.size()-1).id = i;mCutList.get(mCutList.size()-1).mCutPaintList.add(new PaintDates(mPaintedList.get(i).mPaint,new ArrayList<>(),mPaintedList.get(i).mx,mPaintedList.get(i).my,mPaintedList.get(i).mWidth));mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mXToMatrix = mPaintedList.get(i).mXToMatrix;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mYToMatrix = mPaintedList.get(i).mYToMatrix;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).setLineModel(mPaintedList.get(i).getLineModel());mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mPath = mPaintedList.get(i).mPath;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mMatrixS.addAll(mPaintedList.get(i).mMatrixS) ; //这里存疑for (int j = 0; j <mPaintedList.get(i).mOnePaths.size() ; j++) {float cx;float cy;if(mPaintedList.get(i).mOnePaths.get(j).isCut){//根据比例求点PointF pointF ;PointF pointF1; //偏移点if(j==0){pointF= pointToBL(mPaintedList.get(i).mOnePaths.get(j).BL,mPaintedList.get(i).mx, mPaintedList.get(i).my,mPaintedList.get(i).mOnePaths.get(j).x, mPaintedList.get(i).mOnePaths.get(j).y);pointF1= pointToBL(mPaintedList.get(i).mOnePaths.get(j).BL,mPaintedList.get(i).mXToMatrix, mPaintedList.get(i).mYToMatrix,mPaintedList.get(i).mOnePaths.get(j).xToMatrix, mPaintedList.get(i).mOnePaths.get(j).yToMatrix);}else {pointF= pointToBL(mPaintedList.get(i).mOnePaths.get(j).BL,mPaintedList.get(i).mOnePaths.get(j-1).x, mPaintedList.get(i).mOnePaths.get(j-1).y,mPaintedList.get(i).mOnePaths.get(j).x, mPaintedList.get(i).mOnePaths.get(j).y);pointF1= pointToBL(mPaintedList.get(i).mOnePaths.get(j).BL,mPaintedList.get(i).mOnePaths.get(j-1).xToMatrix, mPaintedList.get(i).mOnePaths.get(j-1).yToMatrix,mPaintedList.get(i).mOnePaths.get(j).xToMatrix, mPaintedList.get(i).mOnePaths.get(j).yToMatrix);}mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.add(new PaintDates.PathAndWidth(new Path(mPaintedList.get(i).mOnePaths.get(j).path), mPaintedList.get(i).mOnePaths.get(j).width, pointF.x, pointF.y));mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).xToMatrix = pointF1.x;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).yToMatrix = pointF1.y;if(j==0){mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).path.moveTo( mPaintedList.get(i).mx, mPaintedList.get(i).my);cx = (mPaintedList.get(i).mx+ pointF.x)/2f;cy = (mPaintedList.get(i).my+ pointF.y)/2f;}else {mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).path.moveTo( mPaintedList.get(i).mOnePaths.get(j-1).x, mPaintedList.get(i).mOnePaths.get(j-1).y);cx = (mPaintedList.get(i).mOnePaths.get(j-1).x+ pointF.x)/2f;cy = (mPaintedList.get(i).mOnePaths.get(j-1).y+ pointF.y)/2f;}mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).path.lineTo(cx, cy);//new下一个mCutList.get(mCutList.size()-1).mCutPaintList.add(new PaintDates(mPaintedList.get(i).mPaint,new ArrayList<>(),pointF.x,pointF.y,mPaintedList.get(i).mWidth));mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mXToMatrix = pointF1.x;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mYToMatrix = pointF1.y;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).setLineModel(mPaintedList.get(i).getLineModel());mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mPath = mPaintedList.get(i).mPath;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mMatrixS.addAll(mPaintedList.get(i).mMatrixS); //这里存疑mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.add(new PaintDates.PathAndWidth(new Path(mPaintedList.get(i).mOnePaths.get(j).path), mPaintedList.get(i).mOnePaths.get(j).width,  mPaintedList.get(i).mOnePaths.get(j).x, mPaintedList.get(i).mOnePaths.get(j).y));mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).path.reset();mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).path.moveTo( pointF.x, pointF.y);mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).path.lineTo(mPaintedList.get(i).mOnePaths.get(j).x, mPaintedList.get(i).mOnePaths.get(j).y);mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).xToMatrix = mPaintedList.get(i).mOnePaths.get(j).xToMatrix;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).yToMatrix = mPaintedList.get(i).mOnePaths.get(j).yToMatrix;}else {mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.add(new PaintDates.PathAndWidth(new Path(mPaintedList.get(i).mOnePaths.get(j).path), mPaintedList.get(i).mOnePaths.get(j).width, mPaintedList.get(i).mOnePaths.get(j).x, mPaintedList.get(i).mOnePaths.get(j).y));if(mPaintedList.get(i).mOnePaths.get(j).addPaths!=null){mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).addPaths = new ArrayList<>(mPaintedList.get(i).mOnePaths.get(j).addPaths) ;}mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).xToMatrix = mPaintedList.get(i).mOnePaths.get(j).xToMatrix;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).yToMatrix = mPaintedList.get(i).mOnePaths.get(j).yToMatrix;}}}else {//这里是透明笔画（用path的）mCutList.add(new PaintDatesAndID());//首先要添加一个笔画mCutList.get(mCutList.size()-1).mCutPaintList.add(new PaintDates(mPaintedList.get(i).mPaint,new ArrayList<>(),mPaintedList.get(i).mx,mPaintedList.get(i).my,mPaintedList.get(i).mWidth));mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mXToMatrix = mPaintedList.get(i).mXToMatrix;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mYToMatrix = mPaintedList.get(i).mYToMatrix;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).setLineModel(mPaintedList.get(i).getLineModel());mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mPath = new Path();mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mPath.moveTo(mPaintedList.get(i).mx,mPaintedList.get(i).my);mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mMatrixS.addAll(mPaintedList.get(i).mMatrixS) ; //这里存疑for (int j = 0; j <mPaintedList.get(i).mOnePaths.size() ; j++){float cx;float cy;if(mPaintedList.get(i).mOnePaths.get(j).isCut){PointF pointF ;PointF pointF1; //偏移点if(j==0){pointF= pointToBL(mPaintedList.get(i).mOnePaths.get(j).BL,mPaintedList.get(i).mx, mPaintedList.get(i).my,mPaintedList.get(i).mOnePaths.get(j).x, mPaintedList.get(i).mOnePaths.get(j).y);pointF1= pointToBL(mPaintedList.get(i).mOnePaths.get(j).BL,mPaintedList.get(i).mXToMatrix, mPaintedList.get(i).mYToMatrix,mPaintedList.get(i).mOnePaths.get(j).xToMatrix, mPaintedList.get(i).mOnePaths.get(j).yToMatrix);cx = (mPaintedList.get(i).mx+pointF.x)/2f;cy = (mPaintedList.get(i).my+pointF.y)/2f;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mPath.quadTo(mPaintedList.get(i).mx,mPaintedList.get(i).my,cx,cy);}else {pointF= pointToBL(mPaintedList.get(i).mOnePaths.get(j).BL,mPaintedList.get(i).mOnePaths.get(j-1).x, mPaintedList.get(i).mOnePaths.get(j-1).y,mPaintedList.get(i).mOnePaths.get(j).x, mPaintedList.get(i).mOnePaths.get(j).y);pointF1= pointToBL(mPaintedList.get(i).mOnePaths.get(j).BL,mPaintedList.get(i).mOnePaths.get(j-1).xToMatrix, mPaintedList.get(i).mOnePaths.get(j-1).yToMatrix,mPaintedList.get(i).mOnePaths.get(j).xToMatrix, mPaintedList.get(i).mOnePaths.get(j).yToMatrix);cx = (mPaintedList.get(i).mOnePaths.get(j-1).x+pointF.x)/2f;cy = (mPaintedList.get(i).mOnePaths.get(j-1).y+pointF.y)/2f;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mPath.quadTo(mPaintedList.get(i).mOnePaths.get(j-1).x,mPaintedList.get(i).mOnePaths.get(j-1).y,cx,cy);}mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.add(new PaintDates.PathAndWidth(pointF.x, pointF.y));mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).xToMatrix = pointF1.x;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).yToMatrix = pointF1.y;//该new一个了mCutList.get(mCutList.size()-1).mCutPaintList.add(new PaintDates(mPaintedList.get(i).mPaint,new ArrayList<>(),pointF.x, pointF.y,mPaintedList.get(i).mWidth));mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mXToMatrix =  pointF1.x;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mYToMatrix =  pointF1.y;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).setLineModel(mPaintedList.get(i).getLineModel());mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mPath = new Path();mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mPath.moveTo(pointF.x, pointF.y);mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mMatrixS.addAll(mPaintedList.get(i).mMatrixS) ; //这里存疑cx = (pointF.x+mPaintedList.get(i).mOnePaths.get(j).x)/2f;cy = (pointF.y+mPaintedList.get(i).mOnePaths.get(j).y)/2f;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mPath.quadTo(pointF.x,pointF.y,cx,cy);mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.add(new PaintDates.PathAndWidth(mPaintedList.get(i).mOnePaths.get(j).x, mPaintedList.get(i).mOnePaths.get(j).y));mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).xToMatrix = mPaintedList.get(i).mOnePaths.get(j).xToMatrix;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).yToMatrix = mPaintedList.get(i).mOnePaths.get(j).yToMatrix;}else {if(j==0){cx = (mPaintedList.get(i).mx+mPaintedList.get(i).mOnePaths.get(j).x)/2f;cy = (mPaintedList.get(i).my+mPaintedList.get(i).mOnePaths.get(j).y)/2f;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mPath.quadTo(mPaintedList.get(i).mx,mPaintedList.get(i).my,cx,cy);}else {cx = (mPaintedList.get(i).mOnePaths.get(j-1).x+mPaintedList.get(i).mOnePaths.get(j).x)/2f;cy = (mPaintedList.get(i).mOnePaths.get(j-1).y+mPaintedList.get(i).mOnePaths.get(j).y)/2f;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mPath.quadTo(mPaintedList.get(i).mOnePaths.get(j-1).x,mPaintedList.get(i).mOnePaths.get(j-1).y,cx,cy);}mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.add(new PaintDates.PathAndWidth(mPaintedList.get(i).mOnePaths.get(j).x, mPaintedList.get(i).mOnePaths.get(j).y));mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).xToMatrix = mPaintedList.get(i).mOnePaths.get(j).xToMatrix;mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.get(mCutList.get(mCutList.size()-1).mCutPaintList.get(mCutList.get(mCutList.size()-1).mCutPaintList.size()-1).mOnePaths.size()-1).yToMatrix = mPaintedList.get(i).mOnePaths.get(j).yToMatrix;}}}//在这里保存数字//mNumList.add(mCutList.size());}}if(mCutList.size()!=0){for (int i = mCutList.size()-1; i >= 0; i--) {//从最后一个分割的开始添加，此时包括之前的线+分割线mPaintedList.addAll(mCutList.get(i).id,mCutList.get(i).mCutPaintList);for (int j = 0; j < mCutList.get(i).mCutPaintList.size() ; j++) {mCancelList.get(mCancelList.size()-1).paintStrokes.add(new MessageStrokes.IdAndStrokes(mCutList.get(i).id,null));//一定要倒着来}}mCutList.clear();}//将他们delete  +mCutList.size()for (int j = mPaintedList.size()-1; j>=0 ; j--) {if(mPaintedList.get(j).isCut()){mCancelList.get(mCancelList.size()-1).paintStrokes.add(new MessageStrokes.IdAndStrokes(j,new PaintDates(mPaintedList.get(j))));mPaintedList.remove(j);}}if(Paints[0]!=null){mPaintedList.add(new PaintDates(Paints[0].mPaint,Paints[0].mOnePaths,Paints[0].mx,Paints[0].my,Paints[0].mWidth));mPaintedList.get(mPaintedList.size()-1).setLineModel(Paints[0].getLineModel());mPaintedList.get(mPaintedList.size()-1).mPath = Paints[0].mPath;mPaintedList.get(mPaintedList.size() - 1).draw(cacheCanvas);}paths[0].reset();Paints[0] = null;
}

代码有点多，我简单说说流程：整体分为四个阶

阶段一：遍历并处理被切割的笔画

核心逻辑：正向遍历所有笔画，找到被标记为“切割”（isCut()）的笔画进行处理。

处理分为两种模式：

1. 不透明笔锋模式 (LINE)

创建新的切割记录：在mCutList中添加一个PaintDatesAndID对象。

复制原笔画属性：创建一个新的PaintDates对象，复制原笔画的 paint、坐标、宽度等基本属性。

遍历笔画的每个线段 (mOnePaths)：

如果线段被切割 (isCut):

计算切割点坐标（pointF）和对应的矩阵变换点（pointF1）。

将当前线段在切割点处分割：

当前子笔画结束于切割点。

创建一个新的子笔画从切割点开始。

如果线段未被切割:

直接将整个线段添加到当前子笔画中。

2. 透明笔画模式（非LINE，使用Path）

逻辑与不透明模式类似，但使用Path和二次贝塞尔曲线（quadTo）来构建平滑的笔迹。

同样在切割点处分割Path，并创建新的子笔画。

阶段二：将分割后的笔画重新插入原列表

反向遍历mCutList（从最后处理的笔画开始）。

将分割后产生的子笔画列表（mCutPaintList）插入回原笔画列表（mPaintedList）的原始位置（mCutList.get(i).id）。

为撤销功能记录这些操作（添加到mCancelList）。

清空临时切割列表mCutList。

阶段三：清理被标记为切割的原始笔画

反向遍历当前所有笔画。

找到所有仍被标记为“切割”的原始笔画（这些是刚刚被分割处理的原始笔画）。

将它们从mPaintedList中移除，并添加到撤销列表中。

阶段四：处理当前正在绘制的笔画

如果存在正在绘制的笔画（Paints[0]），将其完成并添加到笔画列表中。

绘制到缓存画布上。

重置路径和笔画变量，为下一次绘制做准备。

五、电子笔笔帽擦除

通过判断是否为MotionEvent.TOOL_TYPE_ERASER，不同的的厂商电子笔的数据有所不同，但是使用方式大差不差。当识别到时，更改为上面的介绍的几种橡皮擦即可。

int toolType = event.getToolType(0);
if(toolType == MotionEvent.TOOL_TYPE_ERASER){
//实现逻辑
}
