uos（类linux）系统 打印机自定义打印尺寸

news 2025/8/21 13:43:37

前因：

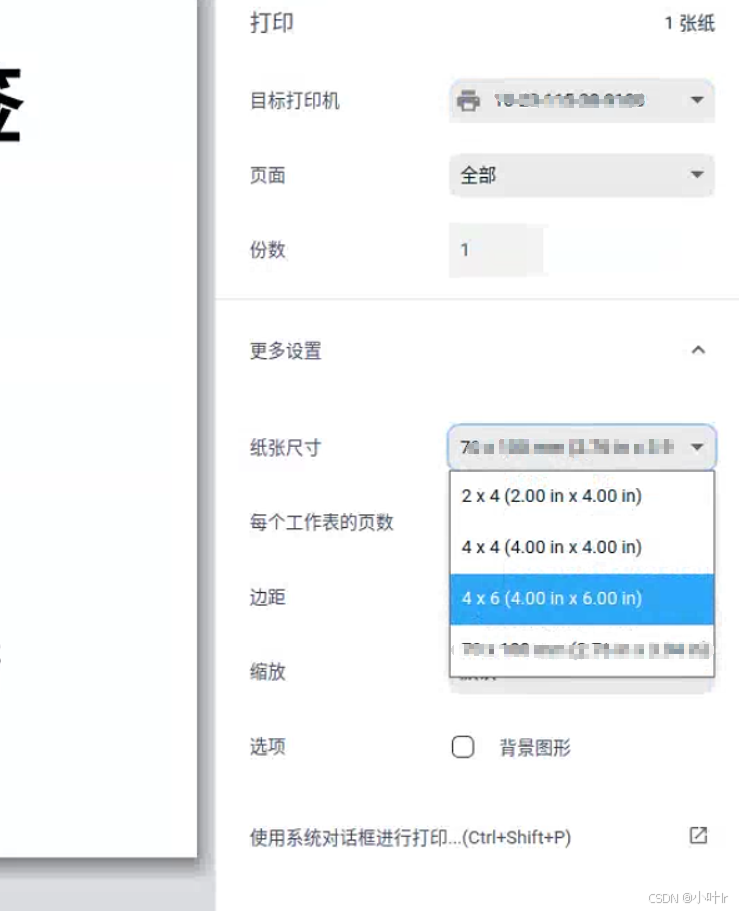

最近由于需求，客户的系统由windows系统换成了国产UOS系统，但是浏览器调取打印尺寸只有默认的的几种，如下：

在这里插入图片描述

问题：

这三种尺寸，都和打印的纸张不匹配，我们需要自定义的100mm×70mm的尺寸。

解决：

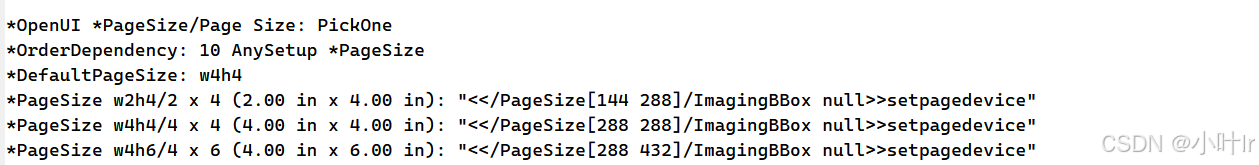

通过pdd文件添加打印机，同时修改对应打印机型号pdd文件参数，文件位于（ /etc/cups/ppd路径下）：
在这里插入图片描述
此文件默认就只给了三种尺寸，所以在浏览器调取打印时也只显示这这三种，在此配置文件添加一种想要自定义的尺寸

修改：

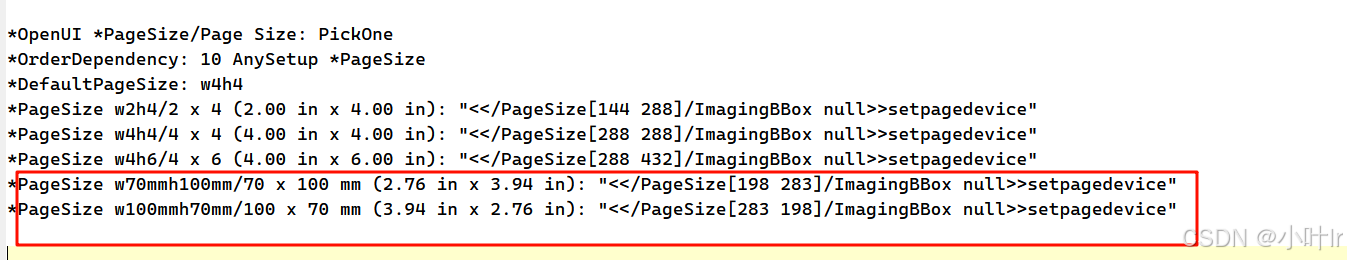

我这里加了两种尺寸，70×100的和100×70的
在这里插入图片描述
要在此文件添加五处新增的自定义参数。

最后加载此pdd文件，添加打印机，浏览器调取打印就会出现我们自定义的纸张参数。

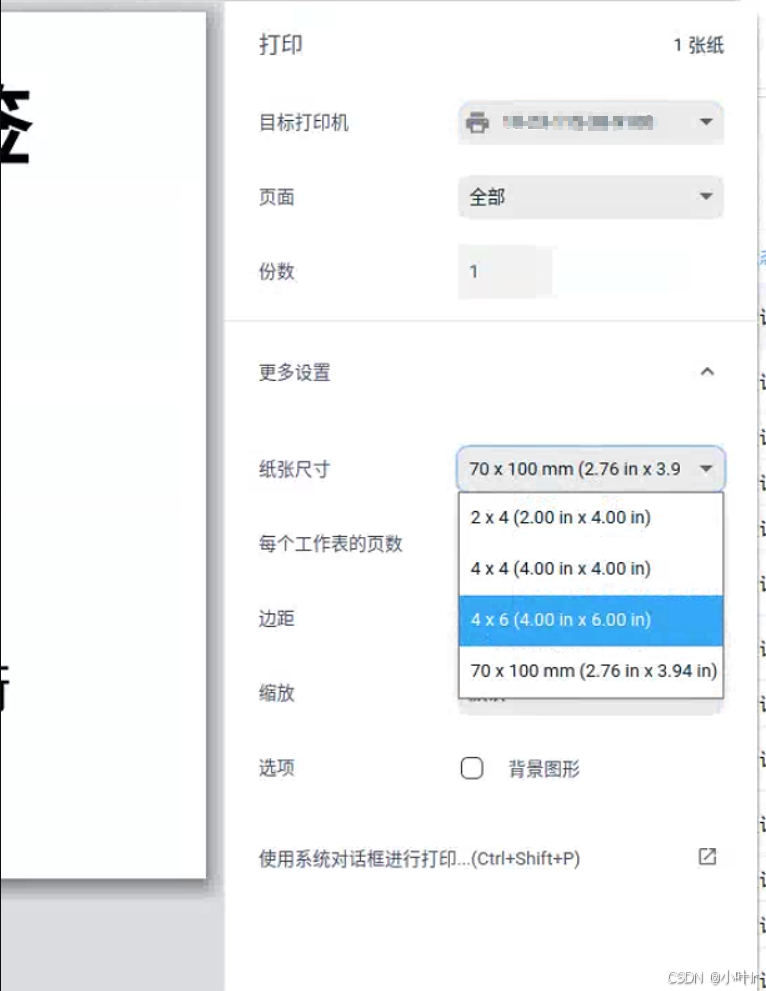

可见多了一种70×100的（下面还有一个没截）。
![在这里插入图片描述](https://i-blog.csdnimg.cn/direct/05fdee38da034aa1a4331472359b612c.png

此博客思路参考了：打印机自定义尺寸
附带 TSC-TTP244-Pro的pdd修改后文件内容：

*PPD-Adobe: "4.3"
*%
*% Create By CommUnit 2017/04/05 11:13
*%
*FormatVersion: "4.3"
*FileVersion: "1.0"
*LanguageVersion: English
*LanguageEncoding: ISOLatin1
*PCFileName: "TTP-244Pro.ppd"
*Manufacturer: "TSC"
*Product: "(TTP-244 Pro)"
*ModelName: "TSC TTP-244 Pro"
*ShortNickName: "TSC TTP-244 Pro"
*NickName: "TSC TTP-244 Pro"
*PSVersion: "(3010.000) 550"
*PSVersion: "(3010.000) 651"
*PSVersion: "(3010.000) 652"
*PSVersion: "(3010.000) 653"
*PSVersion: "(3010.000) 704"
*PSVersion: "(3010.000) 705"
*PSVersion: "(3010.000) 800"
*LanguageLevel: "3"
*ColorDevice: False
*DefaultColorSpace: Gray
*FileSystem: False
*Throughput: "1"
*LandscapeOrientation: Plus90
*TTRasterizer: Type42
*cupsVersion: 1.2
*cupsManualCopies: False
*cupsFilter: "application/vnd.cups-raster 0 rastertobarcodetspl"
*cupsLanguages: "en zh_CN zh_TW"*TscAttr tscLanguage: TSPL2
*TscAttr tscUtility: BarCodeUtility
*TscAttr MaxPaperWidth: 334.49*MaxMediaWidth: "306.14"
*MaxMediaHeight: "2880"
*HWMargins: 0.00 0.00 0.00 0.00
*CustomPageSize True: "pop pop pop <</PageSize[5 -2 roll]/ImagingBBox null>>setpagedevice"
*ParamCustomPageSize Width: 1 points 14.17 306.14
*ParamCustomPageSize Height: 2 points 14.17 2880
*ParamCustomPageSize WidthOffset: 3 points 0 0
*ParamCustomPageSize HeightOffset: 4 points 0 0
*ParamCustomPageSize Orientation: 5 int 0 0
*RequiresPageRegion All: True*OpenGroup: General/General*OpenUI *PageSize/Page Size: PickOne
*OrderDependency: 10 AnySetup *PageSize
*DefaultPageSize: w4h4
*PageSize w2h4/2 x 4 (2.00 in x 4.00 in): "<</PageSize[144 288]/ImagingBBox null>>setpagedevice"
*PageSize w4h4/4 x 4 (4.00 in x 4.00 in): "<</PageSize[288 288]/ImagingBBox null>>setpagedevice"
*PageSize w4h6/4 x 6 (4.00 in x 6.00 in): "<</PageSize[288 432]/ImagingBBox null>>setpagedevice"
*PageSize w70mmh100mm/70 x 100 mm (2.76 in x 3.94 in): "<</PageSize[198 283]/ImagingBBox null>>setpagedevice"
*PageSize w100mmh70mm/100 x 70 mm (3.94 in x 2.76 in): "<</PageSize[283 198]/ImagingBBox null>>setpagedevice"*CloseUI: *PageSize*OpenUI *PageRegion/Page Size: PickOne
*OrderDependency: 10 AnySetup *PageRegion
*DefaultPageRegion: w4h4
*PageRegion w2h4/2 x 4 (2.00 in x 4.00 in): "<</PageSize[144 288]/ImagingBBox null>>setpagedevice"
*PageRegion w4h4/4 x 4 (4.00 in x 4.00 in): "<</PageSize[288 288]/ImagingBBox null>>setpagedevice"
*PageRegion w4h6/4 x 6 (4.00 in x 6.00 in): "<</PageSize[288 432]/ImagingBBox null>>setpagedevice"
*PageRegion w70mmh100mm/70 x 100 mm (2.76 in x 3.94 in): "<</PageSize[198 283]/ImagingBBox null>>setpagedevice"
*PageRegion w100mmh70mm/100 x 70 mm (3.94 in x 2.76 in): "<</PageSize[283 198]/ImagingBBox null>>setpagedevice"*CloseUI: *PageRegion*ImageableArea w2h4/2 x 4 (2.00 in x 4.00 in): "0 0 144 288"
*ImageableArea w4h4/4 x 4 (4.00 in x 4.00 in): "0 0 288 288"
*ImageableArea w4h6/4 x 6 (4.00 in x 6.00 in): "0 0 288 432"
*ImageableArea w70mmh100mm/70 x 100 mm (2.76 in x 3.94 in): "0 0 198 283"
*ImageableArea w100mmh70mm/100 x 70 mm (3.94 in x 2.76 in): "0 0 283 198"*PaperDimension w2h4/2 x 4 (2.00 in x 4.00 in): "144 288"
*PaperDimension w4h4/4 x 4 (4.00 in x 4.00 in): "288 288"
*PaperDimension w4h6/4 x 6 (4.00 in x 6.00 in): "288 432"
*PaperDimension w70mmh100mm/70 x 100 mm (2.76 in x 3.94 in): "198 283"
*PaperDimension w100mmh70mm/100 x 70 mm (3.94 in x 2.76 in): "283 198"*OpenUI *Resolution/Resolution: PickOne
*OrderDependency: 300 AnySetup *Resolution
*DefaultResolution: 203dpi
*Resolution 203dpi/203 dpi x 203 dpi: "<</HWResolution[203 203]/cupsBitsPerColor 1/cupsRowCount 8/cupsRowFeed 0/cupsRowStep 0/cupsColorSpace 3>>setpagedevice"
*CloseUI: *Resolution*OpenUI *Collate/Collate: Boolean
*OrderDependency: 200 AnySetup *Collate
*DefaultCollate: True
*Collate True/Yes: "%%"
*Collate False/No: "%%"
*CloseUI: *Collate*CloseGroup: General*OpenGroup: Media/Media Setting*OpenUI *MediaMethod/Method: PickOne
*OrderDependency: 110 AnySetup *MediaMethod
*DefaultMediaMethod: Normal
*MediaMethod Normal/Use Currently Printer Setting: "%%"
*MediaMethod Direct/Direct Thermal: "%%"
*MediaMethod Transfer/Thermal Transfer: "%%"
*CloseUI: *MediaMethod*OpenUI *PaperType/Type: PickOne
*OrderDependency: 120 AnySetup *PaperType
*DefaultPaperType: LabelGaps
*PaperType LabelGaps/Label with Gaps: "%%"
*PaperType LabelMark/Label with Mark: "%%"
*PaperType Continue/Continue: "%%"
*CloseUI: *PaperType*OpenUI *PostAction/Post-Print Action: PickOne
*OrderDependency: 130 AnySetup *PostAction
*DefaultPostAction: None
*PostAction None/None: "%%"
*PostAction TearOff/Tear Off: "%%"
*PostAction PeelOff/Peel Off: "%%"
*PostAction Cut/Cut: "%%"
*PostAction PartialCut/Partial Cut: "%%"
*CloseUI: *PostAction*OpenUI *Occurrence/Occurrence: PickOne
*OrderDependency: 140 AnySetup *Occurrence
*DefaultOccurrence: Job
*Occurrence Every/After Every Page: "%%"
*Occurrence Copies/After Identical Copies: "%%"
*Occurrence Job/After Job: "%%"
*Occurrence Specified/After Specified interval: "%%"
*CloseUI: *Occurrence*CloseGroup: Media*OpenGroup: Effects/Effects*OpenUI *MirrorImage/Mirror Image: Boolean
*OrderDependency: 200 AnySetup *MirrorImage
*DefaultMirrorImage: False
*MirrorImage True/Yes: "%%"
*MirrorImage False/No: "%%"
*CloseUI: *MirrorImage*OpenUI *NegativeImage/Negative Image: Boolean
*OrderDependency: 210 AnySetup *NegativeImage
*DefaultNegativeImage: False
*NegativeImage True/Yes: "%%"
*NegativeImage False/No: "%%"
*CloseUI: *NegativeImage*CloseGroup: Effects*OpenGroup: PrinterOptions/Printer Options*OpenUI *PrintSpeed/Print Speed: PickOne
*OrderDependency: 110 AnySetup *PrintSpeed
*DefaultPrintSpeed: 30
*PrintSpeed 20/2.00 in/sec: "%%"
*PrintSpeed 30/3.00 in/sec: "%%"
*PrintSpeed 40/4.00 in/sec: "%%"
*PrintSpeed 50/5.00 in/sec: "%%"
*CloseUI: *PrintSpeed*OpenUI *Darkness/Darkness: PickOne
*OrderDependency: 120 AnySetup *Darkness
*DefaultDarkness: 7
*Darkness 0: "%%"
*Darkness 1: "%%"
*Darkness 2: "%%"
*Darkness 3: "%%"
*Darkness 4: "%%"
*Darkness 5: "%%"
*Darkness 6: "%%"
*Darkness 7: "%%"
*Darkness 8: "%%"
*Darkness 9: "%%"
*Darkness 10: "%%"
*Darkness 11: "%%"
*Darkness 12: "%%"
*Darkness 13: "%%"
*Darkness 14: "%%"
*Darkness 15: "%%"
*CloseUI: *Darkness*CloseGroup: PrinterOptions*OpenGroup: GraphicsFormat/Graphics Format*OpenUI *DirectBuffer/Direct to Buffer: PickOne
*OrderDependency: 210 AnySetup *DirectBuffer
*DefaultDirectBuffer: AUTO
*DirectBuffer AUTO/Automatic: "%%"
*CloseUI: *DirectBuffer*OpenUI *StoredGraphics/Stored Graphics: PickOne
*OrderDependency: 220 AnySetup *StoredGraphics
*DefaultStoredGraphics: AUTO
*StoredGraphics AUTO/Automatic: "%%"
*CloseUI: *StoredGraphics*CloseGroup: GraphicsFormat*OpenGroup: InstallableOptions*OpenUI *OptionDisplayUnit/Measurement Units: PickOne
*DefaultOptionDisplayUnit: AUTO
*OptionDisplayUnit AUTO/Automatic: "%%"
*OptionDisplayUnit MM/mm: "%%"
*OptionDisplayUnit Inch/Inch: "%%"
*CloseUI: *OptionDisplayUnit*CloseGroup: InstallableOptions*zh_CN.Translation General/基本功能: ""
*zh_CN.Translation PageSize/纸张大小: ""
*zh_CN.PageSize w2h4/2 x 4 (50.8 mm x 101.6 mm): ""
*zh_CN.PageSize w4h4/4 x 4 (101.6 mm x 101.6 mm): ""
*zh_CN.PageSize w4h6/4 x 6 (101.6 mm x 152.4 mm): ""
*zh_CN.PageSize w70mmh100mm/70 x 100 mm (70.0 mm x 100.0 mm): ""
*zh_CN.PageSize w100mmh70mm/100 x 70 mm (100.0 mm x 70.0 mm): ""*zh_CN.Translation Resolution/分辨率: ""
*zh_CN.Resolution 203dpi/8.0 每毫米点数 x 8.0 每毫米点数: ""
*zh_CN.Collate True/是: ""
*zh_CN.Collate False/否: ""
*zh_CN.Translation Media/纸张设置: ""
*zh_CN.Translation MediaMethod/方式: ""
*zh_CN.MediaMethod Normal/使用当前打印机设置: ""
*zh_CN.MediaMethod Direct/热敏: ""
*zh_CN.MediaMethod Transfer/热转印: ""
*zh_CN.Translation PaperType/类型: ""
*zh_CN.PaperType LabelGaps/有间距的标签: ""
*zh_CN.PaperType LabelMark/有标记的标签: ""
*zh_CN.PaperType Continue/继续: ""
*zh_CN.Translation PostAction/打印后操作: ""
*zh_CN.PostAction None/无: ""
*zh_CN.PostAction TearOff/撕去: ""
*zh_CN.PostAction PeelOff/剥去: ""
*zh_CN.PostAction Cut/裁切: ""
*zh_CN.PostAction PartialCut/部分剪切: ""
*zh_CN.Translation Occurrence/发生: ""
*zh_CN.Occurrence Every/每张打印后: ""
*zh_CN.Occurrence Copies/打印相同内容后: ""
*zh_CN.Occurrence Job/打印完后: ""
*zh_CN.Occurrence Specified/指定的间隔之后: ""
*zh_CN.Translation Effects/效果: ""
*zh_CN.Translation MirrorImage/镜像: ""
*zh_CN.MirrorImage True/是: ""
*zh_CN.MirrorImage False/否: ""
*zh_CN.Translation NegativeImage/负片图像: ""
*zh_CN.NegativeImage True/是: ""
*zh_CN.NegativeImage False/否: ""
*zh_CN.Translation PrinterOptions/打印机选项: ""
*zh_CN.Translation PrintSpeed/打印速度: ""
*zh_CN.PrintSpeed 20/50.80 mm/秒: ""
*zh_CN.PrintSpeed 30/76.20 mm/秒: ""
*zh_CN.PrintSpeed 40/101.60 mm/秒: ""
*zh_CN.PrintSpeed 50/127.00 mm/秒: ""
*zh_CN.Translation Darkness/深度: ""
*zh_CN.Translation GraphicsFormat/图像格式: ""
*zh_CN.Translation DirectBuffer/指向缓冲器: ""
*zh_CN.DirectBuffer AUTO/自动: ""
*zh_CN.Translation StoredGraphics/存储的图像: ""
*zh_CN.StoredGraphics AUTO/自动: ""
*zh_CN.Translation OptionDisplayUnit/度量单位: ""
*zh_CN.OptionDisplayUnit AUTO/自动: ""
*zh_CN.OptionDisplayUnit MM/毫米: ""
*zh_CN.OptionDisplayUnit Inch/英寸: ""*zh_TW.Translation General/基本設定: ""
*zh_TW.Translation PageSize/纸张大小: ""
*zh_TW.PageSize w2h4/2 x 4 (50.8 mm x 101.6 mm): ""
*zh_TW.PageSize w4h4/4 x 4 (101.6 mm x 101.6 mm): ""
*zh_TW.PageSize w4h6/4 x 6 (101.6 mm x 152.4 mm): ""
*zh_TW.PageSize w70mmh100mm/70 x 100 mm (70.0 mm x 100.0 mm): ""
*zh_TW.PageSize w100mmh70mm/100 x 70 mm (100.0 mm x 70.0 mm): ""*zh_TW.Translation Resolution/解析度: ""
*zh_TW.Resolution 203dpi/8.0 每毫米點數 x 8.0 每毫米點數: ""
*zh_TW.Translation Media/紙張設定: ""
*zh_TW.Translation MediaMethod/方式: ""
*zh_TW.MediaMethod Normal/使用目前印表機設定: ""
*zh_TW.MediaMethod Direct/直接感熱: ""
*zh_TW.MediaMethod Transfer/感熱轉印: ""
*zh_TW.Translation PaperType/類型: ""
*zh_TW.PaperType LabelGaps/間隔式標籤: ""
*zh_TW.PaperType LabelMark/黑標式標籤: ""
*zh_TW.PaperType Continue/連續的: ""
*zh_TW.Translation PostAction/列印後動作: ""
*zh_TW.PostAction None/無: ""
*zh_TW.PostAction TearOff/撕開: ""
*zh_TW.PostAction PeelOff/剝落: ""
*zh_TW.PostAction Cut/裁切: ""
*zh_TW.PostAction PartialCut/部分裁切: ""
*zh_TW.Translation Occurrence/發生: ""
*zh_TW.Occurrence Every/每張列印後: ""
*zh_TW.Occurrence Copies/相同内容列印後: ""
*zh_TW.Occurrence Job/列印完後: ""
*zh_TW.Occurrence Specified/所指定的間隔之後: ""
*zh_TW.Translation Effects/效果: ""
*zh_TW.Translation MirrorImage/鏡映影像: ""
*zh_TW.Translation NegativeImage/反白: ""
*zh_TW.Translation PrinterOptions/印表機選項: ""
*zh_TW.Translation PrintSpeed/列印速度: ""
*zh_TW.PrintSpeed 20/50.80 mm/秒: ""
*zh_TW.PrintSpeed 30/76.20 mm/秒: ""
*zh_TW.PrintSpeed 40/101.60 mm/秒: ""
*zh_TW.PrintSpeed 50/127.00 mm/秒: ""
*zh_TW.Translation Darkness/明暗度: ""
*zh_TW.Translation GraphicsFormat/圖形格式: ""
*zh_TW.Translation DirectBuffer/指向緩衝區: ""
*zh_TW.DirectBuffer AUTO/自動: ""
*zh_TW.Translation StoredGraphics/存儲的圖形: ""
*zh_TW.StoredGraphics AUTO/自動: ""
*zh_TW.Translation OptionDisplayUnit/度量單位: ""
*zh_TW.OptionDisplayUnit AUTO/自動: ""
*zh_TW.OptionDisplayUnit MM/毫米: ""
*zh_TW.OptionDisplayUnit Inch/英寸: ""*% Generic boilerplate PPD stuff as standard PostScript fonts and so on*DefaultFont: Courier
*Font AvantGarde-Book: Standard "(001.006S)" Standard ROM
*Font AvantGarde-BookOblique: Standard "(001.006S)" Standard ROM
*Font AvantGarde-Demi: Standard "(001.007S)" Standard ROM
*Font AvantGarde-DemiOblique: Standard "(001.007S)" Standard ROM
*Font Bookman-Demi: Standard "(001.004S)" Standard ROM
*Font Bookman-DemiItalic: Standard "(001.004S)" Standard ROM
*Font Bookman-Light: Standard "(001.004S)" Standard ROM
*Font Bookman-LightItalic: Standard "(001.004S)" Standard ROM
*Font Courier: Standard "(002.004S)" Standard ROM
*Font Courier-Bold: Standard "(002.004S)" Standard ROM
*Font Courier-BoldOblique: Standard "(002.004S)" Standard ROM
*Font Courier-Oblique: Standard "(002.004S)" Standard ROM
*Font Helvetica: Standard "(001.006S)" Standard ROM
*Font Helvetica-Bold: Standard "(001.007S)" Standard ROM
*Font Helvetica-BoldOblique: Standard "(001.007S)" Standard ROM
*Font Helvetica-Narrow: Standard "(001.006S)" Standard ROM
*Font Helvetica-Narrow-Bold: Standard "(001.007S)" Standard ROM
*Font Helvetica-Narrow-BoldOblique: Standard "(001.007S)" Standard ROM
*Font Helvetica-Narrow-Oblique: Standard "(001.006S)" Standard ROM
*Font Helvetica-Oblique: Standard "(001.006S)" Standard ROM
*Font NewCenturySchlbk-Bold: Standard "(001.009S)" Standard ROM
*Font NewCenturySchlbk-BoldItalic: Standard "(001.007S)" Standard ROM
*Font NewCenturySchlbk-Italic: Standard "(001.006S)" Standard ROM
*Font NewCenturySchlbk-Roman: Standard "(001.007S)" Standard ROM
*Font Palatino-Bold: Standard "(001.005S)" Standard ROM
*Font Palatino-BoldItalic: Standard "(001.005S)" Standard ROM
*Font Palatino-Italic: Standard "(001.005S)" Standard ROM
*Font Palatino-Roman: Standard "(001.005S)" Standard ROM
*Font Symbol: Special "(001.007S)" Special ROM
*Font Times-Bold: Standard "(001.007S)" Standard ROM
*Font Times-BoldItalic: Standard "(001.009S)" Standard ROM
*Font Times-Italic: Standard "(001.007S)" Standard ROM
*Font Times-Roman: Standard "(001.007S)" Standard ROM
*Font ZapfChancery-MediumItalic: Standard "(001.007S)" Standard ROM
*Font ZapfDingbats: Special "(001.004S)" Standard ROM*%
*% End of PPD
*%
http://www.dtcms.com/a/341636.html

相关文章：

  • MySQL分库分表与MyCAT
  • open webui源码分析5-Tools
  • 基于单片机水质检测系统/污水监测系统/水情监测
  • ansible中roles角色是什么意思？
  • 详解flink table api基础(三)
  • 【网络】使用 DNAT 进行负载均衡时，若未配置配套的 SNAT，回包失败
  • 猫头虎开源AI分享｜基于大模型和RAG的一款智能text2sql问答系统：SQLBot（SQL-RAG-QABot），可以帮你用自然语言查询数据库
  • Three.js 初级教程大全
  • 分享|财务大数据实验室建设方案
  • 机器学习（Machine Learning, ML）
  • Web网站的运行原理2
  • Ubuntu实现程序开机自动运行
  • AI每日需求进度分析总结（附实战操作）
  • 云原生环境下的ITSM新趋势：从传统运维到智能化服务管理
  • 政务网站与新媒体自查情况的报告怎么写？
  • 【ssh】ssh免密登录配置【docker】
  • STM32_0001 KEILMDK V5.36 编译一个STM32F103C8T6说core_cm3.h文件找不到以及编译器版本不匹配的解决办法
  • 25_基于深度学习的行人检测识别系统（yolo11、yolov8、yolov5+UI界面+Python项目源码+模型+标注好的数据集）
  • 详解ThreadLocal＜HttpServletRequest＞ requestThreadLocal
  • Kernel Study
  • 关联规则挖掘1：Apriori算法
  • Deepresearch Agents：下一代自动研究智能体的架构革命与产业实践
  • CAMEL-Task1-CAMEL环境配置及你的第一个Agent
  • postgreSQL卸载踩坑
  • Kolors Virtual Try-On：快手可图推出的AI虚拟换衣项目
  • JAVA中向量数据库（Milvus）怎么配合大模型使用
  • 简笔成画：让AI绘画变得简单而有趣
  • pyecharts可视化图表仪表盘_Gauge：从入门到精通
  • 【Linux】重生之从零开始学习运维之LVS
  • UUID（通用唯一标识符）详解和实践
