[C#] WPF - 自定义控件（行列间距UniformGrid）

news 2025/8/19 6:13:34

一、创建

1、创建“自定义控件” SpaceUniformGrid，继承UniformGrid。

using System;
using System.Linq;
using System.Windows;
using System.Windows.Controls.Primitives;namespace WpfApp1
{internal class SpaceUniformGrid : UniformGrid{#region RowSpacepublic double RowSpace{get { return (double)GetValue(RowSpaceProperty); }set { SetValue(RowSpaceProperty, value); }}public static readonly DependencyProperty RowSpaceProperty =DependencyProperty.Register("RowSpace", typeof(double), typeof(SpaceUniformGrid), new PropertyMetadata((double)0, OnRowSpacePropertyChanged));private static void OnRowSpacePropertyChanged(DependencyObject d, DependencyPropertyChangedEventArgs e){if (d is SpaceUniformGrid sug){sug.InvalidateArrange();}}#endregion#region ColumnSpacepublic double ColumnSpace{get { return (double)GetValue(ColumnSpaceProperty); }set { SetValue(ColumnSpaceProperty, value); }}public static readonly DependencyProperty ColumnSpaceProperty =DependencyProperty.Register("ColumnSpace", typeof(double), typeof(SpaceUniformGrid), new PropertyMetadata((double)0, OnColumnSpacePropertyChanged));private static void OnColumnSpacePropertyChanged(DependencyObject d, DependencyPropertyChangedEventArgs e){if (d is SpaceUniformGrid sug){sug.InvalidateArrange();}}#endregionprotected override Size ArrangeOverride(Size arrangeSize){int columnCount = 1;if (Rows > 0){columnCount = (int)Math.Ceiling((double)Children.Count / Rows);}if (Columns > 0){columnCount = Columns;}double childWidth = (arrangeSize.Width - ColumnSpace * (columnCount - 1)) / columnCount;double childHeight = Children.Cast<UIElement>().Select(p => p.DesiredSize.Height).Max();for (int i = 0; i < Children.Count; i++){double childX = (i % columnCount) * (childWidth + ColumnSpace);double childY = (i / columnCount) * (childHeight + RowSpace);Children[i].Arrange(new Rect(childX, childY, childWidth, Children[i].DesiredSize.Height));}return arrangeSize;}}
}

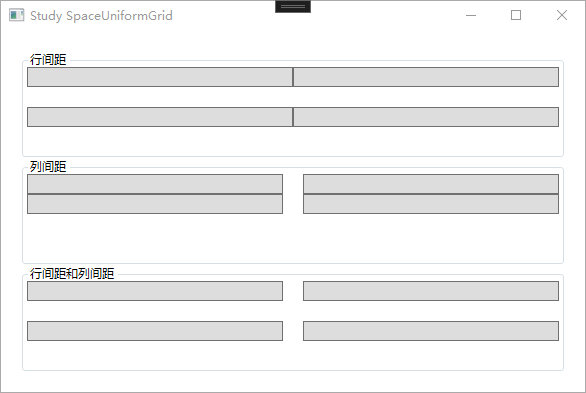

二、使用

1、MainWindow.xaml

<Windowx:Class="WpfApp1.MainWindow"xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"xmlns:d="http://schemas.microsoft.com/expression/blend/2008"xmlns:local="clr-namespace:WpfApp1"xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"Title="Study SpaceUniformGrid"Width="600"Height="400"mc:Ignorable="d"><Grid Margin="20"><Grid.RowDefinitions><RowDefinition Height="*" /><RowDefinition Height="*" /><RowDefinition Height="*" /></Grid.RowDefinitions><GroupBox Grid.Row="0" Header="行间距"><local:SpaceUniformGrid Columns="2" RowSpace="20"><Button Height="20" /><Button Height="20" /><Button Height="20" /><Button Height="20" /></local:SpaceUniformGrid></GroupBox><GroupBox Grid.Row="1" Header="列间距"><local:SpaceUniformGrid ColumnSpace="20" Rows="2"><Button Height="20" /><Button Height="20" /><Button Height="20" /><Button Height="20" /></local:SpaceUniformGrid></GroupBox><GroupBox Grid.Row="2" Header="行间距和列间距"><local:SpaceUniformGridColumnSpace="20"Columns="2"RowSpace="20"><Button Height="20" /><Button Height="20" /><Button Height="20" /><Button Height="20" /></local:SpaceUniformGrid></GroupBox></Grid>
</Window>
