【Mysql】重生之从零开始学习运维之proxysql读写分离

ProxySQL安装

配置软件源

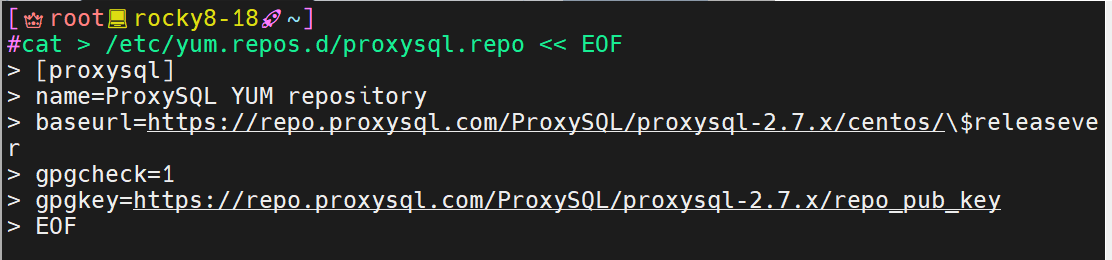

cat > /etc/yum.repos.d/proxysql.repo << EOF
[proxysql]
name=ProxySQL YUM repository
baseurl=https://repo.proxysql.com/ProxySQL/proxysql-2.7.x/centos/\$releasever
gpgcheck=1
gpgkey=https://repo.proxysql.com/ProxySQL/proxysql-2.7.x/repo_pub_key
EOF

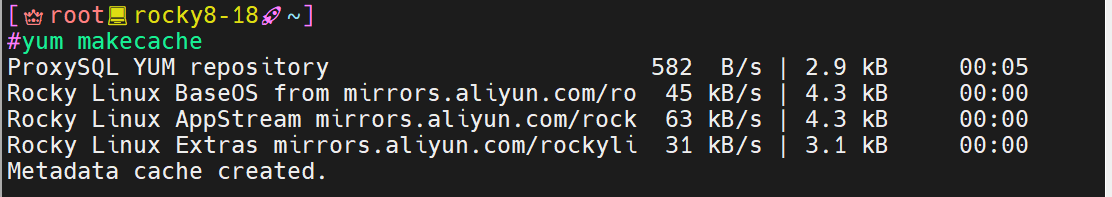

yum makecache

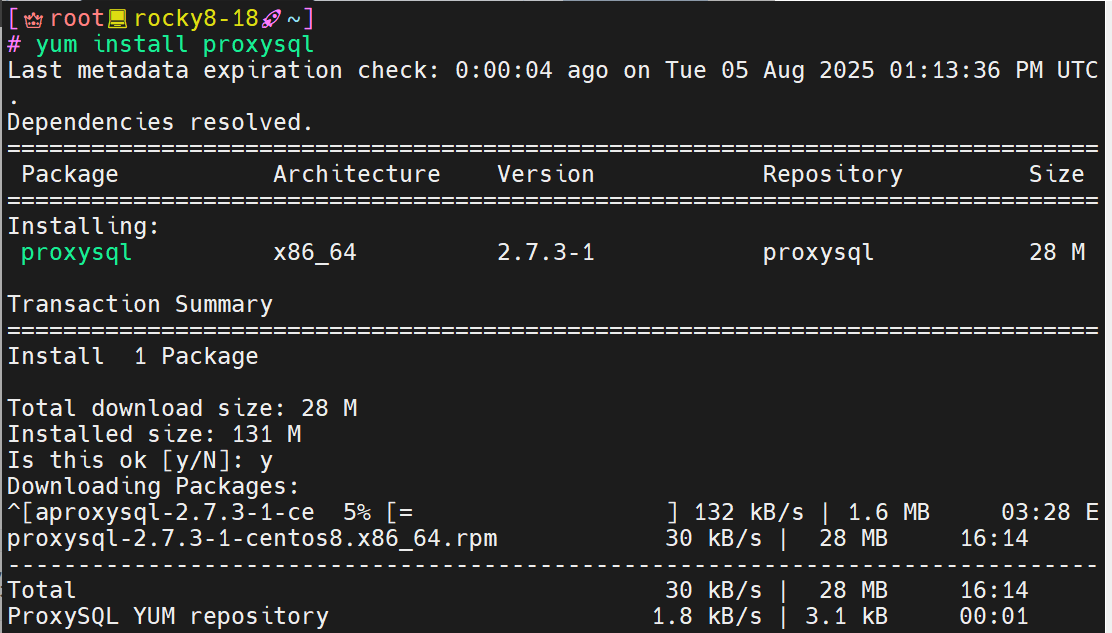

安装软件

yum install proxysql

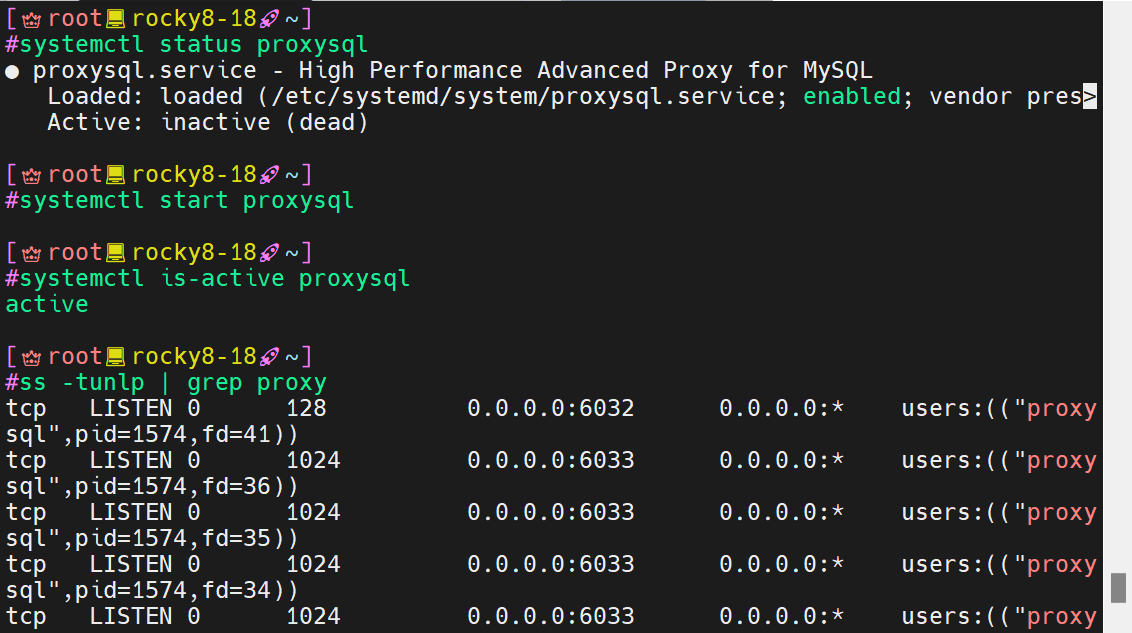

启动服务

systemctl status proxysql
systemctl start proxysql
systemctl is-active proxysql
ss -tunlp | grep proxy

登录

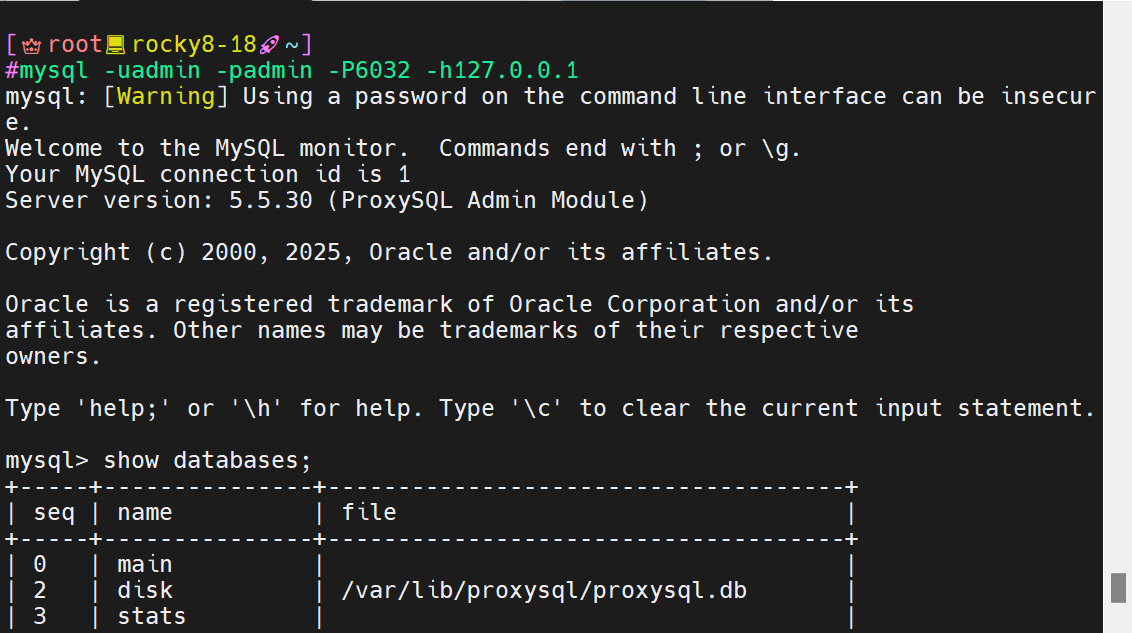

mysql -uadmin -padmin -P6032 -h127.0.0.1

ProxySQL配置

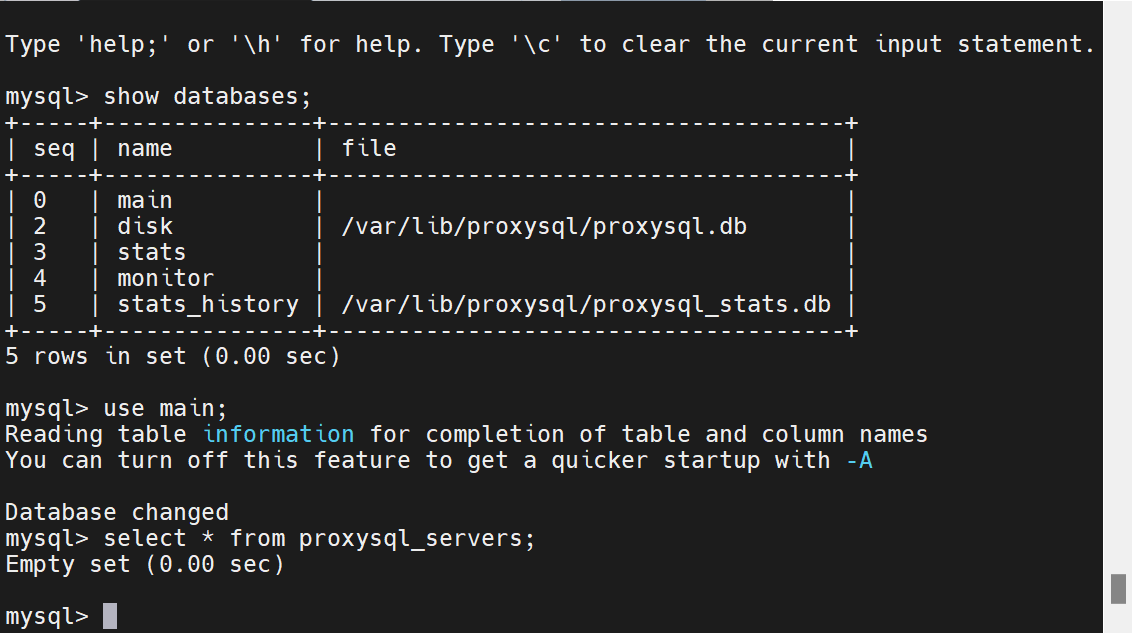

查看配置

show databases;
use main;
select * from proxysql_servers;

配置后端节点

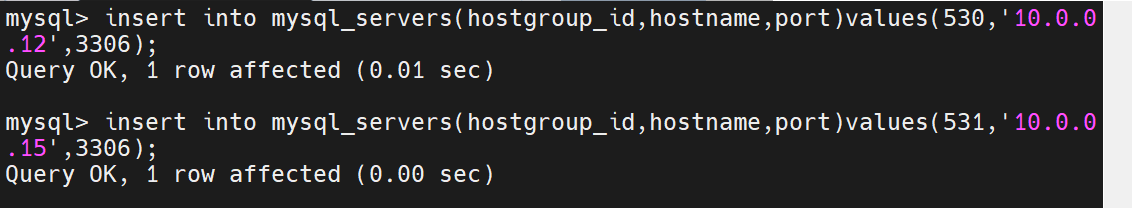

insert into mysql_servers(hostgroup_id,hostname,port)values(530,'10.0.0.12',3306);
insert into mysql_servers(hostgroup_id,hostname,port)values(531,'10.0.0.15',3306);

保存配置

加载到RUNTIME

load mysql servers to runtime;

保存硬盘

save mysql servers to disk;

master主节点

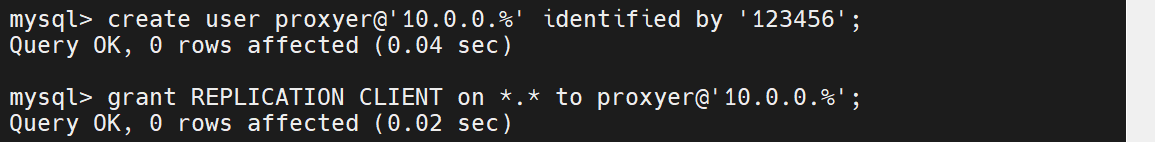

创建用户并授权

create user proxyer@'10.0.0.%' identified by '123456';
grant REPLICATION CLIENT on *.* to proxyer@'10.0.0.%';

ProxySQL配置

修改配置

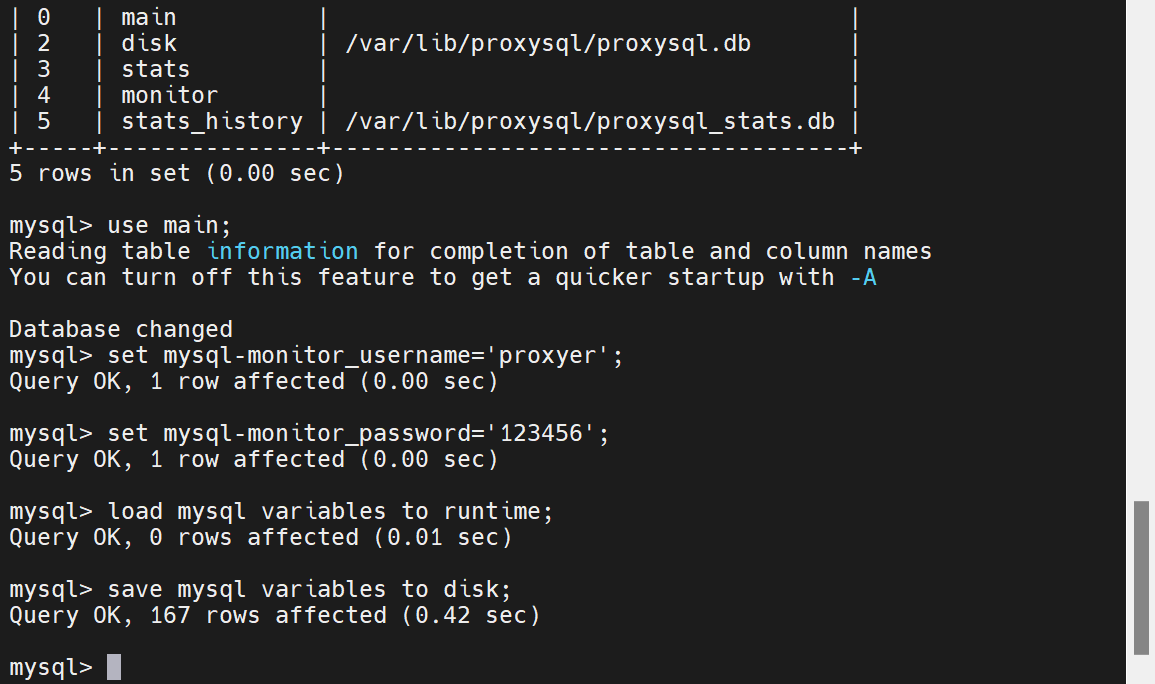

set mysql-monitor_username='proxyer';
set mysql-monitor_password='123456';
load mysql variables to runtime;
save mysql variables to disk;

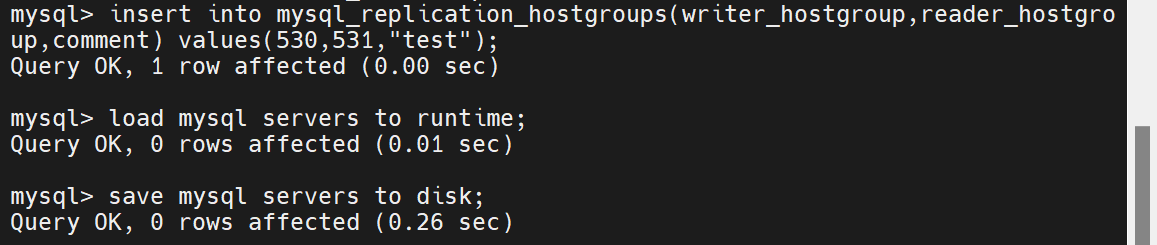

insert into mysql_replication_hostgroups(writer_hostgroup,reader_hostgroup,comment) values(530,531,"test");
load mysql servers to runtime;
save mysql servers to disk;

查看节点

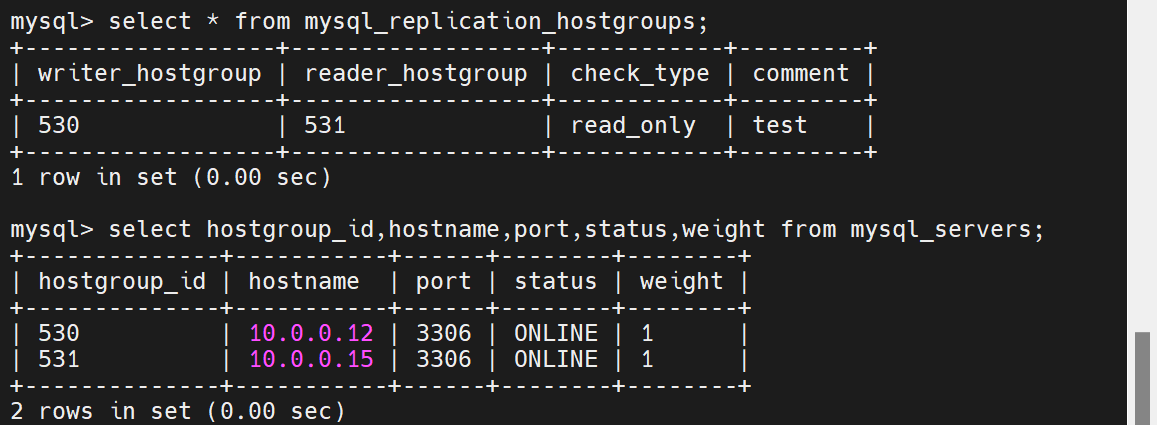

select * from mysql_replication_hostgroups;
select hostgroup_id,hostname,port,status,weight from mysql_servers;

master节点配置

MySQL 配置

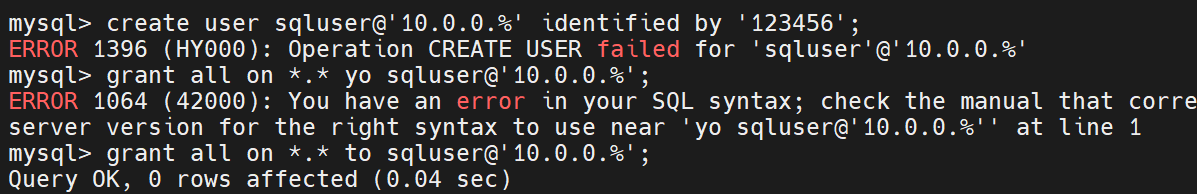

create user sqluser@'10.0.0.%' identified by '123456'; 之前加过了
grant all on *.* to sqluser@'10.0.0.%';

ProxySQL配置

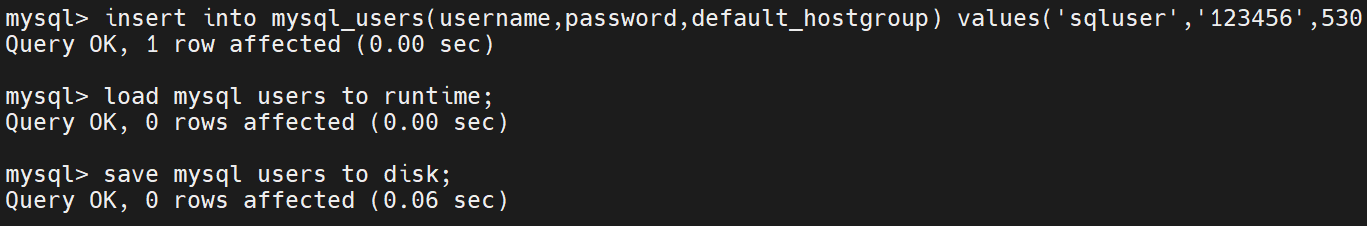

用户sqluser添加到表

insert into mysql_users(username,password,default_hostgroup) values('sqluser','123456',530);
load mysql users to runtime;
save mysql users to disk;

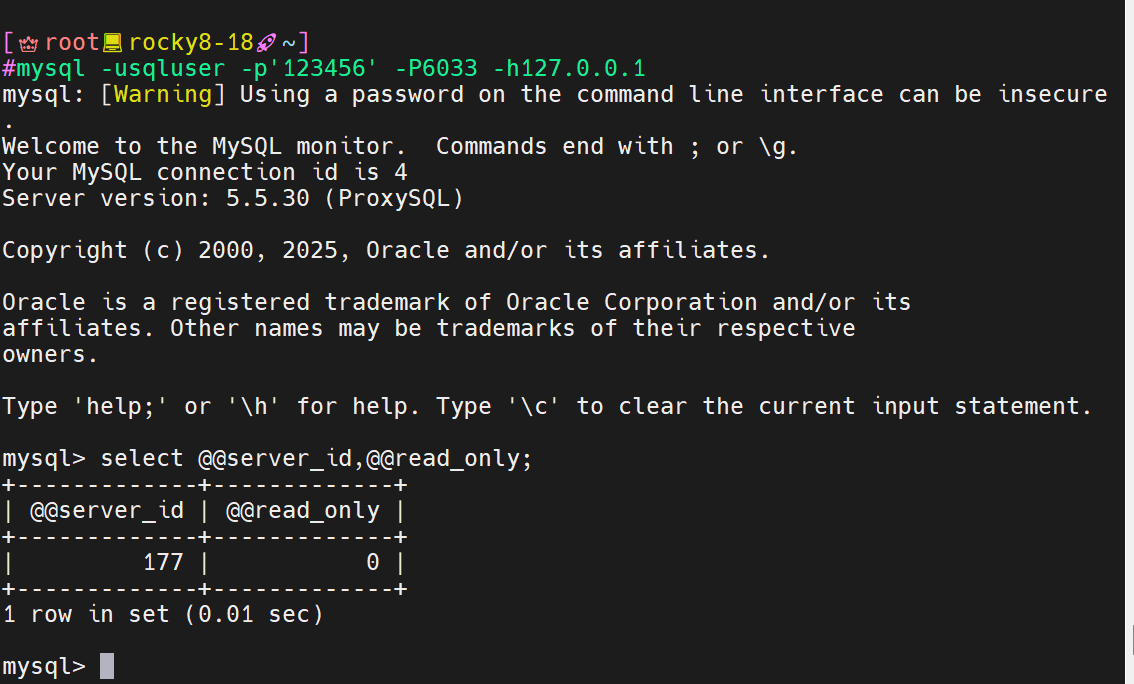

Prosql连接到master节点

mysql -usqluser -p'123456' -P6033 -h127.0.0.1
select @@server_id,@@read_only;

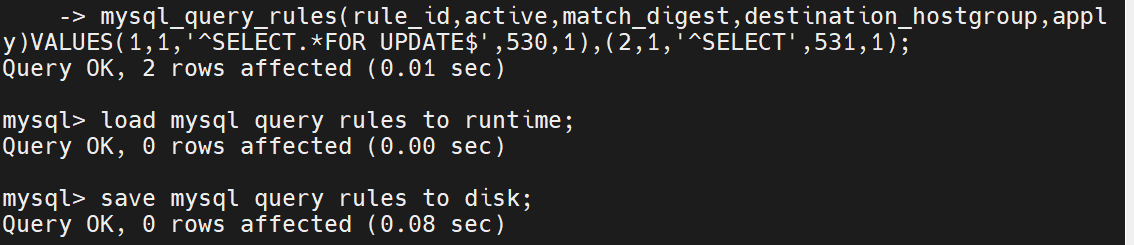

配置读写分离

insert into mysql_query_rules(rule_id,active,match_digest,destination_hostgroup,apply)VALUES(1,1,'^SELECT.*FOR UPDATE$',530,1),(2,1,'^SELECT',531,1);
load mysql query rules to runtime;
save mysql query rules to disk;

查看读写分离

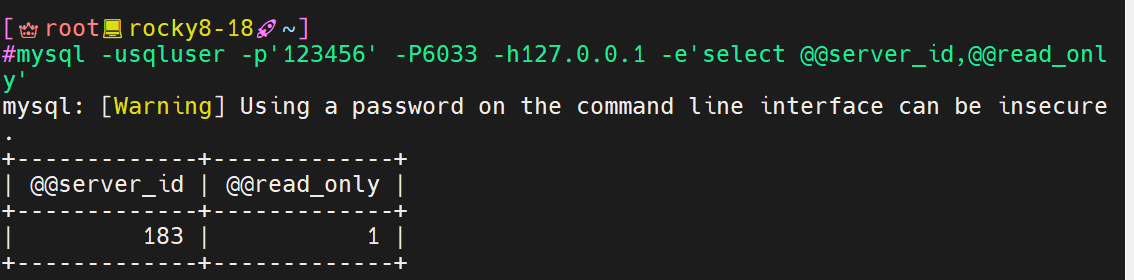

mysql -usqluser -p'123456' -P6033 -h127.0.0.1 -e'select @@server_id,@@read_only'

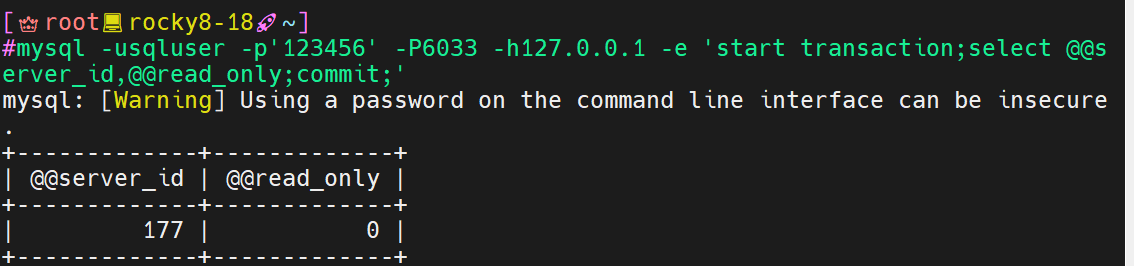

mysql -usqluser -p'123456' -P6033 -h127.0.0.1 -e 'start transaction;select @@server_id,@@read_only;commit;'
