图片处理工具类：基于 Thumbnailator 的便捷解决方案

---

前言

在现代应用开发中，高效、可靠的图片处理能力是提升用户体验的关键环节。本文介绍的图片处理工具类基于 Thumbnailator 和 Java2D 技术栈，提供了从图片压缩、尺寸调整到水印添加的一站式解决方案。通过简洁的API设计和严谨的资源管理，开发者可以轻松实现各种图片处理需求，避免重复造轮子，提高开发效率。

一、依赖坐标

核心依赖

		<!--图片处理——thumbnailator--><dependency><groupId>net.coobird</groupId><artifactId>thumbnailator</artifactId><version>0.4.8</version></dependency>

依赖说明

依赖	功能	版本要求
thumbnailator	提供图片缩放、旋转等基础功能	≥0.4.8
Java2D API	实现水印、画布操作等高级功能	JDK

二、工具类：ImageUtil

方法介绍

函数名	参数	功能	技术实现
compressImage	file (图片文件), outputFormat (输出格式)	按默认比例（0.5）压缩图片	Thumbnails.scale()，自适应JPEG/PNG质量
batchCompressImages	files (图片数组), outputFormat (输出格式)	批量压缩多张图片	循环调用compressImage
resize	file (图片文件), scaleRatio (缩放比例), outputFormat (输出格式)	按比例缩放（保持宽高比）	Thumbnails.scale()，比例钳制（0.01-10）
resizeToDimension	file (图片文件), width (目标宽度), height (目标高度), outputFormat (输出格式)	缩放到指定尺寸（可能变形）	Thumbnails.size()
rotate	file (图片文件), degrees (旋转角度), outputFormat (输出格式)	旋转任意角度	Thumbnails.rotate()
addTextWatermark	file (图片文件), watermarkText (水印文字), font (字体), color (颜色), position (位置), opacity (透明度), outputFormat (输出格式)	添加自定义文字水印	BufferedImage + Graphics2D，抗锯齿渲染

完整代码

import net.coobird.thumbnailator.Thumbnails;
import net.coobird.thumbnailator.geometry.Positions;
import org.springframework.web.multipart.MultipartFile;
import javax.imageio.ImageIO;
import java.awt.*;
import java.awt.image.BufferedImage;
import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.io.InputStream;/*** 图片处理工具类（压缩、缩放、旋转、加水印）* 基于 Thumbnailator + Java2D，线程安全，资源安全*/
public class ImageUtil {// 默认参数private static final float DEFAULT_SCALE_RATIO = 0.5f;private static final int DEFAULT_JPEG_QUALITY = 85; // 1-100private static final Font DEFAULT_FONT = new Font("微软雅黑", Font.BOLD, 24);private static final Color DEFAULT_COLOR = Color.WHITE;private static final float DEFAULT_OPACITY = 0.8f;/*** 压缩图片（默认比例 0.5，JPEG 质量 85）** @param file         上传文件* @param outputFormat 输出格式：JPEG/PNG* @return 压缩后的字节数组* @throws IOException 处理失败*/public static byte[] compressImage(MultipartFile file, String outputFormat) throws IOException {return resize(file, DEFAULT_SCALE_RATIO, outputFormat);}/*** 批量压缩图片** @param files        文件数组* @param outputFormat 输出格式* @return 每个文件压缩后的字节数组* @throws IOException 任一文件失败则抛出*/public static byte[][] batchCompressImages(MultipartFile[] files, String outputFormat) throws IOException {byte[][] results = new byte[files.length][];for (int i = 0; i < files.length; i++) {results[i] = compressImage(files[i], outputFormat);}return results;}/*** 按比例缩放图片（保持宽高比）** @param file         原图* @param scaleRatio   缩放比例 (0.01 ~ 10]* @param outputFormat 输出格式* @return 缩放后图片数据* @throws IOException 处理失败*/public static byte[] resize(MultipartFile file, float scaleRatio, String outputFormat) throws IOException {validateFile(file);validateScaleRatio(scaleRatio);String format = validateFormat(outputFormat);try (InputStream in = file.getInputStream()) {ByteArrayOutputStream out = new ByteArrayOutputStream();Thumbnails.of(in).scale(clamp(scaleRatio, 0.01f, 10.0f)).outputFormat(format).outputQuality(getQuality(format)).toOutputStream(out);return out.toByteArray();}}/*** 按指定宽高缩放（可能变形）** @param file         原图* @param width        目标宽度 > 0* @param height       目标高度 > 0* @param outputFormat 输出格式* @return 缩放后数据* @throws IOException 处理失败*/public static byte[] resizeToDimension(MultipartFile file, int width, int height, String outputFormat) throws IOException {validateFile(file);if (width <= 0 || height <= 0) {throw new IllegalArgumentException("宽高必须大于 0");}String format = validateFormat(outputFormat);try (InputStream in = file.getInputStream()) {ByteArrayOutputStream out = new ByteArrayOutputStream();Thumbnails.of(in).size(width, height).outputFormat(format).outputQuality(getQuality(format)).toOutputStream(out);return out.toByteArray();}}/*** 旋转图片** @param file         原图* @param degrees      角度：90, 180, 270（支持负数）* @param outputFormat 输出格式* @return 旋转后数据* @throws IOException 处理失败*/public static byte[] rotate(MultipartFile file, int degrees, String outputFormat) throws IOException {validateFile(file);String format = validateFormat(outputFormat);try (InputStream in = file.getInputStream()) {ByteArrayOutputStream out = new ByteArrayOutputStream();Thumbnails.of(in).scale(1.0).rotate(degrees).outputFormat(format).toOutputStream(out);return out.toByteArray();}}/*** 添加文字水印** @param file          原图* @param watermarkText 水印文字* @param font          字体（null 则用默认）* @param color         颜色（null 则白色）* @param position      位置（如 BOTTOM_RIGHT）* @param opacity       透明度 [0.0 ~ 1.0]* @param outputFormat  输出格式* @return 加水印后图片数据* @throws IOException 处理失败*/public static byte[] addTextWatermark(MultipartFile file, String watermarkText, Font font,Color color, Positions position, float opacity,String outputFormat) throws IOException {validateFile(file);if (watermarkText == null || watermarkText.trim().isEmpty()) {throw new IllegalArgumentException("水印文字不能为空");}String format = validateFormat(outputFormat);font = (font != null) ? font : DEFAULT_FONT;color = (color != null) ? color : DEFAULT_COLOR;opacity = clamp(opacity, 0.0f, 1.0f);position = (position != null) ? position : Positions.BOTTOM_RIGHT;BufferedImage originalImage;try (InputStream in = file.getInputStream()) {originalImage = ImageIO.read(in);if (originalImage == null) {throw new IOException("无法识别的图片格式，请上传有效的图片文件。");}}BufferedImage watermarked = new BufferedImage(originalImage.getWidth(), originalImage.getHeight(), BufferedImage.TYPE_INT_ARGB);Graphics2D g2d = watermarked.createGraphics();g2d.drawImage(originalImage, 0, 0, null);// 抗锯齿g2d.setRenderingHint(RenderingHints.KEY_ANTIALIASING, RenderingHints.VALUE_ANTIALIAS_ON);g2d.setRenderingHint(RenderingHints.KEY_TEXT_ANTIALIASING, RenderingHints.VALUE_TEXT_ANTIALIAS_ON);g2d.setFont(font);g2d.setColor(color);g2d.setComposite(AlphaComposite.getInstance(AlphaComposite.SRC_OVER, opacity));FontMetrics fm = g2d.getFontMetrics();int tw = fm.stringWidth(watermarkText);int th = fm.getAscent();int x = 0, y = 0;switch (position) {case BOTTOM_RIGHT:x = originalImage.getWidth() - tw - 10;y = originalImage.getHeight() - 10;break;case CENTER:x = (originalImage.getWidth() - tw) / 2;y = (originalImage.getHeight() + th) / 2;break;case TOP_LEFT:x = 10;y = th + 10;break;case TOP_RIGHT:x = originalImage.getWidth() - tw - 10;y = th + 10;break;case BOTTOM_LEFT:x = 10;y = originalImage.getHeight() - 10;break;default:x = 10;y = th + 10;}g2d.drawString(watermarkText, x, y);g2d.dispose();ByteArrayOutputStream out = new ByteArrayOutputStream();boolean success = ImageIO.write(watermarked, format, out);if (!success) {throw new IOException("图片写入失败，不支持的格式: " + format);}return out.toByteArray();}private static void validateFile(MultipartFile file) throws IOException {if (file == null || file.isEmpty()) {throw new IllegalArgumentException("图片文件不能为空");}if (file.getSize() > 10 * 1024 * 1024) { // 10MB 限制throw new IOException("图片大小不能超过 10MB");}}private static String validateFormat(String format) {if (format == null) format = "JPEG";format = format.trim().toUpperCase();if (!"JPEG".equals(format) && !"JPG".equals(format) && !"PNG".equals(format)) {throw new IllegalArgumentException("仅支持 JPEG 和 PNG 格式");}return "JPEG".equals(format) || "JPG".equals(format) ? "JPEG" : "PNG";}private static double getQuality(String format) {return "JPEG".equalsIgnoreCase(format) ? DEFAULT_JPEG_QUALITY / 100.0 : 1.0;}private static float clamp(float value, float min, float max) {return Math.max(min, Math.min(max, value));}private static void validateScaleRatio(float scaleRatio) {if (scaleRatio <= 0 || scaleRatio > 10) {throw new IllegalArgumentException("缩放比例应在 (0, 10] 范围内");}}
}

三、测试

测试策略	验证点	预期结果
压缩功能	输出非空，尺寸减小	生成有效图片，大小缩减50%
比例缩放	宽高比保持不变	新尺寸 = 原尺寸 * scaleRatio
指定尺寸	精确匹配目标尺寸	输出图片宽高 = 指定值
90°旋转	宽高互换	width_新 = height_原
水印添加	文字位置正确	右下角偏移(10,10)像素
空文件	异常处理	抛出 IllegalArgumentException

1.测试配置

• 测试框架：JUnit 5

  <dependency><groupId>org.springframework.boot</groupId><artifactId>spring-boot-starter-test</artifactId>
  </dependency>


• 测试图片：943×1036JPEG (169.25KB)

• 模拟文件：MockMultipartFile

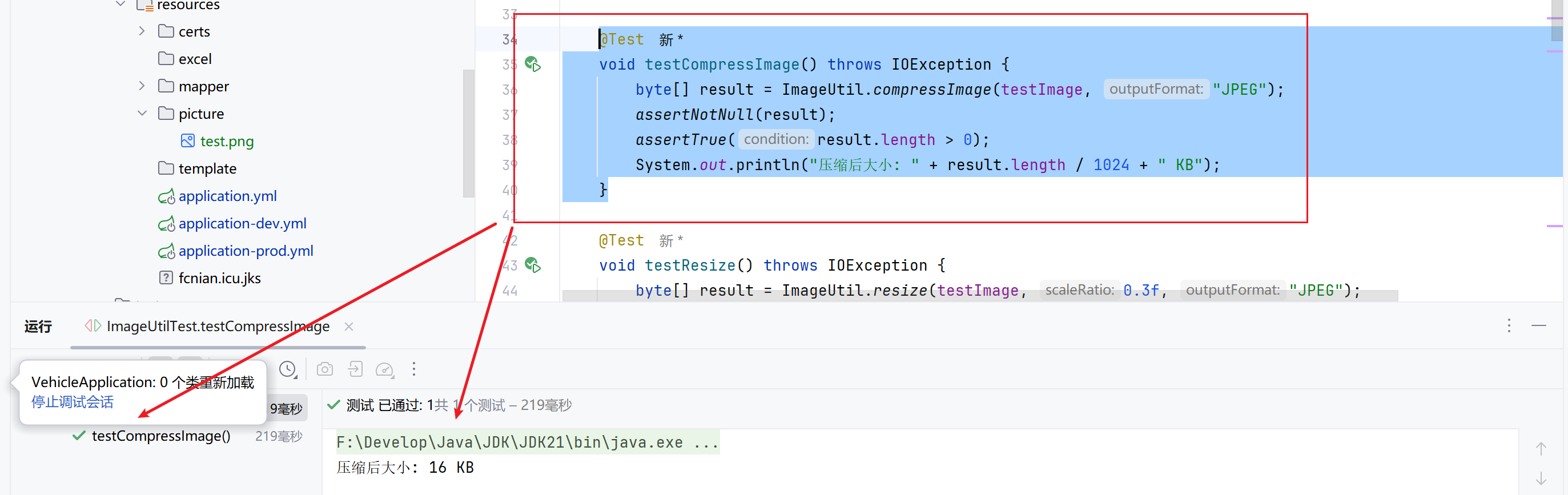

2. 图片压缩测试

@Test
void testCompressImage() throws IOException {byte[] result = ImageUtil.compressImage(testImage, "JPEG");assertNotNull(result);assertTrue(result.length > 0);System.out.println("压缩后大小: " + result.length / 1024 + " KB");
}

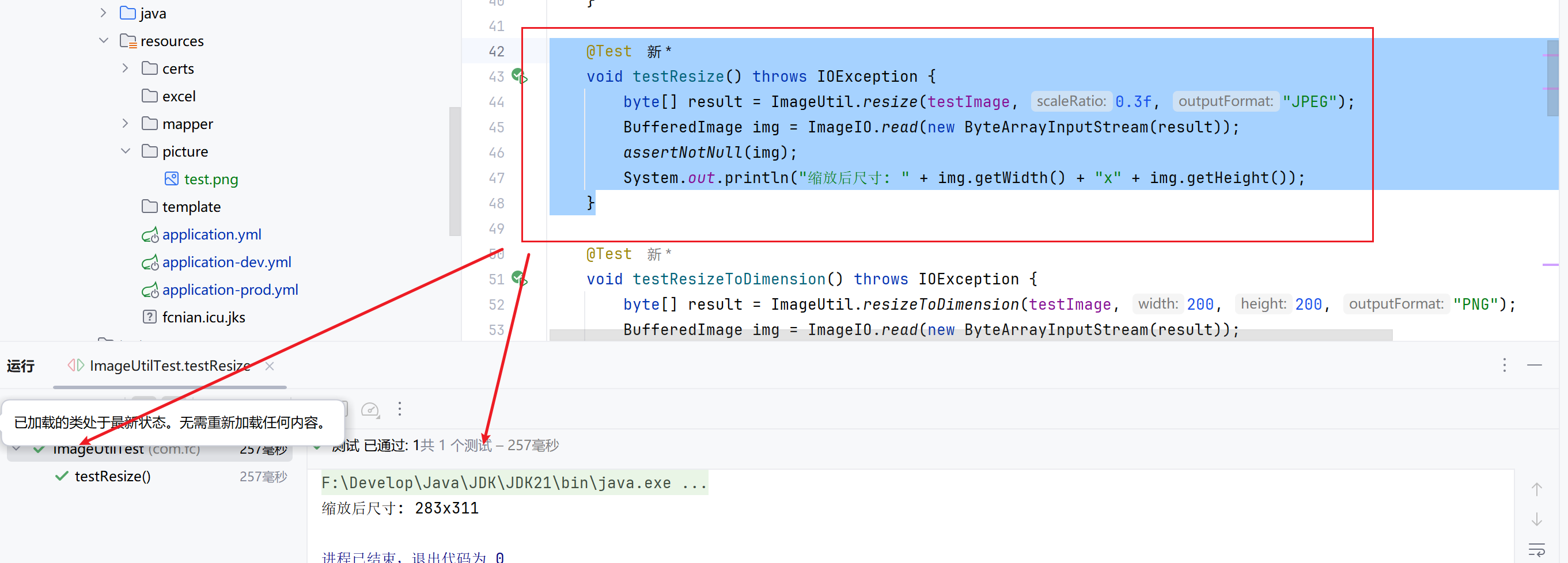

3. 比例缩放测试

@Test
void testResize() throws IOException {byte[] result = ImageUtil.resize(testImage, 0.3f, "JPEG");BufferedImage img = ImageIO.read(new ByteArrayInputStream(result));assertNotNull(img);System.out.println("缩放后尺寸: " + img.getWidth() + "x" + img.getHeight());
}

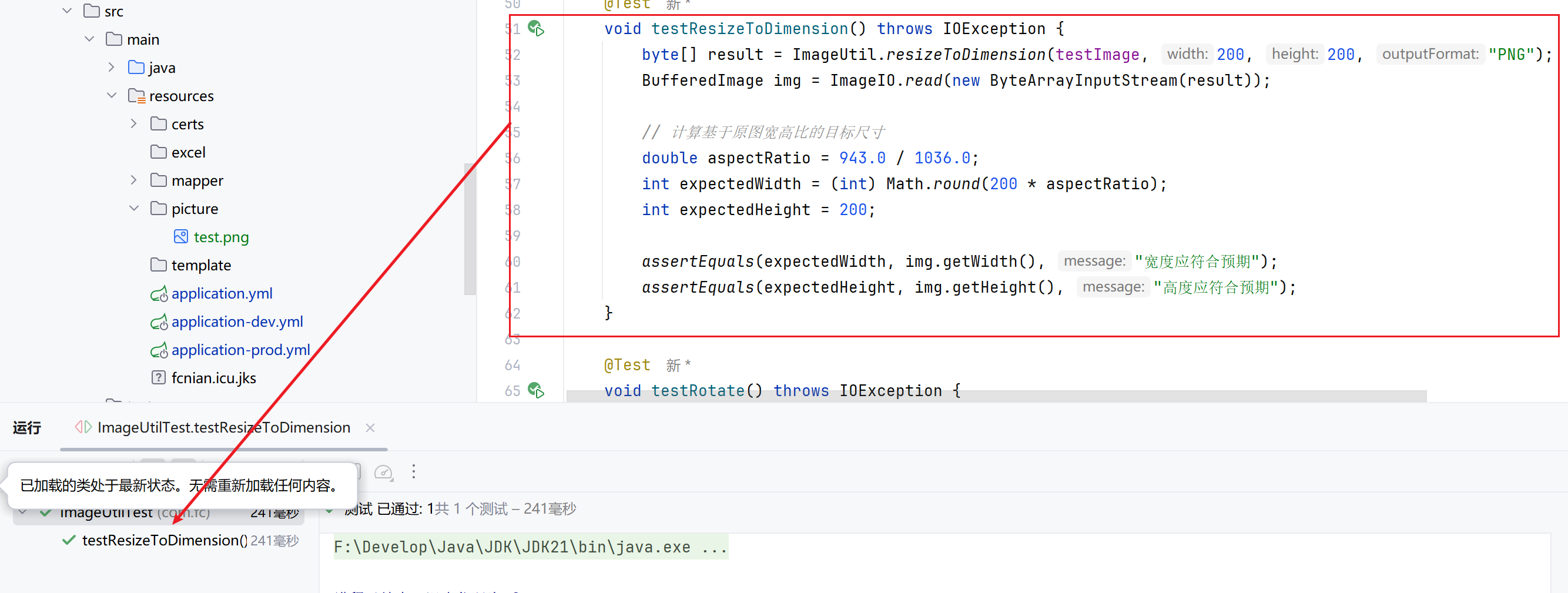

4. 指定尺寸缩放测试

@Test
void testResizeToDimension() throws IOException {byte[] result = ImageUtil.resizeToDimension(testImage, 200, 200, "PNG");BufferedImage img = ImageIO.read(new ByteArrayInputStream(result));// 计算基于原图宽高比的目标尺寸double aspectRatio = 943.0 / 1036.0;int expectedWidth = (int) Math.round(200 * aspectRatio);int expectedHeight = 200;assertEquals(expectedWidth, img.getWidth(), "宽度应符合预期");assertEquals(expectedHeight, img.getHeight(), "高度应符合预期");
}

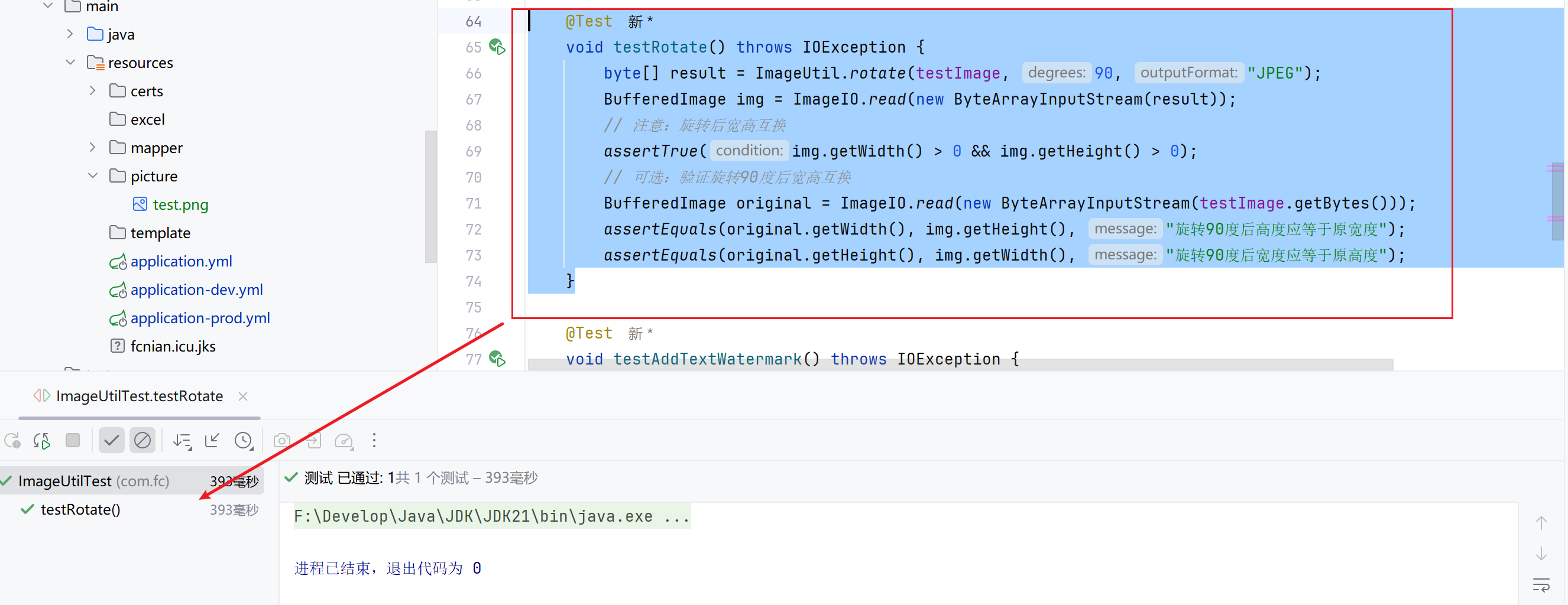

5. 图片旋转测试

@Test
void testRotate() throws IOException {byte[] result = ImageUtil.rotate(testImage, 90, "JPEG");BufferedImage img = ImageIO.read(new ByteArrayInputStream(result));// 注意：旋转后宽高互换assertTrue(img.getWidth() > 0 && img.getHeight() > 0);// 可选：验证旋转90度后宽高互换BufferedImage original = ImageIO.read(new ByteArrayInputStream(testImage.getBytes()));assertEquals(original.getWidth(), img.getHeight(), "旋转90度后高度应等于原宽度");assertEquals(original.getHeight(), img.getWidth(), "旋转90度后宽度应等于原高度");
}

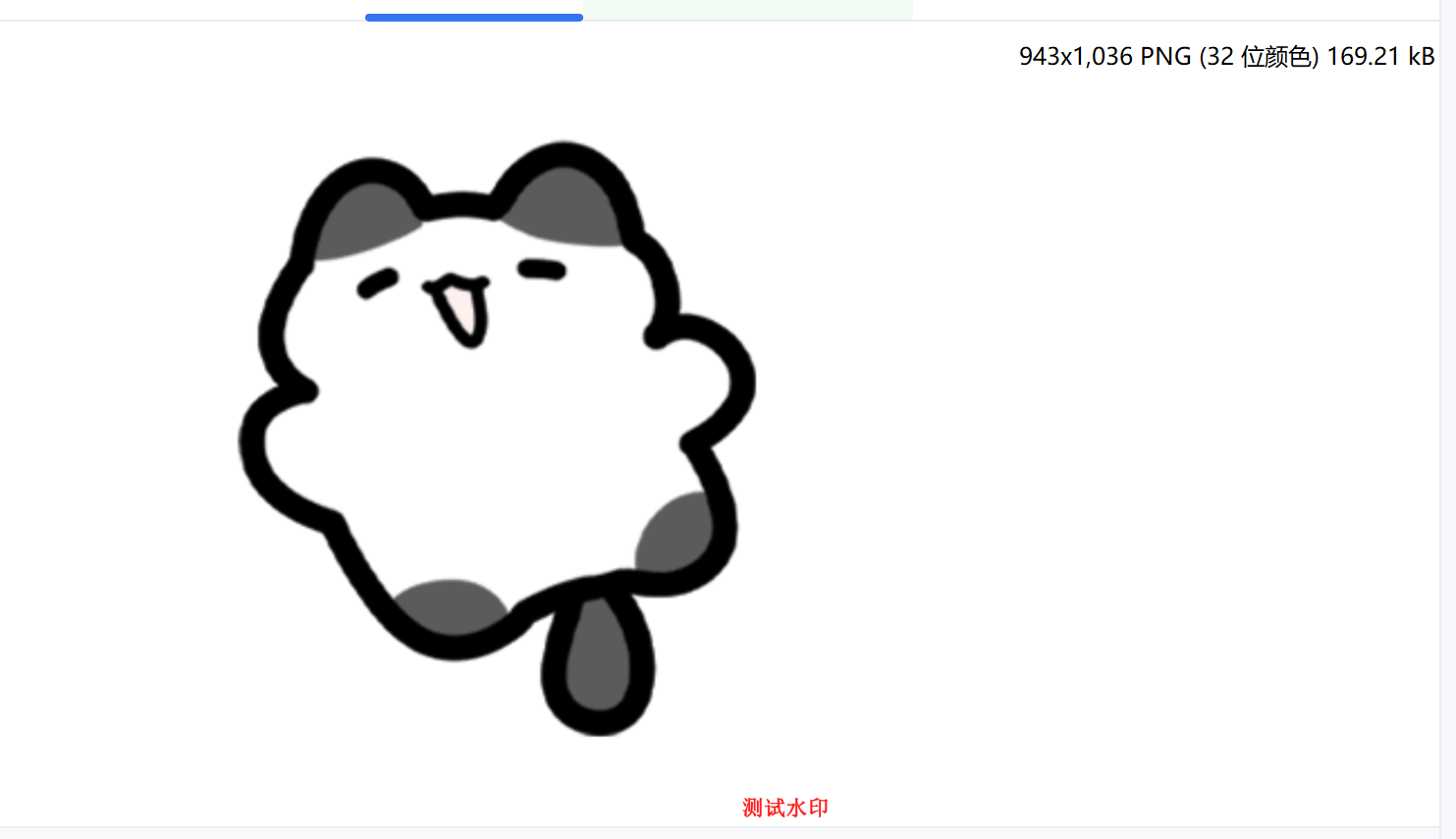

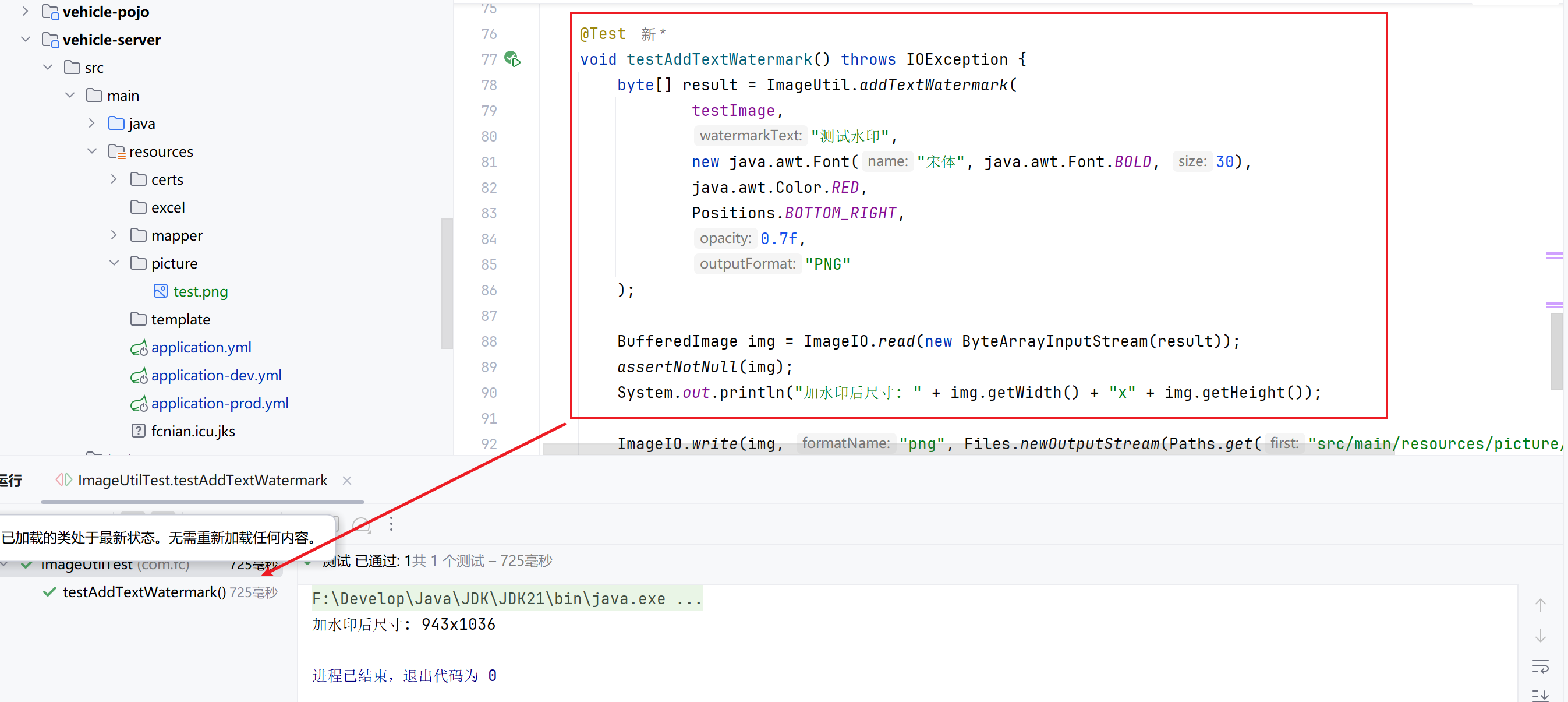

6. 水印添加测试

@Test
void testAddTextWatermark() throws IOException {byte[] result = ImageUtil.addTextWatermark(testImage,"测试水印",new java.awt.Font("宋体", java.awt.Font.BOLD, 30),java.awt.Color.RED,Positions.BOTTOM_RIGHT,0.7f,"PNG");BufferedImage img = ImageIO.read(new ByteArrayInputStream(result));assertNotNull(img);System.out.println("加水印后尺寸: " + img.getWidth() + "x" + img.getHeight());ImageIO.write(img, "png", Files.newOutputStream(Paths.get("src/main/resources/picture/test.png")));
}

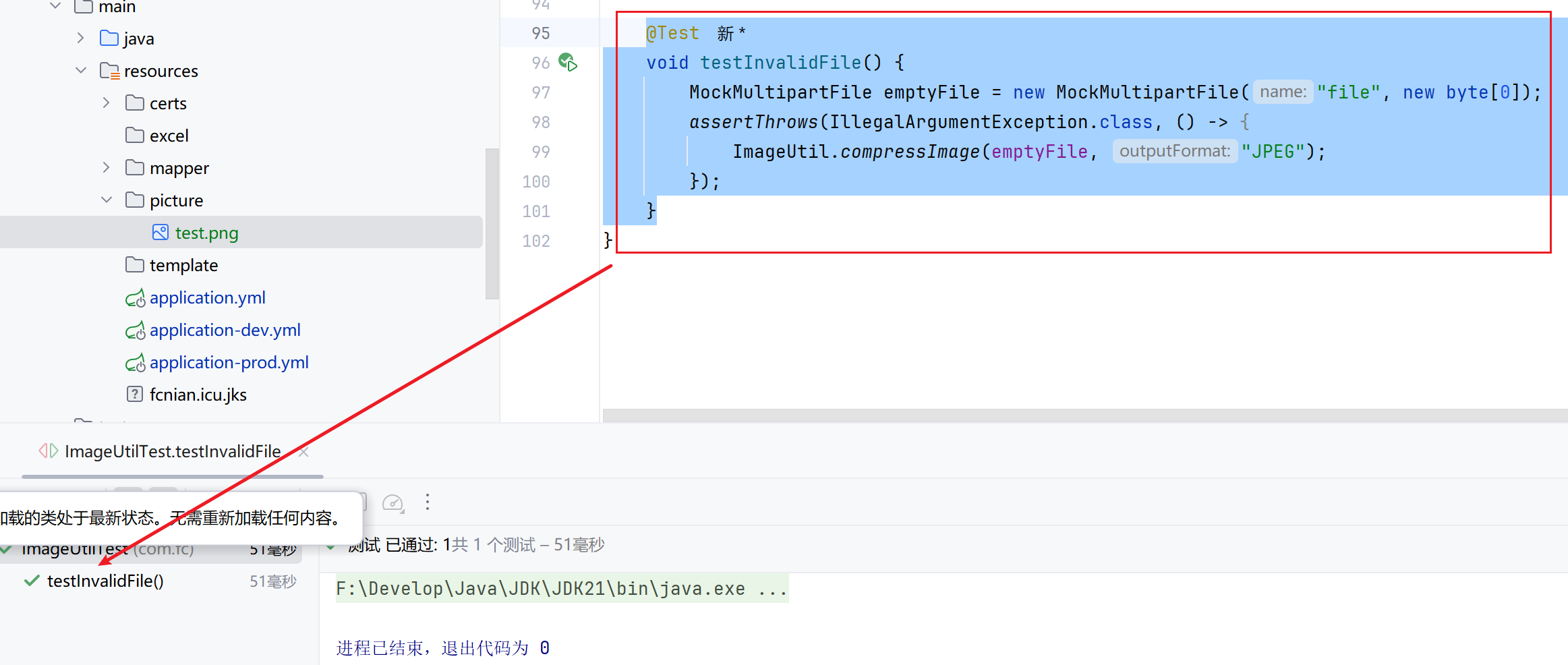

7. 异常处理测试

@Test
void testInvalidFile() {MockMultipartFile emptyFile = new MockMultipartFile("file", new byte[0]);assertThrows(IllegalArgumentException.class, () -> {ImageUtil.compressImage(emptyFile, "JPEG");});
}

完整代码

import com.fc.utils.ImageUtil;
import net.coobird.thumbnailator.geometry.Positions;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.springframework.mock.web.MockMultipartFile;
import javax.imageio.ImageIO;
import java.awt.image.BufferedImage;
import java.io.ByteArrayInputStream;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Paths;import static org.junit.jupiter.api.Assertions.*;public class ImageUtilTest {private MockMultipartFile testImage;@BeforeEachvoid setUp() throws IOException {// 读取本地测试图片（提前准备一张 test.jpg）byte[] imageBytes = Files.readAllBytes(Paths.get("src/main/resources/picture/test.png"));testImage = new MockMultipartFile("file","test.jpg","image/jpeg",imageBytes);}@Testvoid testCompressImage() throws IOException {byte[] result = ImageUtil.compressImage(testImage, "JPEG");assertNotNull(result);assertTrue(result.length > 0);System.out.println("压缩后大小: " + result.length / 1024 + " KB");}@Testvoid testResize() throws IOException {byte[] result = ImageUtil.resize(testImage, 0.3f, "JPEG");BufferedImage img = ImageIO.read(new ByteArrayInputStream(result));assertNotNull(img);System.out.println("缩放后尺寸: " + img.getWidth() + "x" + img.getHeight());}@Testvoid testResizeToDimension() throws IOException {byte[] result = ImageUtil.resizeToDimension(testImage, 200, 200, "PNG");BufferedImage img = ImageIO.read(new ByteArrayInputStream(result));// 计算基于原图宽高比的目标尺寸double aspectRatio = 943.0 / 1036.0;int expectedWidth = (int) Math.round(200 * aspectRatio);int expectedHeight = 200;assertEquals(expectedWidth, img.getWidth(), "宽度应符合预期");assertEquals(expectedHeight, img.getHeight(), "高度应符合预期");}@Testvoid testRotate() throws IOException {byte[] result = ImageUtil.rotate(testImage, 90, "JPEG");BufferedImage img = ImageIO.read(new ByteArrayInputStream(result));// 注意：旋转后宽高互换assertTrue(img.getWidth() > 0 && img.getHeight() > 0);// 可选：验证旋转90度后宽高互换BufferedImage original = ImageIO.read(new ByteArrayInputStream(testImage.getBytes()));assertEquals(original.getWidth(), img.getHeight(), "旋转90度后高度应等于原宽度");assertEquals(original.getHeight(), img.getWidth(), "旋转90度后宽度应等于原高度");}@Testvoid testAddTextWatermark() throws IOException {byte[] result = ImageUtil.addTextWatermark(testImage,"测试水印",new java.awt.Font("宋体", java.awt.Font.BOLD, 30),java.awt.Color.RED,Positions.BOTTOM_RIGHT,0.7f,"PNG");BufferedImage img = ImageIO.read(new ByteArrayInputStream(result));assertNotNull(img);System.out.println("加水印后尺寸: " + img.getWidth() + "x" + img.getHeight());ImageIO.write(img, "png", Files.newOutputStream(Paths.get("src/main/resources/picture/test.png")));}@Testvoid testInvalidFile() {MockMultipartFile emptyFile = new MockMultipartFile("file", new byte[0]);assertThrows(IllegalArgumentException.class, () -> {ImageUtil.compressImage(emptyFile, "JPEG");});}
}

总结

本图片处理工具类旨在为开发者提供一个简洁、实用的图片处理解决方案。它基于成熟的Thumbnailator和Java2D技术栈，尝试覆盖常见的图片处理需求，包括基本压缩、尺寸调整、旋转和水印添加等功能。通过合理的参数校验和资源管理设计，努力确保工具的稳定性和易用性。
在常见的图片处理场景中，如用户头像上传、产品图展示等，该工具类可能提供一定的便利性。其接口设计尽量保持简洁，希望能降低开发者的使用门槛。当然，实际应用效果可能因具体业务场景而异，建议开发者根据项目需求进行必要的测试和调整。
