道格拉斯-普克算法（Douglas-Peucker Algorithm解决的问题其实很日常：把一堆复杂的线条（比如地图上的道路、河流，或者GPS记录的轨迹）变得简单，同时尽量保持原来的样子。

举个例子，假设用GPS记录了一条徒步路线，每走1米就记一个点，最后生成了1000个点的折线。但其实很多相邻的点几乎在一条直线上，完全没必要都保留——存起来占空间，画出来也累赘。这时候这个算法就派上用场了：它能自动删掉那些“多余”的点，比如直线段中间的点，只留下关键的拐点，让线条变简单，但看起来还是你走的那条路。

大概是上世纪70年代初。1972年有个叫乌尔斯·拉默的人先提出了类似思路，1973年道格拉斯和普克两个人又完善了这个方法，所以后来就用他们的名字命名了。

import numpy as np
import matplotlib.pyplot as plt
from PIL import Image
import io# 设置中文字体，确保中文正常显示
plt.rcParams["font.family"] = ["SimHei", "sans-serif"]
plt.rcParams['axes.unicode_minus'] = False  # 解决负号显示问题def point_to_segment_dist(point, start, end):"""计算点到线段的垂直距离"""if np.allclose(start, end):return np.linalg.norm(point - start)# 计算线段的单位向量line_vec = end - startline_len = np.linalg.norm(line_vec)unit_line_vec = line_vec / line_len# 计算从起点到点的向量point_vec = point - start# 计算投影长度projection_length = np.dot(point_vec, unit_line_vec)# 如果投影长度超出线段范围，则计算到端点的距离if projection_length < 0:return np.linalg.norm(point - start)elif projection_length > line_len:return np.linalg.norm(point - end)# 计算投影点projection = start + projection_length * unit_line_vec# 计算点到投影点的距离return np.linalg.norm(point - projection)def douglas_peucker(points, epsilon, frames=None):"""道格拉斯-普克算法实现，并记录每一步的处理过程用于可视化参数:points: 待简化的点集epsilon: 距离阈值frames: 存储每一步处理结果的列表"""if len(points) < 3:if frames is not None:frames.append({'points': points.copy(),'start_idx': 0,'end_idx': len(points) - 1,'max_dist_idx': None,'is_terminal': True})return pointsstart_point = points[0]end_point = points[-1]# 计算所有中间点到线段的距离distances = []for i in range(1, len(points) - 1):dist = point_to_segment_dist(points[i], start_point, end_point)distances.append((dist, i))if not distances:if frames is not None:frames.append({'points': points.copy(),'start_idx': 0,'end_idx': len(points) - 1,'max_dist_idx': None,'is_terminal': True})return np.array([start_point, end_point])# 找到最大距离的点max_dist, max_dist_idx = max(distances, key=lambda x: x[0])# 记录当前步骤if frames is not None:frames.append({'points': points.copy(),'start_idx': 0,'end_idx': len(points) - 1,'max_dist_idx': max_dist_idx if max_dist > epsilon else None,'is_terminal': max_dist <= epsilon})# 如果最大距离大于阈值，则递归处理if max_dist > epsilon:left_points = points[:max_dist_idx + 1]right_points = points[max_dist_idx:]left_simplified = douglas_peucker(left_points, epsilon, frames)right_simplified = douglas_peucker(right_points, epsilon, frames)# 合并结果（去掉重复的分割点）return np.vstack([left_simplified[:-1], right_simplified])else:# 所有点都足够接近线段，直接返回起点和终点return np.array([start_point, end_point])def create_frames(points, epsilon):"""创建算法执行过程的帧列表"""frames = []douglas_peucker(points, epsilon, frames)return framesdef draw_frame(frame, frames, points, epsilon, step_num, total_steps, figsize=(10, 6)):"""绘制单个帧"""fig, (ax1, ax2) = plt.subplots(1, 2, figsize=figsize)# 左侧子图：当前处理的线段ax1.set_title("当前处理的线段")ax1.set_xlabel("X")ax1.set_ylabel("Y")ax1.set_xlim(points[:, 0].min() - 1, points[:, 0].max() + 1)ax1.set_ylim(points[:, 1].min() - 1, points[:, 1].max() + 1)# 绘制原始曲线（半透明）ax1.plot(points[:, 0], points[:, 1], 'b-', alpha=0.3, label='原始曲线')# 绘制当前处理的线段current_points = frame['points']start_idx = frame['start_idx']end_idx = frame['end_idx']start_point = current_points[start_idx]end_point = current_points[end_idx]ax1.plot([start_point[0], end_point[0]], [start_point[1], end_point[1]], 'r-', linewidth=2, label='当前线段')# 绘制最大距离点if frame['max_dist_idx'] is not None:max_dist_idx = frame['max_dist_idx']max_point = current_points[max_dist_idx]# 绘制最大距离点ax1.plot(max_point[0], max_point[1], 'go', markersize=8, label='最远点')# 计算并绘制垂直线projection = compute_projection(max_point, start_point, end_point)ax1.plot([max_point[0], projection[0]], [max_point[1], projection[1]], 'g--', linewidth=1, label='垂直距离')# 显示距离值dist = point_to_segment_dist(max_point, start_point, end_point)mid_x = (max_point[0] + projection[0]) / 2mid_y = (max_point[1] + projection[1]) / 2ax1.text(mid_x, mid_y, f'd={dist:.2f}', ha='center', va='bottom', bbox=dict(facecolor='white', alpha=0.8))ax1.legend()# 右侧子图：累积简化结果ax2.set_title("累积简化结果")ax2.set_xlabel("X")ax2.set_ylabel("Y")ax2.set_xlim(points[:, 0].min() - 1, points[:, 0].max() + 1)ax2.set_ylim(points[:, 1].min() - 1, points[:, 1].max() + 1)# 绘制原始曲线（半透明）ax2.plot(points[:, 0], points[:, 1], 'b-', alpha=0.3, label='原始曲线')# 收集所有已处理的线段simplified_points = []# 从第一步到当前步，收集所有终端节点（即已处理完的线段）for f in frames[:step_num + 1]:if f['is_terminal']:p = f['points']simplified_points.append(p[0])simplified_points.append(p[-1])# 去重并排序（按X坐标）if simplified_points:simplified_points = np.array(simplified_points)_, idx = np.unique(simplified_points[:, 0], return_index=True)simplified_points = simplified_points[np.sort(idx)]# 绘制简化后的曲线ax2.plot(simplified_points[:, 0], simplified_points[:, 1], 'r-', linewidth=2, label='简化曲线')ax2.plot(simplified_points[:, 0], simplified_points[:, 1], 'ro', markersize=5)ax2.legend()# 添加标题和步骤信息if frame['is_terminal']:step_text = f"步骤 {step_num + 1}/{total_steps}: 所有点距离 ≤ ε，保留首尾点"else:step_text = f"步骤 {step_num + 1}/{total_steps}: 保留最远点，分割曲线"fig.suptitle(f"道格拉斯-普克算法 (阈值 ε = {epsilon})", fontsize=14)plt.figtext(0.5, 0.01, step_text, ha="center", fontsize=12)# 保存当前帧为图像buf = io.BytesIO()plt.savefig(buf, format='png', bbox_inches='tight')buf.seek(0)image = Image.open(buf)plt.close(fig)return imagedef compute_projection(point, start, end):"""计算点在直线上的投影"""if np.allclose(start, end):return startline_vec = end - startpoint_vec = point - startline_len_sq = np.sum(line_vec ** 2)# 计算投影系数t = np.dot(point_vec, line_vec) / line_len_sq# 限制投影在端点之间t = max(0, min(1, t))return start + t * line_vecdef create_gif(points, epsilon, output_path='douglas_peucker.gif', duration=1000):"""创建道格拉斯-普克算法执行过程的GIF动画"""# 生成所有帧frames = create_frames(points, epsilon)# 绘制每一帧并保存为GIFimages = []for i, frame in enumerate(frames):image = draw_frame(frame, frames, points, epsilon, i, len(frames))images.append(image)# 保存为GIFimages[0].save(output_path,save_all=True,append_images=images[1:],duration=duration,loop=0  # 0表示无限循环)print(f"GIF动画已保存至: {output_path}")return output_path# 示例：创建一个带噪声的正弦曲线并生成GIF

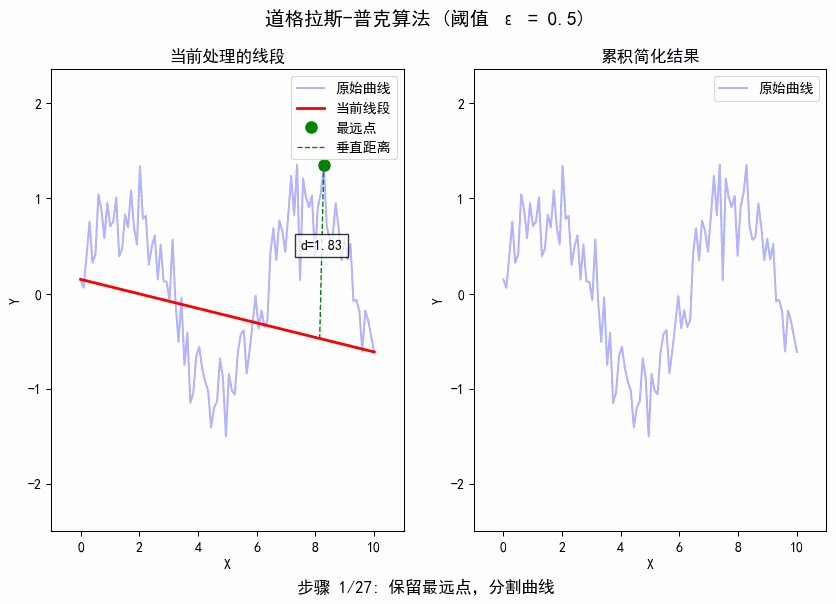

if __name__ == "__main__":# 生成示例数据np.random.seed(42)  # 设置随机种子，确保结果可重现x = np.linspace(0, 10, 100)y = np.sin(x) + np.random.normal(0, 0.3, size=len(x))  # 添加随机噪声points = np.column_stack([x, y])# 设置阈值epsilon = 0.5# 创建GIF动画create_gif(points, epsilon, output_path='douglas_peucker.gif', duration=1000)
