irf实验

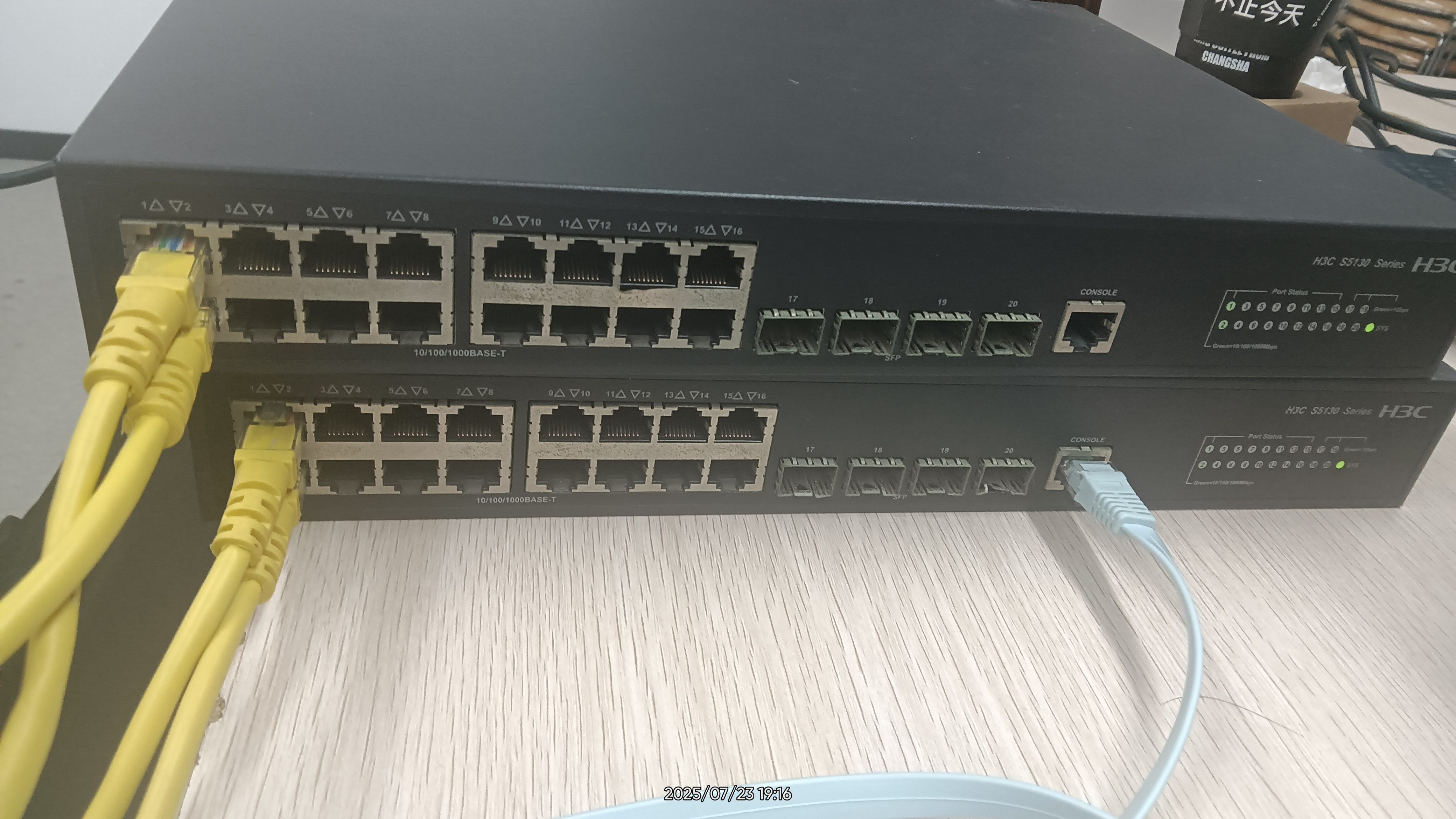

拓扑图

#配置1

<H3C>system-view

[H3C]int range GigabitEthernet 1/0/1 to

GigabitEthernet 1/0/2

[H3C-if-range]shutdown

[H3C-if-range]quit

[H3C]irf-port 1/1

[H3C-irf-port1/1]port group interface Ten-GigabitEthernet

1/0/1

[H3C-irf-port1/1]quit

[H3C]irf-port 1/2

[H3C-irf-port1/2]port group interface Ten-GigabitEthernet

1/0/2

[H3C-irf-port1/2]quit[H3C]int range Ten-GigabitEthernet

1/0/1 to Ten-GigabitEthernet 1/0/2

[H3C-if-range]undo shutdown

[H3C-if-range]quit

[H3C]save

[H3C]irf-port-configuration active

#配置2

<H3C>system-view

[H3C]irf member 1 renumber 2

[H3C]quit

<H3C>reboot

<H3C>system-view

[H3C]int range GigabitEthernet 2/0/1 to

GigabitEthernet 2/0/2

[H3C-if-range]shutdown

[H3C-if-range]quit

[H3C]irf-port 2/1

[H3C-irf-port2/1]port group interface Ten-GigabitEthernet

2/0/1

[H3C-irf-port2/1]quit

[H3C]irf-port 2/2

[H3C-irf-port2/2]port group interface Ten-GigabitEthernet

2/0/2

[H3C-irf-port2/2]quit[H3C]int range Ten-GigabitEthernet

2/0/1 to Ten-GigabitEthernet 2/0/2

[H3C-if-range]undo shutdown

[H3C-if-range]quit

[H3C]save

[H3C]irf-port-configuration active

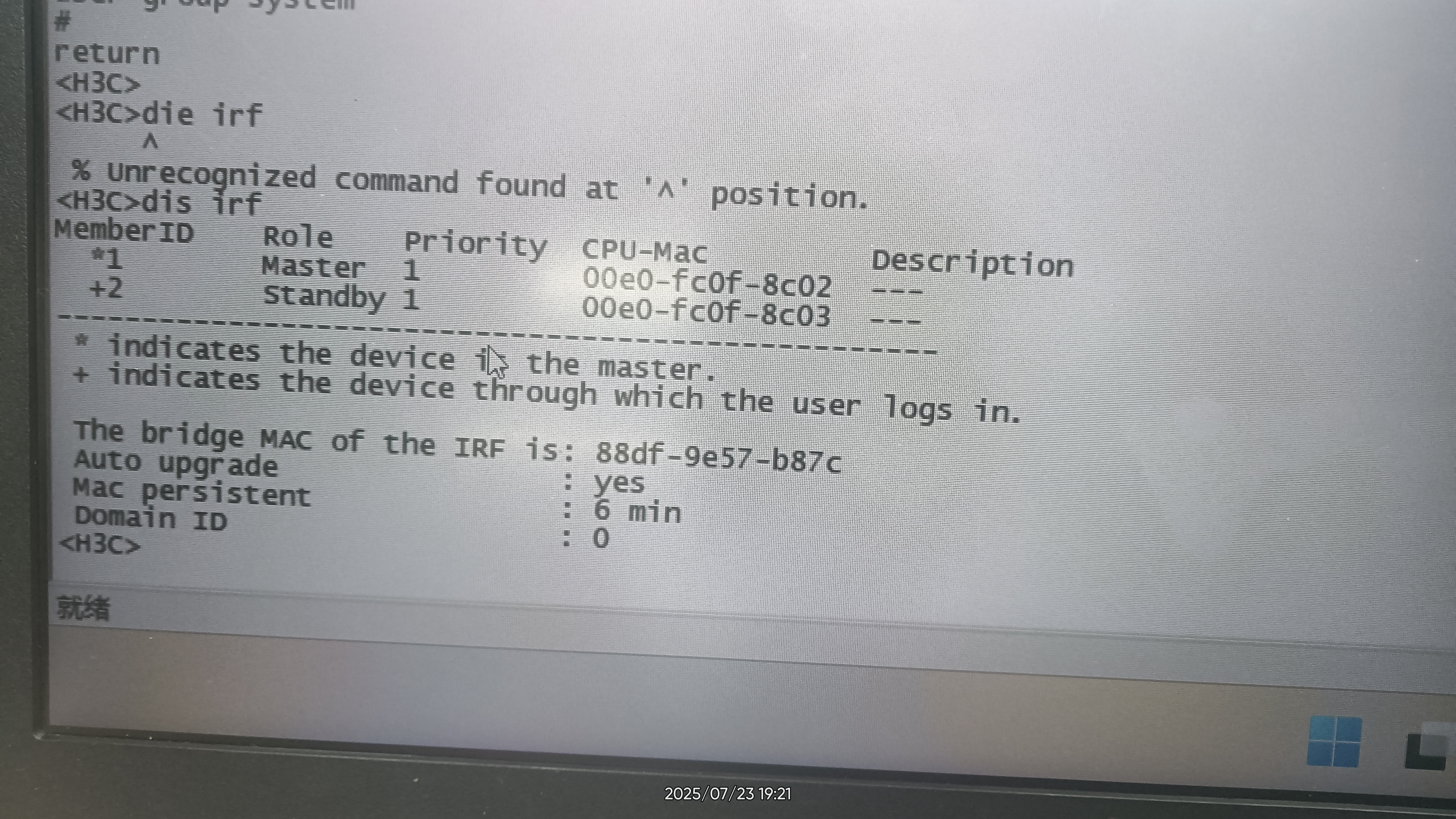

实验结果:
