ThreadPoolTaskExecutor+CompletableFuture实现多线程异步数据同步和自定义线程池监控和动态调整实现

前言

ThreadPoolTaskExecutor是Spring框架提供的一个线程池实现，它是对Java标准库中ThreadPoolExecutor的封装，提供了更便捷的配置和集成方式，特别适合在Spring环境中使用。相关线程池概念见线程&线程池相关

CompletableFuture 是 Java 8 引入的异步编程工具，实现了 Future 和CompletionStage 接口。它不仅提供了异步任务执行能力，还支持强大的函数式编程风格，允许开发者以声明式方式组合多个异步操作，处理复杂的异步编程场景。相关概念及API使用

功能描述

创建了一个ThreadPoolTaskExecutor的管理类用于监控线程池状态、动态调整线程池配置，定义线程池注册为Spring Bean，创建基于分页查询和同步的CompletableFuture异步任务，使用自定义的核心线程池提交任务，最终主线程获取异步结果（也可以引申主线程返回任务执行中，记录任务ID，主动获取任务执行结果通知主线程，实现页面操作非阻塞性）。

代码示例

用于记录线程池状态和调整线程池参数的实体类

package gov.zwfw.iam.uc.threadpoolconfig;import lombok.AllArgsConstructor;
import lombok.Data;@Data
@AllArgsConstructor
public class ThreadPoolStatusPo {private String poolName;private int corePoolSize;private int maxPoolSize;private int currentPoolSize;private int activeCount;private int largestPoolSize;private long taskCount;private long completedTaskCount;private int queueSize;private int queueRemainingCapacity;private int queueCapacity;private int keepAliveSeconds;private String rejectedHandlerType;private String threadNamePrefix;private String queueName;
}

package gov.zwfw.iam.uc.threadpoolconfig;import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;import java.util.concurrent.RejectedExecutionHandler;/*** 用于动态调整线程池配置的实体类* 包括核心线程数、最大线程数、队列大小、拒绝策略、线程存活时间*/
@Data
@NoArgsConstructor
@AllArgsConstructor
public class ThreadPoolJudgePo {private int corePoolSize;private int maxPoolSize;private int keepAliveSeconds;private int queueCapacity;private RejectedExecutionHandler rejectedExecutionHandler;
}

用于监控线程池状态和调整线程池参数的管理类

package gov.zwfw.iam.uc.threadpoolconfig;import org.apache.tomcat.util.threads.TaskQueue;
import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor;
import org.springframework.stereotype.Component;import java.util.HashMap;
import java.util.Map;
import java.util.concurrent.BlockingQueue;
import java.util.concurrent.ConcurrentHashMap;
import java.util.concurrent.ThreadPoolExecutor;@Component
public class ThreadPoolManager {//存储所有注册的线程池private static final Map<String, ThreadPoolTaskExecutor> threadPoolMap = new ConcurrentHashMap<>();//存储线程池原始配置（用于重置）private static final Map<String, ThreadPoolJudgePo> originalConfigMap = new ConcurrentHashMap<>();/*** 注册线程池* @param poolName* @param threadPoolTaskExecutor* @param threadPoolJudgePo*/public void registerThreadPool(String poolName, ThreadPoolTaskExecutor threadPoolTaskExecutor, ThreadPoolJudgePo threadPoolJudgePo){threadPoolMap.put(poolName,threadPoolTaskExecutor);originalConfigMap.put(poolName, threadPoolJudgePo);}/*** 获取所有线程池状态* @return*/public Map<String,ThreadPoolStatusPo> getAllThreadPoolStatus(){Map<String,ThreadPoolStatusPo> statusMap = new HashMap<>();threadPoolMap.forEach((name,executor)->{statusMap.put(name,getThreadPoolStatus(name,executor));});return statusMap;}/*** 获取单个线程池状态* @param name* @return*/public ThreadPoolStatusPo getSingleThreadPoolStatus(String name){ThreadPoolTaskExecutor threadPoolTaskExecutor = threadPoolMap.get(name);return getThreadPoolStatus(name,threadPoolTaskExecutor);}/*** 问题：为什么有的属性从executor（ThreadPoolTaskExecutor）获取，有的从threadPoolTaskExecutor（ThreadPoolExecutor）获取？** 原因分析：** ThreadPoolTaskExecutor是Spring对Java原生ThreadPoolExecutor的包装，它提供了一些额外的配置和功能，同时内部持有一个ThreadPoolExecutor实例。* 线程池的核心状态（如核心线程数、最大线程数、当前线程数、活跃线程数、历史最大线程数、任务总数、已完成任务数、队列大小等）都是ThreadPoolExecutor原生提供的，所以直接从ThreadPoolExecutor实例获取。* 但是，Spring的ThreadPoolTaskExecutor在配置线程池时，有一些属性是它自己扩展的，或者需要从它那里获取配置值，例如：* keepAliveSeconds：在ThreadPoolExecutor中，存活时间是通过getKeepAliveTime(TimeUnit)方法获取的，但是需要转换单位。而Spring的ThreadPoolTaskExecutor直接提供了getKeepAliveSeconds()方法，返回的是以秒为单位的值，这样更方便。* threadNamePrefix：这个前缀是Spring的ThreadPoolTaskExecutor在创建线程工厂时使用的，用于设置线程的名称前缀，ThreadPoolExecutor本身没有提供直接获取线程名称前缀的方法，所以只能从ThreadPoolTaskExecutor获取。* 另外，拒绝策略的处理：ThreadPoolExecutor提供了getRejectedExecutionHandler()方法，可以获取到拒绝策略处理器，然后通过getClass().getName()得到其类名。这里没有使用Spring的包装，因为拒绝策略处理器是直接设置在底层的ThreadPoolExecutor上的。* 因此，总结如下：** 大多数运行时状态（动态的）都是从ThreadPoolExecutor（即threadPoolTaskExecutor）中获取。* 而一些配置信息，特别是Spring包装后提供的配置（如keepAliveSeconds和threadNamePrefix）则从ThreadPoolTaskExecutor（即executor）中获取。* 注意：代码中有一个属性是queueCapacity（队列总容量），它是通过queue.size() + queue.remainingCapacity()计算得到的，因为队列的剩余容量加上当前已使用的容量就是总容量。** 所以，这样的设计是合理的，充分利用了Spring的ThreadPoolTaskExecutor提供的便捷方法，同时也直接使用原生的ThreadPoolExecutor来获取运行时指标。** 但是，这里有一个潜在的问题：Spring的ThreadPoolTaskExecutor的getKeepAliveSeconds()返回的是配置的存活时间（秒），而实际上ThreadPoolExecutor内部是以纳秒为单位保存的。不过，由于我们在配置时也是以秒为单位，所以这里获取的值是一致的。** 另外，关于拒绝策略，这里获取的是处理器的类名，这样我们可以知道具体是哪种拒绝策略。* @param name* @param executor* @return*/private ThreadPoolStatusPo getThreadPoolStatus(String name, ThreadPoolTaskExecutor executor) {ThreadPoolExecutor threadPoolTaskExecutor = executor.getThreadPoolExecutor();return new ThreadPoolStatusPo(name,threadPoolTaskExecutor.getCorePoolSize(),threadPoolTaskExecutor.getMaximumPoolSize(),threadPoolTaskExecutor.getPoolSize(),threadPoolTaskExecutor.getActiveCount(),threadPoolTaskExecutor.getLargestPoolSize(),threadPoolTaskExecutor.getTaskCount(),threadPoolTaskExecutor.getCompletedTaskCount(),threadPoolTaskExecutor.getQueue().size(),threadPoolTaskExecutor.getQueue().remainingCapacity(),threadPoolTaskExecutor.getQueue().size() + threadPoolTaskExecutor.getQueue().remainingCapacity(),executor.getKeepAliveSeconds(),threadPoolTaskExecutor.getRejectedExecutionHandler().getClass().getName(),executor.getThreadNamePrefix(),executor.getThreadPoolExecutor().getQueue().getClass().getName());}/*** 动态调整线程池* @param name* @param corePoolSize* @param maxPoolSize* @param queueCapacity*/public void adjustThreadPool(String name,Integer corePoolSize,Integer maxPoolSize,Integer queueCapacity){ThreadPoolTaskExecutor executor = threadPoolMap.get(name);if(null == executor){throw new RuntimeException(name+"线程池不存在");}ThreadPoolExecutor threadPoolExecutor = executor.getThreadPoolExecutor();//调整核心线程数if(null != corePoolSize && corePoolSize > 0){threadPoolExecutor.setCorePoolSize(corePoolSize);}//调整最大线程数if(null != maxPoolSize && maxPoolSize > 0){threadPoolExecutor.setMaximumPoolSize(maxPoolSize);}//调整队列容量if(null != queueCapacity && queueCapacity > 0){//在Spring的ThreadPoolTaskExecutor中，我们设置队列容量时，它实际上创建的就是TaskQueue//考虑使用Spring提供的setQueueCapacity方法（通过ThreadPoolTaskExecutor对象），这样更安全。但是，这个方法会重新设置队列容量，但不会改变队列实例，因为内部会调用TaskQueue.setCapacity（如果队列是TaskQueue的话）//所以，我们可以直接调用executor.setQueueCapacity(queueCapacity)来实现executor.setQueueCapacity(queueCapacity);}}/*** 重置线程池* @param name*/public void resetThreadPool(String name){ThreadPoolJudgePo threadPoolJudgePo = originalConfigMap.get(name);if(null == threadPoolJudgePo){throw new RuntimeException(name+"线程池初始化配置不存在");}adjustThreadPool(name,threadPoolJudgePo.getCorePoolSize(),threadPoolJudgePo.getMaxPoolSize(),threadPoolJudgePo.getQueueCapacity());}}

用于SpringBoot项目注册线程池Bean的配置类

package gov.zwfw.iam.uc.threadpoolconfig;import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.scheduling.annotation.EnableAsync;
import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor;import java.util.concurrent.Executor;
import java.util.concurrent.ThreadPoolExecutor;/*** 线程池配置* 用于执行异步任务*/
@Configuration
@EnableAsync
public class ThreadPoolConfig {@AutowiredThreadPoolManager threadPoolManager;/*** 核心线程池配置* @return*/@Bean(name = "coreTaskExecutor")public Executor coreTaskExecutor(){ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();//核心线程数executor.setCorePoolSize(10);//最大线程数executor.setMaxPoolSize(20);//队列容量，在创建ThreadPoolExecutor时，如果队列是LinkedBlockingQueue且queueCapacity>0，则将其替换为TaskQueue。executor.setQueueCapacity(500);//空闲线程存活时间executor.setKeepAliveSeconds(60);//拒绝策略，使用调用者运行策略，也可以自定义策略以增强可用性，这里只是简单推送人员信息，量不是特别大，没必要费劲executor.setRejectedExecutionHandler(new ThreadPoolExecutor.CallerRunsPolicy());//线程名前缀executor.setThreadNamePrefix("coreTaskExecutor-");//优雅停机配置//等待所有任务结束后再关闭线程池executor.setWaitForTasksToCompleteOnShutdown(true);//等待终止时间executor.setAwaitTerminationSeconds(60);executor.initialize();//注册到监控threadPoolManager.registerThreadPool("coreTaskExecutor",executor,new ThreadPoolJudgePo(executor.getCorePoolSize(),executor.getMaxPoolSize(),executor.getKeepAliveSeconds(),executor.getThreadPoolExecutor().getQueue().size(),executor.getThreadPoolExecutor().getRejectedExecutionHandler()));System.out.println("=================================="+executor.getThreadPoolExecutor().getQueue().getClass().getName());return executor;}@Bean(name = "commonTaskExecutor")public Executor commonTaskExecutor(){ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();//核心线程数executor.setCorePoolSize(5);//最大线程数executor.setMaxPoolSize(10);//队列容量executor.setQueueCapacity(100);//空闲线程存活时间executor.setKeepAliveSeconds(120);//拒绝策略，抛弃策略executor.setRejectedExecutionHandler(new ThreadPoolExecutor.AbortPolicy());executor.setThreadNamePrefix("commonTaskExecutor-");executor.initialize();return executor;}
}

用于获取线程池状态和调整线程池配置的控制类

package gov.zwfw.iam.uc.threadpoolconfig;import com.alibaba.fastjson.JSONObject;
import gov.zwfw.iam.base.util.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;import java.util.ArrayList;
import java.util.List;
import java.util.Map;
import java.util.stream.Collectors;@RestController
@RequestMapping("/pool")
public class ThreadPoolManageController {@AutowiredThreadPoolManager threadPoolManager;@RequestMapping(value = "/getStatus",method = RequestMethod.GET)public String getStatus(@RequestParam(value = "name",required = false) String name){if(StringUtils.isEmpty(name)){List<String>result = new ArrayList<>();Map<String, ThreadPoolStatusPo> allThreadPoolStatus = threadPoolManager.getAllThreadPoolStatus();allThreadPoolStatus.keySet().forEach(key->{ThreadPoolStatusPo threadPoolStatusPo = allThreadPoolStatus.get(key);String s = key+":"+JSONObject.toJSONString(threadPoolStatusPo);result.add(s);});return result.stream().collect(Collectors.joining("\n"));}else{ThreadPoolStatusPo singleThreadPoolStatus = threadPoolManager.getSingleThreadPoolStatus(name);return name+":"+JSONObject.toJSONString(singleThreadPoolStatus);}}@RequestMapping(value = "/adjust",method = RequestMethod.POST)public String adjust(@RequestParam(value = "name") String name,@RequestParam(value = "corePoolSize",required = false)Integer corePoolSize,@RequestParam(value = "maxPoolSize",required = false)Integer maxPoolSize,@RequestParam(value = "queueCapacity",required = false)Integer queueCapacity){threadPoolManager.adjustThreadPool(name,corePoolSize,maxPoolSize,queueCapacity);return "调整成功";}@RequestMapping(value = "/reset",method = RequestMethod.POST)public String reset(@RequestParam(value = "name") String name){threadPoolManager.resetThreadPool(name);return "重置成功";}
}

提交异步任务的业务实现，这里是分页查询用户信息同步到第三方平台，首先是页面点击实现的全量同步和失败重试接口

@Value("${batch.push.size:5}")private int batchSize;@RequestMapping("/syncUser")@ResponseBodypublic Result syncUser(@RequestParam String resId) {Result result = new Result();//校验当天是否存在失败未重试任务String key = "FAIL_INDEX_"+resId+"_"+new SimpleDateFormat("yyyyMMdd").format(new Date());if(CodisUtil.lLen(key)>0){result.setCode("-5");result.setMsg("存在失败未重试任务，请点击失败重试按钮处理");return result;}String resUrl = "";try{resUrl = staffApi.selectUserSyncUrl(resId);if(gov.zwfw.iam.base.util.StringUtils.isEmpty(resUrl)){result.setCode("-1");result.setMsg("同步地址为空");return result;}logger.info("同步地址：{}", resUrl);//分页查询用户信息，分批推送int userNum = staffApi.countUser();long startTime  = System.nanoTime();CompletableFuture<JSONObject> jsonObject = staffApi.resolveTask(resId,resUrl,userNum,batchSize, null);JSONObject futureJson = jsonObject.get();long endTime = System.nanoTime();logger.info("同步耗时：{}纳秒", (endTime-startTime));result.setCode(futureJson.getString("code"));result.setMsg(futureJson.getString("msg"));}catch (Exception e){logger.error("同步失败，同步地址：{}，失败原因：{}",  resUrl, e.getMessage());result.setCode("-1");result.setMsg(e.getMessage());}return result;}@RequestMapping("/syncUserFail")@ResponseBodypublic Result syncUserFail(@RequestParam String resId) {Result result = new Result();String key = "FAIL_INDEX_"+resId+"_"+new SimpleDateFormat("yyyyMMdd").format(new Date());if(CodisUtil.lLen(key)>0){String resUrl = "";try{resUrl = staffApi.selectUserSyncUrl(resId);if(gov.zwfw.iam.base.util.StringUtils.isEmpty(resUrl)){result.setCode("-1");result.setMsg("同步地址为空");return result;}logger.info("同步地址：{}", resUrl);List<String> failIndexList = CodisUtil.lRange(key,0,-1);CodisUtil.delKey(key);long startTime  = System.nanoTime();CompletableFuture<JSONObject> jsonObject = staffApi.resolveTask(resId,resUrl,0,batchSize,failIndexList);JSONObject futureJson = jsonObject.get();long endTime = System.nanoTime();logger.info("同步耗时：{}纳秒", (endTime-startTime));result.setCode(futureJson.getString("code"));result.setMsg(futureJson.getString("msg"));}catch (Exception e){logger.error("同步失败，同步地址：{}，失败原因：{}",  resUrl, e.getMessage());result.setCode("-1");result.setMsg(e.getMessage());}}else{result.setCode("-6");result.setMsg("不存在失败未重试任务");}return result;}

然后是真正实现分页任务以及提交执行的核心类

@Resource(name = "coreTaskExecutor")private Executor coreTaskExecutor;@Async("coreTaskExecutor")public CompletableFuture<JSONObject> resolveTask(String resId, String resUrl, int total, int batchSize, List<String> failIndexList) {//1、分页任务列表List<CompletableFuture<String>> futures = new ArrayList<>();//失败的下表存储到redis的key，使用list类型String key = "FAIL_INDEX_"+resId+"_"+new SimpleDateFormat("yyyyMMdd").format(new Date());//2、如果是全量推送，计算起始位置，执行分页查询并推送；如果是失败数据推送，那么使用失败的下表，分页查询并推送if(total !=0 && null == failIndexList){for(int i=0;i<total;i+=batchSize){int startIndex = i;CompletableFuture<String> future = getFuture(startIndex, batchSize, resUrl, key);futures.add(future);}}else{for (int i = 0; i < failIndexList.size(); i++) {int startIndex = Integer.parseInt(failIndexList.get(i));CompletableFuture<String> future = getFuture(startIndex, batchSize, resUrl, key);futures.add(future);}}//5、等待所有任务执行完成并处理结果CompletableFuture<Void> allFutures = CompletableFuture.allOf(futures.toArray(new CompletableFuture[0]));return allFutures.thenApply(r->{List<String> results = futures.stream().map(CompletableFuture::join).collect(Collectors.toList());//6、构建响应信息JSONObject resultJson = new JSONObject();int failCount = Math.toIntExact(results.stream().filter(result ->{JSONObject jsonObject = JSONObject.parseObject(result);if(jsonObject.containsKey("startIndex")){String startIndex = jsonObject.getString("startIndex");CodisUtil.lPush(key,startIndex);logger.error("失败index：{}",startIndex);}return !jsonObject.getString("code").equals("0");}).count());resultJson.put("code",failCount>0?"-1":"0");resultJson.put("msg",failCount>0?"部分数据推送失败，请点击失败重试按钮重新推送":"推送成功");CodisUtil.expireKey(key,60*60*24);return resultJson;});}public int countUser() {return govStaffService.countUser();}public CompletableFuture<String> getFuture(int startIndex, int batchSize, String resUrl, String key){CompletableFuture<String> future = CompletableFuture.supplyAsync(() -> {try{//3、分页查询List<UcGovStaff> list = govStaffService.selectListByPage(startIndex, batchSize);logger.info("查询到第"+(startIndex/batchSize+1)+"页数据，数量为：{}", list.size());String syncRes = "";if(null == list || list.isEmpty()){JSONObject jsonObject = new JSONObject();jsonObject.put("code","-2");jsonObject.put("msg","推送数据为空");return jsonObject.toJSONString();}//4、执行推送任务syncRes = govStaffService.syncUser(startIndex,list, resUrl);return syncRes;}catch (Exception e){logger.error("分页任务异常：{}",e.getMessage());JSONObject jsonObject = new JSONObject();jsonObject.put("code","-3");jsonObject.put("msg","任务执行失败");CodisUtil.lPush(key,String.valueOf(startIndex));CodisUtil.expireKey(key,60*60*24);return jsonObject.toJSONString();}},coreTaskExecutor);return future;}public String syncUser(int startIndex, List<UcGovStaff> list, String resUrl) {String data = JSON.toJSONString(list);JSONObject jsonObject = new JSONObject();jsonObject.put("data", data);String s = "";try {s = WebUtils.doPost(resUrl,jsonObject);jsonObject = JSONObject.parseObject(s);if(!"0".equals(jsonObject.getString("code"))){jsonObject.put("startIndex",startIndex);}s = jsonObject.toJSONString();} catch (IOException e) {logger.error("同步人员异常：{}",e.getMessage());jsonObject = new JSONObject();jsonObject.put("code","-1");jsonObject.put("msg","网络请求异常");jsonObject.put("startIndex",startIndex);s = jsonObject.toJSONString();}return s;}

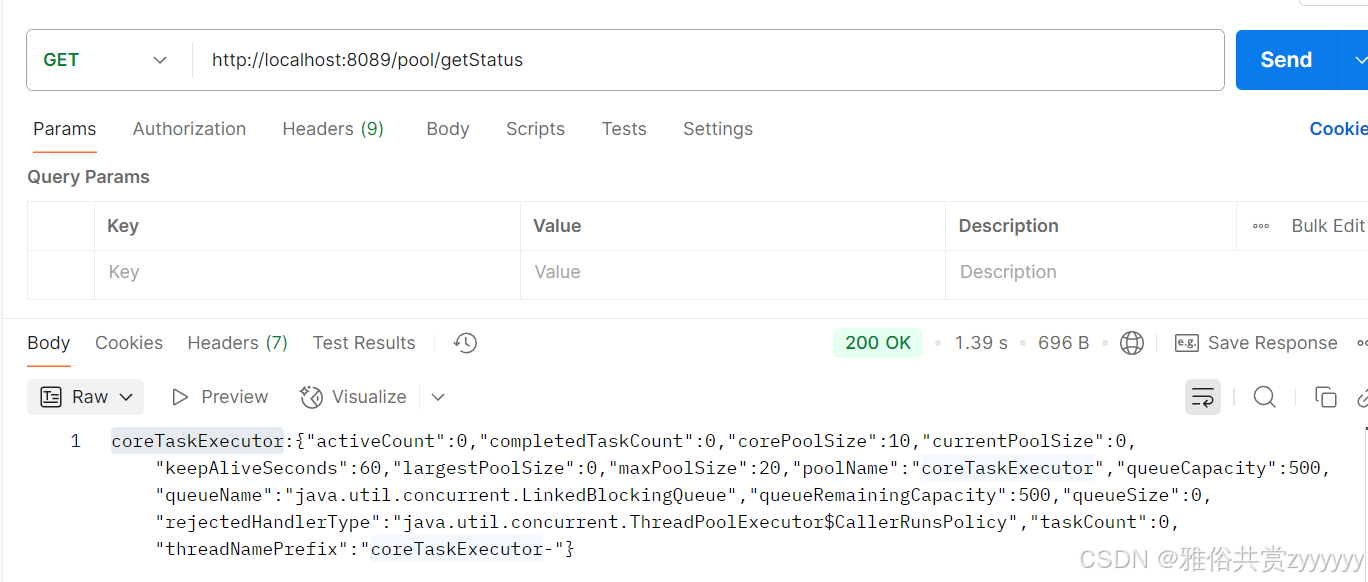

注意，使用异步任务一定要在启动类添加@EnableAsync注解，同时，真正执行异步任务的方法上添加@Async("coreTaskExecutor")注解，注解里的参数对应的是提交任务的线程池名称。下面是获取线程池状态以及调整线程池配置的示例

总结

这次业务实现了基于ThreadPoolTaskExecutor+CompletableFuture的数据推送业务，可以引申为其他的多线程异步任务实现，实现了全量数据推送和失败重试机制，对于处理大批量任务很有帮助，由于业务中主线程和异步任务是同步实现的，因此，会阻塞主线程直至异步任务执行完成，如果要实现主线程同步返回，异步执行后续任务，只需要@Async注解提交resolveTask任务即可。
