基于Spring Security 6的OAuth2 系列之十九 - 高级特性--OIDC1.0协议之二

之所以想写这一系列，是因为之前工作过程中使用Spring Security OAuth2搭建了网关和授权服务器，但当时基于spring-boot 2.3.x，其默认的Spring Security是5.3.x。之后新项目升级到了spring-boot 3.3.0，结果一看Spring Security也升级为6.3.0。无论是Spring Security的风格和以及OAuth2都做了较大改动，里面甚至将授权服务器模块都移除了，导致在配置同样功能时，花费了些时间研究新版本的底层原理，这里将一些学习经验分享给大家。

注意：由于框架不同版本改造会有些使用的不同，因此本次系列中使用基本框架是 spring-boo-3.3.0（默认引入的Spring Security是6.3.0），JDK版本使用的是19，本系列OAuth2的代码采用Spring Security6.3.0框架，所有代码都在oauth2-study项目上：https://github.com/forever1986/oauth2-study.git

上一章，我们讲解了OIDC1.0协议以及给出一个演示demo，那么这一章我们来剖析一下Spring Authrization Server如何实现OIDC的。

1 底层原理

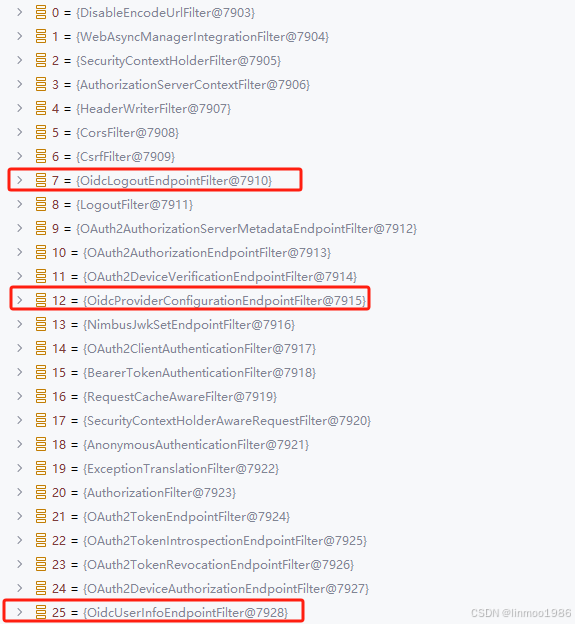

1）我们通过授权码模式下的代码原理，先看一下我们配置了odic之后，Filter过滤器链有什么变化

从上图可以看出增加了OidcLogoutEndpointFilter、OidcUserInfoEndpointFilter、OidcProviderConfigurationEndpointFilter可以看出对于授权码模式下，其认证还是基于原先OAuth2那一套，因此这里有兴趣的朋友可以去看看《系列之八-Spring Authrization Server的基本原理》其中OAuth2AuthorizationEndpointFilter过滤器的处理逻辑就能明白授权码的过程

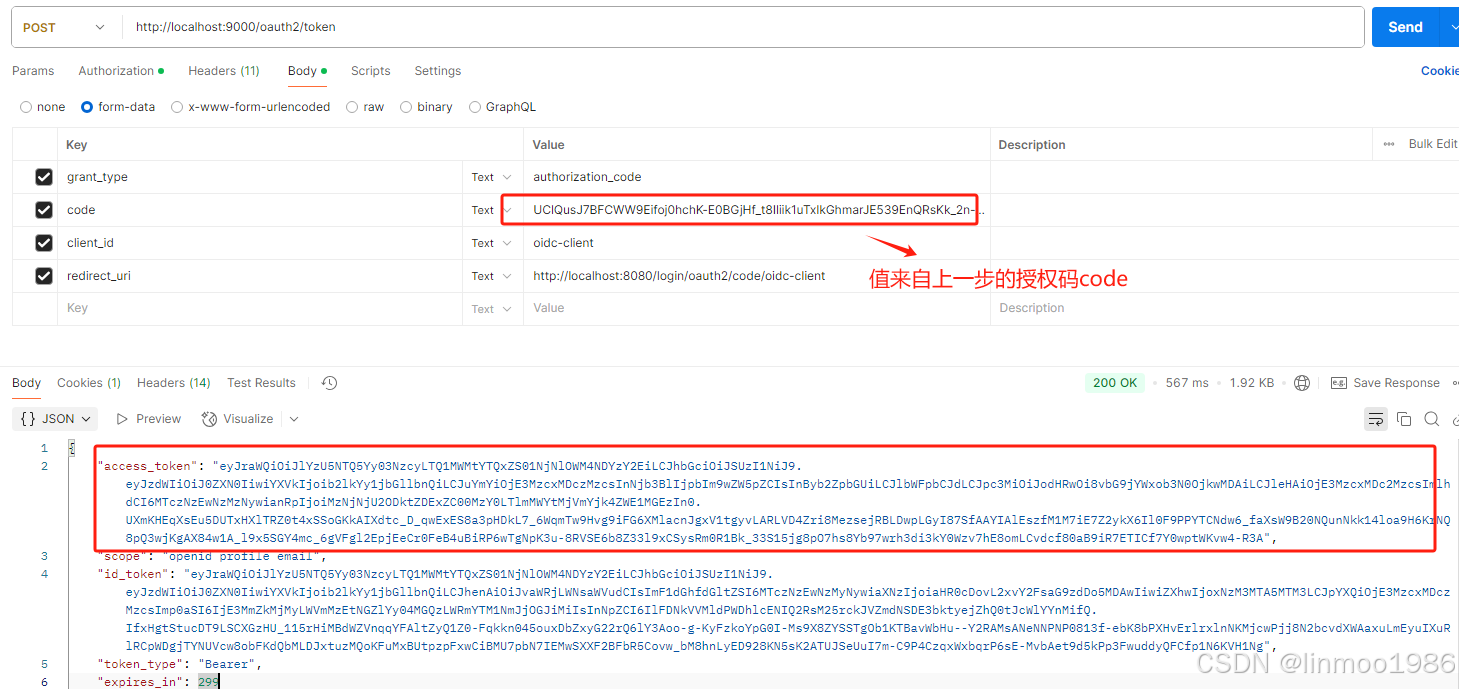

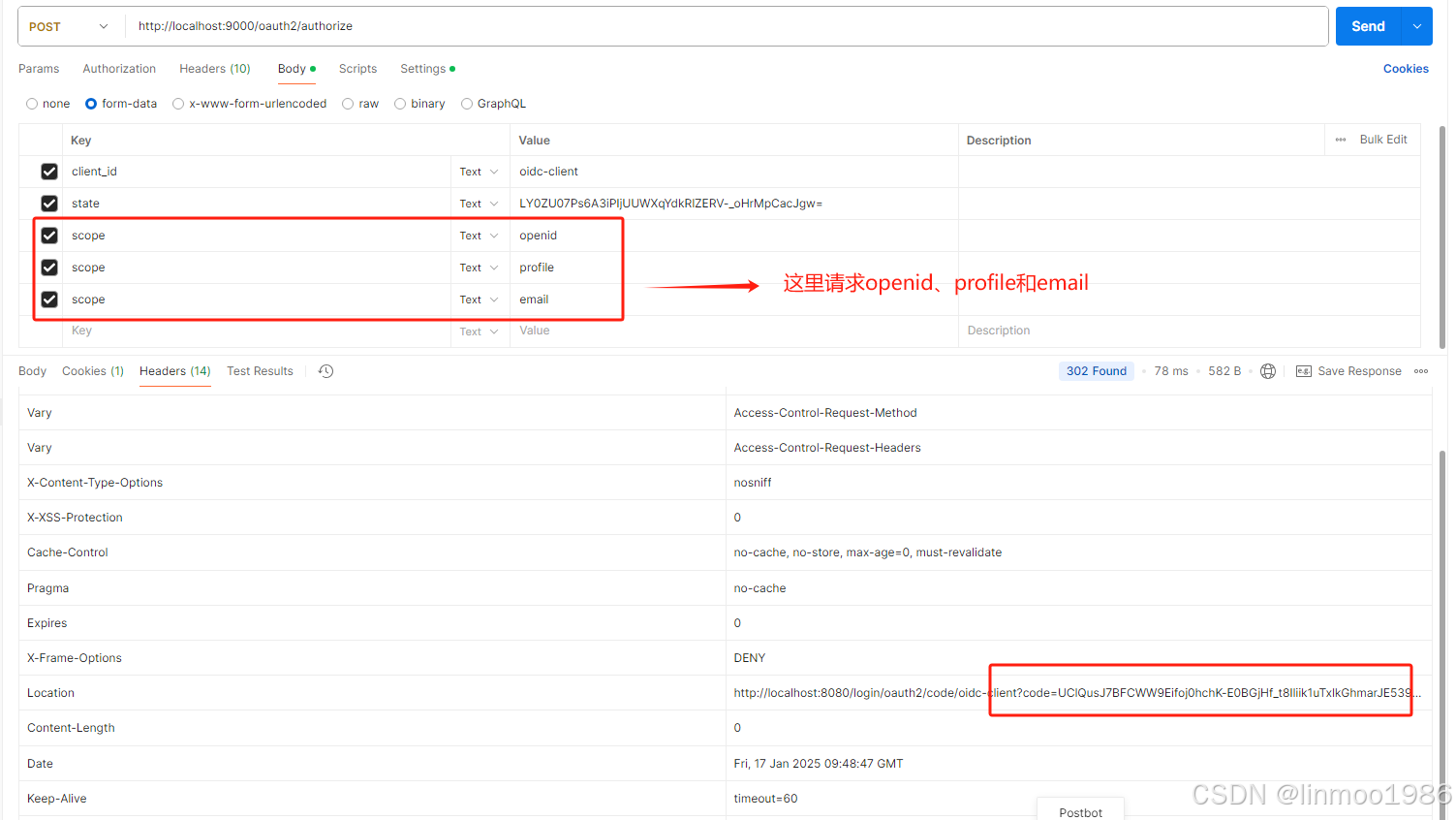

2）那么怎么返回id_token的呢？我们在《系列之九-token的获取》中讲到token的获取是通过OAuth2TokenEndpointFilter过滤器，其中使用OAuth2AuthorizationCodeAuthenticationProvider进行生成，最终使用OAuth2TokenGenerator的三种不同的实现类进行生成。

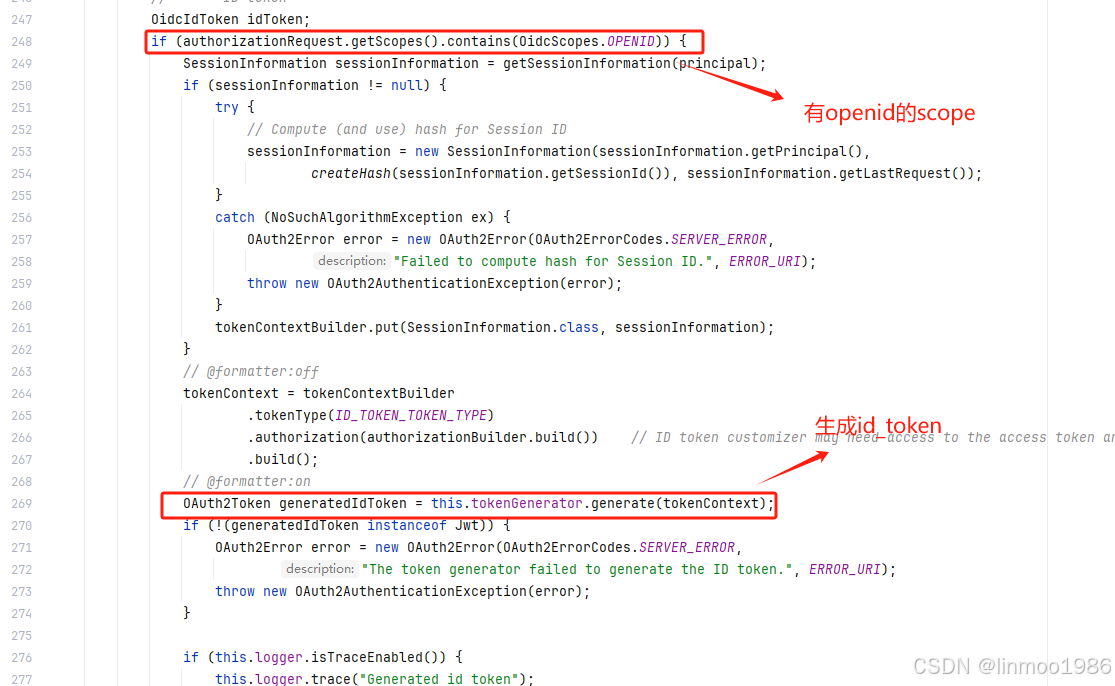

3）我们先来看看OAuth2AuthorizationCodeAuthenticationProvider代码，先判断有没有请求openid的scope，有的话调用tokenGenerator进行生成

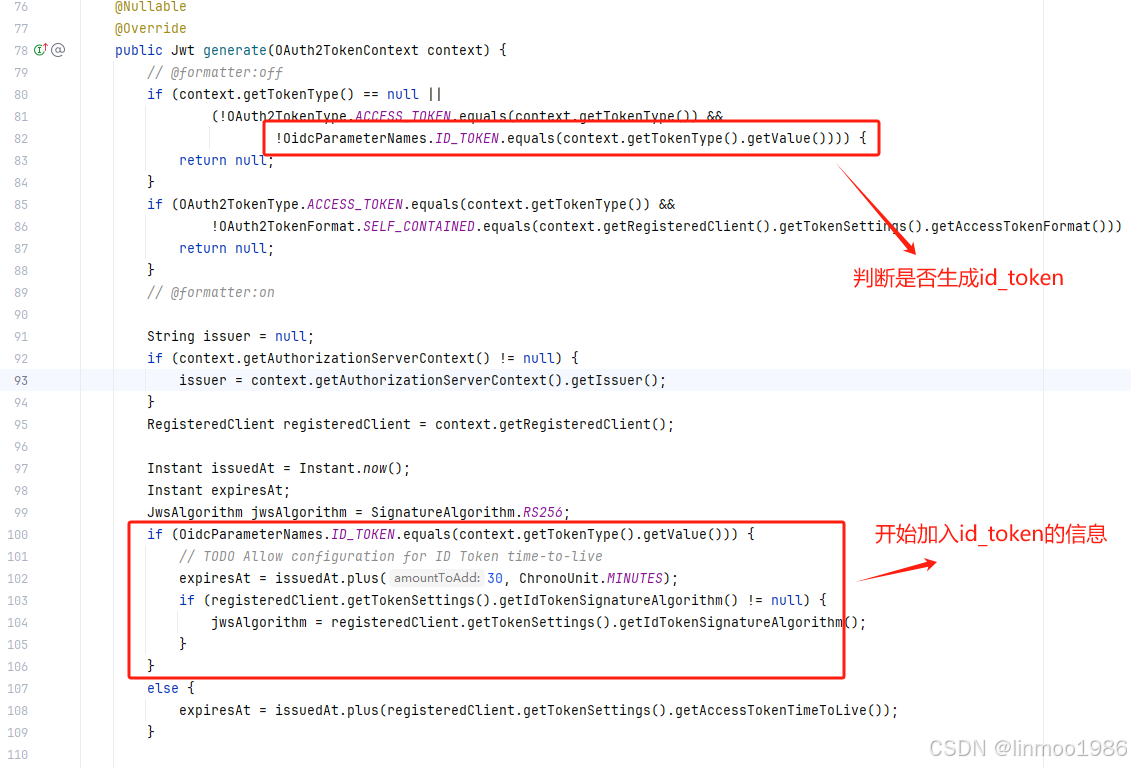

4）我们再来看看tokenGenerator的实现类之一JwtGenerator，其可以处理access_token 和id_token（这个我们在前面《系列之九-token的获取》已经讲过）。只不过在处理id_token与access_token加入的信息不太一样而已

5）至此，我们就明白了，Spring Authrization Server实现OIDC还是基于OAuth2的基础上做了一些修改。那么我们前面提到的关于OIDC的几个过滤器是做什么用的？下面一小节我们来看看。

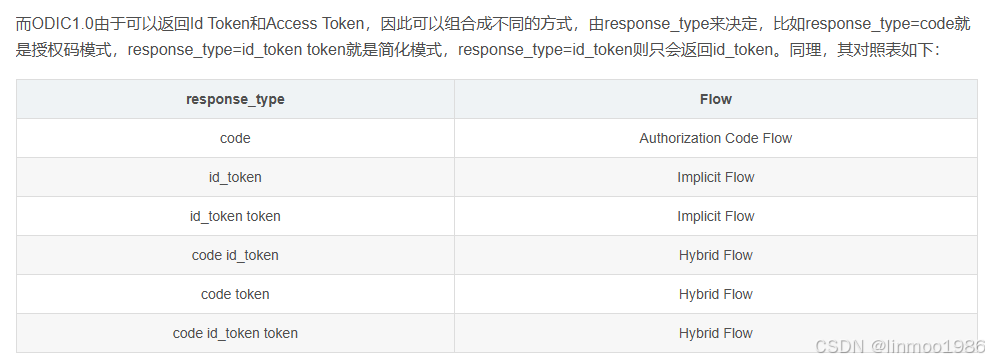

注意：由于Spring Authrization Server1.3版本已经没有简化模式(Implicit Grant)，因此没有实现OIDC的Implicit Flow和Hybrid Flow

2 几个OIDC的过滤器

2.1 OidcProviderConfigurationEndpointFilter

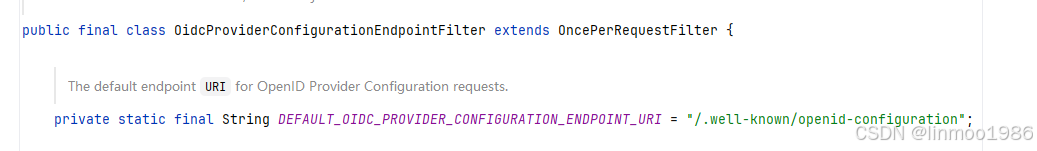

OidcProviderConfigurationEndpointFilter过滤器有2段代码非常重要，一个是ENDPOINT_URI，可以看到是拦截/.well-known/openid-configuration请求的

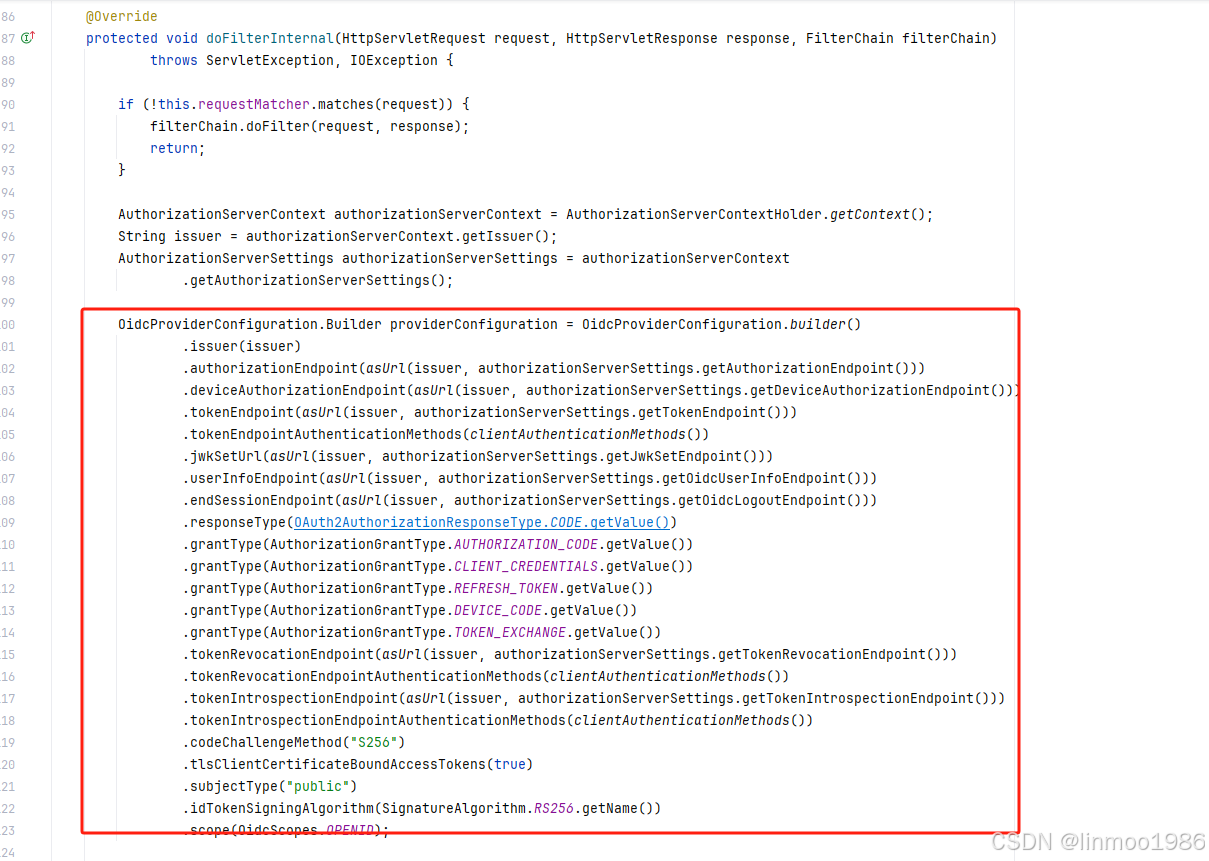

一个是doFilterInternal方法，就是把授权服务器的配置信息发布出来。

因此该Filter中为了实现OIDC协议的4.1小结，为了发布一些授权服务器的信息。我们可以回忆一下，在《系列之十三 - 资源服务器–底层原理》那一章，就讲过资源服务器是通过/.well-known/openid-configuration请求获得jwt-set-uri的。

2.2 OidcUserInfoEndpointFilter

1）该过滤器是拦截/userinfo请求，也就是获得用户信息

2）其最终的通过OidcUserInfoAuthenticationProvider来组装用户信息返回的

3）因此该过滤器只是为了实现OIDC协议的5.3.1小结

2.3 OidcLogoutEndpointFilter

该过滤器是为了实现OIDC协议的2小结向授权服务器发起登出的功能。这里就不解析了。

3 自定义用户信息

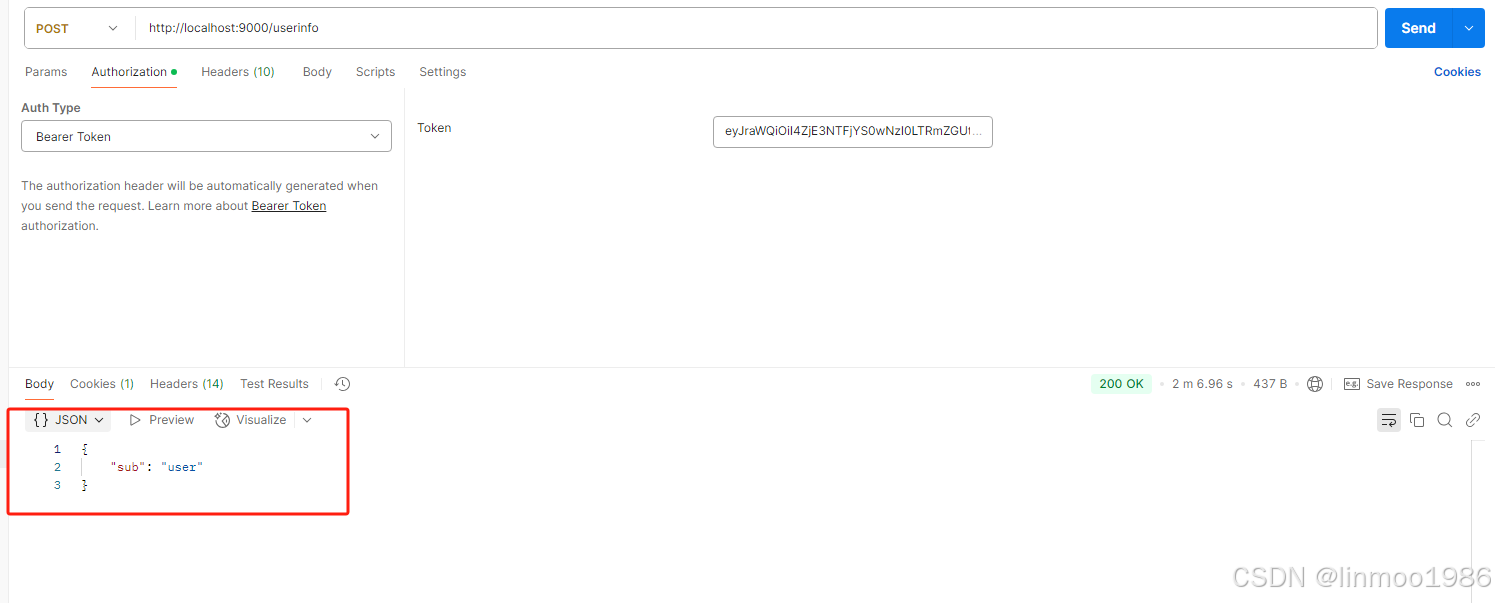

我们发现在访问/userinfo接口时，只返回一个用户名，如果我们想返回更多的信息，应该如何操作呢？

3.1 OidcUserInfoAuthenticationProvider返回用户信息

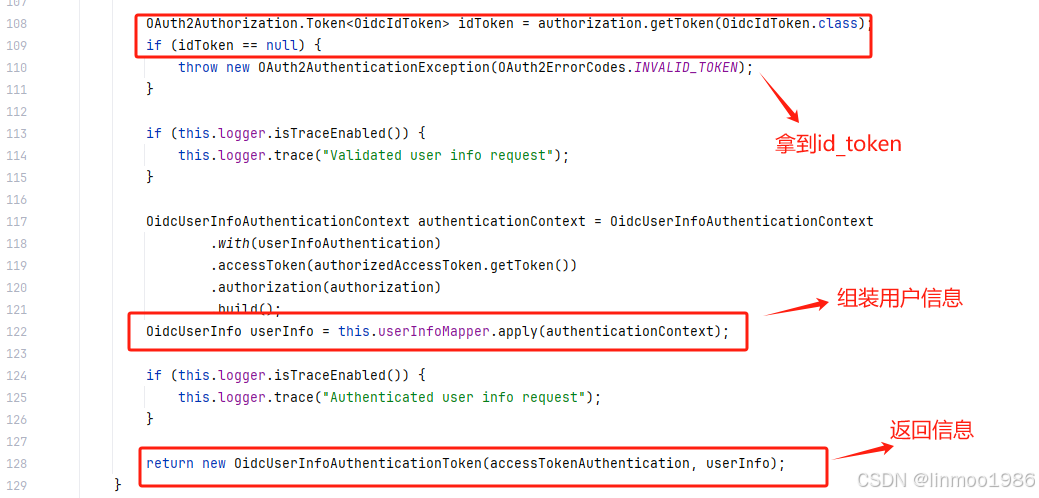

1）我们先来看看OidcUserInfoAuthenticationProvider是如何返回用户信息

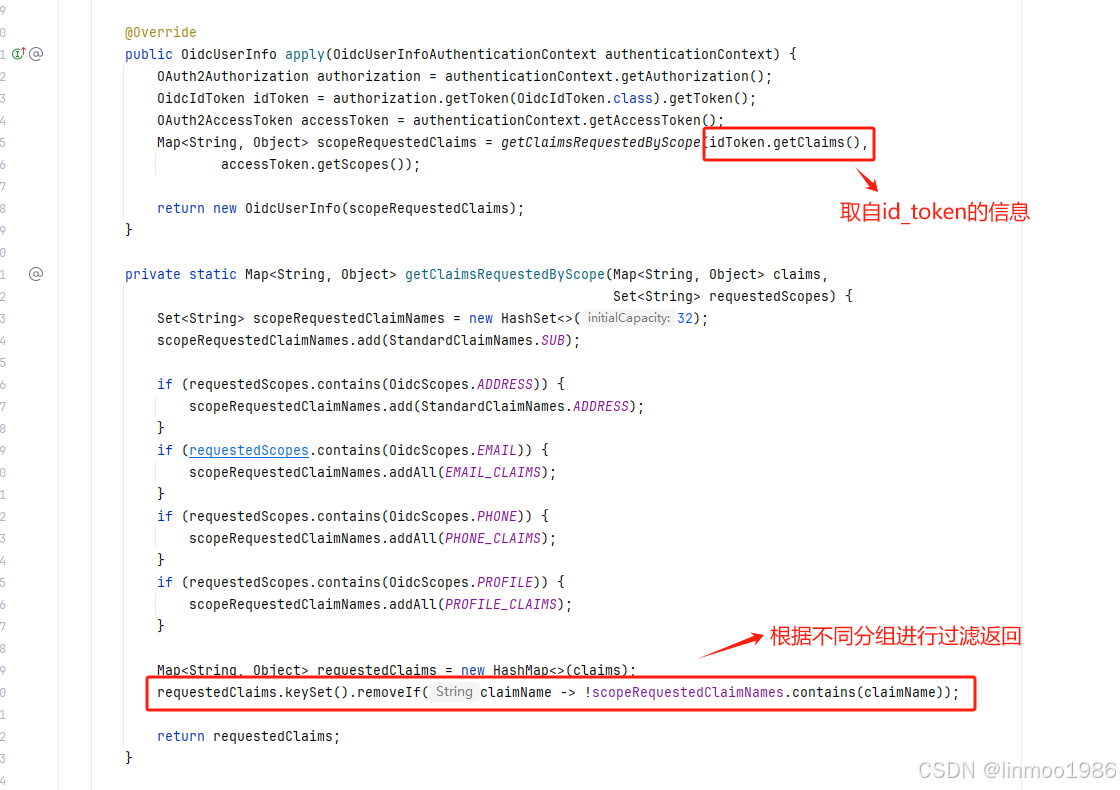

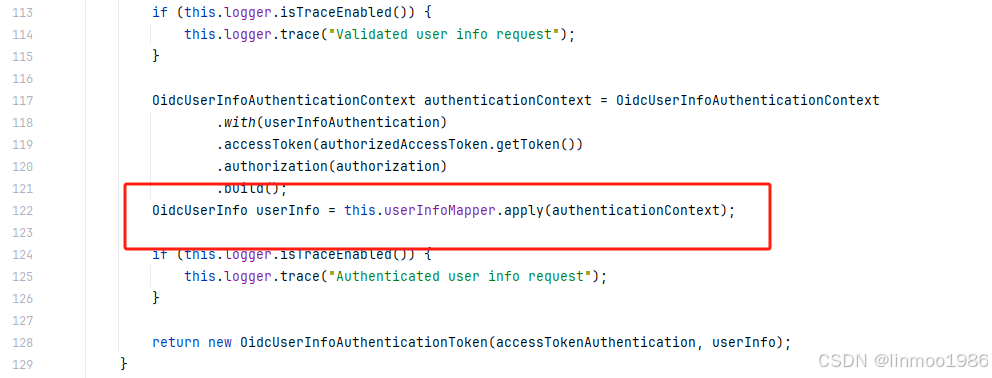

2）我们重点来看看userInfoMapper这个是如何组装

3）这里有一个小细节，就是它是根据请求授权的scopes来返回的，其映射如下表

scope	Value
openid	id_token, sub
profile	name, family_name, given_name, middle_name, nickname, prefered_userame, profle, picture, website, gender, bithdate, zoneinfo, locale, updated_at
email	email、 email_verified
phone	phone_number、phone_number_verified
address	address

3.2 自定义用户信息

现在我们知道其通过id_token里面的信息取获取的。那么我们有2种方式可以自定义用户信息：

• 第一种方法：自定义id_token，将信息放入id_token中，我们需要自定义OAuth2TokenGenerator。或许你存一些无关紧要的信息还是可以接受的，但是如果信息中包括个人隐私以及系统权限等信息，就会使得id_token暴露太多信息。如果想实现这个，参考官方的案例
• 第二种方法：自定义OidcUserInfoAuthenticationProvider，我们可以从数据库获取用户信息，然后通过授权的scopes控制返回信息。这样既能自定义，也能做权限控制。

3.2.1 代码逻辑

代码参考lesson13子模块，下面我们就采用第二种方法来实现自定义返回用户信息

前提条件：使用数据库保存用户信息，因此使用原先oauth_study数据库，并创建t_user表

1）在oauth_study数据库，创建t_user表（词表在lesson06子模块创建过，如果已经创建，就直接使用即可）

-- oauth_study.t_user definition

CREATE TABLE oauth_study.`t_user` (
  `id` bigint NOT NULL AUTO_INCREMENT,
  `username` varchar(100) NOT NULL,
  `password` varchar(100) NOT NULL,
  `email` varchar(100) DEFAULT NULL,
  `phone` varchar(100) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=6 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;

INSERT INTO oauth_study.t_user (username, password, email, phone) VALUES('test', '{noop}1234', '[e-mail]', '13788888888');

2）创建lesson13子模块，其pom引入如下

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.security</groupId>
        <artifactId>spring-security-oauth2-authorization-server</artifactId>
    </dependency>
    <!-- lombok依赖，用于get/set的简便-->
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
    </dependency>
    <!-- mysql依赖，用于连接mysql数据库-->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
    </dependency>
    <!-- mybatis-plus依赖，用于使用mybatis-plus-->
    <dependency>
        <groupId>com.baomidou</groupId>
        <artifactId>mybatis-plus-spring-boot3-starter</artifactId>
    </dependency>
    <!-- pool2和druid依赖，用于mysql连接池-->
    <dependency>
        <groupId>org.apache.commons</groupId>
        <artifactId>commons-pool2</artifactId>
    </dependency>
    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid-spring-boot-starter</artifactId>
    </dependency>
</dependencies>

3）在resources目录下，创建yaml文件

server:
  port: 9000

logging:
  level:
    org.springframework.security: trace


spring:
  # 配置数据源
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/oauth_study?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull&useSSL=false&allowPublicKeyRetrieval=true
    username: root
    password: root
    druid:
      initial-size: 5
      min-idle: 5
      maxActive: 20
      maxWait: 3000
      timeBetweenEvictionRunsMillis: 60000
      minEvictableIdleTimeMillis: 300000
      validationQuery: select 'x'
      testWhileIdle: true
      testOnBorrow: false
      testOnReturn: false
      poolPreparedStatements: false
      filters: stat,wall,slf4j
      connectionProperties: druid.stat.mergeSql=true;druid.stat.slowSqlMillis=5000;socketTimeout=10000;connectTimeout=1200

# mybatis-plus的配置
mybatis-plus:
  global-config:
    banner: false
  mapper-locations: classpath:mappers/*.xml
  type-aliases-package: com.demo.lesson13.entity
  # 将handler包下的TypeHandler注册进去
  type-handlers-package: com.demo.lesson13.handler
  configuration:
    cache-enabled: false
    local-cache-scope: statement

4）在entity包下，创建LoginUserDetails和TUser，是用于Spring Security的用户存入数据库

/**
 * 扩展Spring Security的UserDetails
 */
@Data
@NoArgsConstructor
@AllArgsConstructor
@JsonIgnoreProperties(ignoreUnknown = true)
public class LoginUserDetails implements UserDetails {

    private TUser tUser;

    @Override
    @JsonIgnore
    public Collection<? extends GrantedAuthority> getAuthorities() {
        return List.of();
    }

    @Override
    public String getPassword() {
        return tUser.getPassword();
    }

    @Override
    public String getUsername() {
        return tUser.getUsername();
    }

    @Override
    public boolean isAccountNonExpired() {
        return true;
    }

    @Override
    public boolean isAccountNonLocked() {
        return true;
    }

    @Override
    public boolean isCredentialsNonExpired() {
        return true;
    }

    @Override
    public boolean isEnabled() {
        return true;
    }
}

/**
 * 表user结构
 */
@Data
public class TUser implements Serializable {

    @TableId(type = IdType.ASSIGN_ID)
    private Long id;

    private String username;

    private String password;

    private String email;

    private String phone;

}

5）在mapper包下，创建TUserMapper

@Mapper
public interface TUserMapper {

    // 根据用户名，查询用户信息
    @Select("select * from t_user where username = #{username}")
    TUser selectByUsername(String username);

}

6）在service包下，创建UserDetailsServiceImpl ，用于覆盖默认的用户查询

@Service
public class UserDetailsServiceImpl implements UserDetailsService {

    @Autowired
    private TUserMapper tUserMapper;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        // 查询自己数据库的用户信息
        TUser user = tUserMapper.selectByUsername(username);
        if(user == null){
            throw new UsernameNotFoundException(username);
        }
        return new LoginUserDetails(user);
    }

}

7）在provider包下，创建MyOidcUserInfoAuthenticationProvider类，几乎复制OidcUserInfoAuthenticationProvider，并做小部分修改

public class MyOidcUserInfoAuthenticationProvider implements AuthenticationProvider {

    private final Log logger = LogFactory.getLog(getClass());

    private final OAuth2AuthorizationService authorizationService;

    private final TUserMapper tUserMapper;

    private DefaultOidcUserInfoMapper userInfoMapper = new MyOidcUserInfoAuthenticationProvider.DefaultOidcUserInfoMapper();


    /**
     * Constructs an {@code OidcUserInfoAuthenticationProvider} using the provided
     * parameters.
     * @param authorizationService the authorization service
     */
    public MyOidcUserInfoAuthenticationProvider(OAuth2AuthorizationService authorizationService, TUserMapper tUserMapper) {
        Assert.notNull(authorizationService, "authorizationService cannot be null");
        Assert.notNull(tUserMapper, "tUserMapper cannot be null");
        this.authorizationService = authorizationService;
        this.tUserMapper = tUserMapper;
    }

    @Override
    public Authentication authenticate(Authentication authentication) throws AuthenticationException {
        OidcUserInfoAuthenticationToken userInfoAuthentication = (OidcUserInfoAuthenticationToken) authentication;

        AbstractOAuth2TokenAuthenticationToken<?> accessTokenAuthentication = null;
        if (AbstractOAuth2TokenAuthenticationToken.class
                .isAssignableFrom(userInfoAuthentication.getPrincipal().getClass())) {
            accessTokenAuthentication = (AbstractOAuth2TokenAuthenticationToken<?>) userInfoAuthentication
                    .getPrincipal();
        }
        if (accessTokenAuthentication == null || !accessTokenAuthentication.isAuthenticated()) {
            throw new OAuth2AuthenticationException(OAuth2ErrorCodes.INVALID_TOKEN);
        }

        String accessTokenValue = accessTokenAuthentication.getToken().getTokenValue();

        OAuth2Authorization authorization = this.authorizationService.findByToken(accessTokenValue,
                OAuth2TokenType.ACCESS_TOKEN);
        if (authorization == null) {
            throw new OAuth2AuthenticationException(OAuth2ErrorCodes.INVALID_TOKEN);
        }

        if (this.logger.isTraceEnabled()) {
            this.logger.trace("Retrieved authorization with access token");
        }

        OAuth2Authorization.Token<OAuth2AccessToken> authorizedAccessToken = authorization.getAccessToken();
        if (!authorizedAccessToken.isActive()) {
            throw new OAuth2AuthenticationException(OAuth2ErrorCodes.INVALID_TOKEN);
        }

        if (!authorizedAccessToken.getToken().getScopes().contains(OidcScopes.OPENID)) {
            throw new OAuth2AuthenticationException(OAuth2ErrorCodes.INSUFFICIENT_SCOPE);
        }

        OAuth2Authorization.Token<OidcIdToken> idToken = authorization.getToken(OidcIdToken.class);
        if (idToken == null) {
            throw new OAuth2AuthenticationException(OAuth2ErrorCodes.INVALID_TOKEN);
        }
        // 修改1：此处从数据库获得数据，并塞入idToken即可
        TUser tUser = null;
        if(idToken.getClaims()!=null&&idToken.getClaims().get(StandardClaimNames.SUB) instanceof String){
            tUser = tUserMapper.selectByUsername((String) idToken.getClaims().get(StandardClaimNames.SUB));
        }
        if (this.logger.isTraceEnabled()) {
            this.logger.trace("Validated user info request");
        }
        OidcUserInfoAuthenticationContext authenticationContext = OidcUserInfoAuthenticationContext
                .with(userInfoAuthentication)
                .accessToken(authorizedAccessToken.getToken())
                .authorization(authorization)
                .build();
        // 修改2：传入tUser
        OidcUserInfo userInfo = this.userInfoMapper.apply(authenticationContext, tUser);

        if (this.logger.isTraceEnabled()) {
            this.logger.trace("Authenticated user info request");
        }

        return new OidcUserInfoAuthenticationToken(accessTokenAuthentication, userInfo);
    }

    @Override
    public boolean supports(Class<?> authentication) {
        return OidcUserInfoAuthenticationToken.class.isAssignableFrom(authentication);
    }

    /**
     * Sets the {@link Function} used to extract claims from
     * {@link OidcUserInfoAuthenticationContext} to an instance of {@link OidcUserInfo}
     * for the UserInfo response.
     *
     * <p>
     * The {@link OidcUserInfoAuthenticationContext} gives the mapper access to the
     * {@link OidcUserInfoAuthenticationToken}, as well as, the following context
     * attributes:
     * <ul>
     * <li>{@link OidcUserInfoAuthenticationContext#getAccessToken()} containing the
     * bearer token used to make the request.</li>
     * <li>{@link OidcUserInfoAuthenticationContext#getAuthorization()} containing the
     * {@link OidcIdToken} and {@link OAuth2AccessToken} associated with the bearer token
     * used to make the request.</li>
     * </ul>
     * @param userInfoMapper the {@link Function} used to extract claims from
     * {@link OidcUserInfoAuthenticationContext} to an instance of {@link OidcUserInfo}
     */
    public void setUserInfoMapper(DefaultOidcUserInfoMapper userInfoMapper) {
        Assert.notNull(userInfoMapper, "userInfoMapper cannot be null");
        this.userInfoMapper = userInfoMapper;
    }

    private static final class DefaultOidcUserInfoMapper {

        // @formatter:off
        private static final List<String> EMAIL_CLAIMS = Arrays.asList(
                StandardClaimNames.EMAIL,
                StandardClaimNames.EMAIL_VERIFIED
        );
        private static final List<String> PHONE_CLAIMS = Arrays.asList(
                StandardClaimNames.PHONE_NUMBER,
                StandardClaimNames.PHONE_NUMBER_VERIFIED
        );
        private static final List<String> PROFILE_CLAIMS = Arrays.asList(
                StandardClaimNames.NAME,
                StandardClaimNames.FAMILY_NAME,
                StandardClaimNames.GIVEN_NAME,
                StandardClaimNames.MIDDLE_NAME,
                StandardClaimNames.NICKNAME,
                StandardClaimNames.PREFERRED_USERNAME,
                StandardClaimNames.PROFILE,
                StandardClaimNames.PICTURE,
                StandardClaimNames.WEBSITE,
                StandardClaimNames.GENDER,
                StandardClaimNames.BIRTHDATE,
                StandardClaimNames.ZONEINFO,
                StandardClaimNames.LOCALE,
                StandardClaimNames.UPDATED_AT
        );
        // @formatter:on

        public OidcUserInfo apply(OidcUserInfoAuthenticationContext authenticationContext, TUser tUser) {
            OAuth2Authorization authorization = authenticationContext.getAuthorization();
            OidcIdToken idToken = authorization.getToken(OidcIdToken.class).getToken();
            // 修改3：组装新的map,为了演示，我们只需要传入电话和email做演示
            Map<String, Object> map = new ConcurrentHashMap<>(idToken.getClaims());
            map.put(StandardClaimNames.EMAIL, tUser.getEmail());
            map.put(StandardClaimNames.PHONE_NUMBER, tUser.getPhone());
            OAuth2AccessToken accessToken = authenticationContext.getAccessToken();
            Map<String, Object> scopeRequestedClaims = getClaimsRequestedByScope(map,
                    accessToken.getScopes());

            return new OidcUserInfo(scopeRequestedClaims);
        }

        private static Map<String, Object> getClaimsRequestedByScope(Map<String, Object> claims,
                                                                     Set<String> requestedScopes) {
            Set<String> scopeRequestedClaimNames = new HashSet<>(32);
            scopeRequestedClaimNames.add(StandardClaimNames.SUB);

            if (requestedScopes.contains(OidcScopes.ADDRESS)) {
                scopeRequestedClaimNames.add(StandardClaimNames.ADDRESS);
            }
            if (requestedScopes.contains(OidcScopes.EMAIL)) {
                scopeRequestedClaimNames.addAll(EMAIL_CLAIMS);
            }
            if (requestedScopes.contains(OidcScopes.PHONE)) {
                scopeRequestedClaimNames.addAll(PHONE_CLAIMS);
            }
            if (requestedScopes.contains(OidcScopes.PROFILE)) {
                scopeRequestedClaimNames.addAll(PROFILE_CLAIMS);
            }

            Map<String, Object> requestedClaims = new HashMap<>(claims);
            requestedClaims.keySet().removeIf(claimName -> !scopeRequestedClaimNames.contains(claimName));

            return requestedClaims;
        }

    }
}

8）在config包下，新建JdbcSecurityConfig配置授权服务器的客户端

@Configuration
public class JdbcSecurityConfig {

    @Bean
    public RegisteredClientRepository registeredClientRepository() {
        RegisteredClient registeredClient = RegisteredClient.withId(UUID.randomUUID().toString())
                // 客户端id
                .clientId("oidc-client")
                // 客户端密码
                .clientSecret("{noop}secret")
                // 客户端认证方式
                .clientAuthenticationMethods(methods ->{
                    methods.add(ClientAuthenticationMethod.CLIENT_SECRET_BASIC);
                })
                // 配置授权码模式
                .authorizationGrantTypes(grantTypes -> {
                    grantTypes.add(AuthorizationGrantType.AUTHORIZATION_CODE);
                })
                // 需要授权确认
                .clientSettings(ClientSettings.builder().requireAuthorizationConsent(true).build())
                // 回调地址
                .redirectUri("http://localhost:8080/login/oauth2/code/oidc-client")
                .postLogoutRedirectUri("http://localhost:8080/")
                // 授权范围
                .scopes(scopes->{
                    scopes.add(OidcScopes.OPENID);
                    scopes.add(OidcScopes.PROFILE);
                    scopes.add(OidcScopes.EMAIL);
                })
                .build();

        return new InMemoryRegisteredClientRepository(registeredClient);
    }

    @Bean
    public OAuth2AuthorizationService oAuth2AuthorizationService(){
        return new InMemoryOAuth2AuthorizationService();
    }
}

9）在config包下，新建SecurityConfig进行授权服务器的配置

@Configuration
public class SecurityConfig {

    @Autowired
    private OAuth2AuthorizationService oAuth2AuthorizationService;

    @Autowired
    private TUserMapper tUserMapper;

    // 自定义授权服务器的Filter链
    @Bean
    @Order(Ordered.HIGHEST_PRECEDENCE)
    SecurityFilterChain authorizationServerSecurityFilterChain(HttpSecurity http) throws Exception {
        OAuth2AuthorizationServerConfiguration.applyDefaultSecurity(http);
        http.getConfigurer(OAuth2AuthorizationServerConfigurer.class)
                // oidc配置
                .oidc(oidc-> oidc.userInfoEndpoint( userinfo -> userinfo.authenticationProvider(new MyOidcUserInfoAuthenticationProvider(oAuth2AuthorizationService, tUserMapper))));
        // 同时作为资源服务器，使用/userinfo接口
        http.oauth2ResourceServer((resourceServer) -> resourceServer.jwt(withDefaults()));
        // 异常处理
        http.exceptionHandling((exceptions) -> exceptions.authenticationEntryPoint(
                new LoginUrlAuthenticationEntryPoint("/login")));
        return http.build();
    }

    // 自定义Spring Security的链路。如果自定义授权服务器的Filter链，则原先自动化配置将会失效，因此也要配置Spring Security
    @Bean
    @Order(SecurityProperties.BASIC_AUTH_ORDER)
    SecurityFilterChain defaultSecurityFilterChain(HttpSecurity http) throws Exception {
        http.authorizeHttpRequests((authorize) -> authorize
                .anyRequest().authenticated()).formLogin(withDefaults());
        return http.build();
    }

}

3.2.2 演示效果

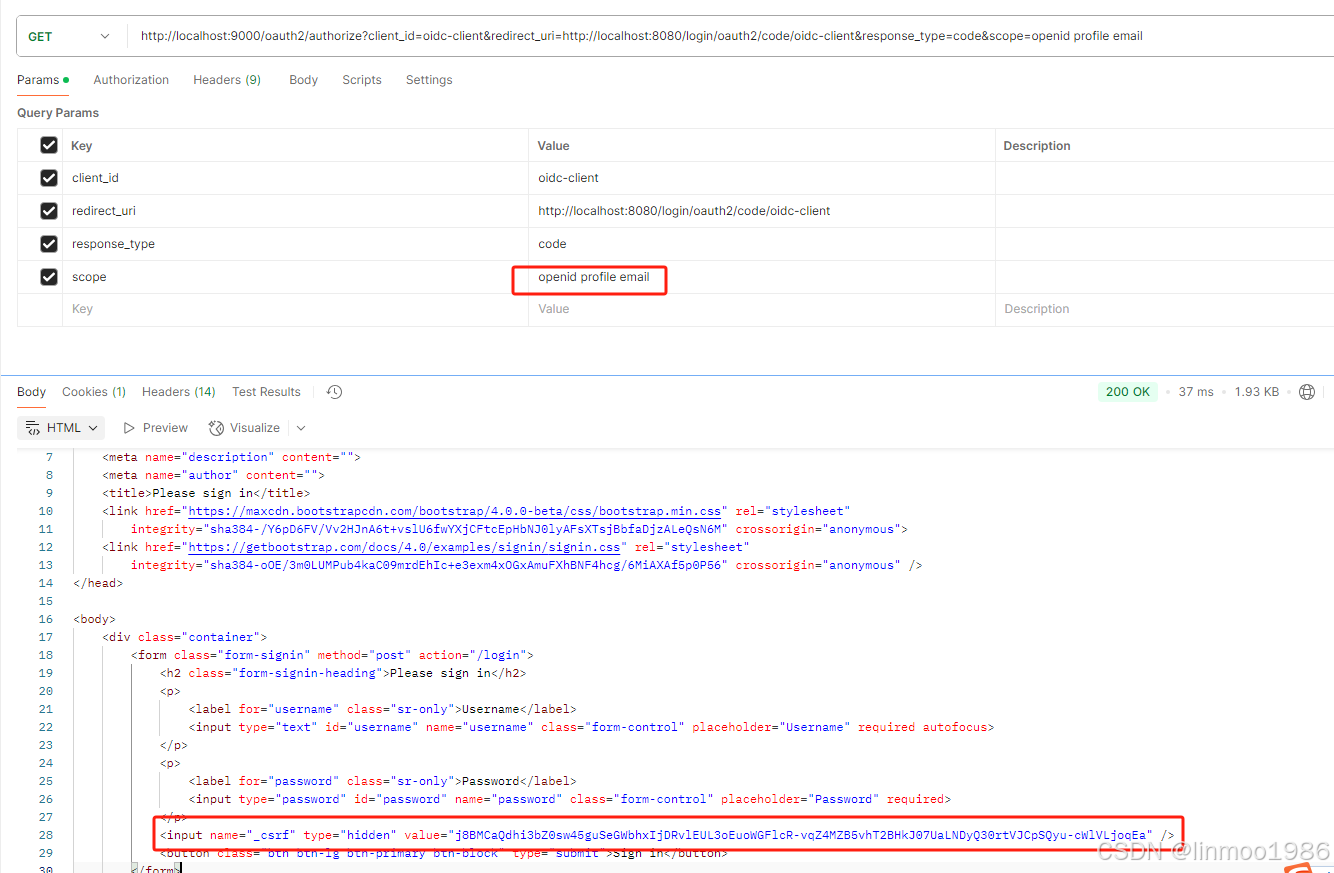

1）请求授权code

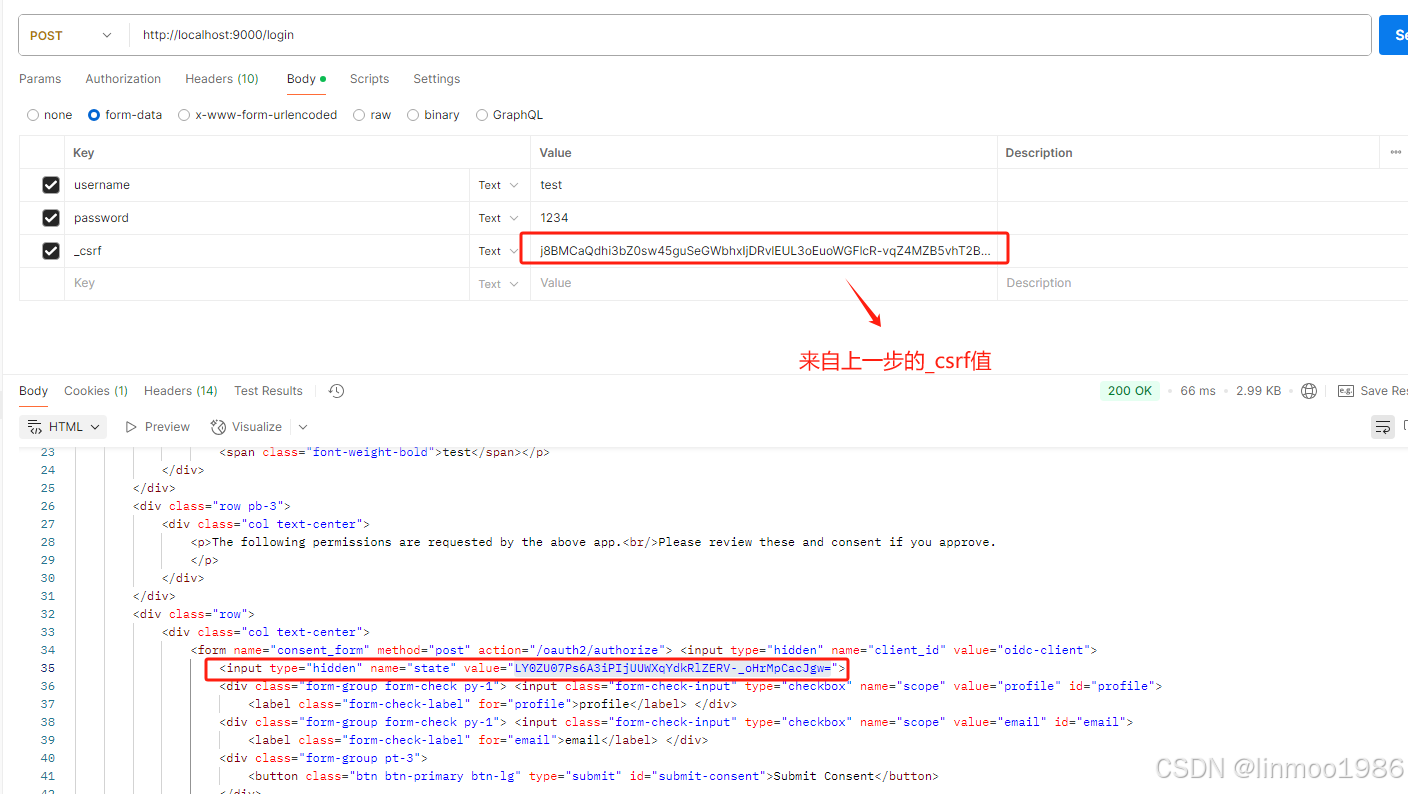

2）登录

3）再次请求授权码code，state参数的值来自上一步。

4）请求token

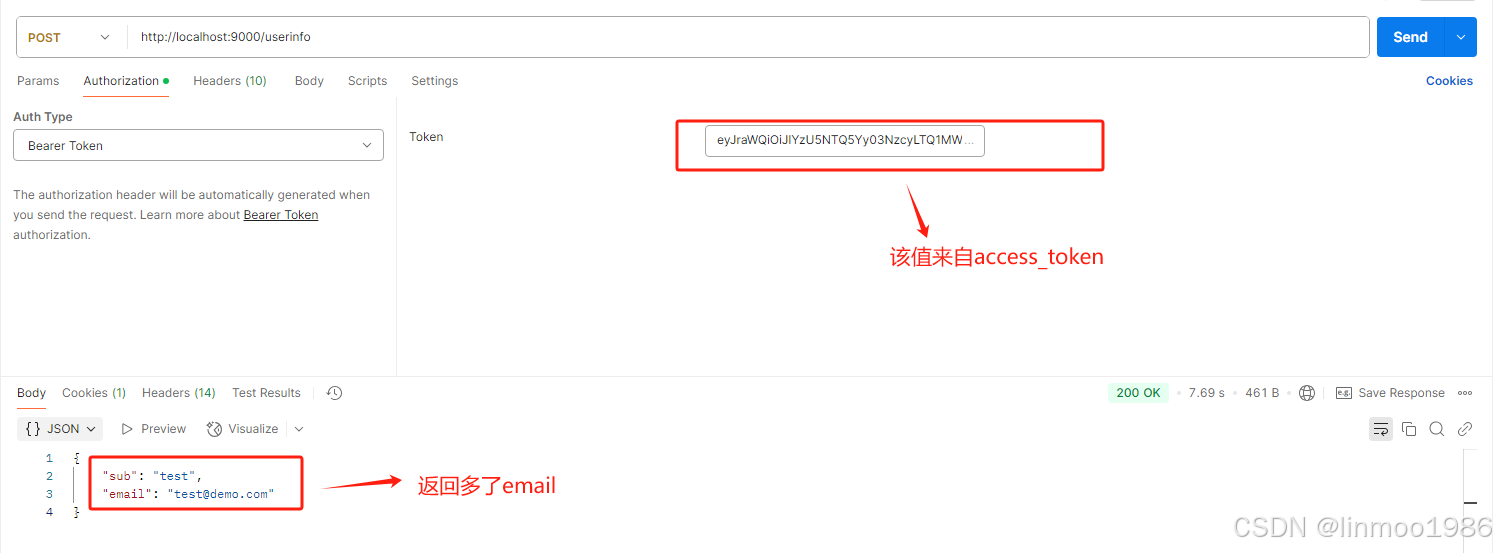

5）请求用户信息

6）你可以尝试scopes中加入phone，则会返回用户电话号码。当然DefaultOidcUserInfoMapper还是比较简单，实际业务可能会有很多用户数据和权限控制，这个就根据自己的实际需求做吧。

结语：目前为止，我们将Spring Security中如何实现OIDC的内容都讲完了。下面我们还继续了解其它高级特性。
