BeckHoff ＜--＞基恩士（CV-X300）三维机械手视觉系统的通讯控制

news 来源：原创 2025/6/12 22:41:44

一、 BeckHoff与基恩士 CV-X300采用Profinet通讯

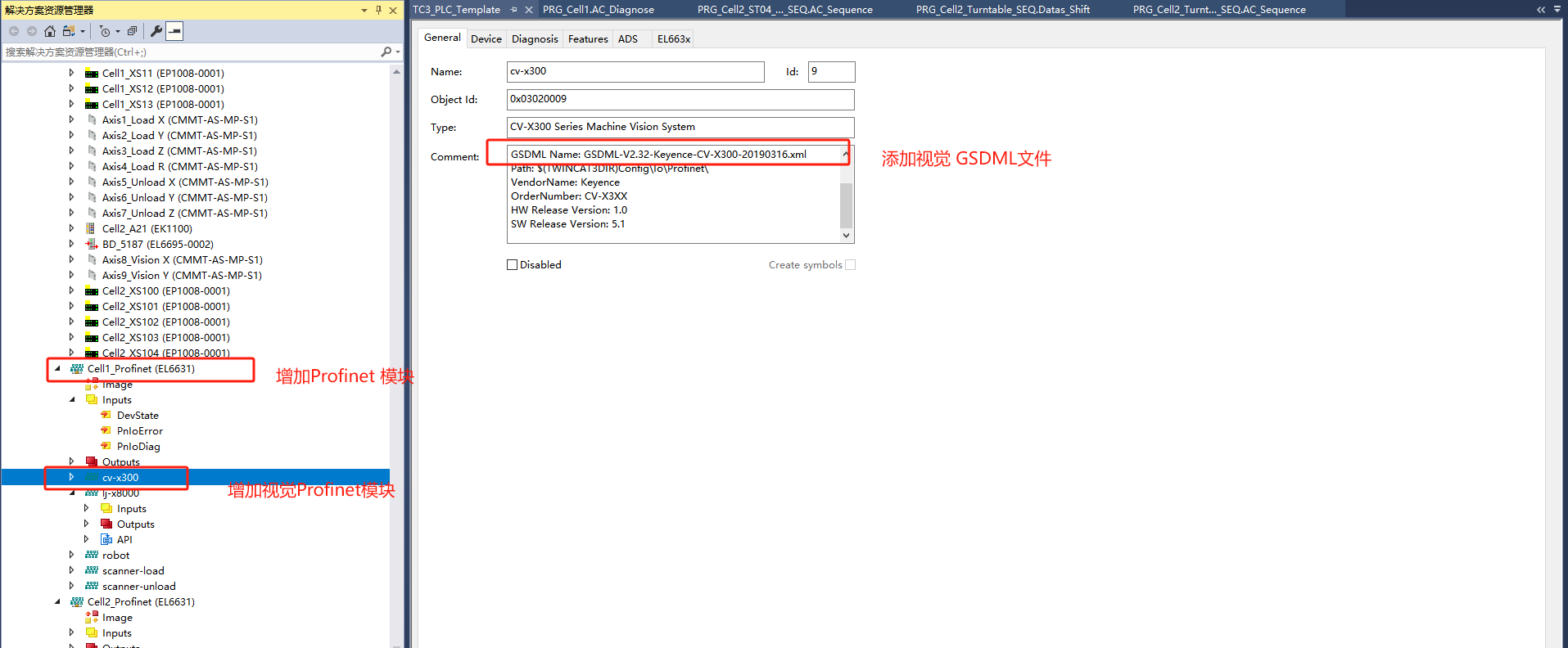

1、硬件配置

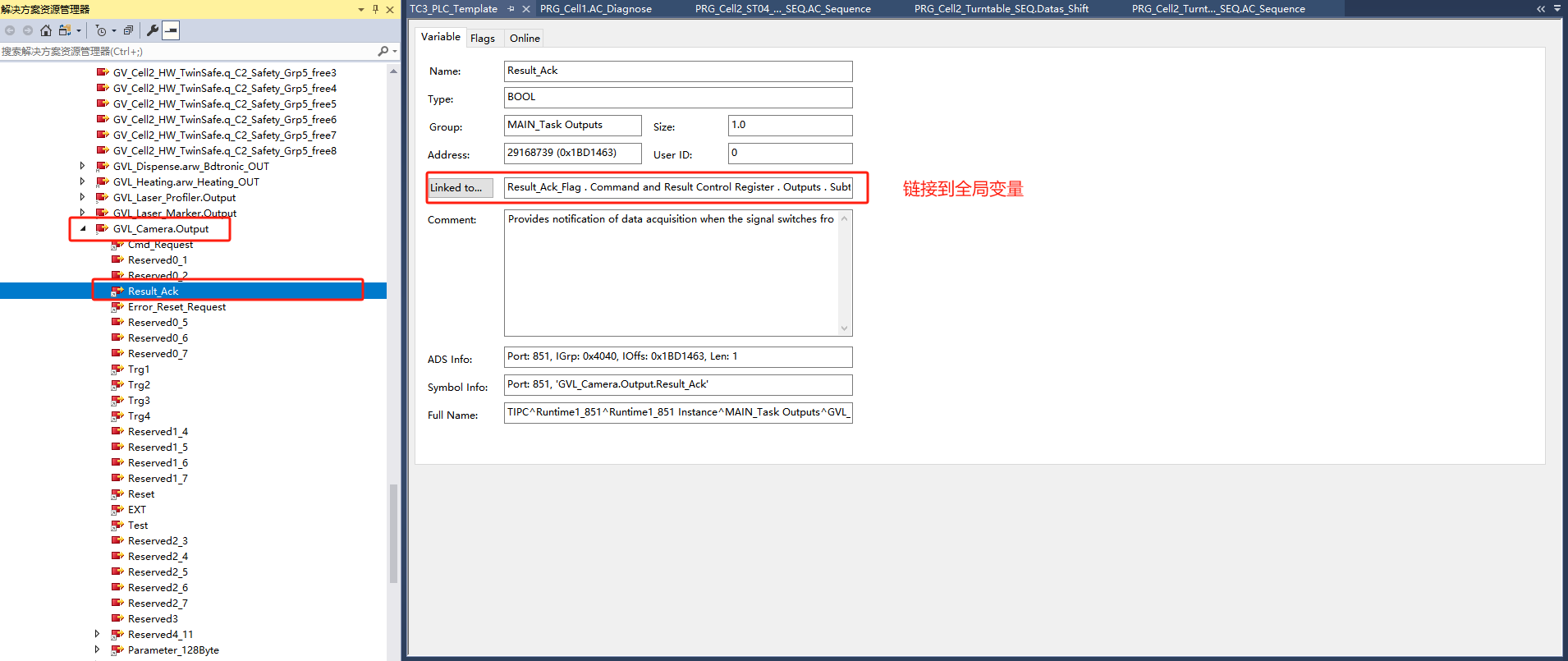

2、视觉实例配置

3、

二、通讯接口定义（PLC 增加的结构体数据）

1、 ST_CV_X_Vision_Input 结构体

STRUCT
Cmd_Complete   :BOOL; //Turns on when command processing is complete.
Cmd_Err        :BOOL; // Turns off when command processing is successful and turns on when it fails.
Cmd_Ready      :BOOL; // Turns on when command processes can be received.
Result_Ready   :BOOL; //Turns on when data transmission is complete.
Result_OR      :BOOL; // Used to output the OR result for the judged value of tools specified in the output settings.
Reserved0_5    :BOOL;
Reserved0_6    :BOOL;
Reserved0_7    :BOOL;
Ready1         :BOOL; // Output when trigger n input is acceptable.
Ready2         :BOOL; //
Ready3         :BOOL; //
Ready4         :BOOL; //
Reserved1_4    :BOOL;
Reserved1_5    :BOOL;
Reserved1_6    :BOOL;
Reserved1_7    :BOOL;
Ack1           :BOOL; //Becomes ON when Trigger 1 input is accepted. Becomes OFF when Trigger 1 input is set to OFF.
Ack2           :BOOL; // Becomes ON when Trigger 2 input is accepted. Becomes OFF when Trigger 2 input is set to OFF.
Ack3           :BOOL; // Becomes ON when Trigger 3 input is accepted. Becomes OFF when Trigger 3 input is set to OFF.
Ack4           :BOOL; // Becomes ON when Trigger 4 input is accepted. Becomes OFF when Trigger 4 input is set to OFF.
Reserved2_4    :BOOL;
Reserved2_5    :BOOL;
Reserved2_6    :BOOL;
Reserved2_7    :BOOL;
Busy           :BOOL; // This signal is output during image processing or command processing.
Error          :BOOL; //This signal is output while any of system errors occur with the dialog displayed on the screen.
Reserved3_2    :BOOL;
Run            :BOOL; //This signal is output when the controller is in Run mode.
Reserved3_4    :BOOL;
Reserved3_5    :BOOL;
OutPut_Img_Busy:BOOL;
OutPut_Img_Status :BOOL;
Tool_Judge_Value       : ARRAY [0..7] OF BYTE ;//Returns the judgment value allocated to the bit allocation region 结果判断存储位
Result_Data_128Byte    : ARRAY [0..127] OF BYTE;// Result Data
Result_Data_32Byte1    : ARRAY [0..31] OF BYTE;// Result Data
Result_Data_32Byte2    : ARRAY [0..31] OF BYTE;// Result Data
Result_Data_32Byte3    : ARRAY [0..31] OF BYTE;// Result Data
Result_Data_32Byte4    : ARRAY [0..31] OF BYTE;// Result Data
Result_Data_32Byte5    : ARRAY [0..31] OF BYTE;// Result Data
END_STRUCT

2、ST_CV_X_Vision_Output 结构体

STRUCT
Cmd_Request	  :BOOL;  //Requests command execution when the signal switches from OFF to ON.
Reserved0_1	  :BOOL;
Reserved0_2	  :BOOL;
Result_Ack	  :BOOL;  //Provides notification of data acquisition when the signal switches from OFF to ON.
Error_Reset_Request	:BOOL;//Clears Error when the signal switches from OFF to ON.
Reserved0_5	  :BOOL;
Reserved0_6	  :BOOL;
Reserved0_7	  :BOOL;
Trg1	      :BOOL;  //Allows the camera assigned to trigger ‘n’ to capture images (leading edge synchronization).
Trg2	      :BOOL;
Trg3	      :BOOL;
Trg4	      :BOOL;
Reserved1_4	  :BOOL;
Reserved1_5	  :BOOL;
Reserved1_6	  :BOOL;
Reserved1_7	  :BOOL;
Reset	      :BOOL;  //Used to perform reset operation  Reset Command = Initialize Controller
EXT	          :BOOL;  //Used to suspend the occurrence of internal triggers and the acceptance of external triggers.
Test	      :BOOL;  //Used to suspend the status output and other outputs for trial run or any other reasons.
Reserved2_3	  :BOOL;
Reserved2_4	  :BOOL;
Reserved2_5	  :BOOL;
Reserved2_6	  :BOOL;
Reserved2_7   :BOOL;
Reserved3	  :BYTE;
Reserved4_11  :ARRAY [4..11]OF BYTE ;
Parameter_128Byte    : ARRAY [0..127] OF BYTE;// Parameter Data
Parameter_32Byte1    : ARRAY [0..31] OF BYTE;// Parameter Data
Parameter_32Byte2    : ARRAY [0..31] OF BYTE;// Parameter Data
Parameter_32Byte3    : ARRAY [0..31] OF BYTE;// Parameter Data
Parameter_32Byte4    : ARRAY [0..31] OF BYTE;// Parameter Data
Parameter_32Byte5    : ARRAY [0..31] OF BYTE;// Parameter Data
END_STRUCT

3、ST_CV_X_Vision_Input_Decode 结构体； Result_Data_128Byte + 32 x 5 Byte = 288 Bytes

STRUCT
ErrorCode     :INT;  // Status INT12
Reserved14    :INT;  // Status INT14
Total_Count   :DINT; // Status DINT16
CommandResult :DINT; // Status DINT20
CommandData  :ARRAY [1..29] OF DINT; // Vision Check Command Datas DINT 20 - DINT136 (相机命令应答自己设置为 116 ) == Result_Data_128Byte
arrResult_Data :ARRAY [1..8] OF DINT; // Vision Check Result Datas  DINT 140 - DINT168  == Result_Data_32Byte1 END_STRUCT

4、ST_CV_X_Vision_Output_Decode 结构体；

Parameter_128Byte

STRUCT
ExecCondNo     :DINT;  // Control DINT12
CommandNumber  :DINT;  // Control DINT16
CmdParameter   :ARRAY [1..30] OF DINT; // Control Parameter DINT20 - DINT 136
END_STRUCT
END_TYPE

5、ST_CV_X_Vision_Result结构体

STRUCT
JudgeByte4   :BYTE; //Tool Judge Value 0 -7
JudgeByte5   :BYTE; //Tool Judge Value 8 -15
JudgeByte6   :BYTE; //Tool Judge Value 16 -23
JudgeByte7   :BYTE; //Tool Judge Value 24 -31
JudgeByte8   :BYTE; //Tool Judge Value 32 -39
JudgeByte9   :BYTE; //Tool Judge Value 40 -47
JudgeByte10  :BYTE; //Tool Judge Value 48 -55
JudgeByte11  :BYTE; //Tool Judge Value 56 -63
arrResult_Data :ARRAY [1..8] OF DINT; // Vision Check Result Datas
END_STRUCT

三、视觉通讯功能块接口定义

四、通讯功能块FB_TYP_161_Camera_CV_X_V1变量声明
