vxe-table 如何设置单元格垂直对齐

news 来源：原创 2025/6/7 15:19:34

vxe-table 如何设置单元格垂直对齐，当某写场景需要将单元格样式调整为顶部对齐就很有用了，比如多行文本之类的。

查看官网：https://vxetable.cn

代码

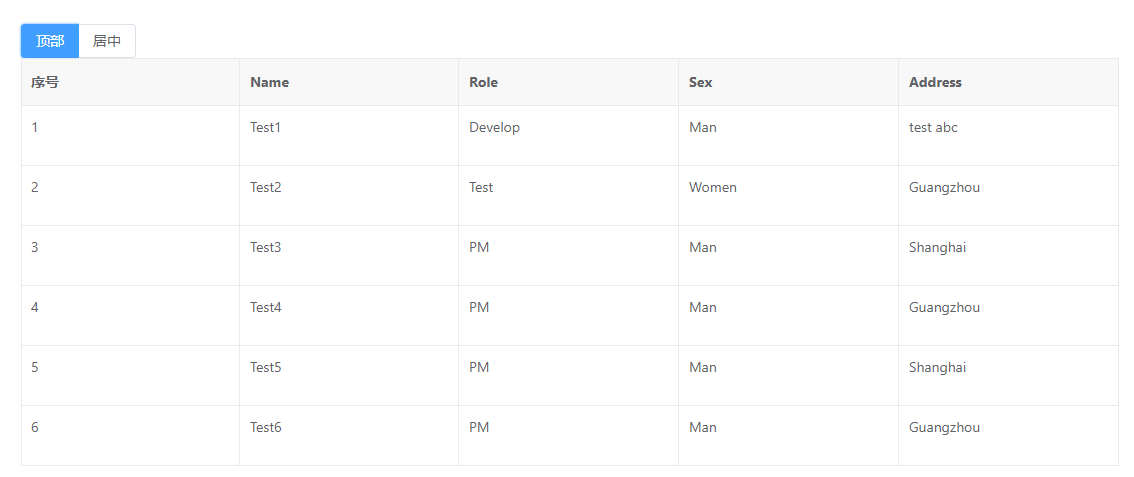

通过 cell-config.height 与 cell-config.vertical-align 设置所有列或指定列垂直对齐方式，默认为垂直居中

在这里插入图片描述

<template><div><vxe-radio-group v-model="cellConfig.verticalAlign"><vxe-radio-button label="top" content="顶部"></vxe-radio-button><vxe-radio-button label="center" content="居中"></vxe-radio-button></vxe-radio-group><vxe-grid v-bind="gridOptions"></vxe-grid></div>
</template><script setup>
import { reactive } from 'vue'const cellConfig = reactive({height: 60,verticalAlign: 'top'
})const gridOptions = reactive({border: true,cellConfig,columns: [{ type: 'seq' },{ field: 'name', title: 'Name' },{ field: 'role', title: 'Role' },{ field: 'sex', title: 'Sex' },{ field: 'address', title: 'Address' }],data: [{ id: 10001, name: 'Test1', role: 'Develop', sex: 'Man', age: 28, address: 'test abc' },{ id: 10002, name: 'Test2', role: 'Test', sex: 'Women', age: 22, address: 'Guangzhou' },{ id: 10003, name: 'Test3', role: 'PM', sex: 'Man', age: 32, address: 'Shanghai' },{ id: 10004, name: 'Test4', role: 'PM', sex: 'Man', age: 44, address: 'Guangzhou' },{ id: 10005, name: 'Test5', role: 'PM', sex: 'Man', age: 56, address: 'Shanghai' },{ id: 10006, name: 'Test6', role: 'PM', sex: 'Man', age: 38, address: 'Guangzhou' }]
})
</script>

合并单元格也能垂直对齐

指定列 vertical-align 设置垂直对齐方式
在这里插入图片描述

<template><div><vxe-grid v-bind="gridOptions"></vxe-grid></div>
</template><script setup>
import { reactive } from 'vue'const gridOptions = reactive({border: true,cellConfig: {height: 60},mergeCells: [{ row: 1, col: 2, rowspan: 3, colspan: 2 }],columns: [{ type: 'seq' },{ field: 'name', title: 'Name' },{ field: 'role', title: 'Role', verticalAlign: 'top' },{ field: 'sex', title: 'Sex' },{ field: 'address', title: 'Address', verticalAlign: 'top' }],data: [{ id: 10001, name: 'Test1', role: 'Develop', sex: 'Man', age: 28, address: 'test abc' },{ id: 10002, name: 'Test2', role: 'Test', sex: 'Women', age: 22, address: 'Guangzhou' },{ id: 10003, name: 'Test3', role: 'PM', sex: 'Man', age: 32, address: 'Shanghai' },{ id: 10004, name: 'Test4', role: 'PM', sex: 'Man', age: 44, address: 'Guangzhou' },{ id: 10005, name: 'Test5', role: 'PM', sex: 'Man', age: 56, address: 'Shanghai' },{ id: 10006, name: 'Test6', role: 'PM', sex: 'Man', age: 38, address: 'Guangzhou' }]
})
</script>
