【OCCT+ImGUI系列】010-BRepMesh-网格化IncrementalMesh
在三维模型处理中，网格化（Meshing）是将几何模型离散为三角面片的关键步骤。本文基于 OpenCascade 的 BRepMesh_IncrementalMesh 类，结合交互式演示系统，详解网格化参数调节、实时更新与可视化。
一、BRepMesh_IncrementalMesh 核心机制
BRepMesh_IncrementalMesh 是 OpenCascade 的增量式网格生成器，采用动态精度控制算法，支持以下关键参数：
- LinearDeflection：线性偏差（模型空间单位）
- AngularDeflection：角度偏差（弧度制）
- InParallel：启用多线程加速
通过构造球体示例演示核心调用方式：
TopoDS_Shape shape = BRepPrimAPI_MakeSphere(50.0).Shape();
IMeshTools_Parameters params;
params.Deflection = 1.0;
params.Angle = 30 * M_PI / 180;BRepMesh_IncrementalMesh mesher;
mesher.SetShape(shape);
mesher.ChangeParameters() = params;
mesher.Perform(); // 执行网格化

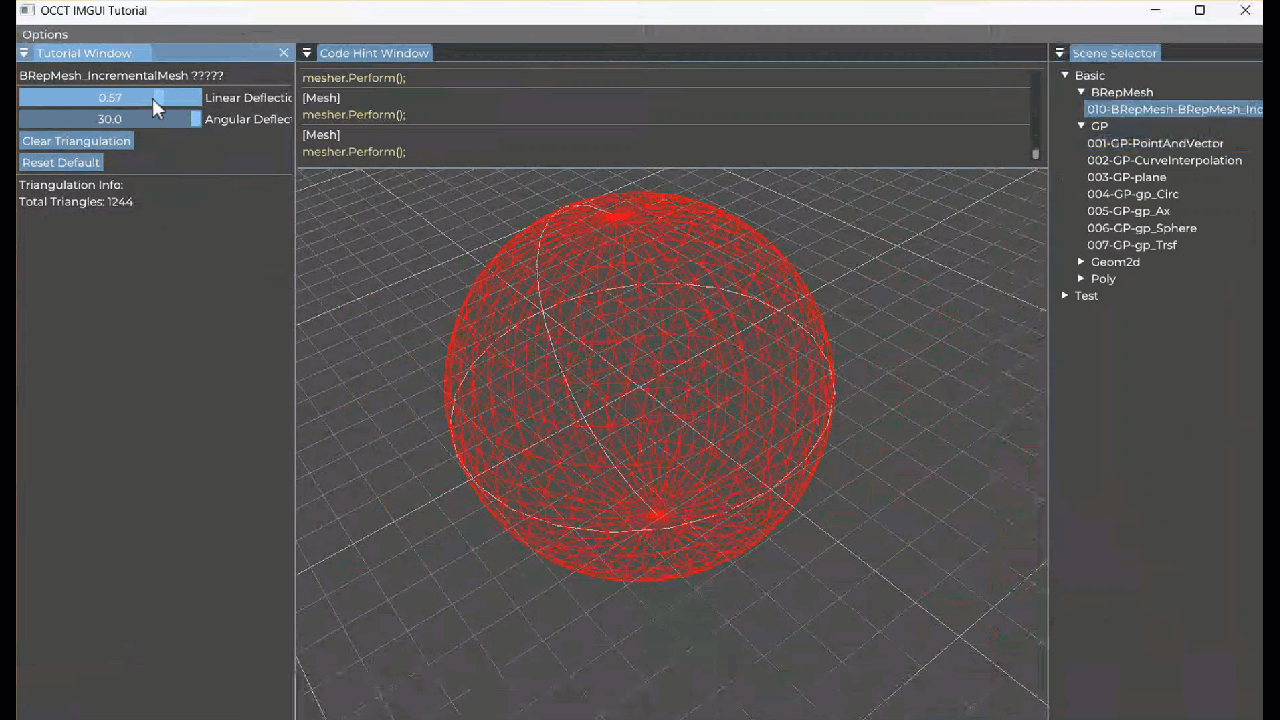

二、交互式教学系统功能
1. 动态参数调节与实时更新
通过 ImGui 滑动条实现参数动态调节，修改后触发网格重建：
// 线性偏差调节（0.1~0.7）
if (ImGui::SliderFloat("Linear Deflection", &linearDeflection, 0.1f, 0.7f)) {bMeshDirty = true; // 设置网格更新标志
}// 角度偏差调节（5°~30°）
float angularDeg = angularDeflection * 180 / M_PI;
if (ImGui::SliderFloat("Angular Deflection", &angularDeg, 5.0f, 30.0f)) {angularDeflection = angularDeg * M_PI / 180;bMeshDirty = true;
}
参数修改后通过
bMeshDirty标志触发updateMesh函数，保证视图实时响应
2. 网格清除与重置
通过BRepTools::Clean清除模型三角化数据，配合上下文更新实现网格重置：
void clearTriangulation(const TopoDS_Shape& shape) {for (TopExp_Explorer exp(shape, TopAbs_FACE); exp.More(); exp.Next()) {BRepTools::Clean(TopoDS::Face(exp.Current()));}
}
3. 三角化信息统计
遍历所有面的三角化数据，统计总三角形数量：
int totalTriangles = 0;
for (TopExp_Explorer exp(shape, TopAbs_FACE); exp.More(); exp.Next()) {Handle(Poly_Triangulation) tri = ...;if (!tri.IsNull()) totalTriangles += tri->NbTriangles();
}
ImGui::Text("Total Triangles: %d", totalTriangles);
4. 网格线框可视化
提取每个三角面片的边线，生成红色线框辅助显示：
void drawTriangulations(...) {for (each triangle in triangulation) {gp_Pnt p1 = tri->Node(n1).Transformed(...);// 创建三角形边线BRepBuilderAPI_MakePolygon poly;poly.Add(p1); poly.Add(p2); poly.Add(p3); poly.Close();Handle(AIS_Shape) aisTri = new AIS_Shape(poly.Shape());aisTri->SetColor(Quantity_NOC_RED);context->Display(aisTri, false);}
}
三、高级技巧与注意事项
-
多线程加速
启用InParallel参数可提升复杂模型处理速度：meshParams.InParallel = true; // 开启并行计算 -
网格生成验证
检查IsDone()状态确保网格生成成功：if (!mesher.IsDone()) {std::cerr << "Mesh generation failed!" << std::endl; } -
显示模式控制
强制设置AIS_Shape显示模式，增强可视化效果：aisShape->SetDisplayMode(AIS_Shaded); // 实体着色模式 aisShape->Attributes()->SetFaceBoundaryDraw(true); // 显示面边界
四、代码
#pragma once#include "pch.h"
#include <format>
#include <string>
#include <mutex>
#include <BRep_Tool.hxx>
#include <BRepTools.hxx>
#include <BRepMesh_IncrementalMesh.hxx>
#include <BRepPrimAPI_MakeSphere.hxx> // 新增头文件
#include <BRepLib_ToolTriangulatedShape.hxx>
#include <BRepBuilderAPI_MakePolygon.hxx>
#include <TopExp_Explorer.hxx>
#include <Poly_Triangulation.hxx>
#include <AIS_Shape.hxx>
#include <TopoDS.hxx>
#include "BaseScene.h"
#include "VisSceneComponents.h"
#include "TutorialWindow.h"
#include "CodeHintAction.h"class BRepMesh010 : public BaseScene, public VisSceneComponents, public TutorialWindow {
