OpenHarmony外设驱动使用（十五），USB

news 来源：原创 2025/5/26 6:10:36

OpenHarmony外设驱动使用（十五）

USB

概述

功能简介

USB（Universal Serial Bus）通用串行总线，包含了主机端（Host）和设备端（Device）。主机端负责USB总线中的数据传输及端口管理，设备端则可以连接各种外设，所以USB驱动开发又分为主机端驱动开发和设备端驱动开发。

OpenHarmony系统USB模块支持USB业务的开发，提供USB相关的功能，提供用户态第三方功能驱动的USB设备数据读写接口，以及提供创建和删除USB设备，接口的事件获取、打开和关闭等，管道同步异步读写通信，设置USB自定义属性等。

USB DDK（USB DriverDevelop Kit）是HDF驱动框架为开发者提供的USB驱动程序开发套件，包括USB Host DDK及USB Device DDK两部分，支持基于用户态开发USB设备驱动的同时，还提供了丰富的USB驱动开发能力，让广大开发者能精准且高效的开发USB驱动程序。

基本概念

管道

管道（Pipe）是主机端和设备端点之间数据传输的模型。任何USB设备一旦上电就存在一个信息管道，即默认的控制管道，USB主机通过该管道来获取设备的描述、配置、状态，并对设备进行配置；管道和端点关联，两者有相同的属性，如支持的传输类型、最大包长度、传输方向等。
端点

端点（Endpoint）是USB设备中的可以进行数据收发的最小单元，支持单向或者双向的数据传输。一个USB设备可以包括若干个端点，不同的端点以端点编号和方向区分。不同端点可以支持不同的传输类型、访问间隔以及最大数据包大小。除端点0外，所有的端点只支持一个方向的数据传输。端点0是一个特殊的端点，它支持双向的控制传输。
接口

应用软件通过和设备之间的数据交换来完成设备的控制和数据传输。由于同一管道只支持一种类型的数据传输，因此这个过程中通常需要多个管道来完成数据交换。像这样用在一起来对设备进行控制的若干管道的集合称为接口。
描述符

描述符（Descriptor）是用于描述设备属性（Attributes）的数据结构，第一个字节表示描述符的大小（字节数），第二个字节表示描述符的类型（Type）。

运作机制

USB Host DDK

USB Host DDK为开发者提供了主机端USB驱动开发能力，按照功能分为三大类，分别是DDK初始化类、interface对象操作类及request对象操作类。

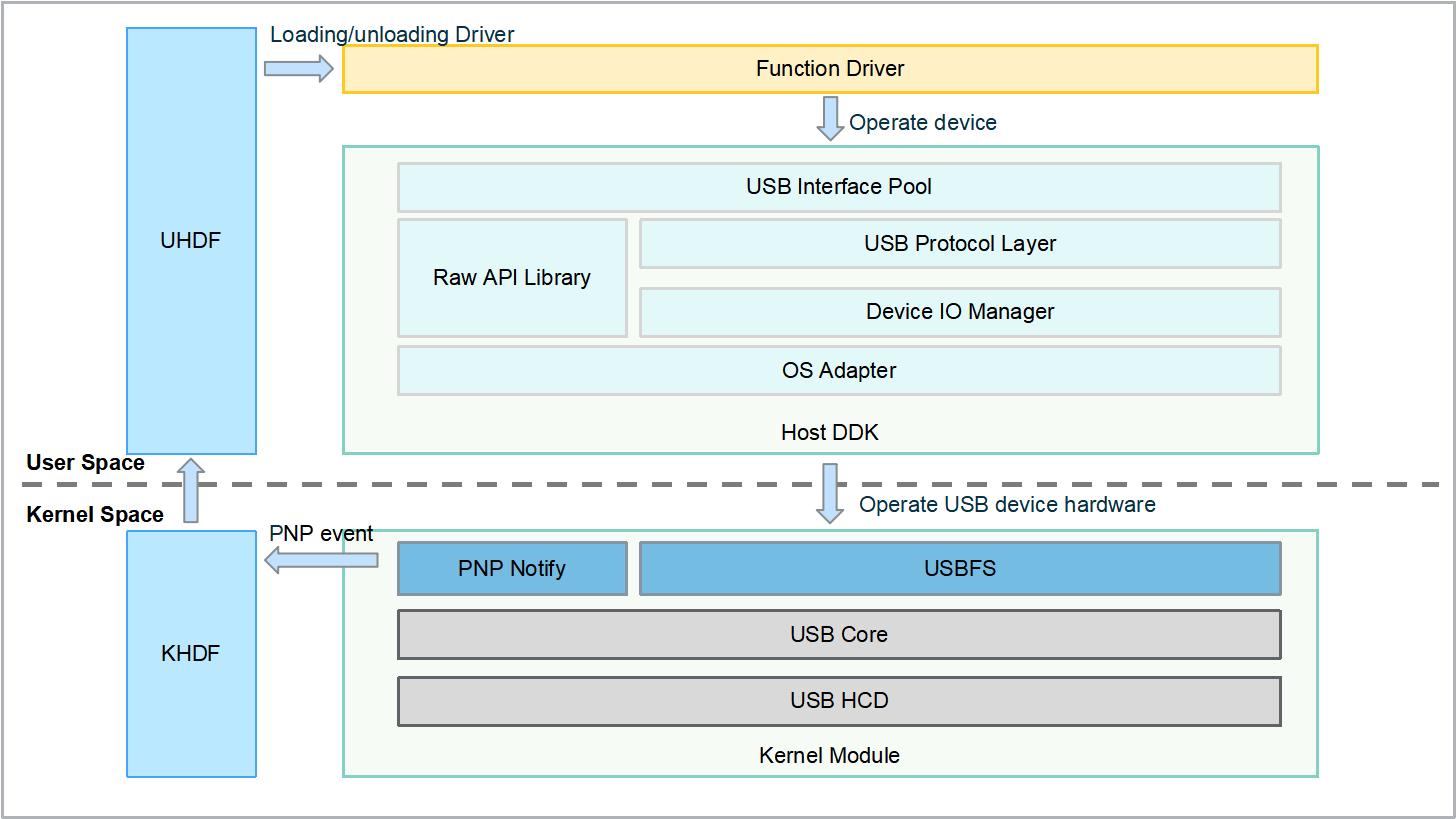

图1 USB Host驱动模型图

USB Interface Pool负责USB Interface管理。提供USB Interface接口对象的申请和回收，USB Interface接口对象用来记录设备端口信息以及资源。USB Interface Pool按照USB Port对USB Interface进行分类管理。同时，此模块还提供了USB DDK API，方便开发者进行USB数据读写操作。
USB Protocol Layer提供USB协议封装，根据USB协议对设备IO/控制命令进行翻译和解析，同时负责设备描述符的管理，根据USB Device上报的枚举信息，匹配对应的描述符；构建对应的USB Interface接口对象，并将其加入到USB Interface Pool中管理。
Device IO Manager负责USB IO请求管理，提供了同步IO和异步IO管理机制，对于异步IO，IO Manager负责将该请求记录下来，然后通过Raw API Library提供的接口依次处理待发送的IO请求；当收到USB控制器应答的处理结果后，IO接收线程负责解析并上报处理结果给上层调用者。
Raw API Library抽象了底层OS能力，定义了统一的OS能力接口，对外提供了USB RAW API，方便开发者实现更加复杂的驱动功能。
OS Adapter用于封装与平台（Linux和LiteOS）相关的操作，根据不同平台配置编译对应平台的封装接口。在Linux平台上，访问USB FS的操作，全部都封装在这个模块中；而在LiteOS平台上，基于FreeBSD USB框架的设备访问操作，也都全部封装在这个模块中。
PNP Notify用于动态监测USB状态变化，当有新设备添加/移除时，变化设备信息。同时将所有USB设备信息都通过KHDF上报给UHDF侧的PNP Notify Manager模块来完成加载/卸载第三方功能驱动。

USB Device DDK

USB Device DDK向开发者提供了设备端USB驱动开发能力。例如，USB端口动态注册和去注册能力，开发者可以基于能力实现USB端口的动态添加和组合；动态实例化能力，支持根据动态下发设备、配置、接口及端点描述符创建设备实例及传输通道；用户态的数据发送及接收能力，支持用户态下发送及接收数据；复合设备能力，支持一个物理设备上多个逻辑设备，实现多个逻辑设备间隔离，并支持不同逻辑设备同时被不同的应用进程访问。

图2 USB Device驱动模型图

SDK IF负责将USB设备按照设备、接口、管道进行逻辑划分，对配置管理、设备管理、IO管理进行封装。此模块还向开发者提供了设备创建、获取接口、接收Event事件、收发数据等设备侧驱动开发的能力接口。
Configuration Manager负责解析HCS文件描述的USB描述符信息，得到的USB描述符信息用于设备创建，同时模块还提供了自定义属性的读取、创建、删除、修改等操作。
Device Manager负责根据配置模块解析USB描述符，并根据USB描述符创建设备。同时还负责获取设备、删除设备、获取设备状态，获取设备上面接口信息。
IO Manager负责数据的读写，包括Events事件、数据读写完成后事件的接收，支持同步和异步模式数据读写。
Adapter IF主要是对复合设备配置驱动及通用功能驱动设备节点操作进行封装，为上层提供统一的设备管理接口。
Adapter该模块由复合设备配置驱动及通用功能驱动提供。

开发指导

由于内核态开发USB驱动较复杂，需要开发者对USB协议要有较深的了解才能很好的使用，对开发者的要求相对较高。USB DDK的引入是为了让开发者能在用户态更方便的开发USB驱动。

场景介绍

USB Host DDK为开发者提供了普通模式和专家模式，普通模式下，开发者可通过USB DDK API直接完成相关USB数据读写操作，不需要过多关注底层的传输细节。专家模式下，开发者通过USB RAW API直接访问OS平台中USB通道的接口，自定义实现更加复杂的功能。USB Device DDk为开发者提供了管理USB设备、接口定义及USB数据请求等功能。下文将介绍相关API。

接口说明

USB主机端驱动程序开发相关接口（普通模式）如下，具体接口定义见源码。

表1 USB主机端驱动程序开发相关接口（普通模式）

接口名称	功能描述
int32_t UsbInitHostSdk(struct UsbSession **session);	USB主机端驱动开发工具包初始化
struct UsbInterface UsbClaimInterface(const struct UsbSession session, uint8_t busNum, uint8_t usbAddr, uint8_t interfaceIndex)	获取USB接口对象
UsbInterfaceHandle UsbOpenInterface(const struct UsbInterface interfaceObj);	打开USB对象接口
int32_t UsbGetPipeInfo(const UsbInterfaceHandle interfaceHandle, uint8_t settingIndex, uint8_t pipeId, struct UsbPipeInfo pipeInfo);	获取指定可选设置的管道信息
struct UsbRequest UsbAllocRequest(const UsbInterfaceHandle interfaceHandle, int32_t isoPackets , int32_t length);	分配请求对象
int32_t UsbFillRequest(const struct UsbRequest request, const UsbInterfaceHandle interfaceHandle, const struct UsbRequestParams *params);	填充请求
int32_t UsbSubmitRequestSync(const struct UsbRequest *request);	发送同步请求

USB主机端驱动程序开发相关接口（专家模式）如下，具体接口定义见源码。

表2 USB主机端驱动程序开发相关接口（专家模式）

接口名称	功能描述
int32_t UsbRawInit(struct UsbSession **session);	USB驱动开发工具包专家模式初始化
UsbRawHandle UsbRawOpenDevice(const struct UsbSession session, uint8_t busNum, uint8_t usbAddr);	打开USB设备对象
int32_t UsbRawSendControlRequest(const struct UsbRawRequest request, const UsbRawHandle devHandle, const struct UsbControlRequestData *requestData);	执行同步控制传输
int32_t UsbRawSendBulkRequest(const struct UsbRawRequest request, const UsbRawHandle devHandle, const struct UsbRequestData *requestData);	执行同步批量传输
int32_t UsbRawSendInterruptRequest(const struct UsbRawRequest request, const UsbRawHandle devHandle, const struct UsbRequestData *requestData);	执行同步中断传输
int32_t UsbRawGetConfigDescriptor(const UsbRawDevice rawDev, uint8_t configIndex, struct UsbRawConfigDescriptor *config);	获取给定设备指定ID的设备配置描述符
int32_t UsbRawFillInterruptRequest(const struct UsbRawRequest request, const UsbRawHandle devHandle, const struct UsbRawFillRequestData *fillData);	填充中断传输请求所需信息
int32_t UsbRawFillIsoRequest(const struct UsbRawRequest request, const UsbRawHandle devHandle, const struct UsbRawFillRequestData *fillData);	填充同步传输（Isochronous Transfers）请求所需信息
int32_t UsbRawSubmitRequest(const struct UsbRawRequest *request);	提交一个传输请求
int32_t UsbRawCancelRequest(const struct UsbRawRequest *request);	取消一个传输请求
int32_t UsbRawHandleRequests(const UsbRawHandle *devHandle);	传输请求事件完成处理

USB设备端用于管理USB设备的相关接口如下，具体接口定义见源码。

表3 USB设备端用于管理USB设备的相关接口

接口名称	功能描述
const struct UsbFnDevice UsbFnCreateDevice(const char udcName, const struct UsbFnDescriptorData *descriptor);	创建USB设备
int32_t UsbFnRemoveDevice(struct UsbFnDevice *fnDevice);	删除USB设备
const struct UsbFnDevice UsbFnGetDevice(const char udcName);	获取USB设备

USB设备端用于USB接口定义的相关接口如下，具体接口定义见源码。

表4 USB设备端用于USB接口定义的相关接口

接口名称	功能描述
int32_t UsbFnStartRecvInterfaceEvent(struct UsbFnInterface interface, uint32_t eventMask, UsbFnEventCallback callback, void context);	开始接受Event事件
int32_t UsbFnStopRecvInterfaceEvent(struct UsbFnInterface *interface);	停止接受Event事件
UsbFnInterfaceHandle UsbFnOpenInterface(struct UsbFnInterface *interface);	打开一个接口
int32_t UsbFnCloseInterface(UsbFnInterfaceHandle handle);	关闭一个接口
int32_t UsbFnGetInterfacePipeInfo(struct UsbFnInterface interface, uint8_t pipeId, struct UsbFnPipeInfo info);	获取管道信息
int32_t UsbFnSetInterfaceProp(const struct UsbFnInterface interface, const char name, const char *value);	设置自定义属性

USB设备端用于管理USB数据请求的相关接口如下，具体接口定义见源码。

表5 USB设备端用于管理USB数据请求的相关接口

接口名称	功能描述
struct UsbFnRequest *UsbFnAllocCtrlRequest(UsbFnInterfaceHandle handle, uint32_t len);	申请一个控制请求
struct UsbFnRequest *UsbFnAllocRequest(UsbFnInterfaceHandle handle, uint8_t pipe, uint32_t len);	申请一个数据请求
int32_t UsbFnFreeRequest(struct UsbFnRequest *req);	释放一个请求
int32_t UsbFnSubmitRequestAsync(struct UsbFnRequest *req);	发送异步请求
int32_t UsbFnSubmitRequestSync(struct UsbFnRequest *req, uint32_t timeout);	发送同步请求
int32_t UsbFnCancelRequest(struct UsbFnRequest *req);	取消请求

开发步骤

USB驱动基于HDF框架、Platform和OSAL基础接口进行开发，不区分操作系统和芯片平台，为不同USB器件提供统一的驱动模型。此处以串口为例，分别介绍USB Host和USB Device驱动开发的详细过程。

Host DDK API驱动开发

在设备私有数据HCS中配置，完成主机端驱动总体信息的配置，具体如下：

root {module = "usb_pnp_device";usb_pnp_config {match_attr = "usb_pnp_match";usb_pnp_device_id = "UsbPnpDeviceId";UsbPnpDeviceId {idTableList = ["host_acm_table"];host_acm_table {// 驱动模块名，该字段的值必须和驱动入口结构的moduleName一致moduleName = "usbhost_acm";// 驱动对外发布服务的名称，必须唯一serviceName = "usbhost_acm_pnp_service";// 驱动私有数据匹配关键字deviceMatchAttr = "usbhost_acm_pnp_matchAttr";// 从该字段开始（包含该字段）之后数据长度，以byte为单位length = 21;// USB驱动匹配规则vendorId+productId+interfaceSubClass+interfaceProtocol+interfaceNumbermatchFlag = 0x0303;// 厂商编号vendorId = 0x12D1;// 产品编号productId = 0x5000;// 设备出厂编号，低16位bcdDeviceLow = 0x0000;// 设备出厂编号，高16位bcdDeviceHigh = 0x0000;// USB分配的设备类代码deviceClass = 0;// USB分配的子类代码deviceSubClass = 0;// USB分配的设备协议代码deviceProtocol = 0;// 接口类型，根据实际需要可填写多个interfaceClass = [0];// 接口子类型，根据实际需要可填写多个interfaceSubClass = [2, 0];// 接口所遵循的协议，根据实际需要可填写多个    interfaceProtocol = [1, 2];// 接口的编号，根据实际需要可填写多个interfaceNumber = [2, 3];}}}
}

USB主机端驱动开发工具包初始化。

int32_t UsbInitHostSdk(struct UsbSession **session);

步骤2初始化完后获取UsbInterface对象。

const struct UsbInterface *UsbClaimInterface(const struct UsbSession *session, uint8_t busNum, uint8_t usbAddr, uint8_t interfaceIndex);

打开步骤3获取到的UsbInterface接口对象，获取相应接口的UsbInterfaceHandle对象。
```
UsbInterfaceHandle *UsbOpenInterface(const struct UsbInterface *interfaceObj);
```

根据步骤4获取到的UsbInterfaceHandle对象，获取指定索引为pipeIndex的pipeInfo信息。

int32_t UsbGetPipeInfo(const UsbInterfaceHandle *interfaceHandle, uint8_t settingIndex, uint8_t pipeId, struct UsbPipeInfo *pipeInfo);

为步骤4获取到的UsbInterfaceHandle预先分配待发送的IO Request对象。

struct UsbRequest *UsbAllocRequest(const UsbInterfaceHandle *interfaceHandle, int32_t isoPackets, int32_t length);

根据输入参数params填充步骤6预先分配的IO Request。

int32_t UsbFillRequest(const struct UsbRequest *request, const UsbInterfaceHandle *interfaceHandle, const struct UsbRequestParams *params);

提交IO Request对象，可以选择同步或异步两种模式。

int32_t UsbSubmitRequestSync(const struct UsbRequest *request); //发送同步IO请求
int32_t UsbSubmitRequestAsync(const struct UsbRequest *request); //发送异步IO请求

Host RAW API驱动开发

同Host DDK API的步骤1一样，在设备私有数据HCS中配置。
初始化Host RAW，并打开USB设备，然后获取描述符，通过描述符获取接口、端点信息。
```
int32_t UsbRawInit(struct UsbSession **session);
```

待步骤2完成后打开USB设备。

UsbRawHandle *UsbRawOpenDevice(const struct UsbSession *session, uint8_t busNum, uint8_t usbAddr);

待步骤3完成后获取描述符，通过描述符获取接口、端点信息。

int32_t UsbRawGetConfigDescriptor(const UsbRawDevice *rawDev, uint8_t configIndex, struct UsbRawConfigDescriptor **config);

分配Request，并根据传输类型使用相应接口对Request进行填充。

int32_t UsbRawFillBulkRequest(const struct UsbRawRequest *request, const UsbRawHandle *devHandle, const struct UsbRawFillRequestData *fillData); // 填充用于批量传输的请求
int32_t UsbRawFillControlSetup(const unsigned char *setup, const struct UsbControlRequestData *requestData);
int32_t UsbRawFillControlRequest(const struct UsbRawRequest *request, const UsbRawHandle *devHandle, const struct UsbRawFillRequestData *fillData); // 填充用于控制传输的请求
int32_t UsbRawFillInterruptRequest(const struct UsbRawRequest *request, const UsbRawHandle *devHandle, const struct UsbRawFillRequestData *fillData); // 填充用于中断传输的请求
int32_t UsbRawFillIsoRequest(const struct UsbRawRequest *request, const UsbRawHandle *devHandle, const struct UsbRawFillRequestData *fillData); // 填充用于同步传输的请求

提交IO Request对象，可以选择同步或异步两种模式。

int32_t UsbRawSendControlRequest(const struct UsbRawRequest *request, const UsbRawHandle *devHandle, const struct UsbControlRequestData *requestData); //发送同步USB控制传输请求
int32_t UsbRawSendBulkRequest(const struct UsbRawRequest *request, const UsbRawHandle *devHandle, const struct UsbRequestData *requestData); //发送同步USB批量传输请求
int32_t UsbRawSendInterruptRequest(const struct UsbRawRequest *request, const UsbRawHandle *devHandle, const struct UsbRequestData *requestData); //发送同步执行USB中断传输请求
int32_t UsbRawSubmitRequest(const struct UsbRawRequest *request); //提交异步IO请求

Device DDK API驱动开发

在设备功能代码中构造描述符。

static struct UsbFnFunction g_acmFunction = {.funcName = "f_generic.a",                     //功能名称.strings = g_acmStrings,                       //字符串.fsDescriptors = g_acmFsFunction,              //初始化fs描述符.hsDescriptors = g_acmHsFunction,              //初始化hs描述符.ssDescriptors = g_acmSsFunction,              //初始化ss描述符.sspDescriptors = nullptr,                     //ss描述符置空
};
struct UsbFnFunction *g_functions[] = {
#ifdef CDC_ECM&g_ecmFunction,
#endif
#ifdef CDC_ACM&g_acmFunction,
#endifnullptr};
static struct UsbFnConfiguration g_masterConfig = { // 配置描述符.configurationValue = 1,.iConfiguration     = USB_FUNC_CONFIG_IDX,.attributes         = USB_CFG_BUS_POWERED,.maxPower           = POWER,.functions          = g_functions,
};
static struct UsbFnConfiguration *g_configs[] = {&g_masterConfig,nullptr,
};
static struct UsbDeviceDescriptor g_cdcUsbFnDeviceDesc = { // 设备描述符.bLength            = sizeof(g_cdcUsbFnDeviceDesc),.bDescriptorType    = USB_DDK_DT_DEVICE,.bcdUSB             = CpuToLe16(BCD_USB),.bDeviceClass       = 0,.bDeviceSubClass    = 0,.bDeviceProtocol    = 0,.bMaxPacketSize0    = USB_MAX_PACKET_SIZE,.idVendor           = CpuToLe16(DEVICE_VENDOR_ID),.idProduct          = CpuToLe16(DEVICE_PRODUCT_ID),.bcdDevice          = CpuToLe16(DEVICE_VERSION),.iManufacturer      = USB_FUNC_MANUFACTURER_IDX,.iProduct           = USB_FUNC_PRODUCT_IDX,.iSerialNumber      = USB_FUNC_SERIAL_IDX,.bNumConfigurations = 1,
};
struct UsbFnDeviceDesc g_acmFnDevice = { //描述符入口.deviceDesc = &g_cdcUsbFnDeviceDesc,.deviceStrings = g_devStrings,.configs = g_configs,
};

创建设备。描述符构造完成后，使用UsbFnDeviceCreate函数创建一个USB设备，并传入UDC控制器和UsbFnDescriptorData结构体。

if (useHcs == 0) { // 使用代码编写的描述符descData.type = USBFN_DESC_DATA_TYPE_DESC;descData.descriptor = &g_acmFnDevice;
} else {             // 使用hcs编写的描述符devMgr->descData.type = USBFN_DESC_DATA_TYPE_PROP;devMgr->descData.property = device->property;
}
// 创建设备
fnDev = (struct UsbFnDevice *)UsbFnCreateDevice(devMgr->udcName, &devMgr->descData);

设备创建后，使用UsbFnGetInterface函数获取UsbInterface接口对象，并通过UsbFnGetInterfacePipeInfo函数获取USB管道信息。

// 获取接口
fnIface = (struct UsbFnInterface *)UsbFnGetInterface(fnDev, i);
// 获取Pipe信息
UsbFnGetInterfacePipeInfo(fnIface, i, &pipeInfo);
// 获取Handle
handle = UsbFnOpenInterface(fnIface);
// 获取控制（EP0）Request
req = UsbFnAllocCtrlRequest(acmDevice->ctrlIface.handle, sizeof(struct UsbCdcLineCoding) + sizeof(struct UsbCdcLineCoding));
// 获取Request
req = UsbFnAllocCtrlRequest(acmDevice->ctrlIface.handle, sizeof(struct UsbCdcLineCoding) + sizeof(struct UsbCdcLineCoding));

通过UsbFnStartRecvInterfaceEvent函数接收Event事件，并通过UsbFnEventCallback回调函数对Event事件做出响应。

// 开始接收Event事件
ret = UsbFnStartRecvInterfaceEvent(acmDevice->ctrlIface.fn, 0xff, AcmEventCallback, acmDevice);
// Event处理回调函数
static void UsbAcmEventCallback(struct UsbFnEvent *event)
{struct UsbAcmDevice *acm = NULL;if (event == NULL || event->context == NULL) {HDF_LOGE("%{public}s: event is null", __func__);return;}acm = (struct UsbAcmDevice *)event->context;switch (event->type) {case USBFN_STATE_BIND:HDF_LOGI("%{public}s: receive bind event", __func__);break;case USBFN_STATE_UNBIND:HDF_LOGI("%{public}s: receive unbind event", __func__);break;case USBFN_STATE_ENABLE:HDF_LOGI("%{public}s: receive enable event", __func__);AcmEnable(acm);break;case USBFN_STATE_DISABLE:HDF_LOGI("%{public}s: receive disable event", __func__);AcmDisable(acm);acm->enableEvtCnt = 0;break;case USBFN_STATE_SETUP:HDF_LOGI("%{public}s: receive setup event", __func__);if (event->setup != NULL) {AcmSetup(acm, event->setup);}break;case USBFN_STATE_SUSPEND:HDF_LOGI("%{public}s: receive suspend event", __func__);AcmSuspend(acm);break;case USBFN_STATE_RESUME:HDF_LOGI("%{public}s: receive resume event", __func__);AcmResume(acm);break;default:break;}
}

收发数据，可以选择同步异步发送模式。

notify = (struct UsbCdcNotification *)req->buf;
...
ret = memcpy_s((void *)(notify + 1), length, data, length);
if (ret != EOK) {HDF_LOGE("%s: memcpy_s failed", __func__);return HDF_FAILURE;
}
ret = UsbFnSubmitRequestAsync(req); // 异步发送
if (ret != HDF_SUCCESS) {HDF_LOGE("%s: send notify request failed", __func__);acm->notifyReq = req;
}

开发实例

本实例提供USB串口驱动开发示例，并简要对具体关键点进行开发说明。

Host DDK API驱动开发

#include "usb_serial.h"
#include "hdf_base.h"
#include "hdf_log.h"
#include "hdf_usb_pnp_manage.h"
#include "osal_mem.h"
#include "osal_time.h"
#include "securec.h"
#include "usb_ddk_interface.h"#define HDF_LOG_TAG USB_HOST_ACM
#define STR_LEN     512static struct UsbRequest *g_syncRequest = NULL;  // 定义一个USB请求
static struct UsbRequest *g_ctrlCmdRequest = NULL;
static bool g_acmReleaseFlag = false;
static uint8_t *g_acmReadBuffer = NULL;
...
static int32_t SerialCtrlMsg(struct AcmDevice *acm, uint8_t request, uint16_t value, void *buf, uint16_t len)
{int32_t ret;if (acm == NULL || buf == NULL || acm->intPipe == NULL) {HDF_LOGE("%s:invalid param", __func__);return HDF_ERR_IO;}uint16_t index = acm->intPipe->interfaceId;struct UsbControlParams controlParams = {};struct UsbRequestParams parmas = {}; // 定义一个USB请求参数对象if (acm->ctrlReq == NULL) {// 为获取到的UsbInterfaceHandle预先分配待发送的IO Request对象acm->ctrlReq = UsbAllocRequest(acm->ctrDevHandle, 0, len);if (acm->ctrlReq == NULL) {HDF_LOGE("%s: UsbAllocRequest failed", __func__);return HDF_ERR_IO;}}controlParams.request = request;controlParams.target = USB_REQUEST_TARGET_INTERFACE; // 接口对象controlParams.reqType = USB_REQUEST_TYPE_CLASS; // 请求类型controlParams.directon = USB_REQUEST_DIR_TO_DEVICE; // 从主机到设备的数据传输controlParams.value = value;controlParams.index = index;controlParams.data = buf;controlParams.size = len;parmas.interfaceId = USB_CTRL_INTERFACE_ID; // 定义USB控制接口的默认IDif (acm->ctrPipe != NULL) {parmas.pipeAddress = acm->ctrPipe->pipeAddress; parmas.pipeId = acm->ctrPipe->pipeId;}parmas.requestType = USB_REQUEST_PARAMS_CTRL_TYPE; // 控制类型parmas.timeout = USB_CTRL_SET_TIMEOUT; // 设置超时时间parmas.ctrlReq = UsbControlSetUp(&controlParams);parmas.callback = NULL;// 根据params填充预先分配的IO Requestret = UsbFillRequest(acm->ctrlReq, acm->ctrDevHandle, &parmas);if (ret != HDF_SUCCESS) {HDF_LOGE("%s: UsbFillRequest failed, ret = %d ", __func__, ret);return ret;}// 发送同步IO Requestret = UsbSubmitRequestSync(acm->ctrlReq);if (ret != HDF_SUCCESS) {HDF_LOGE("UsbSubmitRequestSync failed, ret = %d ", ret);return ret;}if (!acm->ctrlReq->compInfo.status) {HDF_LOGE("%s  status=%d ", __func__, acm->ctrlReq->compInfo.status);}return HDF_SUCCESS;
}
...
static struct UsbInterface *GetUsbInterfaceById(const struct AcmDevice *acm, uint8_t interfaceIndex)
{// 获取UsbInterface接口对象return UsbClaimInterface(acm->session, acm->busNum, acm->devAddr, interfaceIndex);
}
...
static struct UsbPipeInfo *EnumePipe(const struct AcmDevice *acm, uint8_t interfaceIndex, UsbPipeType pipeType, UsbPipeDirection pipeDirection)
{struct UsbInterfaceInfo *info = NULL; // 定义一个USB接口信息对象UsbInterfaceHandle *interfaceHandle = NULL; // 定义一个USB接口操作句柄，就是void *类型if (pipeType == USB_PIPE_TYPE_CONTROL) {info = &acm->ctrIface->info;interfaceHandle = acm->ctrDevHandle;} else {// 根据interfaceIndex获取设备句柄info = &acm->iface[interfaceIndex]->info;interfaceHandle = InterfaceIdToHandle(acm, info->interfaceIndex);}for (uint8_t i = 0; i <= info->pipeNum; i++) {struct UsbPipeInfo p;// 获取指定索引为i的pipeInfo信息int32_t ret = UsbGetPipeInfo(interfaceHandle, info->curAltSetting, i, &p);if (ret < 0) {continue;}if ((p.pipeDirection == pipeDirection) && (p.pipeType == pipeType)) {struct UsbPipeInfo *pi = OsalMemCalloc(sizeof(*pi)); // 开辟内存并初始化if (pi == NULL) {HDF_LOGE("%s: Alloc pipe failed", __func__);return NULL;}p.interfaceId = info->interfaceIndex;*pi = p;return pi;}}return NULL;
}static struct UsbPipeInfo *GetPipe(const struct AcmDevice *acm, UsbPipeType pipeType, UsbPipeDirection pipeDirection)
{uint8_t i;if (acm == NULL) {HDF_LOGE("%s: invalid param", __func__);return NULL;}for (i = 0; i < acm->interfaceCnt; i++) {struct UsbPipeInfo *p = NULL;if (!acm->iface[i]) {continue;}// 获取控制pipe的pipeInfo信息p = EnumePipe(acm, i, pipeType, pipeDirection);if (p == NULL) {continue;}return p;}return NULL;
}/* HdfDriverEntry implementations */
static int32_t UsbSerialDriverBind(struct HdfDeviceObject *device)
{struct UsbPnpNotifyServiceInfo *info = NULL;errno_t err;struct AcmDevice *acm = NULL;if (device == NULL) {HDF_LOGE("%s: device is null", __func__);return HDF_ERR_INVALID_OBJECT;}//开辟内存空间acm = (struct AcmDevice *)OsalMemCalloc(sizeof(*acm));if (acm == NULL) {HDF_LOGE("%s: Alloc usb serial device failed", __func__);return HDF_FAILURE;}// 初始化互斥锁，&acm->lock表示指向互斥量的指针if (OsalMutexInit(&acm->lock) != HDF_SUCCESS) {HDF_LOGE("%s:%d OsalMutexInit failed", __func__, __LINE__);goto ERROR;}info = (struct UsbPnpNotifyServiceInfo *)device->priv;if (info != NULL) {HDF_LOGD("%s:%d busNum=%d,devAddr=%d,interfaceLength=%d", __func__, __LINE__, info->busNum, info->devNum,info->interfaceLength);acm->busNum = (uint8_t)info->busNum;acm->devAddr = (uint8_t)info->devNum;acm->interfaceCnt = info->interfaceLength;err = memcpy_s((void *)(acm->interfaceIndex), USB_MAX_INTERFACES, (const void *)info->interfaceNumber,info->interfaceLength);if (err != EOK) {HDF_LOGE("%s:%d memcpy_s failed err = %d", __func__, __LINE__, err);goto LOCK_ERROR;}} else {HDF_LOGE("%s:%d info is null!", __func__, __LINE__);goto LOCK_ERROR;}acm->device = device;device->service = &(acm->service);acm->device->service->Dispatch = UsbSerialDeviceDispatch;HDF_LOGD("UsbSerialDriverBind=========================OK");return HDF_SUCCESS;LOCK_ERROR:if (OsalMutexDestroy(&acm->lock)) {HDF_LOGE("%s:%d OsalMutexDestroy failed", __func__, __LINE__);}
ERROR:OsalMemFree(acm);acm = NULL;return HDF_FAILURE;
}
...
static int32_t AcmAllocReadRequests(struct AcmDevice *acm)
{int32_t ret;struct UsbRequestParams readParmas = {};for (int32_t i = 0; i < ACM_NR; i++) {// 分配待发送的readReq IO Request对象acm->readReq[i] = UsbAllocRequest(InterfaceIdToHandle(acm, acm->dataInPipe->interfaceId), 0, acm->readSize);if (!acm->readReq[i]) {HDF_LOGE("readReq request failed\n");goto ERROR;}readParmas.userData = (void *)acm;readParmas.pipeAddress = acm->dataInPipe->pipeAddress;readParmas.pipeId = acm->dataInPipe->pipeId;readParmas.interfaceId = acm->dataInPipe->interfaceId;readParmas.callback = AcmReadBulk;readParmas.requestType = USB_REQUEST_PARAMS_DATA_TYPE; /* Data type */readParmas.timeout = USB_CTRL_SET_TIMEOUT;readParmas.dataReq.numIsoPackets = 0;readParmas.dataReq.directon = (((uint8_t)acm->dataInPipe->pipeDirection) >> USB_PIPE_DIR_OFFSET) & 0x1;readParmas.dataReq.length = (int)acm->readSize;// 根据readParams填充预先分配待发送的readReq IO Request对象ret = UsbFillRequest(acm->readReq[i], InterfaceIdToHandle(acm, acm->dataInPipe->interfaceId), &readParmas);if (ret != HDF_SUCCESS) {HDF_LOGE("%s: UsbFillRequest failed, ret=%d \n", __func__, ret);goto ERROR;}}return HDF_SUCCESS;ERROR:AcmFreeReadRequests(acm);return HDF_ERR_MALLOC_FAIL;
}static int32_t AcmAllocNotifyRequest(struct AcmDevice *acm)
{int32_t ret;struct UsbRequestParams intParmas = {};// 分配待发送的中断IO Request对象acm->notifyReq = UsbAllocRequest(InterfaceIdToHandle(acm, acm->intPipe->interfaceId), 0, acm->intSize);if (!acm->notifyReq) {HDF_LOGE("notifyReq request failed.\n");return HDF_ERR_MALLOC_FAIL;}intParmas.userData = (void *)acm;intParmas.pipeAddress = acm->intPipe->pipeAddress;intParmas.pipeId = acm->intPipe->pipeId;intParmas.interfaceId = acm->intPipe->interfaceId;intParmas.callback = AcmCtrlIrq;intParmas.requestType = USB_REQUEST_PARAMS_DATA_TYPE;intParmas.timeout = USB_CTRL_SET_TIMEOUT;intParmas.dataReq.numIsoPackets = 0;intParmas.dataReq.directon = (((uint8_t)acm->intPipe->pipeDirection) >> USB_PIPE_DIR_OFFSET) & DIRECTION_MASK;intParmas.dataReq.length = (int)acm->intSize;// 填充预先分配的中断IO Requestret = UsbFillRequest(acm->notifyReq, InterfaceIdToHandle(acm, acm->intPipe->interfaceId), &intParmas);if (ret != HDF_SUCCESS) {HDF_LOGE("%s: UsbFillRequest failed, ret = %d", __func__, ret);goto ERROR;}return HDF_SUCCESS;ERROR:AcmFreeNotifyReqeust(acm);return ret;
}static void AcmReleaseInterfaces(struct AcmDevice *acm)
{for (uint8_t i = 0; i < acm->interfaceCnt; i++) {if (acm->iface[i]) {// 释放一个USB接口对象UsbReleaseInterface(acm->iface[i]);acm->iface[i] = NULL;}}if (acm->ctrIface) {UsbReleaseInterface(acm->ctrIface);acm->ctrIface = NULL;}
}static int32_t AcmClaimInterfaces(struct AcmDevice *acm)
{for (uint8_t i = 0; i < acm->interfaceCnt; i++) {// 获取UsbInterface接口对象acm->iface[i] = GetUsbInterfaceById((const struct AcmDevice *)acm, acm->interfaceIndex[i]);if (acm->iface[i] == NULL) {HDF_LOGE("%s: interface%d is null", __func__, acm->interfaceIndex[i]);goto ERROR;}}// 获取控制接口对应的UsbInterface接口对象acm->ctrIface = GetUsbInterfaceById((const struct AcmDevice *)acm, USB_CTRL_INTERFACE_ID);if (acm->ctrIface == NULL) {HDF_LOGE("%s: GetUsbInterfaceById null", __func__);goto ERROR;}return HDF_SUCCESS;ERROR:// 根据acm->interfaceCnt循环释放接口对象AcmReleaseInterfaces(acm);return HDF_FAILURE;
}static void AcmCloseInterfaces(struct AcmDevice *acm)
{for (uint8_t i = 0; i < acm->interfaceCnt; i++) {if (acm->devHandle[i]) {// 关闭一个USB设备对象UsbCloseInterface(acm->devHandle[i]);acm->devHandle[i] = NULL;}}if (acm->ctrDevHandle) {UsbCloseInterface(acm->ctrDevHandle);acm->ctrDevHandle = NULL;}
}static int32_t AcmOpenInterfaces(struct AcmDevice *acm)
{for (uint8_t i = 0; i < acm->interfaceCnt; i++) {if (acm->iface[i]) {// 打开获取到的UsbInterface接口对象acm->devHandle[i] = UsbOpenInterface(acm->iface[i]);if (acm->devHandle[i] == NULL) {HDF_LOGE("%s: UsbOpenInterface null", __func__);goto ERROR;}}}acm->ctrDevHandle = UsbOpenInterface(acm->ctrIface);if (acm->ctrDevHandle == NULL) {HDF_LOGE("%s: ctrDevHandle UsbOpenInterface null", __func__);goto ERROR;}return HDF_SUCCESS;ERROR:// 关闭所有UsbInterface接口对象AcmCloseInterfaces(acm);return HDF_FAILURE;
}static int32_t AcmGetPipes(struct AcmDevice *acm)
{// 获取dataInPipe的pipeInfo信息acm->dataInPipe = GetPipe(acm, USB_PIPE_TYPE_BULK, USB_PIPE_DIRECTION_IN);if (acm->dataInPipe == NULL) {HDF_LOGE("dataInPipe is null");goto ERROR;}// 获取dataOutPipe的pipeInfo信息acm->dataOutPipe = GetPipe(acm, USB_PIPE_TYPE_BULK, USB_PIPE_DIRECTION_OUT);if (acm->dataOutPipe == NULL) {HDF_LOGE("dataOutPipe is null");goto ERROR;}// 获取控制pipe的pipeInfo信息acm->ctrPipe = EnumePipe(acm, acm->ctrIface->info.interfaceIndex, USB_PIPE_TYPE_CONTROL, USB_PIPE_DIRECTION_OUT);if (acm->ctrPipe == NULL) {HDF_LOGE("ctrPipe is null");goto ERROR;}// 获取中断pipe的pipeInfo信息acm->intPipe = GetPipe(acm, USB_PIPE_TYPE_INTERRUPT, USB_PIPE_DIRECTION_IN);if (acm->intPipe == NULL) {HDF_LOGE("intPipe is null");goto ERROR;}acm->readSize = acm->dataInPipe->maxPacketSize;acm->writeSize = acm->dataOutPipe->maxPacketSize;acm->ctrlSize = acm->ctrPipe->maxPacketSize;acm->intSize = acm->intPipe->maxPacketSize;return HDF_SUCCESS;ERROR:// 释放设备中所有的管道信息AcmFreePipes(acm);return HDF_FAILURE;
}static void AcmFreeRequests(struct AcmDevice *acm)
{if (g_syncRequest != NULL) {UsbFreeRequest(g_syncRequest);g_syncRequest = NULL;}AcmFreeReadRequests(acm);AcmFreeNotifyReqeust(acm);AcmFreeWriteRequests(acm);AcmWriteBufFree(acm);
}static int32_t AcmAllocRequests(const struct AcmDevice *acm)
{int32_t ret;if (AcmWriteBufAlloc(acm) < 0) {HDF_LOGE("%s: AcmWriteBufAlloc failed", __func__);return HDF_ERR_MALLOC_FAIL;}for (int32_t i = 0; i < ACM_NW; i++) {struct AcmWb *snd = (struct AcmWb *)&(acm->wb[i]);// 分配待发送的IO Request对象snd->request = UsbAllocRequest(InterfaceIdToHandle((struct AcmDevice *)acm, acm->dataOutPipe->interfaceId), 0, acm->writeSize);snd->instance = (struct AcmDevice *)acm; if (snd->request == NULL) {HDF_LOGE("%s:%d snd request fail", __func__, __LINE__);goto ERROR_ALLOC_WRITE_REQ;}}ret = AcmAllocNotifyRequest((struct AcmDevice *)acm); // 分配并填充中断IO Request对象if (ret != HDF_SUCCESS) {HDF_LOGE("%s:%d AcmAllocNotifyRequest fail", __func__, __LINE__);goto ERROR_ALLOC_INT_REQ;}ret = AcmAllocReadRequests((struct AcmDevice *)acm); // 分配并填充readReq IO Request对象if (ret) {HDF_LOGE("%s:%d AcmAllocReadRequests fail", __func__, __LINE__);goto ERROR_ALLOC_READ_REQ;}return HDF_SUCCESS;ERROR_ALLOC_READ_REQ:AcmFreeNotifyReqeust((struct AcmDevice *)acm);
ERROR_ALLOC_INT_REQ:AcmFreeWriteRequests((struct AcmDevice *)acm);
ERROR_ALLOC_WRITE_REQ:AcmWriteBufFree((struct AcmDevice *)acm);return HDF_FAILURE;
}static int32_t AcmInit(struct AcmDevice *acm)
{int32_t ret;if (acm->initFlag) {HDF_LOGE("%{public}s: initFlag is true", __func__);return HDF_SUCCESS;}// 初始化Host DDKret = UsbInitHostSdk(NULL);if (ret != HDF_SUCCESS) {HDF_LOGE("%{public}s: UsbInitHostSdk failed", __func__);return HDF_ERR_IO;}acm->session = NULL;// 根据acm->interfaceIndex[i]分别获取UsbInterface接口对象ret = AcmClaimInterfaces(acm);if (ret != HDF_SUCCESS) {HDF_LOGE("%{public}s: AcmClaimInterfaces failed", __func__);goto ERROR_CLAIM_INTERFACES;}// 根据acm->iface[i]分别打开UsbInterface接口对象ret = AcmOpenInterfaces(acm);if (ret != HDF_SUCCESS) {HDF_LOGE("%{public}s: AcmOpenInterfaces failed", __func__);goto ERROR_OPEN_INTERFACES;}// 获取管道信息的指针ret = AcmGetPipes(acm);if (ret != HDF_SUCCESS) {HDF_LOGE("%{public}s: AcmGetPipes failed", __func__);goto ERROR_GET_PIPES;}ret = AcmAllocRequests(acm);if (ret != HDF_SUCCESS) {HDF_LOGE("%{public}s: AcmAllocRequests failed", __func__);goto ERROR_ALLOC_REQS;}acm->lineCoding.dwDTERate = CPU_TO_LE32(DATARATE);acm->lineCoding.bCharFormat = USB_CDC_1_STOP_BITS;acm->lineCoding.bParityType = USB_CDC_NO_PARITY;acm->lineCoding.bDataBits = DATA_BITS_LENGTH;acm->initFlag = true;return HDF_SUCCESS;ERROR_ALLOC_REQS:AcmFreePipes(acm);
ERROR_GET_PIPES:// 关闭所有UsbInterface接口对象AcmCloseInterfaces(acm);
ERROR_OPEN_INTERFACES:// 释放所有UsbInterface接口对象 AcmReleaseInterfaces(acm);
ERROR_CLAIM_INTERFACES:// 在主机端退出USB DDK，acm->session代表指向会话上下文的指针UsbExitHostSdk(acm->session);acm->session = NULL;return ret;
}static void AcmRelease(struct AcmDevice *acm)
{if (!(acm->initFlag)) {HDF_LOGE("%s:%d: initFlag is false", __func__, __LINE__);return;}AcmCloseInterfaces(acm);AcmReleaseInterfaces(acm);AcmFreeRequests(acm);AcmFreePipes(acm);// 在主机端退出USB DDKUsbExitHostSdk(acm->session);acm->session = NULL;acm->initFlag = false;
}static int32_t UsbSerialDriverInit(struct HdfDeviceObject *device)
{int32_t ret;struct AcmDevice *acm = NULL;if (device == NULL) {HDF_LOGE("%s: device is null", __func__);return HDF_ERR_INVALID_OBJECT;}acm = (struct AcmDevice *)device->service;// 初始化互斥锁，&acm->readLock表示指向互斥量的指针if (acm == NULL) {return HDF_ERR_INVALID_OBJECT;}OsalMutexInit(&acm->readLock);OsalMutexInit(&acm->writeLock);HDF_LOGD("%s:%d busNum = %d,devAddr = %d", __func__, __LINE__, acm->busNum, acm->devAddr);// 给USB串口设备信息开辟空间并赋值ret = UsbSerialDeviceAlloc(acm);if (ret != HDF_SUCCESS) {HDF_LOGE("%s: Serial Device alloc failed", __func__);}acm->initFlag = false;g_acmReleaseFlag = false;HDF_LOGD("%s:%d init ok!", __func__, __LINE__);return ret;
}static void UsbSerialDriverRelease(struct HdfDeviceObject *device)
{struct AcmDevice *acm = NULL;if (device == NULL) {HDF_LOGE("%s: device is null", __func__);return;}acm = (struct AcmDevice *)device->service;if (acm == NULL) {HDF_LOGE("%s: acm is null", __func__);return;}g_acmReleaseFlag = true;if (acm->initFlag) {HDF_LOGE("%s:%d AcmRelease", __func__, __LINE__);AcmRelease(acm);}// 释放usb串口设备信息UsbSeriaDevicelFree(acm);// 释放互斥锁OsalMutexDestroy(&acm->writeLock);OsalMutexDestroy(&acm->readLock);OsalMutexDestroy(&acm->lock);OsalMemFree(acm);acm = NULL;HDF_LOGD("%s:%d exit", __func__, __LINE__);
}
// 驱动的Bind、Init、及Release操作
struct HdfDriverEntry g_usbSerialDriverEntry = {.moduleVersion = 1,.moduleName = "usbhost_acm", // 驱动模块名称，必须与hcs文件中配置的名称一致.Bind = UsbSerialDriverBind,.Init = UsbSerialDriverInit,.Release = UsbSerialDriverRelease,
};
HDF_INIT(g_usbSerialDriverEntry); // 驱动入口

Host RAW API驱动开发

root {module = "usb_pnp_device";usb_pnp_config {match_attr = "usb_pnp_match";usb_pnp_device_id = "UsbPnpDeviceId";UsbPnpDeviceId {idTableList = ["host_acm_rawapi_table"];host_acm_rawapi_table {    // 驱动配置匹配表信息// 驱动模块名，该字段的值必须和驱动入口结构的moduleName一致moduleName = "usbhost_acm_rawapi";// 驱动对外发布服务的名称，必须唯一serviceName = "usbhost_acm_rawapi_service";// 驱动私有数据匹配关键字deviceMatchAttr = "usbhost_acm_rawapi_matchAttr";// 从该字段开始（包含该字段）之后数据长度，以byte为单位length = 21;// USB驱动匹配规则vendorId+productId+interfaceSubClass+interfaceProtocol+interfaceNumbermatchFlag = 0x0303;// 厂商编号vendorId = 0x12D1;// 产品编号productId = 0x5000;// 设备出厂编号，低16位bcdDeviceLow = 0x0000;// 设备出厂编号，高16位bcdDeviceHigh = 0x0000;// USB分配的设备类代码deviceClass = 0;// USB分配的子类代码deviceSubClass = 0;// USB分配的设备协议代码deviceProtocol = 0;// 接口类型，根据实际需要可填写多个interfaceClass = [0];// 接口子类型，根据实际需要可填写多个interfaceSubClass = [2, 0];// 接口所遵循的协议，根据实际需要可填写多个interfaceProtocol = [1, 2];// 接口的编号，根据实际需要可填写多个interfaceNumber = [2, 3];}}}
}

#include <unistd.h>#include "hdf_base.h"
#include "hdf_log.h"
#include "hdf_usb_pnp_manage.h"
#include "osal_mem.h"
#include "osal_time.h"
#include "securec.h"
#include "usb_serial_rawapi.h"#define HDF_LOG_TAG                   USB_HOST_ACM_RAW_API
#define USB_CTRL_REQ_SIZE             64
#define USB_IO_THREAD_STACK_SIZE      8192
#define USB_RAW_IO_SLEEP_MS_TIME      100
#define USB_RAW_IO_STOP_WAIT_MAX_TIME 3static struct UsbRawRequest *g_syncRequest = NULL;
static UsbRawIoProcessStatusType g_stopIoStatus = USB_RAW_IO_PROCESS_RUNNING;
struct OsalMutex g_stopIoLock;
static bool g_rawAcmReleaseFlag = false;
...
static int32_t UsbGetConfigDescriptor(UsbRawHandle *devHandle, struct UsbRawConfigDescriptor **config)
{UsbRawDevice *dev = NULL;int32_t activeConfig;int32_t ret;if (devHandle == NULL) {HDF_LOGE("%s:%d devHandle is null", __func__, __LINE__);return HDF_ERR_INVALID_PARAM;}// 获取主用设备配置ret = UsbRawGetConfiguration(devHandle, &activeConfig);if (ret) {HDF_LOGE("%s:%d UsbRawGetConfiguration failed, ret = %d", __func__, __LINE__, ret);return HDF_FAILURE;}HDF_LOGE("%s:%d activeConfig = %d", __func__, __LINE__, activeConfig);// 根据指定的设备句柄获取设备指针dev = UsbRawGetDevice(devHandle);if (dev == NULL) {HDF_LOGE("%s:%d UsbRawGetDevice failed", __func__, __LINE__);return HDF_FAILURE;}// 根据指定的设备ID获取设备配置描述符ret = UsbRawGetConfigDescriptor(dev, activeConfig, config);if (ret) {HDF_LOGE("UsbRawGetConfigDescriptor failed, ret = %d\n", ret);return HDF_FAILURE;}return HDF_SUCCESS;
}
...static int32_t UsbAllocWriteRequests(struct AcmDevice *acm)
{int32_t i;for (i = 0; i < ACM_NW; i++) {struct AcmWb *snd = &acm->wb[i];// 分配一个具有指定数目的同步传输分组描述符的传输请求snd->request = UsbRawAllocRequest(acm->devHandle, 0, acm->dataOutEp->maxPacketSize);snd->instance = acm;if (snd->request == NULL) {HDF_LOGE("%s: UsbRawAllocRequest failed", __func__);return HDF_ERR_MALLOC_FAIL;}}return HDF_SUCCESS;
}
...
/* HdfDriverEntry implementations */
static int32_t UsbSerialDriverBind(struct HdfDeviceObject *device)
{struct AcmDevice *acm = NULL;struct UsbPnpNotifyServiceInfo *info = NULL;errno_t err;if (device == NULL) {HDF_LOGE("%s: device is null", __func__);return HDF_ERR_INVALID_OBJECT;}acm = (struct AcmDevice *)OsalMemCalloc(sizeof(*acm));if (acm == NULL) {HDF_LOGE("%s: Alloc usb serial device failed", __func__);return HDF_FAILURE;}if (OsalMutexInit(&acm->lock) != HDF_SUCCESS) {HDF_LOGE("%s:%d OsalMutexInit fail", __func__, __LINE__);goto ERROR;}info = (struct UsbPnpNotifyServiceInfo *)device->priv;if (info != NULL) {acm->busNum = (uint8_t)info->busNum;acm->devAddr = (uint8_t)info->devNum;acm->interfaceCnt = info->interfaceLength;err = memcpy_s((void *)(acm->interfaceIndex), USB_MAX_INTERFACES, (const void *)info->interfaceNumber,info->interfaceLength);if (err != EOK) {HDF_LOGE("%s:%d memcpy_s failed err=%d", __func__, __LINE__, err);goto LOCK_ERROR;}} else {HDF_LOGE("%s:%d info is NULL!", __func__, __LINE__);goto LOCK_ERROR;}device->service = &(acm->service);device->service->Dispatch = UsbSerialDeviceDispatch;acm->device = device;HDF_LOGD("UsbSerialDriverBind=========================OK");return HDF_SUCCESS;LOCK_ERROR:if (OsalMutexDestroy(&acm->lock)) {HDF_LOGE("%s:%d OsalMutexDestroy fail", __func__, __LINE__);}
ERROR:OsalMemFree(acm);acm = NULL;return HDF_FAILURE;
}
...
static int32_t UsbAllocReadRequests(struct AcmDevice *acm)
{struct UsbRawFillRequestData reqData;uint32_t size = acm->dataInEp->maxPacketSize;for (int32_t i = 0; i < ACM_NR; i++) {// 分配一个具有指定数目的同步传输分组描述符的传输请求acm->readReq[i] = UsbRawAllocRequest(acm->devHandle, 0, size);if (!acm->readReq[i]) {HDF_LOGE("readReq request failed\n");return HDF_ERR_MALLOC_FAIL;}reqData.endPoint = acm->dataInEp->addr;reqData.numIsoPackets = 0;reqData.callback = AcmReadBulkCallback;reqData.userData = (void *)acm;reqData.timeout = USB_CTRL_SET_TIMEOUT;reqData.length = size;// 在批量传输请求中填写所需信息int32_t ret = UsbRawFillBulkRequest(acm->readReq[i], acm->devHandle, &reqData);if (ret != HDF_SUCCESS) {HDF_LOGE("%s: FillBulkRequest failed, ret=%d\n", __func__, ret);return HDF_FAILURE;}}return HDF_SUCCESS;
}
...
static int32_t UsbAllocNotifyRequest(struct AcmDevice *acm)
{struct UsbRawFillRequestData fillRequestData;uint32_t size = acm->notifyEp->maxPacketSize;int32_t ret;// 分配一个具有指定数目的同步传输分组描述符的传输请求acm->notifyReq = UsbRawAllocRequest(acm->devHandle, 0, size);if (!acm->notifyReq) {HDF_LOGE("notifyReq request fail\n");return HDF_ERR_MALLOC_FAIL;}fillRequestData.endPoint = acm->notifyEp->addr;fillRequestData.length = size;fillRequestData.numIsoPackets = 0;fillRequestData.callback = AcmNotifyReqCallback;fillRequestData.userData = (void *)acm;fillRequestData.timeout = USB_CTRL_SET_TIMEOUT;// 在中断传输请求中填充所需的信息ret = UsbRawFillInterruptRequest(acm->notifyReq, acm->devHandle, &fillRequestData);if (ret) {HDF_LOGE("%s: FillInterruptRequest failed, ret=%d", __func__, ret);return HDF_FAILURE;}return HDF_SUCCESS;
}
...
static int32_t UsbSerialInit(struct AcmDevice *acm)
{struct UsbSession *session = NULL;UsbRawHandle *devHandle = NULL;int32_t ret;if (acm->initFlag) {HDF_LOGE("%s:%d: initFlag is true", __func__, __LINE__);return HDF_SUCCESS;}// 以专家模式初始化USB DDKret = UsbRawInit(NULL);if (ret) {HDF_LOGE("%s:%d UsbRawInit failed", __func__, __LINE__);return HDF_ERR_IO;}acm->session = session;// 打开一个USB设备对象devHandle = UsbRawOpenDevice(session, acm->busNum, acm->devAddr);if (devHandle == NULL) {HDF_LOGE("%s:%d UsbRawOpenDevice failed", __func__, __LINE__);ret = HDF_FAILURE;goto ERR_OPEN_DEVICE;}acm->devHandle = devHandle;// 获取主用设备配置、设备指针及配置描述符ret = UsbGetConfigDescriptor(devHandle, &acm->config);if (ret) {HDF_LOGE("%s:%d UsbGetConfigDescriptor failed", __func__, __LINE__);ret = HDF_FAILURE;goto ERR_GET_DESC;}ret = UsbParseConfigDescriptor(acm, acm->config);if (ret != HDF_SUCCESS) {HDF_LOGE("%s:%d UsbParseConfigDescriptor failed", __func__, __LINE__);ret = HDF_FAILURE;goto ERR_PARSE_DESC;}ret = AcmWriteBufAlloc(acm);if (ret < 0) {HDF_LOGE("%s:%d AcmWriteBufAlloc failed", __func__, __LINE__);ret = HDF_FAILURE;goto ERR_ALLOC_WRITE_BUF;}ret = UsbAllocWriteRequests(acm);if (ret < 0) {HDF_LOGE("%s:%d UsbAllocWriteRequests failed", __func__, __LINE__);ret = HDF_FAILURE;goto ERR_ALLOC_WRITE_REQS;}ret = UsbAllocNotifyRequest(acm);if (ret) {HDF_LOGE("%s:%d UsbAllocNotifyRequests failed", __func__, __LINE__);goto ERR_ALLOC_NOTIFY_REQ;}ret = UsbAllocReadRequests(acm);if (ret) {HDF_LOGE("%s:%d UsbAllocReadRequests failed", __func__, __LINE__);goto ERR_ALLOC_READ_REQS;}ret = UsbStartIo(acm);if (ret) {HDF_LOGE("%s:%d UsbAllocReadRequests failed", __func__, __LINE__);goto ERR_START_IO;}acm->lineCoding.dwDTERate = CPU_TO_LE32(DATARATE);acm->lineCoding.bCharFormat = USB_CDC_1_STOP_BITS;acm->lineCoding.bParityType = USB_CDC_NO_PARITY;acm->lineCoding.bDataBits = DATA_BITS_LENGTH;ret = UsbRawSubmitRequest(acm->notifyReq);if (ret) {HDF_LOGE("%s:%d UsbRawSubmitRequest failed", __func__, __LINE__);goto ERR_SUBMIT_REQ;}acm->initFlag = true;HDF_LOGD("%s:%d=========================OK", __func__, __LINE__);return HDF_SUCCESS;ERR_SUBMIT_REQ:UsbStopIo(acm); // 停止IO线程并释放所有资源
ERR_START_IO:UsbFreeReadRequests(acm);
ERR_ALLOC_READ_REQS:UsbFreeNotifyReqeust(acm);
ERR_ALLOC_NOTIFY_REQ:UsbFreeWriteRequests(acm);
ERR_ALLOC_WRITE_REQS:AcmWriteBufFree(acm);
ERR_ALLOC_WRITE_BUF:UsbReleaseInterfaces(acm);
ERR_PARSE_DESC:UsbRawFreeConfigDescriptor(acm->config);acm->config = NULL;
ERR_GET_DESC:(void)UsbRawCloseDevice(devHandle); // 关闭USB设备对象
ERR_OPEN_DEVICE:UsbRawExit(acm->session); // 退出USB DDK的专家模式return ret;
}
...
static void UsbSerialRelease(struct AcmDevice *acm)
{if (!(acm->initFlag)) {HDF_LOGE("%s:%d: initFlag is false", __func__, __LINE__);return;}/* stop io thread and release all resources */UsbStopIo(acm);if (g_syncRequest != NULL) {UsbRawFreeRequest(g_syncRequest);g_syncRequest = NULL;}UsbFreeReadRequests(acm);UsbFreeNotifyReqeust(acm);UsbFreeWriteRequests(acm);AcmWriteBufFree(acm);UsbReleaseInterfaces(acm);(void)UsbRawCloseDevice(acm->devHandle);UsbRawFreeConfigDescriptor(acm->config);acm->config = NULL;// 退出USB DDK的专家模式UsbRawExit(acm->session);acm->initFlag = false;
}static int32_t UsbSerialDriverInit(struct HdfDeviceObject *device)
{struct AcmDevice *acm = NULL;int32_t ret;if (device == NULL) {HDF_LOGE("%s:%d device is null", __func__, __LINE__);return HDF_ERR_INVALID_OBJECT;}acm = (struct AcmDevice *)device->service;if (acm == NULL) {return HDF_ERR_INVALID_OBJECT;}OsalMutexInit(&acm->readLock);OsalMutexInit(&acm->writeLock);// 设备申请连续的内存ret = UsbSerialDeviceAlloc(acm);if (ret != HDF_SUCCESS) {HDF_LOGE("%s:%d UsbSerialDeviceAlloc failed", __func__, __LINE__);}acm->initFlag = false;g_rawAcmReleaseFlag = false;HDF_LOGD("%s:%d init ok!", __func__, __LINE__);return ret;
}static void UsbSerialDriverRelease(struct HdfDeviceObject *device)
{struct AcmDevice *acm = NULL;if (device == NULL) {HDF_LOGE("%s: device is null", __func__);return;}acm = (struct AcmDevice *)device->service;if (acm == NULL) {HDF_LOGE("%s: acm is null", __func__);return;}g_rawAcmReleaseFlag = true;if (acm->initFlag) {HDF_LOGE("%s:%d UsbSerialRelease", __func__, __LINE__);UsbSerialRelease(acm);}UsbSeriaDevicelFree(acm);OsalMutexDestroy(&acm->writeLock);OsalMutexDestroy(&acm->readLock);OsalMutexDestroy(&acm->lock);OsalMemFree(acm);acm = NULL;HDF_LOGD("%s:%d exit", __func__, __LINE__);
}struct HdfDriverEntry g_usbSerialRawDriverEntry = {.moduleVersion = 1,.moduleName = "usbhost_acm_rawapi", // 驱动模块名称，必须与hcs文件中配置的名称一致.Bind = UsbSerialDriverBind,.Init = UsbSerialDriverInit,.Release = UsbSerialDriverRelease,
};
HDF_INIT(g_usbSerialRawDriverEntry);

Device DDK API驱动开发

USB ACM设备核心代码路径为drivers\peripheral\usb\gadget\function\acm\cdcacm.c。其使用示例如下所示，首先根据描述符创建设备，然后获取接口，打开接口，获取Pipe信息，接收Event事件，接着进行USB通信（读写等），设备卸载时候，关闭接口，停止Event接收，删除设备。

创建设备。

static int32_t AcmCreateFuncDevice(struct UsbAcmDevice *acm, struct DeviceResourceIface *iface)
{int32_t ret;struct UsbFnDevice *fnDev = NULL;
// 读取hcs文件中的udc_name节点的字符串值if (iface->GetString(acm->device->property, "udc_name", (const char **)&acm->udcName, UDC_NAME) != HDF_SUCCESS) {HDF_LOGE("%s: read udc_name failed, use default", __func__);return HDF_FAILURE;}fnDev = (struct UsbFnDevice *)UsbFnGetDevice(acm->udcName);if (fnDev == NULL) {HDF_LOGE("%s: create usb function device failed", __func__);return HDF_FAILURE;}
// 解析acm每一个Ifaceret = AcmParseEachIface(acm, fnDev);if (ret != HDF_SUCCESS) {HDF_LOGE("%s: get pipes failed", __func__);return HDF_FAILURE;}acm->fnDev = fnDev;return HDF_SUCCESS;
}

获取接口，打开接口，获取Pipe信息

static int32_t AcmParseEachPipe(struct UsbAcmDevice *acm, struct UsbAcmInterface *iface)
{struct UsbFnInterface *fnIface = iface->fn;for (uint32_t i = 0; i < fnIface->info.numPipes; i++) {struct UsbFnPipeInfo pipeInfo;// pipeInfo清除缓存区内容(void)memset_s(&pipeInfo, sizeof(pipeInfo), 0, sizeof(pipeInfo));/* 获取pipe信息 */int32_t ret = UsbFnGetInterfacePipeInfo(fnIface, i, &pipeInfo);if (ret != HDF_SUCCESS) {HDF_LOGE("%s: get pipe info error", __func__);return ret;}// PIPE的中断和管脚switch (pipeInfo.type) {case USB_PIPE_TYPE_INTERRUPT:acm->notifyPipe.id = pipeInfo.id;acm->notifyPipe.maxPacketSize = pipeInfo.maxPacketSize;acm->ctrlIface = *iface;break;case USB_PIPE_TYPE_BULK:if (pipeInfo.dir == USB_PIPE_DIRECTION_IN) {acm->dataInPipe.id = pipeInfo.id;acm->dataInPipe.maxPacketSize = pipeInfo.maxPacketSize;acm->dataIface = *iface;} else {acm->dataOutPipe.id = pipeInfo.id;acm->dataOutPipe.maxPacketSize = pipeInfo.maxPacketSize;}break;default:HDF_LOGE("%s: pipe type %d don't support", __func__, pipeInfo.type);break;}}return HDF_SUCCESS;
}
/* 获取接口，打开接口获取handle */
static int32_t AcmParseEachIface(struct UsbAcmDevice *acm, struct UsbFnDevice *fnDev)
{struct UsbFnInterface *fnIface = NULL;uint32_t i;if (fnDev == NULL) {return HDF_FAILURE;}for (i = 0; i < fnDev->numInterfaces; i++) {fnIface = (struct UsbFnInterface *)UsbFnGetInterface(fnDev, i);if (fnIface == NULL) {HDF_LOGE("%s: get interface failed", __func__);return HDF_FAILURE;}if (fnIface->info.subclass == USB_DDK_CDC_SUBCLASS_ACM) {(void)AcmParseAcmIface(acm, fnIface);fnIface = (struct UsbFnInterface *)UsbFnGetInterface(fnDev, i + 1);if (fnIface == NULL) {HDF_LOGE("%s: get interface failed", __func__);return HDF_FAILURE;}(void)AcmParseAcmIface(acm, fnIface);return HDF_SUCCESS;}}return HDF_FAILURE;
}

接收Event事件（EP0控制传输）

static int32_t AcmAllocCtrlRequests(struct UsbAcmDevice *acm, int32_t num)
{struct DListHead *head = &acm->ctrlPool;struct UsbFnRequest *req = NULL;struct CtrlInfo *ctrlInfo = NULL;int32_t i;DListHeadInit(&acm->ctrlPool);acm->ctrlReqNum = 0;for (i = 0; i < num; i++) {// 申请内存ctrlInfo = (struct CtrlInfo *)OsalMemCalloc(sizeof(*ctrlInfo));if (ctrlInfo == NULL) {HDF_LOGE("%s: Allocate ctrlInfo failed", __func__);goto OUT;}ctrlInfo->acm = acm;req = UsbFnAllocCtrlRequest(acm->ctrlIface.handle, sizeof(struct UsbCdcLineCoding) + sizeof(struct UsbCdcLineCoding));if (req == NULL) {goto OUT;}req->complete = AcmCtrlComplete;req->context = ctrlInfo;DListInsertTail(&req->list, head);acm->ctrlReqNum++;}return HDF_SUCCESS;OUT:return DListIsEmpty(head) ? HDF_FAILURE : HDF_SUCCESS;
}

进行USB通信（读写等）

static int32_t AcmSendNotifyRequest(struct UsbAcmDevice *acm, uint8_t type, uint16_t value, const void *data, uint32_t length)
{struct UsbFnRequest *req = acm->notifyReq;struct UsbCdcNotification *notify = NULL;int32_t ret;if (req == NULL || req->buf == NULL) {HDF_LOGE("%s: req is null", __func__);return HDF_FAILURE;}acm->notifyReq = NULL;acm->pending = false;req->length = sizeof(*notify) + length;notify = (struct UsbCdcNotification *)req->buf;notify->bmRequestType = USB_DDK_DIR_IN | USB_DDK_TYPE_CLASS | USB_DDK_RECIP_INTERFACE;notify->bNotificationType = type;notify->wValue = CPU_TO_LE16(value);notify->wIndex = CPU_TO_LE16(acm->ctrlIface.fn->info.index);notify->wLength = CPU_TO_LE16(length);ret = memcpy_s((void *)(notify + 1), length, data, length);if (ret != EOK) {HDF_LOGE("%s: memcpy_s failed", __func__);return HDF_FAILURE;}ret = UsbFnSubmitRequestAsync(req);if (ret != HDF_SUCCESS) {HDF_LOGE("%s: send notify request failed", __func__);acm->notifyReq = req;}return ret;
}

关闭接口，停止Event接收，删除设备

static int32_t AcmReleaseFuncDevice(struct UsbAcmDevice *acm)
{int32_t ret;/* 关闭接口 */(void)UsbFnInterfaceClose(acm->ctrlIface.handle);(void)UsbFnInterfaceClose(acm->dataIface.handle);/* 停止接收Event EP0控制传输 */(void)UsbFnInterfaceStopRecvEvent(acm->ctrlIface.fn);/* 删除设备 */ret = UsbFnDeviceRemove(acm->fnDev);if (ret != HDF_SUCCESS) {HDF_LOGE("%s: remove usb function device failed", __func__);}return ret;
}
static int32_t AcmReleaseFuncDevice(struct UsbAcmDevice *acm)
{int32_t ret = HDF_SUCCESS;if (acm->fnDev == NULL) {HDF_LOGE("%s: fnDev is null", __func__);return HDF_FAILURE;}//释放通知请求AcmFreeCtrlRequests(acm);AcmFreeNotifyRequest(acm);/* 停止接收Event EP0控制传输 */(void)UsbFnCloseInterface(acm->ctrlIface.handle);(void)UsbFnCloseInterface(acm->dataIface.handle);(void)UsbFnStopRecvInterfaceEvent(acm->ctrlIface.fn);return ret;
}

参考

代码仓库如下：

drivers_hdf_core

drivers_peripheral

drivers_interface
代码路径如下：

USB驱动模型liteos适配：//drivers/hdf_core/adapter/khdf/liteos/model/usb

USB DDK驱动加载实现：//drivers/hdf_core/framework/model/usb

USB HDI服务端实现：//drivers/peripheral/usb/hdi_service

USB HDI对外接口：//out/{product_name}/gen/drivers/interface/usb/v1_0
