DataX从Mysql导数据到Hive分区表案例
0、下载DataX并解压到对应目录
DataX安装包，开箱即用，无需配置。
https://datax-opensource.oss-cn-hangzhou.aliyuncs.com/202308/datax.tar.gz
相关参考文档
https://github.com/alibaba/DataX/blob/master/hdfswriter/doc/hdfswriter.md
1、Hive分区表DDL样例
注意分隔符号要和后续的DataX配置保持一致，同时在此将贴源层数据类型统一为String。
CREATE TABLE datax.fin_transaction_flow (transaction_id STRING COMMENT '交易唯一ID（主键）',account_no STRING COMMENT '账户号（外键 -> account_info.account_no）',transaction_code STRING COMMENT '交易类型编码（外键 -> transaction_reference.transaction_code）',amount STRING COMMENT '交易金额（格式：整数部分18位，小数2位）',currency STRING COMMENT '币种（如CNY/USD）',counterparty_account STRING COMMENT '对手账户（外键 -> account_info.account_no）',transaction_time STRING COMMENT '交易时间（格式：yyyy-MM-dd HH:mm:ss）',status STRING COMMENT '交易状态（成功/失败）',channel STRING COMMENT '交易渠道（ATM/网银）'
)
PARTITIONED BY (dt STRING)
ROW FORMAT DELIMITED FIELDS TERMINATED BY '\b'
STORED AS ORC ;
2、DataX Json配置样例
创建以下Json文件(mysql-hive.json)并放置到DataX节点合适目录下。
{"job": {"setting": {"speed": {"channel": 4}},"content": [{"reader": {"name": "mysqlreader","parameter": {"username": "root","password": "pwd","connection": [{"querySql": ["select transaction_id,account_no,transaction_code,amount,currency,counterparty_account,transaction_time,status,channel from fin_transaction_flow where dt='20250416';"],"jdbcUrl": ["jdbc:mysql://chdp01:3306/bg2025"]}]}},"writer": {"name": "hdfswriter","parameter": {"defaultFS": "hdfs://chdp01:9000","fileType": "orc","path": "/user/hive/warehouse/datax.db/fin_transaction_flow/dt=20250416","fileName": "xxxx","column": [{"name": "transaction_id","type": "STRING"},{"name": "account_no","type": "STRING"},{"name": "transaction_code","type": "STRING"},{"name": "amount","type": "STRING"},{"name": "currency","type": "STRING"},{"name": "counterparty_account","type": "STRING"},{"name": "transaction_time","type": "STRING"},{"name": "status","type": "STRING"},{"name": "channel","type": "STRING"}],"writeMode": "append","fieldDelimiter": "\b","compress": "NONE"}}}]}
}
3、手动创建对应分区目录
hadoop fs -mkdir /user/hive/warehouse/datax.db/fin_transaction_flow/dt=20250416
4、执行DataX
./bin/datax.py ../mysql-hive.json

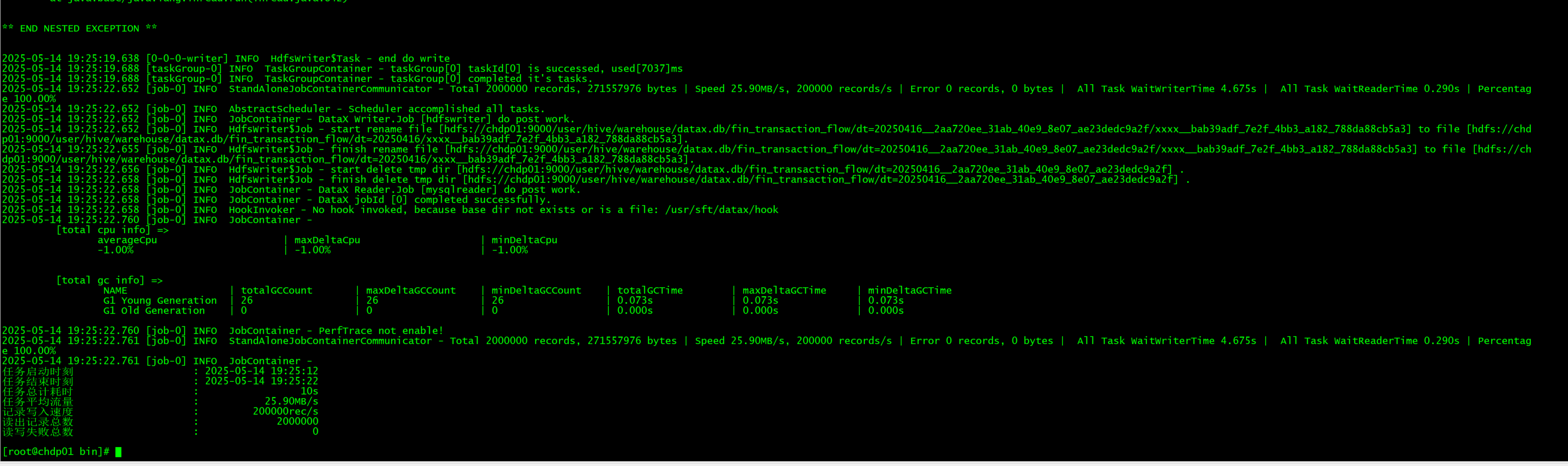

看最终状态显示成功

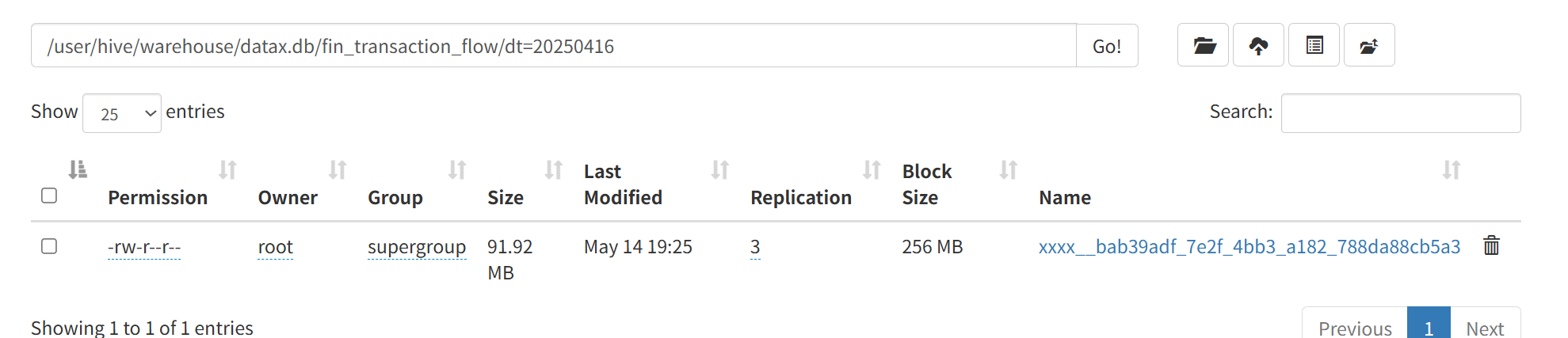

hdfs目标目录里也有了对应文件
5、添加分区信息
经过上述操作还不能直接从hive表里查询出数据，因为元数据信息尚未构建起来。
ALTER TABLE datax.fin_transaction_flow ADD IF NOT EXISTS PARTITION (dt='20250416');
6、验证数据
7、问题：发现count数据为0
select count(*) from datax.fin_transaction_flow;
这个是因为hive未及时构建表分析信息导致，手动执行如下表分析sql即可
analyze table datax.fin_transaction_flow compute statistics;
