20250506让NanoPi NEO core开发板使用Ubuntu core16.04系统的TF卡启动
1、h3-sd-friendlycore-xenial-4.14-armhf-20210618.img.gz 在WIN10下使用7-ZIP解压缩/ubuntu20.04下使用tar

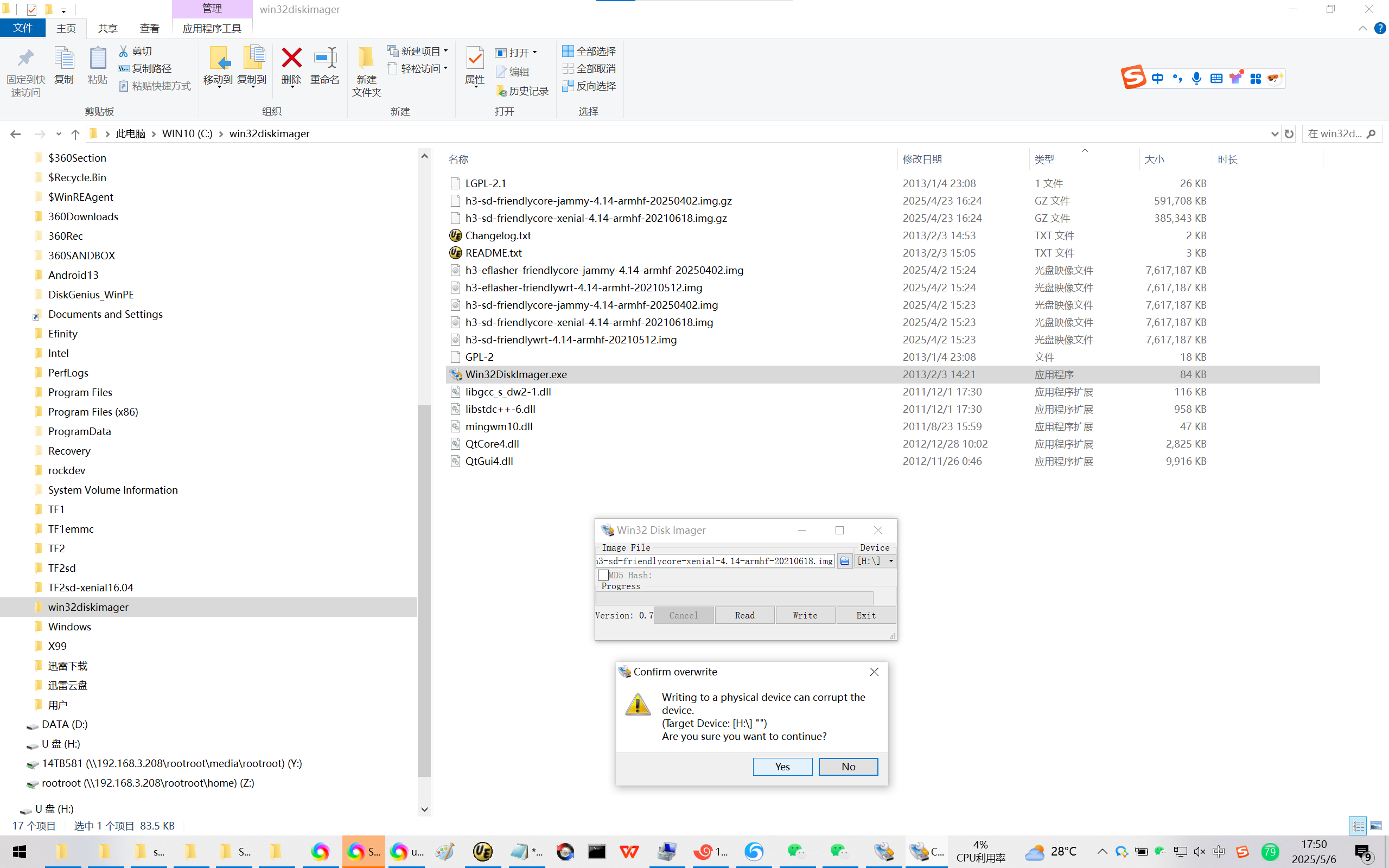

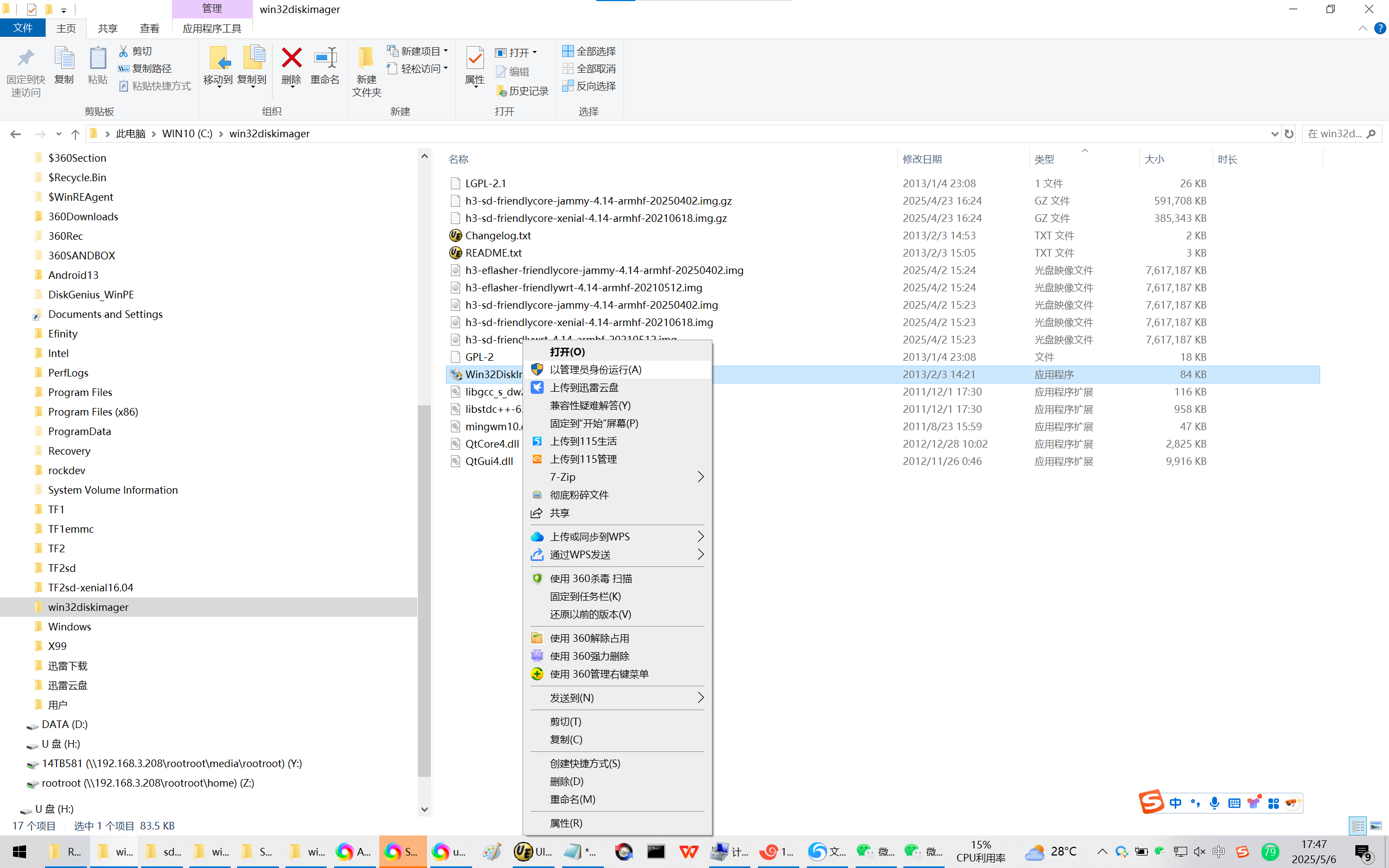

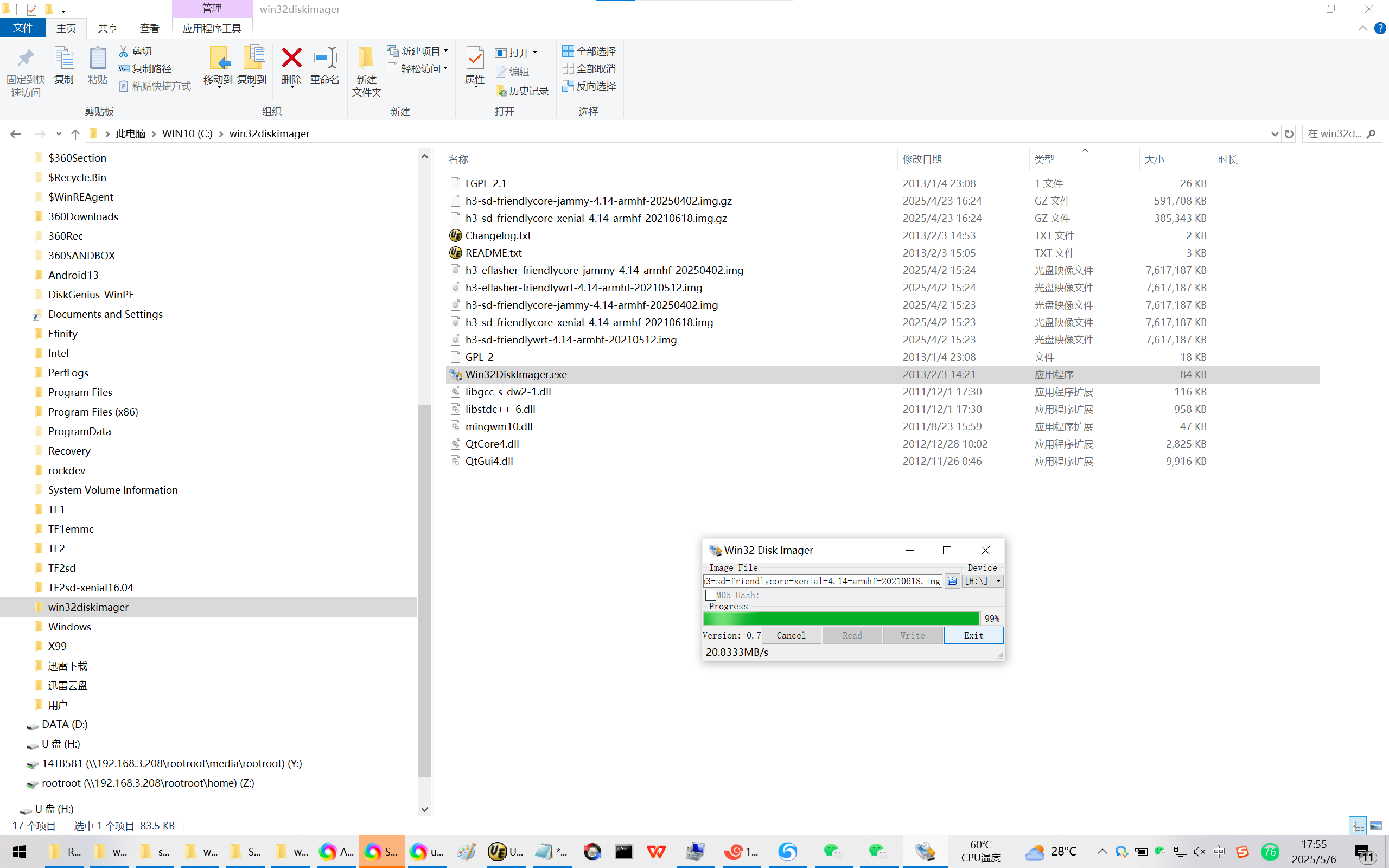

2、Win32DiskImager.exe 写如32GB的TF卡。【以管理员身份运行】
3、TF卡如果已经做过会有3个磁盘分区，可以使用SD Card Formatter/SDCardFormatterv5_WinEN.zip格式化TF卡。DiskGenius可以尝试。
20250506让NanoPi NEO core开发板使用Ubuntu core16.04系统的TF卡启动
2025/5/6 18:29
缘起：将Ubuntu core16.04系统的TF启动卡插入NanoPi NEO core开发板，上电就会使用TF卡启动。
NanoPi NEO core开发板默认出厂的系统是Ubuntu22.04 core。
http://wiki.friendlyelec.com/wiki/index.php/NanoPi_NEO_Core/zh#.E7.83.A7.E5.86.99.E5.88.B0TF.E5.8D.A1
NanoPi NEO Core/zh
4 快速入门
4.1 准备工作
4.2 经测试可选用的TF卡
4.3 安装系统
4.3.1 下载系统固件
4.3.2 烧写Linux系统
4.3.2.1 烧写到TF卡
4.3.2.2 烧写到eMMC
4.3.2.2.1 eflasher脱机烧写
4.3 安装系统
4.3.1 下载系统固件
首先访问下载地址下载需要的固件文件(officail-ROMs目录)和烧写工具(tools目录)：
使用以下固件：
nanopi-neo-core_sd_friendlycore-xenial_4.14_armhf_YYYYMMDD.img.zip 基于UbuntuCore构建的FriendlyCore系统固件，使用Linux-4.14内核
nanopi-neo-core_sd_friendlywrt_4.14_armhf_YYYYMMDD.img.zip 基于OpenWrt构建的系统固件, kernel:Linux-4.14
nanopi-neo-core_eflasher_friendlycore-xenial_4.14_armhf_YYYYMMDD.img.zip eflasher系统固件，用于将FriendlyCore(Linux-4.14)系统烧写到eMMC
nanopi-neo-core_eflasher_openwrt_4.14_armhf_YYYYMMDD.img.zip eflasher系统固件，用于将OpenWrt(Linux-4.14)系统烧写到eMMC
烧写工具：
win32diskimager.rar Windows平台下的系统烧写工具，Linux平台下可以用dd命令烧写系统
4.3.2 烧写Linux系统
4.3.2.1 烧写到TF卡
FriendlyCore / FriendlyWrt 等系统都属于 Linux 系统，所以它们的烧写方法是一样。

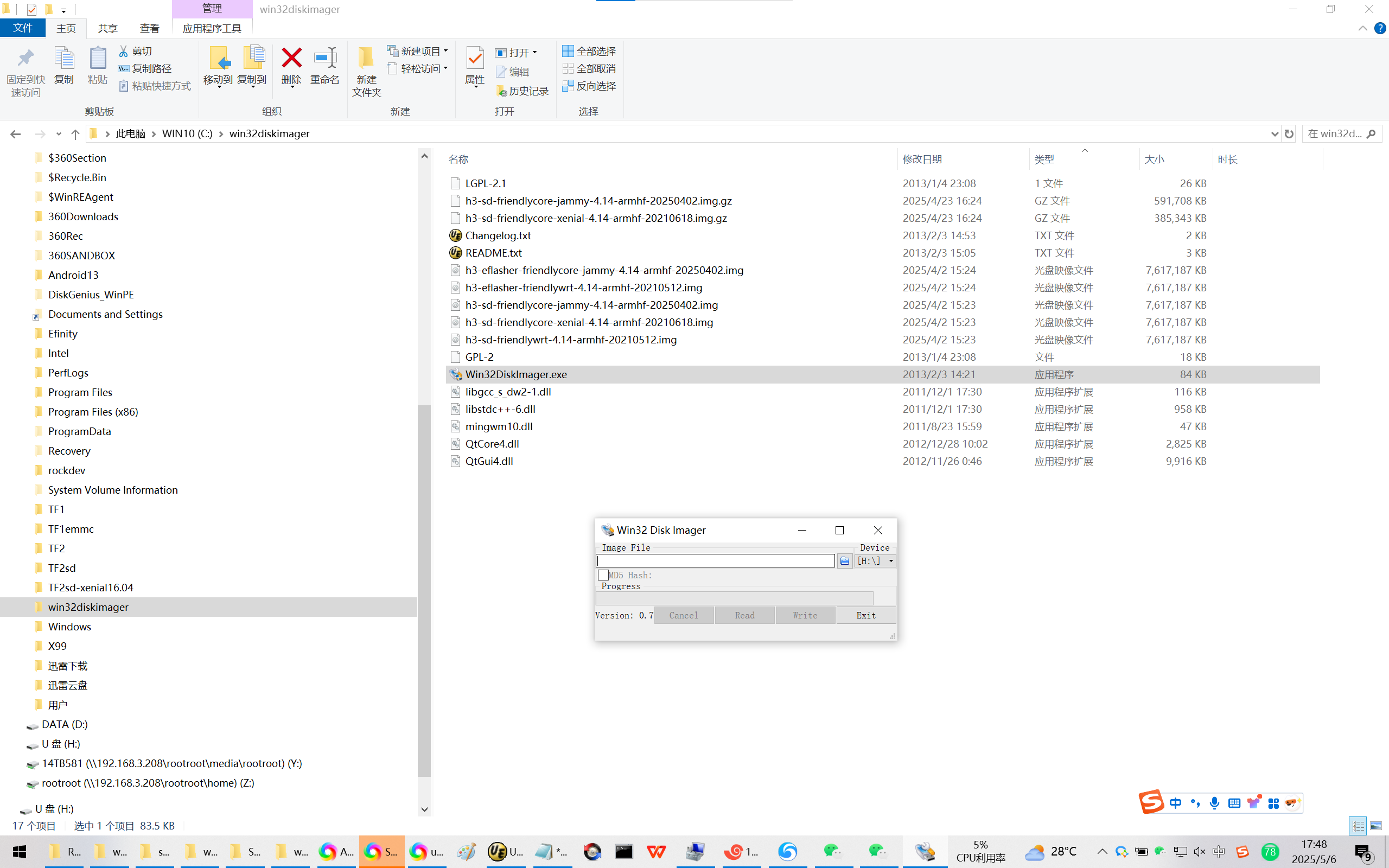

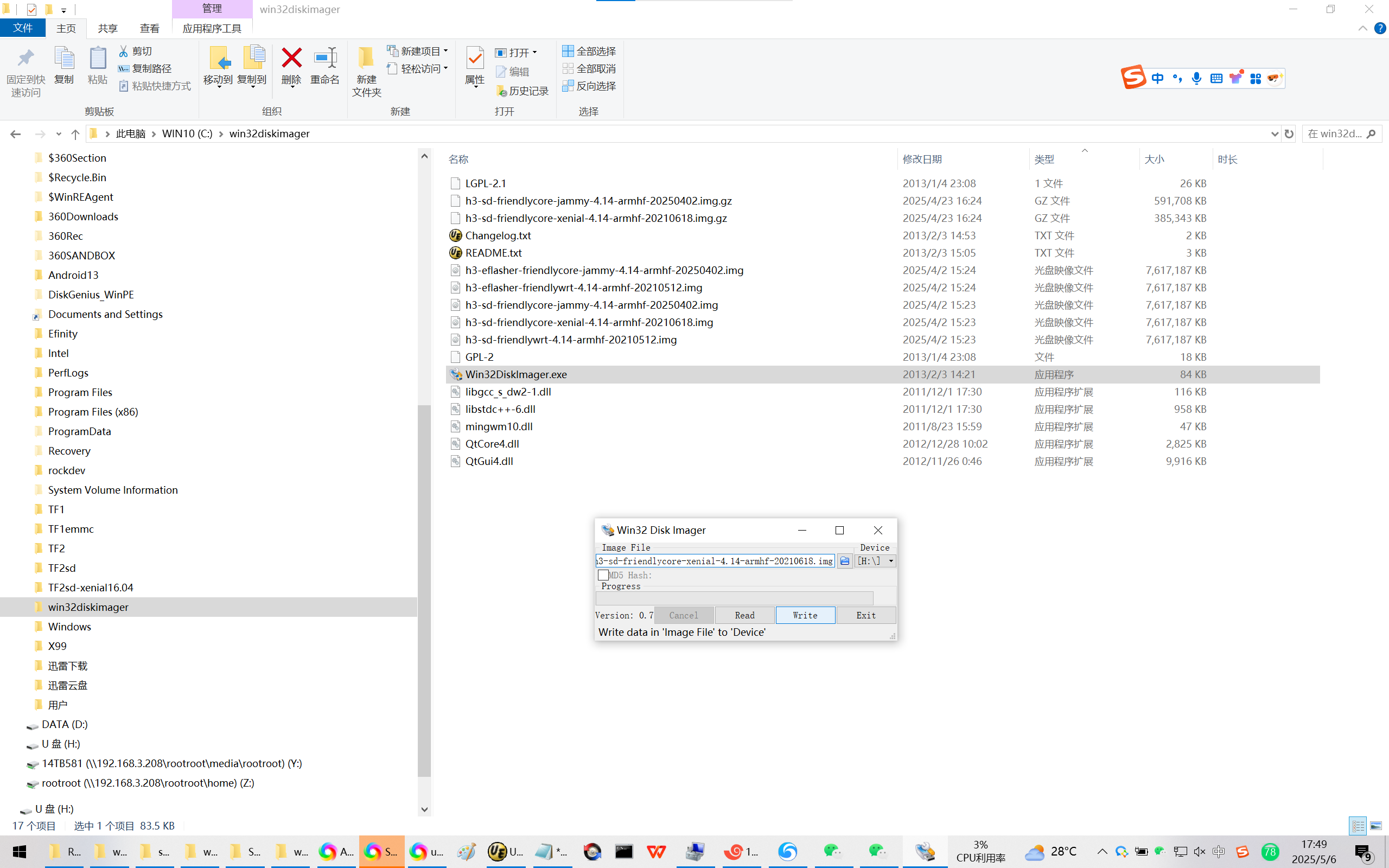

将 Linux 系统固件和烧写工具 win32diskimager.rar 分别解压，在 Windows 下插入TF卡（限4G及以上的卡)，以管理员身份运行烧写工具 win32diskimager，在烧写工具 win32diskimager 的界面上，选择你的TF卡盘符，选择Linux 系统固件，点击 Write 按钮烧写。

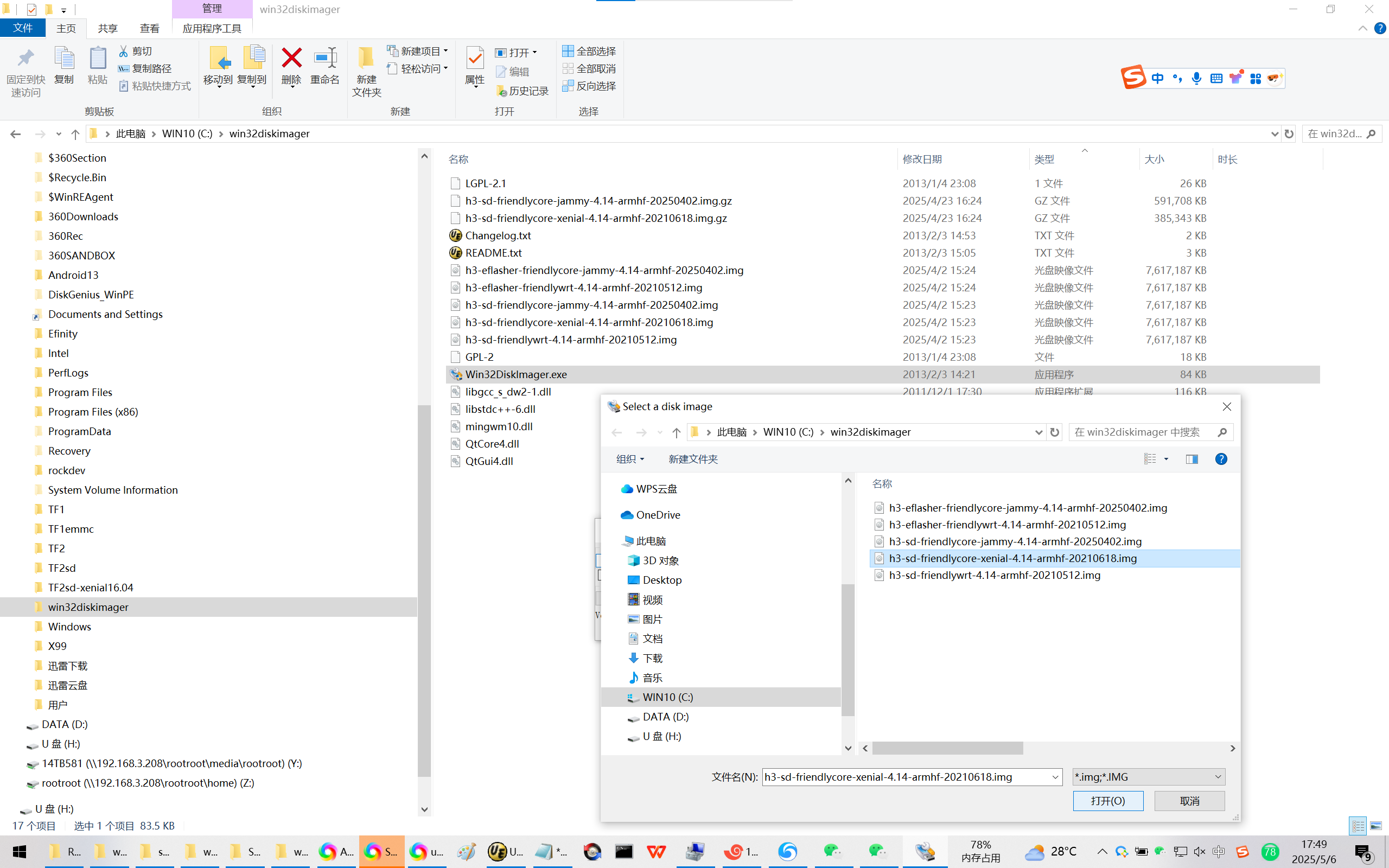

这里以nanopi-neo-core_sd_friendlycore-xenial_4.14_armhf_YYYYMMDD.img为例，其他系统的烧写操作是类似的，烧写时的界面如下：
win32disk-h3

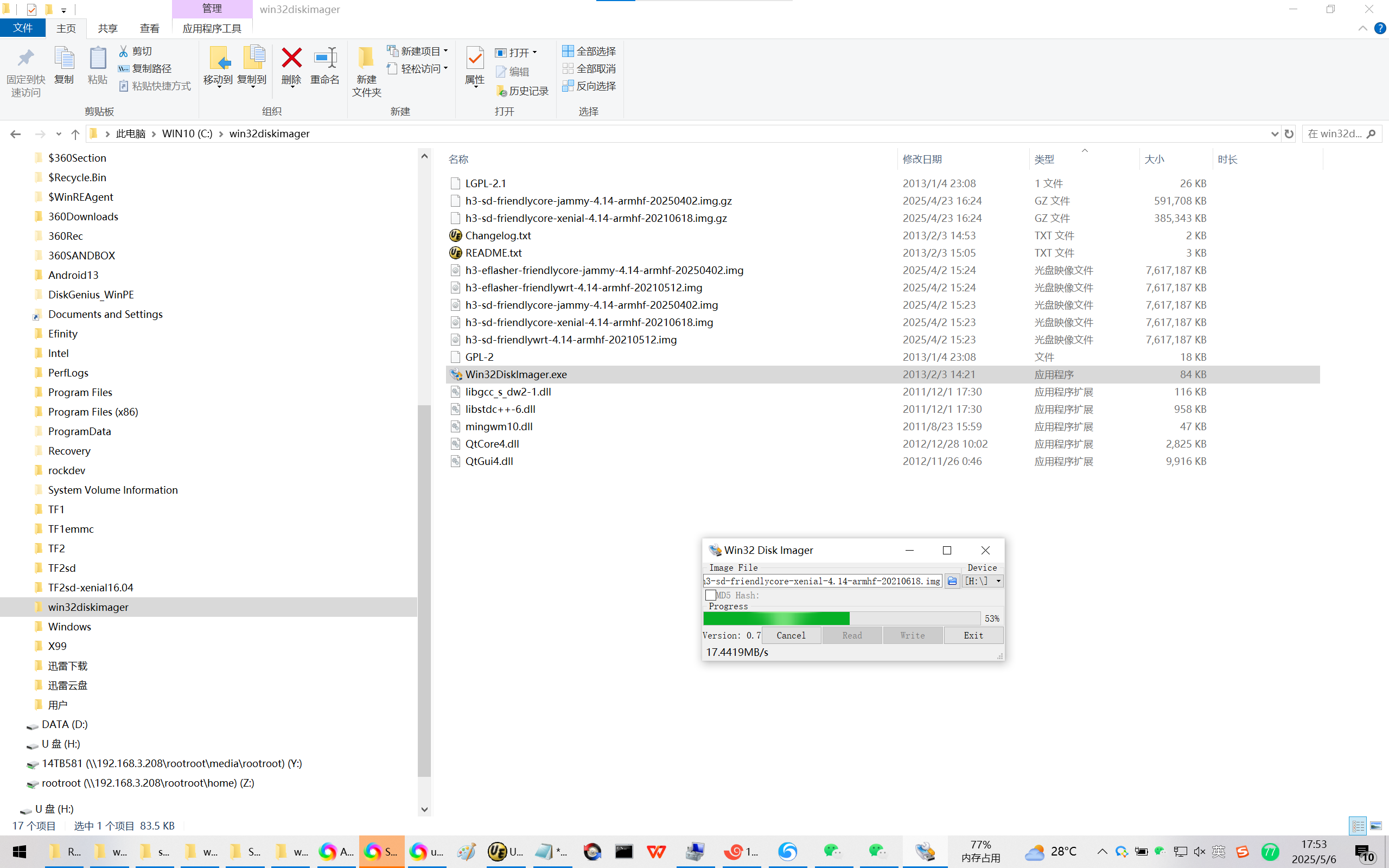

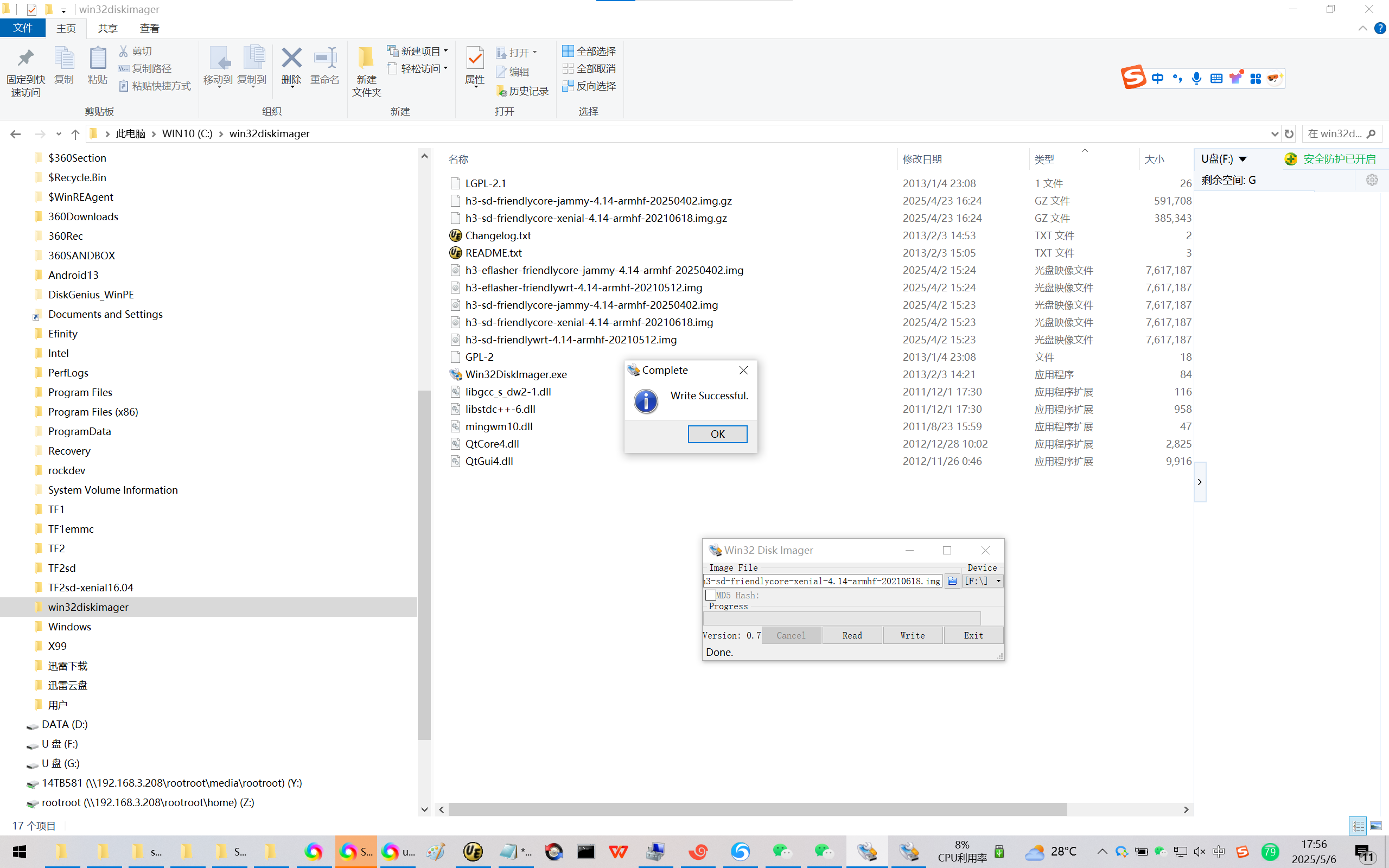

成功烧写后，会看到如下界面：
win32disk-finish
当制作完成TF卡后，拔出TF卡插入 BOOT 卡槽，上电启动（注意，这里需要5V/2A的供电），你可以看到STAT灯闪烁，这时你已经成功启动系统。
当前使用的固件是：h3-sd-friendlycore-xenial-4.14-armhf-20210618.img.gz
【可以使用7-ZIP打开/解压缩，也可以直接在ubuntu20.04中使用tar解压缩！^_】

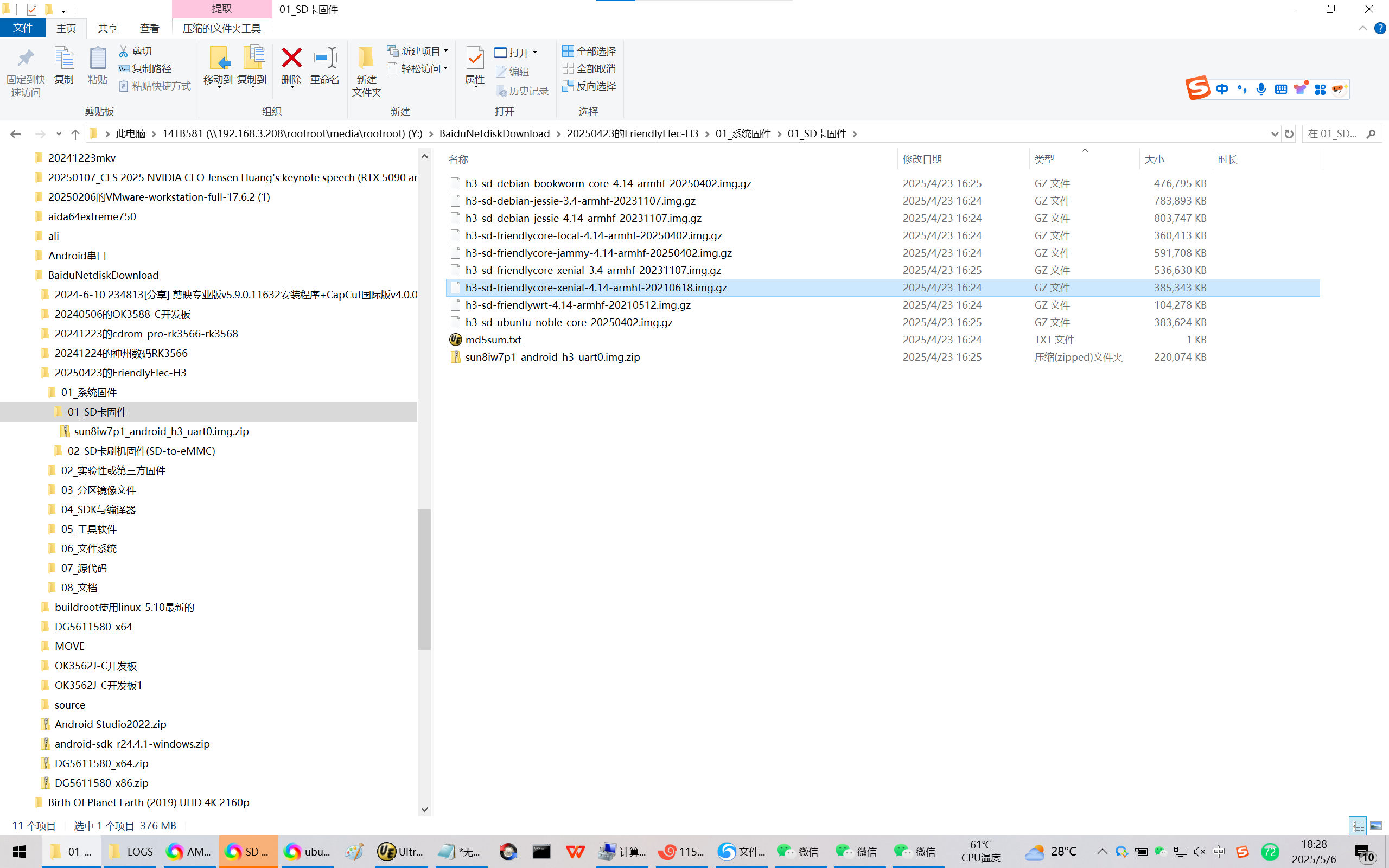

Y:\BaiduNetdiskDownload\20250423的FriendlyElec-H3\01_系统固件\01_SD卡固件\

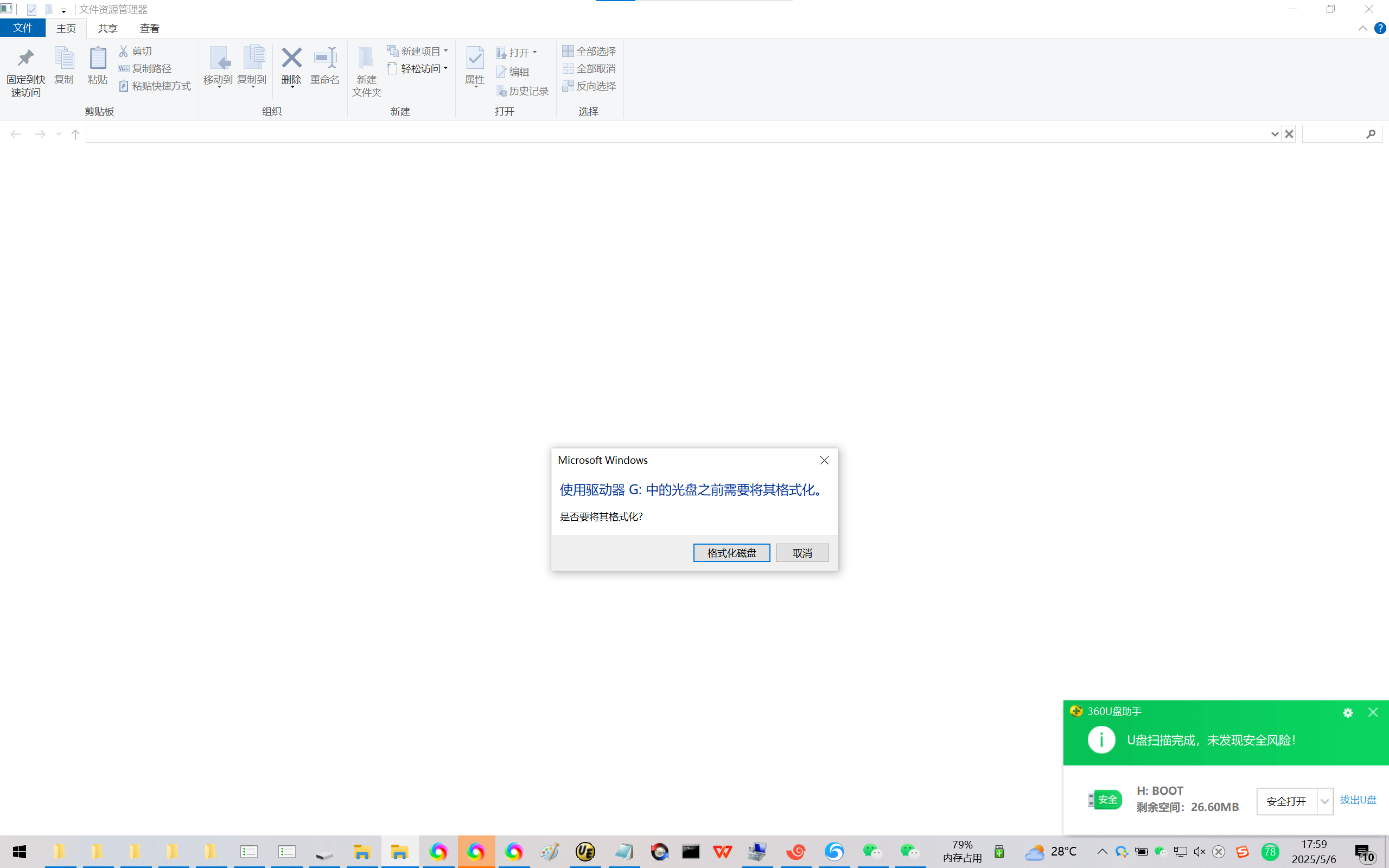

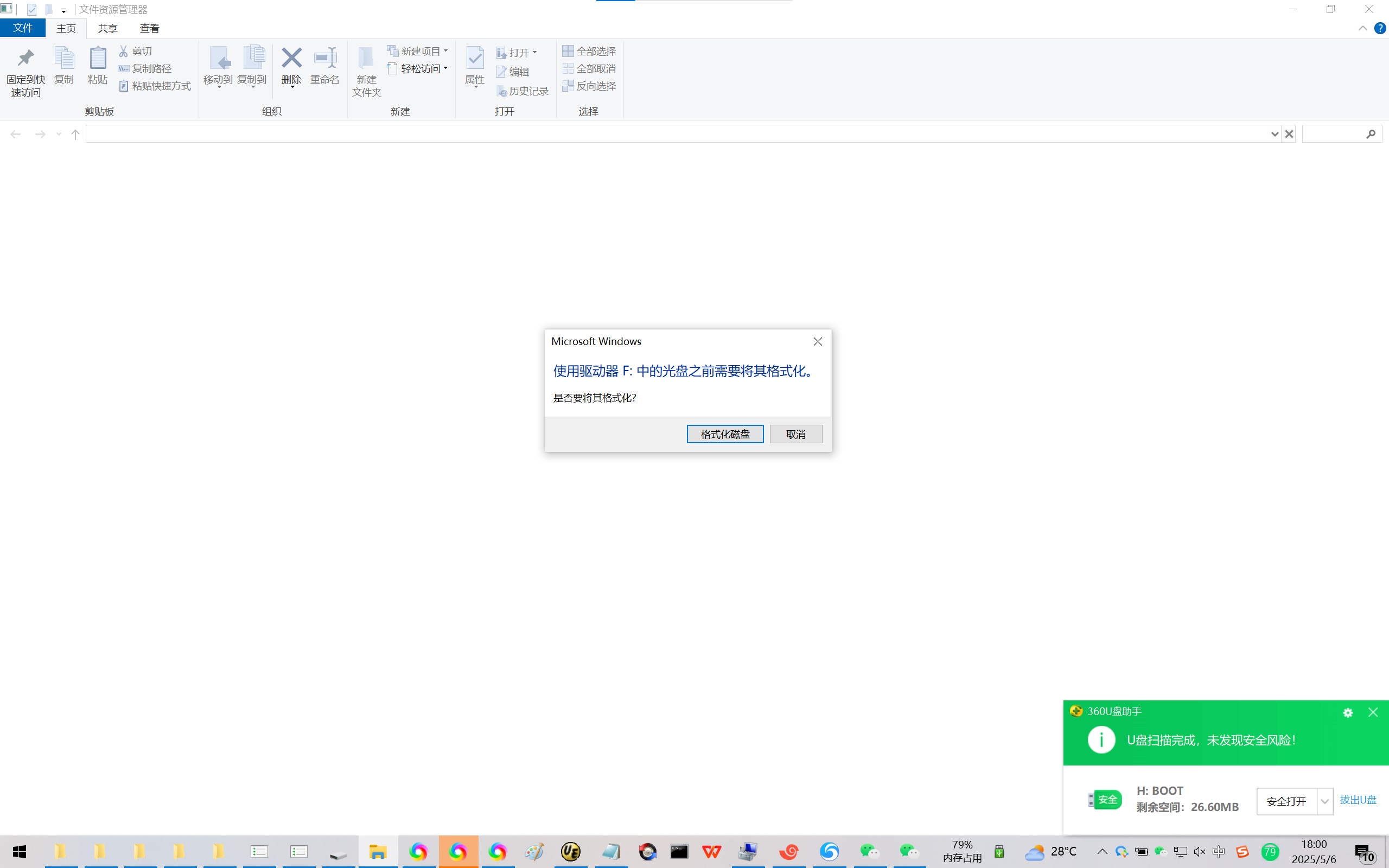

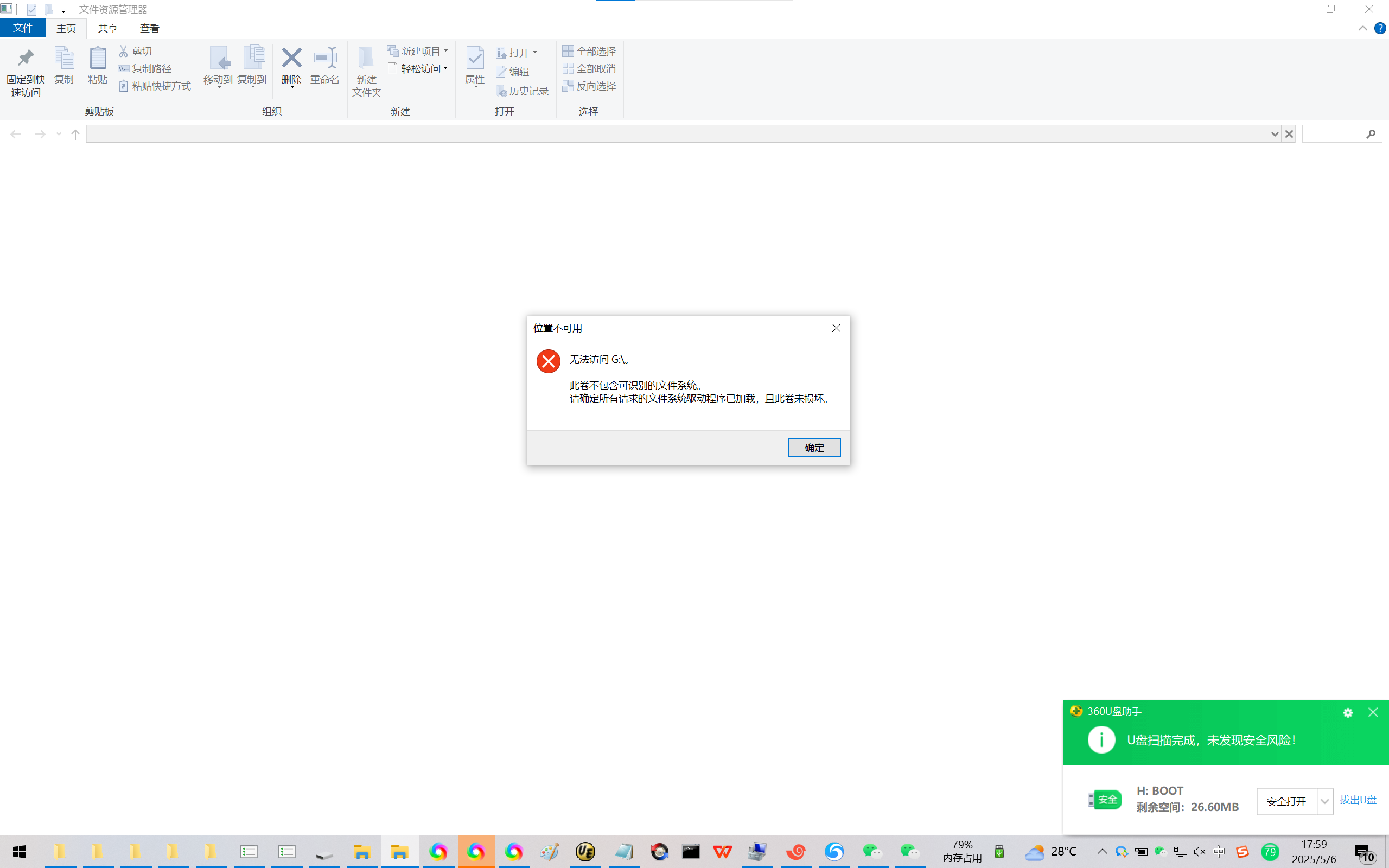

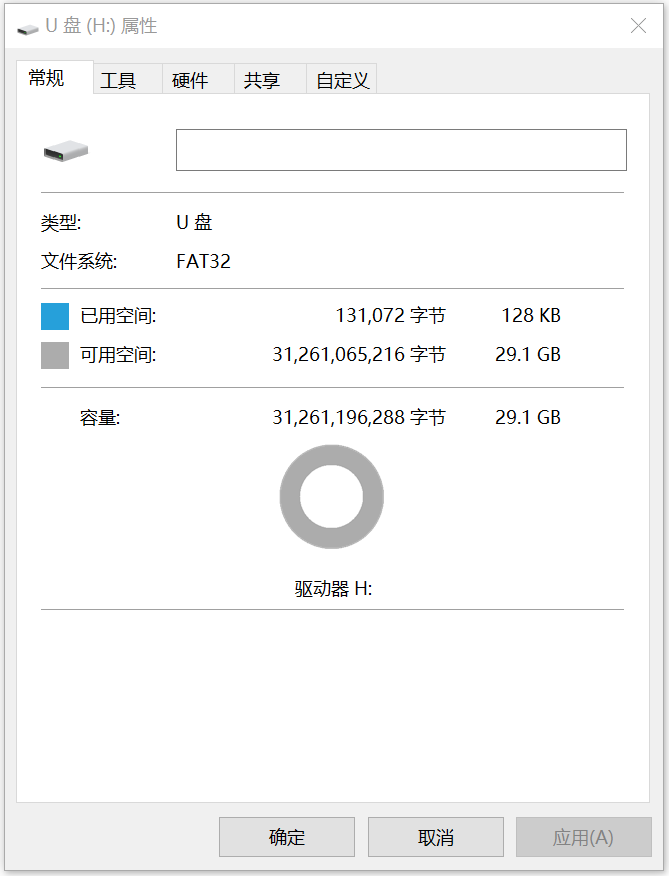

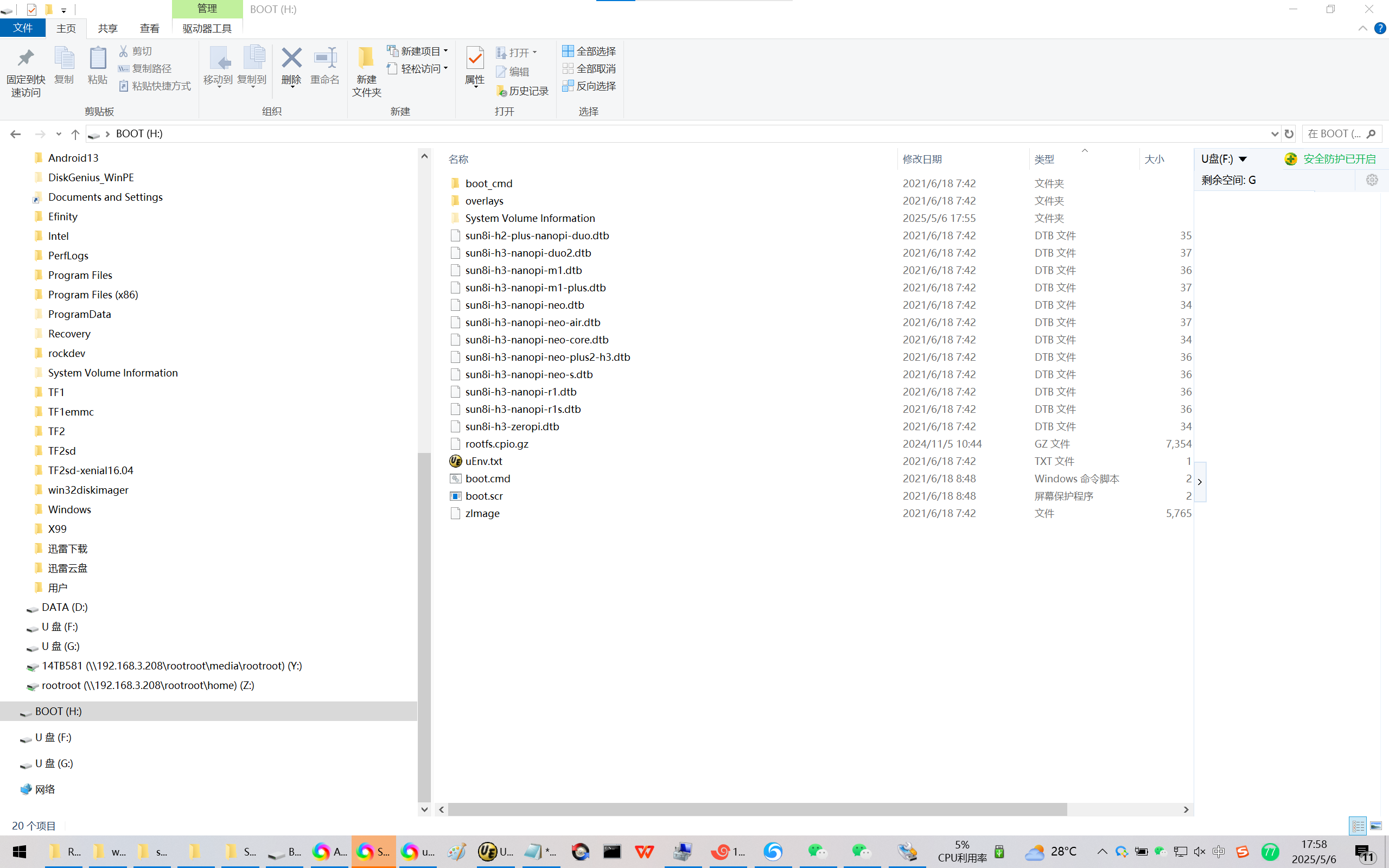

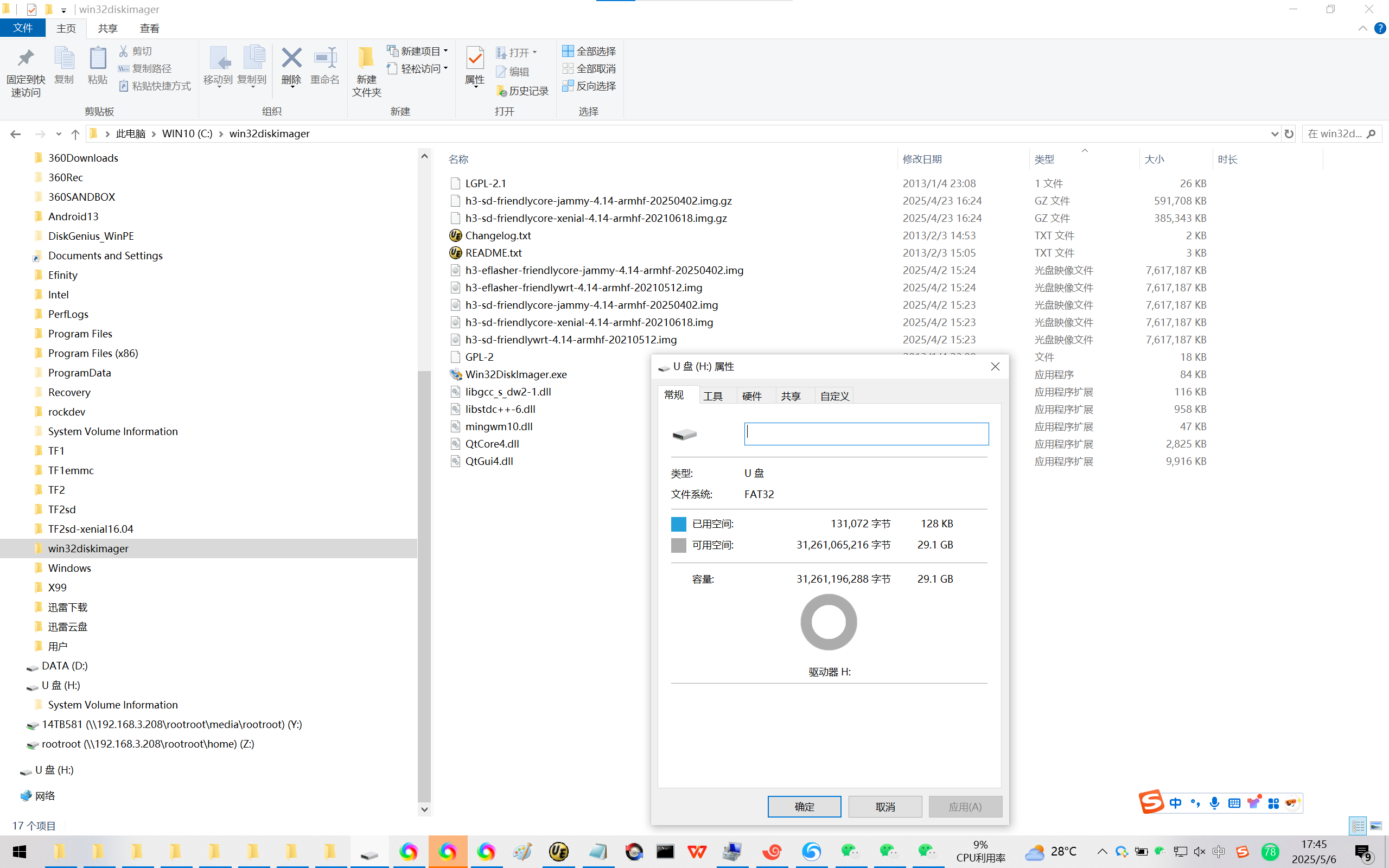

TF卡如果已经做过会有3个磁盘分区，可以使用SD Card Formatter/SDCardFormatterv5_WinEN.zip格式化TF卡。DiskGenius可以尝试。

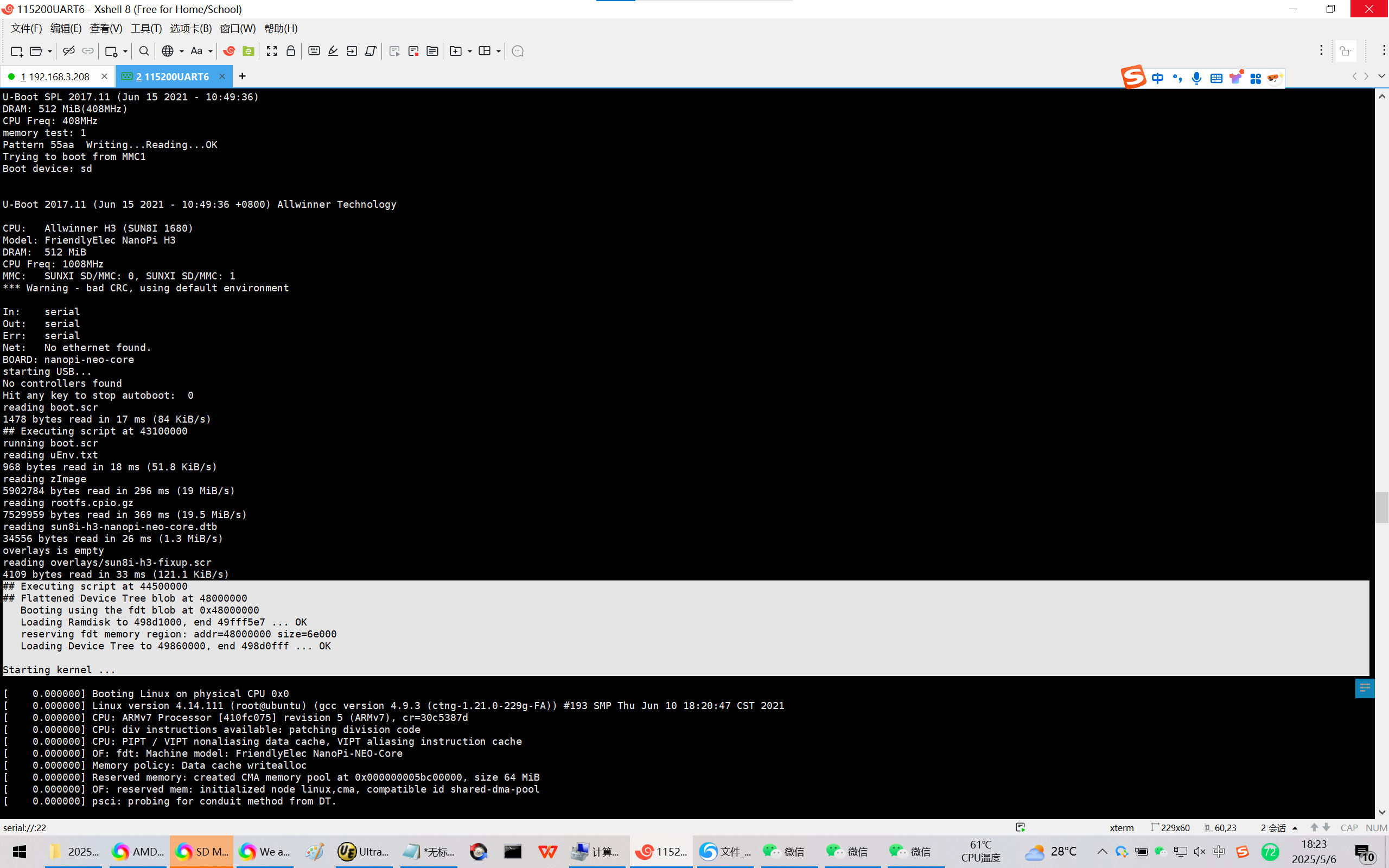

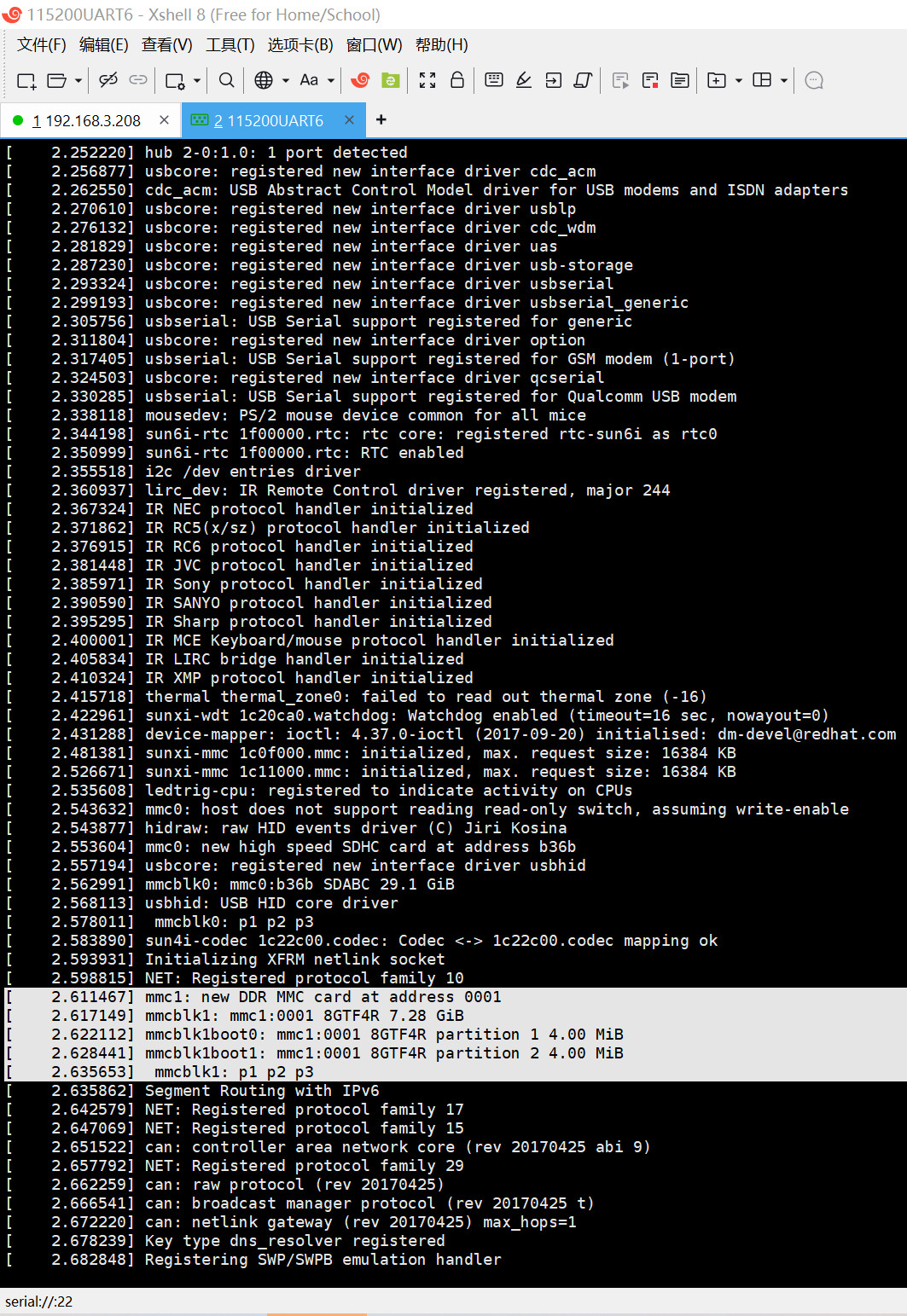

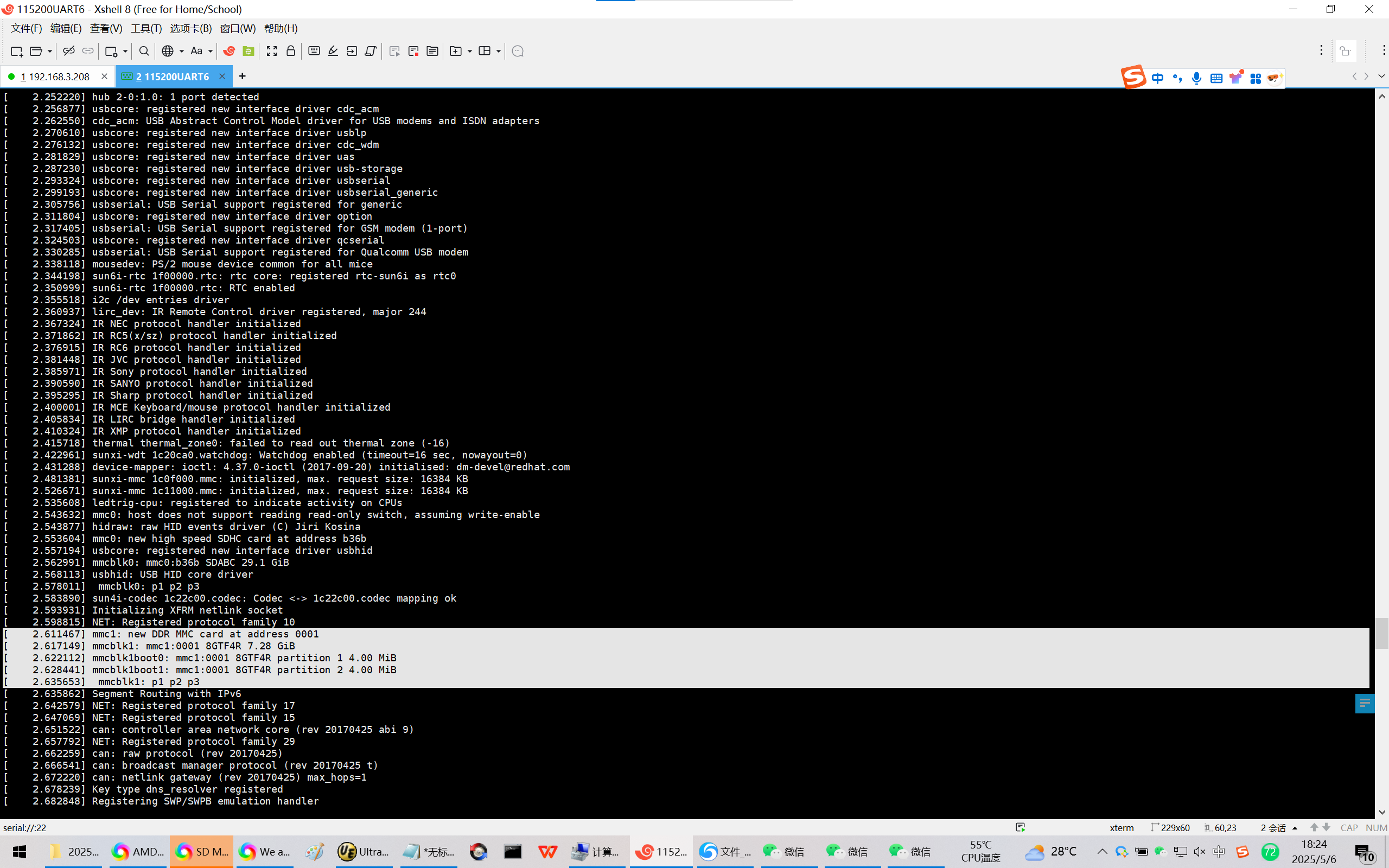

完整的启动LOG：
[BEGIN] 2025/5/6 18:01:09
U-Boot SPL 2017.11 (Jun 15 2021 - 10:49:36)
DRAM: 512 MiB(408MHz)
CPU Freq: 408MHz
memory test: 1
Pattern 55aa Writing...Reading...OK
Trying to boot from MMC1
Boot device: sd
U-Boot 2017.11 (Jun 15 2021 - 10:49:36 +0800) Allwinner Technology
CPU: Allwinner H3 (SUN8I 1680)
Model: FriendlyElec NanoPi H3
DRAM: 512 MiB
CPU Freq: 1008MHz
MMC: SUNXI SD/MMC: 0, SUNXI SD/MMC: 1
*** Warning - bad CRC, using default environment
In: serial
Out: serial
Err: serial
Net: No ethernet found.
BOARD: nanopi-neo-core
starting USB...
No controllers found
Hit any key to stop autoboot: 0
reading boot.scr
1478 bytes read in 17 ms (84 KiB/s)
## Executing script at 43100000
running boot.scr
reading uEnv.txt
968 bytes read in 18 ms (51.8 KiB/s)
reading zImage
5902784 bytes read in 296 ms (19 MiB/s)
reading rootfs.cpio.gz
7529959 bytes read in 369 ms (19.5 MiB/s)
reading sun8i-h3-nanopi-neo-core.dtb
34556 bytes read in 26 ms (1.3 MiB/s)
overlays is empty
reading overlays/sun8i-h3-fixup.scr
4109 bytes read in 33 ms (121.1 KiB/s)
## Executing script at 44500000
## Flattened Device Tree blob at 48000000
Booting using the fdt blob at 0x48000000
Loading Ramdisk to 498d1000, end 49fff5e7 ... OK
reserving fdt memory region: addr=48000000 size=6e000
Loading Device Tree to 49860000, end 498d0fff ... OK
Starting kernel ...
[ 0.000000] Booting Linux on physical CPU 0x0
[ 0.000000] Linux version 4.14.111 (root@ubuntu) (gcc version 4.9.3 (ctng-1.21.0-229g-FA)) #193 SMP Thu Jun 10 18:20:47 CST 2021
[ 0.000000] CPU: ARMv7 Processor [410fc075] revision 5 (ARMv7), cr=30c5387d
[ 0.000000] CPU: div instructions available: patching division code
[ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
[ 0.000000] OF: fdt: Machine model: FriendlyElec NanoPi-NEO-Core
[ 0.000000] Memory policy: Data cache writealloc
[ 0.000000] Reserved memory: created CMA memory pool at 0x000000005bc00000, size 64 MiB
[ 0.000000] OF: reserved mem: initialized node linux,cma, compatible id shared-dma-pool
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: Using PSCI v0.1 Function IDs from DT
[ 0.000000] percpu: Embedded 17 pages/cpu @dff5b000 s37120 r8192 d24320 u69632
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 129920
[ 0.000000] Kernel command line: console=ttyS0,115200 earlyprintk root=/dev/mmcblk0p2 rootfstype=ext4 rw rootwait fsck.repair=yes panic=10 fbcon=map:0 data=/dev/mmcblk0p3 snd-soc-core.pmdown_time=3600000
[ 0.000000] PID hash table entries: 2048 (order: 1, 8192 bytes)
[ 0.000000] Dentry cache hash table entries: 65536 (order: 6, 262144 bytes)
[ 0.000000] Inode-cache hash table entries: 32768 (order: 5, 131072 bytes)
[ 0.000000] Memory: 428248K/524288K available (10240K kernel code, 391K rwdata, 2080K rodata, 2048K init, 303K bss, 30504K reserved, 65536K cma-reserved, 0K highmem)
[ 0.000000] Virtual kernel memory layout:
[ 0.000000] vector : 0xffff0000 - 0xffff1000 ( 4 kB)
[ 0.000000] fixmap : 0xffc00000 - 0xfff00000 (3072 kB)
[ 0.000000] vmalloc : 0xe0800000 - 0xff800000 ( 496 MB)
[ 0.000000] lowmem : 0xc0000000 - 0xe0000000 ( 512 MB)
[ 0.000000] pkmap : 0xbfe00000 - 0xc0000000 ( 2 MB)
[ 0.000000] modules : 0xbf000000 - 0xbfe00000 ( 14 MB)
[ 0.000000] .text : 0xc0008000 - 0xc0c00000 (12256 kB)
[ 0.000000] .init : 0xc1000000 - 0xc1200000 (2048 kB)
[ 0.000000] .data : 0xc1200000 - 0xc1261f00 ( 392 kB)
[ 0.000000] .bss : 0xc126a884 - 0xc12b6850 ( 304 kB)
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] Hierarchical RCU implementation.
[ 0.000000] RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=4.
[ 0.000000] RCU: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=4
[ 0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16
[ 0.000000] GIC: Using split EOI/Deactivate mode
[ 0.000000] clocksource: timer: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 79635851949 ns
[ 0.000000] arch_timer: cp15 timer(s) running at 24.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[ 0.000006] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[ 0.000018] Switching to timer-based delay loop, resolution 41ns
[ 0.000215] Console: colour dummy device 80x30
[ 0.000250] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=120000)
[ 0.000264] pid_max: default: 32768 minimum: 301
[ 0.000436] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.000450] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.001183] CPU: Testing write buffer coherency: ok
[ 0.001642] CPU0: update cpu_capacity 1024
[ 0.001654] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
[ 0.002036] Setting up static identity map for 0x40200000 - 0x40200060
[ 0.002162] Hierarchical SRCU implementation.
[ 0.002736] smp: Bringing up secondary CPUs ...
[ 0.013529] CPU1: update cpu_capacity 1024
[ 0.013535] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001
[ 0.024429] CPU2: update cpu_capacity 1024
[ 0.024435] CPU2: thread -1, cpu 2, socket 0, mpidr 80000002
[ 0.035230] CPU3: update cpu_capacity 1024
[ 0.035237] CPU3: thread -1, cpu 3, socket 0, mpidr 80000003
[ 0.035320] smp: Brought up 1 node, 4 CPUs
[ 0.035350] SMP: Total of 4 processors activated (192.00 BogoMIPS).
[ 0.035356] CPU: All CPU(s) started in HYP mode.
[ 0.035362] CPU: Virtualization extensions available.
[ 0.036100] devtmpfs: initialized
[ 0.043014] random: get_random_u32 called from bucket_table_alloc+0xf0/0x240 with crng_init=0
[ 0.043647] VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5
[ 0.043906] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 9556302231375000 ns
[ 0.043930] futex hash table entries: 1024 (order: 4, 65536 bytes)
[ 0.046659] xor: measuring software checksum speed
[ 0.095044] arm4regs : 1372.000 MB/sec
[ 0.145099] 8regs : 769.600 MB/sec
[ 0.195153] 32regs : 850.400 MB/sec
[ 0.245211] neon : 1283.200 MB/sec
[ 0.245218] xor: using function: arm4regs (1372.000 MB/sec)
[ 0.245239] pinctrl core: initialized pinctrl subsystem
[ 0.246247] NET: Registered protocol family 16
[ 0.247938] DMA: preallocated 256 KiB pool for atomic coherent allocations
[ 0.248762] cpuidle: using governor ladder
[ 0.248840] cpuidle: using governor menu
[ 0.249268] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.
[ 0.249279] hw-breakpoint: maximum watchpoint size is 8 bytes.
[ 0.268383] SCSI subsystem initialized
[ 0.268803] usbcore: registered new interface driver usbfs
[ 0.268851] usbcore: registered new interface driver hub
[ 0.268942] usbcore: registered new device driver usb
[ 0.269117] media: Linux media interface: v0.10
[ 0.269161] Linux video capture interface: v2.00
[ 0.269292] pps_core: LinuxPPS API ver. 1 registered
[ 0.269300] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 0.269318] PTP clock support registered
[ 0.269631] Advanced Linux Sound Architecture Driver Initialized.
[ 0.271316] clocksource: Switched to clocksource arch_sys_counter
[ 0.271493] VFS: Disk quotas dquot_6.6.0
[ 0.271574] VFS: Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
[ 0.271735] FS-Cache: Loaded
[ 0.279017] NET: Registered protocol family 2
[ 0.279659] TCP established hash table entries: 4096 (order: 2, 16384 bytes)
[ 0.279713] TCP bind hash table entries: 4096 (order: 3, 32768 bytes)
[ 0.279775] TCP: Hash tables configured (established 4096 bind 4096)
[ 0.279889] UDP hash table entries: 256 (order: 1, 8192 bytes)
[ 0.279932] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes)
[ 0.280154] NET: Registered protocol family 1
[ 0.280644] RPC: Registered named UNIX socket transport module.
[ 0.280654] RPC: Registered udp transport module.
[ 0.280660] RPC: Registered tcp transport module.
[ 0.280665] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 0.280917] Unpacking initramfs...
[ 0.664997] Freeing initrd memory: 7356K
[ 0.665442] kvm [1]: 8-bit VMID
[ 0.666163] kvm [1]: vgic interrupt IRQ16
[ 0.666269] kvm [1]: Hyp mode initialized successfully
[ 0.669137] workingset: timestamp_bits=14 max_order=17 bucket_order=3
[ 0.673720] zbud: loaded
[ 0.675332] FS-Cache: Netfs 'nfs' registered for caching
[ 0.675904] NFS: Registering the id_resolver key type
[ 0.675943] Key type id_resolver registered
[ 0.675950] Key type id_legacy registered
[ 0.675966] nfs4filelayout_init: NFSv4 File Layout Driver Registering...
[ 0.675982] Installing knfsd (copyright (C) 1996 okir@monad.swb.de).
[ 0.676941] fuse init (API version 7.26)
[ 0.682496] async_tx: api initialized (async)
[ 0.682648] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 246)
[ 0.682827] io scheduler noop registered (default)
[ 0.682839] io scheduler deadline registered
[ 0.683033] io scheduler cfq registered
[ 0.683044] io scheduler mq-deadline registered
[ 0.683174] io scheduler bfq registered
[ 0.683875] sun4i-usb-phy 1c19400.phy: Couldn't request ID GPIO, pinctrl may not init
[ 0.687667] sun8i-h3-pinctrl 1c20800.pinctrl: initialized sunXi PIO driver
[ 0.689220] sun8i-h3-r-pinctrl 1f02c00.pinctrl: initialized sunXi PIO driver
[ 0.694624] Serial: 8250/16550 driver, 8 ports, IRQ sharing disabled
[ 0.696553] console [ttyS0] disabled
[ 0.716764] 1c28000.serial: ttyS0 at MMIO 0x1c28000 (irq = 45, base_baud = 1500000) is a U6_16550A
[ 1.478159] console [ttyS0] enabled
[ 1.504446] 1c28400.serial: ttyS1 at MMIO 0x1c28400 (irq = 46, base_baud = 1500000) is a U6_16550A
[ 1.536034] 1c28800.serial: ttyS2 at MMIO 0x1c28800 (irq = 47, base_baud = 1500000) is a U6_16550A
[ 1.567610] 1c28c00.serial: ttyS3 at MMIO 0x1c28c00 (irq = 48, base_baud = 1500000) is a U6_16550A
[ 1.578784] [drm] Supports vblank timestamp caching Rev 2 (21.10.2013).
[ 1.585433] [drm] No driver support for vblank timestamp query.
[ 1.600808] sun4i-drm display-engine: bound 1100000.mixer (ops 0xc0c51b68)
[ 1.607909] sun4i-drm display-engine: No panel or bridge found... RGB output disabled
[ 1.615763] sun4i-drm display-engine: bound 1c0c000.lcd-controller (ops 0xc0c5086c)
[ 1.746405] sun8i-dw-hdmi 1ee0000.hdmi: Detected HDMI TX controller v1.32a with HDCP (sun8i_dw_hdmi_phy)
[ 1.756332] sun8i-dw-hdmi 1ee0000.hdmi: registered DesignWare HDMI I2C bus driver
[ 1.764048] sun4i-drm display-engine: bound 1ee0000.hdmi (ops 0xc0c51ee8)
[ 1.770916] [drm] Cannot find any crtc or sizes - going 1920x1080
[ 1.818352] Console: switching to colour frame buffer device 240x67
[ 1.849232] sun4i-drm display-engine: fb0: frame buffer device
[ 1.855642] [drm] Initialized sun4i-drm 1.0.0 20150629 for display-engine on minor 0
[ 1.872593] loop: module loaded
[ 1.892145] st: Version 20160209, fixed bufsize 32768, s/g segs 256
[ 1.898528] osst :I: Tape driver with OnStream support version 0.99.4
[ 1.898528] osst :I: $Id: osst.c,v 1.73 2005/01/01 21:13:34 wriede Exp $
[ 1.911864] SCSI Media Changer driver v0.25
[ 1.918251] libphy: Fixed MDIO Bus: probed
[ 1.922396] tun: Universal TUN/TAP device driver, 1.6
[ 1.927625] CAN device driver interface
[ 1.931970] dwmac-sun8i 1c30000.ethernet: PTP uses main clock
[ 1.937770] dwmac-sun8i 1c30000.ethernet: No regulator found
[ 1.943479] dwmac-sun8i 1c30000.ethernet: Will use internal PHY
[ 1.949614] dwmac-sun8i 1c30000.ethernet: Chain mode enabled
[ 1.955287] dwmac-sun8i 1c30000.ethernet: No HW DMA feature register supported
[ 1.962511] dwmac-sun8i 1c30000.ethernet: Normal descriptors
[ 1.968175] dwmac-sun8i 1c30000.ethernet: RX Checksum Offload Engine supported
[ 1.975396] dwmac-sun8i 1c30000.ethernet: COE Type 2
[ 1.980365] dwmac-sun8i 1c30000.ethernet: TX Checksum insertion supported
[ 1.987718] libphy: stmmac: probed
[ 2.000733] PPP generic driver version 2.4.2
[ 2.005292] PPP BSD Compression module registered
[ 2.010017] PPP Deflate Compression module registered
[ 2.015102] PPP MPPE Compression module registered
[ 2.019899] NET: Registered protocol family 24
[ 2.024466] usbcore: registered new interface driver qmi_wwan
[ 2.030248] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 2.036784] ehci-platform: EHCI generic platform driver
[ 2.042301] ehci-platform 1c1a000.usb: EHCI Host Controller
[ 2.047919] ehci-platform 1c1a000.usb: new USB bus registered, assigned bus number 1
[ 2.056114] ehci-platform 1c1a000.usb: irq 29, io mem 0x01c1a000
[ 2.076328] ehci-platform 1c1a000.usb: USB 2.0 started, EHCI 1.00
[ 2.082621] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002
[ 2.089420] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 2.096645] usb usb1: Product: EHCI Host Controller
[ 2.101528] usb usb1: Manufacturer: Linux 4.14.111 ehci_hcd
[ 2.107103] usb usb1: SerialNumber: 1c1a000.usb
[ 2.112198] hub 1-0:1.0: USB hub found
[ 2.115980] hub 1-0:1.0: 1 port detected
[ 2.120619] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
[ 2.126842] ohci-platform: OHCI generic platform driver
[ 2.132281] ohci-platform 1c1a400.usb: Generic Platform OHCI controller
[ 2.138921] ohci-platform 1c1a400.usb: new USB bus registered, assigned bus number 2
[ 2.146898] ohci-platform 1c1a400.usb: irq 30, io mem 0x01c1a400
[ 2.215490] usb usb2: New USB device found, idVendor=1d6b, idProduct=0001
[ 2.222295] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 2.229522] usb usb2: Product: Generic Platform OHCI controller
[ 2.235445] usb usb2: Manufacturer: Linux 4.14.111 ohci_hcd
[ 2.241021] usb usb2: SerialNumber: 1c1a400.usb
[ 2.248427] hub 2-0:1.0: USB hub found
[ 2.252220] hub 2-0:1.0: 1 port detected
[ 2.256877] usbcore: registered new interface driver cdc_acm
[ 2.262550] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[ 2.270610] usbcore: registered new interface driver usblp
[ 2.276132] usbcore: registered new interface driver cdc_wdm
[ 2.281829] usbcore: registered new interface driver uas
[ 2.287230] usbcore: registered new interface driver usb-storage
[ 2.293324] usbcore: registered new interface driver usbserial
[ 2.299193] usbcore: registered new interface driver usbserial_generic
[ 2.305756] usbserial: USB Serial support registered for generic
[ 2.311804] usbcore: registered new interface driver option
[ 2.317405] usbserial: USB Serial support registered for GSM modem (1-port)
[ 2.324503] usbcore: registered new interface driver qcserial
[ 2.330285] usbserial: USB Serial support registered for Qualcomm USB modem
[ 2.338118] mousedev: PS/2 mouse device common for all mice
[ 2.344198] sun6i-rtc 1f00000.rtc: rtc core: registered rtc-sun6i as rtc0
[ 2.350999] sun6i-rtc 1f00000.rtc: RTC enabled
[ 2.355518] i2c /dev entries driver
[ 2.360937] lirc_dev: IR Remote Control driver registered, major 244
[ 2.367324] IR NEC protocol handler initialized
[ 2.371862] IR RC5(x/sz) protocol handler initialized
[ 2.376915] IR RC6 protocol handler initialized
[ 2.381448] IR JVC protocol handler initialized
[ 2.385971] IR Sony protocol handler initialized
[ 2.390590] IR SANYO protocol handler initialized
[ 2.395295] IR Sharp protocol handler initialized
[ 2.400001] IR MCE Keyboard/mouse protocol handler initialized
[ 2.405834] IR LIRC bridge handler initialized
[ 2.410324] IR XMP protocol handler initialized
[ 2.415718] thermal thermal_zone0: failed to read out thermal zone (-16)
[ 2.422961] sunxi-wdt 1c20ca0.watchdog: Watchdog enabled (timeout=16 sec, nowayout=0)
[ 2.431288] device-mapper: ioctl: 4.37.0-ioctl (2017-09-20) initialised: dm-devel@redhat.com
[ 2.481381] sunxi-mmc 1c0f000.mmc: initialized, max. request size: 16384 KB
[ 2.526671] sunxi-mmc 1c11000.mmc: initialized, max. request size: 16384 KB
[ 2.535608] ledtrig-cpu: registered to indicate activity on CPUs
[ 2.543632] mmc0: host does not support reading read-only switch, assuming write-enable
[ 2.543877] hidraw: raw HID events driver (C) Jiri Kosina
[ 2.553604] mmc0: new high speed SDHC card at address b36b
[ 2.557194] usbcore: registered new interface driver usbhid
[ 2.562991] mmcblk0: mmc0:b36b SDABC 29.1 GiB
[ 2.568113] usbhid: USB HID core driver
[ 2.578011] mmcblk0: p1 p2 p3
[ 2.583890] sun4i-codec 1c22c00.codec: Codec <-> 1c22c00.codec mapping ok
[ 2.593931] Initializing XFRM netlink socket
[ 2.598815] NET: Registered protocol family 10
[ 2.611467] mmc1: new DDR MMC card at address 0001
[ 2.617149] mmcblk1: mmc1:0001 8GTF4R 7.28 GiB
[ 2.622112] mmcblk1boot0: mmc1:0001 8GTF4R partition 1 4.00 MiB
[ 2.628441] mmcblk1boot1: mmc1:0001 8GTF4R partition 2 4.00 MiB
[ 2.635653] mmcblk1: p1 p2 p3
[ 2.635862] Segment Routing with IPv6
[ 2.642579] NET: Registered protocol family 17
[ 2.647069] NET: Registered protocol family 15
[ 2.651522] can: controller area network core (rev 20170425 abi 9)
[ 2.657792] NET: Registered protocol family 29
[ 2.662259] can: raw protocol (rev 20170425)
[ 2.666541] can: broadcast manager protocol (rev 20170425 t)
[ 2.672220] can: netlink gateway (rev 20170425) max_hops=1
[ 2.678239] Key type dns_resolver registered
[ 2.682848] Registering SWP/SWPB emulation handler
[ 2.689032] registered taskstats version 1
[ 2.708505] Key type encrypted registered
[ 2.718524] vcc1v2: supplied by vcc5v0
[ 2.722674] vcc-dram: supplied by vcc5v0
[ 2.726897] vdd-cpux-en: supplied by vcc5v0
[ 2.732914] ehci-platform 1c1b000.usb: EHCI Host Controller
[ 2.738569] ehci-platform 1c1b000.usb: new USB bus registered, assigned bus number 3
[ 2.747051] ehci-platform 1c1b000.usb: irq 31, io mem 0x01c1b000
[ 2.766331] ehci-platform 1c1b000.usb: USB 2.0 started, EHCI 1.00
[ 2.772666] usb usb3: New USB device found, idVendor=1d6b, idProduct=0002
[ 2.779467] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 2.786697] usb usb3: Product: EHCI Host Controller
[ 2.791580] usb usb3: Manufacturer: Linux 4.14.111 ehci_hcd
[ 2.797154] usb usb3: SerialNumber: 1c1b000.usb
[ 2.802287] hub 3-0:1.0: USB hub found
[ 2.806068] hub 3-0:1.0: 1 port detected
[ 2.810743] ehci-platform 1c1c000.usb: EHCI Host Controller
[ 2.816358] ehci-platform 1c1c000.usb: new USB bus registered, assigned bus number 4
[ 2.824417] ehci-platform 1c1c000.usb: irq 33, io mem 0x01c1c000
[ 2.841327] ehci-platform 1c1c000.usb: USB 2.0 started, EHCI 1.00
[ 2.847578] usb usb4: New USB device found, idVendor=1d6b, idProduct=0002
[ 2.854380] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 2.861608] usb usb4: Product: EHCI Host Controller
[ 2.866491] usb usb4: Manufacturer: Linux 4.14.111 ehci_hcd
[ 2.872066] usb usb4: SerialNumber: 1c1c000.usb
[ 2.877145] hub 4-0:1.0: USB hub found
[ 2.880923] hub 4-0:1.0: 1 port detected
[ 2.885536] ehci-platform 1c1d000.usb: EHCI Host Controller
[ 2.891159] ehci-platform 1c1d000.usb: new USB bus registered, assigned bus number 5
[ 2.899199] ehci-platform 1c1d000.usb: irq 35, io mem 0x01c1d000
[ 2.916319] ehci-platform 1c1d000.usb: USB 2.0 started, EHCI 1.00
[ 2.922567] usb usb5: New USB device found, idVendor=1d6b, idProduct=0002
[ 2.929363] usb usb5: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 2.936588] usb usb5: Product: EHCI Host Controller
[ 2.941469] usb usb5: Manufacturer: Linux 4.14.111 ehci_hcd
[ 2.947045] usb usb5: SerialNumber: 1c1d000.usb
[ 2.952055] hub 5-0:1.0: USB hub found
[ 2.955828] hub 5-0:1.0: 1 port detected
[ 2.960412] ohci-platform 1c1b400.usb: Generic Platform OHCI controller
[ 2.967063] ohci-platform 1c1b400.usb: new USB bus registered, assigned bus number 6
[ 2.975085] ohci-platform 1c1b400.usb: irq 32, io mem 0x01c1b400
[ 3.040467] usb usb6: New USB device found, idVendor=1d6b, idProduct=0001
[ 3.047267] usb usb6: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.054490] usb usb6: Product: Generic Platform OHCI controller
[ 3.060412] usb usb6: Manufacturer: Linux 4.14.111 ohci_hcd
[ 3.065988] usb usb6: SerialNumber: 1c1b400.usb
[ 3.071488] hub 6-0:1.0: USB hub found
[ 3.075265] hub 6-0:1.0: 1 port detected
[ 3.079823] ohci-platform 1c1c400.usb: Generic Platform OHCI controller
[ 3.086480] ohci-platform 1c1c400.usb: new USB bus registered, assigned bus number 7
[ 3.094463] ohci-platform 1c1c400.usb: irq 34, io mem 0x01c1c400
[ 3.160475] usb usb7: New USB device found, idVendor=1d6b, idProduct=0001
[ 3.167276] usb usb7: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.174499] usb usb7: Product: Generic Platform OHCI controller
[ 3.180421] usb usb7: Manufacturer: Linux 4.14.111 ohci_hcd
[ 3.185998] usb usb7: SerialNumber: 1c1c400.usb
[ 3.191039] hub 7-0:1.0: USB hub found
[ 3.194839] hub 7-0:1.0: 1 port detected
[ 3.199379] ohci-platform 1c1d400.usb: Generic Platform OHCI controller
[ 3.206036] ohci-platform 1c1d400.usb: new USB bus registered, assigned bus number 8
[ 3.214018] ohci-platform 1c1d400.usb: irq 36, io mem 0x01c1d400
[ 3.280472] usb usb8: New USB device found, idVendor=1d6b, idProduct=0001
[ 3.287271] usb usb8: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.294495] usb usb8: Product: Generic Platform OHCI controller
[ 3.300417] usb usb8: Manufacturer: Linux 4.14.111 ohci_hcd
[ 3.305993] usb usb8: SerialNumber: 1c1d400.usb
[ 3.310994] hub 8-0:1.0: USB hub found
[ 3.314791] hub 8-0:1.0: 1 port detected
[ 3.319400] usb_phy_generic usb_phy_generic.3.auto: usb_phy_generic.3.auto supply vcc not found, using dummy regulator
[ 3.330510] musb-hdrc musb-hdrc.4.auto: MUSB HDRC host driver
[ 3.336284] musb-hdrc musb-hdrc.4.auto: new USB bus registered, assigned bus number 9
[ 3.344267] usb usb9: New USB device found, idVendor=1d6b, idProduct=0002
[ 3.351070] usb usb9: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.358296] usb usb9: Product: MUSB HDRC host driver
[ 3.363265] usb usb9: Manufacturer: Linux 4.14.111 musb-hcd
[ 3.368841] usb usb9: SerialNumber: musb-hdrc.4.auto
[ 3.374238] hub 9-0:1.0: USB hub found
[ 3.378031] hub 9-0:1.0: 1 port detected
[ 3.385149] asoc-simple-card soc:sound: i2s-hifi <-> 1c22800.i2s mapping ok
[ 3.394497] input: r_gpio_keys as /devices/platform/r_gpio_keys/input/input0
[ 3.402285] sun6i-rtc 1f00000.rtc: setting system clock to 2016-02-11 17:33:57 UTC (1455212037)
[ 3.411395] vcc3v0: disabling
[ 3.414366] vcc5v0: disabling
[ 3.417343] usb0-vbus: disabling
[ 3.420570] ALSA device list:
[ 3.423542] #0: Dummy 1
[ 3.426159] #1: Loopback 1
[ 3.429042] #2: H3 Audio Codec
[ 3.432271] #3: allwinner,hdmi
[ 3.437958] Freeing unused kernel memory: 2048K
Loading, please wait...
Starting systemd-udevd version 255.4-1ubuntu8.2[ 3.535505] random: systemd-udevd: uninitialized urandom read (8 bytes read)
[ 3.545424] random: systemd-udevd: uninitialized urandom read (16 bytes read)
[ 3.547353] random: udevadm: uninitialized urandom read (16 bytes read)
[ 4.373202] random: fast init done
Begin: Loading essential drivers ... done.
Begin: Running /scripts/init-premount ... done.
Begin: Mounting root file system ... Begin: Running /scripts/local-top ... done.
Begin: Running /scripts/local-premount ... Scanning for Btrfs filesystems
done.
[ 4.805965] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null)
Begin: Will now check userdata file system ... fsck from util-linux 2.39.3
[/usr/sbin/fsck.ext4 (1) -- /dev/mmcblk0p3] fsck.ext4 -y -C0 /dev/mmcblk0p3
e2fsck 1.47.0 (5-Feb-2023)
userdata: clean, 11/12800 files, 4958/51200 blocks
done.
[ 4.953999] EXT4-fs (mmcblk0p3): mounted filesystem with ordered data mode. Opts: (null)
Model: SD SDABC (sd/mmc)
Disk /dev/mmcblk0: 100%
Sector size (logical/physical): 512B/512B
Partition Table: msdos
Disk Flags:
Number Start End Size Type File system Flags
1 0.08% 0.21% 0.13% primary fat16
2 0.21% 4.29% 4.08% primary ext4
3 4.29% 100% 95.7% primary ext4
Begin: Resizing ext4 file system on /dev/mmcblk0p3 ... resize2fs 1.47.0 (5-Feb-2023)
Resizing the filesystem on /dev/mmcblk0p3 to 7307264 (4k) blocks.
The filesystem on /dev/mmcblk0p3 is now 7307264 (4k) blocks long.
done.
[ 9.147196] EXT4-fs (mmcblk0p3): mounted filesystem with ordered data mode. Opts: (null)
done.
Begin: Running /scripts/local-bottom ... done.
Begin: Running /scripts/init-bottom ... done.
[ 9.647621] systemd[1]: [/etc/systemd/system.conf.d/timeoutstopsec.conf:2] Unknown lvalue 'RebootWatchdogSec' in section 'Manager'
[ 9.667480] systemd[1]: systemd 229 running in system mode. (+PAM +AUDIT +SELINUX +IMA +APPARMOR +SMACK +SYSVINIT +UTMP +LIBCRYPTSETUP +GCRYPT +GNUTLS +ACL +XZ -LZ4 +SECCOMP +BLKID +ELFUTILS +KMOD -IDN)
[ 9.686365] systemd[1]: Detected architecture arm.
Welcome to Ubuntu 16.04.2 LTS!
[ 9.712248] systemd[1]: Set hostname to <FriendlyElec>.
[ 9.727725] systemd[1]: Initializing machine ID from random generator.
[ 10.047814] systemd[1]: Created slice System Slice.
[ OK ] Created slice System Slice.
[ 10.066958] systemd[1]: Started Forward Password Requests to Wall Directory Watch.
[ OK ] Started Forward Password Requests to Wall Directory Watch.
[ 10.086805] systemd[1]: Listening on Journal Socket (/dev/log).
[ OK ] Listening on Journal Socket (/dev/log).
[ 10.106864] systemd[1]: Listening on udev Control Socket.
[ OK ] Listening on udev Control Socket.
[ 10.126644] systemd[1]: Listening on udev Kernel Socket.
[ OK ] Listening on udev Kernel Socket.
[ 10.146679] systemd[1]: Listening on /dev/initctl Compatibility Named Pipe.
[ OK ] Listening on /dev/initctl Compatibility Named Pipe.
[ OK ] Reached target Encrypted Volumes.
[ OK ] Created slice User and Session Slice.
[ OK ] Reached target Slices.
[ OK ] Created slice system-serial\x2dgetty.slice.
[ OK ] Reached target Remote File Systems (Pre).
[ OK ] Reached target Remote File Systems.
[ OK ] Listening on Journal Socket.
Starting Set console keymap...
Mounting Debug File System...
Starting Create list of required st... nodes for the current kernel...
Starting Remount Root and Kernel File Systems...
Starting Load Kernel Modules...
Mounting POSIX Message Queue File System...
Starting Journal Service...[ 10.432392] Mass Storage Function, version: 2009/09/11
[ 10.440493] LUN: removable file: (no medium)
[ 10.445221] LUN: file: /dev/mmcblk0p1
[ 10.449003] Number of LUNs=1
[ 10.452184] g_mass_storage gadget: Mass Storage Gadget, version: 2009/09/11
[ 10.459261] g_mass_storage gadget: userspace failed to provide iSerialNumber
[ 10.466369] g_mass_storage gadget: g_mass_storage ready
[ OK ] Reached target Swap.
[ OK ] Started Dispatch Password Requests to Console Directory Watch.
[ OK ] Reached target Paths.
[ OK ] Mounted POSIX Message Queue File System.
[ OK ] Mounted Debug File System.
[ OK ] Started Create list of required sta...ce nodes for the current kernel.
[ 10.573135] 8821cu: loading out-of-tree module taints kernel.
[ OK ] Started Remount Root and Kernel File Systems.
[ 10.605605] usbcore: registered new interface driver rtl8821cu
[ OK ] Started Set console keymap.
[ 10.759880] usbcore: registered new interface driver rtl88xxau
Starting udev Coldplug all Devices...
Starting Load/Save Random Seed...
Starting Create Static Device Nodes in /dev...
[ OK ] Started Journal Service.
Starting Flush Journal to Persistent Storage...
[ OK ] Started Load Kernel Modules.
[ OK ] Started Load/Save Random Seed.
[ OK ] Started Create Static Device Nodes in /dev.
[ 11.091978] systemd-journald[275]: Received request to flush runtime journal from PID 1
[ OK ] Started Flush Journal to Persistent Storage.
[ OK ] Reached target Local File Systems (Pre).
Starting udev Kernel Device Manager...
Starting Apply Kernel Variables...
Mounting Configuration File System...
Mounting FUSE Control File System...
[ OK ] Mounted Configuration File System.
[ OK ] Mounted FUSE Control File System.
[ OK ] Started Apply Kernel Variables.
[ OK ] Started udev Coldplug all Devices.
[ OK ] Started udev Kernel Device Manager.
[ OK ] Reached target Sound Card.
[ OK ] Found device /dev/mmcblk0p1.
[ OK ] Found device /dev/ttyS0.
Mounting /boot...
[ OK ] Mounted /boot.
[ OK ] Listening on Load/Save RF Kill Switch Status /dev/rfkill Watch.
[ OK ] Reached target Local File Systems.
Starting Raise network interfaces...
Starting Set console font and keymap...
Starting Create Volatile Files and Directories...
[ OK ] Started Create Volatile Files and Directories.
[ OK ] Reached target System Time Synchronized.
Starting Update UTMP about System Boot/Shutdown...
[ OK ] Started Update UTMP about System Boot/Shutdown.
[ OK ] Reached target System Initialization.
[ OK ] Listening on D-Bus System Message Bus Socket.
[ OK ] Reached target Sockets.
[ OK ] Reached target Basic System.
Starting Save/Restore Sound Card State...
Starting LSB: select system audio output at first boot...
Starting brcm_patchram_plus...
Starting LSB: sync_ntp_rtc...
[ OK ] Started Regular background program processing daemon.
Starting Login Service...
Starting Modem Manager...
Starting LSB: add swap at first boot...
[ OK ] Started Daily Cleanup of Temporary Directories.
[ OK ] Started Daily apt activities.
[ OK ] Reached target Timers.
Starting Permit User Sessions...
[ OK ] Started D-Bus System Message Bus.
Starting Init board...
Starting Network Manager...
Starting LSB: Set the CPU Frequency Scaling governor to "ondemand"...
Starting Restore /etc/resolv.conf i...re the ppp link was shut down...
[ OK ] Started Set console font and keymap.
[ OK ] Started LSB: select system audio output at first boot.
[ OK ] Started brcm_patchram_plus.
[ OK ] Started LSB: sync_ntp_rtc.
[ OK ] Started LSB: add swap at first boot.
[ OK ] Started Permit User Sessions.
[ OK ] Started Restore /etc/resolv.conf if...fore the ppp link was shut down.
[ OK ] Started Save/Restore Sound Card State.
[ OK ] Started Raise network interfaces.
[ OK ] Started LSB: Set the CPU Frequency Scaling governor to "ondemand".
[ OK ] Started Login Service.
Starting Authenticate and Authorize Users to Run Privileged Tasks...
Starting Set console scheme...
[ OK ] Created slice system-getty.slice.
[ OK ] Started Set console scheme.
[ OK ] Started Network Manager.
Starting Network Manager Wait Online...
[ OK ] Started Authenticate and Authorize Users to Run Privileged Tasks.
Starting Network Manager Script Dispatcher Service...
[ OK ] Started Network Manager Script Dispatcher Service.
Starting Hostname Service...
[ OK ] Started Hostname Service.
[ OK ] Started Modem Manager.
[ OK ] Started Network Manager Wait Online.
[ OK ] Started Init board.
[ OK ] Reached target Network.
[ OK ] Reached target Network is Online.
Starting LSB: Start NTP daemon...
Starting /etc/rc.local Compatibility...
Starting LSB: disk temperature monitoring daemon...
[ 15.457114] rc.local[657]: ctp = 0
Starting OpenBSD Secure Shell server...
[ OK ] Started /etc/rc.local Compatibility.
[ OK ] Started LSB: disk temperature monitoring daemon.
[ OK ] Started Serial Getty on ttyS0.
[ OK ] Started Getty on tty1.
[ OK ] Reached target Login Prompts.
[ OK ] Started OpenBSD Secure Shell server.
[ OK ] Started LSB: Start NTP daemon.
[ OK ] Reached target Multi-User System.
[ OK ] Reached target Graphical Interface.
Starting Update UTMP about System Runlevel Changes...
[ OK ] Started Update UTMP about System Runlevel Changes.
Ubuntu 16.04.2 LTS NanoPi-NEO-Core ttyS0
Default Login:
Username = pi
Password = pi
NanoPi-NEO-Core login: pi (automatic login)
_____ _ _ _ _____ _ _____ ____
| ___| __(_) ___ _ __ __| | |_ _| ____| | | ____/ ___|
| |_ | '__| |/ _ \ '_ \ / _` | | | | | _| | | | _|| |
| _|| | | | __/ | | | (_| | | |_| | |___| |___| |__| |___
|_| |_| |_|\___|_| |_|\__,_|_|\__, |_____|_____|_____\____|
|___/
Welcome to Ubuntu 16.04.2 LTS 4.14.111
System load: 0.22 Up time: 18 sec
Memory usage: 8 % of 491Mb IP:
CPU temp: 33°C
Usage of /: 2% of 28G
* Documentation: http://wiki.friendlyarm.com/Ubuntu
* Forum: http://www.friendlyarm.com/Forum/
pi@NanoPi-NEO-Core:~$
pi@NanoPi-NEO-Core:~$ cat /etc/issue
Ubuntu 16.04.2 LTS \n \l
pi@NanoPi-NEO-Core:~$
pi@NanoPi-NEO-Core:~$ uname -a
Linux NanoPi-NEO-Core 4.14.111 #193 SMP Thu Jun 10 18:20:47 CST 2021 armv7l armv7l armv7l GNU/Linux
pi@NanoPi-NEO-Core:~$
pi@NanoPi-NEO-Core:~$
pi@NanoPi-NEO-Core:~$ poweroff
Failed to set wall message, ignoring: Interactive authentication required.
Failed to power off system via logind: Interactive authentication required.
Failed to start poweroff.target: Interactive authentication required.
See system logs and 'systemctl status poweroff.target' for details.
Failed to open /dev/initctl: Permission denied
Failed to talk to init daemon.
pi@NanoPi-NEO-Core:~$
pi@NanoPi-NEO-Core:~$ su
Password:
root@NanoPi-NEO-Core:/home/pi#
root@NanoPi-NEO-Core:/home/pi# poweroff
[ OK ] Stopped target Timers.
[topping Session c1 of user pi.
[ OK ] Stopped target Multi-User System.
Stopping LSB: disk temperature monitoring daemon...
[ OK ] Stopped target Login Prompts.
Stopping Serial Getty on ttyS0...
Stopping Getty on tty1...
Stopping LSB: sync_ntp_rtc...
Stopping LSB: Start NTP daemon...
[ OK ] Stopped Session c2 of user pi.
[ OK ] Closed Load/Save RF Kill Switch Status /dev/rfkill Watch.
Stopping OpenBSD Secure Shell server...
Stopping User Manager for UID 1000...
Stopping brcm_patchram_plus...
[ OK ] Stopped Daily apt activities.
[ OK ] Stopped target System Time Synchronized.
[ OK ] Stopped Daily Cleanup of Temporary Directories.
Stopping LSB: Set the CPU Frequency Scaling governor to "ondemand"...
[ OK ] Stopped target Sound Card.
Stopping Modem Manager...
Stopping LSB: select system audio output at first boot...
Stopping LSB: add swap at first boot...
Stopping Authenticate and Authorize Users to Run Privileged Tasks...
Stopping Save/Restore Sound Card State...
Stopping Regular background program processing daemon...
[ OK ] Stopped Regular background program processing daemon.
[ OK ] Stopped Modem Manager.
[ OK ] Stopped Authenticate and Authorize Users to Run Privileged Tasks.
[ OK ] Stopped OpenBSD Secure Shell server.
[ OK ] Stopped Serial Getty on ttyS0.
[ OK ] Stopped Getty on tty1.
[ OK ] Stopped User Manager for UID 1000.
[ OK ] Stopped Session c1 of user pi.
[ OK ] Stopped LSB: sync_ntp_rtc.
[ OK ] Stopped brcm_patchram_plus.
[ OK ] Stopped LSB: select system audio output at first boot.
[ OK ] Stopped LSB: add swap at first boot.
[ OK ] Stopped Save/Restore Sound Card State.
[ OK ] Stopped LSB: disk temperature monitoring daemon.
[ OK ] Stopped LSB: Start NTP daemon.
[ OK ] Stopped LSB: Set the CPU Frequency Scaling governor to "ondemand".
[ OK ] Removed slice User Slice of pi.
Stopping Login Service...
[ OK ] Removed slice system-getty.slice.
Stopping Permit User Sessions...
[ OK ] Removed slice system-serial\x2dgetty.slice.
Stopping /etc/rc.local Compatibility...
[ OK ] Stopped Login Service.
[ OK ] Stopped /etc/rc.local Compatibility.
[ OK ] Stopped Permit User Sessions.
[ OK ] Stopped target Remote File Systems.
[ OK ] Stopped target Remote File Systems (Pre).
[ OK ] Stopped target Network is Online.
[ OK ] Stopped Network Manager Wait Online.
[ OK ] Stopped target Network.
Stopping Network Manager...
Stopping Raise network interfaces...
[ OK ] Stopped Network Manager.
Stopping D-Bus System Message Bus...
[ OK ] Stopped Raise network interfaces.
[ OK ] Stopped D-Bus System Message Bus.
[ OK ] Stopped target Basic System.
[ OK ] Stopped target Paths.
[ OK ] Stopped Forward Password Requests to Wall Directory Watch.
[ OK ] Stopped Dispatch Password Requests to Console Directory Watch.
[ OK ] Stopped target Sockets.
[ OK ] Stopped target Slices.
[ OK ] Removed slice User and Session Slice.
[ OK ] Closed D-Bus System Message Bus Socket.
[ OK ] Stopped target System Initialization.
Stopping Load/Save Random Seed...
[ OK ] Stopped target Swap.
Deactivating swap /mnt/512MB.swap...
[ OK ] Stopped Create Volatile Files and Directories.
[ OK ] Stopped target Encrypted Volumes.
[ OK ] Stopped Apply Kernel Variables.
[ OK ] Stopped target Local File Systems.
Unmounting /boot...
Unmounting /run/user/1000...
[ OK ] Stopped Load Kernel Modules.
[ OK ] Stopped Load/Save Random Seed.
[ OK ] Deactivated swap /mnt/512MB.swap.
[ OK ] Unmounted /boot.
[ OK ] Unmounted /run/user/1000.
[ OK ] Stopped target Local File Systems (Pre).
[ OK ] Stopped Create Static Device Nodes in /dev.
[ OK ] Reached target Unmount All Filesystems.
[ OK ] Stopped Remount Root and Kernel File Systems.
[ OK ] Reached target Shutdown.
[ 1448.421320] reboot: System halted
[END] 2025/5/6 18:27:07
