XXL-Job源码分析
源码解析

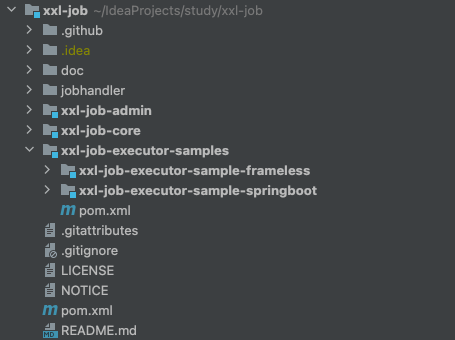

1、源码结构
源码中包含三个子模块：
1.1 源码目录介绍
- /doc :文档资料
- /db :“调度数据库”建表脚本
- /xxl-job-admin :调度中心（任务调度管理平台），项目源码
- /xxl-job-core :公共Jar依赖（调度核心）
- /xxl-job-executor-samples :执行器，Sample示例项目（大家可以在该项目上进行开发，也可以将现有项目改造生成执行器项目）
1.2 调度数据库配置
XXL-JOB调度模块基于自研调度组件并支持集群部署，调度数据库表说明如下：
- xxl_job_lock：任务调度锁表；
- xxl_job_group：执行器信息表，维护任务执行器信息；
- xxl_job_info：调度扩展信息表： 用于保存XXL-JOB调度任务的扩展信息，如任务分组、任务名、机器地址、执行器、执行入参和报警邮件等等； (核心)
- xxl_job_log：调度日志表： 用于保存XXL-JOB任务调度的历史信息，如调度结果、执行结果、调度入参、调度机器和执行器等等；
- xxl_job_log_report：调度日志报表：用户存储XXL-JOB任务调度日志的报表，调度中心报表功能页面会用到；
- xxl_job_logglue：任务GLUE日志：用于保存GLUE更新历史，用于支持GLUE的版本回溯功能；
- xxl_job_registry：执行器注册表，维护在线的执行器和调度中心机器地址信息；(核心)
- xxl_job_user：系统用户表；
CREATE TABLE `xxl_job_info` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`job_group` int(11) NOT NULL COMMENT '执行器主键ID',
`job_desc` varchar(255) NOT NULL,
`add_time` datetime DEFAULT NULL,
`update_time` datetime DEFAULT NULL,
`author` varchar(64) DEFAULT NULL COMMENT '作者',
`alarm_email` varchar(255) DEFAULT NULL COMMENT '报警邮件',
`schedule_type` varchar(50) NOT NULL DEFAULT 'NONE' COMMENT '调度类型',
`schedule_conf` varchar(128) DEFAULT NULL COMMENT '调度配置，值含义取决于调度类型',
`misfire_strategy` varchar(50) NOT NULL DEFAULT 'DO_NOTHING' COMMENT '调度过期策略',
`executor_route_strategy` varchar(50) DEFAULT NULL COMMENT '执行器路由策略',
`executor_handler` varchar(255) DEFAULT NULL COMMENT '执行器任务handler',
`executor_param` varchar(512) DEFAULT NULL COMMENT '执行器任务参数',
`executor_block_strategy` varchar(50) DEFAULT NULL COMMENT '阻塞处理策略',
`executor_timeout` int(11) NOT NULL DEFAULT '0' COMMENT '任务执行超时时间，单位秒',
`executor_fail_retry_count` int(11) NOT NULL DEFAULT '0' COMMENT '失败重试次数',
`glue_type` varchar(50) NOT NULL COMMENT 'GLUE类型',
`glue_source` mediumtext COMMENT 'GLUE源代码',
`glue_remark` varchar(128) DEFAULT NULL COMMENT 'GLUE备注',
`glue_updatetime` datetime DEFAULT NULL COMMENT 'GLUE更新时间',
`child_jobid` varchar(255) DEFAULT NULL COMMENT '子任务ID，多个逗号分隔',
`trigger_status` tinyint(4) NOT NULL DEFAULT '0' COMMENT '调度状态：0-停止，1-运行',
`trigger_last_time` bigint(13) NOT NULL DEFAULT '0' COMMENT '上次调度时间',
`trigger_next_time` bigint(13) NOT NULL DEFAULT '0' COMMENT '下次调度时间',
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;2、xxl-job-admin 核心源码解析

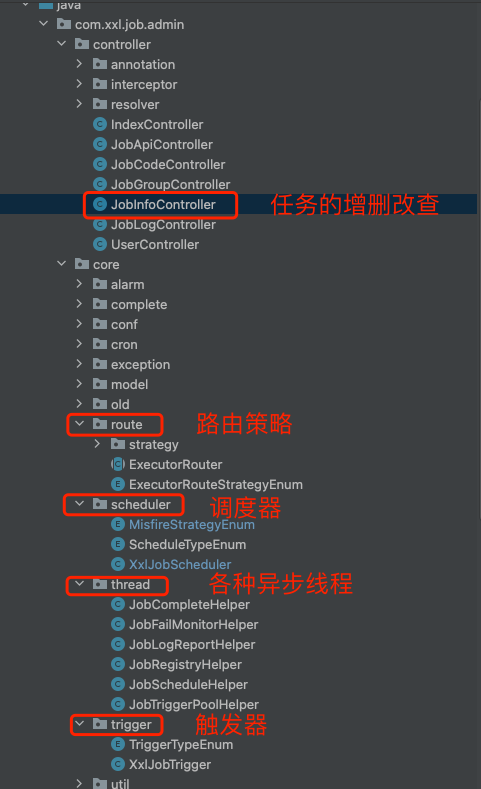

2.1 包结构
2.2 调度入口-XxlJobAdminConfig
public class XxlJobAdminConfig implements InitializingBean, DisposableBean {
private static XxlJobAdminConfig adminConfig = null;
public static XxlJobAdminConfig getAdminConfig() {
return adminConfig;
}
// ---------------------- XxlJobScheduler ----------------------
private XxlJobScheduler xxlJobScheduler;
@Override
public void afterPropertiesSet() throws Exception {
adminConfig = this;
// 调度器初始化
xxlJobScheduler = new XxlJobScheduler();
xxlJobScheduler.init();
}
@Override
public void destroy() throws Exception {
// 调度器销毁
xxlJobScheduler.destroy();
}
}public class XxlJobScheduler {
private static final Logger logger = LoggerFactory.getLogger(XxlJobScheduler.class);
public void init() throws Exception {
// init i18n 国际化
initI18n();
// 下面依次开启线程去处理
// admin trigger pool start 触发线程池
JobTriggerPoolHelper.toStart();
// admin registry monitor run 接受分布式的执行器注册
JobRegistryHelper.getInstance().start();
// admin fail-monitor run 任务失败监控
JobFailMonitorHelper.getInstance().start();
// admin lose-monitor run ( depend on JobTriggerPoolHelper ) 任务完成监控 - 分布式执行器任务状态回调
JobCompleteHelper.getInstance().start();
// admin log report start 日志上报
JobLogReportHelper.getInstance().start();
// start-schedule ( depend on JobTriggerPoolHelper ) 开始调度
JobScheduleHelper.getInstance().start();
logger.info(">>>>>>>>> init xxl-job admin success.");
}
public void destroy() throws Exception {
// 对应start， 倒序停止线程
// stop-schedule
JobScheduleHelper.getInstance().toStop();
// admin log report stop
JobLogReportHelper.getInstance().toStop();
// admin lose-monitor stop
JobCompleteHelper.getInstance().toStop();
// admin fail-monitor stop
JobFailMonitorHelper.getInstance().toStop();
// admin registry stop
JobRegistryHelper.getInstance().toStop();
// admin trigger pool stop
JobTriggerPoolHelper.toStop();
}
}总结一下初始化过程做了那几件事，基本上就是xxl做的全部的事情了
1、初始国际化
2、启动触发线程池（执行器服务）
3、启动接受分布式的执行器注册的线程 （注册服务）
4、启动任务失败监控线程
5、启动 任务完成监控 - 分布式执行器任务状态回调 线程 （回调服务）
6、启动 日志上报 线程 （日志服务）
7、启动 任务调度 线程 （调度器）

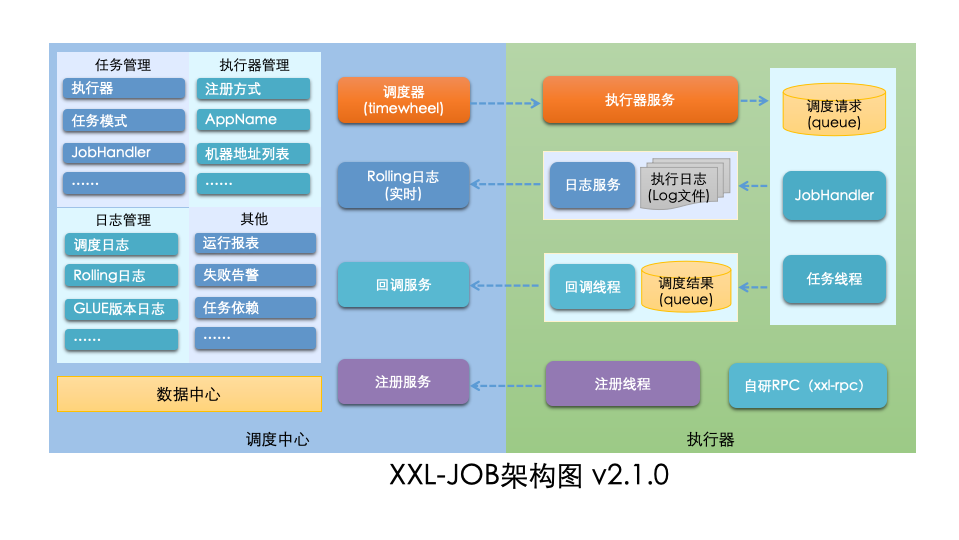

对照一下，理解下全异步解耦设计，看看上面全部是xxx线程，就能理解异步的含义；我们再回过头来看看xxl-job的架构图，上面7步一一对应下面的架构图，除了（任务线程）是分布的业务执行应用中；

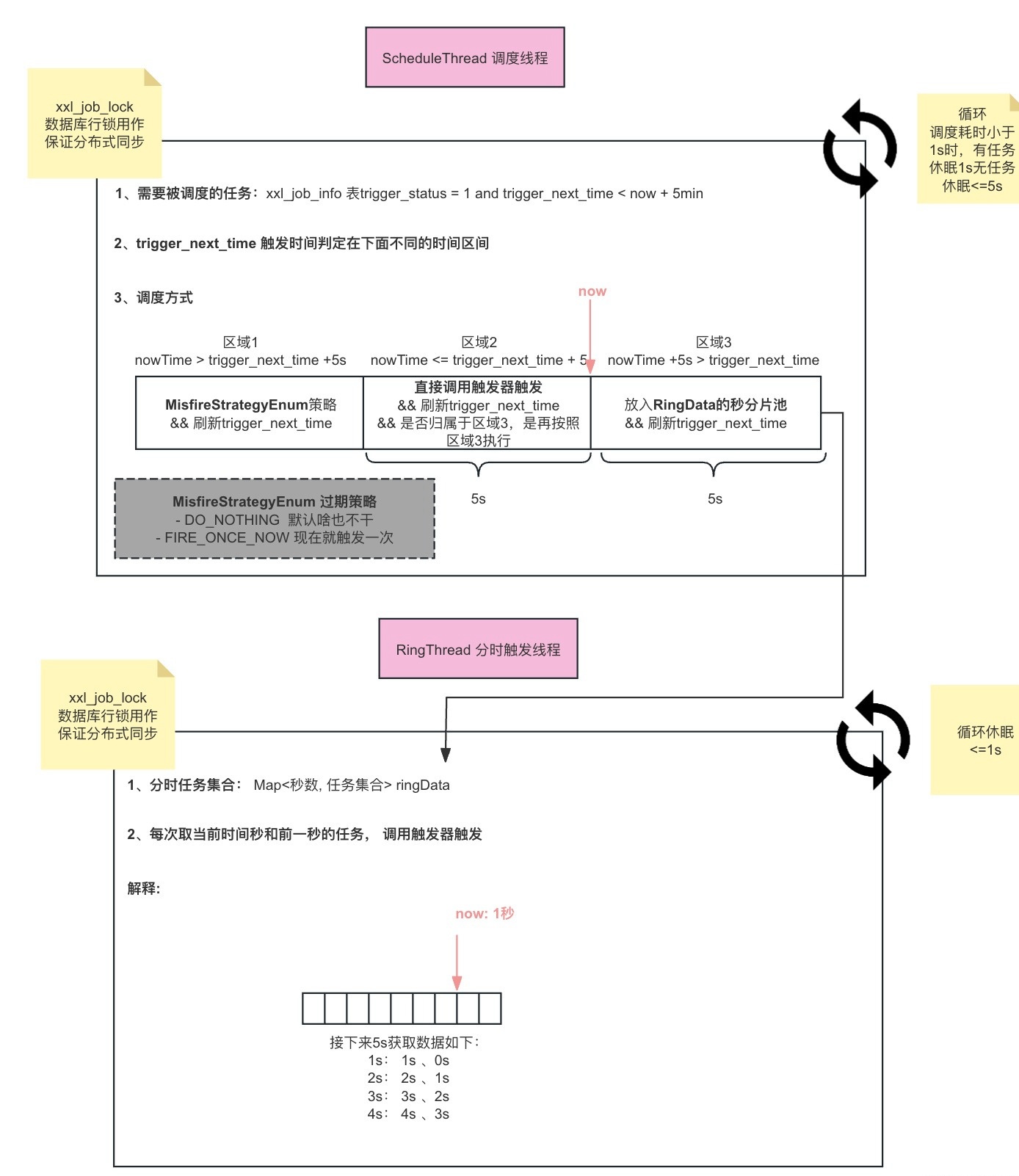

2.3 调度核心源码解析-JobScheduleHelper
public class JobScheduleHelper {
private static Logger logger = LoggerFactory.getLogger(JobScheduleHelper.class);
private static JobScheduleHelper instance = new JobScheduleHelper();
public static JobScheduleHelper getInstance(){
return instance;
}
public static final long PRE_READ_MS = 5000; // pre read
private Thread scheduleThread;
private Thread ringThread;
private volatile boolean scheduleThreadToStop = false;
private volatile boolean ringThreadToStop = false;
private volatile static Map<Integer, List<Integer>> ringData = new ConcurrentHashMap<>();
public void start(){
// schedule thread
scheduleThread = new Thread(new Runnable() {
@Override
public void run() {
try {
TimeUnit.MILLISECONDS.sleep(5000 - System.currentTimeMillis()%1000 );
} catch (InterruptedException e) {
if (!scheduleThreadToStop) {
logger.error(e.getMessage(), e);
}
}
logger.info(">>>>>>>>> init xxl-job admin scheduler success.");
// pre-read count: treadpool-size * trigger-qps (each trigger cost 50ms, qps = 1000/50 = 20)
int preReadCount = (XxlJobAdminConfig.getAdminConfig().getTriggerPoolFastMax() + XxlJobAdminConfig.getAdminConfig().getTriggerPoolSlowMax()) * 20;
while (!scheduleThreadToStop) {
// Scan Job
long start = System.currentTimeMillis();
Connection conn = null;
Boolean connAutoCommit = null;
PreparedStatement preparedStatement = null;
boolean preReadSuc = true;
try {
conn = XxlJobAdminConfig.getAdminConfig().getDataSource().getConnection();
connAutoCommit = conn.getAutoCommit();
conn.setAutoCommit(false);
preparedStatement = conn.prepareStatement( "select * from xxl_job_lock where lock_name = 'schedule_lock' for update" );
preparedStatement.execute();
// tx start
// 1、pre read
long nowTime = System.currentTimeMillis();
List<XxlJobInfo> scheduleList = XxlJobAdminConfig.getAdminConfig().getXxlJobInfoDao().scheduleJobQuery(nowTime + PRE_READ_MS, preReadCount);
if (scheduleList!=null && scheduleList.size()>0) {
// 2、push time-ring
for (XxlJobInfo jobInfo: scheduleList) {
// time-ring jump
if (nowTime > jobInfo.getTriggerNextTime() + PRE_READ_MS) {
// 2.1、trigger-expire > 5s：pass && make next-trigger-time
logger.warn(">>>>>>>>>>> xxl-job, schedule misfire, jobId = " + jobInfo.getId());
// 1、misfire match
MisfireStrategyEnum misfireStrategyEnum = MisfireStrategyEnum.match(jobInfo.getMisfireStrategy(), MisfireStrategyEnum.DO_NOTHING);
if (MisfireStrategyEnum.FIRE_ONCE_NOW == misfireStrategyEnum) {
// FIRE_ONCE_NOW 》 trigger
JobTriggerPoolHelper.trigger(jobInfo.getId(), TriggerTypeEnum.MISFIRE, -1, null, null, null);
logger.debug(">>>>>>>>>>> xxl-job, schedule push trigger : jobId = " + jobInfo.getId() );
}
// 2、fresh next
refreshNextValidTime(jobInfo, new Date());
} else if (nowTime > jobInfo.getTriggerNextTime()) {
// 2.2、trigger-expire < 5s：direct-trigger && make next-trigger-time
// 1、trigger
JobTriggerPoolHelper.trigger(jobInfo.getId(), TriggerTypeEnum.CRON, -1, null, null, null);
logger.debug(">>>>>>>>>>> xxl-job, schedule push trigger : jobId = " + jobInfo.getId() );
// 2、fresh next
refreshNextValidTime(jobInfo, new Date());
// next-trigger-time in 5s, pre-read again
if (jobInfo.getTriggerStatus()==1 && nowTime + PRE_READ_MS > jobInfo.getTriggerNextTime()) {
// 1、make ring second
int ringSecond = (int)((jobInfo.getTriggerNextTime()/1000)%60);
// 2、push time ring
pushTimeRing(ringSecond, jobInfo.getId());
// 3、fresh next
refreshNextValidTime(jobInfo, new Date(jobInfo.getTriggerNextTime()));
}
} else {
// 2.3、trigger-pre-read：time-ring trigger && make next-trigger-time
// 1、make ring second
int ringSecond = (int)((jobInfo.getTriggerNextTime()/1000)%60);
// 2、push time ring
pushTimeRing(ringSecond, jobInfo.getId());
// 3、fresh next
refreshNextValidTime(jobInfo, new Date(jobInfo.getTriggerNextTime()));
}
}
// 3、update trigger info
for (XxlJobInfo jobInfo: scheduleList) {
XxlJobAdminConfig.getAdminConfig().getXxlJobInfoDao().scheduleUpdate(jobInfo);
}
} else {
preReadSuc = false;
}
// tx stop
} catch (Exception e) {
if (!scheduleThreadToStop) {
logger.error(">>>>>>>>>>> xxl-job, JobScheduleHelper#scheduleThread error:{}", e);
}
} finally {
// commit
if (conn != null) {
try {
conn.commit();
} catch (SQLException e) {
if (!scheduleThreadToStop) {
logger.error(e.getMessage(), e);
}
}
try {
conn.setAutoCommit(connAutoCommit);
} catch (SQLException e) {
if (!scheduleThreadToStop) {
logger.error(e.getMessage(), e);
}
}
try {
conn.close();
} catch (SQLException e) {
if (!scheduleThreadToStop) {
logger.error(e.getMessage(), e);
}
}
}
// close PreparedStatement
if (null != preparedStatement) {
try {
preparedStatement.close();
} catch (SQLException e) {
if (!scheduleThreadToStop) {
logger.error(e.getMessage(), e);
}
}
}
}
long cost = System.currentTimeMillis()-start;
// Wait seconds, align second
if (cost < 1000) { // scan-overtime, not wait
try {
// pre-read period: success > scan each second; fail > skip this period;
TimeUnit.MILLISECONDS.sleep((preReadSuc?1000:PRE_READ_MS) - System.currentTimeMillis()%1000);
} catch (InterruptedException e) {
if (!scheduleThreadToStop) {
logger.error(e.getMessage(), e);
}
}
}
}
logger.info(">>>>>>>>>>> xxl-job, JobScheduleHelper#scheduleThread stop");
}
});
scheduleThread.setDaemon(true);
scheduleThread.setName("xxl-job, admin JobScheduleHelper#scheduleThread");
scheduleThread.start();
// ring thread
ringThread = new Thread(new Runnable() {
@Override
public void run() {
while (!ringThreadToStop) {
// align second
try {
TimeUnit.MILLISECONDS.sleep(1000 - System.currentTimeMillis() % 1000);
} catch (InterruptedException e) {
if (!ringThreadToStop) {
logger.error(e.getMessage(), e);
}
}
try {
// second data
List<Integer> ringItemData = new ArrayList<>();
int nowSecond = Calendar.getInstance().get(Calendar.SECOND); // 避免处理耗时太长，跨过刻度，向前校验一个刻度；
for (int i = 0; i < 2; i++) {
List<Integer> tmpData = ringData.remove( (nowSecond+60-i)%60 );
if (tmpData != null) {
ringItemData.addAll(tmpData);
}
}
// ring trigger
logger.debug(">>>>>>>>>>> xxl-job, time-ring beat : " + nowSecond + " = " + Arrays.asList(ringItemData) );
if (ringItemData.size() > 0) {
// do trigger
for (int jobId: ringItemData) {
// do trigger
JobTriggerPoolHelper.trigger(jobId, TriggerTypeEnum.CRON, -1, null, null, null);
}
// clear
ringItemData.clear();
}
} catch (Exception e) {
if (!ringThreadToStop) {
logger.error(">>>>>>>>>>> xxl-job, JobScheduleHelper#ringThread error:{}", e);
}
}
}
logger.info(">>>>>>>>>>> xxl-job, JobScheduleHelper#ringThread stop");
}
});
ringThread.setDaemon(true);
ringThread.setName("xxl-job, admin JobScheduleHelper#ringThread");
ringThread.start();
}
}
2.4 触发器
JobTriggerPoolHelper.start() 主要干了两件事
1、 创建了快慢两个触发线程池，任务触发时间1分钟耗时超过500ms有10次就放入慢线程池中；
2、 异步将触发动作传递给XxlJobTrigger触发执行
public class JobTriggerPoolHelper {
private static Logger logger = LoggerFactory.getLogger(JobTriggerPoolHelper.class);
// ---------------------- trigger pool ----------------------
// fast/slow thread pool
private ThreadPoolExecutor fastTriggerPool = null;
private ThreadPoolExecutor slowTriggerPool = null;
public void start(){
fastTriggerPool = new ThreadPoolExecutor(
10,
XxlJobAdminConfig.getAdminConfig().getTriggerPoolFastMax(),
60L,
TimeUnit.SECONDS,
new LinkedBlockingQueue<Runnable>(1000),
new ThreadFactory() {
@Override
public Thread newThread(Runnable r) {
return new Thread(r, "xxl-job, admin JobTriggerPoolHelper-fastTriggerPool-" + r.hashCode());
}
});
slowTriggerPool = new ThreadPoolExecutor(
10,
XxlJobAdminConfig.getAdminConfig().getTriggerPoolSlowMax(),
60L,
TimeUnit.SECONDS,
new LinkedBlockingQueue<Runnable>(2000),
new ThreadFactory() {
@Override
public Thread newThread(Runnable r) {
return new Thread(r, "xxl-job, admin JobTriggerPoolHelper-slowTriggerPool-" + r.hashCode());
}
});
}
public void stop() {
//triggerPool.shutdown();
fastTriggerPool.shutdownNow();
slowTriggerPool.shutdownNow();
logger.info(">>>>>>>>> xxl-job trigger thread pool shutdown success.");
}
// job timeout count
private volatile long minTim = System.currentTimeMillis()/60000; // ms > min
private volatile ConcurrentMap<Integer, AtomicInteger> jobTimeoutCountMap = new ConcurrentHashMap<>();
/**
* add trigger
*/
public void addTrigger(final int jobId,
final TriggerTypeEnum triggerType,
final int failRetryCount,
final String executorShardingParam,
final String executorParam,
final String addressList) {
// choose thread pool
ThreadPoolExecutor triggerPool_ = fastTriggerPool;
AtomicInteger jobTimeoutCount = jobTimeoutCountMap.get(jobId);
if (jobTimeoutCount!=null && jobTimeoutCount.get() > 10) { // job-timeout 10 times in 1 min
triggerPool_ = slowTriggerPool;
}
// trigger
triggerPool_.execute(new Runnable() {
@Override
public void run() {
long start = System.currentTimeMillis();
try {
// do trigger
XxlJobTrigger.trigger(jobId, triggerType, failRetryCount, executorShardingParam, executorParam, addressList);
} catch (Exception e) {
logger.error(e.getMessage(), e);
} finally {
// check timeout-count-map
long minTim_now = System.currentTimeMillis()/60000;
if (minTim != minTim_now) {
minTim = minTim_now;
jobTimeoutCountMap.clear();
}
// incr timeout-count-map
long cost = System.currentTimeMillis()-start;
if (cost > 500) { // ob-timeout threshold 500ms
AtomicInteger timeoutCount = jobTimeoutCountMap.putIfAbsent(jobId, new AtomicInteger(1));
if (timeoutCount != null) {
timeoutCount.incrementAndGet();
}
}
}
}
});
}
}XxlJobTrigger
主要做了3件事
1、trigger 初始化分片，按照是否为广播模式
- 分片路由执行，根据注册地址的数量，传递分片索引，循环执行触发
- 普通路由执行，则初始化1个分片，执行触发
2、processTrigger 执行触发
- 组装触发参数，包括阻塞策略、触发参数、分片数、日志id、执行器地址
其中执行器地址通过路由策略获取：
- 分片模式根据分片获取地址；
- 其余根据路由策略匹配
3、交个执行器ExecutorBizClient 发起远程调度
public class XxlJobTrigger {
private static Logger logger = LoggerFactory.getLogger(XxlJobTrigger.class);
/**
* trigger job
*
* @param jobId
* @param triggerType
* @param failRetryCount
* >=0: use this param
* <0: use param from job info config
* @param executorShardingParam
* @param executorParam
* null: use job param
* not null: cover job param
* @param addressList
* null: use executor addressList
* not null: cover
*/
public static void trigger(int jobId,
TriggerTypeEnum triggerType,
int failRetryCount,
String executorShardingParam,
String executorParam,
String addressList) {
// load data
XxlJobInfo jobInfo = XxlJobAdminConfig.getAdminConfig().getXxlJobInfoDao().loadById(jobId);
if (jobInfo == null) {
logger.warn(">>>>>>>>>>>> trigger fail, jobId invalid，jobId={}", jobId);
return;
}
if (executorParam != null) {
jobInfo.setExecutorParam(executorParam);
}
int finalFailRetryCount = failRetryCount>=0?failRetryCount:jobInfo.getExecutorFailRetryCount();
XxlJobGroup group = XxlJobAdminConfig.getAdminConfig().getXxlJobGroupDao().load(jobInfo.getJobGroup());
// cover addressList
if (addressList!=null && addressList.trim().length()>0) {
group.setAddressType(1);
group.setAddressList(addressList.trim());
}
// sharding param
int[] shardingParam = null;
if (executorShardingParam!=null){
String[] shardingArr = executorShardingParam.split("/");
if (shardingArr.length==2 && isNumeric(shardingArr[0]) && isNumeric(shardingArr[1])) {
shardingParam = new int[2];
shardingParam[0] = Integer.valueOf(shardingArr[0]);
shardingParam[1] = Integer.valueOf(shardingArr[1]);
}
}
// 分片路由执行，传递分片
if (ExecutorRouteStrategyEnum.SHARDING_BROADCAST==ExecutorRouteStrategyEnum.match(jobInfo.getExecutorRouteStrategy(), null)
&& group.getRegistryList()!=null && !group.getRegistryList().isEmpty()
&& shardingParam==null) {
for (int i = 0; i < group.getRegistryList().size(); i++) {
processTrigger(group, jobInfo, finalFailRetryCount, triggerType, i, group.getRegistryList().size());
}
}
// 普通路由执行，初始化一个分片
else {
if (shardingParam == null) {
shardingParam = new int[]{0, 1};
}
processTrigger(group, jobInfo, finalFailRetryCount, triggerType, shardingParam[0], shardingParam[1]);
}
}
private static boolean isNumeric(String str){
try {
int result = Integer.valueOf(str);
return true;
} catch (NumberFormatException e) {
return false;
}
}
/**
* @param group job group, registry list may be empty
* @param jobInfo
* @param finalFailRetryCount
* @param triggerType
* @param index sharding index
* @param total sharding index
*/
private static void processTrigger(XxlJobGroup group, XxlJobInfo jobInfo, int finalFailRetryCount, TriggerTypeEnum triggerType, int index, int total){
// param
ExecutorBlockStrategyEnum blockStrategy = ExecutorBlockStrategyEnum.match(jobInfo.getExecutorBlockStrategy(), ExecutorBlockStrategyEnum.SERIAL_EXECUTION); // block strategy
ExecutorRouteStrategyEnum executorRouteStrategyEnum = ExecutorRouteStrategyEnum.match(jobInfo.getExecutorRouteStrategy(), null); // route strategy
String shardingParam = (ExecutorRouteStrategyEnum.SHARDING_BROADCAST==executorRouteStrategyEnum)?String.valueOf(index).concat("/").concat(String.valueOf(total)):null;
// 1、save log-id
XxlJobLog jobLog = new XxlJobLog();
jobLog.setJobGroup(jobInfo.getJobGroup());
jobLog.setJobId(jobInfo.getId());
jobLog.setTriggerTime(new Date());
XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().save(jobLog);
logger.debug(">>>>>>>>>>> xxl-job trigger start, jobId:{}", jobLog.getId());
// 2、init trigger-param
TriggerParam triggerParam = new TriggerParam();
triggerParam.setJobId(jobInfo.getId());
triggerParam.setExecutorHandler(jobInfo.getExecutorHandler());
triggerParam.setExecutorParams(jobInfo.getExecutorParam());
triggerParam.setExecutorBlockStrategy(jobInfo.getExecutorBlockStrategy());
triggerParam.setExecutorTimeout(jobInfo.getExecutorTimeout());
triggerParam.setLogId(jobLog.getId());
triggerParam.setLogDateTime(jobLog.getTriggerTime().getTime());
triggerParam.setGlueType(jobInfo.getGlueType());
triggerParam.setGlueSource(jobInfo.getGlueSource());
triggerParam.setGlueUpdatetime(jobInfo.getGlueUpdatetime().getTime());
triggerParam.setBroadcastIndex(index);
triggerParam.setBroadcastTotal(total);
// 3、init address 路由策略，分片模式则根据分片获取地址；其余的进行路由策略匹配
String address = null;
ReturnT<String> routeAddressResult = null;
if (group.getRegistryList()!=null && !group.getRegistryList().isEmpty()) {
if (ExecutorRouteStrategyEnum.SHARDING_BROADCAST == executorRouteStrategyEnum) {
if (index < group.getRegistryList().size()) {
address = group.getRegistryList().get(index);
} else {
address = group.getRegistryList().get(0);
}
} else {
routeAddressResult = executorRouteStrategyEnum.getRouter().route(triggerParam, group.getRegistryList());
if (routeAddressResult.getCode() == ReturnT.SUCCESS_CODE) {
address = routeAddressResult.getContent();
}
}
} else {
routeAddressResult = new ReturnT<String>(ReturnT.FAIL_CODE, I18nUtil.getString("jobconf_trigger_address_empty"));
}
// 4、trigger remote executor 触发远程调度执行
ReturnT<String> triggerResult = null;
if (address != null) {
triggerResult = runExecutor(triggerParam, address);
} else {
triggerResult = new ReturnT<String>(ReturnT.FAIL_CODE, null);
}
// 5、collection trigger info
StringBuffer triggerMsgSb = new StringBuffer();
//.....省略
// 6、save log trigger-info
jobLog.setExecutorAddress(address);
jobLog.setExecutorHandler(jobInfo.getExecutorHandler());
jobLog.setExecutorParam(jobInfo.getExecutorParam());
jobLog.setExecutorShardingParam(shardingParam);
jobLog.setExecutorFailRetryCount(finalFailRetryCount);
//jobLog.setTriggerTime();
jobLog.setTriggerCode(triggerResult.getCode());
jobLog.setTriggerMsg(triggerMsgSb.toString());
XxlJobAdminConfig.getAdminConfig().getXxlJobLogDao().updateTriggerInfo(jobLog);
logger.debug(">>>>>>>>>>> xxl-job trigger end, jobId:{}", jobLog.getId());
}
}3、xxl-core 任务线程核心源码解析
3.1 任务执行器的RPC服务提供
执行 XxlJobExecutor.start： 做了五件事，我们先重点专注最后意见，初始化执行器服务
public void start() throws Exception {
// init logpath 初始化日志路径
XxlJobFileAppender.initLogPath(logPath);
// init invoker, admin-client 初始化调度管理中心，用于回调
initAdminBizList(adminAddresses, accessToken);
// init JobLogFileCleanThread 初始化启动日志清洗线程
JobLogFileCleanThread.getInstance().start(logRetentionDays);
// init TriggerCallbackThread 初始化触发回调线程
TriggerCallbackThread.getInstance().start();
// init executor-server 初始化执行器服务
initEmbedServer(address, ip, port, appname, accessToken);
}初始化执行器服务，下面的代码利用netty实现NIO的服务模型，作为RPC服务提供方，netty的nio实现不在我们本次的关注，有兴趣的可以去看看netty； 我们重点关注里面的任务处理的核心处理方法：EmbedHttpServerHandler， 用到了ThreadPoolExecutor bizThreadPool 进行任务的异步处理；
// ---------------------- executor-server (rpc provider) ----------------------
private EmbedServer embedServer = null;
private void initEmbedServer(String address, String ip, int port, String appname, String accessToken) throws Exception {
// fill ip port
port = port>0?port: NetUtil.findAvailablePort(9999);
ip = (ip!=null&&ip.trim().length()>0)?ip: IpUtil.getIp();
// generate address
if (address==null || address.trim().length()==0) {
String ip_port_address = IpUtil.getIpPort(ip, port); // registry-address：default use address to registry , otherwise use ip:port if address is null
address = "http://{ip_port}/".replace("{ip_port}", ip_port_address);
}
// accessToken
if (accessToken==null || accessToken.trim().length()==0) {
logger.warn(">>>>>>>>>>> xxl-job accessToken is empty. To ensure system security, please set the accessToken.");
}
// start
embedServer = new EmbedServer();
embedServer.start(address, port, appname, accessToken);
}public class EmbedServer {
private static final Logger logger = LoggerFactory.getLogger(EmbedServer.class);
private ExecutorBiz executorBiz;
private Thread thread;
public void start(final String address, final int port, final String appname, final String accessToken) {
executorBiz = new ExecutorBizImpl();
thread = new Thread(new Runnable() {
@Override
public void run() {
// param
EventLoopGroup bossGroup = new NioEventLoopGroup();
EventLoopGroup workerGroup = new NioEventLoopGroup();
ThreadPoolExecutor bizThreadPool = new ThreadPoolExecutor(
0,
200,
60L,
TimeUnit.SECONDS,
new LinkedBlockingQueue<Runnable>(2000),
new ThreadFactory() {
@Override
public Thread newThread(Runnable r) {
return new Thread(r, "xxl-job, EmbedServer bizThreadPool-" + r.hashCode());
}
},
new RejectedExecutionHandler() {
@Override
public void rejectedExecution(Runnable r, ThreadPoolExecutor executor) {
throw new RuntimeException("xxl-job, EmbedServer bizThreadPool is EXHAUSTED!");
}
});
try {
// start server
ServerBootstrap bootstrap = new ServerBootstrap();
bootstrap.group(bossGroup, workerGroup)
.channel(NioServerSocketChannel.class)
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
public void initChannel(SocketChannel channel) throws Exception {
channel.pipeline()
.addLast(new IdleStateHandler(0, 0, 30 * 3, TimeUnit.SECONDS)) // beat 3N, close if idle
.addLast(new HttpServerCodec())
.addLast(new HttpObjectAggregator(5 * 1024 * 1024)) // merge request & reponse to FULL
.addLast(new EmbedHttpServerHandler(executorBiz, accessToken, bizThreadPool));
}
})
.childOption(ChannelOption.SO_KEEPALIVE, true);
// bind
ChannelFuture future = bootstrap.bind(port).sync();
logger.info(">>>>>>>>>>> xxl-job remoting server start success, nettype = {}, port = {}", EmbedServer.class, port);
// start registry
startRegistry(appname, address);
// wait util stop
future.channel().closeFuture().sync();
} catch (InterruptedException e) {
logger.info(">>>>>>>>>>> xxl-job remoting server stop.");
} catch (Exception e) {
logger.error(">>>>>>>>>>> xxl-job remoting server error.", e);
} finally {
// stop
try {
workerGroup.shutdownGracefully();
bossGroup.shutdownGracefully();
} catch (Exception e) {
logger.error(e.getMessage(), e);
}
}
}
});
thread.setDaemon(true); // daemon, service jvm, user thread leave >>> daemon leave >>> jvm leave
thread.start();
}3.2 任务调度请求的处理 EmbedHttpServerHandler
1、FullHttpRequest中的content为自定义传递的参数
2、提交业务处理任务到bizThreadPool线程池异步处理
@Override
protected void channelRead0(final ChannelHandlerContext ctx, FullHttpRequest msg) throws Exception {
// request parse
//final byte[] requestBytes = ByteBufUtil.getBytes(msg.content()); // byteBuf.toString(io.netty.util.CharsetUtil.UTF_8);
String requestData = msg.content().toString(CharsetUtil.UTF_8);
String uri = msg.uri();
HttpMethod httpMethod = msg.method();
boolean keepAlive = HttpUtil.isKeepAlive(msg);
String accessTokenReq = msg.headers().get(XxlJobRemotingUtil.XXL_JOB_ACCESS_TOKEN);
// invoke
bizThreadPool.execute(new Runnable() {
@Override
public void run() {
// do invoke
Object responseObj = process(httpMethod, uri, requestData, accessTokenReq);
// to json
String responseJson = GsonTool.toJson(responseObj);
// write response
writeResponse(ctx, keepAlive, responseJson);
}
});
}
}3、业务处理 process方法，根据uri进行路由执行不同方法，我们先关注任务的执行 “/run”, ExecutorBizImpl.run(triggerParam)
private Object process(HttpMethod httpMethod, String uri, String requestData, String accessTokenReq) {
// valid
if (HttpMethod.POST != httpMethod) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "invalid request, HttpMethod not support.");
}
if (uri == null || uri.trim().length() == 0) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "invalid request, uri-mapping empty.");
}
if (accessToken != null
&& accessToken.trim().length() > 0
&& !accessToken.equals(accessTokenReq)) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "The access token is wrong.");
}
// services mapping
try {
switch (uri) {
case "/beat":
return executorBiz.beat();
case "/idleBeat":
IdleBeatParam idleBeatParam = GsonTool.fromJson(requestData, IdleBeatParam.class);
return executorBiz.idleBeat(idleBeatParam);
case "/run":
TriggerParam triggerParam = GsonTool.fromJson(requestData, TriggerParam.class);
return executorBiz.run(triggerParam);
case "/kill":
KillParam killParam = GsonTool.fromJson(requestData, KillParam.class);
return executorBiz.kill(killParam);
case "/log":
LogParam logParam = GsonTool.fromJson(requestData, LogParam.class);
return executorBiz.log(logParam);
default:
return new ReturnT<String>(ReturnT.FAIL_CODE, "invalid request, uri-mapping(" + uri + ") not found.");
}
} catch (Exception e) {
logger.error(e.getMessage(), e);
return new ReturnT<String>(ReturnT.FAIL_CODE, "request error:" + ThrowableUtil.toString(e));
}
}ExecutorBizImpl.run(triggerParam) :
1、获取JobHandler
Bean模式： 通过@XxlJob注解获取对应的handler信息,存储在ConcurrentMap<String, IJobHandler> jobHandlerRepository 中，key为@XxlJob的value； IJobHandler为MethodJobHandler
GLUE_GROOVY模式：new一个GlueJobHandler
Script模式：new一个ScriptJobHandler
2、获取JobThread， 存储位置：ConcurrentMap<Integer, JobThread> jobThreadRepository，key为任务id
阻塞策略ExecutorBlockStrategyEnum的实现
DISCARD_LATER 忽略本次提交，直接返回
COVER_EARLY 使用最新进行覆盖，通过重建JobThread来忽略之前未的任务，而执行本次提交的任务
SERIAL_EXECUTION 并行执行， 不做任何处理
3、触发参数放入对应的JobThread的触发队列LinkedBlockingQueue<TriggerParam> triggerQueue中，通过JobThread异步循环执行；
public ReturnT<String> run(TriggerParam triggerParam) {
// load old：jobHandler + jobThread
JobThread jobThread = XxlJobExecutor.loadJobThread(triggerParam.getJobId());
IJobHandler jobHandler = jobThread!=null?jobThread.getHandler():null;
String removeOldReason = null;
// valid：jobHandler + jobThread
GlueTypeEnum glueTypeEnum = GlueTypeEnum.match(triggerParam.getGlueType());
if (GlueTypeEnum.BEAN == glueTypeEnum) {
// new jobhandler
IJobHandler newJobHandler = XxlJobExecutor.loadJobHandler(triggerParam.getExecutorHandler());
// valid old jobThread
if (jobThread!=null && jobHandler != newJobHandler) {
// change handler, need kill old thread
removeOldReason = "change jobhandler or glue type, and terminate the old job thread.";
jobThread = null;
jobHandler = null;
}
// valid handler
if (jobHandler == null) {
jobHandler = newJobHandler;
if (jobHandler == null) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "job handler [" + triggerParam.getExecutorHandler() + "] not found.");
}
}
} else if (GlueTypeEnum.GLUE_GROOVY == glueTypeEnum) {
// valid old jobThread
if (jobThread != null &&
!(jobThread.getHandler() instanceof GlueJobHandler
&& ((GlueJobHandler) jobThread.getHandler()).getGlueUpdatetime()==triggerParam.getGlueUpdatetime() )) {
// change handler or gluesource updated, need kill old thread
removeOldReason = "change job source or glue type, and terminate the old job thread.";
jobThread = null;
jobHandler = null;
}
// valid handler
if (jobHandler == null) {
try {
IJobHandler originJobHandler = GlueFactory.getInstance().loadNewInstance(triggerParam.getGlueSource());
jobHandler = new GlueJobHandler(originJobHandler, triggerParam.getGlueUpdatetime());
} catch (Exception e) {
logger.error(e.getMessage(), e);
return new ReturnT<String>(ReturnT.FAIL_CODE, e.getMessage());
}
}
} else if (glueTypeEnum!=null && glueTypeEnum.isScript()) {
// valid old jobThread
if (jobThread != null &&
!(jobThread.getHandler() instanceof ScriptJobHandler
&& ((ScriptJobHandler) jobThread.getHandler()).getGlueUpdatetime()==triggerParam.getGlueUpdatetime() )) {
// change script or gluesource updated, need kill old thread
removeOldReason = "change job source or glue type, and terminate the old job thread.";
jobThread = null;
jobHandler = null;
}
// valid handler
if (jobHandler == null) {
jobHandler = new ScriptJobHandler(triggerParam.getJobId(), triggerParam.getGlueUpdatetime(), triggerParam.getGlueSource(), GlueTypeEnum.match(triggerParam.getGlueType()));
}
} else {
return new ReturnT<String>(ReturnT.FAIL_CODE, "glueType[" + triggerParam.getGlueType() + "] is not valid.");
}
// executor block strategy
if (jobThread != null) {
ExecutorBlockStrategyEnum blockStrategy = ExecutorBlockStrategyEnum.match(triggerParam.getExecutorBlockStrategy(), null);
if (ExecutorBlockStrategyEnum.DISCARD_LATER == blockStrategy) {
// discard when running
if (jobThread.isRunningOrHasQueue()) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "block strategy effect："+ExecutorBlockStrategyEnum.DISCARD_LATER.getTitle());
}
} else if (ExecutorBlockStrategyEnum.COVER_EARLY == blockStrategy) {
// kill running jobThread
if (jobThread.isRunningOrHasQueue()) {
removeOldReason = "block strategy effect：" + ExecutorBlockStrategyEnum.COVER_EARLY.getTitle();
jobThread = null;
}
} else {
// just queue trigger
}
}
// replace thread (new or exists invalid)
if (jobThread == null) {
jobThread = XxlJobExecutor.registJobThread(triggerParam.getJobId(), jobHandler, removeOldReason);
}
// push data to queue
ReturnT<String> pushResult = jobThread.pushTriggerQueue(triggerParam);
return pushResult;
}3.3 任务执行
JobThread 集成 Thread，核心的成员变量：
private int jobId; // 任务id
private IJobHandler handler; // 任务处理器
private LinkedBlockingQueue<TriggerParam> triggerQueue; // 任务触发队列
private Set<Long> triggerLogIdSet; // avoid repeat trigger for the same TRIGGER_LOG_ID
1、pushTriggerQueue 方法： 在上面3.2的任务调度请求处理中，由ExecutorBizImpl将任务参数添加到触发队列triggerQueue
2、核心run方法：
启动时，handler.init() 初始化
循环开始
- 从triggerQueue中获取触发任务，通过handler执行execute，
- 执行参数存在超时时间executorTimeout， 则使用线程异步执行execute，并通过FutureTask.get(long timeout, TimeUnit unit) 在超时后退出；
- 反之 ，直接执行
- 如triggerQueue没有获取到任务，超过30次循环并且triggerQueue中无任务，则移除任务id对应的JobThread，触发线程退出
- 最终通过TriggerCallbackThread回调线程推送执行结果
循环退出
检测triggerQueue，如存在任务则通过TriggerCallbackThread回调线程推送执行结果（killed）
最后，handler.destory() 销毁
package com.xxl.job.core.thread;
import com.xxl.job.core.biz.model.HandleCallbackParam;
import com.xxl.job.core.biz.model.ReturnT;
import com.xxl.job.core.biz.model.TriggerParam;
import com.xxl.job.core.context.XxlJobContext;
import com.xxl.job.core.context.XxlJobHelper;
import com.xxl.job.core.executor.XxlJobExecutor;
import com.xxl.job.core.handler.IJobHandler;
import com.xxl.job.core.log.XxlJobFileAppender;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.io.PrintWriter;
import java.io.StringWriter;
import java.util.Collections;
import java.util.Date;
import java.util.HashSet;
import java.util.Set;
import java.util.concurrent.*;
/**
* handler thread
* @author xuxueli 2016-1-16 19:52:47
*/
public class JobThread extends Thread{
private static Logger logger = LoggerFactory.getLogger(JobThread.class);
private int jobId;
private IJobHandler handler;
private LinkedBlockingQueue<TriggerParam> triggerQueue;
private Set<Long> triggerLogIdSet; // avoid repeat trigger for the same TRIGGER_LOG_ID
private volatile boolean toStop = false;
private String stopReason;
private boolean running = false; // if running job
private int idleTimes = 0; // idel times
public JobThread(int jobId, IJobHandler handler) {
this.jobId = jobId;
this.handler = handler;
this.triggerQueue = new LinkedBlockingQueue<TriggerParam>();
this.triggerLogIdSet = Collections.synchronizedSet(new HashSet<Long>());
// assign job thread name
this.setName("xxl-job, JobThread-"+jobId+"-"+System.currentTimeMillis());
}
public IJobHandler getHandler() {
return handler;
}
/**
* new trigger to queue
*
* @param triggerParam
* @return
*/
public ReturnT<String> pushTriggerQueue(TriggerParam triggerParam) {
// avoid repeat
if (triggerLogIdSet.contains(triggerParam.getLogId())) {
logger.info(">>>>>>>>>>> repeate trigger job, logId:{}", triggerParam.getLogId());
return new ReturnT<String>(ReturnT.FAIL_CODE, "repeate trigger job, logId:" + triggerParam.getLogId());
}
triggerLogIdSet.add(triggerParam.getLogId());
triggerQueue.add(triggerParam);
return ReturnT.SUCCESS;
}
/**
* kill job thread
*
* @param stopReason
*/
public void toStop(String stopReason) {
/**
* Thread.interrupt只支持终止线程的阻塞状态(wait、join、sleep)，
* 在阻塞出抛出InterruptedException异常,但是并不会终止运行的线程本身；
* 所以需要注意，此处彻底销毁本线程，需要通过共享变量方式；
*/
this.toStop = true;
this.stopReason = stopReason;
}
/**
* is running job
* @return
*/
public boolean isRunningOrHasQueue() {
return running || triggerQueue.size()>0;
}
@Override
public void run() {
// init
try {
handler.init();
} catch (Throwable e) {
logger.error(e.getMessage(), e);
}
// execute
while(!toStop){
running = false;
idleTimes++;
TriggerParam triggerParam = null;
try {
// to check toStop signal, we need cycle, so wo cannot use queue.take(), instand of poll(timeout)
triggerParam = triggerQueue.poll(3L, TimeUnit.SECONDS);
if (triggerParam!=null) {
running = true;
idleTimes = 0;
triggerLogIdSet.remove(triggerParam.getLogId());
// log filename, like "logPath/yyyy-MM-dd/9999.log"
String logFileName = XxlJobFileAppender.makeLogFileName(new Date(triggerParam.getLogDateTime()), triggerParam.getLogId());
XxlJobContext xxlJobContext = new XxlJobContext(
triggerParam.getJobId(),
triggerParam.getExecutorParams(),
logFileName,
triggerParam.getBroadcastIndex(),
triggerParam.getBroadcastTotal());
// init job context
XxlJobContext.setXxlJobContext(xxlJobContext);
// execute
XxlJobHelper.log("<br>----------- xxl-job job execute start -----------<br>----------- Param:" + xxlJobContext.getJobParam());
if (triggerParam.getExecutorTimeout() > 0) {
// limit timeout
Thread futureThread = null;
try {
FutureTask<Boolean> futureTask = new FutureTask<Boolean>(new Callable<Boolean>() {
@Override
public Boolean call() throws Exception {
// init job context
XxlJobContext.setXxlJobContext(xxlJobContext);
handler.execute();
return true;
}
});
futureThread = new Thread(futureTask);
futureThread.start();
Boolean tempResult = futureTask.get(triggerParam.getExecutorTimeout(), TimeUnit.SECONDS);
} catch (TimeoutException e) {
XxlJobHelper.log("<br>----------- xxl-job job execute timeout");
XxlJobHelper.log(e);
// handle result
XxlJobHelper.handleTimeout("job execute timeout ");
} finally {
futureThread.interrupt();
}
} else {
// just execute
handler.execute();
}
// valid execute handle data
if (XxlJobContext.getXxlJobContext().getHandleCode() <= 0) {
XxlJobHelper.handleFail("job handle result lost.");
} else {
String tempHandleMsg = XxlJobContext.getXxlJobContext().getHandleMsg();
tempHandleMsg = (tempHandleMsg!=null&&tempHandleMsg.length()>50000)
?tempHandleMsg.substring(0, 50000).concat("...")
:tempHandleMsg;
XxlJobContext.getXxlJobContext().setHandleMsg(tempHandleMsg);
}
XxlJobHelper.log("<br>----------- xxl-job job execute end(finish) -----------<br>----------- Result: handleCode="
+ XxlJobContext.getXxlJobContext().getHandleCode()
+ ", handleMsg = "
+ XxlJobContext.getXxlJobContext().getHandleMsg()
);
} else {
if (idleTimes > 30) {
if(triggerQueue.size() == 0) { // avoid concurrent trigger causes jobId-lost
XxlJobExecutor.removeJobThread(jobId, "excutor idel times over limit.");
}
}
}
} catch (Throwable e) {
if (toStop) {
XxlJobHelper.log("<br>----------- JobThread toStop, stopReason:" + stopReason);
}
// handle result
StringWriter stringWriter = new StringWriter();
e.printStackTrace(new PrintWriter(stringWriter));
String errorMsg = stringWriter.toString();
XxlJobHelper.handleFail(errorMsg);
XxlJobHelper.log("<br>----------- JobThread Exception:" + errorMsg + "<br>----------- xxl-job job execute end(error) -----------");
} finally {
if(triggerParam != null) {
// callback handler info
if (!toStop) {
// commonm
TriggerCallbackThread.pushCallBack(new HandleCallbackParam(
triggerParam.getLogId(),
triggerParam.getLogDateTime(),
XxlJobContext.getXxlJobContext().getHandleCode(),
XxlJobContext.getXxlJobContext().getHandleMsg() )
);
} else {
// is killed
TriggerCallbackThread.pushCallBack(new HandleCallbackParam(
triggerParam.getLogId(),
triggerParam.getLogDateTime(),
XxlJobContext.HANDLE_CODE_FAIL,
stopReason + " [job running, killed]" )
);
}
}
}
}
// callback trigger request in queue
while(triggerQueue !=null && triggerQueue.size()>0){
TriggerParam triggerParam = triggerQueue.poll();
if (triggerParam!=null) {
// is killed
TriggerCallbackThread.pushCallBack(new HandleCallbackParam(
triggerParam.getLogId(),
triggerParam.getLogDateTime(),
XxlJobContext.HANDLE_CODE_FAIL,
stopReason + " [job not executed, in the job queue, killed.]")
);
}
}
// destroy
try {
handler.destroy();
} catch (Throwable e) {
logger.error(e.getMessage(), e);
}
logger.info(">>>>>>>>>>> xxl-job JobThread stoped, hashCode:{}", Thread.currentThread());
}
}3.4 任务结果回调 - TriggerCallbackThread
1、存储任务回调结果： LinkedBlockingQueue<HandleCallbackParam> callBackQueue
2、start方法：启动triggerCallbackThread线程，从callBackQueue中获取回调信息，轮询 AdminBiz 调度中心上报，上报成功一个节点后即退出
3、上报失败则记录日志
3.5 注册和心跳检测机制
1、自动监控：admin 在 2.2 调度入口处，启动了JobRegistryHelper.start() 开启了一个注册监控线程 registryMonitorThread，每隔BEAT_TIMEOUT 30s 循环一次，检测xxl_job_registry表中自动注册的数据，通过update_time更新时间来判定失联（2 * BEAT_TIMEOUT：60s ），并从xxl_job_registry中移除，并更新xxl_job_group表汇总更新注册地址列表；
public class JobRegistryHelper {
private static Logger logger = LoggerFactory.getLogger(JobRegistryHelper.class);
private static JobRegistryHelper instance = new JobRegistryHelper();
public static JobRegistryHelper getInstance(){
return instance;
}
private ThreadPoolExecutor registryOrRemoveThreadPool = null;
private Thread registryMonitorThread;
private volatile boolean toStop = false;
public void start(){
// for registry or remove
registryOrRemoveThreadPool = new ThreadPoolExecutor(
2,
10,
30L,
TimeUnit.SECONDS,
new LinkedBlockingQueue<Runnable>(2000),
new ThreadFactory() {
@Override
public Thread newThread(Runnable r) {
return new Thread(r, "xxl-job, admin JobRegistryMonitorHelper-registryOrRemoveThreadPool-" + r.hashCode());
}
},
new RejectedExecutionHandler() {
@Override
public void rejectedExecution(Runnable r, ThreadPoolExecutor executor) {
r.run();
logger.warn(">>>>>>>>>>> xxl-job, registry or remove too fast, match threadpool rejected handler(run now).");
}
});
// for monitor
registryMonitorThread = new Thread(new Runnable() {
@Override
public void run() {
while (!toStop) {
try {
// auto registry group
List<XxlJobGroup> groupList = XxlJobAdminConfig.getAdminConfig().getXxlJobGroupDao().findByAddressType(0);
if (groupList!=null && !groupList.isEmpty()) {
// remove dead address (admin/executor)
List<Integer> ids = XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().findDead(RegistryConfig.DEAD_TIMEOUT, new Date());
if (ids!=null && ids.size()>0) {
XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().removeDead(ids);
}
// fresh online address (admin/executor)
HashMap<String, List<String>> appAddressMap = new HashMap<String, List<String>>();
List<XxlJobRegistry> list = XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().findAll(RegistryConfig.DEAD_TIMEOUT, new Date());
if (list != null) {
for (XxlJobRegistry item: list) {
if (RegistryConfig.RegistType.EXECUTOR.name().equals(item.getRegistryGroup())) {
String appname = item.getRegistryKey();
List<String> registryList = appAddressMap.get(appname);
if (registryList == null) {
registryList = new ArrayList<String>();
}
if (!registryList.contains(item.getRegistryValue())) {
registryList.add(item.getRegistryValue());
}
appAddressMap.put(appname, registryList);
}
}
}
// fresh group address
for (XxlJobGroup group: groupList) {
List<String> registryList = appAddressMap.get(group.getAppname());
String addressListStr = null;
if (registryList!=null && !registryList.isEmpty()) {
Collections.sort(registryList);
StringBuilder addressListSB = new StringBuilder();
for (String item:registryList) {
addressListSB.append(item).append(",");
}
addressListStr = addressListSB.toString();
addressListStr = addressListStr.substring(0, addressListStr.length()-1);
}
group.setAddressList(addressListStr);
group.setUpdateTime(new Date());
XxlJobAdminConfig.getAdminConfig().getXxlJobGroupDao().update(group);
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(">>>>>>>>>>> xxl-job, job registry monitor thread error:{}", e);
}
}
try {
TimeUnit.SECONDS.sleep(RegistryConfig.BEAT_TIMEOUT);
} catch (InterruptedException e) {
if (!toStop) {
logger.error(">>>>>>>>>>> xxl-job, job registry monitor thread error:{}", e);
}
}
}
logger.info(">>>>>>>>>>> xxl-job, job registry monitor thread stop");
}
});
registryMonitorThread.setDaemon(true);
registryMonitorThread.setName("xxl-job, admin JobRegistryMonitorHelper-registryMonitorThread");
registryMonitorThread.start();
}
}2、主动上报：启动一个注册或销毁的线程池registryOrRemoveThreadPool，用于executor主动注册或销毁,其实就是更新、新增、删除xxl_job_registry表
// ---------------------- helper ----------------------
public ReturnT<String> registry(RegistryParam registryParam) {
// valid
if (!StringUtils.hasText(registryParam.getRegistryGroup())
|| !StringUtils.hasText(registryParam.getRegistryKey())
|| !StringUtils.hasText(registryParam.getRegistryValue())) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "Illegal Argument.");
}
// async execute
registryOrRemoveThreadPool.execute(new Runnable() {
@Override
public void run() {
int ret = XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().registryUpdate(registryParam.getRegistryGroup(), registryParam.getRegistryKey(), registryParam.getRegistryValue(), new Date());
if (ret < 1) {
XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().registrySave(registryParam.getRegistryGroup(), registryParam.getRegistryKey(), registryParam.getRegistryValue(), new Date());
// fresh
freshGroupRegistryInfo(registryParam);
}
}
});
return ReturnT.SUCCESS;
}
public ReturnT<String> registryRemove(RegistryParam registryParam) {
// valid
if (!StringUtils.hasText(registryParam.getRegistryGroup())
|| !StringUtils.hasText(registryParam.getRegistryKey())
|| !StringUtils.hasText(registryParam.getRegistryValue())) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "Illegal Argument.");
}
// async execute
registryOrRemoveThreadPool.execute(new Runnable() {
@Override
public void run() {
int ret = XxlJobAdminConfig.getAdminConfig().getXxlJobRegistryDao().registryDelete(registryParam.getRegistryGroup(), registryParam.getRegistryKey(), registryParam.getRegistryValue());
if (ret > 0) {
// fresh
freshGroupRegistryInfo(registryParam);
}
}
});
return ReturnT.SUCCESS;
}
private void freshGroupRegistryInfo(RegistryParam registryParam){
// Under consideration, prevent affecting core tables
}3、executor上报时机
在【3.1 任务执行器的RPC服务提供】中executor服务初始化时，我们关注了核心的消息处理EmbedHttpServerHandler，在服务启动和销毁后，还通过ExecutorRegistryThread执行了一行注册和销毁动作 ;
public class EmbedServer {
private static final Logger logger = LoggerFactory.getLogger(EmbedServer.class);
private ExecutorBiz executorBiz;
private Thread thread;
public void start(final String address, final int port, final String appname, final String accessToken) {
executorBiz = new ExecutorBizImpl();
thread = new Thread(new Runnable() {
@Override
public void run() {
// param
// ... 省略
// start registry
startRegistry(appname, address);
// ... 省略
}
// ---------------------- registry ----------------------
public void startRegistry(final String appname, final String address) {
// start registry
ExecutorRegistryThread.getInstance().start(appname, address);
}
public void stopRegistry() {
// stop registry
ExecutorRegistryThread.getInstance().toStop();
}
}ExecutorRegistryThread: 启动registryThread线程，每隔BEAT_TIMEOUT：30s上报注册一次（通过上面提到的AdminBizClient的进行远程的registry调用）； 在停止线程后， 进行注册移除动作；
public class ExecutorRegistryThread {
private static Logger logger = LoggerFactory.getLogger(ExecutorRegistryThread.class);
private static ExecutorRegistryThread instance = new ExecutorRegistryThread();
public static ExecutorRegistryThread getInstance(){
return instance;
}
private Thread registryThread;
private volatile boolean toStop = false;
public void start(final String appname, final String address){
// valid
if (appname==null || appname.trim().length()==0) {
logger.warn(">>>>>>>>>>> xxl-job, executor registry config fail, appname is null.");
return;
}
if (XxlJobExecutor.getAdminBizList() == null) {
logger.warn(">>>>>>>>>>> xxl-job, executor registry config fail, adminAddresses is null.");
return;
}
registryThread = new Thread(new Runnable() {
@Override
public void run() {
// registry
while (!toStop) {
try {
RegistryParam registryParam = new RegistryParam(RegistryConfig.RegistType.EXECUTOR.name(), appname, address);
for (AdminBiz adminBiz: XxlJobExecutor.getAdminBizList()) {
try {
ReturnT<String> registryResult = adminBiz.registry(registryParam);
if (registryResult!=null && ReturnT.SUCCESS_CODE == registryResult.getCode()) {
registryResult = ReturnT.SUCCESS;
logger.debug(">>>>>>>>>>> xxl-job registry success, registryParam:{}, registryResult:{}", new Object[]{registryParam, registryResult});
break;
} else {
logger.info(">>>>>>>>>>> xxl-job registry fail, registryParam:{}, registryResult:{}", new Object[]{registryParam, registryResult});
}
} catch (Exception e) {
logger.info(">>>>>>>>>>> xxl-job registry error, registryParam:{}", registryParam, e);
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
try {
if (!toStop) {
TimeUnit.SECONDS.sleep(RegistryConfig.BEAT_TIMEOUT);
}
} catch (InterruptedException e) {
if (!toStop) {
logger.warn(">>>>>>>>>>> xxl-job, executor registry thread interrupted, error msg:{}", e.getMessage());
}
}
}
// registry remove
try {
RegistryParam registryParam = new RegistryParam(RegistryConfig.RegistType.EXECUTOR.name(), appname, address);
for (AdminBiz adminBiz: XxlJobExecutor.getAdminBizList()) {
try {
ReturnT<String> registryResult = adminBiz.registryRemove(registryParam);
if (registryResult!=null && ReturnT.SUCCESS_CODE == registryResult.getCode()) {
registryResult = ReturnT.SUCCESS;
logger.info(">>>>>>>>>>> xxl-job registry-remove success, registryParam:{}, registryResult:{}", new Object[]{registryParam, registryResult});
break;
} else {
logger.info(">>>>>>>>>>> xxl-job registry-remove fail, registryParam:{}, registryResult:{}", new Object[]{registryParam, registryResult});
}
} catch (Exception e) {
if (!toStop) {
logger.info(">>>>>>>>>>> xxl-job registry-remove error, registryParam:{}", registryParam, e);
}
}
}
} catch (Exception e) {
if (!toStop) {
logger.error(e.getMessage(), e);
}
}
logger.info(">>>>>>>>>>> xxl-job, executor registry thread destroy.");
}
});
registryThread.setDaemon(true);
registryThread.setName("xxl-job, executor ExecutorRegistryThread");
registryThread.start();
}
public void toStop() {
toStop = true;
// interrupt and wait
if (registryThread != null) {
registryThread.interrupt();
try {
registryThread.join();
} catch (InterruptedException e) {
logger.error(e.getMessage(), e);
}
}
}
}4、路由策略解析
ExecutorRouteFailover ： 快速失败，通过beat心跳检测executor是否在线；
ExecutorRouteBusyover： 空闲， 通过idleBeat检测executor是否空闲（JobThread运行 && triggerQueue>0）
还有其他的如下
public enum ExecutorRouteStrategyEnum {
FIRST(I18nUtil.getString("jobconf_route_first"), new ExecutorRouteFirst()),
LAST(I18nUtil.getString("jobconf_route_last"), new ExecutorRouteLast()),
ROUND(I18nUtil.getString("jobconf_route_round"), new ExecutorRouteRound()),
RANDOM(I18nUtil.getString("jobconf_route_random"), new ExecutorRouteRandom()),
CONSISTENT_HASH(I18nUtil.getString("jobconf_route_consistenthash"), new ExecutorRouteConsistentHash()),
LEAST_FREQUENTLY_USED(I18nUtil.getString("jobconf_route_lfu"), new ExecutorRouteLFU()),
LEAST_RECENTLY_USED(I18nUtil.getString("jobconf_route_lru"), new ExecutorRouteLRU()),
FAILOVER(I18nUtil.getString("jobconf_route_failover"), new ExecutorRouteFailover()),
BUSYOVER(I18nUtil.getString("jobconf_route_busyover"), new ExecutorRouteBusyover()),
SHARDING_BROADCAST(I18nUtil.getString("jobconf_route_shard"), null);
}
