ShaderToy学习笔记 05.3D旋转

1. 3D旋转

1.1. 汇制立方体

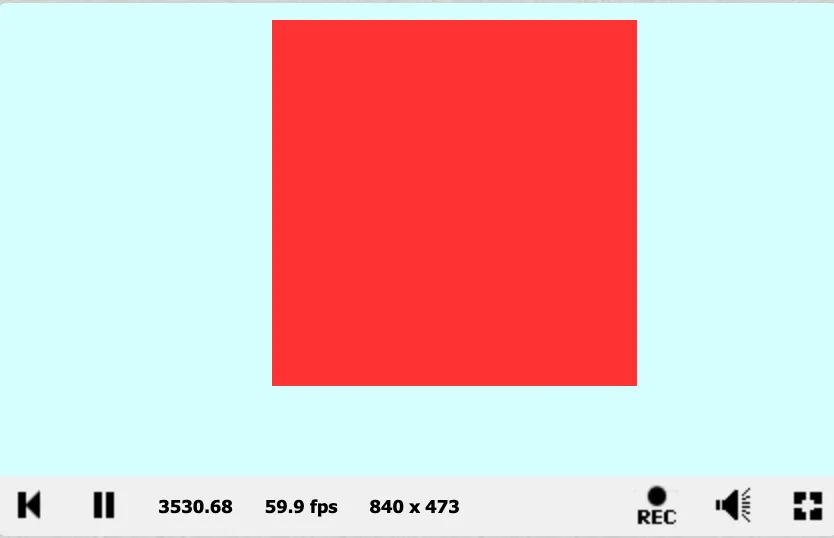

由于立方体没有旋转，所以正对着看过去时，看起来是正方形的，所以需要旋转一下，才能看到立方体的样子。
常见几何体的SDF

BOX 的SDF为

float sdBox( vec3 p, vec3 b )
{vec3 q = abs(p) - b;return length(max(q,0.0)) + min(max(q.x,max(q.y,q.z)),0.0);
}

添加了offset及color的公式为

SDFResult sdBox( vec3 p, vec3 b,vec3 offset,vec3 color )
{vec3 q = abs(p-offset) - b;return SDFResult(length(max(q,0.0)) + min(max(q.x,max(q.y,q.z)),0.0),color);
}

完整代码如下

#define PIXW (1./iResolution.y)const int MAX_STEPS = 100;
const float START_DIST = 0.001;
const float MAX_DIST = 100.0;
const float EPSILON = 0.0001;struct SDFResult
{float d;vec3 color;
};vec3 getBackgroundColor(vec2 uv)
{
//uv.y [-1,1]
//y: [0,1] float y=(uv.y+1.)/2.; return mix(vec3(1,0,1),vec3(0,1,1),y);
}SDFResult sdSphere(vec3 p, float r,vec3 offset,vec3 color)
{return SDFResult(length(p-offset)-r,color);
}
SDFResult sdBox( vec3 p, vec3 b,vec3 offset,vec3 color )
{vec3 q = abs(p-offset) - b;return SDFResult(length(max(q,0.0)) + min(max(q.x,max(q.y,q.z)),0.0),color);
}SDFResult minWithColor(SDFResult a,SDFResult b)
{if (a.d<b.d){return a;}return b;
}
SDFResult sdScene(vec3 p)
{SDFResult result1=sdSphere(p,1.0,vec3(-2.5,0.5,-2),vec3(0.,0.8,0.8));SDFResult result2=sdSphere(p,1.0,vec3(2.5,0.5,-2),vec3(1.,0.58,0.29));//SDFResult result=minWithColor(result1,result2);SDFResult result=sdBox(p,vec3(1.0,1.0,.5),vec3(0.2,0.2,0.2),vec3(1.,0.,0.));return result;
}
//法线计算
vec3 calcNormal(vec3 p) {vec2 e = vec2(1.0, -1.0) * 0.0005; // epsilonfloat r = 1.; // radius of spherereturn normalize(e.xyy * sdScene(p + e.xyy).d +e.yyx * sdScene(p + e.yyx).d +e.yxy * sdScene(p + e.yxy).d +e.xxx * sdScene(p + e.xxx).d);
}SDFResult rayMarch(vec3 ro, vec3 rd,float start,float end)
{float d=start;float r=1.0;SDFResult result;for(int i=0;i<MAX_STEPS;i++){vec3 p=ro+rd*d;result=sdScene(p);d+=result.d;if(result.d<EPSILON || d>end) break;}result.d=d;return result;
}void mainImage( out vec4 fragColor, in vec2 fragCoord )
{// Normalized pixel coordinates (from -1 to 1)vec2 uv = (2.0*fragCoord-iResolution.xy)/iResolution.xx;float r=0.3;vec3 backgroundColor = vec3(0.835, 1, 1);//vec3 c=getBackgroundColor(uv);vec3 c=backgroundColor;vec3 ro = vec3(0, 0, 3); // ray origin that represents camera positionvec3 rd = normalize(vec3(uv, -1)); // ray directionSDFResult result=rayMarch(ro,rd,START_DIST,MAX_DIST);float d=result.d;if(d<MAX_DIST){//平行光源的漫反射计算vec3 p=ro+rd*d;vec3 n=calcNormal(p);vec3 lightPosition=vec3(2,2,7);//vec3 light_direction=normalize(vec3(1,0,5));vec3 light_direction=normalize(lightPosition-p);vec3 light_color=vec3(1,1,1);float diffuse=max(0.0,dot(n,light_direction));diffuse=clamp(diffuse,0.1,1.0);c=light_color*diffuse*result.color+backgroundColor*0.2;}// Output to screenfragColor = vec4(vec3(c),1.0);
}

1.2. 旋转

在三维空间中，我们需要分别考虑绕 X 轴、Y 轴和 Z 轴的旋转。每个轴的旋转都有其对应的旋转矩阵：

绕 X 轴旋转 θ 角度的矩阵：

$R_x(\theta )=\left(\begin{array}{cccc}1& 0& 0& 0\\ 0& \cos \theta & -\sin \theta & 0\\ 0& \sin \theta & \cos \theta & 0\\ 0& 0& 0& 1\end{array}\right)$

绕 Y 轴旋转 θ 角度的矩阵：

$R_y(\theta )=\left(\begin{array}{cccc}\cos \theta & 0& \sin \theta & 0\\ 0& 1& 0& 0\\ -\sin \theta & 0& \cos \theta & 0\\ 0& 0& 0& 1\end{array}\right)$

绕 Z 轴旋转 θ 角度的矩阵：

$R_z(\theta )=\left(\begin{array}{cccc}\cos \theta & -\sin \theta & 0& 0\\ \sin \theta & \cos \theta & 0& 0\\ 0& 0& 1& 0\\ 0& 0& 0& 1\end{array}\right)$

对于任意点 P(x, y, z)，旋转后的坐标 P’(x’, y’, z’) 可以通过矩阵乘法得到：

$P^{\prime }=R\cdot P$

如果需要进行多个轴的组合旋转，最终的旋转矩阵是各个轴向旋转矩阵的乘积。注意矩阵乘法的顺序会影响最终结果：

$R_{total}=R_z\cdot R_y\cdot R_x$

在实际应用中，我们通常会使用四阶矩阵（4x4）来表示这些变换，以便与其他变换（如平移、缩放）进行组合。

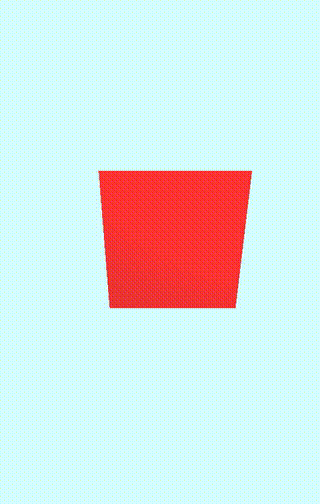

1.3. X 轴旋转

代码实现

mat4 rotationX(float theta)
{return mat4(1.0, 0.0, 0.0, 0.0,0.0, cos(theta), -sin(theta), 0.0,0.0, sin(theta), cos(theta), 0.0,0.0, 0.0, 0.0, 1.0);
}SDFResult sdBox( vec3 p, vec3 b,vec3 offset,vec3 color ,mat4 transform)
{p=(transform*vec4(p-offset,1.0)).xyz;vec3 q = abs(p) - b;return SDFResult(length(max(q,0.0)) + min(max(q.x,max(q.y,q.z)),0.0),color);
}

因为 GLSL 中矩阵乘法是右乘的，vec3 类型的点需要先扩展为 vec4（齐次坐标），然后与 mat4 相乘，最后提取出 .xyz 部分。

1.3.1. 完整代码

#define PIXW (1./iResolution.y)const int MAX_STEPS = 100;
const float START_DIST = 0.001;
const float MAX_DIST = 100.0;
const float EPSILON = 0.0001;
const float PI = 3.1415926535897932384626433832795;
struct SDFResult
{float d;vec3 color;
};mat4 rotationX(float theta)
{return mat4(1.0, 0.0, 0.0, 0.0,0.0, cos(theta), -sin(theta), 0.0,0.0, sin(theta), cos(theta), 0.0,0.0, 0.0, 0.0, 1.0);
}
vec3 getBackgroundColor(vec2 uv)
{
//uv.y [-1,1]
//y: [0,1] float y=(uv.y+1.)/2.; return mix(vec3(1,0,1),vec3(0,1,1),y);
}SDFResult sdSphere(vec3 p, float r,vec3 offset,vec3 color)
{return SDFResult(length(p-offset)-r,color);
}
SDFResult sdBox( vec3 p, vec3 b,vec3 offset,vec3 color ,mat4 transform)
{p=(transform*vec4(p-offset,1.0)).xyz;vec3 q = abs(p) - b;return SDFResult(length(max(q,0.0)) + min(max(q.x,max(q.y,q.z)),0.0),color);
}SDFResult minWithColor(SDFResult a,SDFResult b)
{if (a.d<b.d){return a;}return b;
}
SDFResult sdScene(vec3 p)
{SDFResult result1=sdSphere(p,1.0,vec3(-2.5,0.5,-2),vec3(0.,0.8,0.8));SDFResult result2=sdSphere(p,1.0,vec3(2.5,0.5,-2),vec3(1.,0.58,0.29));//SDFResult result=minWithColor(result1,result2);SDFResult result=sdBox(p,vec3(1.0,1.0,.5),vec3(0.2,0.2,0.2),vec3(1.,0.,0.),rotationX(0.05*PI*iTime));return result;
}
//法线计算
vec3 calcNormal(vec3 p) {vec2 e = vec2(1.0, -1.0) * 0.0005; // epsilonfloat r = 1.; // radius of spherereturn normalize(e.xyy * sdScene(p + e.xyy).d +e.yyx * sdScene(p + e.yyx).d +e.yxy * sdScene(p + e.yxy).d +e.xxx * sdScene(p + e.xxx).d);
}SDFResult rayMarch(vec3 ro, vec3 rd,float start,float end)
{float d=start;float r=1.0;SDFResult result;for(int i=0;i<MAX_STEPS;i++){vec3 p=ro+rd*d;result=sdScene(p);d+=result.d;if(result.d<EPSILON || d>end) break;}result.d=d;return result;
}void mainImage( out vec4 fragColor, in vec2 fragCoord )
{// Normalized pixel coordinates (from -1 to 1)vec2 uv = (2.0*fragCoord-iResolution.xy)/iResolution.xx;float r=0.3;vec3 backgroundColor = vec3(0.835, 1, 1);//vec3 c=getBackgroundColor(uv);vec3 c=backgroundColor;vec3 ro = vec3(0, 0, 3); // ray origin that represents camera positionvec3 rd = normalize(vec3(uv, -1)); // ray directionSDFResult result=rayMarch(ro,rd,START_DIST,MAX_DIST);float d=result.d;if(d<MAX_DIST){//平行光源的漫反射计算vec3 p=ro+rd*d;vec3 n=calcNormal(p);vec3 lightPosition=vec3(2,2,7);//vec3 light_direction=normalize(vec3(1,0,5));vec3 light_direction=normalize(lightPosition-p);vec3 light_color=vec3(1,1,1);float diffuse=max(0.0,dot(n,light_direction));diffuse=clamp(diffuse,0.1,1.0);c=light_color*diffuse*result.color+backgroundColor*0.2;}// Output to screenfragColor = vec4(vec3(c),1.0);
}

1.4. 绕x,y,z轴旋转

核心代码

mat4 rotationX(float theta)
{return mat4(1.0, 0.0, 0.0, 0.0,0.0, cos(theta), -sin(theta), 0.0,0.0, sin(theta), cos(theta), 0.0,0.0, 0.0, 0.0, 1.0);
}mat4 rotationY(float theta)
{return mat4(cos(theta), 0.0, sin(theta), 0.0,0.0, 1.0, 0.0, 0.0,-sin(theta), 0.0, cos(theta), 0.0,0.0, 0.0, 0.0, 1.0);
}
mat4 rotationZ(float theta)
{return mat4(cos(theta), -sin(theta), 0.0, 0.0,sin(theta), cos(theta), 0.0, 0.0,0.0, 0.0, 1.0, 0.0,0.0, 0.0, 0.0, 1.0);
}

完整代码

#define PIXW (1./iResolution.y)const int MAX_STEPS = 100;
const float START_DIST = 0.001;
const float MAX_DIST = 100.0;
const float EPSILON = 0.0001;
const float PI = 3.1415926535897932384626433832795;
struct SDFResult
{float d;vec3 color;
};mat4 rotationX(float theta)
{return mat4(1.0, 0.0, 0.0, 0.0,0.0, cos(theta), -sin(theta), 0.0,0.0, sin(theta), cos(theta), 0.0,0.0, 0.0, 0.0, 1.0);
}mat4 rotationY(float theta)
{return mat4(cos(theta), 0.0, sin(theta), 0.0,0.0, 1.0, 0.0, 0.0,-sin(theta), 0.0, cos(theta), 0.0,0.0, 0.0, 0.0, 1.0);
}
mat4 rotationZ(float theta)
{return mat4(cos(theta), -sin(theta), 0.0, 0.0,sin(theta), cos(theta), 0.0, 0.0,0.0, 0.0, 1.0, 0.0,0.0, 0.0, 0.0, 1.0);
}vec3 getBackgroundColor(vec2 uv)
{
//uv.y [-1,1]
//y: [0,1] float y=(uv.y+1.)/2.; return mix(vec3(1,0,1),vec3(0,1,1),y);
}SDFResult sdSphere(vec3 p, float r,vec3 offset,vec3 color)
{return SDFResult(length(p-offset)-r,color);
}
SDFResult sdBox( vec3 p, vec3 b,vec3 offset,vec3 color ,mat4 transform)
{p=(transform*vec4(p-offset,1.0)).xyz;vec3 q = abs(p) - b;return SDFResult(length(max(q,0.0)) + min(max(q.x,max(q.y,q.z)),0.0),color);
}SDFResult minWithColor(SDFResult a,SDFResult b)
{if (a.d<b.d){return a;}return b;
}
SDFResult sdScene(vec3 p)
{SDFResult result1=sdSphere(p,1.0,vec3(-2.5,0.5,-2),vec3(0.,0.8,0.8));SDFResult result2=sdSphere(p,1.0,vec3(2.5,0.5,-2),vec3(1.,0.58,0.29));//SDFResult result=minWithColor(result1,result2);SDFResult result=sdBox(p,vec3(1.0,1.0,.5),vec3(0.2,0.2,0.2),vec3(1.,0.,0.),rotationX(0.05*PI*iTime)*rotationY(0.05*PI*iTime)*rotationY(0.05*PI*iTime)*  rotationZ(0.05*PI*iTime));return result;
}
//法线计算
vec3 calcNormal(vec3 p) {vec2 e = vec2(1.0, -1.0) * 0.0005; // epsilonfloat r = 1.; // radius of spherereturn normalize(e.xyy * sdScene(p + e.xyy).d +e.yyx * sdScene(p + e.yyx).d +e.yxy * sdScene(p + e.yxy).d +e.xxx * sdScene(p + e.xxx).d);
}SDFResult rayMarch(vec3 ro, vec3 rd,float start,float end)
{float d=start;float r=1.0;SDFResult result;for(int i=0;i<MAX_STEPS;i++){vec3 p=ro+rd*d;result=sdScene(p);d+=result.d;if(result.d<EPSILON || d>end) break;}result.d=d;return result;
}void mainImage( out vec4 fragColor, in vec2 fragCoord )
{// Normalized pixel coordinates (from -1 to 1)vec2 uv = (2.0*fragCoord-iResolution.xy)/iResolution.xx;float r=0.3;vec3 backgroundColor = vec3(0.835, 1, 1);//vec3 c=getBackgroundColor(uv);vec3 c=backgroundColor;vec3 ro = vec3(0, 0, 3); // ray origin that represents camera positionvec3 rd = normalize(vec3(uv, -1)); // ray directionSDFResult result=rayMarch(ro,rd,START_DIST,MAX_DIST);float d=result.d;if(d<MAX_DIST){//平行光源的漫反射计算vec3 p=ro+rd*d;vec3 n=calcNormal(p);vec3 lightPosition=vec3(2,2,7);//vec3 light_direction=normalize(vec3(1,0,5));vec3 light_direction=normalize(lightPosition-p);vec3 light_color=vec3(1,1,1);float diffuse=max(0.0,dot(n,light_direction));diffuse=clamp(diffuse,0.1,1.0);c=light_color*diffuse*result.color+backgroundColor*0.2;}// Output to screenfragColor = vec4(vec3(c),1.0);
}

1.5. 缩放

缩放是指改变物体的大小。在计算机图形学中，我们可以使用矩阵来表示缩放。为了按我们预期的方式缩放物体，网格的中心需要是(0, 0, 0)。即缩放矩阵是针对网格的中心点进行缩放的，而不是针对世界空间的原点进行缩放。

1.5.1. 二维空间的缩放矩阵

在二维空间中，我们可以使用一个缩放矩阵来改变物体的大小。
缩放矩阵的形式为：

S = |sx 0||0 sy|

其中，sx 和 sy 分别表示物体在 x 轴和 y 轴上的缩放比例。
对于任意点 A(x, y)，缩放后的坐标 A’(x’, y’) 可以通过矩阵乘法得到：

A' = S * A

展开后得到缩放公式：

x' = sx * x
y' = sy * y

1.5.2. 三维空间的缩放矩阵

在三维空间中，我们需要分别考虑物体在 x 轴、y 轴和 z 轴上的缩放。
缩放矩阵的形式为：

S = |sx  0   0   0 ||0   sy  0   0 ||0   0   sz  0 ||0   0   0   1 |

其中，sx、sy 和 sz 分别表示物体在 x 轴、y 轴和 z 轴上的缩放比例。
对于任意点 A(x, y, z)，缩放后的坐标 A’(x’, y’, z’) 可以通过矩阵乘法得到：

A' = S * A

展开后得到缩放公式：

x' = sx * x
y' = sy * y
z' = sz * z

1.6. 组合变换

在计算机图形学中，我们经常需要将多个变换组合在一起，以创建更复杂的变换效果。例如，我们可以将缩放、旋转和平移组合在一起，以创建更复杂的变换效果。
其处理过程为：先进行缩放，再进行旋转，最后进行平移

由于矩阵乘法不满足交换律，所以变换的顺序十分关键。按照“先缩放，再旋转，最后平移”的顺序，最终的变换矩阵 M 为：

M = T * R * S

其中，T 是平移矩阵，R 是旋转矩阵，S 是缩放矩阵。
